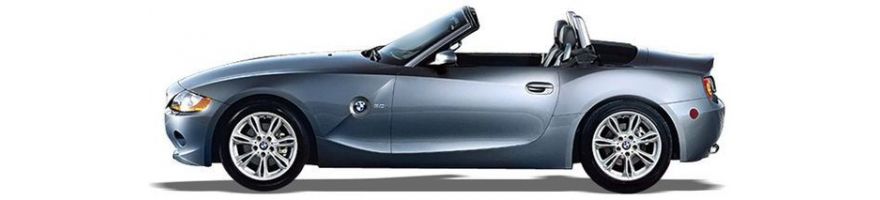

BMW Z4 E85
Manufacturers
BMW Z4 E85
Subcategories
This page gathers the uprated engine parts we stock for the M54B25 straight six of the BMW Z4 2.5i E85, 192hp, built from 2002 to 2005.
ZRP forged connecting rods in 4340 steel with an H beam, as a set of six or individually, ARP 2000 or ARP L19 bolts included. On the cylinder head: ATHENA or COMETIC uprated head gasket, SUPERTECH and FERREA intake and exhaust valves, SUPERTECH guides, valve stem seals and collets in 6mm, SUPERTECH or CATCAMS valve springs. For the bottom end, ACL Race and King Racing tri-metal big end and main bearings, in standard size or oversize. The VIBRA-TECHNICS engine mount and the M22x1.50 oil cooler adaptor complete the range.
This is the best stocked page of the naturally aspirated M54 range: the M54B30 straight six of the BMW Z4 3.0i E85, 231hp, built from 2002 to 2005.
Wiseco forged pistons in six sizes, from 84 to 84.5mm bore, 9:1 or 11:1 compression ratio, 22mm gudgeon pin, rings included. ZRP forged connecting rods in 4340 steel, I beam, 135mm centre to centre, ARP 2000 or ARP L19 bolts included, backed by the set of twelve ARP uprated con rod bolts. CATCAMS Sport camshafts to improve cylinder filling. On the cylinder head: ATHENA or COMETIC gasket, SUPERTECH and FERREA valves, guides, stem seals and collets, SUPERTECH or CATCAMS springs. ACL Race and King Racing tri-metal bearings.
This page covers the N52B30 straight six of the BMW Z4 3.0 E85, 265hp, built from 2006 to 2008.
It is deliberately short: two references only, but the two parts that give up first once power goes up. The ZRP forged connecting rods in 4340 steel replace the standard rods, as a set of six, with ARP 2000 or ARP L19 bolts of your choice; the same set covers the 130i E81, 128i E82, 328i E90 and 530i E60, which share this block. The VIBRA-TECHNICS uprated engine mount, designed for the Z4 E85 and E86, removes unwanted movement of the drivetrain. No other part family is listed for this engine code to date.
The best stocked page of the whole Z4 range: the S54B32 of the BMW Z4M E85, 343hp, built from 2006 to 2008.
JE FSR, Wiseco and Wössner forged pistons, from 87 to 87.5mm bore, 8.5:1 to 12.5:1 compression ratio, 21mm gudgeon pin. ZRP I beam and BOOSTLINE I-3P forged rods, with ARP 2000, L19 or CA625+ bolts. ATHENA or COMETIC MLS head gasket in 87.5mm, 0.69, 0.76 and 1.02mm thicknesses. SUPERTECH and FERREA valves, stainless steel on the intake and Inconel on the exhaust, standard size and +1.00mm, with guides, springs and collets. CATCAMS camshafts and cam followers, VANOS delete pulley. ACL Race and King Racing bearings, ARP bolts, FIC 1200cc injectors and NGK spark plugs.
Kit of 12 ARP uprated con rod bolts for the BMW 3.2 24V S54B32:BMW M3 E46 2000 - 2006BMW M3 CSL E46 2003BMW Z3M E36 2001 - 2003BMW Z4M E86 2006 - 2008
CATCAMS sport camshafts and 24 rocker arms for the BMW 3.2 24V S54B32:BMW M3 E46 2000 - 2006 BMW M3 CSL E46 2003 BMW Z3M E36 2001 - 2003 BMW Z4M E86 2006 - 2008CATCAMS part numbers: 1301804, 1301805, 1301806, 1301807, 1301808, 1301809
DINAN performance panel air filter D401-0035 for BMW fitted with the N54B30 3.0 litre twin-turbo.Fits BMW 135i E82/E88 (N54B30), BMW 1M E82 (N54B30), BMW 335i E90/E92/E93 (N54B30), BMW Z4 35i E89 (N54B30). Drops straight into the standard airbox in place of the OEM filter, for more airflow and a stronger induction note.Please note: clearance item, no...
Exhaust Supertech Valve Stem Gaskets forBMW / TOYOTA B58 N53 N54 N55 S55BMW 135i M135i M140i 1M E8X F2XBMW M235i M240i M2 CS M2 COMPetition F22 F87 G42BMW 325i 330i 335i 340i M340i M3/CS/COMPET E9X F30 F80 G20BMW 435i 440i M4/COMPET/GTS F32 F82BMW 523i 525i 528i 530i 535i 540i E60 F10 F90 G30BMW 630i 640i E63 F13BMW Z4 3.0i M40i E89 G29TOYOTA Supra/GR
Set of 6 FIC high flow injectors, 1200cc/min, reference IS801-1200H, for the BMW S54B32.BMW M3 E46 (S54B32, 3.2 straight-six)BMW Z4M E85/E86 (S54B32)High impedance, works with the standard ECU. For turbo and supercharger builds.Clearance item: no returns accepted.
Set of 6 forged connecting rods in 4340 steel for the BMW 3.0L 24V Twin-Turbo N54B30.Brands: ZRP, Manley, Boostline Compatibility: BMW 135i, 1M, 335i, 335is, 535i, 740i, X6 35i, Z4 35i/35is Engine codes: N54B30 Bolts included: ARP 2000, L19 or CA625+
Set of 6 forged 4340-steel connecting rods for BMW 6-cylinder, 135 mm c-to-c.Brands: ZRP Compatibility: 325i E30, 328i E36, 330i E46, M3 E36 US Engine codes: M20B25, M50B25 no VANOS, M52B28, M54B30, S50B30 US, S52B32 US Bolts: ARP 2000 or L19
Wiseco forged pistons for BMW M54B30: 6 references O 84-84.5 mm, RV 9:1 or 11:1, axle 22 mm, CH 28.32.30.32 mm, dome ⌀7.3 cc, segments included.
BMW N54B30 3.0L forged pistons: bores 84 / 84.5mm, compression ratio 9.0 - 10.5:1, 22mm gudgeon pin. Manley, JE, Diamond and Wössner quality; comparison table, engine & vehicle compatibilities included.
BMW S54B32 3.2 L forged pistons bores 87-87.5 mm, RV 8.5-12.5:1, axle 21 mm. JE, Wiseco, Wossner, Supertech; specs tables, M3 E46 & Z4 M compatibilities, OEM reference.
Intake Valve Stem Gaskets SupertechBMW / TOYOTA B58 N53 N54 N55 S55BMW 135i M135i M140i 1M E8X F2XBMW M235i M240i M2 CS M2 COMPetition F22 F87 G42BMW 325i 330i 335i 340i M340i M3/CS/COMPET E9X F30 F80 G20BMW 435i 440i M4/COMPET/GTS F32 F82BMW 523i 525i 528i 530i 535i 540i E60 F10 F90 G30BMW 630i 640i E63 F13BMW Z4 3.0i M40i E89 G29TOYOTA Supra/GR
Adapter for fitting an oil cooler to BMW M52 and M54 engines. Screws in place of the oil filter housing plug. M22x1.50 inlet and outlet. Reference OCTBMW1.Clearance item: no returns accepted.
Kit of 12 SUPERTECH / FERREA performance exhaust valves for the BMW 3.0 24V N54B30 double VANOS bi-turbo:BMW 135i / 1M E82 / E88 2007 - 2013 BMW 335i E90 / E91 / E92 / E93 2006 - 2012 BMW Z4 3.0i E89 2009 - 2016References: BMEVI-1054S-HS, BMEVI-1054S-HS-1, F2365P, F2366P
12 SUPERTECH / FERREA exhaust valve kit for BMW S54B32:BMW M3 E46 2000 - 2006 BMW Z3M E36 2001 - 2003 BMW Z4M E85 E86 2006 - 2008References: BMEVN-1040, BMEVI-1040S, BMEVI-1040S-LC, BMEVI-1045S, F2360P
Kit of 12 SUPERTECH / FERREA performance intake valves for the BMW 3.0 24V N53B30 and N54B30:BMW 135i / 1M E82 / E88 2007 - 2013 BMW 325i / 330i / 335i E90 / E91 / E92 / E93 2006 - 2013 BMW 525i / 530i E60 / E61 2007 - 2010 BMW 523i / 528i / 530i F10 / F11 2009 - 2013 BMW 630i E63 / E64 2007 - 2010 BMW Z4 3.0i E89 2009 - 2016References: BMIVN-1054S,...
12 SUPERTECH / FERREA intake valve kit for BMW S54B32:BMW M3 E46 2000 - 2006BMW Z3M E36 2001 - 2003BMW Z4M E85 E86 2006 - 2008References: BMIVN-1040, BMIVN-1040S, BMIVN-1040S-LC, BMIVN-1045SPlease note: these are the intake valves. The exhaust valves are supplied as a separate kit.
Kit of 12 reinforced ARP connecting rod bolts for the BMW 2.8/3.0 24V M52B28, single and double VANOS, and M54B30:BMW 328i E36 1995 - 1999 BMW 328i E46 1998 - 2000 BMW 330i E46 2000 - 2006 BMW 530i E39 2000 - 2003 BMW 530i E60 2001 - 2005 BMW Z3 2.8 E36 1996 - 2000 BMW Z3 3.0 E36 2000 - 2003 BMW Z4 3.0 E85 2002 - 2005
Kit of 14 ARP2000 cylinder head studs for BMW M3 E46, M3 CSL, Z3 M and Z4 M (S54B32).Brand: ARP Engines: S54B32 Thread: M11 x 1.5 Grade: ARP2000
Kit of 14 ARP 8740 crankshaft main studs for BMW S54B32 and S50B30 engines.Brand: ARP Engines: S54B32, S50B30 Thread: M10 x 1.5 Grade: 8740 steel
Reinforced Athena and Cometic head gasket, in O-Ring and MLS. Sold individually.Brands: Athena, CometicEngines: M52B25TU, M52B28TU, M54B25, M54B30Bores: 84.5 to 87.6 mmThicknesses: 0.69 to 3.56 mmReplaces: 11 12 7 501 304
Reinforced Cometic head gasket, in MLS. Sold individually, one gasket per engine.Brand: CometicEngines: M54B22Bore: 81 mmThicknesses: 0.69 to 3.56 mmReplaces: 11 12 7 506 983
Reinforced Athena and Cometic head gasket, in O-Ring and MLX. Sold individually.Brands: Athena, CometicEngines: N54B30Bores: 85 to 86 mmThicknesses: 0.81 to 1.85 mmReplaces: 11 12 7 557 265
Reinforced Athena and Cometic head gasket, in O-Ring and MLS. Sold individually.Brands: Athena, CometicEngines: S54B32Bores: 87.5 to 88 mmThicknesses: 0.69 to 3.56 mmReplaces: 11 12 7 835 918
Set of 12 reinforced exhaust valves for BMW M50 VANOS, M52 and M54.Brands: SUPERTECH, FERREA Engines: M50B25TU, M52, M54, S50B30US, S52B32US Dimensions: 30.5 mm or 31.5 mm head, 6 mm stem Material: stainless steel or Inconel, 1 or 3 grooves
Set of 12 reinforced intake valves for BMW M50 VANOS, M52 and M54.Brands: SUPERTECH, FERREA Engines: M50B25TU, M52, M54, S50B30US, S52B32US Dimensions: 33 mm or 34 mm head, 6 mm stem Material: stainless steel, 1 or 3 grooves
Kit of 24 reinforced valve springs for BMW M50 VANOS, M52 and M54.Brands: CATCAMS, SUPERTECH, FERREA Engines: M50TU, M52, M54, S50B30US, S52B32US Springs: single or dual Contents: springs, upper retainers, lower spring seats depending on kit
High-quality Reinforced Valve Springs BMW N53B30 N54B30 N55B30 S55B30 (Reinforced Valve Springs BMW N53B30 N54B30 N55B30 S55B30) for reliable fitment and performance.
Set of 6 NGK spark plugs for the BMW M3 (E46) incl. CSL from June 2000 to July 2006, 3.2 24V S54B32 engine
Catcams Sport Camshafts for BMW 3.0 24V N54B30:BMW 135 i / 1M E82 / E88 2007 - 2013BMW 335 JE-E90 / E91 / E92 / E93 2006 - 2012BMW Z4 3.0i E89 2009 - 2016References Catcams: 1305001, 1305002, 1305003
Catcams Sport Camshafts for BMW 3.0 24V M54B30:BMW 330 JE-E46 2000 - 2006BMW 530 JE-E39 1998 - 2001BMW Z3 3.0 JE-E36 2000 - 2003BMW Z4 3.0 JE-E85 2002 - 2005References Catcams: 1304501, 1304504
SUPERTECH / CATCAMS uprated valve spring kit for BMW 3.2 24V S54B32:BMW M3 E46 2000 - 2006BMW M3 CSL E46 2003BMW Z3M E36 2001 - 2003BMW Z4M E86 2006 - 2008CATCAMS references: PAC-D12009, 99496/S, 99497/O, SPRK-2521-2BM-ST
Kit of 24 half-moon valve collets for SUPERTECH / FERREA valves, 6mm diameter:Number of grooves of your choiceReferences: KPR-6S-7-24, KPR-VW6-T-24
Kit of 24 valve guides for BMW M50 VANOS, M52 and M54.Brand: SUPERTECH Engines: M50TU, M52, M54, S50B30US, S52B32US Material: manganese bronze, intake and exhaust Dimensions: OD 12.6 mm, ID 6.0 mm, length 43.3 mm
Set of 12 exhaust valve stem seals for BMW 24V six-cylinders.Brand: SUPERTECH Engines: M50TU, M52, M52TU, M54, S50B32, S54B32, S50B30US, S52B32US Material: Viton (FKM)
Set of 12 intake valve stem seals for BMW 24V six-cylinders and VAG 1.8T 20V.Brand: SUPERTECH BMW engines: M50TU, M52, M52TU, M54, S50B32, S54B32, S50B30US, S52B32US VAG engines: 1.8T 20V Material: Polyacrylate (ACM)
Trimetal Crankshaft Bearings ACL Race / King RacingBMW N54 N55 S55BMW 135i / M135i / 1M E82 F20/F21 2007-BMW M235i / M2 / M2 CS / M2 COMPetition F22 F87 2013-2021BMW 335i / M3 / M3 CS / M3 COMPetition E9X F80 2006-2018BMW 435i / M4 / M4 COMPetition / M4 GTS F32 F82 2013-2020BMW 535i F10 2009-2016BMW 640i F13 2011-2017BMW Z4 E89 2009-2016References:...
Tri-metal main bearings ACL RACE / KING RACING for BMW M20B25, M50B20/B25, M52B25/B28, M54B25/B30, S50B30/B32, S54B32:BMW 325i E30 1983-1993 BMW 320i 323i 325i M3 E36 1991-2000 BMW 323i 325i 330i M3 E46 1998-2006 BMW 520i 525i E34 1988-1996 BMW 523i 525i 530i E39 1996-2004 BMW 525i 530i E60 2001-2010 BMW Z3 Z4 2.0 3.0 Z3M Z4M E36 E85 1999-2008
Set of 12 trimetal connecting rod half-bearings for BMW inline-six M20, M50, M52 and M54.Brands and treatments: ACL Race and King Racing (optional pMaxKote coating) Compatibility: E30, E34, E36, E39, E46, E60, Z3, Z4 Engine codes: M20, M50, M52, M54, S50B30US, S52B32US Available sizes: standard to +0.50 mm, increased-clearance versions (HX / STDX)
Set of 12 trimetal connecting rod half-bearings for BMW inline-six S54B32.Brands and treatments: ACL Race and King Racing (optional pMaxKote coating) Compatibility: M3 E46 coupé, CSL and convertible, Z3 M, Z4 M Engine codes: S54B32 Available sizes: standard to +0.50 mm, increased-clearance versions (HX, STDX)
Set of 12 trimetal connecting rod half-bearings for BMW N54B30 N55B30 S55B30.Brands and treatments: ACL Race, ACL Calico and King GPC Compatibility: E82, E90, F20, F22, F30, F32, F80, F82 Engine codes: N54B30, N55B30, S55B30 Available sizes: standard to +0.50 mm, increased-clearance versions (HX, STDX)
Uprated engine and axle mount VIBRA-TECHNICS for BMW Z4:BMW Z4 E85 / E86 Coupé / Roadster 2002-2009, M54 / N52 / S54 engines
Kit of 24 valve collets for SUPERTECH / FERREA valves, 5mm diameter: Number of grooves of your choiceReference: KPR-5.0-7S-24
kit of 48 half-moon/valve keys for SUPERTECH 6mm diameter: Number of grooves of your choice
High-quality Valve Guides BMW M3 E46 Z3M Z4M S54B32 (Valve Guides BMW M3 E46 Z3M Z4M S54B32) for reliable fitment and performance.
High-quality SProcket removal of vanOS BMW 3.2 24V S54B32 M3 E46 Z3 Z4 (SProcket removal vanOS BMW 3.2 24V S54B32 M3) for reliable fitment and performance.
The BMW Z4 E85 is broken down by engine here: 2.5i M54B25, 3.0i M54B30, 3.0 N52B30 and the 343hp Z4M S54B32.
The page gathers forged pistons and connecting rods, tri-metal bearings, uprated head gaskets, performance valves with SUPERTECH guides, dual springs, collets and valve stem seals, CATCAMS sport camshafts with rocker arms, a VANOS delete sprocket, ARP fasteners, an uprated engine mount, FIC high flow injectors and NGK spark plugs. Parts for the N54B30 twin-turbo six are also listed here.
