Reinforced valve spring kit BMW M50TU M52 M54

€599.04 (tax incl.)
€748.80 (tax incl.) -20%

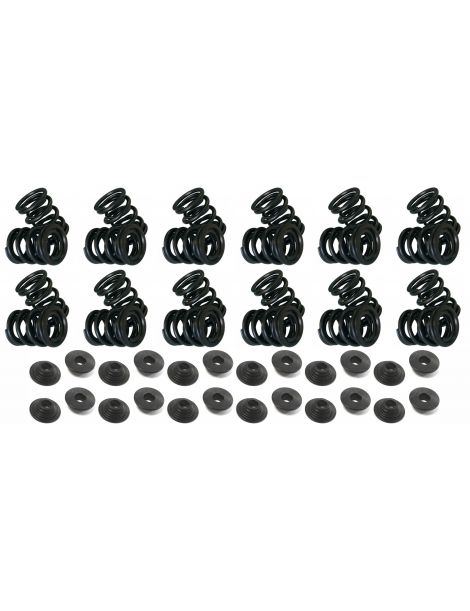

Kit of 24 reinforced valve springs for BMW M50 VANOS, M52 and M54.

  • Brands: CATCAMS, SUPERTECH, FERREA
  • Engines: M50TU, M52, M54, S50B30US, S52B32US
  • Springs: single or double
  • Contents: springs, upper retainers, lower spring seats depending on kit
PAC-S99843*24+99468/S*24
0 in stock in France
ORDER TODAY, WE SHIP IN 5 - 15 DAYS
Pay in installments

BMW engines covered

This kit covers the BMW 24-valve inline six-cylinder petrol engines with a 6 mm valve stem: the M50 in its VANOS versions (M50B20TU and M50B25TU, from September 1992), the M52 in 2.0, 2.5 and 2.8 litre form, the M52TU, then the M54 in 2.2, 2.5 and 3.0 litre form. They are found under the bonnet of the 3 Series E36 and E46, the 5 Series E34, E39 and E60, the 7 Series E38 and E65, as well as the Z3, Z4, X3 and X5.

Each valve is closed by a single spring, BMW part number 11 34 7 504 268 (superseding the original M50TU part 11 34 1 738 488), sitting on a lower spring seat 11 34 1 735 254 and held by an upper retainer and 3-groove valve collets.

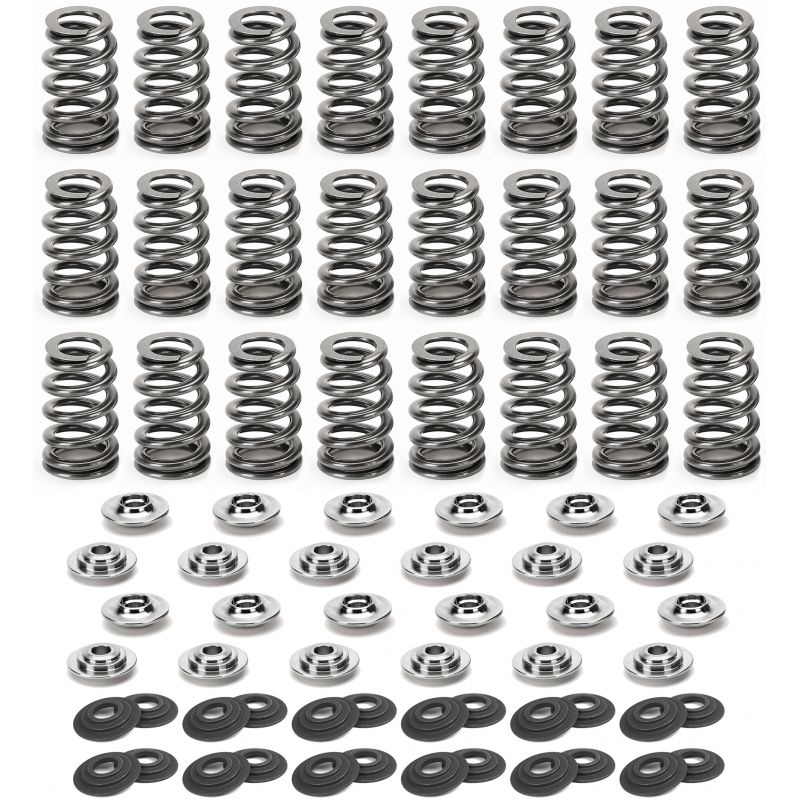

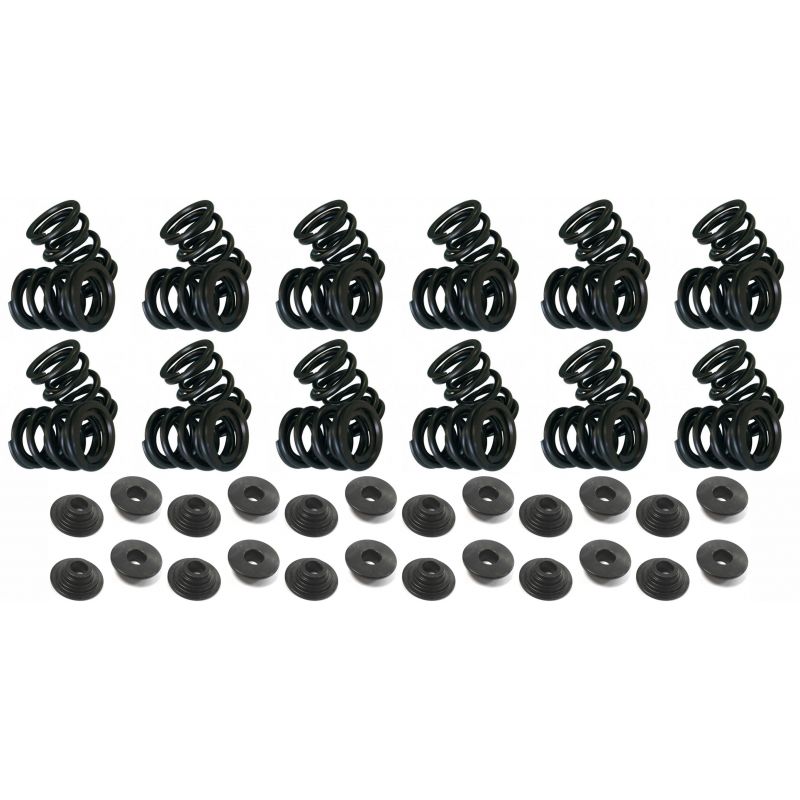

CATCAMS, SUPERTECH and FERREA reinforced valve spring kits

The valve spring closes the valve and keeps it in contact with the cam lobe. At high revs, the inertia of the valve increases: if the spring lacks load, the valve no longer follows the cam profile, bounces on its seat and can hit the piston. This is valve float, the first limit of an engine whose rev limit or lift is raised.

Compared with the original spring (about 245 N on the seat and 588 N at 10 mm lift), a reinforced kit raises the seat load by 22 to 71% to keep the valve under control: 343 N for the CATCAMS kit, up to 418 N on the seat and 930 N at 10 mm lift for the SUPERTECH 94 lbs kit. The SUPERTECH and FERREA kits combine double springs with titanium retainers, 40% lighter than a steel retainer according to FERREA: less moving mass for the same load. The CATCAMS kit keeps a single spring and a dedicated retainer, for a reinforcement close to the original assembly.

Valve spring kit technical specifications

Part numberBrandSpringsOuter / inner ØSeat loadOpen loadRateMax liftKit contents
PAC-S99843*24+99468/S*24 CATCAMS Single Outer 30.1 mm 343 N at 37.5 mm 932 N at 14.0 mm 24 springs, 24 upper retainers
SPRK-H100DR-BM SUPERTECH Double 67 lbs Outer 30.2 / 22.2 mm
Inner 22.2 / 16.8 mm
298 N at 35.7 mm 854 N at 10 mm 57.4 N/mm 13.5 mm 24 springs, 24 titanium upper retainers, 24 lower spring seats
SPRK-H1000D-BM SUPERTECH Double 80 lbs Outer 29.7 / 21.9 mm
Inner 20.5 / 15.5 mm
356 N at 35.7 mm 867 N at 10 mm 51.2 N/mm 12.7 mm 24 springs, 24 titanium upper retainers, 24 lower spring seats
SPRK-H1005D-BM SUPERTECH Double 94 lbs Outer 29.7 / 21.9 mm
Inner 20.5 / 15.5 mm
418 N at 35.7 mm 930 N at 10 mm 51.2 N/mm 12.5 mm 24 springs, 24 titanium upper retainers, 24 lower spring seats
KT4041 FERREA Double Outer 29.5 / 22.8 mm
Inner 22.8 / 17.1 mm
356 N at 36.0 mm 801 N at 10 mm 44.5 N/mm 14.0 mm 24 springs, 24 titanium upper retainers, 24 lower spring seats

Valve spring kit fitting

PartBMW originalReinforced spring kit
Spring 11 34 7 504 268, single (supersedes 11 34 1 738 488 on the M50TU) Kit specific
Upper retainer 11 34 1 432 453 (M52, M54) / 11 34 1 724 991 (M50) Kit specific
Lower spring seat 11 34 1 735 254 (M50TU, M52, M54) / 11 34 1 403 612 (S50B30US, S52B32US) Kit specific: SEAT-BM60 (SUPERTECH), SL1021 (FERREA), original kept (CATCAMS)
Valve collets 11 34 1 461 405 (3 grooves) Original or KPR-VW6-T

FERREA KT4041: the S10049 spring requires the E11025 titanium upper retainer and the SL1021 lower spring seat supplied in the kit; the original lower spring seat is discarded.

The installed height is the distance between the lower spring seat and the upper retainer with the valve closed. Each manufacturer states the seat load at its own installed height; if this height increases, for example after the valve seats have been recut, the load drops, for each millimetre, by the value of the spring rate (see the specifications table).

CATCAMSSUPERTECHFERREA
Installed height 37.5 mm 35.7 mm 36.0 mm
Seat load at this height 343 N 298 / 356 / 418 N 356 N

Technical guide

Our brands

SUPERTECH SUPERTECH, based in San Jose, California, has been making competition valvetrain parts for more than 30 years. Its springs are wound from very high purity chrome-silicon-vanadium wire and its retainers machined from military grade titanium, inspected by ultrasound, X-ray and laser.
FERREA FERREA Racing Components, founded in 1978 in Florida by two Argentinian engine builders, Horacio Ferrea and Daniel Urrutia, makes its entire valvetrain in house, from valves to springs, tappets and rocker arms. Its parts race in NASCAR, drag racing and on circuits.
CATCAMS CATCAMS (Cat Cams N.V.) is a Belgian camshaft and valvetrain manufacturer with a worldwide reputation, equipped with a CNC grinder able to cut inclined cams. Its springs and retainers complement its camshafts, which have raced in the BTCC and at the Le Mans 24 Hours.

How to choose

A reinforced kit keeps the valve in contact with the cam as revs rise: you can raise the rev limit, fit a more aggressive camshaft or a turbo without valve float. At 10 mm lift, the SUPERTECH and FERREA kits deliver 36 to 58% more load than the original spring. The only limit: your camshaft lift must stay below the kit's maximum lift, from 12.5 to 14.0 mm depending on the model.

CriterionKey point
Choosing the load The 67, 80 and 94 lbs values of the SUPERTECH kits are the seat load in pounds (298, 356 and 418 N). The load is chosen on three criteria: camshaft lift, target engine speed and boost pressure. The higher they are, the higher the load must be, while staying below the kit's maximum lift. But no more than necessary: an overly stiff spring wears the cams and can collapse the original hydraulic tappets. FERREA lists its spring in its « Dual Spring - Turbo » range; for the highest loads, CATCAMS offers solid tappets for the M50, M52 and M54B30.
Single or double spring Single (CATCAMS): original layout. Double (SUPERTECH, FERREA): two nested springs that share the load and damp each other's vibrations.

When reinforced springs become necessary

  • Camshafts with higher lift fitted
  • Raised rev limit
  • Turbocharger or supercharger added
  • Cylinder head rebuild on a circuit, drift or rally engine
  • Tired original springs or valve float observed at high revs

Vehicle compatibility

ModelEngine codePowerYears
320i (E36) M50B20TU 150 hp 1992-1995
520i 24V (E34) M50B20TU 150 hp 1992-1996
325i / 325is (E36) M50B25TU 192 hp 1992-1995
525i / 525iX (E34) M50B25TU 192 hp 1992-1996
320i (E36) M52B20 150 hp 1995-1999
520i (E39) M52B20 / M52TU B20 136-150 hp 1996-2003
320i / 320Ci (E46) M52TU B20 150 hp 1998-2001
Z3 2.0 (E36) M52TU B20 150 hp 1999-2003
323i / 323ti Compact (E36) M52B25 163-170 hp 1995-2000
523i (E39) M52B25 / M52TU B25 163-170 hp 1995-2000
323i / 323Ci (E46) M52TU B25 163-170 hp 1998-2000
Z3 2.3 (E36) M52TU B25 170 hp 1998-2000
328i (E36) M52B28 193 hp 1995-1999
528i (E39) M52B28 / M52TU B28 193 hp 1995-2000
728i / 728iL (E38) M52B28 / M52TU B28 193 hp 1995-2001
Z3 2.8 (E36) M52B28 / M52TU B28 193 hp 1996-2000
328i / 328Ci (E46) M52TU B28 193-196 hp 1998-2000
320i / 320Ci (E46) M54B22 163-170 hp 2000-2006
520i (E39 / E60) M54B22 163-170 hp 2000-2005
Z3 2.2i (E36) / Z4 2.2i (E85) M54B22 163-170 hp 2000-2005
325i / 325xi / 325Ci / 325ti (E46) M54B25 186-192 hp 2000-2006
525i (E39 / E60 / E61) M54B25 186-192 hp 2000-2005
Z3 2.5i / Z4 2.5i / X3 2.5i M54B25 186-192 hp 2000-2006
330i / 330xi / 330Ci (E46) M54B30 228-231 hp 2000-2006
530i (E39 / E60) M54B30 228-231 hp 2000-2005
730i / 730Li (E65 / E66) M54B30 231 hp 2003-2008
Z3 3.0i / Z4 3.0i M54B30 228-231 hp 2000-2005
X3 3.0i (E83) / X5 3.0i (E53) M54B30 228-231 hp 2000-2006
M3 (E36) 3.0 US S50B30US 239 hp 1994-1995
M3 (E36) 3.2 US S52B32US 243 hp 1996-1999
Z3 M 3.2 US S52B32US 239-243 hp 1998-2000

OEM part number (valve spring): 11 34 7 504 268 (M50TU, M52, M52TU, M54; supersedes 11 34 1 738 488 on the M50TU); 11 34 1 403 709 (S50B30US, S52B32US)

Important: these kits do not fit the M50 without VANOS built before September 1992, whose 7 mm stem valves use double springs and different retainers.

Don't forget the valves

A cylinder head rebuilt with reinforced springs is best fitted with new inlet and exhaust valves. We offer the matching valves for these engines:

BMW M50B25TU M52 M54 inlet valves →
BMW M50B25TU M52 M54 exhaust valves →
