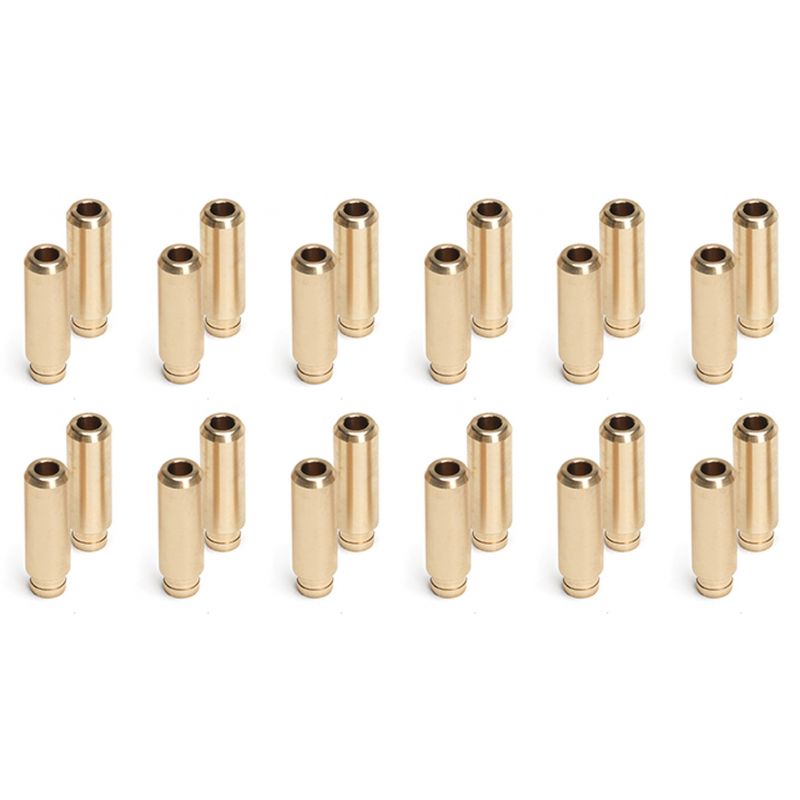

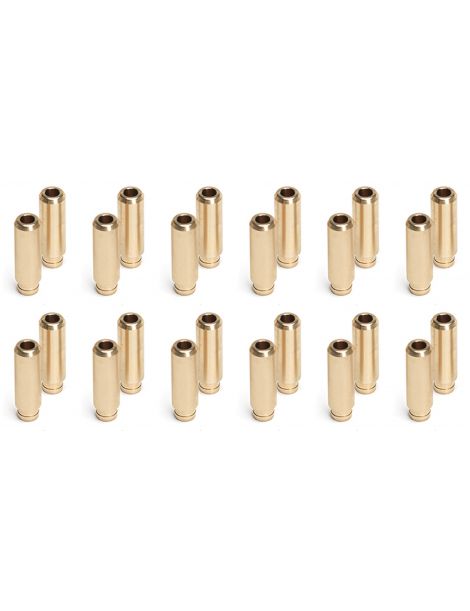

SUPERTECH bronze valve guides BMW M50TU M52 M54
Kit of 24 valve guides for BMW M50 VANOS, M52 and M54.
- Brand: SUPERTECH
- Engines: M50TU, M52, M54, S50B30US, S52B32US
- Material: Manganese bronze, inlet and exhaust
- Dimensions: OD 12.6 mm, ID 6.0 mm, length 43.3 mm
BMW engines concerned
The guides in this kit fit the 24-valve, 6 mm stem cylinder head of several BMW inline six-cylinder petrol engines: the M50 in its VANOS versions (M50B20TU and M50B25TU, from September 1992), the M52 in 2.0, 2.5 and 2.8 litre form, the M52TU, the M54 in 2.2, 2.5 and 3.0 litre form, as well as the S50B30US and S52B32US of the North American M3. These engines powered the 3 Series E36 and E46, the 5 Series E34, E39 and E60, the 7 Series E38 and E65, as well as the Z3, Z4, X3 and X5.
Each of the 24 valves slides in a guide pressed into the aluminium cylinder head. BMW specifies a bore of 6.0 mm for these guides and two repair sizes, 6.1 and 6.2 mm; repair guide 11 12 1 735 533 has an outside diameter of 12.7 mm (+0.2).
SUPERTECH manganese bronze valve guides
The valve guide centres the valve on its seat, transfers part of the stem heat to the cylinder head and carries the stem seal. When it wears, the valve rocks, seats poorly and lets oil pass along the stem: oil consumption, blue smoke and loss of compression.
SUPERTECH guides are machined to exact tolerances from manganese bronze, a copper alloy. According to SUPERTECH, this bronze transfers heat much better than the sintered guides fitted as original equipment by carmakers. These guides are usually fitted together with reinforced valves. The kit contains the 24 guides of one cylinder head, the same part number serving inlet and exhaust.
Valve guide technical specifications
| Part number | Brand | Material | Outside Ø OEM repair 12.7 mm | Inside Ø OEM 6.0 mm | Length |
|---|---|---|---|---|---|
| GDE-BMW-M50-EI-12*2 | SUPERTECH | Manganese bronze | 12.6 mm | 6.0 mm | 43.3 mm |
Valve guide installation
| Component | Original | Reinforced |
|---|---|---|
| Valve guide | Inside Ø 6.0 mm | Replaced by the kit |
| Inlet stem seal | 6 mm stem | VS-VBM6I-12 |
| Exhaust stem seal | 6 mm stem | VS-VBM6E-12 |
| Valves | 6 mm stem | Inlet / Exhaust |
Technical guide
The reinforced valves offered for these engines, with 6 mm stems:
| BMW M50TU M52 M54 inlet valves → |
| BMW M50TU M52 M54 exhaust valves → |
The brand offered
| For more than 30 years, SUPERTECH has designed valvetrain parts for racing in Silicon Valley, from valves to bronze guides. Its production goes through ultrasonic, X-ray and laser measurement checks, and every new product is proven with renowned engine builders. |
Manganese bronze
Manganese bronze is a copper and zinc alloy with additions of manganese, aluminium and iron. It combines high mechanical strength with good wear and corrosion resistance, and it is used for bushings and guide components subjected to heavy loads.
When valve guides must be replaced
- Oil consumption past the valve stems
- Fitting reinforced valves to a worn cylinder head
- Cylinder head rebuild on a track, drift or rally engine
- Complete valvetrain overhaul
Vehicle compatibility
| Model | Engine code | Power | Years |
|---|---|---|---|
| 320i (E36) | M50B20TU | 150 hp | 1992-1995 |
| 520i 24V (E34) | M50B20TU | 150 hp | 1992-1996 |
| 325i / 325is (E36) | M50B25TU | 192 hp | 1992-1995 |
| 525i / 525iX (E34) | M50B25TU | 192 hp | 1992-1996 |
| 320i (E36) | M52B20 | 150 hp | 1995-1999 |
| 520i (E39) | M52B20 / M52TU B20 | 136-150 hp | 1996-2003 |
| 320i / 320Ci (E46) | M52TU B20 | 150 hp | 1998-2001 |
| Z3 2.0 (E36) | M52TU B20 | 150 hp | 1999-2003 |
| 323i / 323ti Compact (E36) | M52B25 | 163-170 hp | 1995-2000 |
| 523i (E39) | M52B25 / M52TU B25 | 163-170 hp | 1995-2000 |
| 323i / 323Ci (E46) | M52TU B25 | 163-170 hp | 1998-2000 |
| Z3 2.3 (E36) | M52TU B25 | 170 hp | 1998-2000 |
| 328i (E36) | M52B28 | 193 hp | 1995-1999 |
| 528i (E39) | M52B28 / M52TU B28 | 193 hp | 1995-2000 |
| 728i / 728iL (E38) | M52B28 / M52TU B28 | 193 hp | 1995-2001 |
| Z3 2.8 (E36) | M52B28 / M52TU B28 | 193 hp | 1996-2000 |
| 328i / 328Ci (E46) | M52TU B28 | 193-196 hp | 1998-2000 |
| 320i / 320Ci (E46) | M54B22 | 163-170 hp | 2000-2006 |
| 520i (E39 / E60) | M54B22 | 163-170 hp | 2000-2005 |
| Z3 2.2i (E36) / Z4 2.2i (E85) | M54B22 | 163-170 hp | 2000-2005 |
| 325i / 325xi / 325Ci / 325ti (E46) | M54B25 | 186-192 hp | 2000-2006 |
| 525i (E39 / E60 / E61) | M54B25 | 186-192 hp | 2000-2005 |
| Z3 2.5i / Z4 2.5i / X3 2.5i | M54B25 | 186-192 hp | 2000-2006 |
| 330i / 330xi / 330Ci (E46) | M54B30 | 228-231 hp | 2000-2006 |
| 530i (E39 / E60) | M54B30 | 228-231 hp | 2000-2005 |
| 730i / 730Li (E65 / E66) | M54B30 | 231 hp | 2003-2008 |
| Z3 3.0i / Z4 3.0i | M54B30 | 228-231 hp | 2000-2005 |
| X3 3.0i (E83) / X5 3.0i (E53) | M54B30 | 228-231 hp | 2000-2006 |
| M3 (E36) 3.0 US | S50B30US | 239 hp | 1994-1995 |
| M3 (E36) 3.2 US | S52B32US | 243 hp | 1996-1999 |
| Z3 M 3.2 US | S52B32US | 239-243 hp | 1998-2000 |
OEM part number (valve guide): 11 12 1 735 533 (repair guide, outside Ø 12.7 mm +0.2)
Remember the valve stem seals
New valve stem seals should be fitted whenever the guides are replaced. We offer the SUPERTECH seals matching these engines:
| BMW M50TU M52 M54 inlet stem seals → |
| BMW M50TU M52 M54 exhaust stem seals → |
-
