Reinforced exhaust valves BMW M50B25TU M52B25 M52B28 M54B25 M54B30
Set of 12 reinforced exhaust valves for BMW M50 VANOS, M52 and M54.
- Brands: SUPERTECH, FERREA
- Engines: M50B25TU, M52, M54, S50B30US, S52B32US
- Dimensions: 30.5 mm or 31.5 mm head, 6 mm stem
- Material: stainless steel or Inconel, 1 or 3 grooves
BMW engines covered
As 24-valve inline six-cylinder petrol engines, the M50B25TU in its VANOS versions (from September 1992), the M52 in 2.5 and 2.8 litre form, the M52TU and then the M54 in 2.5 and 3.0 litre form power a large part of the BMW range: 3 Series E36 and E46, 5 Series E34, E39 and E60, 7 Series E38 and E65, as well as the Z3, Z4, X3 and X5.
Each engine is fitted with 12 bi-metal exhaust valves with a 6 mm stem, BMW part number 11 34 1 739 823 (11 34 7 505 731 on the M54, same dimensions): 30.5 mm head, 6.0 mm stem, 105.7 mm length, held by 3-groove valve collets. Designed for stock power, they are put to the test as soon as a build increases load, engine speed or exhaust gas temperature.
SUPERTECH and FERREA reinforced exhaust valves
The exhaust valve opens the path for burnt gases. Its head reaches 760 to 870 °C on a naturally aspirated engine, and 1,000 °C and more on a forced induction engine. It sheds around 75 % of its heat through the seat and 20 % through the guide. Yet steel quickly loses strength with heat: the chromium-manganese-nickel steel head of the original bi-metal valve still withstands 550 MPa at 600 °C, but only 300 MPa at 800 °C. The higher the load, engine speed and boost pressure, the hotter it runs, the more it fatigues and the greater the risk of distortion and loss of sealing.
Reinforced valves use materials made for these temperatures: SUPERTECH high temperature steel and, above all, Inconel, a nickel-based superalloy that retains 860 MPa at 730 °C and still 554 MPa at around 815 °C: it stays about 85% stronger than the original steel at around 800 °C and above. FERREA states 20% more hot strength and 25% longer seat life for its Competition Plus valves. Three finishes are available for these engines: SUPERTECH black nitrided stainless steel, whose harder and smoother surface reduces friction and wear, SUPERTECH Inconel, recommended for forced induction, and FERREA hard chrome stems.
A +1 mm size is also offered: only the head grows, from 30.5 to 31.5 mm. Burnt gases leave the cylinder faster, which leaves more room for the fresh charge and contributes to the power gain. It is fitted to a cylinder head whose seats are machined to this size.
Exhaust valve technical specifications
| Part number | Brand | Size | Head Ø OEM 30.5 mm | Stem Ø OEM 6 mm | Length OEM 105.7 mm | Grooves | Material |
|---|---|---|---|---|---|---|---|

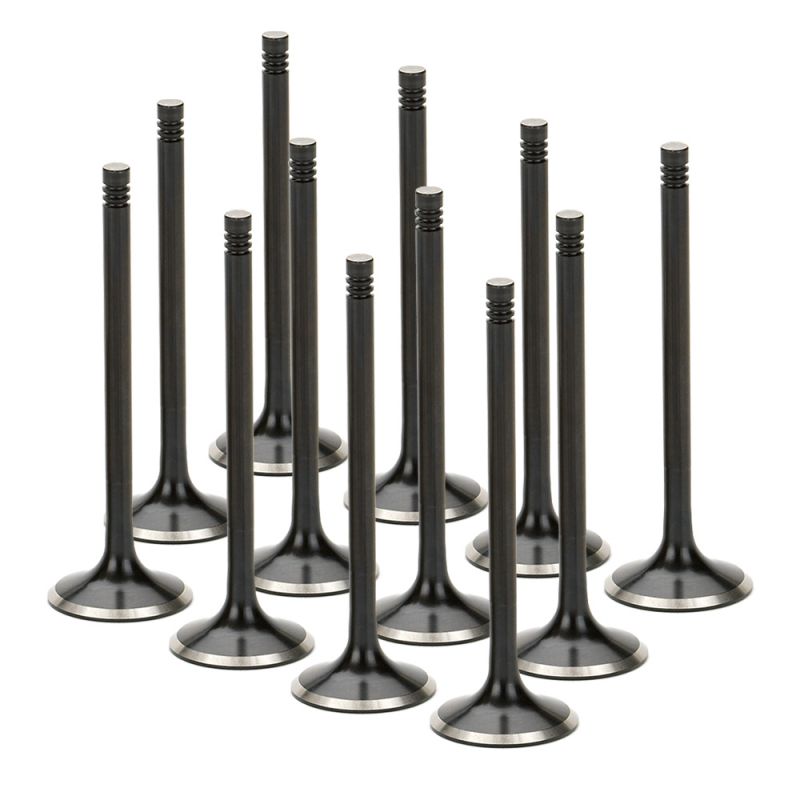

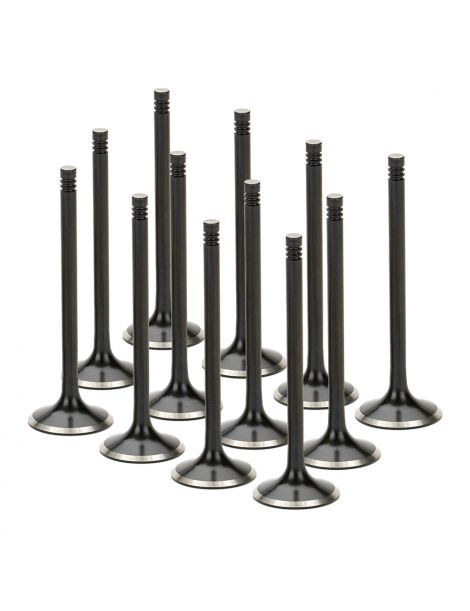

| BMEVN-1030-12 | SUPERTECH | Standard | 30.5 mm | 6 mm | 105.7 mm | 3 | Black nitrided stainless |
| BMEVN-1030S-12 | SUPERTECH | Standard | 30.5 mm | 6 mm | 105.7 mm | 1 | Black nitrided stainless |
| BMEVI-1030S-12 | SUPERTECH | Standard | 30.5 mm | 6 mm | 105.7 mm | 1 | Inconel |
| BMEVN-1031S-12 | SUPERTECH | +1 mm | 31.5 mm | 6 mm | 105.7 mm | 1 | Black nitrided stainless |
| BMEVI-1031S-12 | SUPERTECH | +1 mm | 31.5 mm | 6 mm | 105.7 mm | 1 | Inconel |

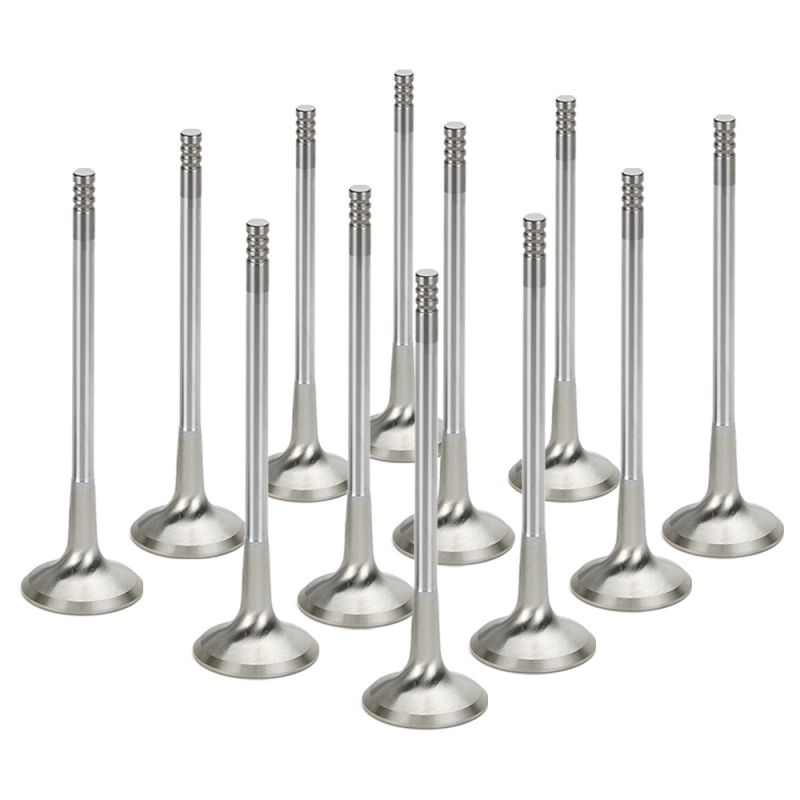

| F1552P*12 | FERREA | Standard | 30.5 mm | 6 mm | 106.0 mm | 3 | Stainless, chrome stem |
| F1553P*12 | FERREA | +1 mm | 31.5 mm | 6 mm | 106.0 mm | 3 | Stainless, chrome stem |
Valve fitting
| Part | BMW original | Reinforced |
|---|---|---|
| Valve collets | 11 34 1 461 405 (3 grooves) | KPR-VW6-T (3 grooves) / KPR-6S-7 (1 groove) |
| Valve stem seals | Kit 11 34 9 064 457 | VS-VBM6E-12 (exhaust) |
| Valve guide | Inner Ø 6.0 mm | GDE-BMW-M50-EI |
Each valve is fitted with the collets matching its groove type, as specified by SUPERTECH: KPR-VW6-T for 3-groove models, KPR-6S-7 for single-groove models. The original collets are never suitable for a single-groove valve.
A +1 mm head requires exhaust seats machined to this size: plan a visit to the machine shop during the cylinder head rebuild.
On VANOS engines, SUPERTECH advises against oversized valves: a head larger than original can contact the edge of the piston valve reliefs depending on camshaft position.
Technical guide
Our brands
| SUPERTECH, born in Silicon Valley, has been developing valves, springs, titanium retainers and guides for racing for more than 30 years. Its stainless steel, titanium or Inconel valves are designed engine by engine and developed with renowned engine builders in drag racing, rally and circuit racing. | |
| FERREA Racing Components, created in 1978 by Horacio Ferrea and Daniel Urrutia, produces its valves in its Florida and Argentina workshops, from stainless steel to nickel-based superalloys and titanium. Its parts are used by engine builders worldwide, from NASCAR to drag racing. |
How to choose
Under the spring retainer, the collets sit in the groove or grooves of the stem to hold the valve. Depending on whether the stem has one or three, the valve is held differently, and this choice changes what you gain.
| Criterion | Option 1 | Option 2 |
|---|---|---|
| Size | Standard size A cylinder head whose exhaust seats have never been recut takes the standard size, with a 30.5 mm head. |
+1 mm size 31.5 mm head: burnt gases leave faster, the cylinder empties better and leaves more room for fresh charge, which contributes to the power gain (about 10 to 12 cfm per mm of head according to FERREA). Seats must be machined to the new size. Also makes up for recut seats. |
| Grooves | 3 grooves BMW layout carried over, stem free in its collets. Enough for a road engine close to standard, with no other part; new collets recommended (original or KPR-VW6-T). Weak point: a closing impact falls on the lower groove, the thinnest. The only FERREA version for these engines. |
Single groove The collets grip the stem, the groove is unloaded and the wider bearing reduces friction. The valve gains strength under stiff springs, high lift and high rpm. SUPERTECH's choice for powerful engines, the only Inconel version, preferred with forced induction. KPR-6S-7 collets required, preferably new. |
When reinforced valves become necessary
- Camshafts with higher lift or stiffer valve springs
- Raised rev limit
- Turbocharger or supercharger added (Inconel version recommended)
- Cylinder head rebuild on a circuit, drift or rally engine
- Original valves marked, worn or already at repair size
Vehicle compatibility
| Model | Engine code | Power | Years |
|---|---|---|---|
| 325i / 325is (E36) | M50B25TU | 192 hp | 1992-1995 |
| 525i / 525iX (E34) | M50B25TU | 192 hp | 1992-1996 |
| 323i / 323ti Compact (E36) | M52B25 | 163-170 hp | 1995-2000 |
| 523i (E39) | M52B25 / M52TU B25 | 163-170 hp | 1995-2000 |
| 323i / 323Ci (E46) | M52TU B25 | 163-170 hp | 1998-2000 |
| Z3 2.3 (E36) | M52TU B25 | 170 hp | 1998-2000 |
| 328i (E36) | M52B28 | 193 hp | 1995-1999 |
| 528i (E39) | M52B28 / M52TU B28 | 193 hp | 1995-2000 |
| 728i / 728iL (E38) | M52B28 / M52TU B28 | 193 hp | 1995-2001 |
| Z3 2.8 (E36) | M52B28 / M52TU B28 | 193 hp | 1996-2000 |
| 328i / 328Ci (E46) | M52TU B28 | 193-196 hp | 1998-2000 |
| 325i / 325xi / 325Ci / 325ti (E46) | M54B25 | 186-192 hp | 2000-2006 |
| 525i (E39) | M54B25 | 186-192 hp | 2000-2004 |
| 525i (E60 / E61) | M54B25 | 186-192 hp | 2003-2005 |
| Z3 2.5i (E36) | M54B25 | 192 hp | 2000-2002 |
| Z4 2.5i (E85) | M54B25 | 192 hp | 2002-2005 |
| X3 2.5i (E83) | M54B25 | 186-192 hp | 2004-2006 |
| 330i / 330xi / 330Ci (E46) | M54B30 | 228-231 hp | 2000-2006 |
| 530i (E39) | M54B30 | 228-231 hp | 2000-2003 |
| 530i (E60) | M54B30 | 228-231 hp | 2003-2005 |
| 730i / 730Li (E65 / E66) | M54B30 | 231 hp | 2003-2008 |
| Z3 3.0i (E36) | M54B30 | 228-231 hp | 2000-2003 |
| Z4 3.0i (E85) | M54B30 | 231 hp | 2002-2005 |
| X3 3.0i (E83) | M54B30 | 228-231 hp | 2003-2006 |
| X5 3.0i (E53) | M54B30 | 228-231 hp | 2000-2006 |
| M3 (E36) 3.0 US | S50B30US | 239 hp | 1994-1995 |
| M3 (E36) 3.2 US | S52B32US | 243 hp | 1996-1999 |
| Z3 M 3.2 US | S52B32US | 239-243 hp | 1998-2000 |
OEM part number (exhaust valve): 11 34 1 739 823; 11 34 7 505 731 (M54B25, M54B30)
Don't forget the inlet valves
When a cylinder head is rebuilt, the inlet valves and stem seals are replaced at the same time as the exhaust valves. Here are the parts that suit these engines:
| BMW M50B25TU M52 M54 inlet valves → |
| 6 mm exhaust valve stem seals → |
-
