BMW S54B32 3.2 L forged pistons bores 87-87.5 mm, RV 8.5-12.5:1, axle 21 mm. JE, Wiseco, Wossner, Supertech; specs tables, M3 E46 & Z4 M compatibilities, OEM reference.

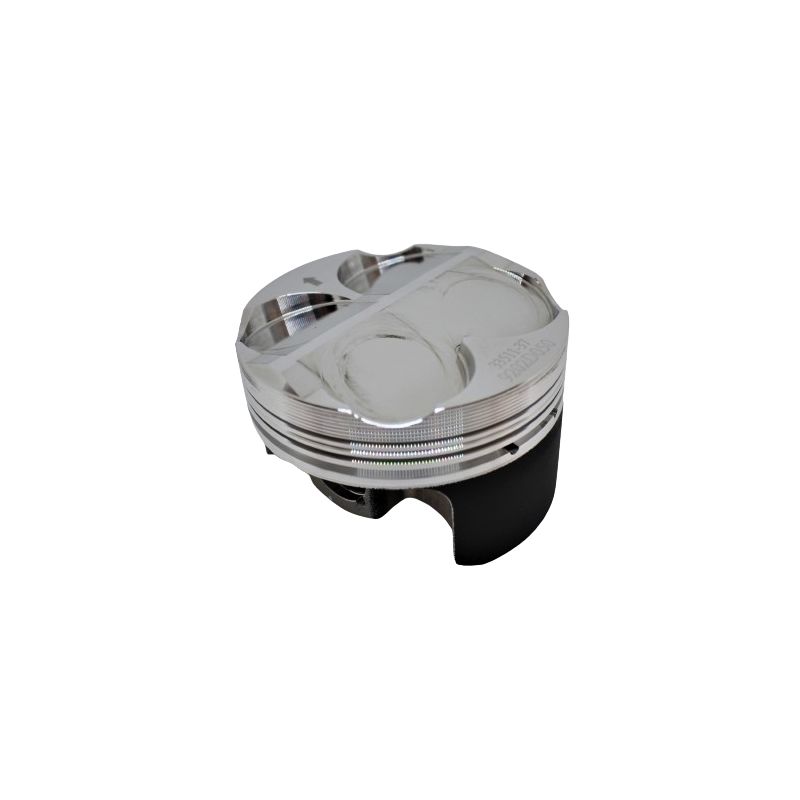

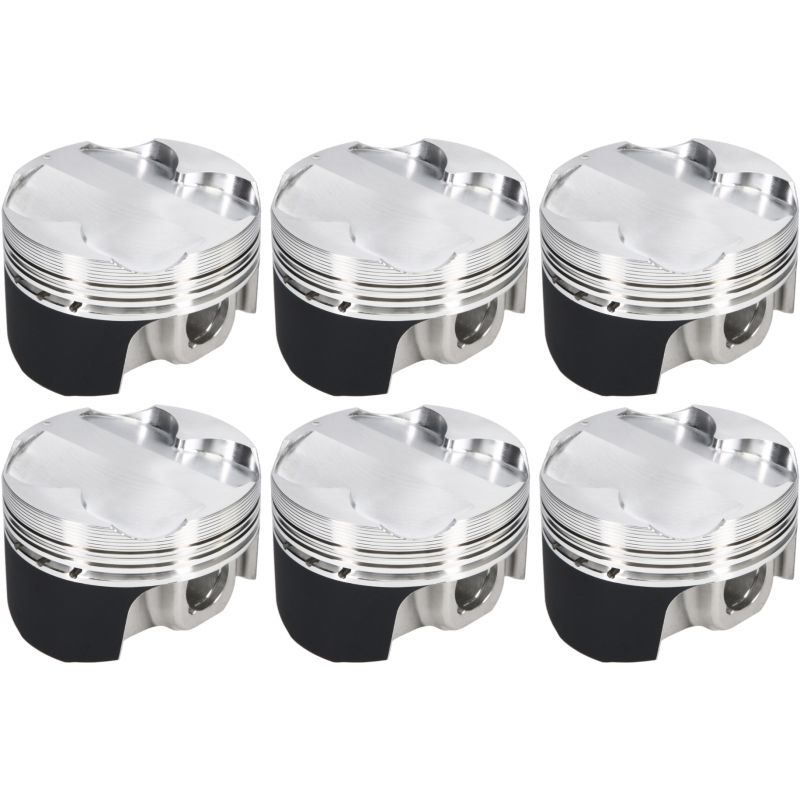

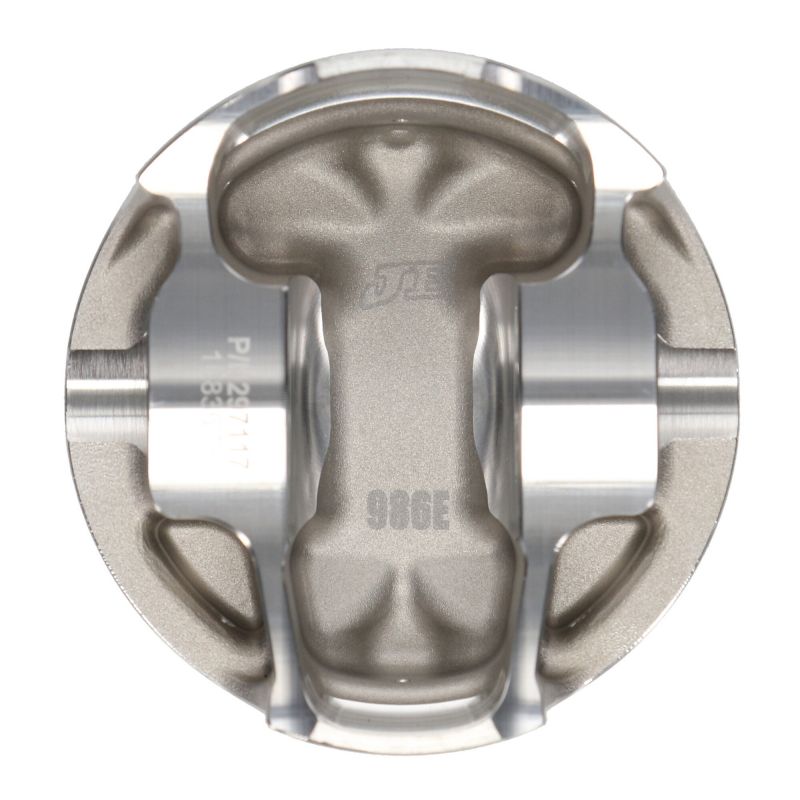

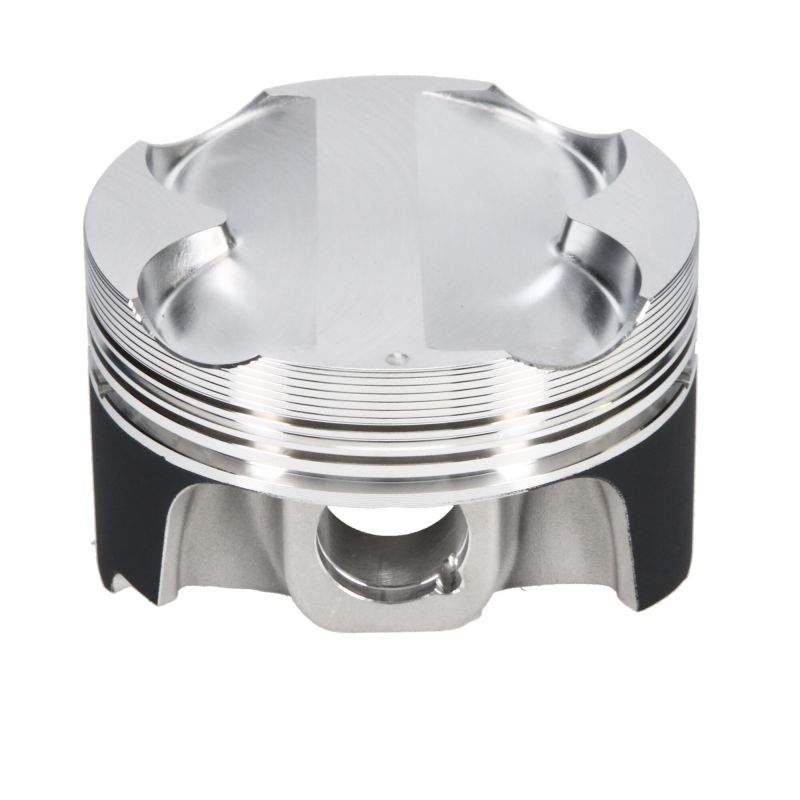

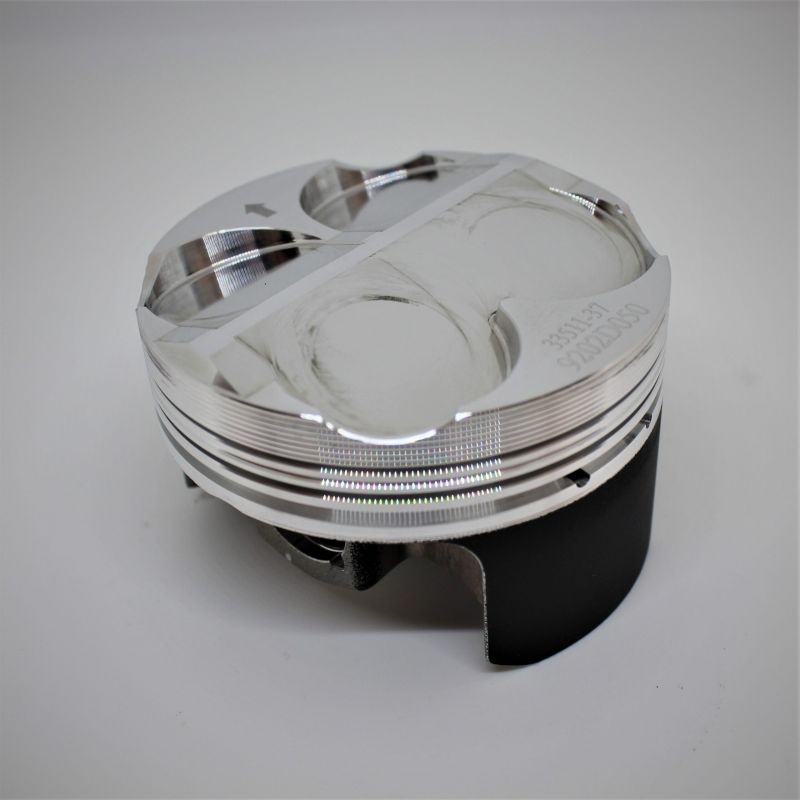

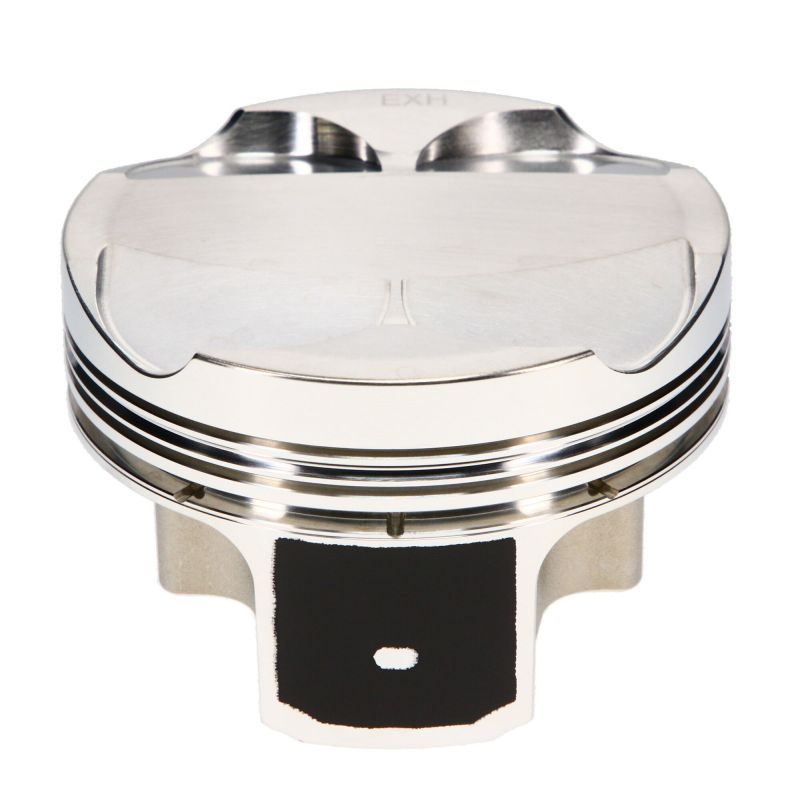

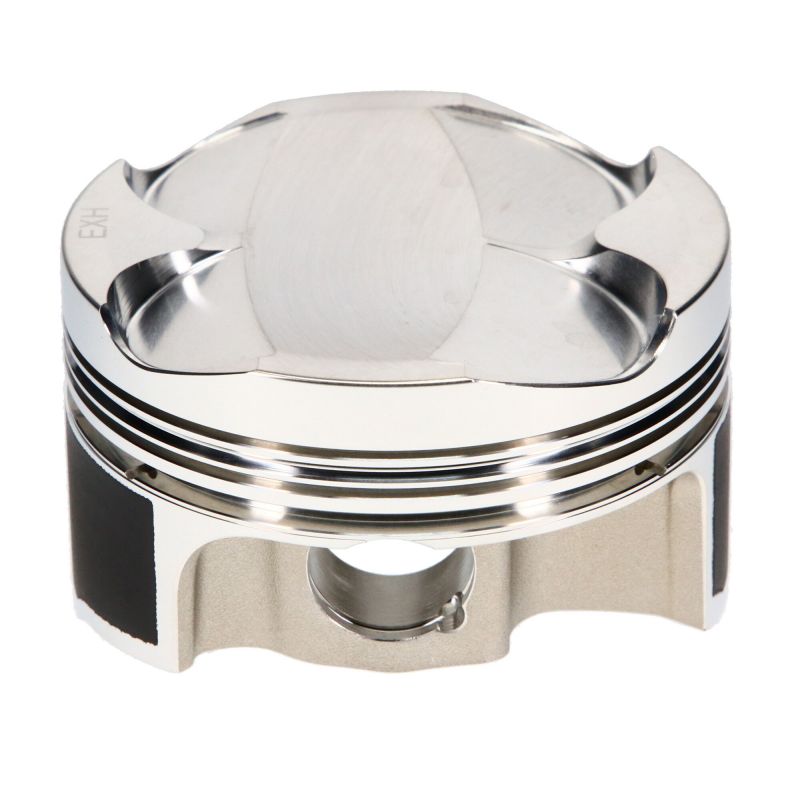

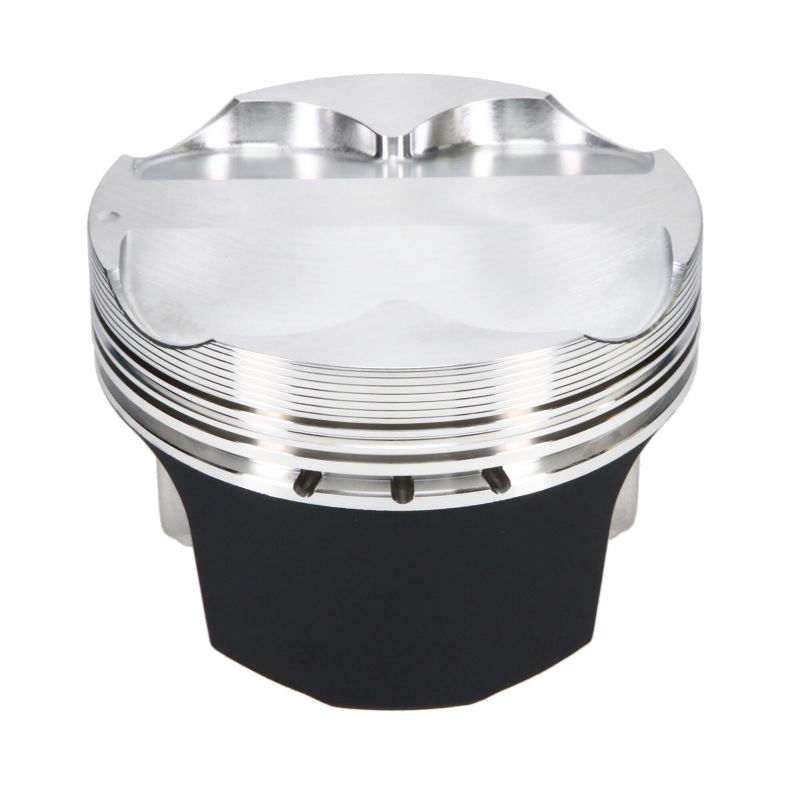

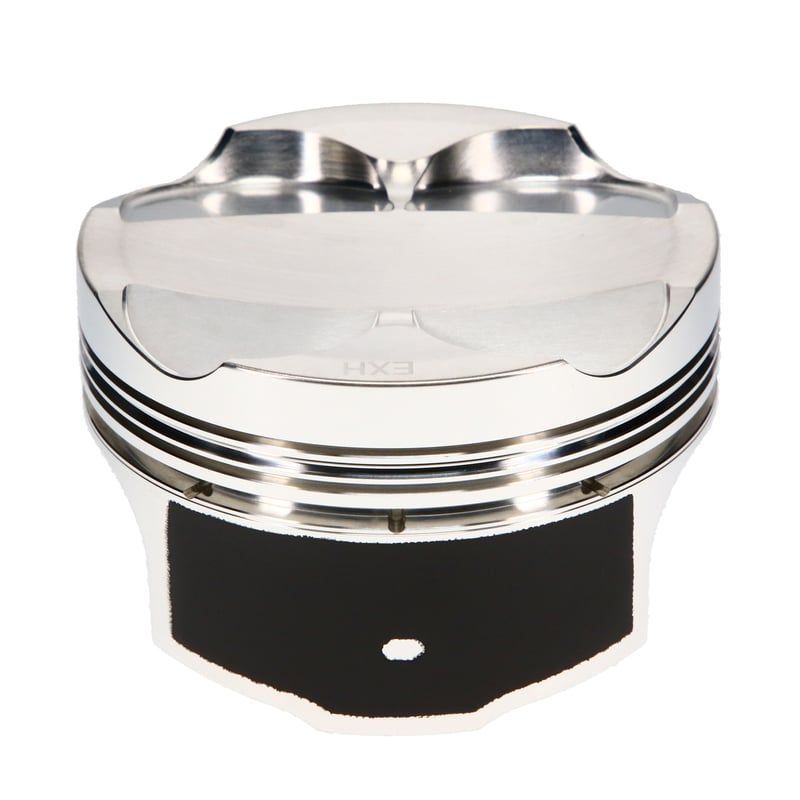

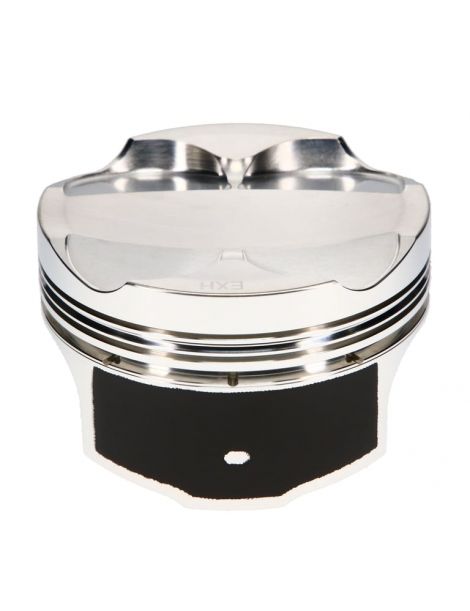

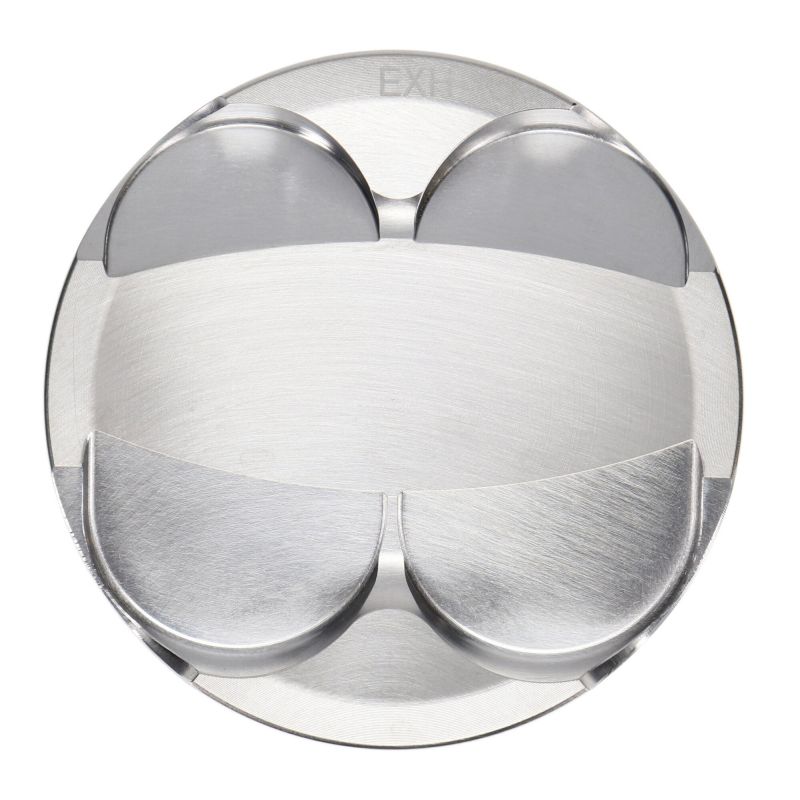

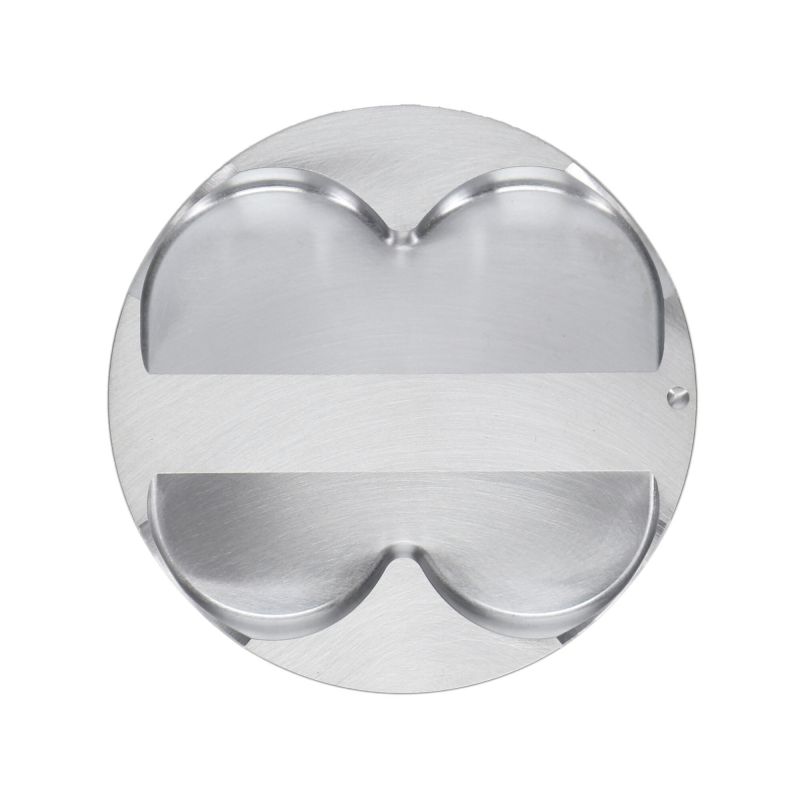

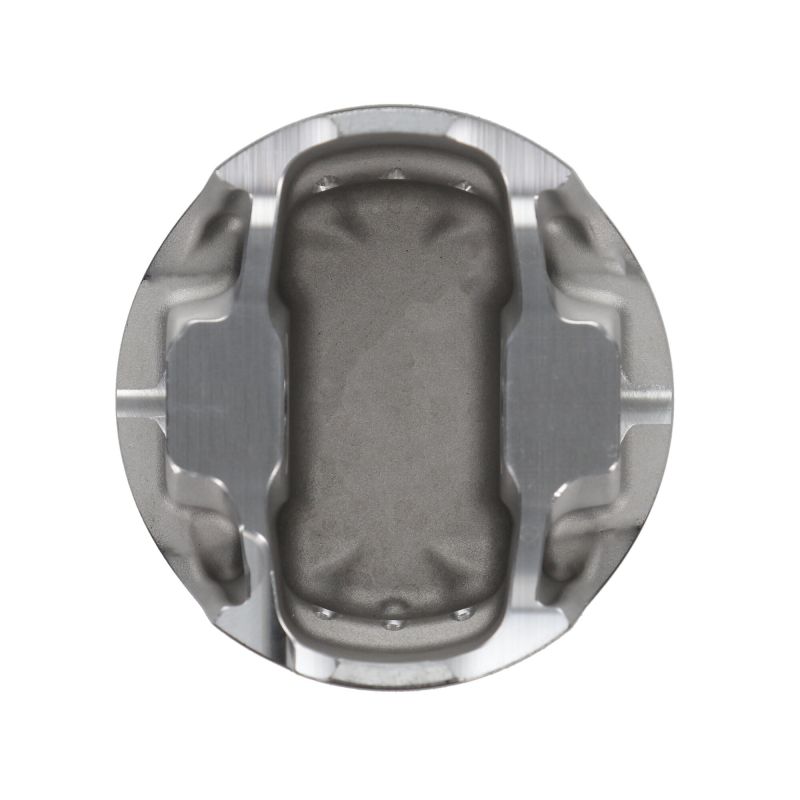

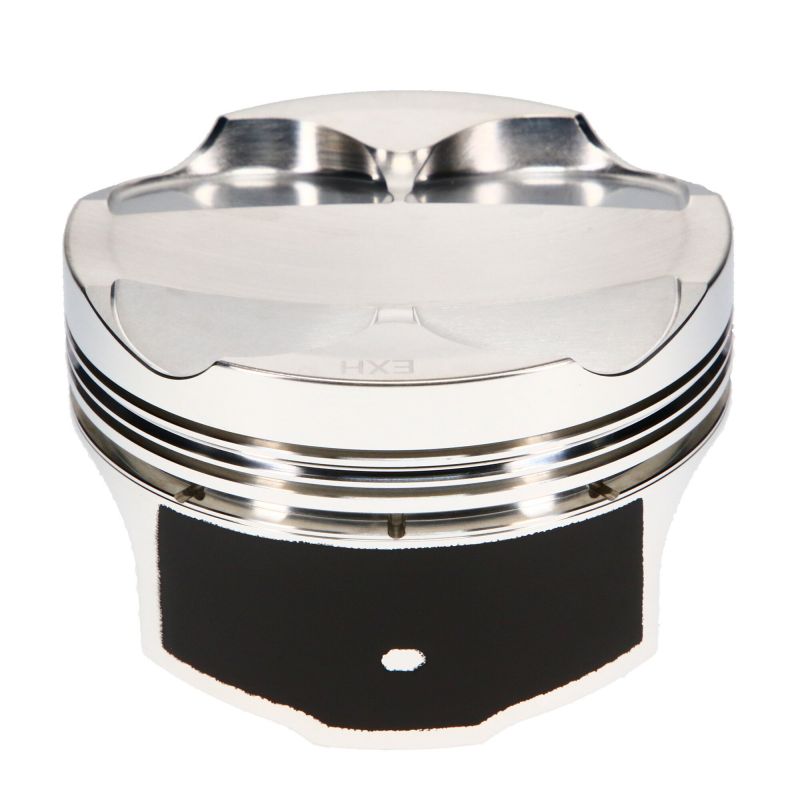

Characteristics of the forged pistons offered by NSB Concept for BMW 3.2 L 24 v S54B32:
| ReferencePiston | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE126M87 | 87 | 11.1:1 | 21 | 32 | Wiseco | 2618 | Skirt | N/A | -14 | N/A | 8700XX |
| JE-297117 | 87 | 11.5:1 | 21 | 32 | JE FSR | 2618 | N/A | FSR | -13.2 | 329 | N/A |
| K9202DA | 87 | 12.3:1 | 21 | 32.3 | Wossner | N/A | N/A | Round | -5.4 | N/A | 875XSY |
| JE-297119 | 87 | 12.5:1 | 21 | 32 | JE FSR | 2618 | N/A | FSR | -8.7 | 339 | N/A |
| K9295DA | 87 | 8.5:1 | 21 | 32.3 | Wossner | N/A | N/A | Round | -27 | N/A | 870XPY |
| JE-297115 | 87 | 9:1 | 21 | 32.3 | JE FSR | 2618 | N/A | FSR | -25.8 | 305 | N/A |
| WKE127M87 | 87 | 9:1 | 21 | 32 | Wiseco | 2618 | Skirt | N/A | -14 | N/A | 8700XX |
| WKE126M8725 | 87.25 | 11.1:1 | 21 | 32 | Wiseco | 2618 | Skirt | N/A | -14 | N/A | 8725XX |
| WKE127M8725 | 87.25 | 9:1 | 21 | 32 | Wiseco | 2618 | Skirt | N/A | -14 | N/A | 8725XX |
| WKE126M875 | 87.5 | 11.1:1 | 21 | 32 | Wiseco | 2618 | Skirt | N/A | -14 | N/A | 8750XX |
| JE-297118 | 87.5 | 11.5:1 | 21 | 32.3 | JE FSR | 2618 | N/A | FSR | -13.2 | 332 | N/A |
| K9202D050 | 87.5 | 12.4:1 | 21 | 32.3 | Wossner | N/A | N/A | Round | -5.4 | N/A | 875XSY |
| JE-297120 | 87.5 | 12.5:1 | 21 | 32.3 | JE FSR | 2618 | N/A | FSR | -8.7 | 346 | N/A |
| P6-BMS54-87.5-CR12.5-6 | 87.5 | 12.5:1 | 21 | 32 | Supertech | 4032 | Head + Skirt | N/A | -6.5 | 306 | W8750XX |
| JE-297116 | 87.5 | 9:1 | 21 | 32.3 | JE FSR | 2618 | N/A | FSR | -25.8 | 310 | N/A |
| WKE127M875 | 87.5 | 9:1 | 21 | 32 | Wiseco | 2618 | Skirt | N/A | -14 | N/A | 8750XX |
Engine compatibility:
S54B32
| Brand | Model | Chassis | Power (hp) | Years |
|---|---|---|---|---|
| BMW | M3 | E46 Coupe/Sedan/Convertible | 343 | 2000 2006 |
| BMW | M3 CSL | E46 | 360 | 2003 2004 |
| BMW | Z4 M Roadster | E85 | 343 | 2006 2008 |
| BMW | Z4 M Coupe | E86 | 343 | 2006 2008 |
Manufacturer piston reference (OEM):
11257830668 (replaces 11257830669)
