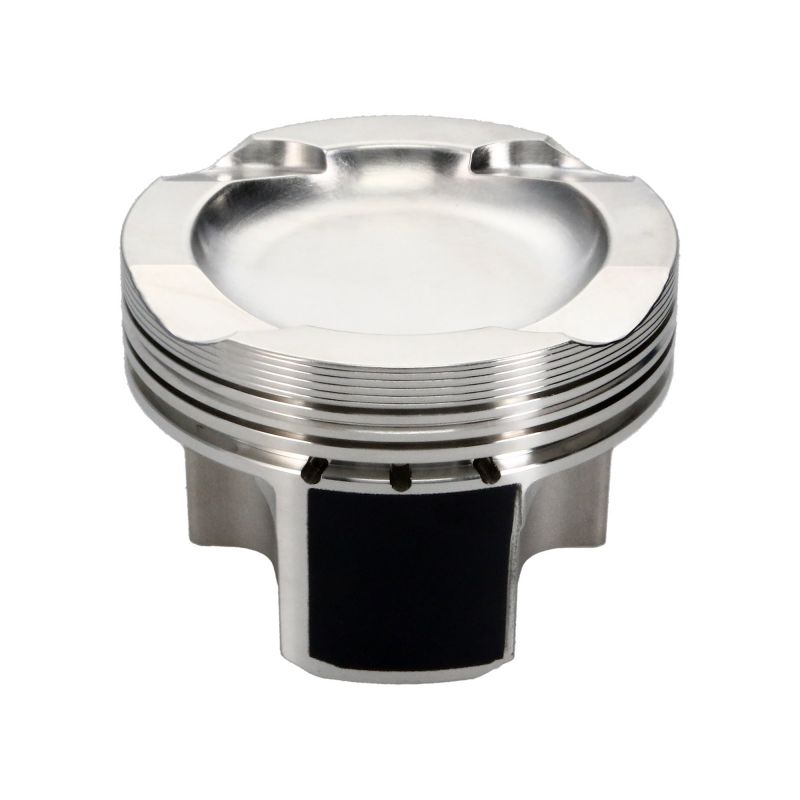

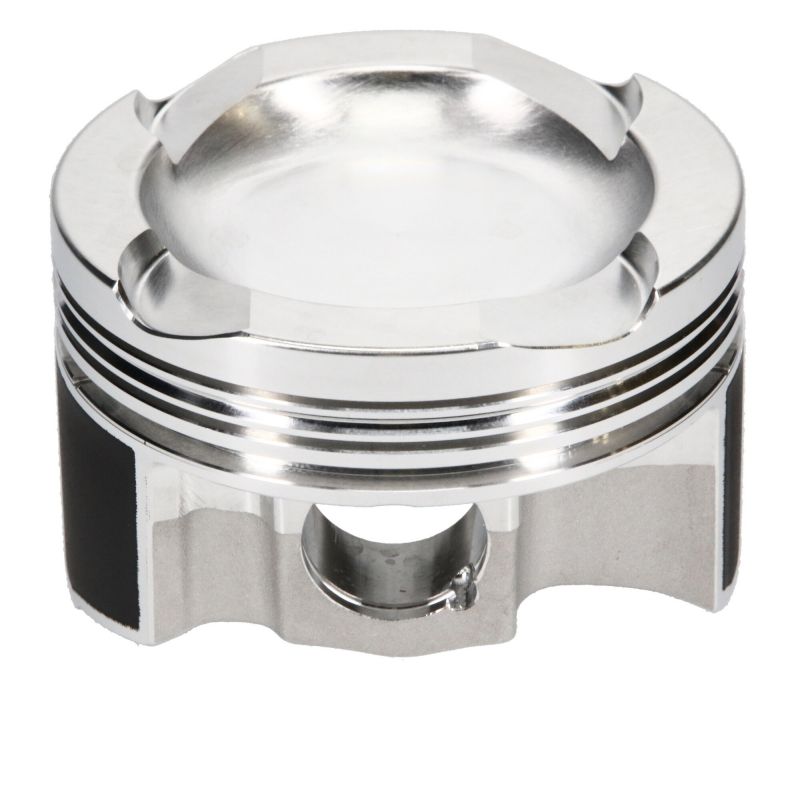

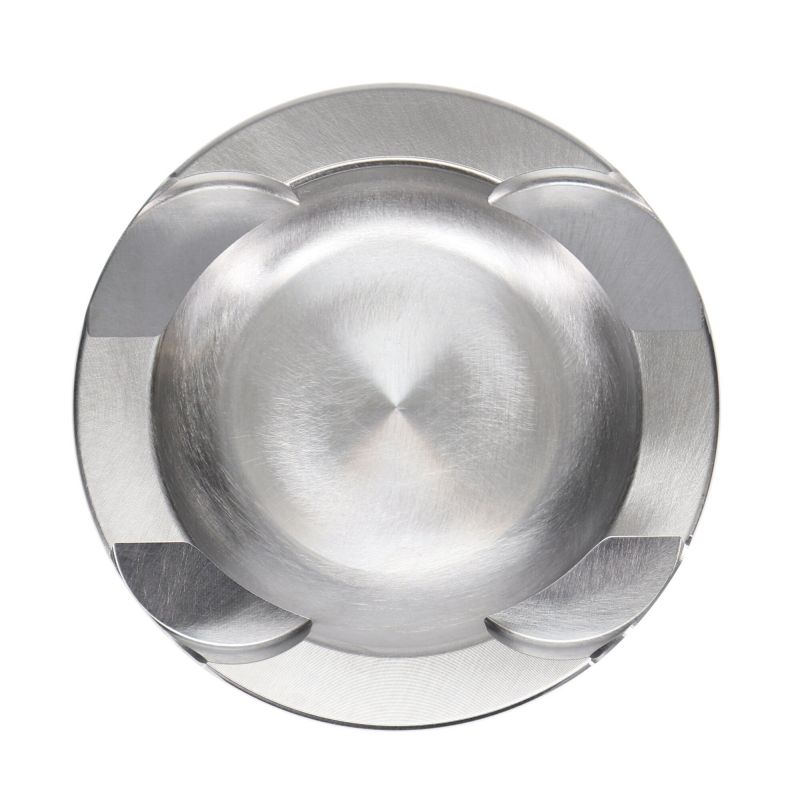

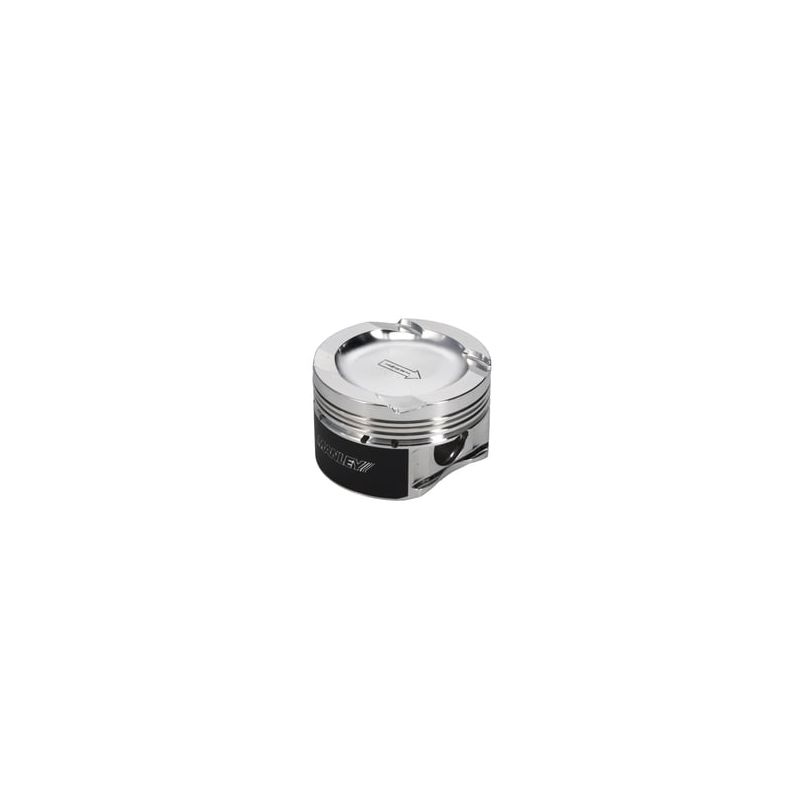

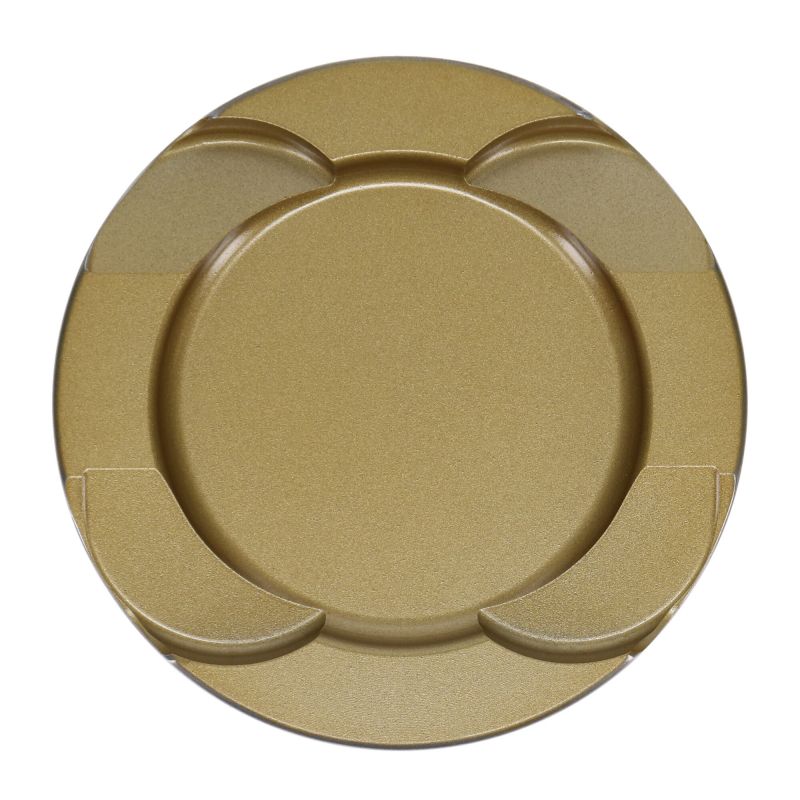

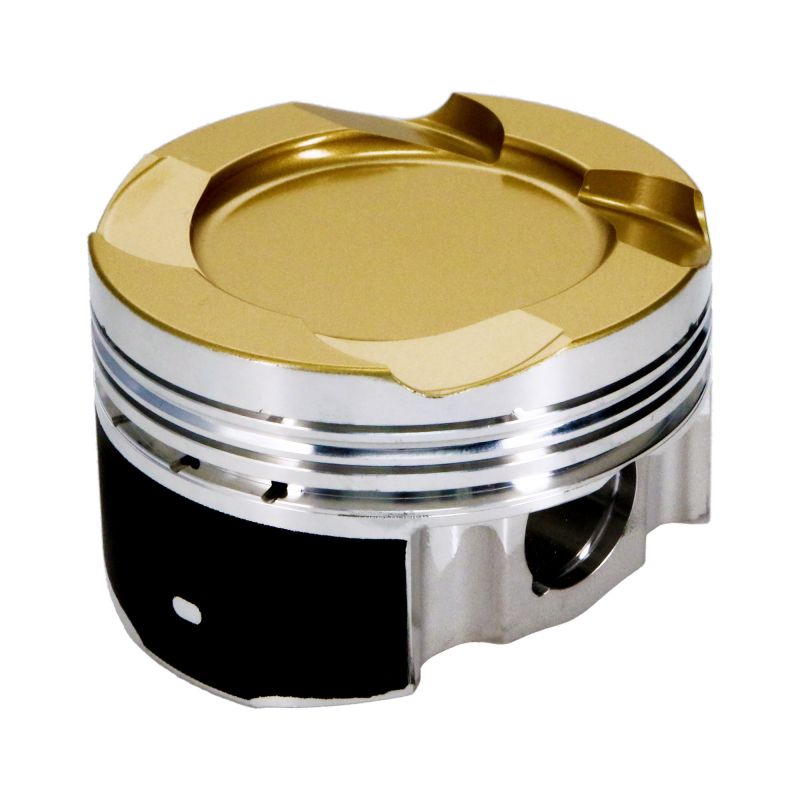

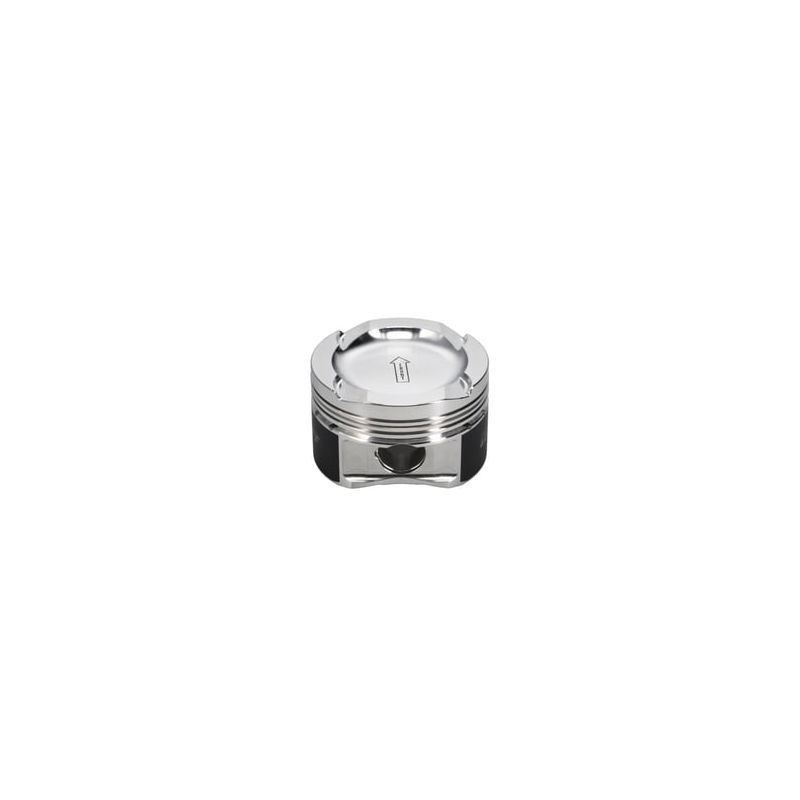

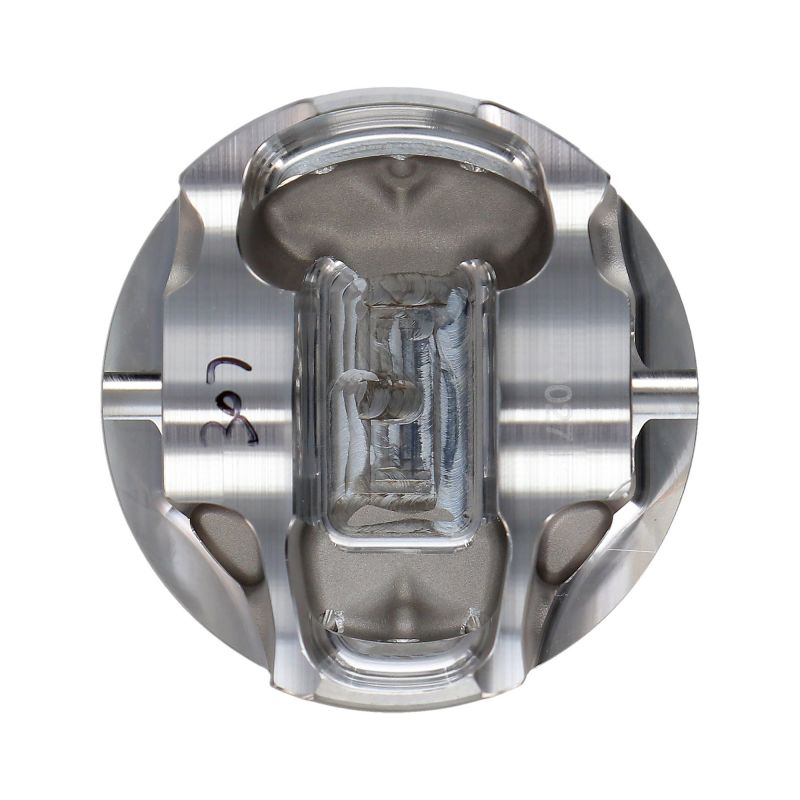

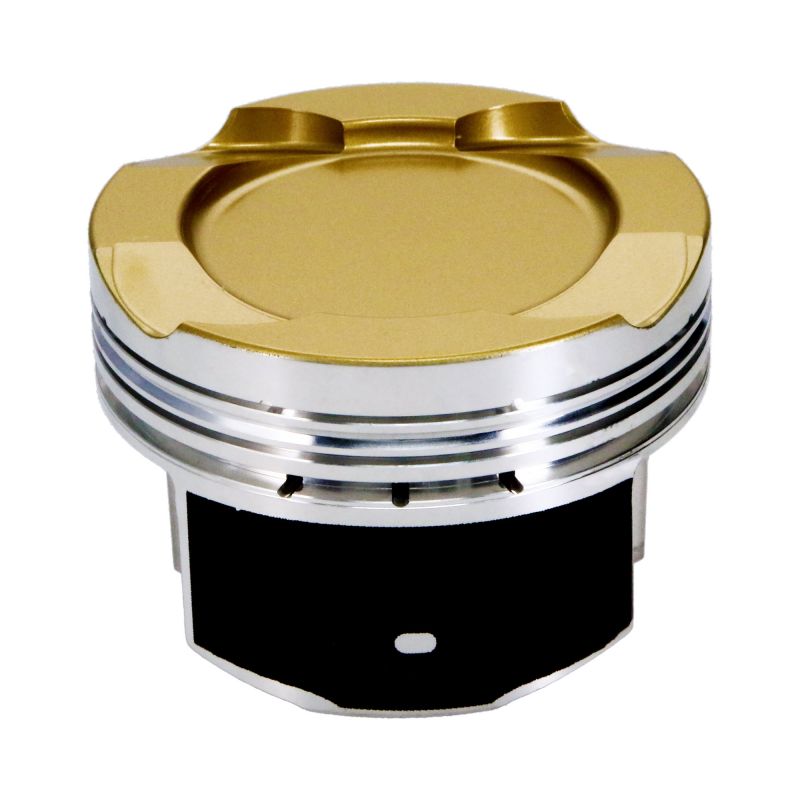

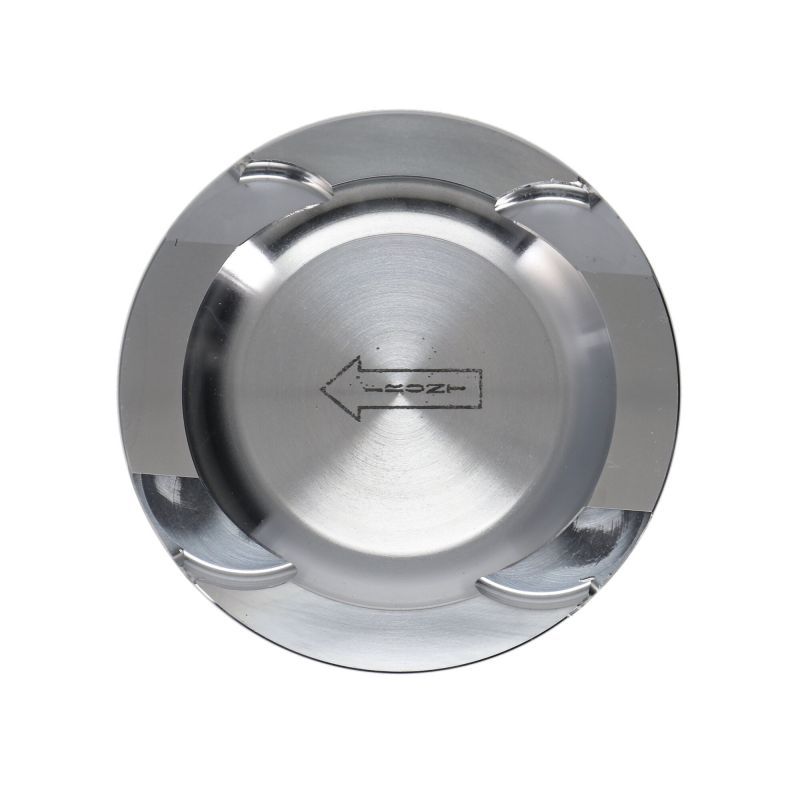

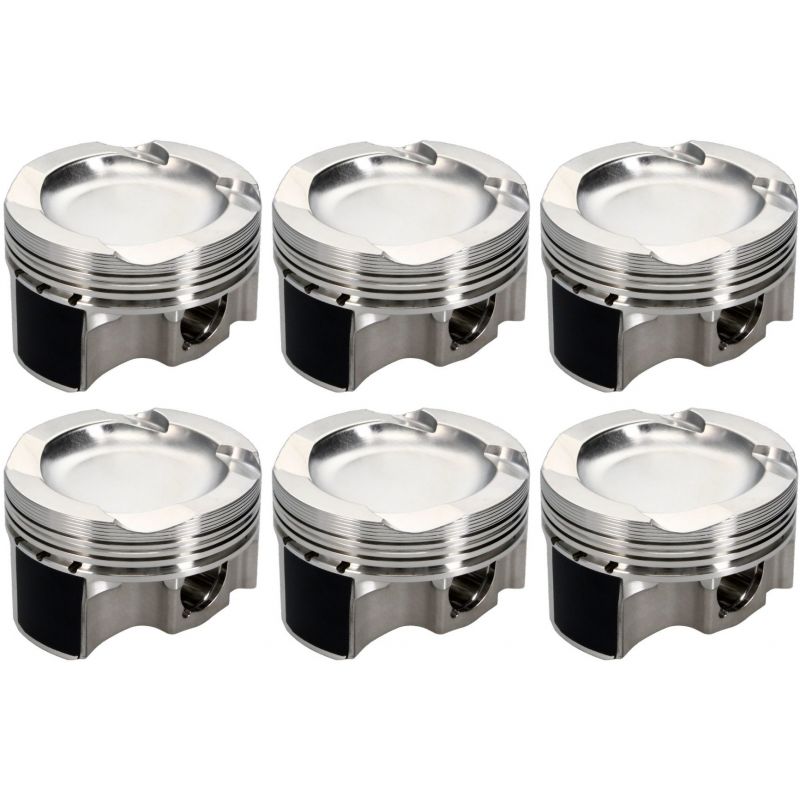

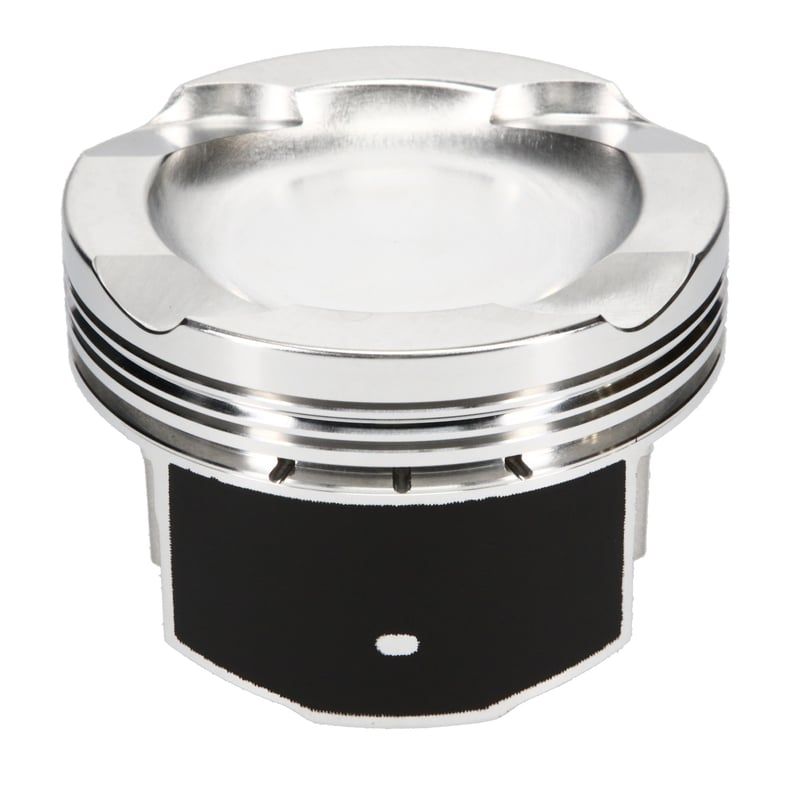

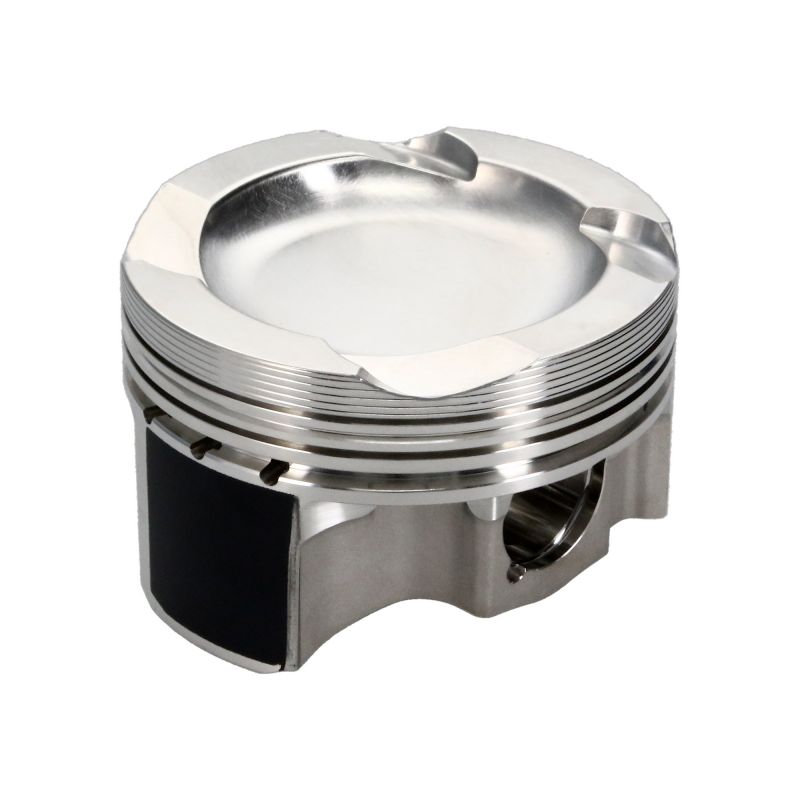

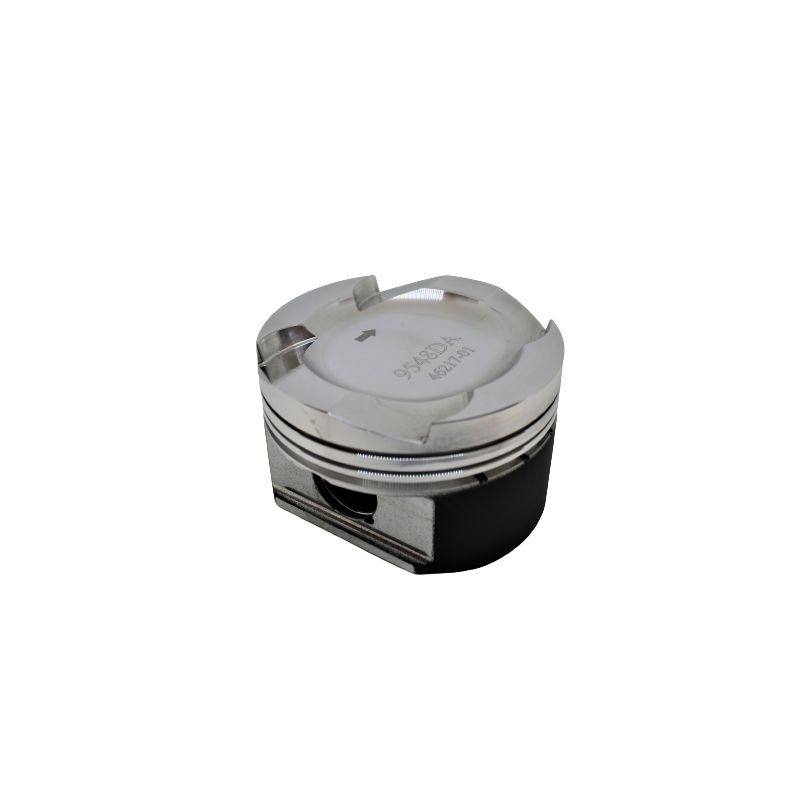

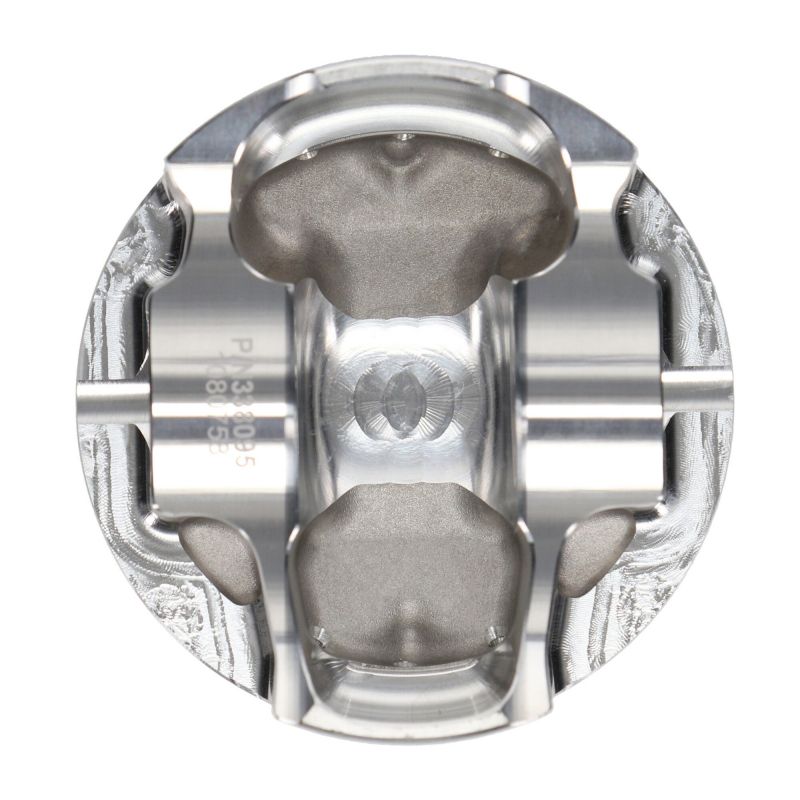

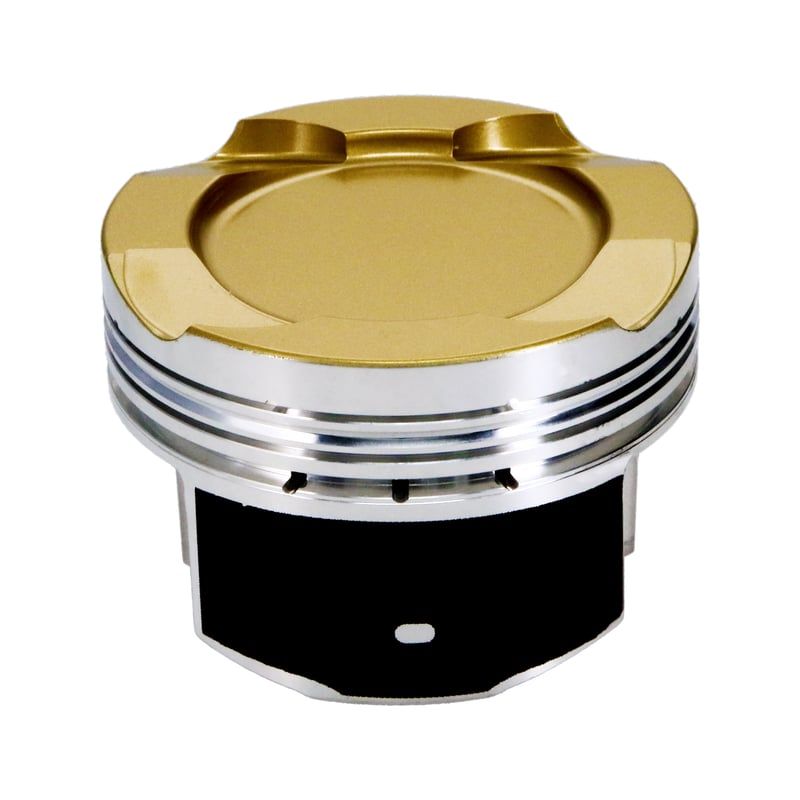

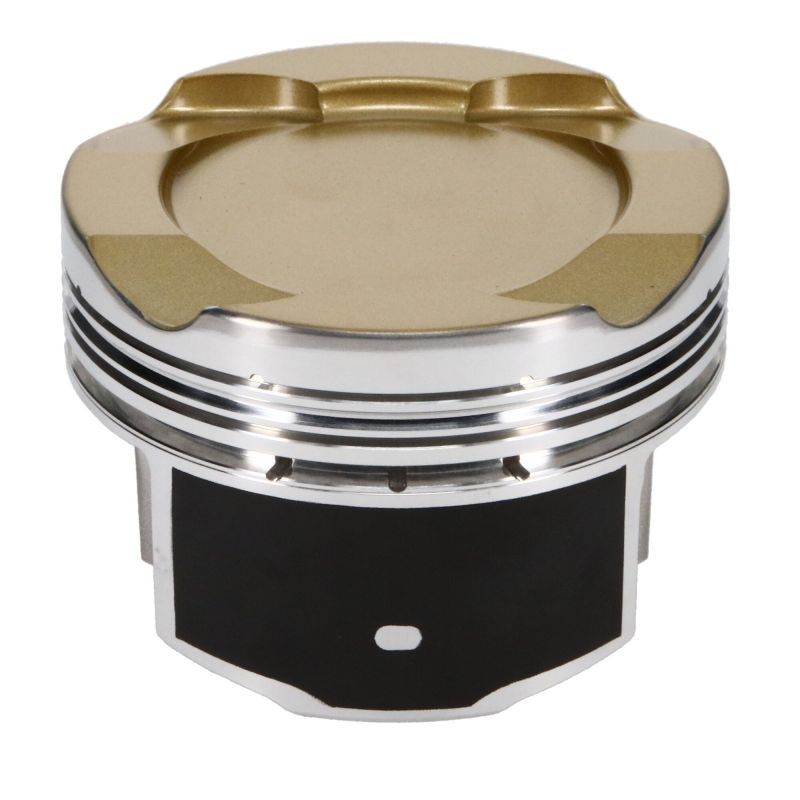

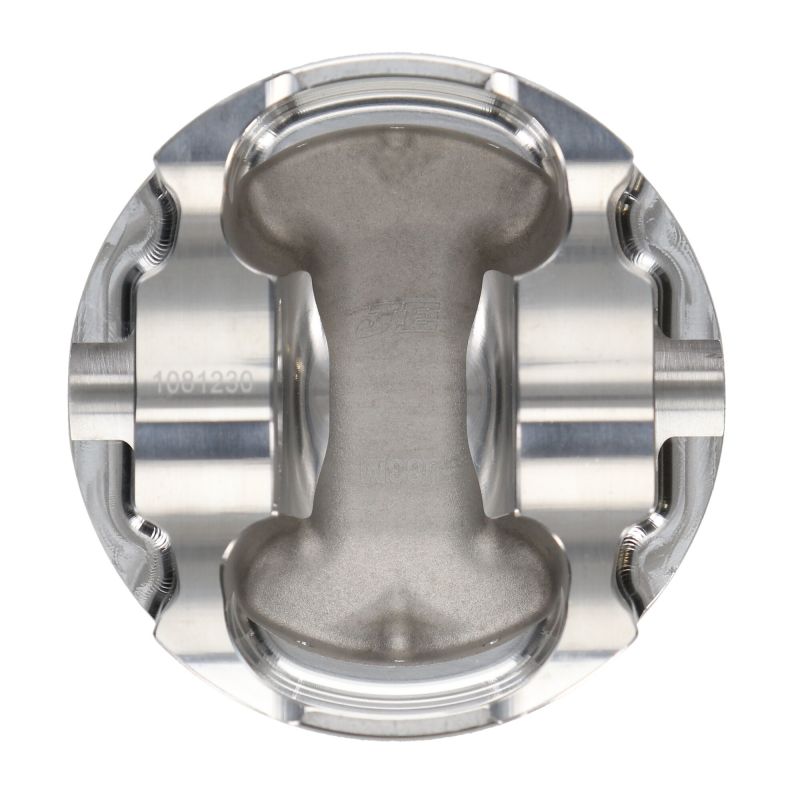

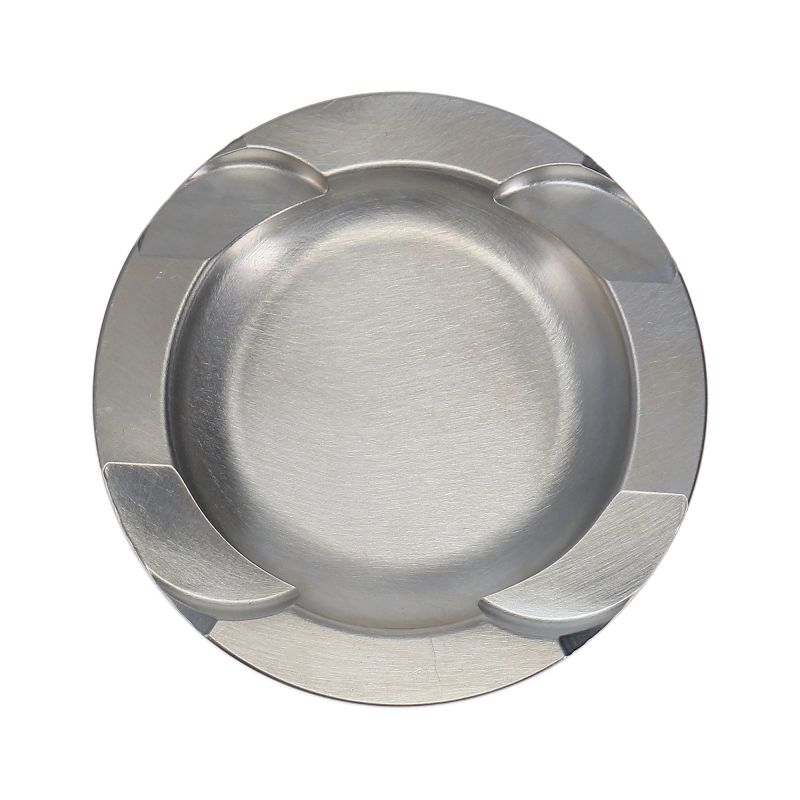

BMW N54B30 3.0L forged pistons bores 84 / 84.5 mm, RV 9.0 10.5:1, 22mm axle. Quality Manley, JE, Diamond, Wossner; comparison table, engine & vehicle compatibilities included.
Characteristics of the forged pistons offered by NSB Concept for BMW 3.0 L 24 v N54B30:
| ReferencePiston | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|

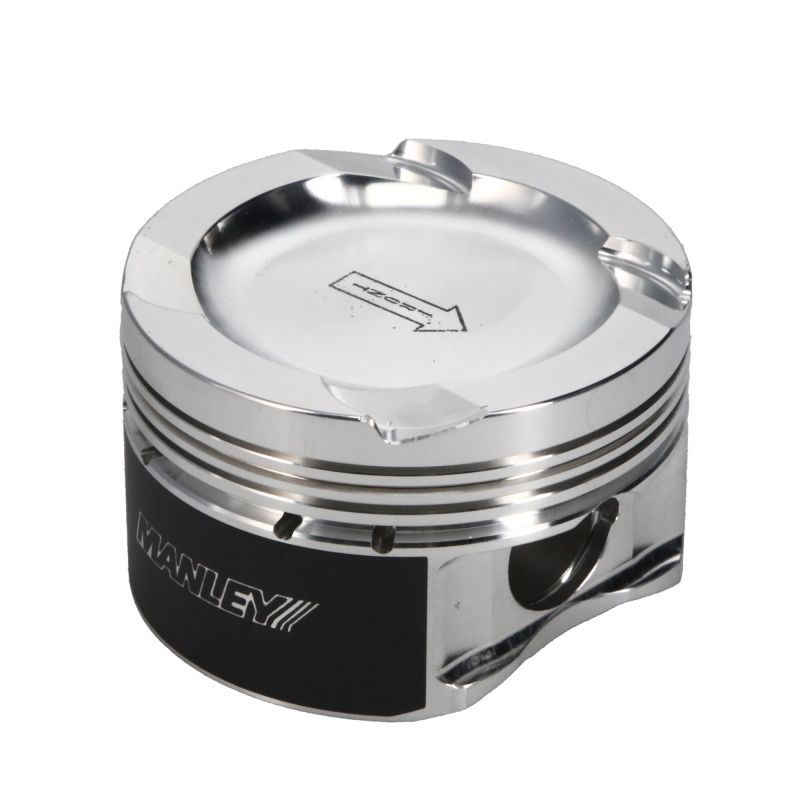

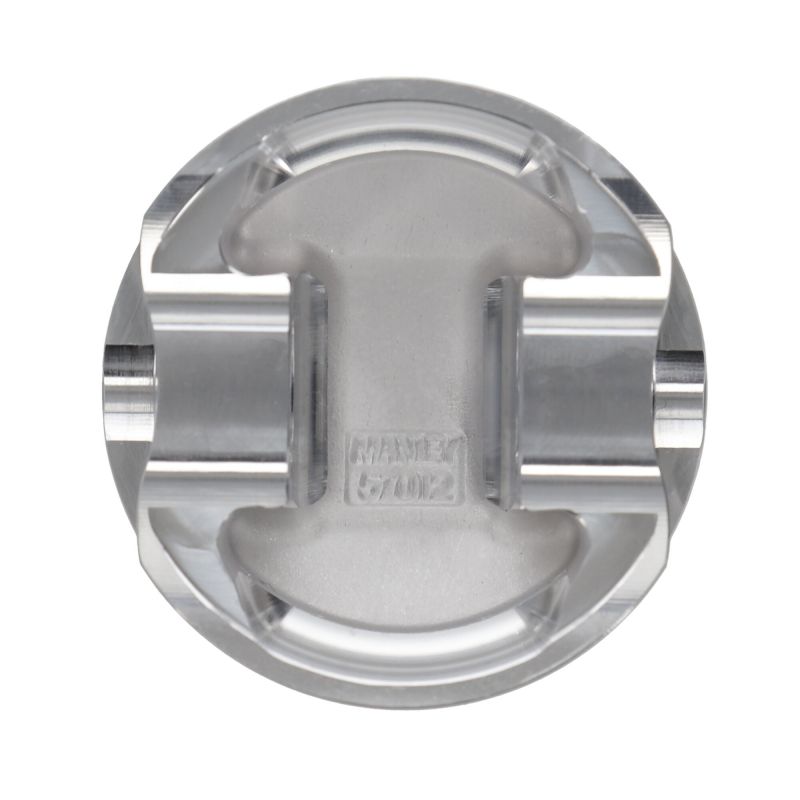

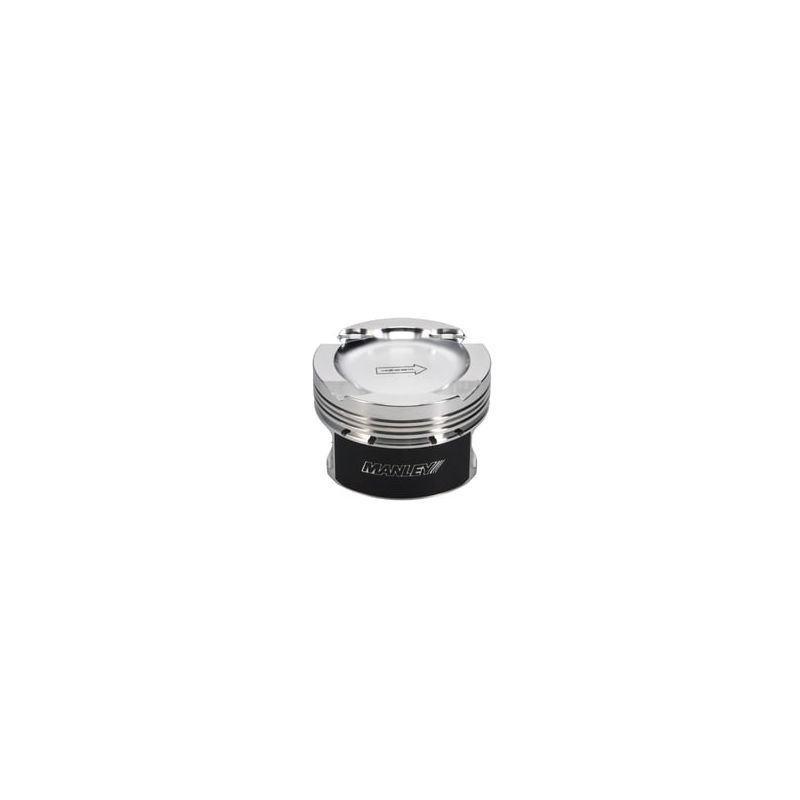

| 646000CE-6 | 84 | 10.2:1 | 22 | 31.8 | Manley HD | 2618 | Skirt | N/A | -16.5 | 335 | N/A |

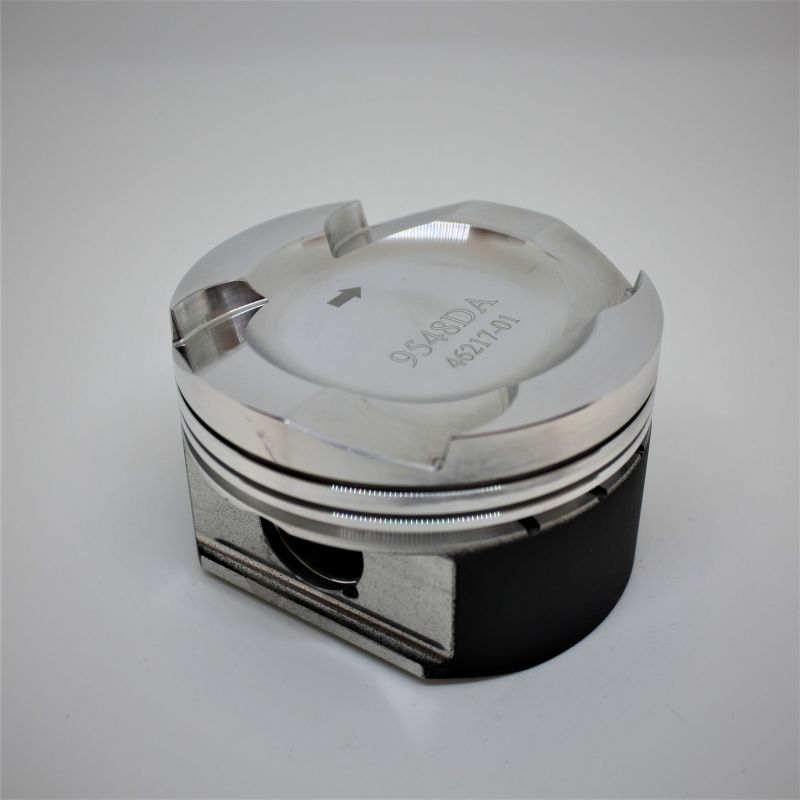

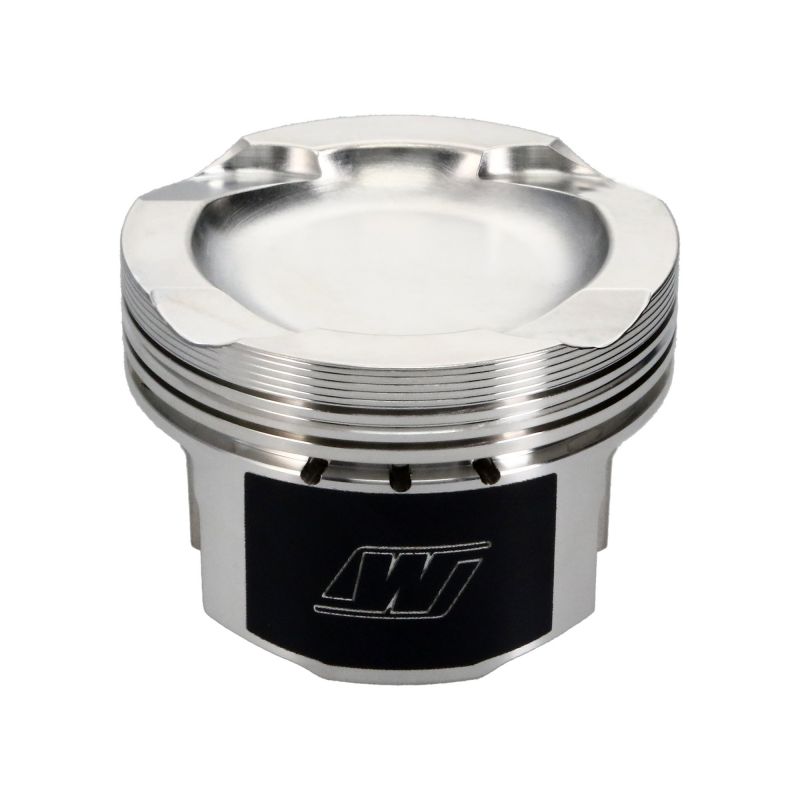

| K9548DA | 84 | 10.2:1 | 22 | 31.7 | Wossner | N/A | N/A | N/A | -17 | N/A | N/A |

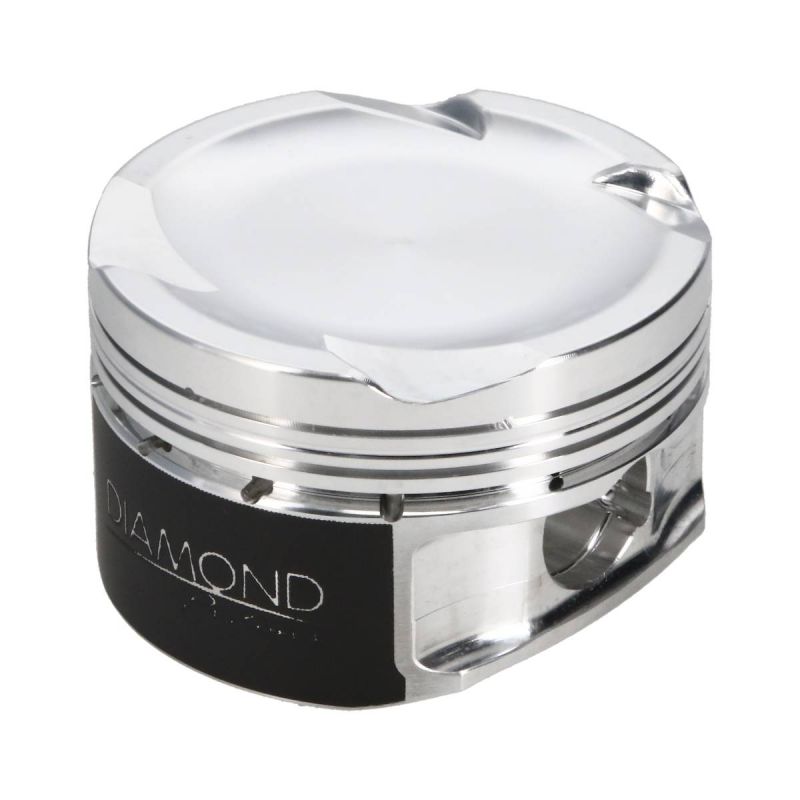

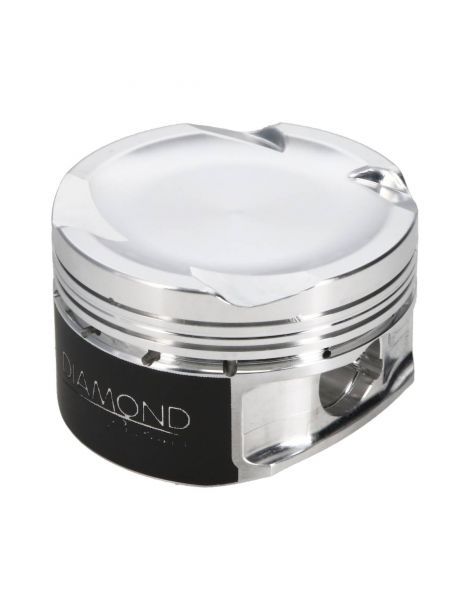

| DIA-83080-6 | 84 | 10.5:1 | 22 | 31.5 | Diamond | 2618 | Skirt | N/A | -11.5 | 307 | N/A |
| DIA-83080-6-H | 84 | 10.5:1 | 22 | 31.5 | Diamond HD | 2618 | Skirt | N/A | -11.5 | 307 | N/A |

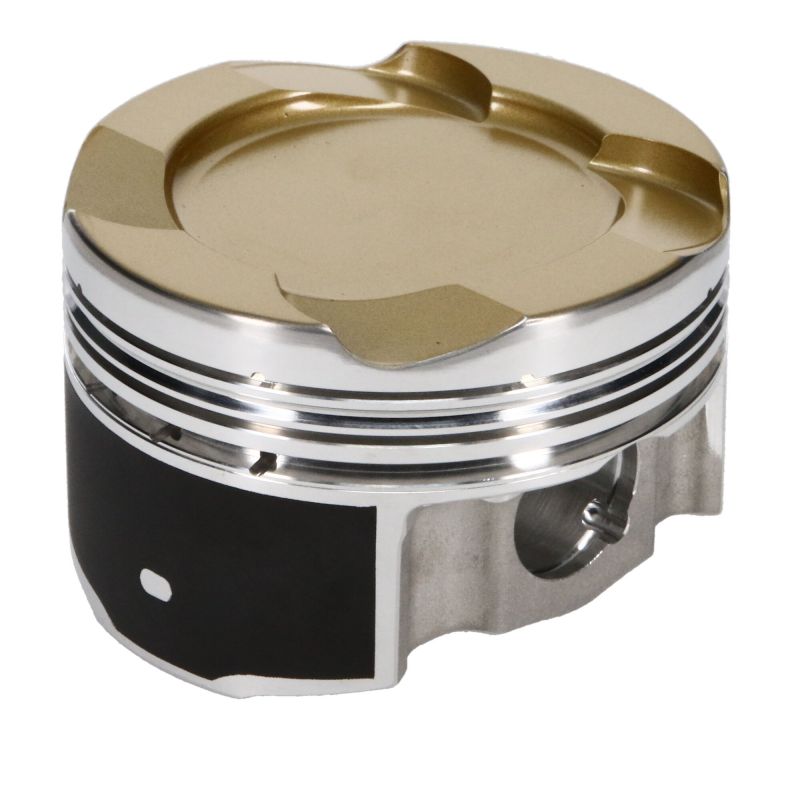

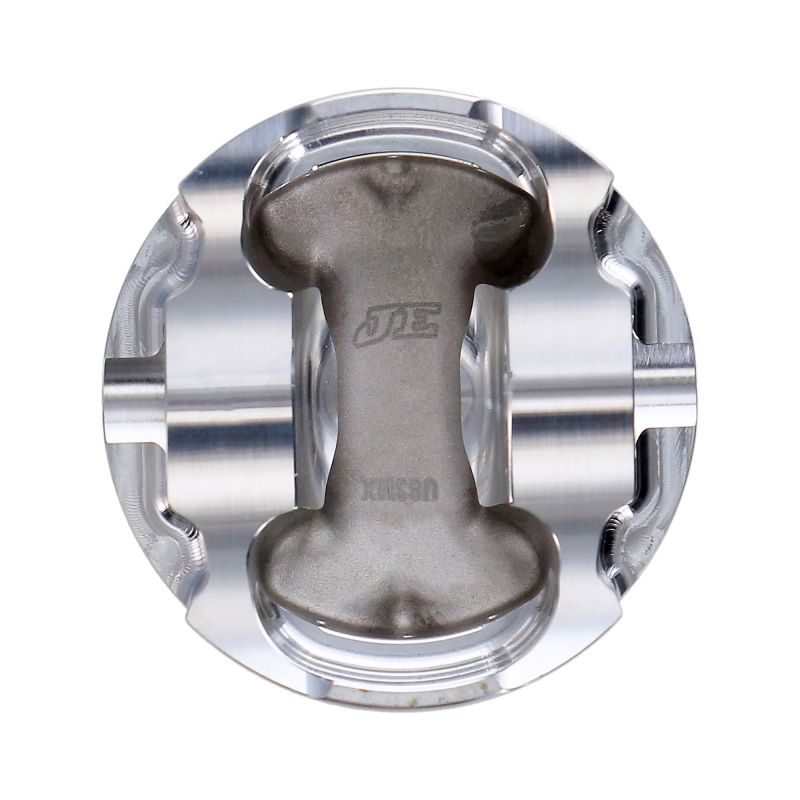

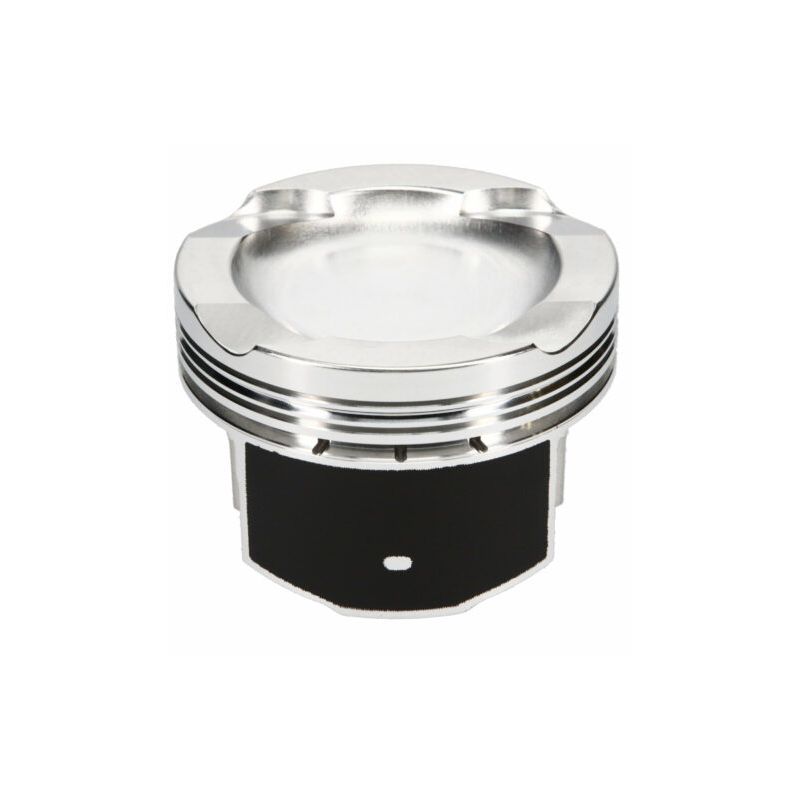

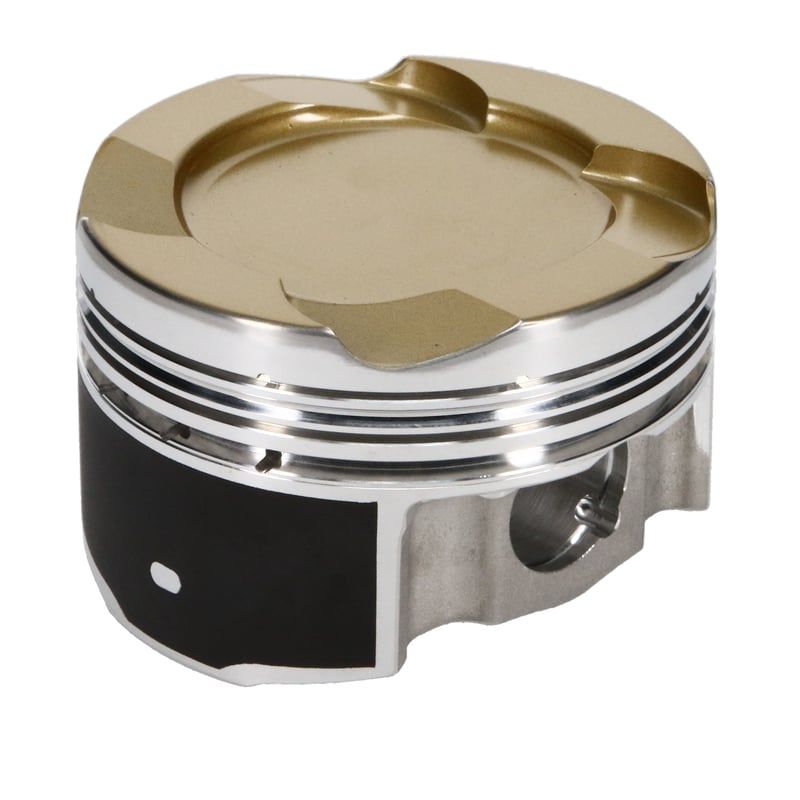

| JE-338094 | 84 | 9:1 | 22 | 31.6 | JE FSR | 2618 | N/A | FSR | -21.3 | N/A | N/A |
| JE-367877 | 84 | 9:1 | 22 | 31.6 | JE FSR | 2618 | N/A | FSR | -21.3 | N/A | N/A |

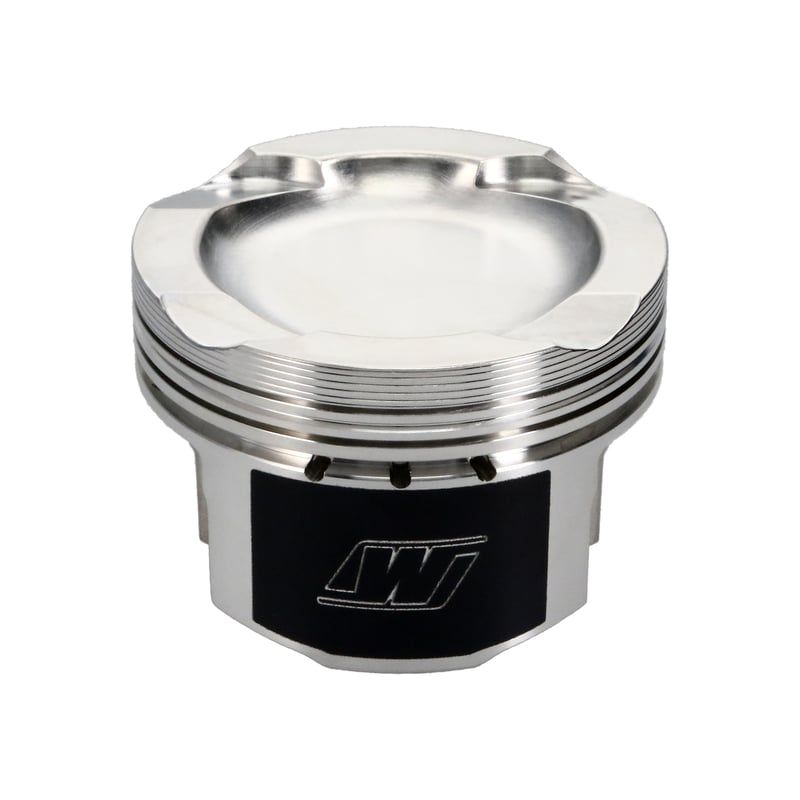

| WK742M84 | 84 | 9.1:1 | 22 | 31.6 | Wossner | N/A | N/A | N/A | -21.1 | N/A | 8400XX |
| DIA-83082-6 | 84 | 9.5:1 | 22 | 31.5 | Diamond | 2618 | Skirt | N/A | -18 | 307 | 9513307 |
| DIA-83082-6-H | 84 | 9.5:1 | 22 | 31.5 | Diamond HD | 2618 | Skirt | N/A | -18 | 307 | 9513307 |
| 646005C-6 | 84.5 | 10.2:1 | 22 | 31.8 | Manley HD | 2618 | Skirt | N/A | -16.5 | 335 | N/A |
| 646005CE-6 | 84.5 | 10.2:1 | 22 | 31.8 | Manley HD | 2618 | Skirt | N/A | -16.5 | 335 | N/A |
| K9548D050 | 84.5 | 10.2:1 | 22 | 31.7 | Wossner | N/A | N/A | N/A | -17 | N/A | 845XPY |
| DIA-83081-6 | 84.5 | 10.5:1 | 22 | 31.5 | Diamond | 2618 | Skirt | N/A | -11.5 | 307 | 9513327 |
| DIA-83081-6-H | 84.5 | 10.5:1 | 22 | 31.5 | Diamond HD | 2618 | Skirt | N/A | -11.5 | 307 | 9513327 |
| JE-338095 | 84.5 | 9:1 | 22 | 31.6 | JE FSR | 2618 | N/A | FSR | -21.3 | N/A | N/A |
| JE-367878 | 84.5 | 9:1 | 22 | 31.6 | JE FSR | 2618 | N/A | FSR | -21.3 | N/A | N/A |
| WK742M845 | 84.5 | 9.2:1 | 22 | 31.6 | Wossner | N/A | N/A | N/A | -21.1 | N/A | 8450XX |
| DIA-83083-6 | 85 | 9.3:1 | 22 | 31.5 | Diamond | 2618 | Skirt | N/A | -18 | 307 | 9513327 |
| DIA-83083-6-H | 85 | 9.3:1 | 22 | 31.5 | Diamond HD | 2618 | Skirt | N/A | -18 | 307 | 9513327 |
| JE-338096 | 85 | 9:1 | 22 | 31.6 | JE FSR | 2618 | N/A | FSR | -21.3 | N/A | N/A |
| JE-367879 | 85 | 9:1 | 22 | 31.6 | JE FSR | 2618 | N/A | FSR | -21.3 | N/A | N/A |
Engine compatibility:
N54B30
| Brand | Model | Chassis | Power (hp) | Years |
|---|---|---|---|---|
| Alpina | B3 | E90/E91/E92/E93 | 355 | 2007.2010 |
| Alpina | B3 S | E90/E91/E92/E93 | 394 | 2010.2013 |
| Alpina | B3 GT3 | E90/E93 | 402 | 2012.2013 |
| BMW | 335i | E90/E91/E92/E93 | 306 | 2006.2010 |
| BMW | 135i | E82/E88 | 306 | 2007.2010 |
| BMW | 535i | E60/E61 | 306 | 2007.2010 |
| BMW | X6 xDrive35i | E71 | 306 | 2008.2010 |
| BMW | Z4 sDrive35i | E89 | 306 | 2009.2016 |
| BMW | 740i | F01/F02 | 322 | 2008.2012 |
| BMW | 335is | E92/E93 | 326 | 2011.2013 |
| BMW | 1 Series M Coupe | E82 | 335 | 2011 |
| BMW | Z4 sDrive35is | E89 | 335 | 2011.2016 |
Manufacturer piston reference (OEM):
11257610296 (replaces 11257577582)
