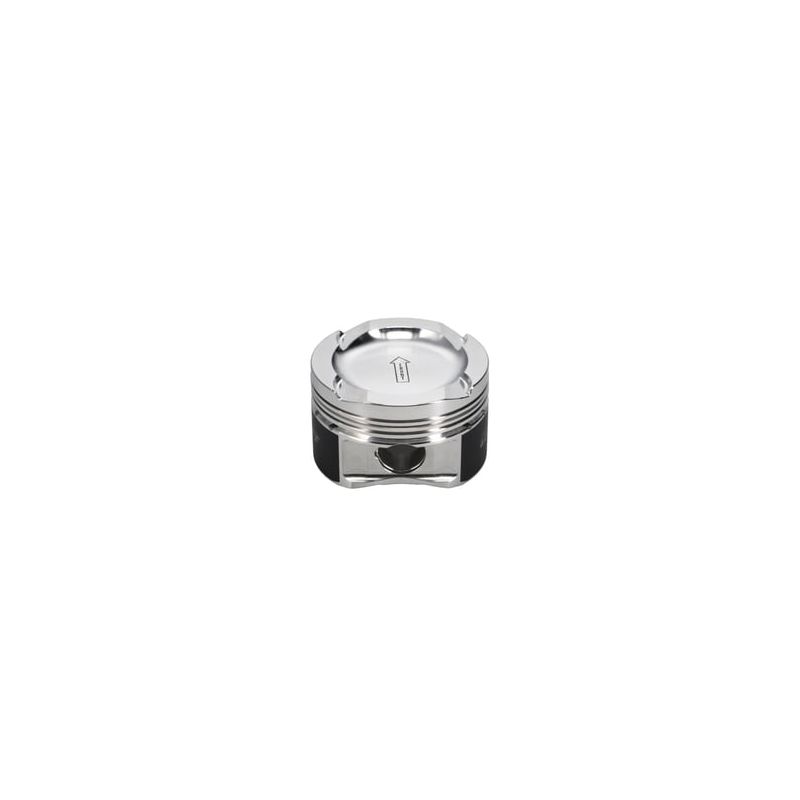

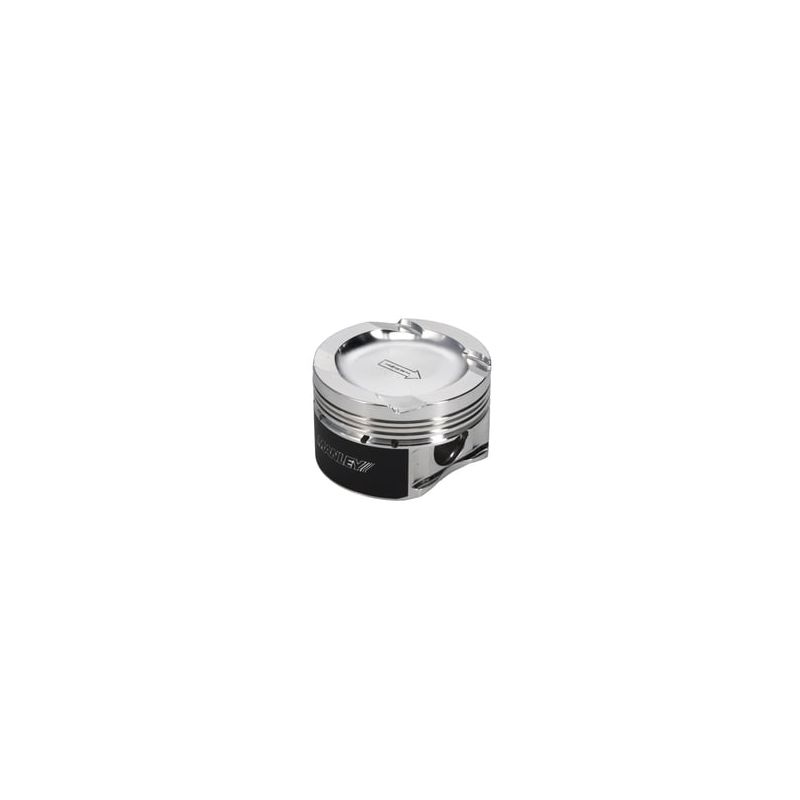

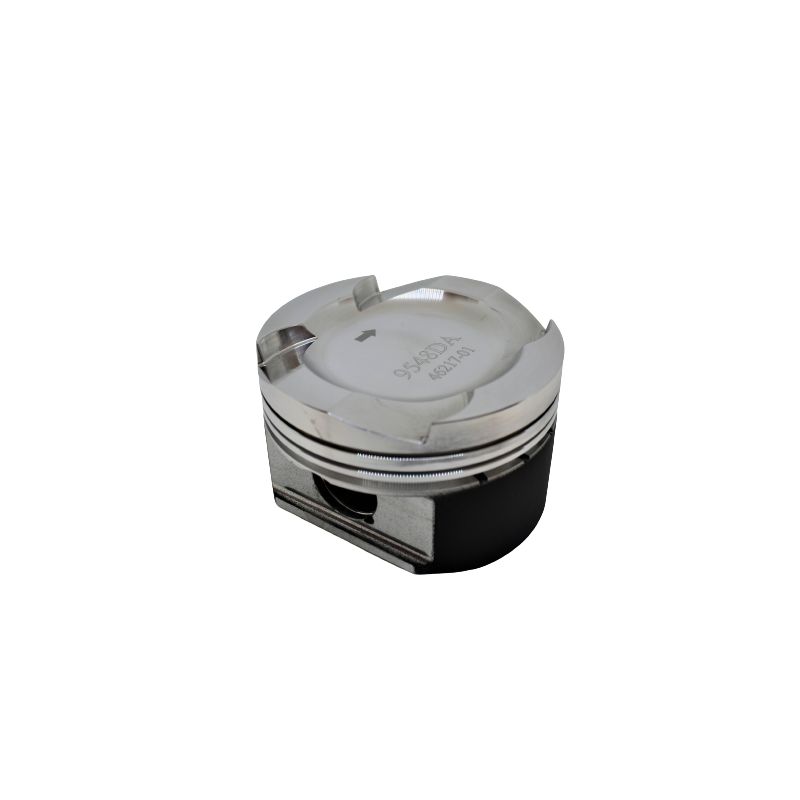

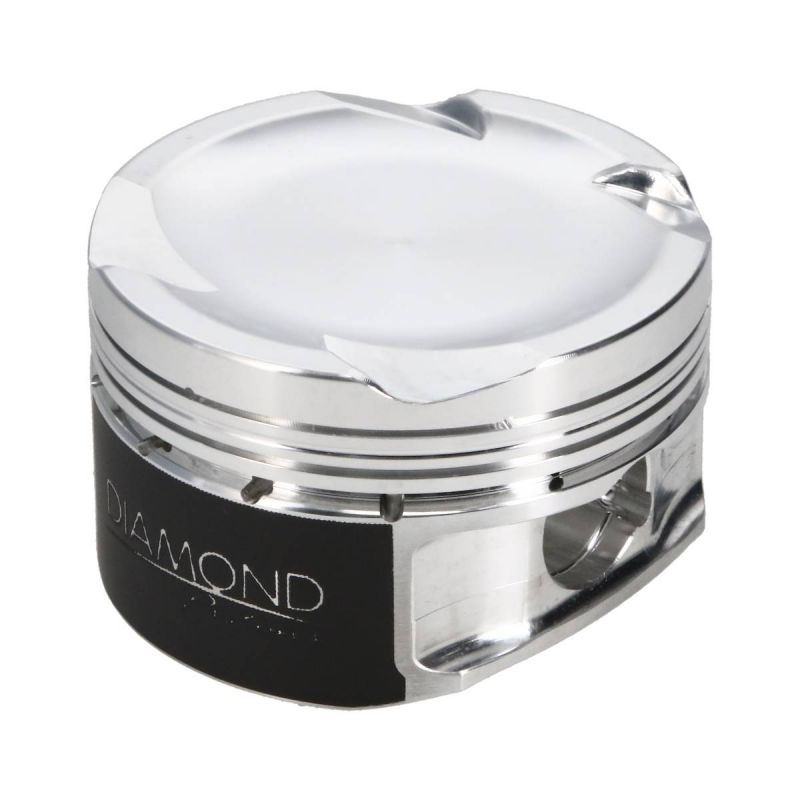

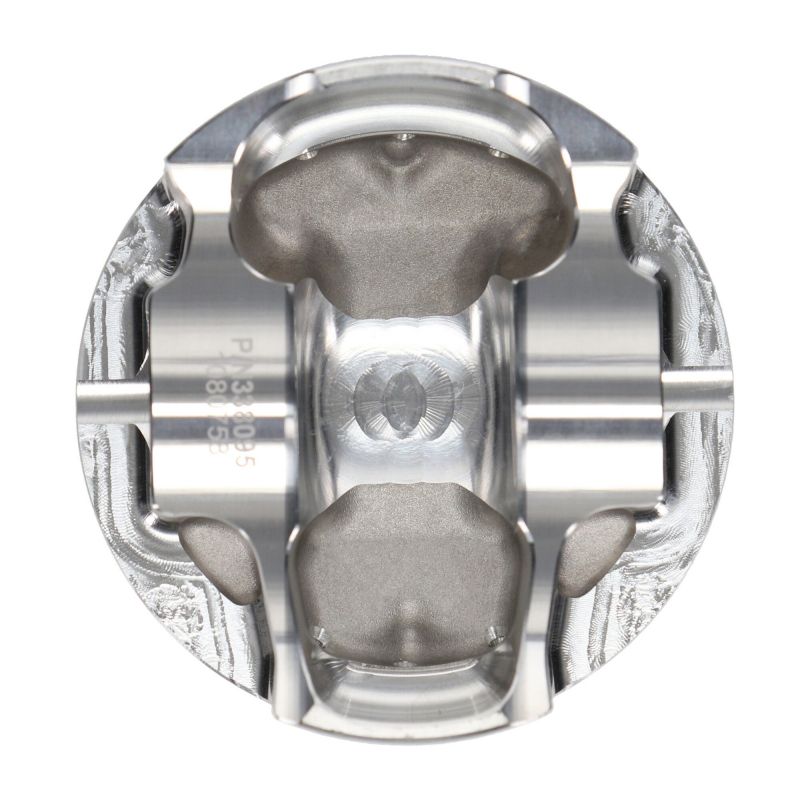

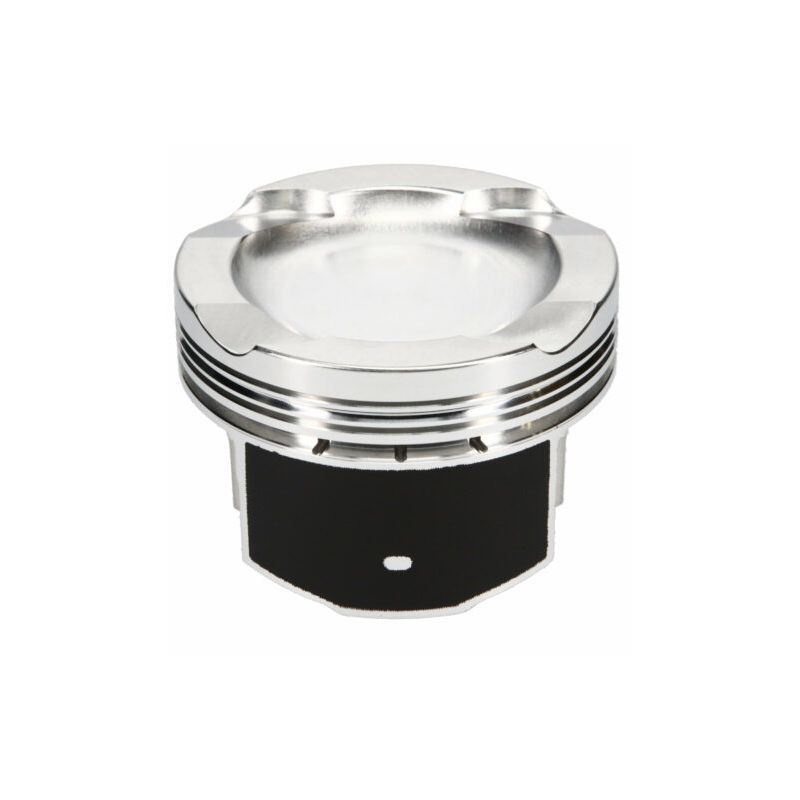

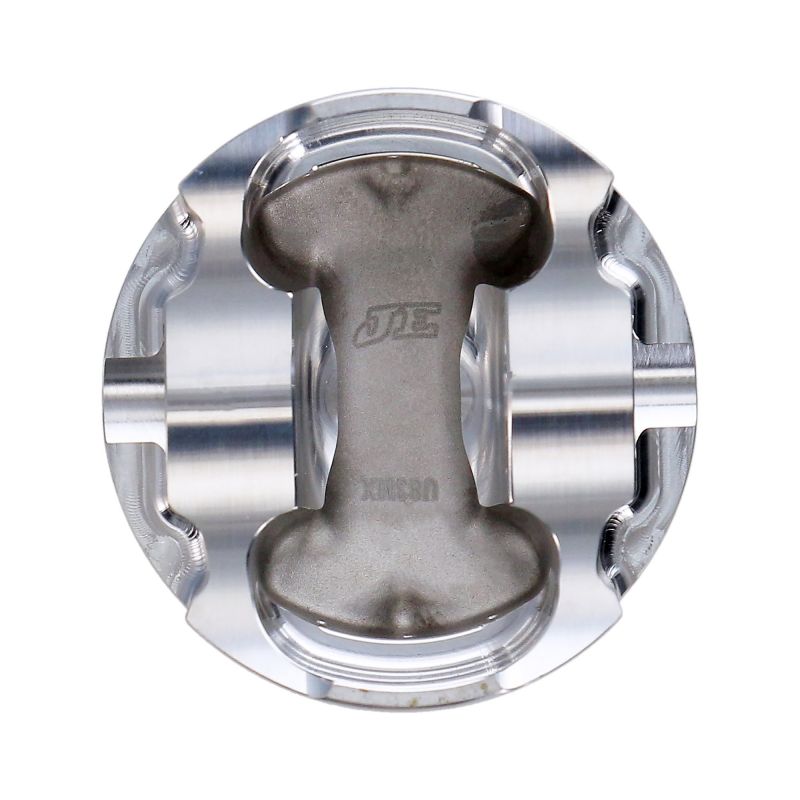

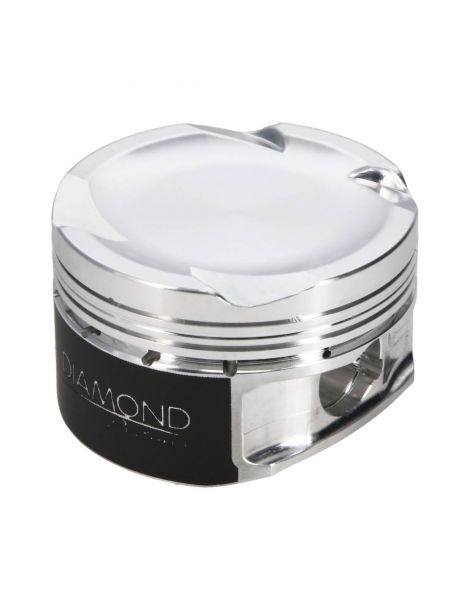

pistones forjados 3.0L 24v N54B30 BMW
1.107,07 €
(impuestos inc.)
1.581,53 €
(impuestos inc.)
-30%

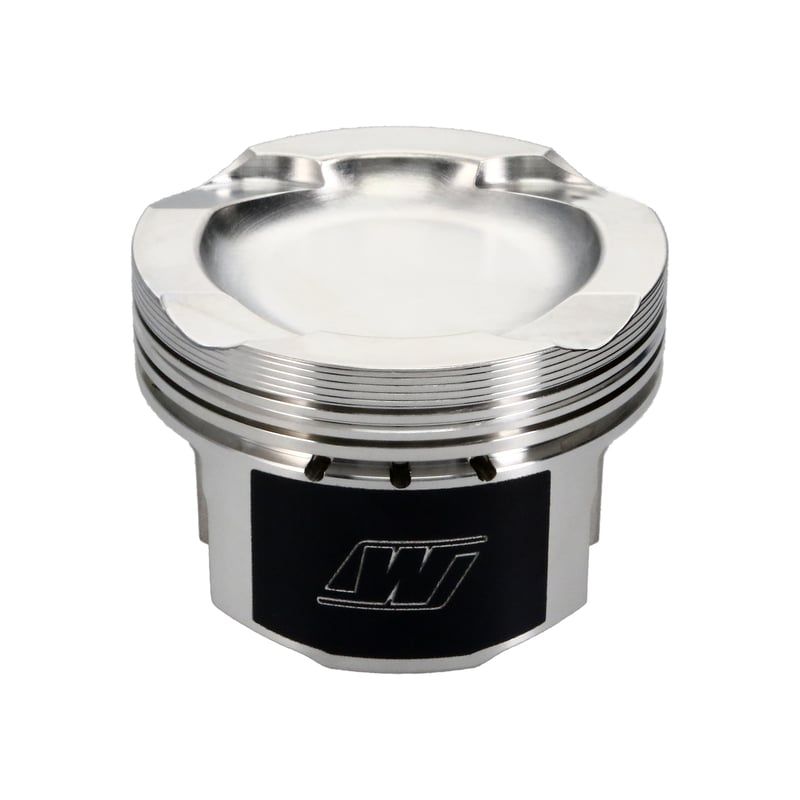

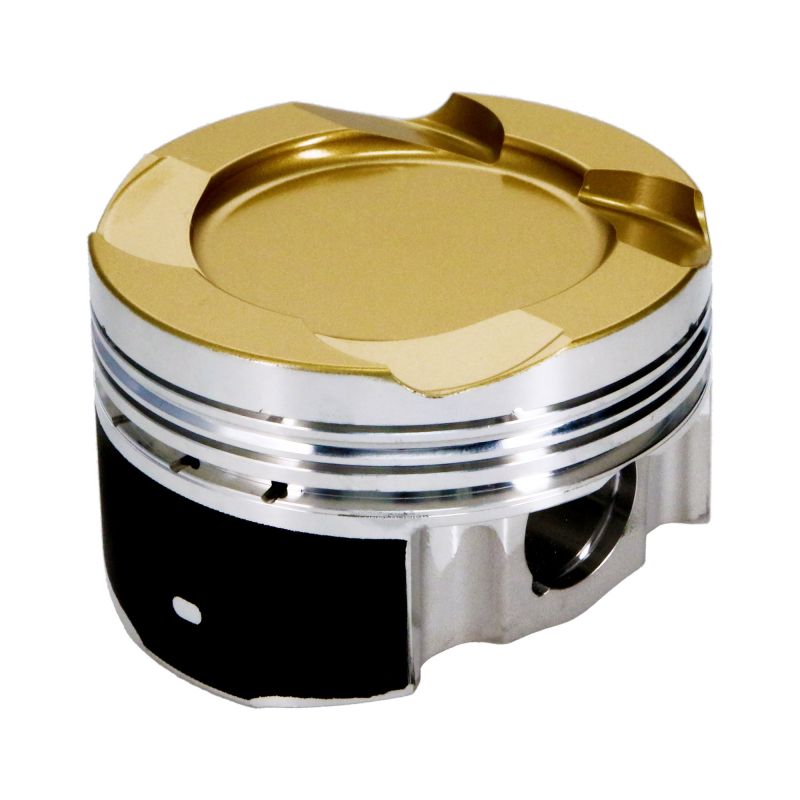

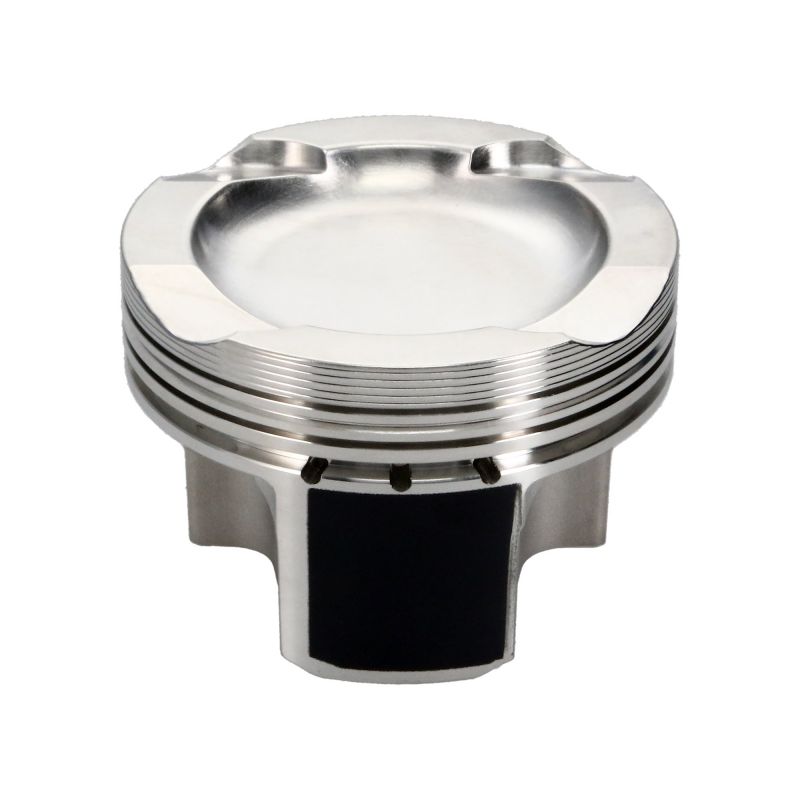

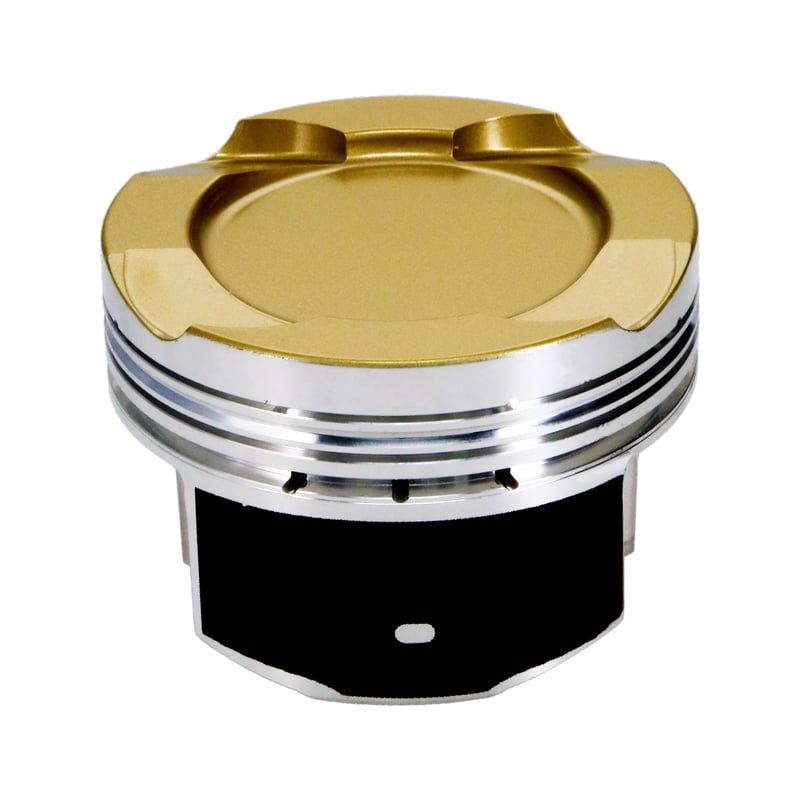

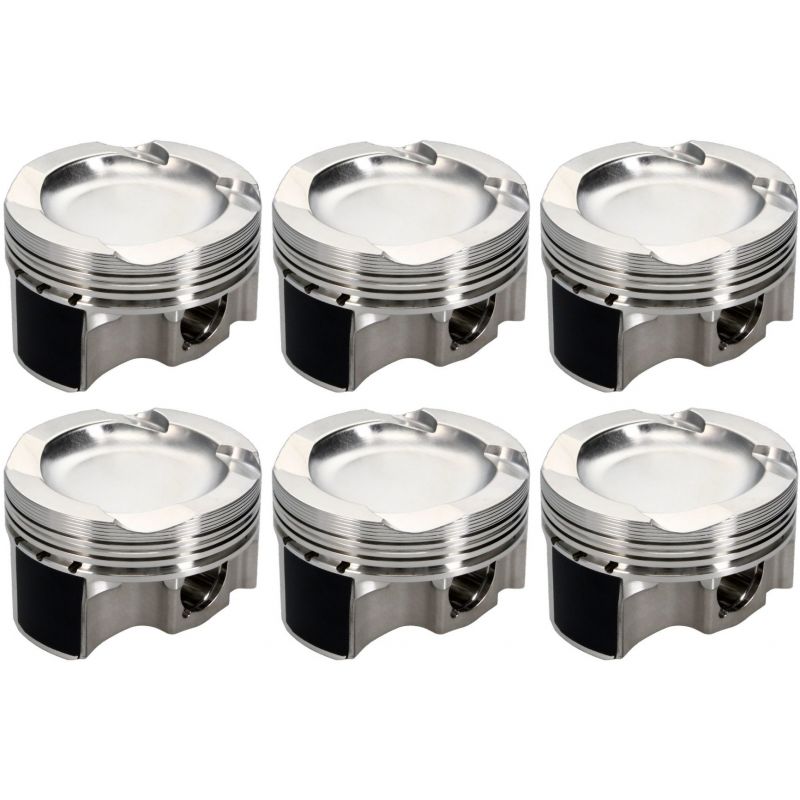

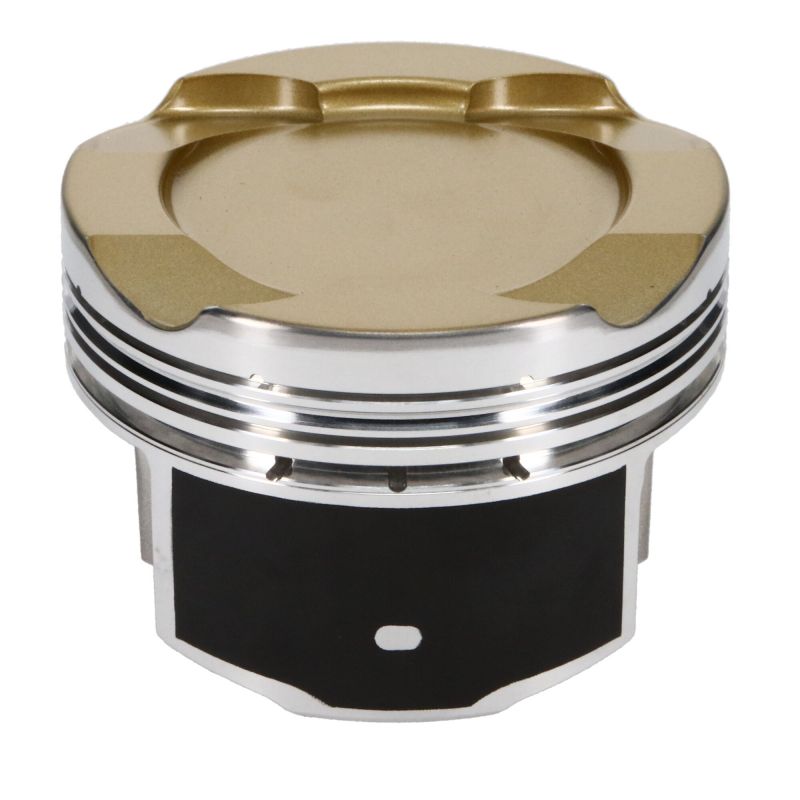

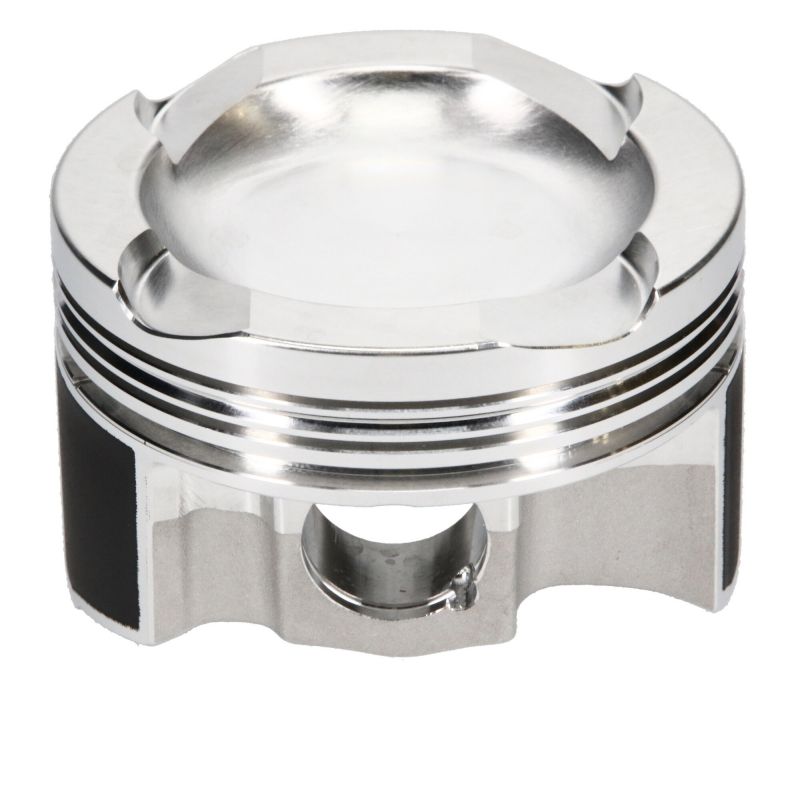

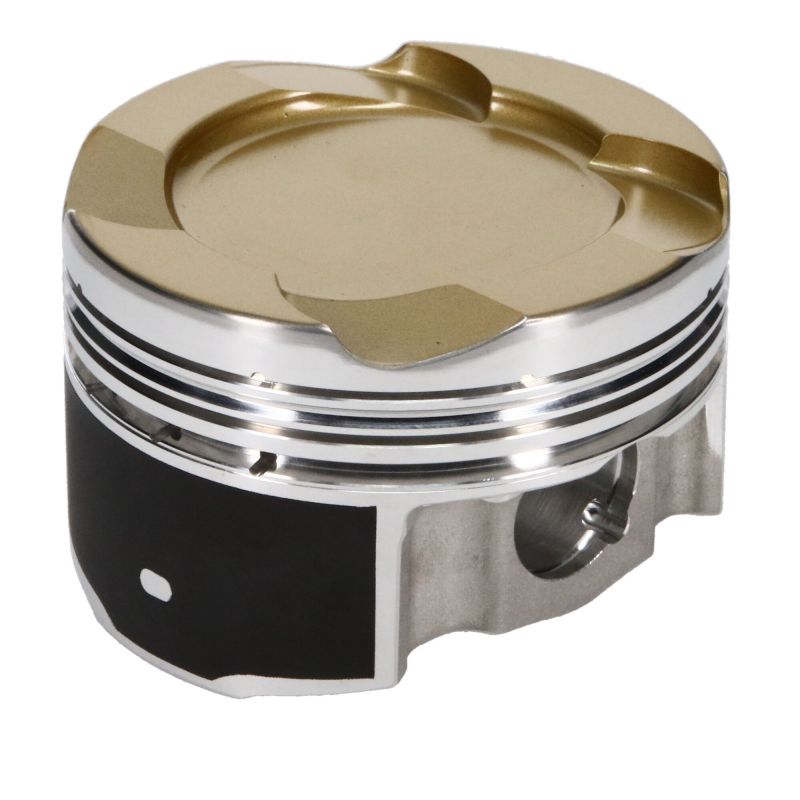

Pistones forjados BMW N54B30 3.0 L - diámetros 84 / 84,5 mm, relación de compresión 9,0 - 10,5:1, bulón 22 mm. Calidad Manley, JE, Diamond, Wössner; tabla comparativa, compatibilidades motores & vehículos incluidos.
Características de los pistones forjados propuestos por NSB Concept para BMW 3.0 L 24 v N54B30 :
| Referencia Pistón |
Diámetro (mm) OEM: 84,00 |
RC OEM: 10,2 :1 |
Bulón (mm) OEM: 22 |
Altura de compresión (mm) OEM: 31,8 |
Gama | Aluminio | Tratamiento | Forja | Cúpula (cc) | Peso (g) | Segmentos |
|---|---|---|---|---|---|---|---|---|---|---|---|

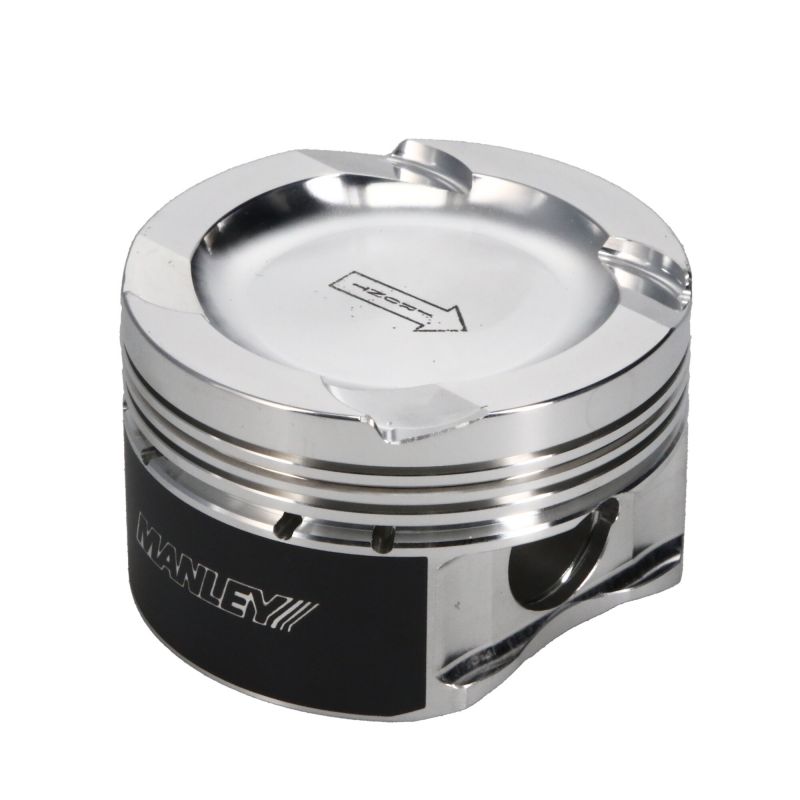

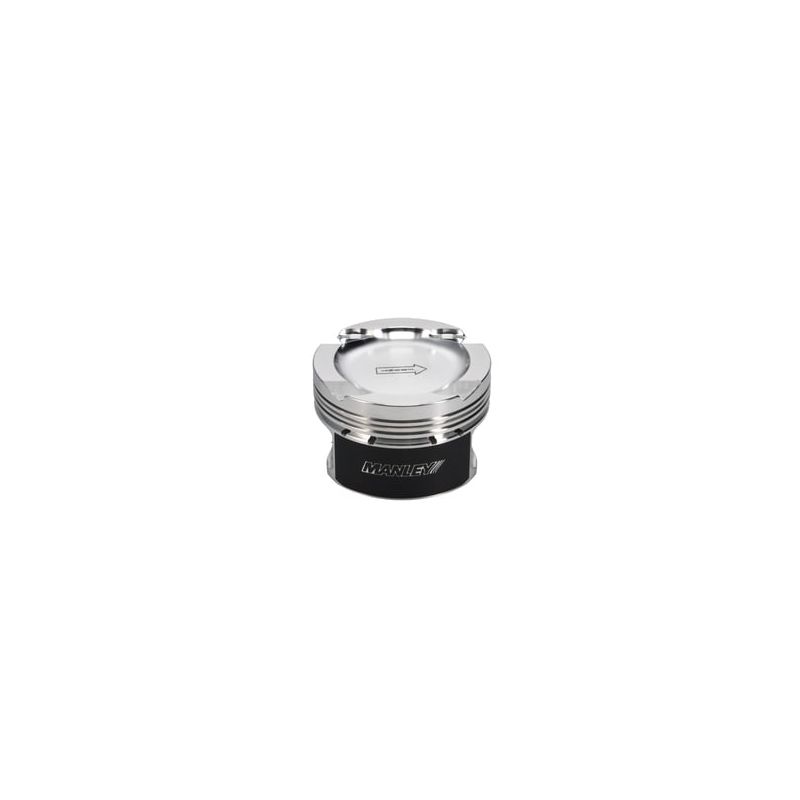

| 646000CE-6 | 84 | 10.2:1 | 22 | 31.8 | Manley HD | 2618 | Falda | NC | -16.5 | 335 | NC |

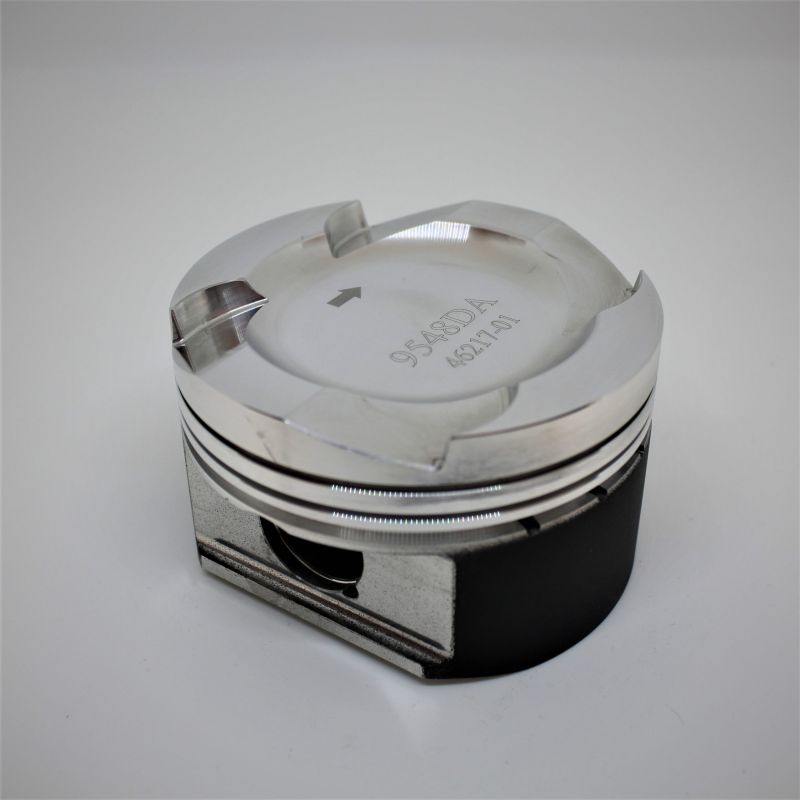

| K9548DA | 84 | 10.2:1 | 22 | 31.7 | Wossner | NC | NC | NC | -17 | NC | NC |
| DIA-83080-6 | 84 | 10.5:1 | 22 | 31.5 | Diamond | 2618 | Falda | NC | -11.5 | 307 | NC |
| DIA-83080-6-H | 84 | 10.5:1 | 22 | 31.5 | Diamond HD | 2618 | Falda | NC | -11.5 | 307 | NC |
| JE-338094 | 84 | 9:1 | 22 | 31.6 | JE FSR | 2618 | NC | FSR | -21.3 | NC | NC |
| JE-367877 | 84 | 9:1 | 22 | 31.6 | JE FSR | 2618 | NC | FSR | -21.3 | NC | NC |
| WK742M84 | 84 | 9.1:1 | 22 | 31.6 | Wossner | NC | NC | NC | -21.1 | NC | 8400XX |
| DIA-83082-6 | 84 | 9.5:1 | 22 | 31.5 | Diamond | 2618 | Falda | NC | -18 | 307 | 9513307 |
| DIA-83082-6-H | 84 | 9.5:1 | 22 | 31.5 | Diamond HD | 2618 | Falda | NC | -18 | 307 | 9513307 |
| 646005C-6 | 84.5 | 10.2:1 | 22 | 31.8 | Manley HD | 2618 | Falda | NC | -16.5 | 335 | NC |
| 646005CE-6 | 84.5 | 10.2:1 | 22 | 31.8 | Manley HD | 2618 | Falda | NC | -16.5 | 335 | NC |
| K9548D050 | 84.5 | 10.2:1 | 22 | 31.7 | Wossner | NC | NC | NC | -17 | NC | 845XPY |
| DIA-83081-6 | 84.5 | 10.5:1 | 22 | 31.5 | Diamond | 2618 | Falda | NC | -11.5 | 307 | 9513327 |
| DIA-83081-6-H | 84.5 | 10.5:1 | 22 | 31.5 | Diamond HD | 2618 | Falda | NC | -11.5 | 307 | 9513327 |
| JE-338095 | 84.5 | 9:1 | 22 | 31.6 | JE FSR | 2618 | NC | FSR | -21.3 | NC | NC |
| JE-367878 | 84.5 | 9:1 | 22 | 31.6 | JE FSR | 2618 | NC | FSR | -21.3 | NC | NC |
| WK742M845 | 84.5 | 9.2:1 | 22 | 31.6 | Wossner | NC | NC | NC | -21.1 | NC | 8450XX |
| DIA-83083-6 | 85 | 9.3:1 | 22 | 31.5 | Diamond | 2618 | Falda | NC | -18 | 307 | 9513327 |
| DIA-83083-6-H | 85 | 9.3:1 | 22 | 31.5 | Diamond HD | 2618 | Falda | NC | -18 | 307 | 9513327 |
| JE-338096 | 85 | 9:1 | 22 | 31.6 | JE FSR | 2618 | NC | FSR | -21.3 | NC | NC |
| JE-367879 | 85 | 9:1 | 22 | 31.6 | JE FSR | 2618 | NC | FSR | -21.3 | NC | NC |
Compatibilidad con motor :
- N54B30
| Marca | Modelo | chasis | Potencia (CV) | Años |
|---|---|---|---|---|
| Alpina | B3 | E90/E91/E92/E93 | 355 | 2007–2010 |
| Alpina | B3 S | E90/E91/E92/E93 | 394 | 2010–2013 |
| Alpina | B3 GT3 | E90/E93 | 402 | 2012–2013 |
| BMW | 335i | E90/E91/E92/E93 | 306 | 2006–2010 |
| BMW | 135i | E82/E88 | 306 | 2007–2010 |
| BMW | 535i | E60/E61 | 306 | 2007–2010 |
| BMW | X6 xDrive35i | E71 | 306 | 2008–2010 |
| BMW | Z4 sDrive35i | E89 | 306 | 2009–2016 |
| BMW | 740i | F01/F02 | 322 | 2008–2012 |
| BMW | 335is | E92/E93 | 326 | 2011–2013 |
| BMW | 1 Series M Coupé | E82 | 335 | 2011 |
| BMW | Z4 sDrive35is | E89 | 335 | 2011–2016 |
Referencia pistón fabricante (OEM) :
- 11257610296 (reemplaza 11257577582)
-
Marca
-
ReferenciaDIA-83082-6
