Tri-metal crankshaft main bearings BMW M20 M50 M52 M54 S50 S54
Set of 14 tri-metal crankshaft main bearing half shells for BMW inline-six M20, M50, M52, M54, S50 and S54 engines.
- Brands and treatments: ACL Race and King Racing (pMaxKote coating option)
- Fitments: E30, E34, E36, E39, E46, E60, Z3, Z4
- Engine codes: M20, M50, M52, M54, S50, S52, S54
- Available sizes: standard to +0.50 mm, increased clearance versions (HX / STDX)
The BMW M20, M50, M52, M54, S50 and S54 straight-six engines
Launched in 1977, the M20 introduced BMW's compact inline six: cast iron block, single overhead camshaft, two valves per cylinder. The M50 followed in 1990 with an aluminium cylinder head, twin camshafts and four valves, joined by VANOS variable valve timing in 1992. From this architecture came the M52, then the M52TU with double VANOS and the M54 up to 3.0 litres, plus the engines of the BMW M3 and Z3 M: S50B30, S50B32, S52B32 and S54B32, up to 360 hp in the M3 CSL. All share the same crankshaft journal and housing dimensions: a single bearing set covers the whole family.

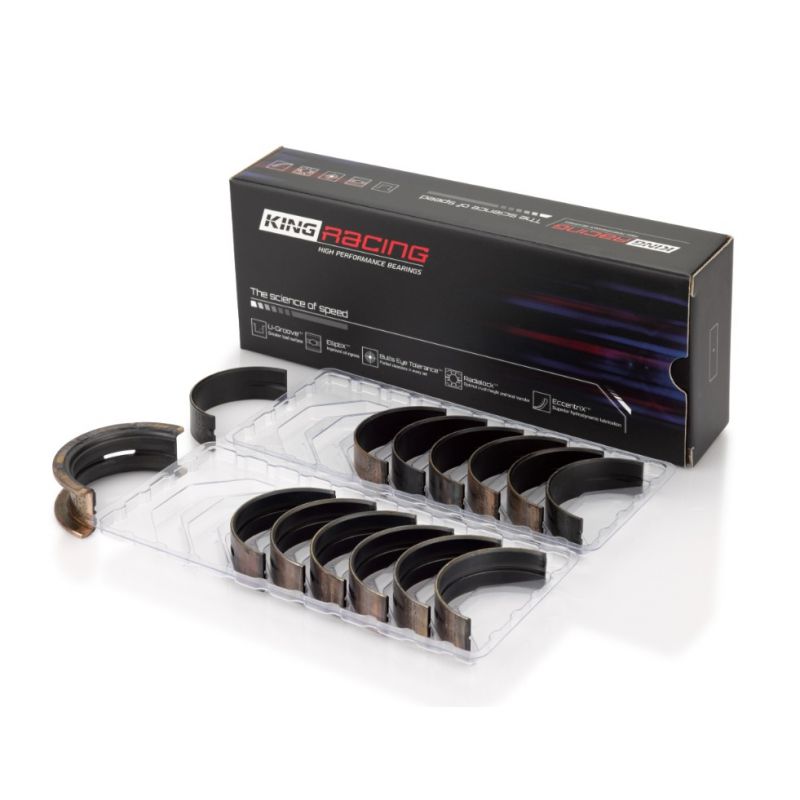

The crankshaft of these engines runs on seven main bearings. Each journal turns between two half shells, one seated in the block and the other in the main bearing cap: they carry the crankshaft. The ACL Race Series and KING RACING tri-metal sets shown here replace them on built engines.
Tri-metal main bearings

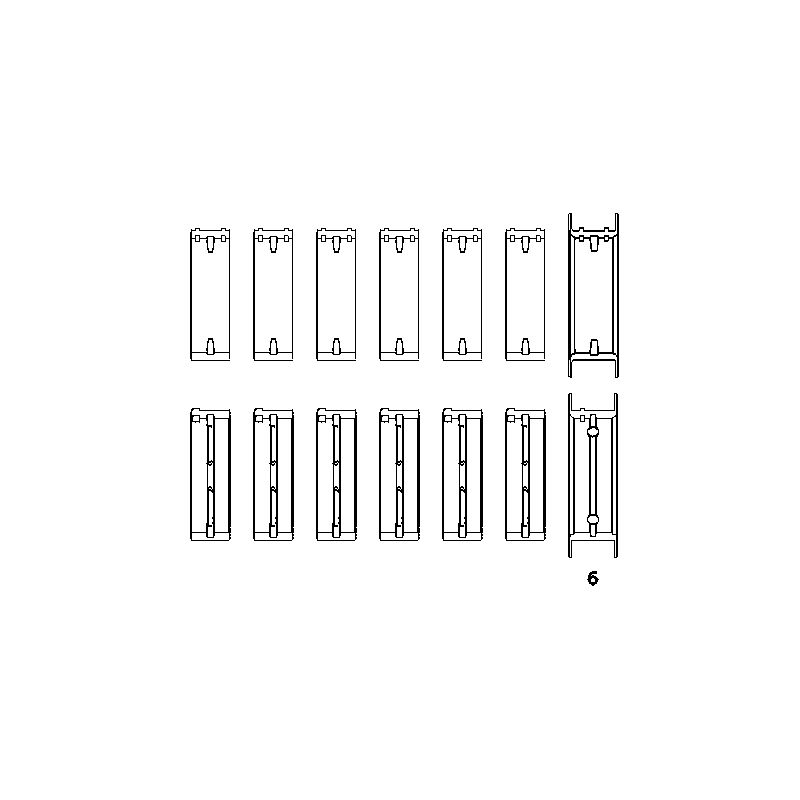

A trimetal bearing combines three layers with complementary roles: a steel back that provides structural strength, a copper-lead intermediate layer that takes the heavy loads and an anti-friction running layer that protects the main journal. The complete set contains 0 half shells, i.e. The complete set contains 14 half shells, seven pairs for seven main bearings. The upper and lower half shells are different: each goes in its own position.
An aluminium bi-metal bearing, intended for low to medium loads, tops out at around 8,000 psi; a performance trimetal bearing holds up to 12,000 psi, 50% more load capacity. It therefore gains strength and service life on turbocharged, supercharged or high-revving engines.
Technical specifications
| ACL bearings Crankshaft journal Ø 59.971 / 59.990 mm Housing bore Ø 65.000 / 65.019 mm Width 20 mm | King bearings Crankshaft journal Ø 59.972 / 59.990 mm Housing bore Ø 65.001 / 65.019 mm Width 19.9 mm (flanged pair: 24.9 mm) |

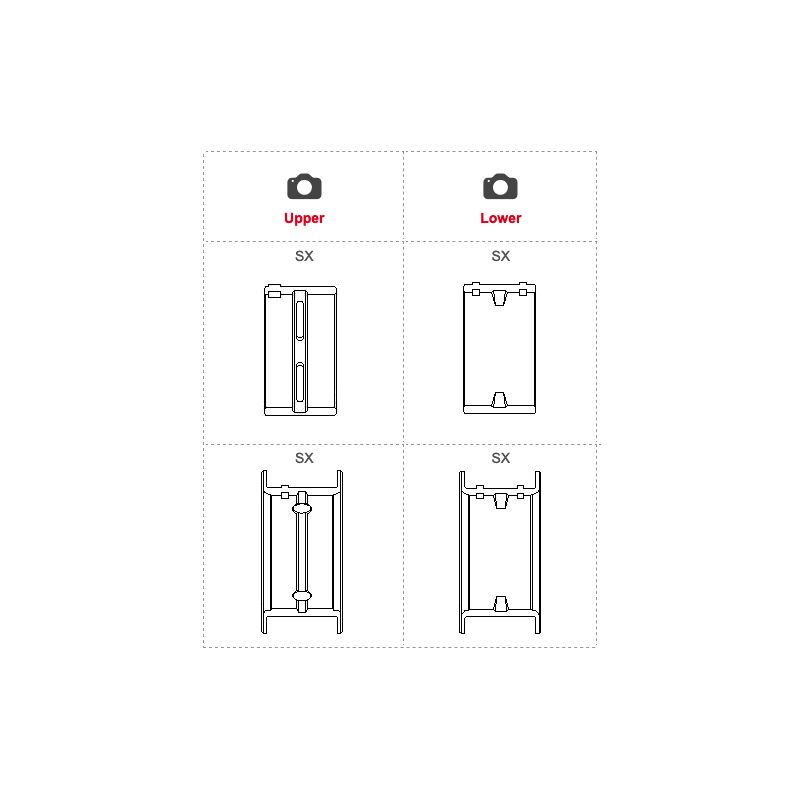

Manufacturer's note (ACL 7M1532H): half grooved set. Lower half has 2 notches.
| Reference | Brand and treatment | Size | Wall thickness (mm) |
|---|---|---|---|
| 7M1532H-STD | ACL Race - Untreated | Standard | 2.488 |
| 7M1532HX-STD | ACL Race - Untreated | Std, increased clearance (HX) | 2.475 |
| 7M1532H-.025 | ACL Race - Untreated | +0.025 | 2.501 |
| 7M1532H-.25 | ACL Race - Untreated | +0.25 | 2.613 |
| 7M1532H-.50 | ACL Race - Untreated | +0.50 | 2.738 |
| MB7039XP | King Racing - Untreated | Standard | 2.494 |
| MB7039XP STDX | King Racing - Untreated | Std, increased clearance (STDX) | 2.481 |
| MB7039XP.026 | King Racing - Untreated | +0.026 | 2.507 |
| MB7039XP0.25 | King Racing - Untreated | +0.25 | 2.621 |
| MB7039XP0.5 | King Racing - Untreated | +0.50 | 2.748 |
| MB7039XPC | King Racing - pMaxKote | Standard | 2.494 |
| MB7039XPC STDX | King Racing - pMaxKote | Std, increased clearance (STDX) | 2.481 |
| MB7039XPC.026 | King Racing - pMaxKote | +0.026 | 2.507 |
| MB7039XPC0.25 | King Racing - pMaxKote | +0.25 | 2.621 |
| MB7039XPC0.5 | King Racing - pMaxKote | +0.50 | 2.748 |
Running clearance
Running clearance is the space left between the bearing and the main journal, permanently filled by the oil film.
With the engine running, the main journal does not touch the bearing: it rides on this oil film, which takes the load. The clearance sets the film thickness. Too small, it restricts oil flow, raises the temperature and invites seizure; too large, it lets the oil escape, the film loses its load capacity and oil pressure falls. The right clearance combines sufficient lubrication with an oil film that keeps carrying the load.
| Size / grade | When to choose it | ACL Race Series | King XP / XPC |
|---|---|---|---|
| Standard (STD) | Standard journal, not reground | 0.061 to 0.073 mm | 0.060 mm - 0.073 mm |
| Increased clearance (HX / STDX) | Wider clearance: high oil flow, high rpm | 0.086 to 0.098 mm | 0.085 mm - 0.098 mm |
| +0.025 / +0.026 mm | Polished journal | 0.061 to 0.073 mm | 0.060 mm - 0.073 mm |
| +0.25 mm | Journal reground to 0.25 mm | 0.061 to 0.073 mm | 0.060 mm - 0.073 mm |
| +0.50 mm | Journal reground to 0.50 mm | 0.061 to 0.073 mm | 0.060 mm - 0.073 mm |
Checking on assembly: lay a calibrated strip (Plastigauge) on the journal, torque the main cap to spec (see the torque table below), then compare the crushed strip against the gauge to read the clearance.

Main bearing bolt torques
| Bolts | By torque | By stretch (gauge) |
| Original bolts (OEM), M20 | 60 Nm | |
| Original bolts (OEM), M50, M52 (cast iron block), S50B30, S52B32 | 20 Nm + 50° | |
| Original bolts (OEM), M52 (aluminium block), M54 | 20 Nm + 70° | |
| Original bolts (OEM), S54B32 | 25 Nm + 50° |
Technical guide
The ACL and King main bearings shown here are trimetal bearings built for engine tuning and racing. They withstand far higher loads than a standard bearing and come in several sizes: the standard size, a +0.025 / +0.026 mm size for a main journal that has only been polished, +0.25 and +0.50 mm regrind sizes and the HX / STDX version with increased clearance for high-revving engines or engines needing a high oil flow. This range lets you refit a reground crankshaft without changing product line and match the clearance to the oil and use chosen.
The two brands
![]() |
Founded in Australia in 1949, ACL Bearing Company designs high-performance engine bearings. Its Race Series brings together precision trimetal bearings, offered in a wide choice of sizes and fitted to built engines around the world. |
![]() |
An Israeli maker of high-performance engine bearings since the 1960s, King Engine Bearings developed the pMax Black trimetal alloy for heavy loads, and offers the pMaxKote coating as an option (XPC version). |
Construction and advantages
| Criterion | ACL Race Series | King Racing |
| Cross-section | ![]() |
![]() |
| Type | High-performance trimetal bearing | High-performance trimetal bearing |
| Country of manufacture | Australia | Israel |
| Construction | Trimetal: steel back, copper layer, soft surface | Trimetal: steel back, copper layer, soft surface |
| Alloy | Race Series (copper-lead) | pMax Black (hardened copper-lead) |
| Protective coating | No | pMaxKote (optional, XPC version): polymer coating on the surface that limits wear when lubrication drops (start-ups, thin oil film). |
| Available sizes | Standard to +0.50 mm (+ increased clearance HX) | Standard to +0.50 mm (+ increased clearance STDX) |
Vehicle compatibility
This main bearing set fits all BMW six-cylinder engines sharing the same crankshaft journal and housing dimensions. For the M20, this set applies to engines built from 1988.
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| BMW | 3 Series (E30) 320i | M20B20 | 125–129 hp | 1982–1993 |
| BMW | 5 Series (E34) 520i | M20B20 | 129 hp | 1987–1990 |
| Bertone | Freeclimber 2.0 | M20B20 | 129 hp | 1990–1993 |
| Alpina | C1 (E30) 2.5 | M20B25 | 190 hp | 1986–1988 |
| Alpina | C2 (E30) 2.5 | M20B25 | 185 hp | 1985–1988 |
| BMW | 3 Series (E30) 325i / 325iX | M20B25 | 170–192 hp | 1983–1993 |
| BMW | 5 Series (E34) 525i | M20B25 | 170 hp | 1988–1990 |
| BMW | Z1 Roadster 2.5 | M20B25 | 170 hp | 1988–1991 |
| Alpina | B3 (E30) 2.7 | M20B27 | 204 hp | 1987–1992 |
| BMW | 3 Series (E30) 325e | M20B27 | 122–129 hp | 1983–1988 |
| Bertone | Freeclimber 2.7 | M20B27 | 129 hp | 1991–1993 |
| BMW | 3 Series (E36) 320i | M50B20 | 150 hp | 1991–1999 |
| BMW | 5 Series (E34) 520i | M50B20 | 150 hp | 1990–1996 |
| BMW | 3 Series (E36) 325i / 325is | M50B25 | 192 hp | 1990–1995 |
| BMW | 5 Series (E34) 525i / 525iX | M50B25 | 192 hp | 1990–1996 |
| BMW | 3 Series (E36/E46) 320i | M52B20 | 150 hp | 1995–2001 |
| BMW | 5 Series (E39) 520i | M52B20 | 136–150 hp | 1996–2003 |
| BMW | Z3 Roadster (E36) 2.0i | M52B20 | 150 hp | 1999–2003 |
| BMW | 3 Series (E36/E46) 323i / 323Ci / 323ti | M52B25 | 163–173 hp | 1995–2000 |
| BMW | 5 Series (E39) 523i | M52B25 | 170 hp | 1995–2000 |
| BMW | Z3 Roadster (E36) 2.5 | M52B25 | 170 hp | 1998–2000 |
| Alpina | B3 (E46) 3.3 / 3.4S | M52B28 | 280–305 hp | 1999–2006 |
| Alpina | B10 (E39) 3.3 | M52B28 | 280 hp | 1999–2003 |
| BMW | 3 Series (E36/E46) 328i / 328Ci | M52B28 | 193–196 hp | 1995–2000 |
| BMW | 5 Series (E39) 528i | M52B28 | 193 hp | 1995–2000 |
| BMW | 7 Series (E38) 728i / 728iL | M52B28 | 193 hp | 1995–2001 |
| BMW | Z3 (E36) 2.8i | M52B28 | 193 hp | 1996–2000 |
| Land Rover | Defender (L316) 2.8 4x4 | M52B28 | 190 hp | 1998–2003 |
| BMW | 3 Series (E46) 320i / 320Ci | M54B22 | 163–170 hp | 2000–2007 |
| BMW | 5 Series (E39/E60) 520i | M54B22 | 163–170 hp | 2000–2010 |
| BMW | Z3 Roadster (E36) 2.2i | M54B22 | 163–170 hp | 2000–2003 |
| BMW | Z4 Roadster (E85) 2.2i | M54B22 | 170 hp | 2003–2005 |
| BMW | 3 Series (E46) 325i / 325xi / 325Ci / 325ti | M54B25 | 186–192 hp | 2000–2006 |
| BMW | 5 Series (E39/E60/E61) 525i | M54B25 | 186–192 hp | 2000–2010 |
| BMW | X3 (E83) 2.5i | M54B25 | 186–192 hp | 2004–2006 |
| BMW | Z3 Roadster (E36) 2.5i | M54B25 | 192 hp | 2000–2002 |
| BMW | Z4 (E85/E86) 2.5i | M54B25 | 192 hp | 2002–2005 |
| BMW | 3 Series (E46) 330i / 330xi / 330Ci | M54B30 | 228–231 hp | 2000–2006 |
| BMW | 5 Series (E39/E60) 530i | M54B30 | 228–231 hp | 2000–2005 |
| BMW | 7 Series (E65/E66) 730i / 730Li | M54B30 | 231 hp | 2003–2008 |
| BMW | X3 (E83) 3.0i / xDrive | M54B30 | 231 hp | 2003–2006 |
| BMW | X5 (E53) 3.0i | M54B30 | 231 hp | 2000–2006 |
| BMW | Z3 Roadster / Coupé (E36) 3.0i | M54B30 | 228–231 hp | 2000–2003 |
| BMW | 3 Series (E36) M3 3.0 | S50B30 | 286 hp | 1994–1995 |
| BMW | 3 Series Coupé (E36) M3 3.0 | S50B30 | 286–295 hp | 1992–1995 |
| BMW | 3 Series Convertible (E36) M3 3.0 | S50B30 | 286 hp | 1994–1995 |
| BMW | M3 (E36, North American market) 3.0 | S50B30US | 239 hp | 1994–1995 |
| BMW | 3 Series (E36) M3 3.2 | S50B32 | 321 hp | 1995–1998 |
| BMW | 3 Series Coupé (E36) M3 3.2 | S50B32 | 321 hp | 1995–1998 |
| BMW | 3 Series Convertible (E36) M3 3.2 | S50B32 | 321 hp | 1996–1999 |
| BMW | Z3 Roadster (E36) M 3.2 | S50B32 | 321 hp | 1997–2000 |
| BMW | Z3 Coupé (E36) M 3.2 | S50B32 | 321 hp | 1998–2001 |
| BMW | M3 (E36, North American market) 3.2 | S52B32US | 243 hp | 1996–1999 |
| BMW | Z3 M Coupé / Roadster (E36, North Am. market) 3.2 | S52B32US | 239–243 hp | 1998–2000 |
| BMW | 3 Series Coupé (E46) M3 | S54B32 | 343 hp | 2000–2006 |
| BMW | 3 Series Coupé (E46) M3 CSL | S54B32 | 360 hp | 2003 |
| BMW | 3 Series Convertible (E46) M3 | S54B32 | 343 hp | 2001–2006 |
| BMW | Z3 Roadster (E36) 3.2 i | S54B32 | 320 hp | 2000–2002 |
| BMW | Z3 Roadster (E36) M 3.2 | S54B32 | 325 hp | 2001–2003 |
| BMW | Z3 Coupé (E36) M | S54B32 | 320 hp | 2000–2002 |
| BMW | Z3 Coupé (E36) M | S54B32 | 325 hp | 2001–2003 |
| BMW | Z4 Roadster (E85) 3.2 | S54B32 | 320 hp | 2005–2007 |
| BMW | Z4 Roadster (E85) M | S54B32 | 343 hp | 2006–2008 |
| BMW | Z4 Coupé (E86) M | S54B32 | 320 hp | 2006–2008 |
| BMW | Z4 Coupé (E86) M | S54B32 | 343 hp | 2006–2008 |
Why replace the bearings
A failing main bearing does not fail alone: it scores the main journal, sends debris through the oil circuit and calls at least for a crankshaft regrind, when it does not damage the block as well. On a built engine, a bearing set costs only a fraction of a regrind, and even less of a full rebuild: it is the cheapest part of the crankshaft assembly and the one whose failure costs the most.
-
