2.5L 24v - M50B25 (without vanos)
Manufacturers
2.5L 24v - M50B25 (without vanos)
Warning: Last items in stock!
New product

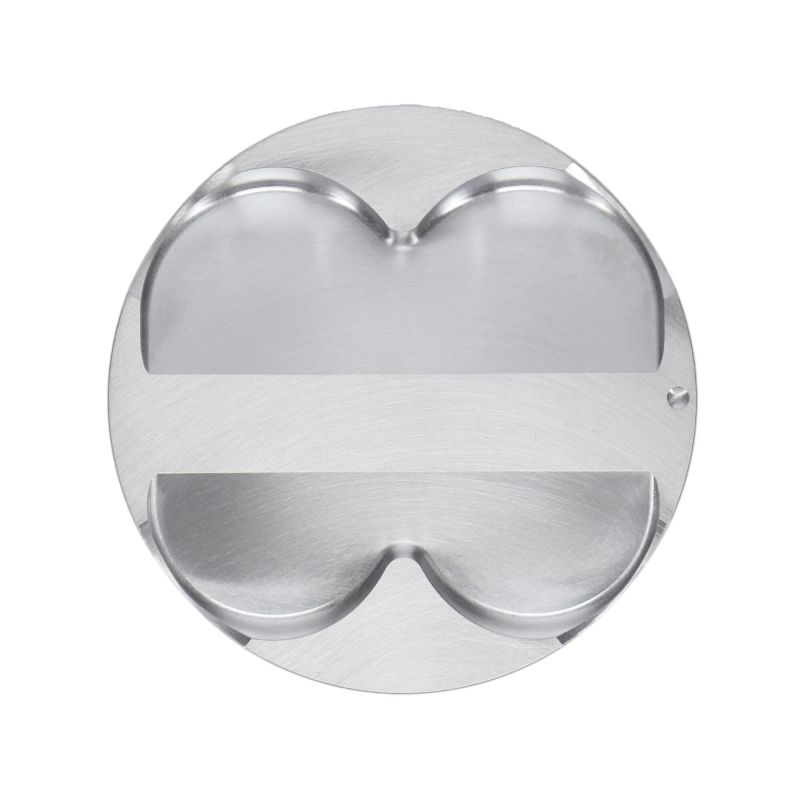

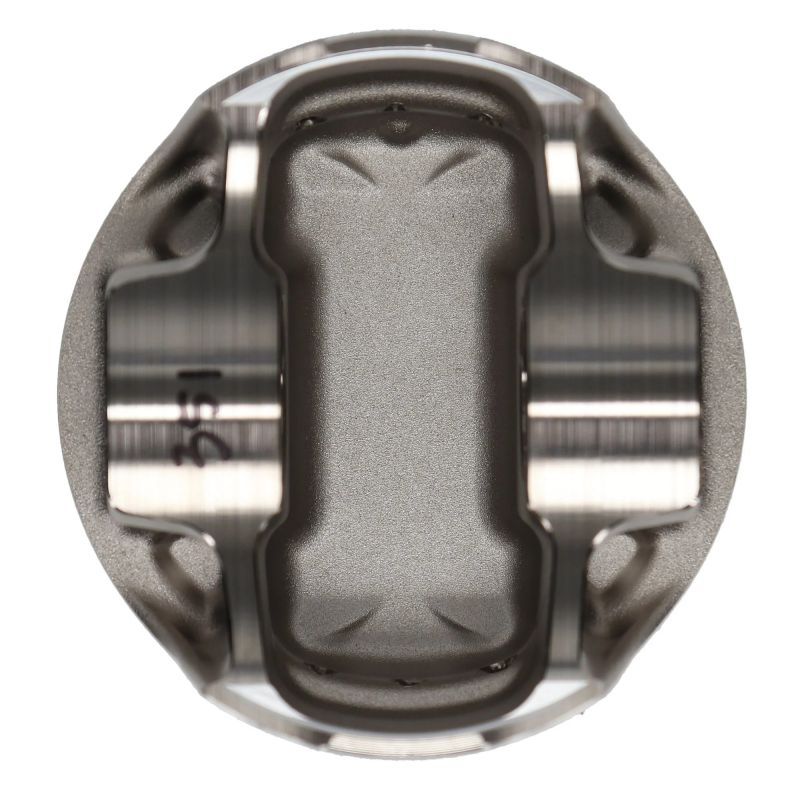

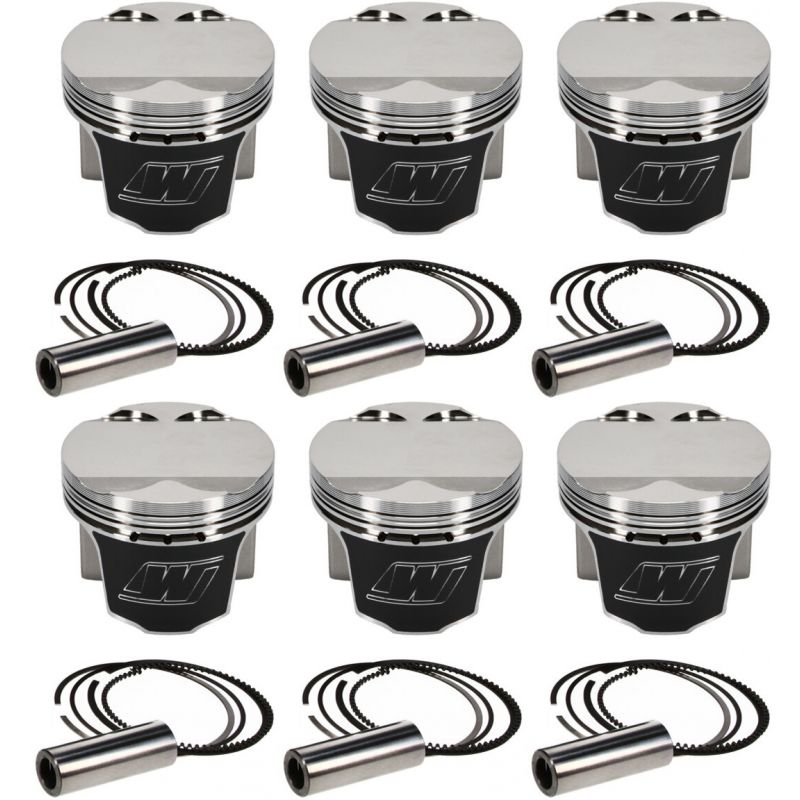

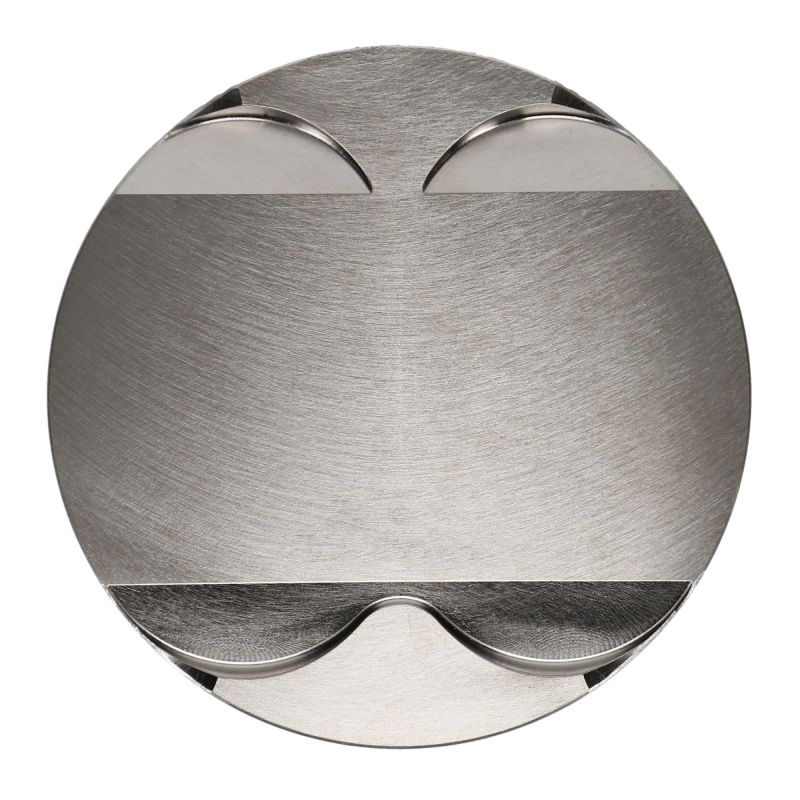

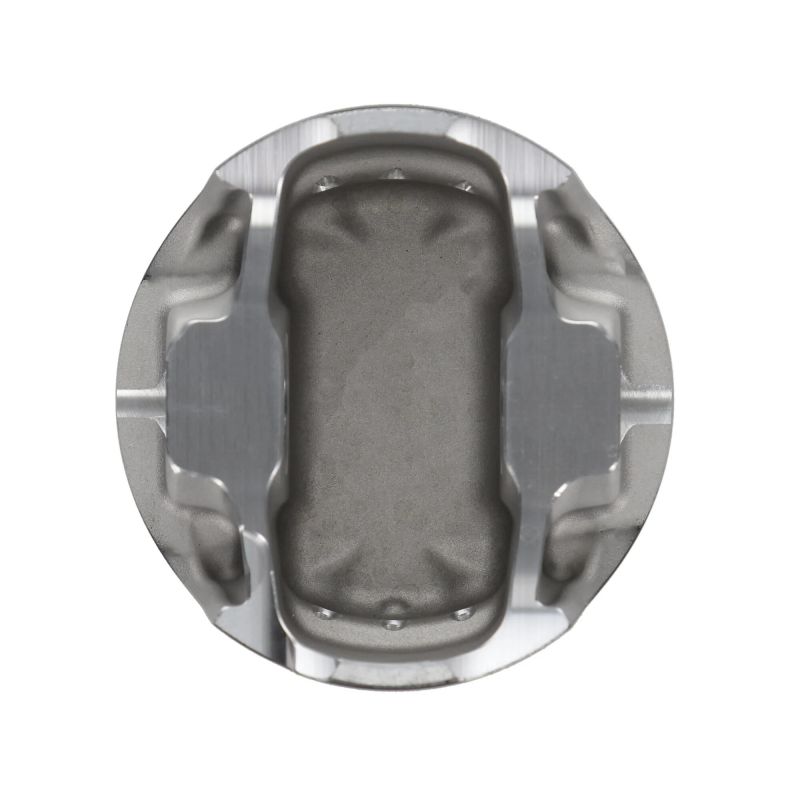

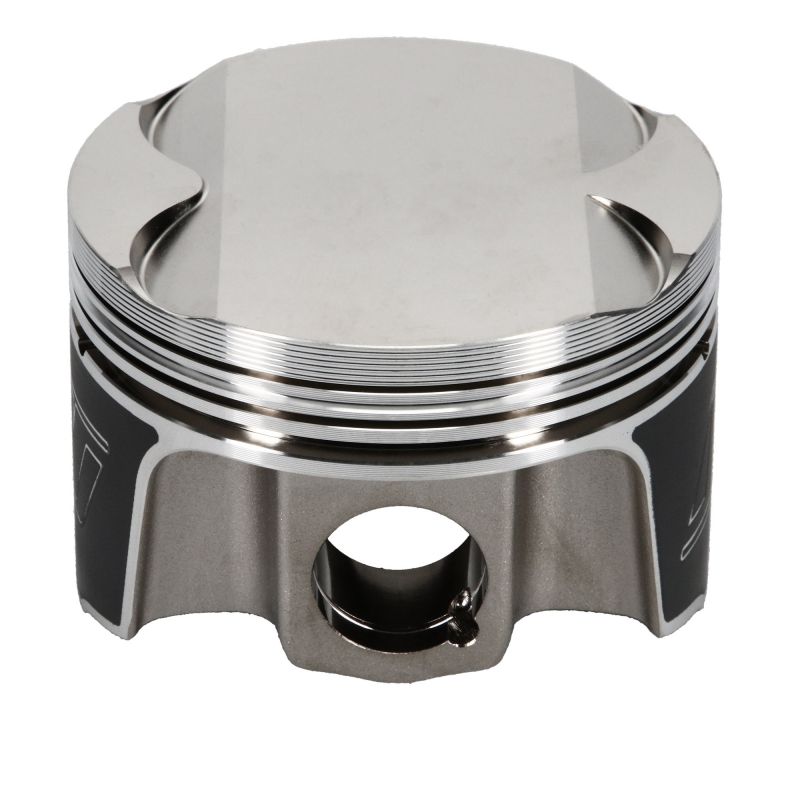

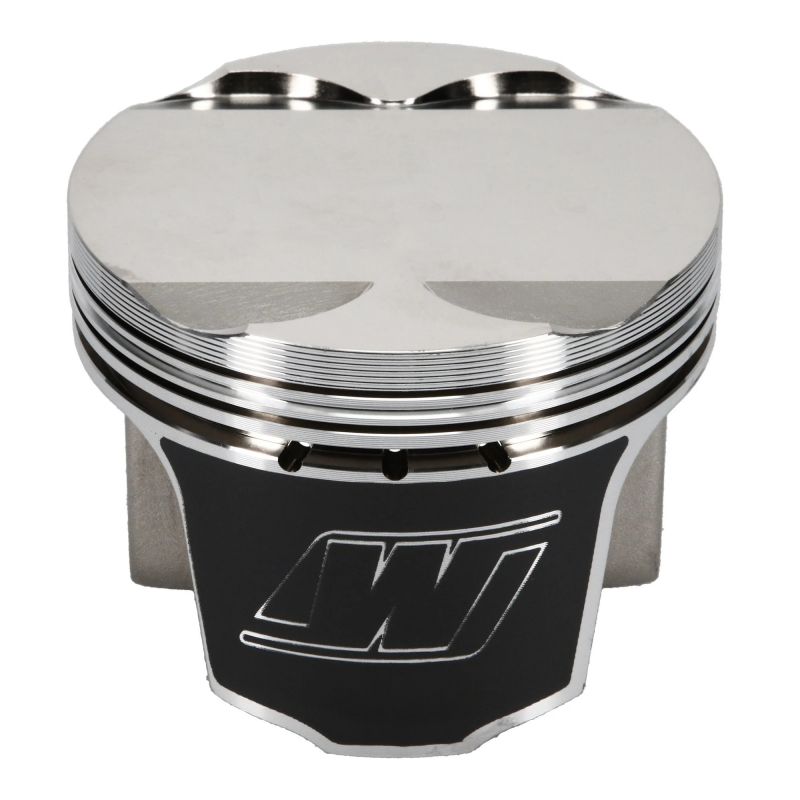

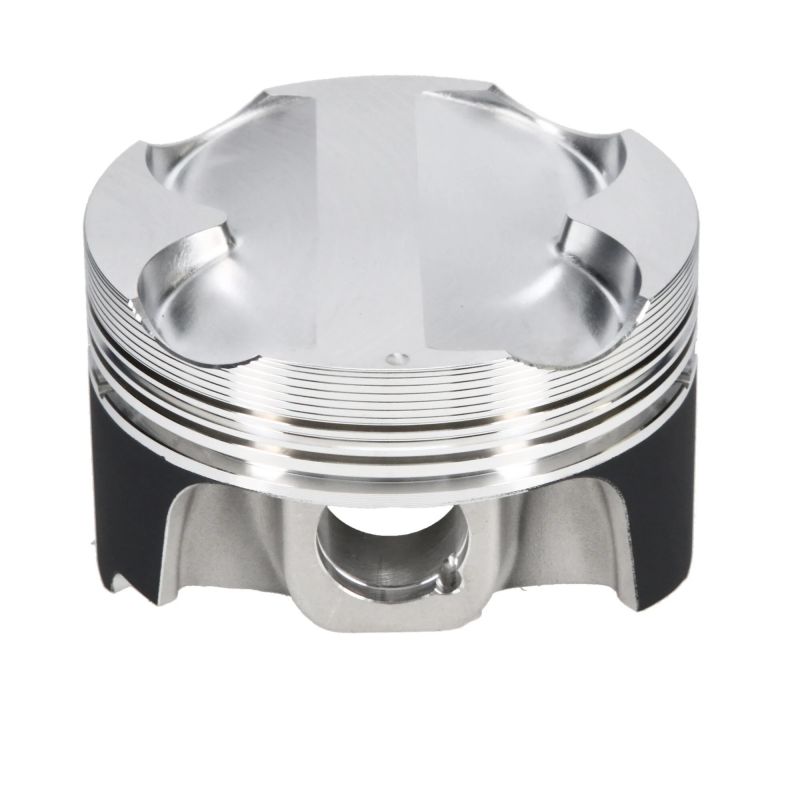

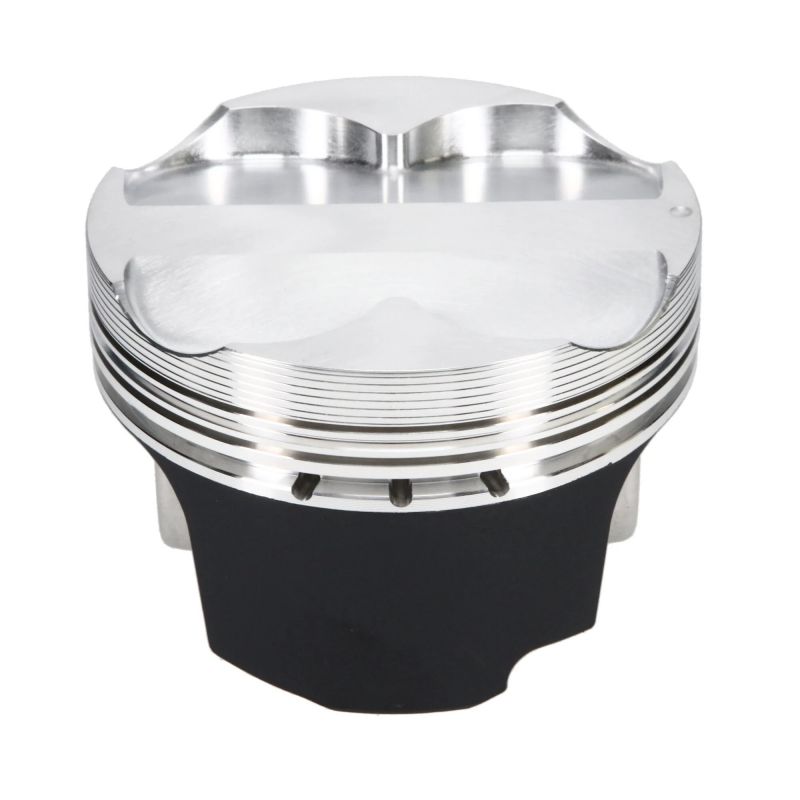

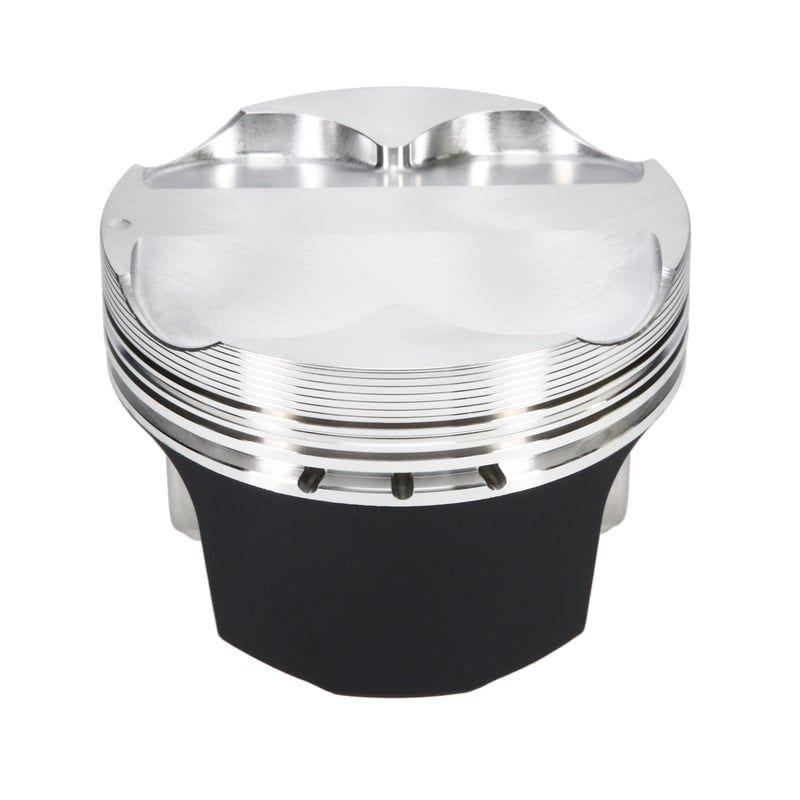

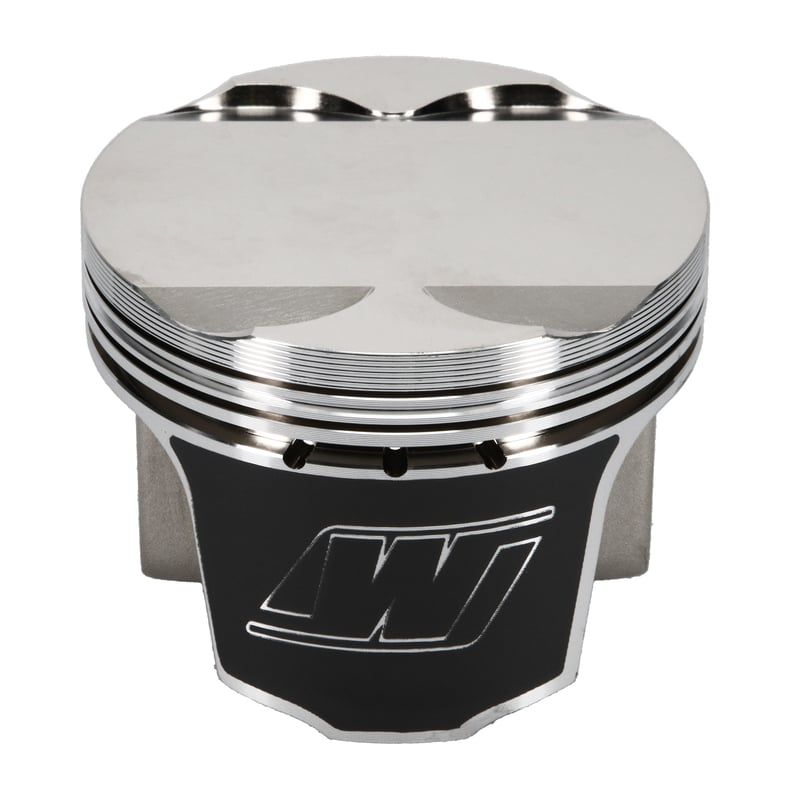

Forged pistons for BMW M50B25 no VANOS 2.5 24v: road/track reliability, segments included. Bore 84.0 mm, axle 22 mm, CH 32.55 mm. Compatible E34 525i/525ix and E36 325i/325is
Characteristics of the forged pistons offered by NSB Concept for BMW 2.5 L 24 V M50B25 (non-VANOS):
| Reference | Bore | VR | Pin | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE115M84 | 84.0 | 8.8:1 | 22 | 38.2 | Wiseco | Skirt | 2618 | N/A | -13.5 | N/A | 8400XX |
| WKE114M84AP | 84.0 | 11:1 | 22 | 38.2 | Wiseco AP | Skirt | 2618 | N/A | -1.5 | N/A | 8400XX |
| WKE115M8425 | 84.25 | 8.8:1 | 22 | 38.2 | Wiseco | Skirt | N/A | N/A | -13.5 | N/A | 8425XX |
| WKE114M8425AP | 84.25 | 11:1 | 22 | 38.2 | Wiseco AP | Skirt | 2618 | N/A | -1.5 | N/A | 8425XX |
| WKE115M845 | 84.5 | 8.8:1 | 22 | 38.2 | Wiseco | Skirt | 2618 | N/A | -13.5 | N/A | 8450XX |
| WKE114M845AP | 84.5 | 11:1 | 22 | 38.2 | Wiseco AP | Skirt | 2618 | N/A | -1.5 | N/A | 8450XX |
| WKE115M85 | 85.0 | 8.8:1 | 22 | 38.2 | Wiseco | Skirt | 2618 | N/A | -13.5 | N/A | 8500XX |
| WKE114M85AP | 85.0 | 11:1 | 22 | 38.2 | Wiseco AP | Skirt | 2618 | N/A | -1.5 | N/A | 8500XX |
Compatibilities (engine codes):
BMW: M50B25 (non VANOS) 2.5 24v 84x75 mm
Original vehicles equipped with the M50B25 (non-VANOS):
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| BMW | 3 Series E36 325i / 325is | M50B25 | 192 hp | 1991 1992 |
| BMW | 5 Series E34 525i | M50B25 | 192 hp | 1990 1992 |
| BMW | 5 Series E34 525ix | M50B25 | 192 hp | 1991 1992 |
Piston manufacturer references (OEM):
BMW M50B25 (non VANOS) STD pistons (83.980 mm)
: 11251703456, 11251722492, 11251748378.
BMW M50B25 (non VANOS) class 00 pistons (84.060 mm)
: 11251703457, 11251722493, 11251748379.
BMW M50B25 (non VANOS) pistons +0.25 (84.230 mm)
: 11251703460, 11251722499.
BMW M50B25 (non VANOS) pistons +0.50 (84.480 mm)
: 11251703461, 11251722500.
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
BMW M50B25 2.5 24v (non-VANOS) forged pistons: bore 84.0 mm, axle 22 mm. Segments included. Compatibility E34 525i/525ix 1990.1992 and E36 325i/325is 1991.1992.
