3.0L 24v - M54B30
Manufacturers
3.0L 24v - M54B30
Warning: Last items in stock!
New product

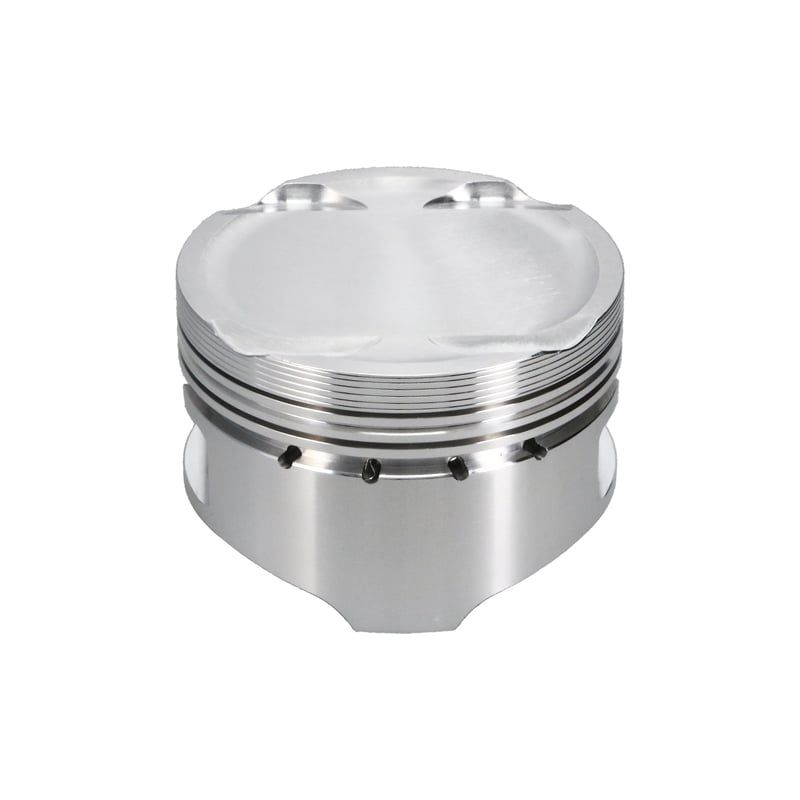

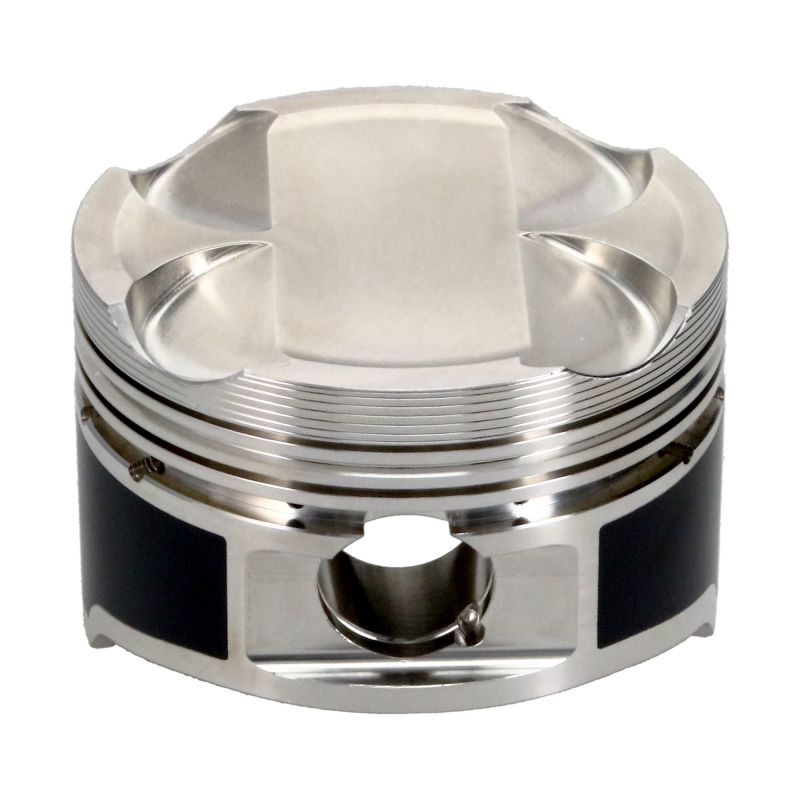

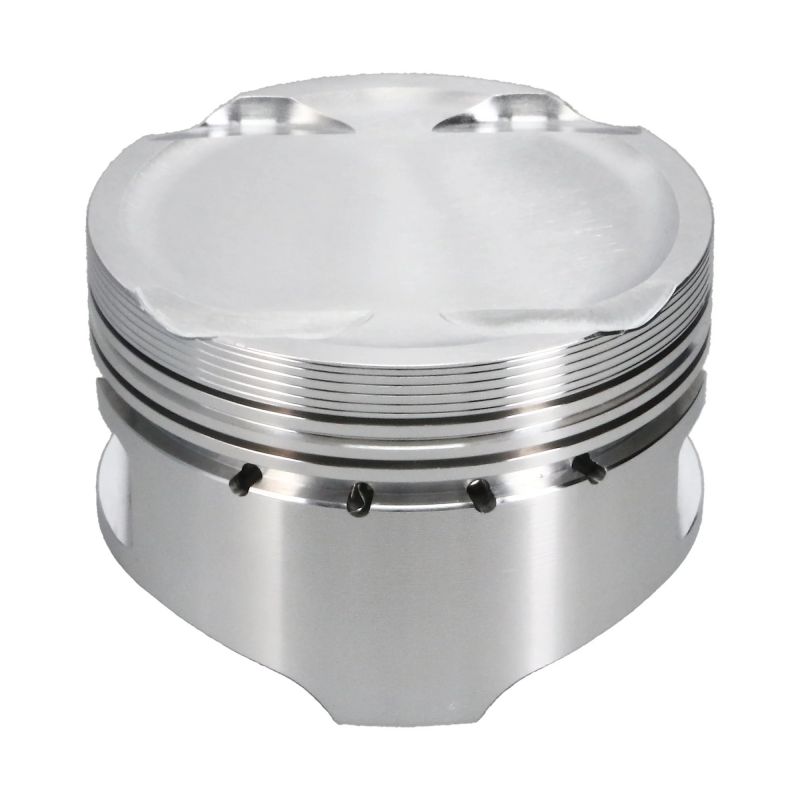

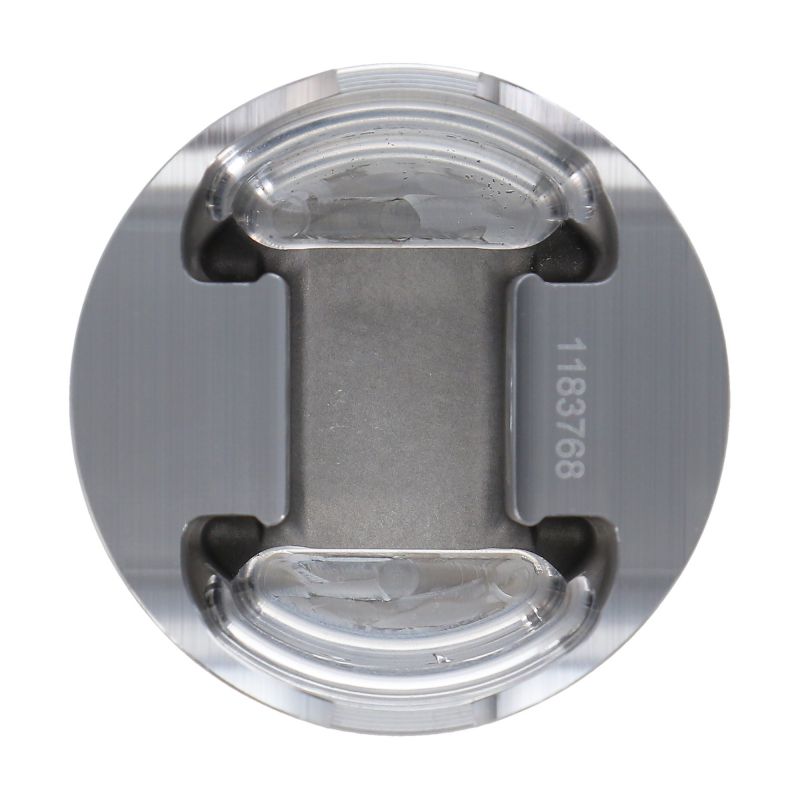

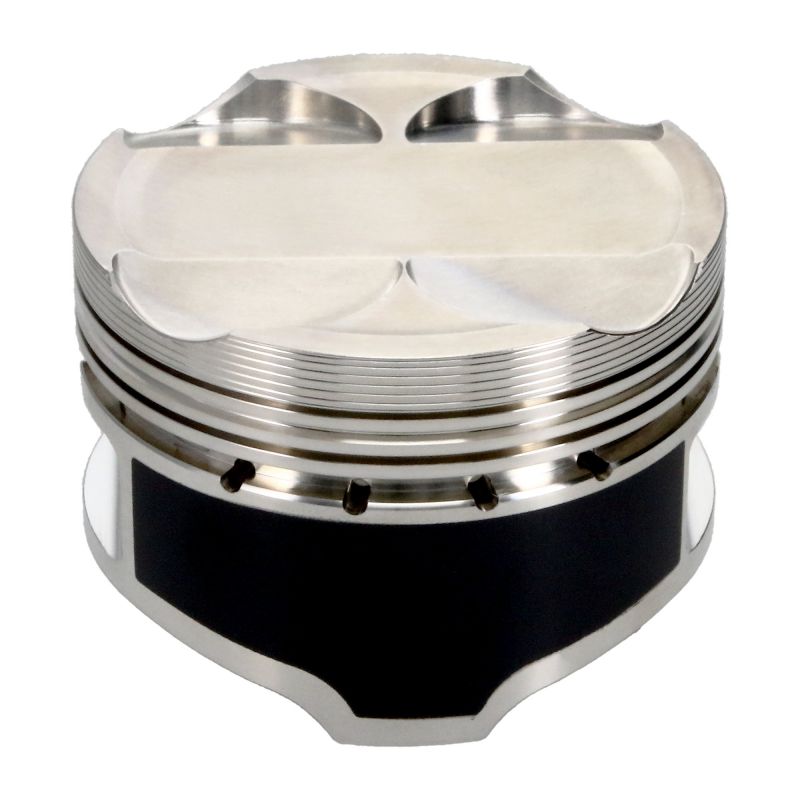

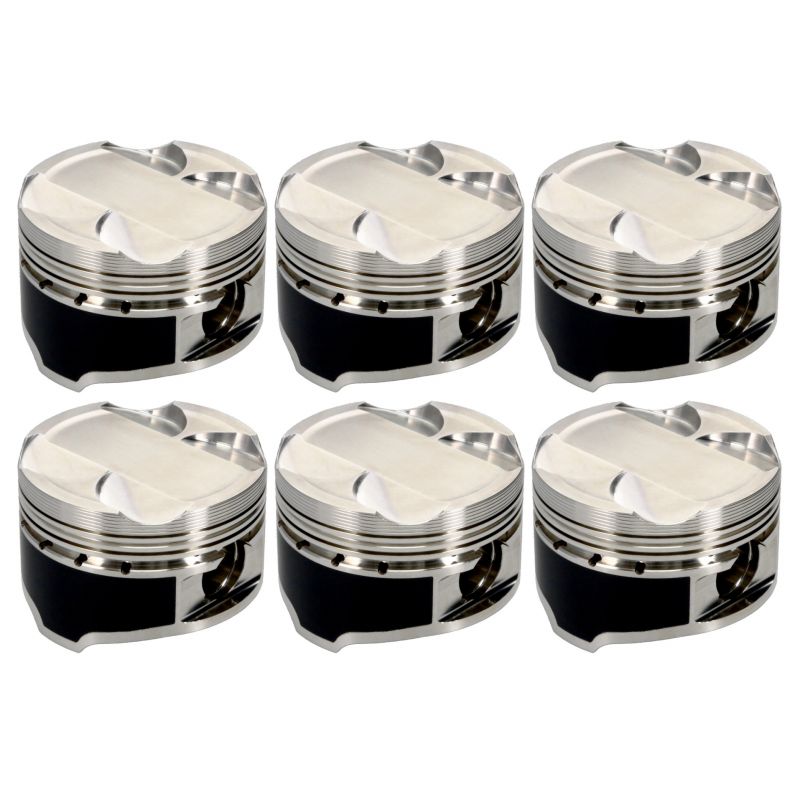

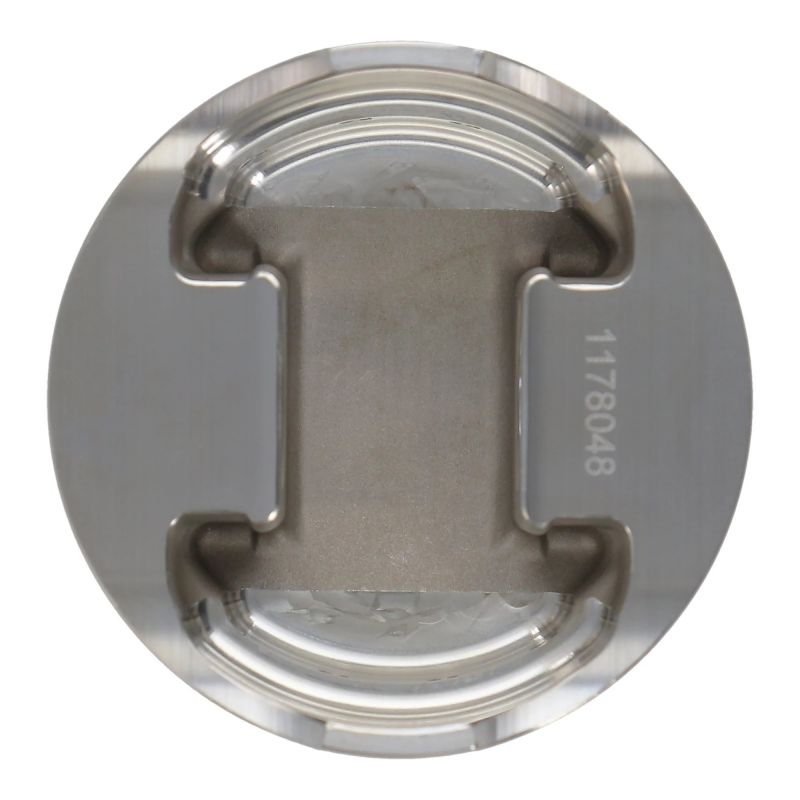

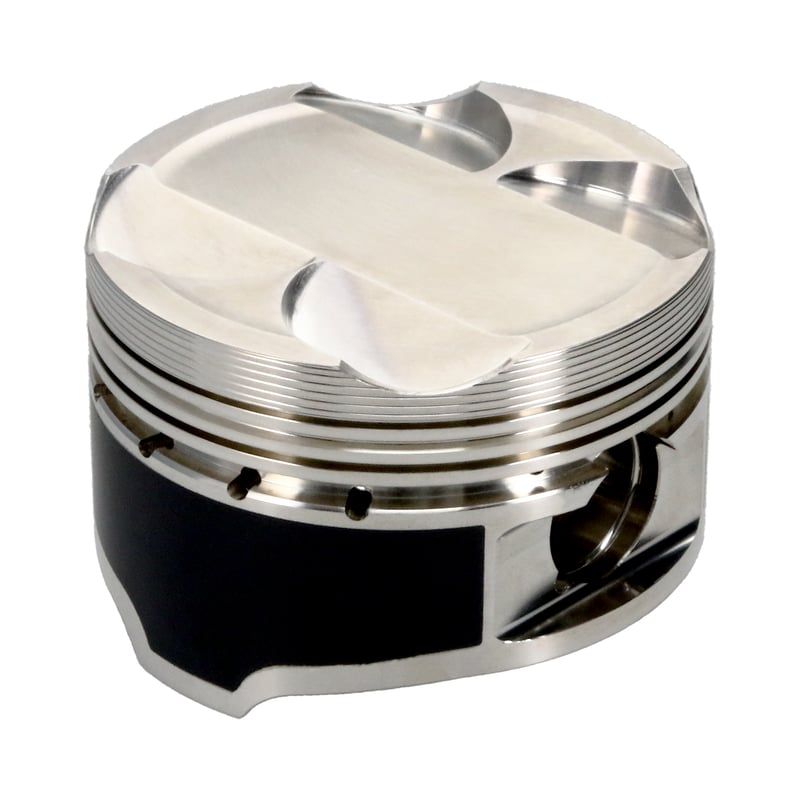

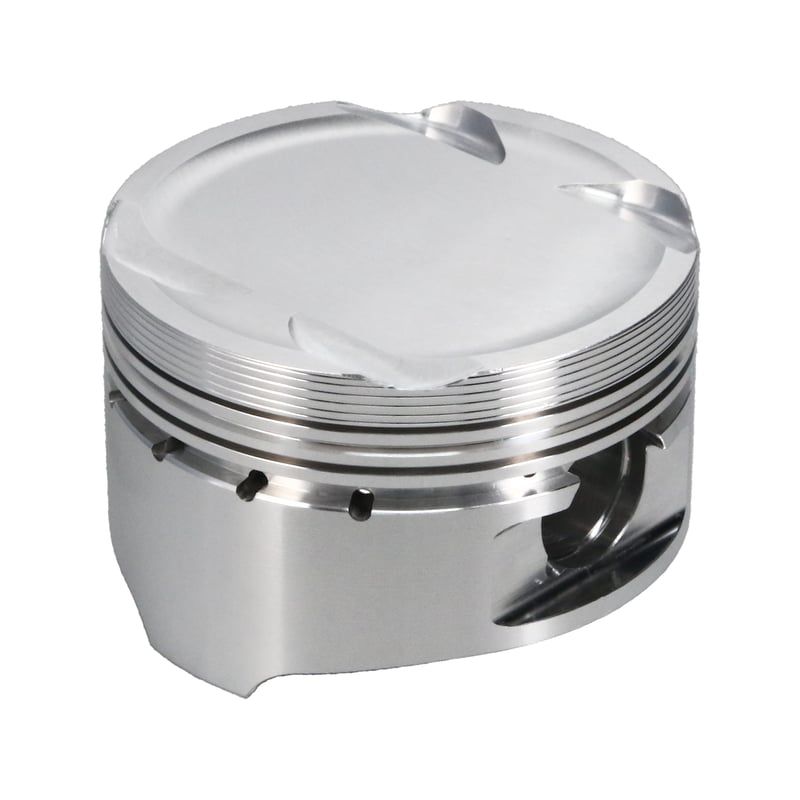

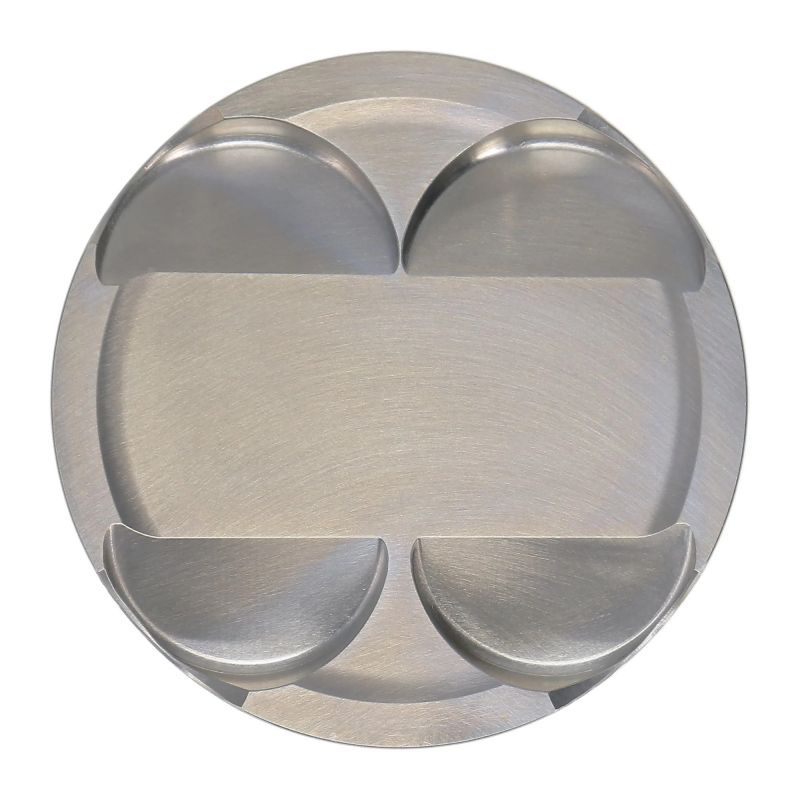

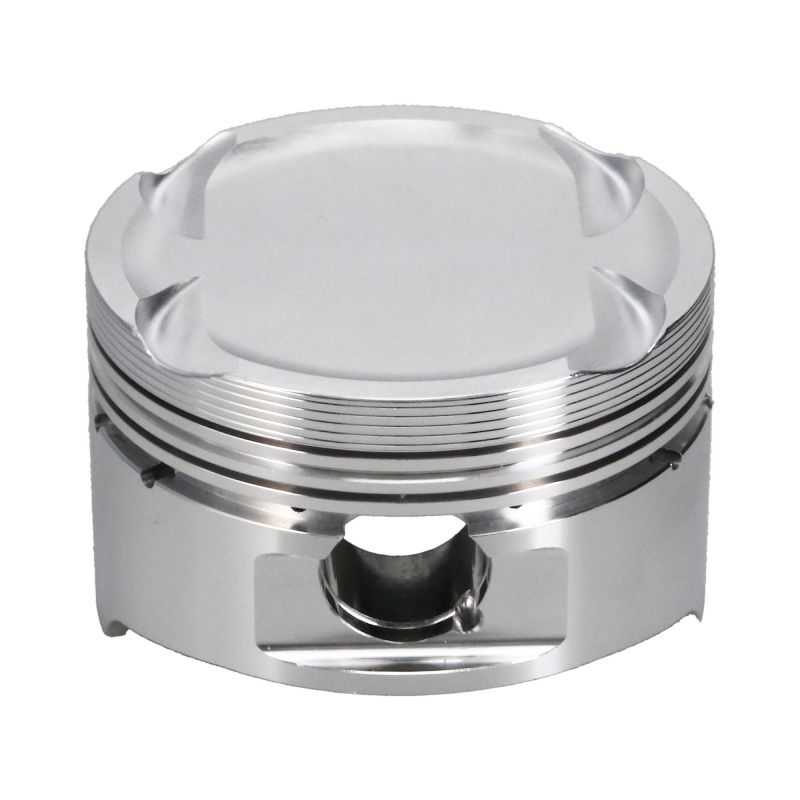

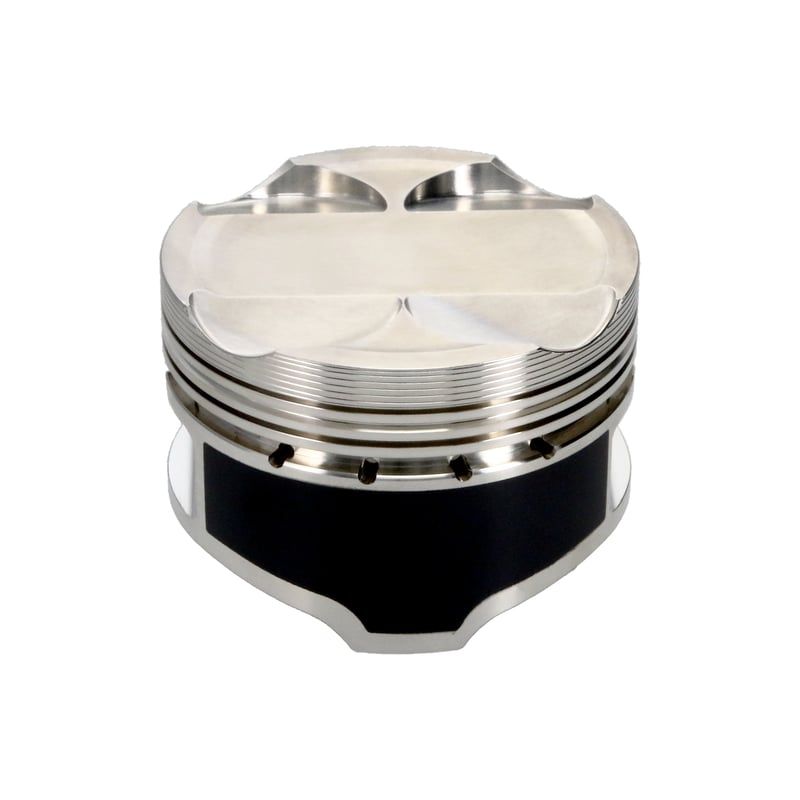

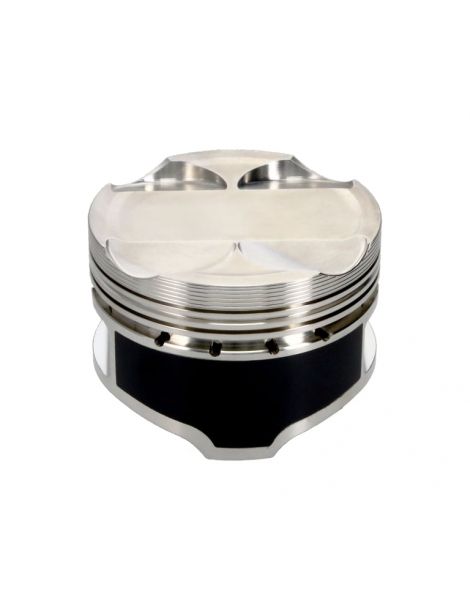

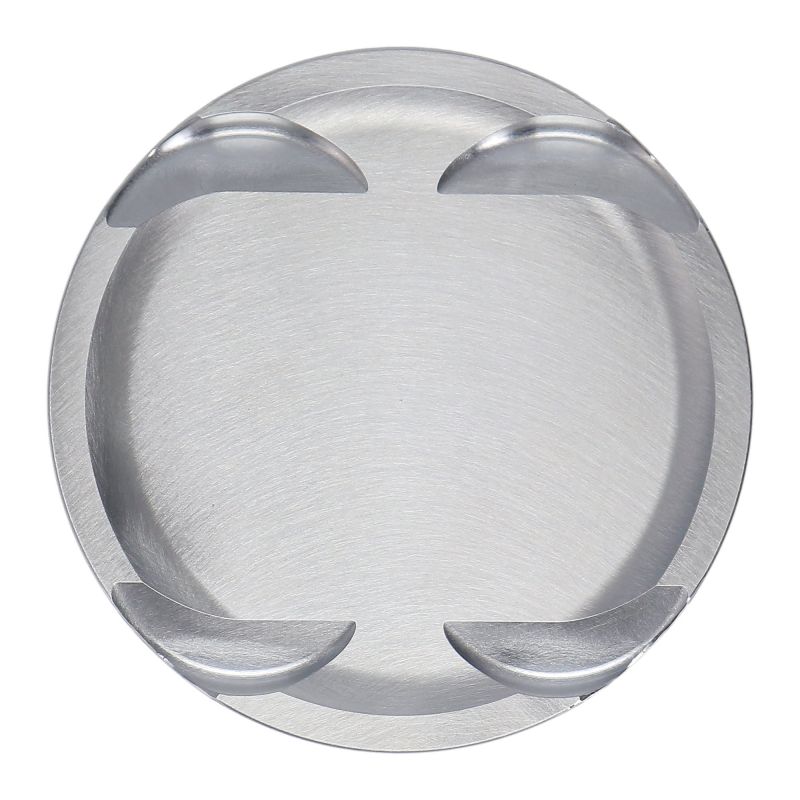

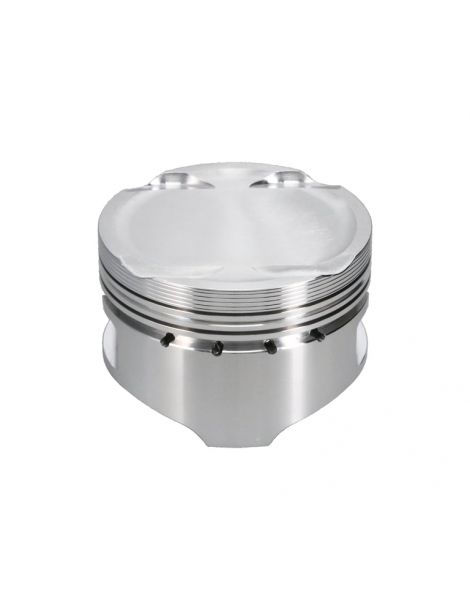

Wiseco forged pistons for BMW M54B30: 6 references O 84-84.5 mm, RV 9:1 or 11:1, axle 22 mm, CH 28.32.30.32 mm, dome ⌀7.3 cc, segments included.
Characteristics of the forged pistons offered by NSB Concept for BMW M54B30 (3.0 L 24 V):
| Reference(Click) | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Treatment | Alloy | Forging | Dome (cc) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|
| WKE324M84 | 84.00 | 11:1 | 22 | 30.32 | Wiseco | Skirt | 2618 | N/A | ⌀7.3 | 8400XX+GLS32 |
| WKE325M84 | 84.00 | 9:1 | 22 | 28.32 | Wiseco | Skirt | 2618 | N/A | ⌀7.3 | 8400XX+GLS32 |
| WKE324M8425 | 84.25 | 11:1 | 22 | 30.32 | Wiseco | Skirt | 2618 | N/A | ⌀7.3 | 8425XX+GLS32 |
| WKE325M8425 | 84.25 | 9:1 | 22 | 28.32 | Wiseco | Skirt | 2618 | N/A | ⌀7.3 | 8425XX+GLS32 |
| WKE324M845 | 84.50 | 11:1 | 22 | 30.32 | Wiseco | Skirt | 2618 | N/A | ⌀7.3 | 8450XX+GLS32 |
| WKE325M845 | 84.50 | 9:1 | 22 | 28.32 | Wiseco | Skirt | 2618 | N/A | ⌀7.3 | 8450XX+GLS32 |
Engine compatibility:
M54B30 (3.0L 24V BMW) all variations.
| Brand | Model / Chassis | Engine Code | Power | Years |
|---|---|---|---|---|
| BMW | 330i / 330Ci (E46) | M54B30 | 231 hp | 2000 2006 |
| BMW | 530i (E39) | M54B30 | 231 hp | 2000 2003 |
| BMW | 530i (E60/E61) | M54B30 | 231 hp | 2003 2005 |
| BMW | Z3 3.0i (E36/7) | M54B30 | 231 hp | 2000 2002 |
| BMW | Z4 3.0i (E85) | M54B30 | 231 hp | 2002 2005 |
| BMW | X3 3.0i (E83) | M54B30 | 231 hp | 2004 2006 |
| BMW | X5 3.0i (E53) | M54B30 | 231 hp | 2000 2006 |
Manufacturer piston reference (OEM):
BMW: 11 25 7 501 586 (O 84 mm, STD set)
