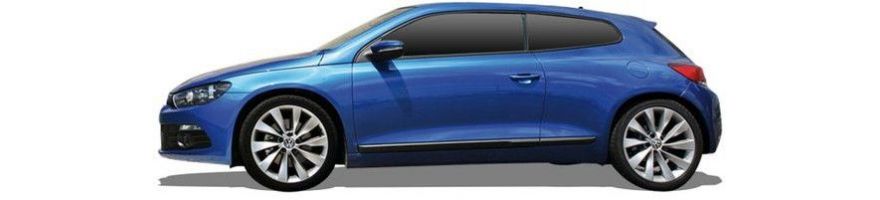

VW Scirocco 3
Manufacturers
VW Scirocco 3
Subcategories
The 122hp VW Scirocco 3 1.4 TSI, built from 2008 to 2017, uses the EA111 with codes CAXA CMSB. Five references matching this engine.
Rotating assembly: EA111 forged pistons by WOSSNER, JE Round or WISECO AP from 76.5 to 77.5mm, 19mm pin, ratio from 10 to 10.5:1; two sets of 4 ZRP H-beam forged con rods, with or without oil hole, ARP2000 or L19 bolts.
ATHENA MLS head gasket at 77.8mm or COMETIC MLX at 77.0mm, VIBRA-TECHNICS Scirocco 3 road torque mount bush.
The 125hp VW Scirocco 3 1.4 TFSI, built from 2013 to 2017, uses the EA211 with codes CXSB or CZCA. Four active references, the same as on the CZDA page.
EA211 forged pistons by WOSSNER, standard or Hard Crown, 74.5 or 75mm bore, ratio of 10.5:1; set of 4 ZRP I-beam forged con rods for the EA211, 4340 steel, ARP2000 bolts.
ATHENA or COMETIC reinforced head gasket listed for the 1.4 TSI EA111 and EA211, and VIBRA-TECHNICS Scirocco 3 road torque mount bush, the only part of this mount listed outside the 2.0 engines.
The 150hp VW Scirocco 3 1.4 TSI, built from 2015 to 2017, uses the EA211 with code CZDA. Four active references, the same as on the CXSB CZCA page.
EA211 forged pistons by WOSSNER, standard or Hard Crown, 74.5 or 75mm bore, ratio of 10.5:1; set of 4 ZRP I-beam forged con rods for the EA211, 4340 steel, ARP2000 bolts.
ATHENA or COMETIC reinforced head gasket listed for the 1.4 TSI EA111 and EA211, and VIBRA-TECHNICS Scirocco 3 road torque mount bush, the only part of this mount listed outside the 2.0 engines.
The 160hp VW Scirocco 3 1.4 TSI, built from 2008 to 2017, uses the EA111 with codes CAVD CNWA CTHD CTKA. Seven references matching this engine.
Valve train and head, specific to this page: CATCAMS sport camshafts 7608001 to 7608003 for the CAVE, CAVD and CTHE, CATCAMS kit of 16 outer springs and 16 retainers. Rotating assembly: EA111 forged pistons by WOSSNER, JE Round or WISECO AP from 76.5 to 77.5mm, 19mm pin, ratio from 10 to 10.5:1; two sets of 4 ZRP H-beam forged con rods, with or without oil hole, ARP2000 or L19 bolts.
ATHENA MLS head gasket at 77.8mm or COMETIC MLX at 77.0mm, VIBRA-TECHNICS Scirocco 3 road torque mount bush.
The 200hp VW Scirocco 3 2.0 TFSI, built from 2008 to 2009, uses the EA888 with code CAWB. Eighteen references matching this engine, the only EA888 2.0 Scirocco 3 page with pistons.
Bottom end: BOOSTLINE or ZRP forged con rods for the EA888 Gen1; EA888 Gen1 forged pistons with 21mm pin by DIAMOND, JE, WOSSNER or ZRP; EA888 main bearings and tanged or untanged big end bearings by ACL RACE or KING RACING; ARP2000 bolts and studs.
Head: SUPERTECH or FERREA valves up to +2.00mm, SUPERTECH guides, seals and collets, SUPERTECH or FERREA springs, ARP2000 head studs, EA888 ATHENA or COMETIC gasket. VIBRA-TECHNICS Scirocco 3 mounts.
The 210hp VW Scirocco 3 2.0 TSI, built from 2009 to 04/2011, uses the EA888 with code CCZB. Seventeen references matching this engine, with no forged piston listed so far.
Bottom end: BOOSTLINE or ZRP forged con rods for the EA888 Gen1; EA888 main bearings and tanged or untanged big end bearings by ACL RACE or KING RACING; ARP2000 bolts and studs.
Head: SUPERTECH or FERREA valves up to +2.00mm, SUPERTECH guides, seals and collets, SUPERTECH or FERREA springs, ARP2000 head studs, EA888 ATHENA or COMETIC gasket. VIBRA-TECHNICS Scirocco 3 mounts.
The 210hp VW Scirocco 3 2.0 TSI, built from 05/2011 to 2017, uses the EA888 with code CCZB. Fifteen references matching this engine, here without con rod, piston or head gasket.
Bottom end: EA888 main bearings and tanged or untanged big end bearings by ACL RACE or KING RACING; ARP2000 bolts and studs.
Head: SUPERTECH or FERREA valves up to +2.00mm, SUPERTECH guides, seals and collets, SUPERTECH or FERREA springs, ARP2000 head studs. VIBRA-TECHNICS Scirocco 3 mounts.
The 256hp VW Scirocco 3 R 2.0 TFSI, built from 2009 to 2017, uses the K04 turbo EA113 with code CDLC. Twenty active references.
Bottom end: EA113 K04 / EA888 Gen1 forged pistons with 21mm pin by DIAMOND, JE, WOSSNER or ZRP; ZRP forged crankshaft with 90, 92.8, 95.2 or 98mm stroke; KING RACING and ACL RACE bearings; ARP2000.
Head and valve train: CATCAMS cam followers, shims and vernier pulley, SUPERTECH or FERREA valves, guides and seals, ARP2000 studs, ATHENA or COMETIC gasket.
The 265hp VW Scirocco 3 R 2.0 TFSI, built from 2009 to 2017, uses the K04 turbo EA113 with code CDLA. Twenty active references.
Bottom end: EA113 K04 / EA888 Gen1 forged pistons with 21mm pin by DIAMOND, JE, WOSSNER or ZRP; ZRP forged crankshaft with 90, 92.8, 95.2 or 98mm stroke; KING RACING and ACL RACE bearings; ARP2000.
Head and valve train: CATCAMS cam followers, shims and vernier pulley, SUPERTECH or FERREA valves, guides and seals, ARP2000 studs, ATHENA or COMETIC gasket.
Bearings Connecting rods tri-metal luged VAG 1.4 TFSI 1.8/2.0 8V/16V 1.8T 20V EA113 EA888Bearings Connecting rods trimetal luged ACL Race / King RacingVAG 1.4 Key Features: AUDI A3 S3 8L 8P AUDI A4 B5 B6 B7 AUDI TT TTS 8N 8J KTM X-Bow GT GT4 RR Bearings Connecting rods trimetal luged ACL Race / King RacingVAG 1.4 TFSI 1.8/2.0 8V/16V 1.8T 20V2.0 TFSIEA113...
Set of 4 forged 4340 connecting rods for Audi/Volkswagen 1.4 TSI EA111.Brands: ZRP Compatibility: VW Golf V/VI, Scirocco, Jetta ; Audi A1 ; SEAT ; Škoda Octavia, Yeti Engine codes: CAVD, CAXA Bolts included: ARP 2000 or L19
Set of 4 forged 4340-steel connecting rods for the VAG 1.4 TSI EA111 (rifle-drilled).Brand : ZRP Compatibility : Golf, Polo, Ibiza (VAG) Engine codes : CAVD, CAXA, CAVA, BLG, CAX, CAV, CVA Bolts included : ARP 2000 or L19
Set of 4 forged 4340 steel connecting rods for Audi / Volkswagen 1.4 TSI EA211. Brand: ZRPCompatibility: Audi A1/A3/Q2/Q3, SEAT Ibiza/Leon, Škoda Fabia/Superb, VW Golf VII/Polo/PassatEngine codes: CZCA, CPTA, CHPA, CZDA, CZEABolts included: ARP 2000
Set of 4 forged rods in 4340 steel for the Audi Volkswagen 2.0 TSI EA888 Gen.1.Brands : Boostline, ZRPCompatibility : Audi A3/TT/Q5, VW Golf/Passat/Scirocco/Tiguan, Seat Leon, Škoda OctaviaEngine codes : CBFA, CCTA, CCZA, CCZB, CDNB, CDNC, CAEA, CAEBBolts included: ARP 2000, L19 or CA625+
Set of 4 forged 4340 or EN24T steel connecting rods for the Audi/Volkswagen 2.0 TSI EA888 Gen.3/Gen.4.Brands: Boostline, FCP Engineering, Wössner, ZRP Compatibility: Audi S3 8V, TT, Golf GTI Engine codes: CJXC, CHHC Bolts included: ARP 2000, L19 or CA625+
ZRP forged crankshaft forVAG 2.0 TFSI EA113:AUDI A1 8X AUDI A3 8P AUDI S3 8P AUDI TT 8J AUDI TTS 8J KTM X-Bow GT4 KTM X-Bow GT KTM X-Bow R KTM X-Bow RR SEAT Leon 1P SEAT Leon Cupra R 1P VW Golf 5 GTI VW Golf 6 GTI VW Golf 6 R VW Polo R WRC 6R VW Scirocco 3 R
EA111 1.4 TSI/TFSI 16v (76.5 mm) forged pistons: sorted specs (Volume ratio 10.0:1, Pin 19 mm, CH 28.97), CAXA/CAXC/CAVD compatibility + Audi/VW/Seat/Skoda vehicle table and OEM refs.
Forged pistons for VW/Audi 1.4L 16v EA211: Bore 74.5 mm, Volume ratio 10.0:1, Pin 19 mm. Dome/weight according to reference, Rings included. COMPatibilities A3, Golf 7, Leon, Octavia, JEtta.
Forged Pistons 2.0 TFSI EA888 Gen1 & EA113 K04, Bores 82.5 83.5 mm, Pin 21 mm. BHZ/CDL, CCTA/CBFA compatible: S3, TTS, Golf R/GTI, Scirocco R, Leon Cupra R, A1 quattro.
Forged pistons for VAG EA888 Gen3/Gen4 (2.0 TSI/TFSI) Pin 23 mm. ⌀ 82.5 / 83 / 83.5mm, Volume ratio 9.3 10.0:1 depending on variant. Alloy2 618(And 4032 depending on brands).Rings, Pins and circlips included. Compatibilities: Golf 7/8 GTI/R, Audi S3 8V/TT-TTS 8S, Leon Cupra, Octavia RS (see engine codes).
Gaskets tails Valves Intake Supertech for2.0 TFSI EA113 EA888AUDI A1 / S1 8XAUDI A3 / S3 8P / 8VAUDI A4 B8AUDI TT / TTS 8J / FVKTM X-Bow / GT4 / GT / R / RRSEAT Leon / Cupra R 1PSEAT Leon / Cupra 5FSEAT / CUPRA Leon KLVW Golf 5 GTIVW Golf 6 / GTI / RVW Golf 7 GTI / ClubSport / ClubSport S / TCR / RVW Golf 8 GTIVW New BeetleVW Polo R WRC 6RVW Scirocco 3 / R
High-quality VAG 2.0 TFSI EA113 mechanical tappets (VAG 2.0 TFSI EA113 mechanical tappets) for reliable fitment and performance.
Complete kit for the VAG 1.4 TSI twincharged 160 to 180 hp, 16 valves: 16× CATCAMS PAC-E99864 outer valve springs + 16× CATCAMS 99480/S steel upper retainers. Engine codes CAVE, CAVD, CTHE. Maximum load 60 kg at 12.0 mm lift.
SUPERTECH / FERREA performance exhaust valves for the VAG 2.0 TFSI EA113 and EA888:AUDI A1 / S1 8X AUDI A3 / S3 8P / 8V AUDI A4 B8 AUDI TT / TTS 8J / FV KTM X-Bow / GT4 / GT / R / RR SEAT Leon / Cupra R 1P SEAT Leon / Cupra 5F SEAT / CUPRA Leon KL VW Golf 5 GTI VW Golf 6 / GTI / R VW Golf 7 GTI / Clubsport / Clubsport S / TCR / R VW Golf 8 GTI VW New...
SUPERTECH / FERREA intake valves for the 2.0 TFSI EA113 and EA888:AUDI A1 / S1 8X AUDI A3 / S3 8P / 8V AUDI A4 B8 AUDI TT / TTS 8J / FV KTM X-Bow / GT4 / GT / R / RR SEAT Leon / Cupra R 1P SEAT Leon / Cupra 5F SEAT / CUPRA Leon KL VW Golf 5 GTI VW Golf 6 / GTI / R VW Golf 7 GTI / Clubsport / Clubsport S / TCR / R VW Golf 8 GTI VW New Beetle VW Polo R...
Kit of 10 ARP cylinder head studs for Volkswagen Group 2.0 TFSI and TSI EA113 and EA888 engines.Brand: ARP Engines: EA113, EA888 Thread: M10 x 1.5 Grade: ARP2000
ARP2000 crankshaft main studs for the VAG 2.0 TFSI EA113 and EA888 engines.Brand: ARP Engines: EA113, EA888 Thread: M10 x 1.5 Grade: ARP2000
Reinforced head gasket Athena / Cometic for2.0 TFSI EA888.3/4 engine (after 2012)AUDI S1 8XAUDI A4 B8AUDI A3 8PAUDI A3 / S3 8VAUDI TT 8JAUDI TT / TTS FVKTM X-BowSEAT Leon 1PSEAT Leon / Leon Cupra 5FSEAT / CUPRA Leon KLVW Golf 5 GTIVW Golf 6 / Golf 6 GTIVW Golf 7 GTI / ClubSport / ClubSport S / TCRVW Golf 7 RVW Golf 8 GTIVW New BeetleVW Scirocco 3
Reinforced Athena and Cometic head gasket, as O-Ring or MLS. One gasket per engine.Brands: Athena, CometicEngines: 2.0 TFSI, AXX, BPY, BWA, CCZA and 25 other codesBores: 83.5 and 84 mmThicknesses: 0.686 to 3.556 mmReplaces: 06F 103 383 H
Reinforced head gasket, Cometic in MLX and Athena in MLS. Sold individually, one gasket per engine.Brands: Cometic and AthenaEngines: 1.4 L 16VBores: 77 mm and 77.8 mmThicknesses: 0.81 to 1.02 mmReplaces: 03C 103 383 AM, R, AE, AH
Reinforced Cometic head gasket in multi-layer MLS. One gasket per engine.Brand: CometicEngines: 2.0 TFSI EA888, CAWB, CBFA, CCZA, CDNC and 12 other codesBores: 82.5 and 84 mmThicknesses: 0.686 to 3.556 mmReplaces: 06H 103 383 AA
CATCAMS Sport camshafts for VAG 1.4 TSI CAVE CAVD CTHE engine:SEAT Ibiza Cupra 6J 2009 - 2015VW New Beetle 2011 - 2016VW Golf 6 2008 - 2016VW Polo GTI 6R 2010 - 2014VW Scirocco 3 2008 - 2017CATCAMS reference: 7608001, 7608002, 7608003
Kit of 32 half-moon valve collets for SUPERTECH / FERREA valves, 6mm diameter:Number of grooves of your choice
SUPERTECH exhaust valve stem seals, 2.0 TFSI EA113 EA888:AUDI A1 / S1 8X AUDI A3 / S3 8P / 8V AUDI A4 B8 AUDI TT / TTS 8J / FV KTM X-Bow / GT4 / GT / R / RR SEAT Leon / Cupra R 1P SEAT Leon / Cupra 5F SEAT / CUPRA Leon KL VW Golf 5 GTI VW Golf 6 / GTI / R VW Golf 7 GTI / Clubsport / Clubsport S / TCR / R VW Golf 8 GTI VW New Beetle VW Polo R WRC 6R VW...
Trimetal Crankshaft Bearings ACL Race /AUDI A3 8PAUDI A4 B8AUDI TT 8JKTM X-BowSEAT Leon 1PVW Golf 5 GTIVW Golf 6 / GTIVW Scirocco 3
Trimetal Crankshaft Bearings ACL Race /AUDI S1 8XAUDI S3 8VAUDI TT / TTS FVSEAT Leon Cupra 5FVW Golf 7 GTI / GTI ClubSport / GTI TCR / R
Tri-metal main bearings KING RACING for the VAG 2.0 TFSI EA113 engine:AUDI A1 8XAUDI A3 8PAUDI S3 8PAUDI TT 8JAUDI TTS 8JKTM X-Bow GT4KTM X-Bow GTKTM X-Bow RKTM X-Bow RRSEAT Leon 1PSEAT Leon Cupra R 1PVW Golf 5 GTIVW Golf 6 GTIVW Golf 6 RVW Polo R WRC 6RVW Scirocco 3 R
Set of 8 trimetal connecting rod bearing shells for the Volkswagen 1.6, 1.8 T and 2.0 FSI / TFSI engines.Brands and treatments: ACL Race and King Racing XP Fits: Golf, Passat, Audi A3, A4, A6 and TT, Seat Leon, Skoda Octavia Engine codes: AEA, AEH, AKL, ALT, AMB, APF, ARX, ARY, AUM, AUQ, AVJ, AWA, AWT, AXW, AXX, BEX, BFB, BGB, BLR, BLX, BLY, BMB, BPG,...
Set of 8 trimetal connecting rod half-bearings for the Volkswagen 1.8 and 2.0 TSI / TFSI EA888 four-cylinder.Brands and treatments: ACL Race and King Racing GPC Compatibility: Audi A3, S3, A4, A5, TT, VW Golf GTI and R, Passat, Seat Leon Cupra, Skoda Octavia RS Engine codes: EA888 Gen.1 to Gen.4 Available sizes: standard to +0.25 mm, increased-clearance...
ARP uprated con rod bolts for the 2.0 TFSI EA113 and EA888 engine:AUDI A1 / S1 8XAUDI A3 / S3 8P / 8VAUDI A4 B8AUDI TT / TTS 8J / FVKTM X-Bow / GT4 / GT / R / RRSEAT Leon / Cupra R 1PSEAT Leon / Cupra 5FSEAT / CUPRA Leon KLVW Golf 5 GTIVW Golf 6 / GTI / RVW Golf 7 GTI / Clubsport / Clubsport S / TCR / RVW Golf 8 GTIVW New BeetleVW Polo R WRC 6RVW Scirocco...
VIBRA-TECHNICS uprated engine mount and gearbox mount for VW Scirocco 3:VW Scirocco 3 2009 - 2016
Reinforced Valve Springs Supertech/Ferrea2.0 TFSI EA113 EA888AUDI A1 / S1 8X AUDI A3 / S3 8P / 8V AUDI A4 B8 AUDI TT / TTS 8J / FV KTM X-Bow / GT4 / GT / R / RR SEAT Leon / Cupra R 1P SEAT Leon / Cupra 5F SEAT / CUPRA Leon KL VW Golf 5 GTI VW Golf 6 / GTI / R VW Golf 7 GTI / ClubSport / ClubSport S / TCR / R VW Golf 8 GTI VW New Beetle VW Polo R WRC 6R...
Kit of 64 valve collets for SUPERTECH / FERREA valves, 6mm diameter: Number of grooves of your choiceReference: KPR-6S-7-64, KPR-VW6-T-64
Supertech Valve Guides for2.0 TFSI EA113 and EA888 engineAUDI A1 / S1 8XAUDI A3 / S3 8P / 8VAUDI A4 B8AUDI TT / TTS 8J / FVKTM X-Bow / GT4 / GT / R / RRSEAT Leon / Cupra R 1PSEAT Leon / Cupra 5FSEAT / CUPRA Leon KLVW Golf 5 GTIVW Golf 6 / GTI / RVW Golf 7 GTI / ClubSport / ClubSport S / TCR / RVW Golf 8 GTIVW New BeetleVW Polo R WRC 6RVW Scirocco 3 / R
CATCAMS vernier cam pulley for the VAG 2.0 TFSI EA113 engineAUDI A1 8X AUDI A3 8P AUDI S3 8P AUDI TT 8J AUDI TTS 8J KTM X-Bow GT4 KTM X-Bow GT KTM X-Bow R KTM X-Bow RR SEAT Leon 1P SEAT Leon Cupra R 1P VW Golf 5 GTI VW Golf 6 GTI VW Golf 6 R VW Polo R WRC 6R VW Scirocco 3 R
