Forged connecting rods Audi Volkswagen - 2.0 TSI EA888 Gen.1 (21 mm pin) for forged pistons

The 2.0 TSI EA888 Gen.1 engine

The first-generation 2.0 TSI EA888 opens the EA888 family: an inline four-cylinder petrol engine with direct injection and turbocharging, its valvetrain driven by a timing chain. It displaces 1,984 cc (82.5 mm bore, 92.8 mm stroke). Built mainly from 2007 to 2011, it powered a broad range of Volkswagen Group models , Golf V and VI GTI, Tiguan, Scirocco, Passat B6/B7, Audi A3 8P, A4 B8, A5, TT 8J , with outputs spread from 180 to 211 hp depending on the engine code (CCTA, CCZA, CCZB, CBFA, CAEB, CAEA, CDNB, CDNC). This Gen.1 variant is recognised by its 21 mm piston pin paired with a 144 mm rod center-to-center.

A layout favoured by tuners, the 2.0 TSI EA888 welcomes extra power without trouble. Yet as soon as boost pressure, engine speed or torque is pushed hard, the factory rod becomes the weak point of the reciprocating assembly: it is the first to break on the most heavily worked blocks. Fitting forged rods is therefore the decisive step to make an EA888 Gen.1 last when you truly want to unlock its potential.

The forged connecting rods

Our forged rods dedicated to the 2.0 TSI EA888 Gen.1 are cut from wrought 4340 steel, the reference material for the most demanding builds. They answer every discipline , circuit and trackday, drift, rally, drag, time attack, hillclimb , and suit a heavily optimised street 2.0 TSI just as well as a competition block. Whether the goal is Stage 2, a high-power Stage 3 or Stage 4 and beyond, they follow the rise in performance without ever compromising on toughness. Each kit gathers 4 rods weight-selected to ±1 g and strictly keeps the factory 21 mm piston pin and 144 mm center-to-center.

Where the factory-fitted rod stays sized for the cost of very-high-volume manufacturing, the forged 4340 rod frees up a clearly larger mechanical margin: around +19% on yield strength, +8% on tensile strength and +19 to +37% on fatigue life. That reserve lets the boosted EA888 take cylinder-pressure peaks and inertia loads with no crack initiation. Two profiles are offered depending on the goal: the lightened I-HD by ZRP and the reinforced I-3P by Boostline.

OEM reference: 06H198401A (set of 4 rods).

Technical specifications of the EA888 Gen.1 forged rods (21 mm pin, 144 mm center-to-center)

Tightening torque and stretch

The torque and stretch quoted relate to the ARP bolts supplied with the kit; refer to the technical sheet enclosed. Checking with a stretch gauge remains the most reliable and repeatable method to guarantee preload.

Technical guide

Forged 4340 steel: what is it?

The rod profiles offered

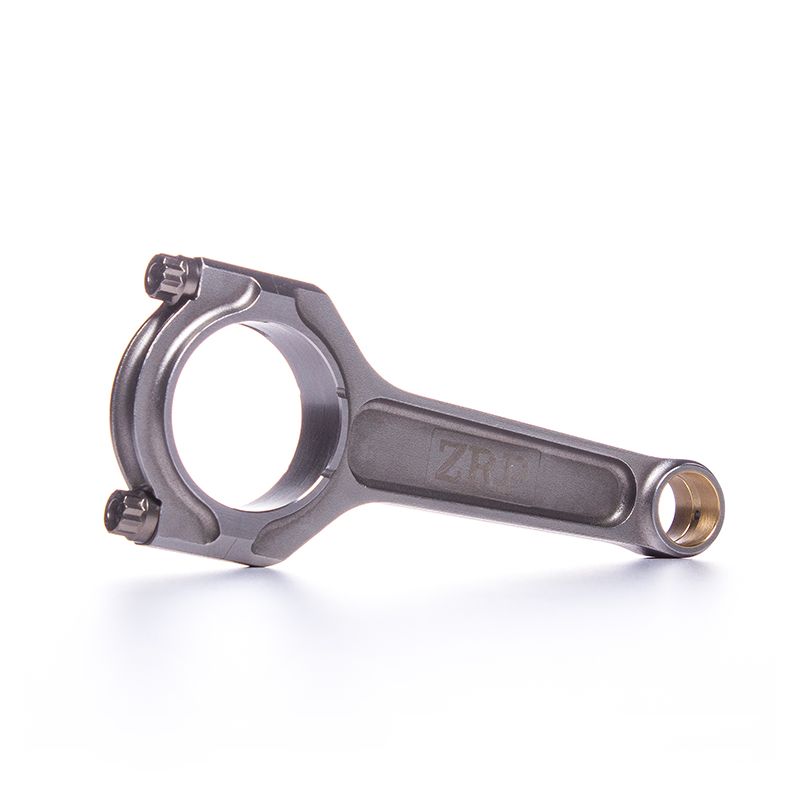

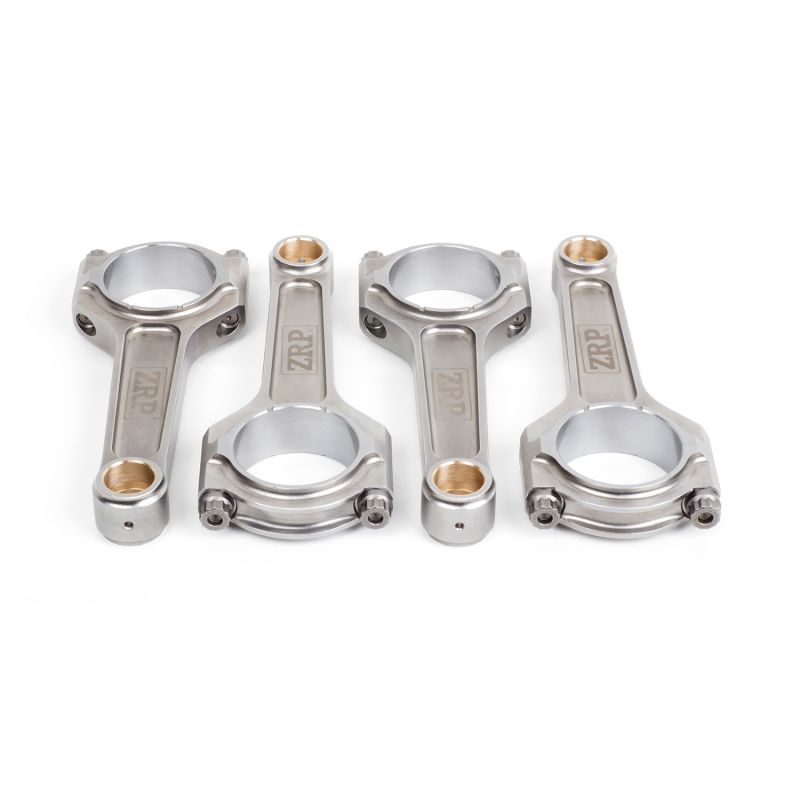

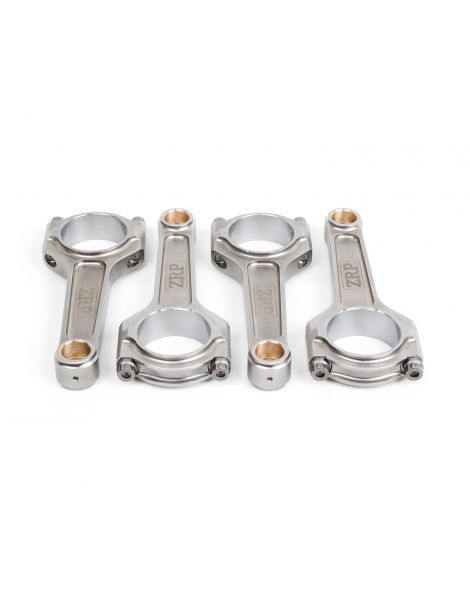

	I-HD profile (ZRP) , lightened (488 g), it spreads material where the compression stresses act. Machined from forged 4340 steel, it banks on a light reciprocating assembly to help the 2.0 TSI pick up revs while ensuring high reliability. It is the all-round choice, available with ARP 2000 or ARP L19 bolts in the 3/8" diameter.

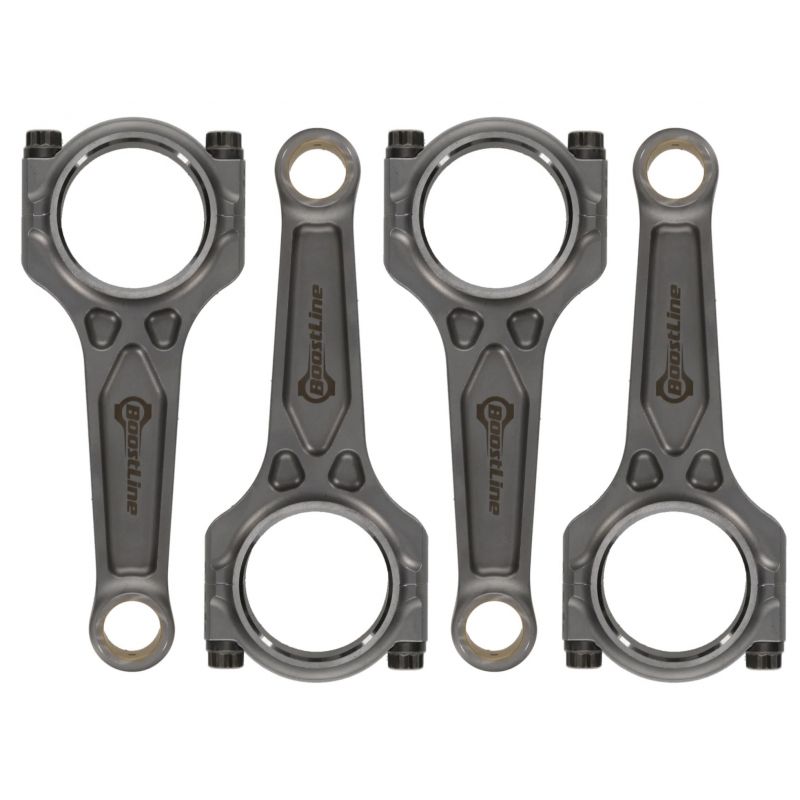

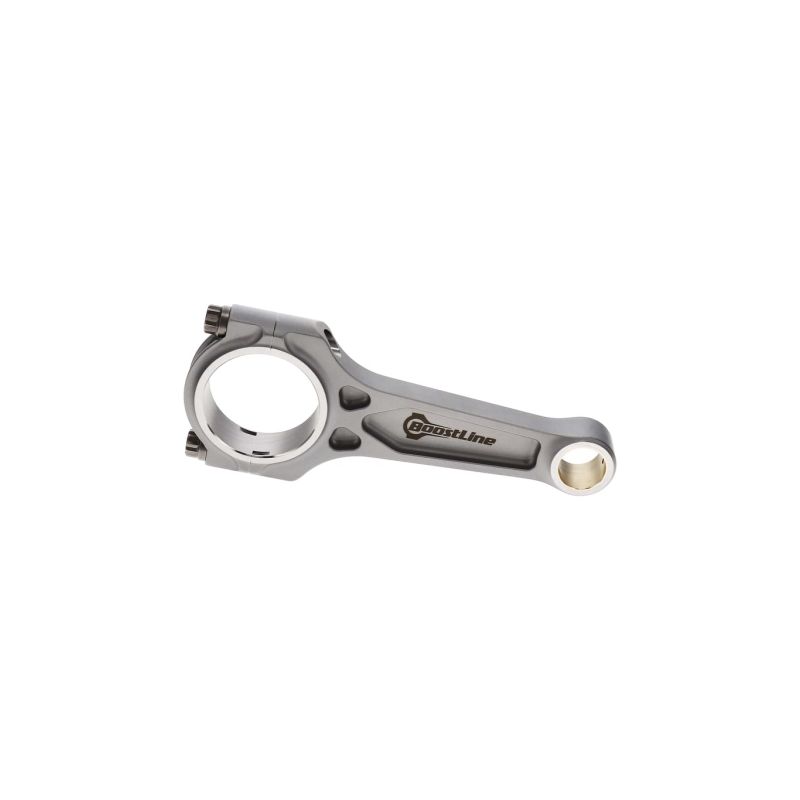

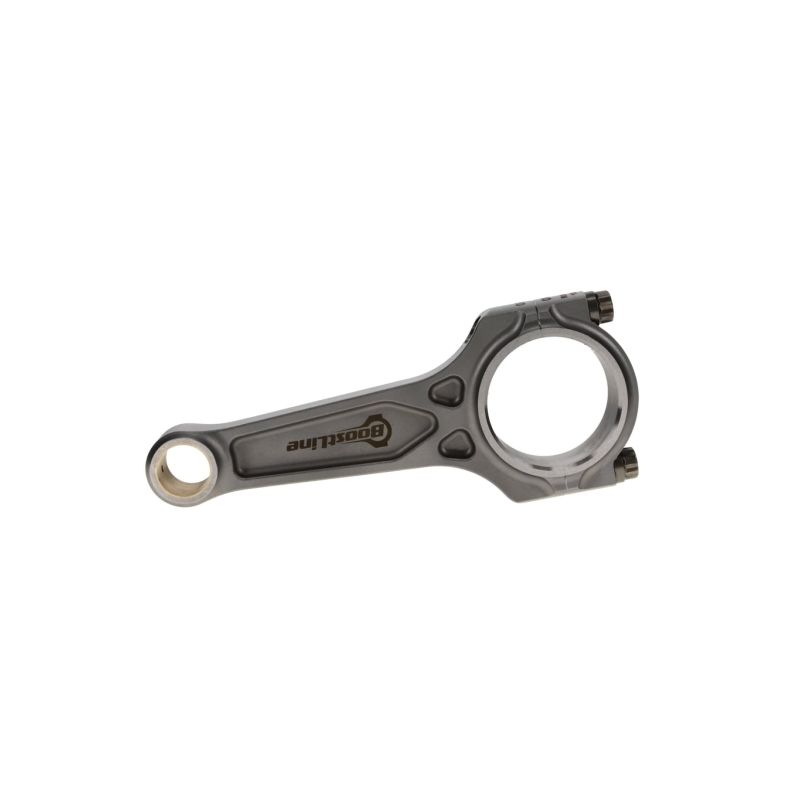

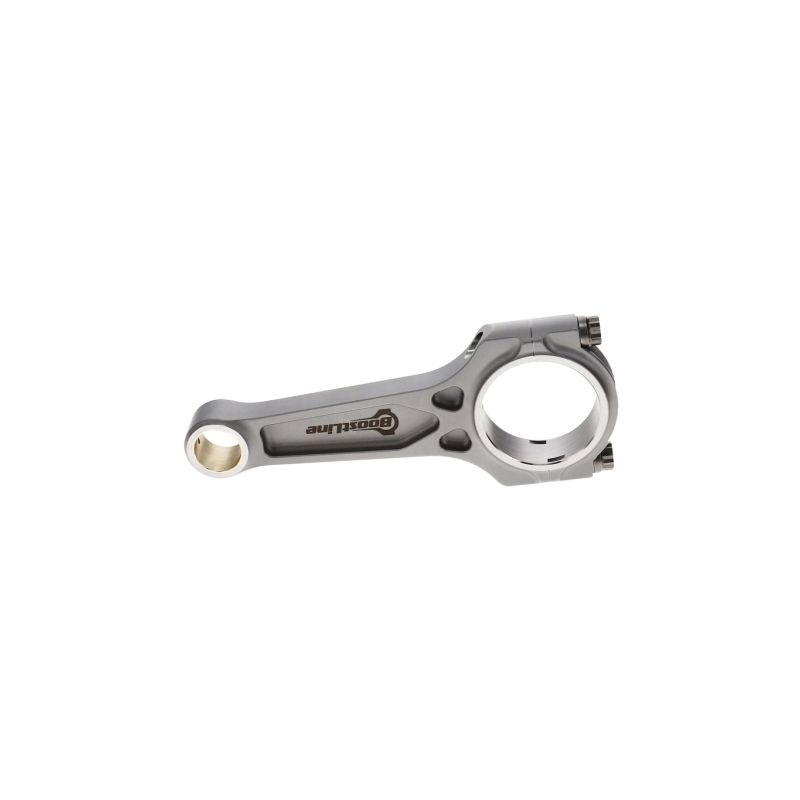

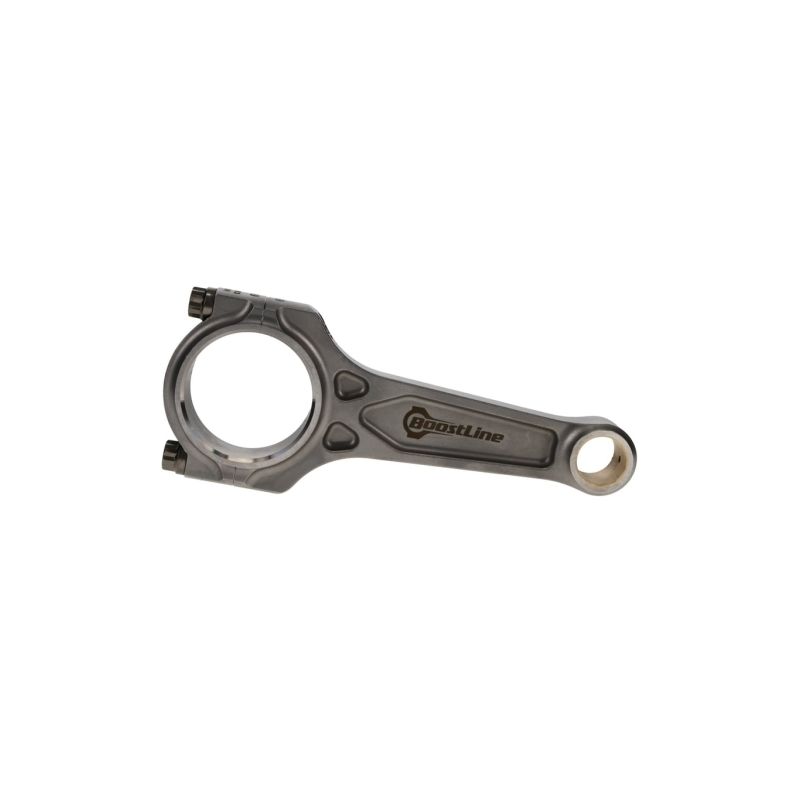

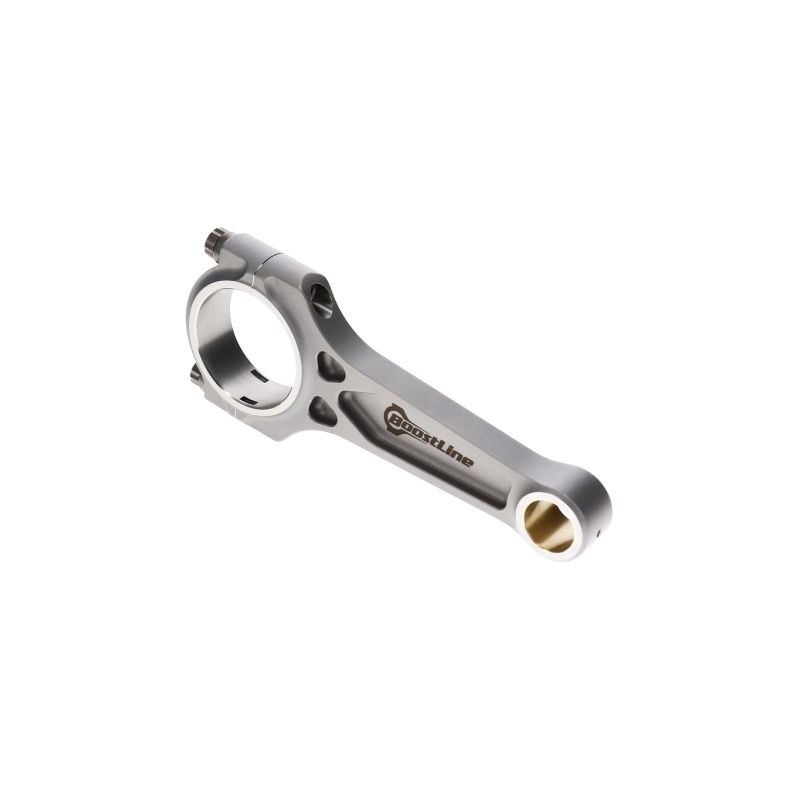

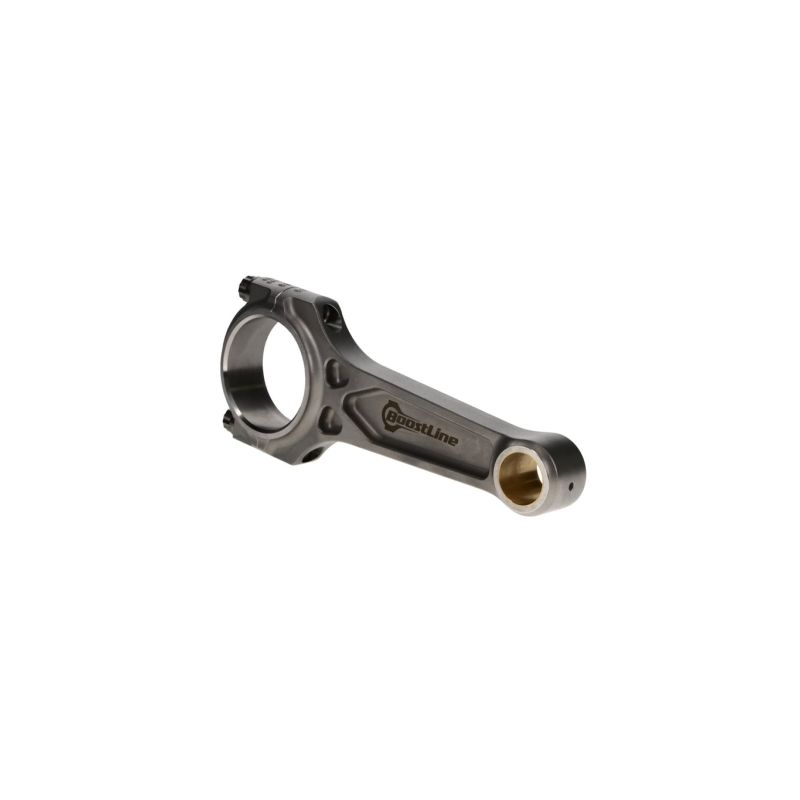

	I-3P profile (Boostline) , an I-beam body with three pockets (3-pocket) that clearly raises bending stiffness while keeping mass in check (634 g). Designed for heavily worked engines delivering high torque and power, it targets the most severe drag and circuit builds. It fits with ARP 2000 or ARP Custom Age 625+ bolts in 3/8".

How to choose your rod bolts?

Bolts are selected according to the degree of tuning; three ARP grades are offered, all in the 3/8" diameter matching the EA888 Gen.1 center-to-center:

	ARP 2000: the benchmark all-round alloy, with a tensile strength close to 220,000 psi (1,517 MPa). It is the default option: it answers the vast majority of projects, from a simple boost increase to high power, and makes the bottom end last.
	ARP L19: a higher-strength alloy, around 260,000 psi (1,793 MPa), intended for heavily worked engines running at high rpm and high cylinder pressure. More exposed to corrosion and hydrogen, it calls for careful storage and stays reserved for pushed builds (ZRP I-HD profile).
	ARP Custom Age 625+: the premium alloy, from 260,000 to 280,000 psi (1,793 to 1,931 MPa), combining very high strength with immunity to hydrogen embrittlement and no storage constraint. It is the grade for the most extreme builds (Boostline I-3P profile).

Measuring bolt stretch

See the ARP stretch gauge

The brands offered

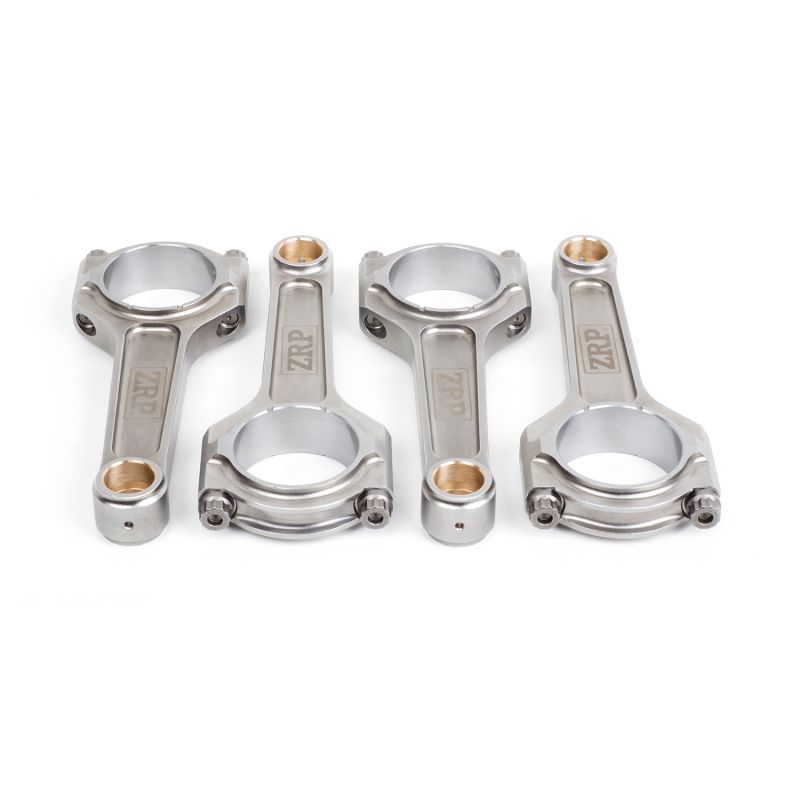

	ZRP , a specialist in race forged rods founded by Alex Drakos in Athens, Greece. Each rod is machined from forged 4340 steel then weight-matched to ±1 g. For the EA888 Gen.1, ZRP supplies the I-HD profile, with either ARP 2000 or ARP L19 bolts, as a complete set of 4.

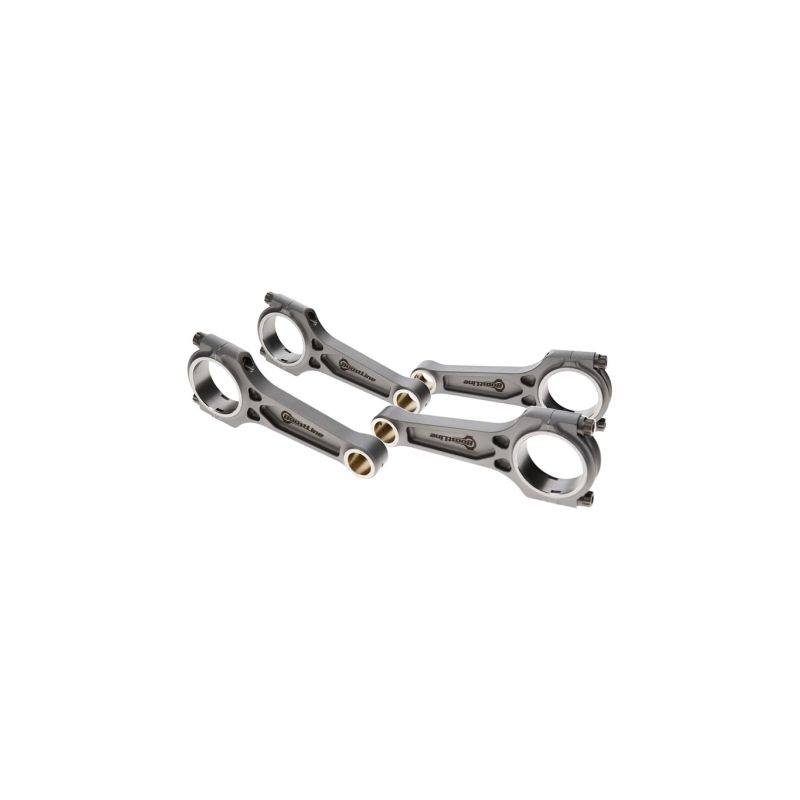

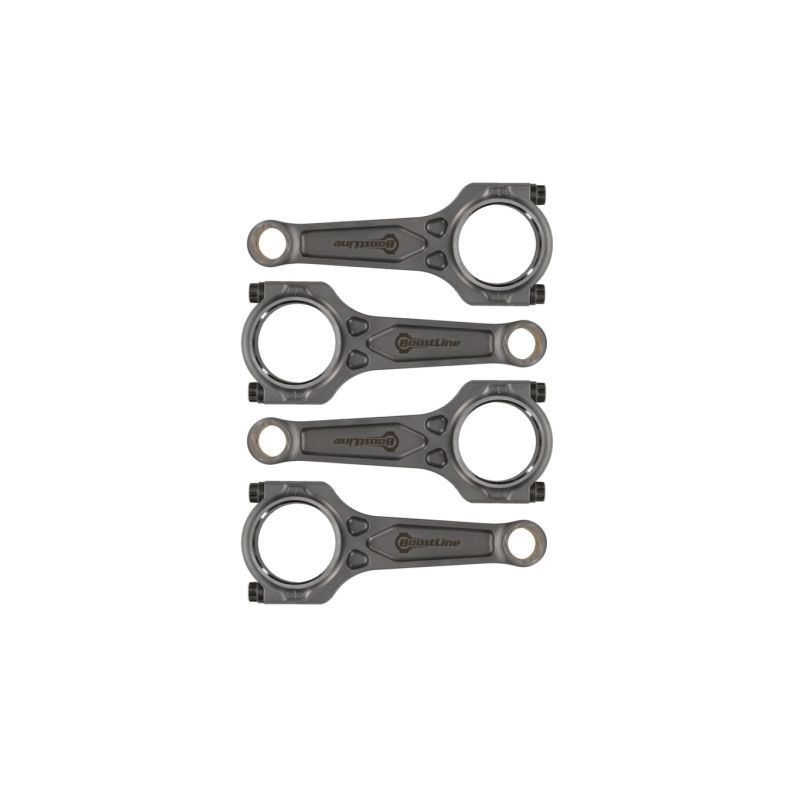

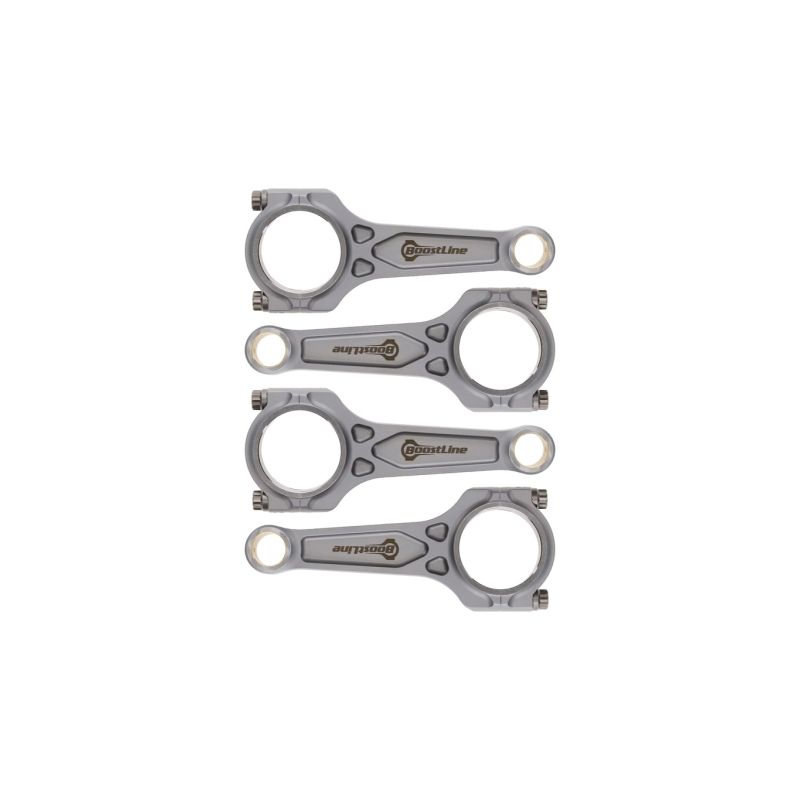

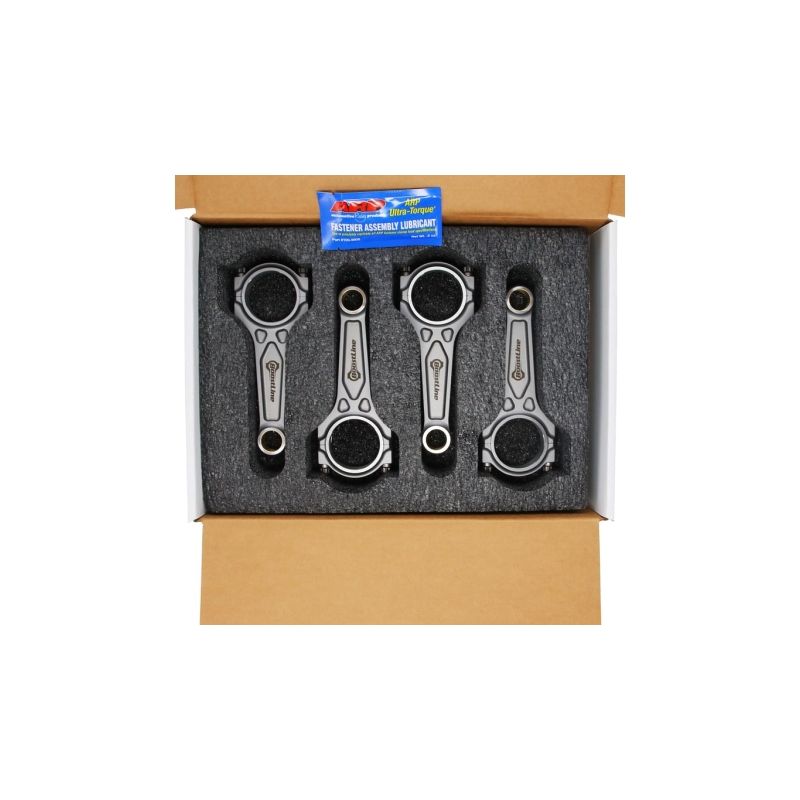

	Boostline , a forged-rod range developed in the United States by Wiseco. Its three-pocket I-beam body (I-3P) brings reinforced bending stiffness, suited to high-torque, high-power engines. The rods are weighed and matched, supplied with ARP 2000 or ARP Custom Age 625+ bolts, as a complete set of 4.

Glossary

1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center

Vehicle compatibility for the 2.0 TSI EA888 Gen.1 engine

Why is it the most economical solution?

On a tuned 2.0 TSI EA888 Gen.1, a factory rod that gives way usually takes the block, crankshaft and pistons with it. Choosing a forged rod set from the outset costs far less than a full rebuild after a failure. You lastingly strengthen the bottom end, preserve the value of your build and drive with peace of mind, in intensive use as much as day to day.
