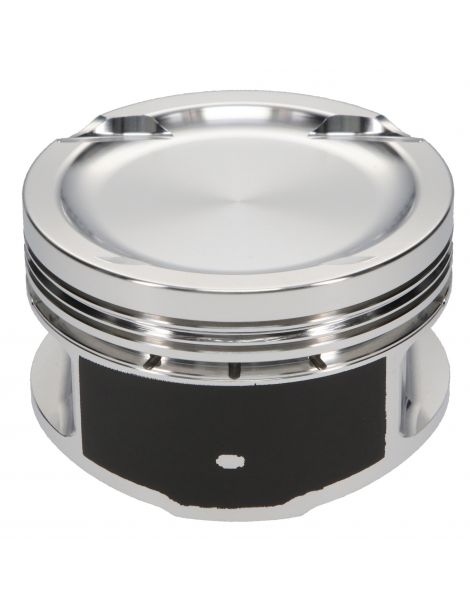

Reduced price! Pistons forgés JE PISTONS FULL ROUND VAG 2.0 TFSI EA113 axe 21mm View larger
Previous Next

Forged Pistons 2.0 TFSI EA888 Gen1 / EA113 Gen2 K04 (Pin 21mm) VW Audi

New product

Forged Pistons 2.0 TFSI EA888 Gen1 & EA113 K04, Bores 82.5 83.5 mm, Pin 21 mm. BHZ/CDL, CCTA/CBFA compatible: S3, TTS, Golf R/GTI, Scirocco R, Leon Cupra R, A1 quattro.

More details

800,89 € tax incl.

-25%

1 067,86 € tax incl.

IN STOCK

Stock NSB France : 1 Item

  • Specifications of the forged pistons offered by NSB Concept for Volkswagen / Audi 2.0 L 16 V (EA888 Gen1 & EA113 K04) :

    ReferenceOEM Bore
    82,50 mm    		OEM CR 9,6–9,8 :1OEM Pin
    21 mm    		Height OEM Pin
    29,60 mm    		RangeCoatingAluminiumForgingDomeWeightRings

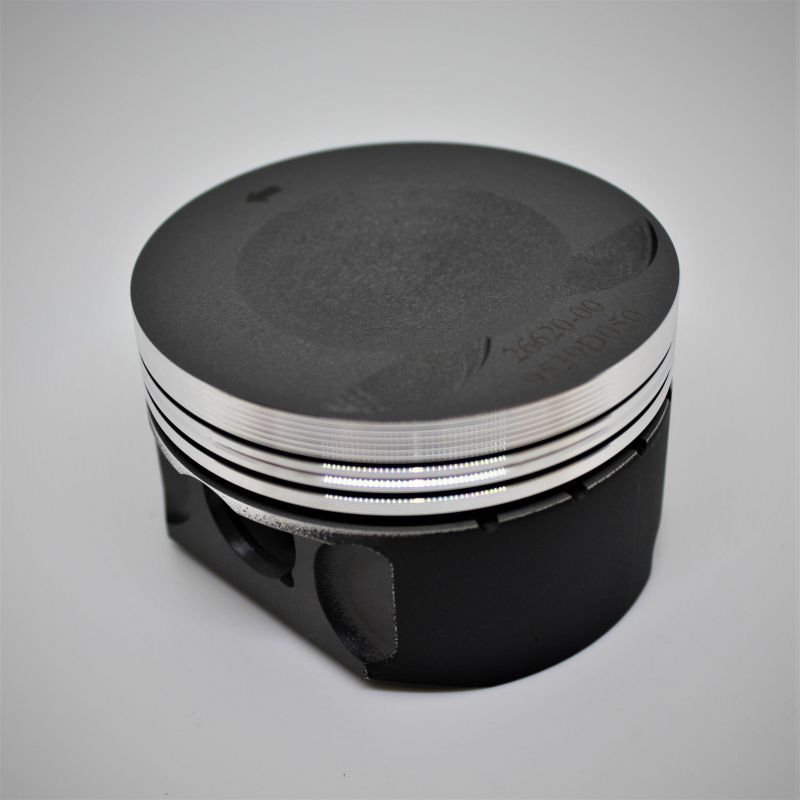

    DIA-38106-482.58.5:12129.59DiamondSkirt2618NC-15.5 ccNC9513248
    DIA-38106-4-H82.58.5:12129.59Diamond HDSkirt2618NC-15.5 ccNC9513248
    DIA-38108-482.59:12129.59DiamondSkirt2618NC-11.5 ccNC9513248
    DIA-38108-4-H82.59:12129.59Diamond HDSkirt2618NC-11.5 ccNC9513248

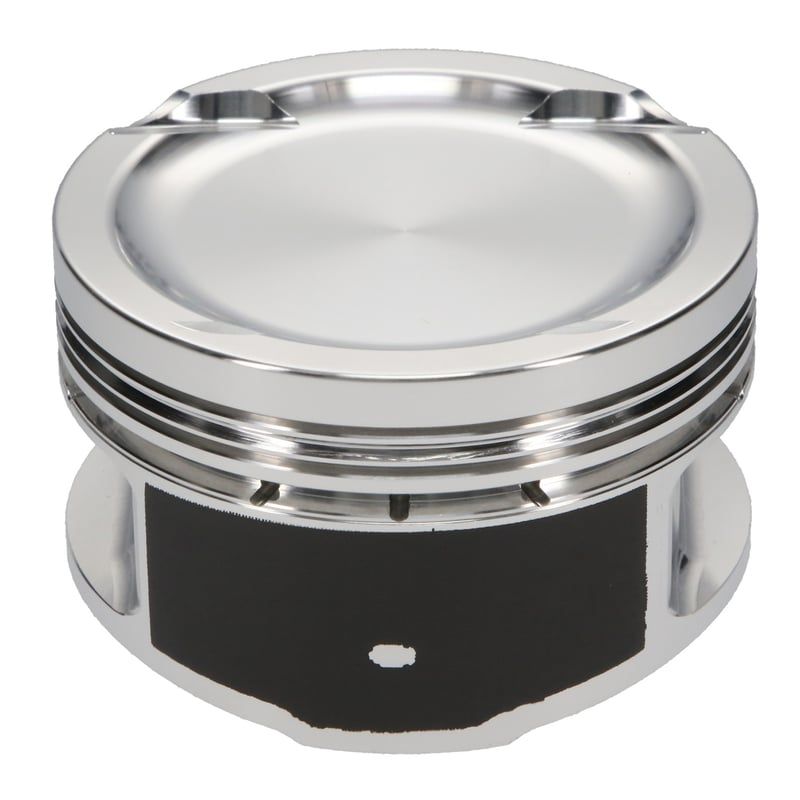

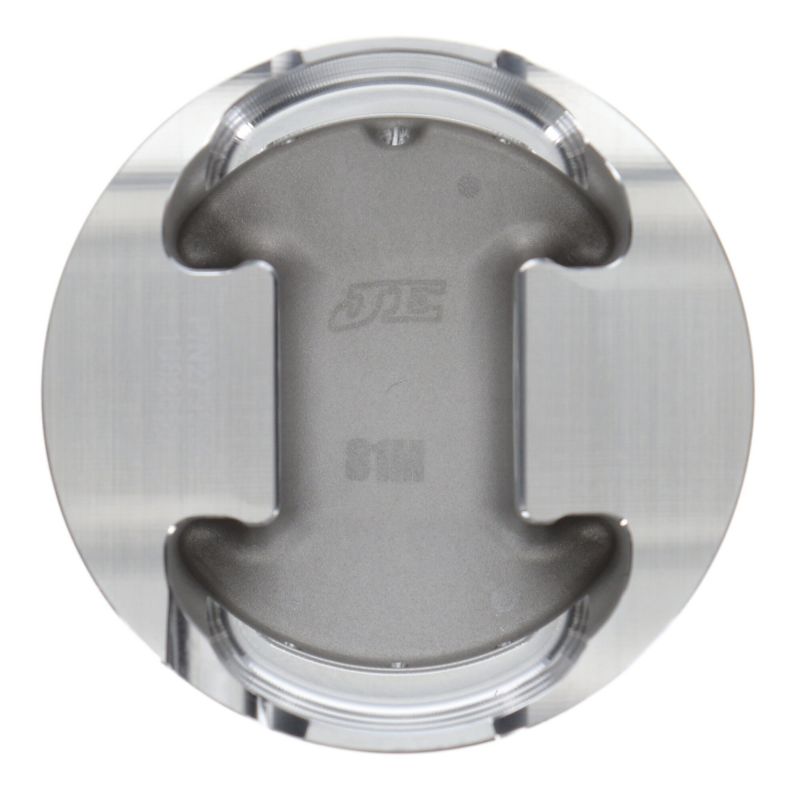

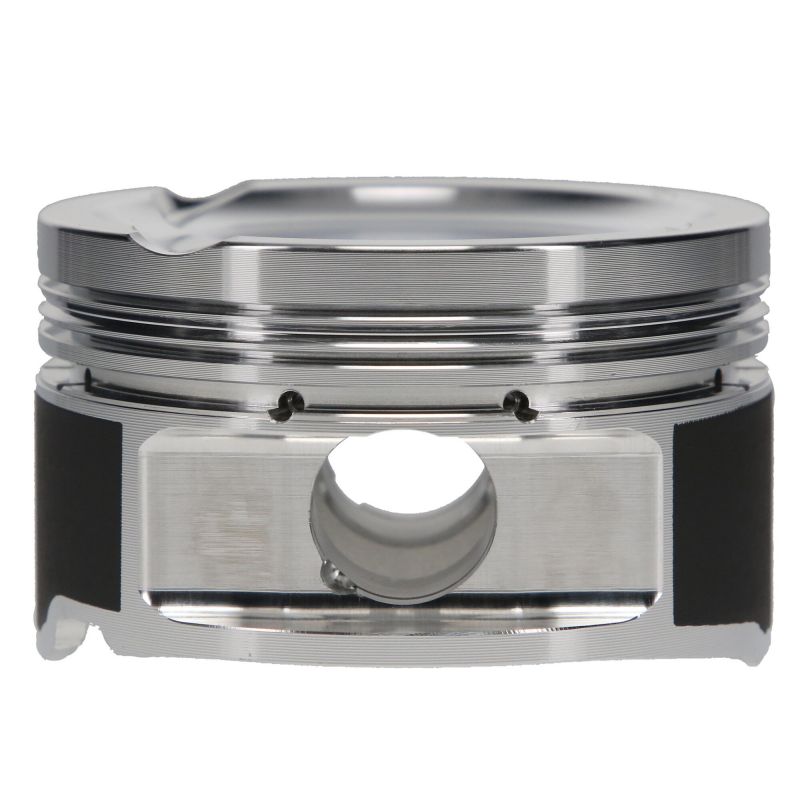

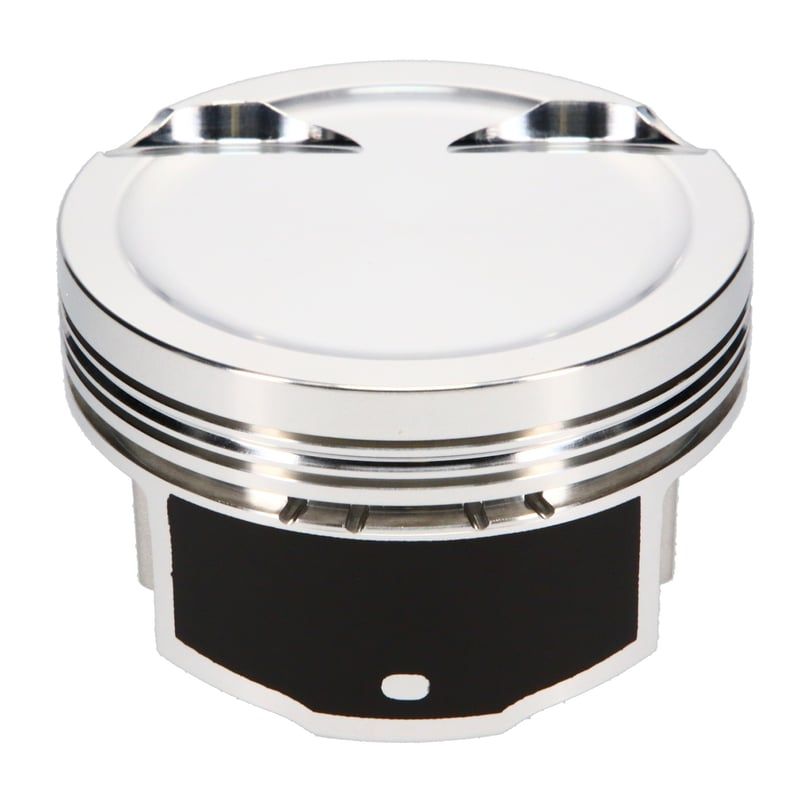

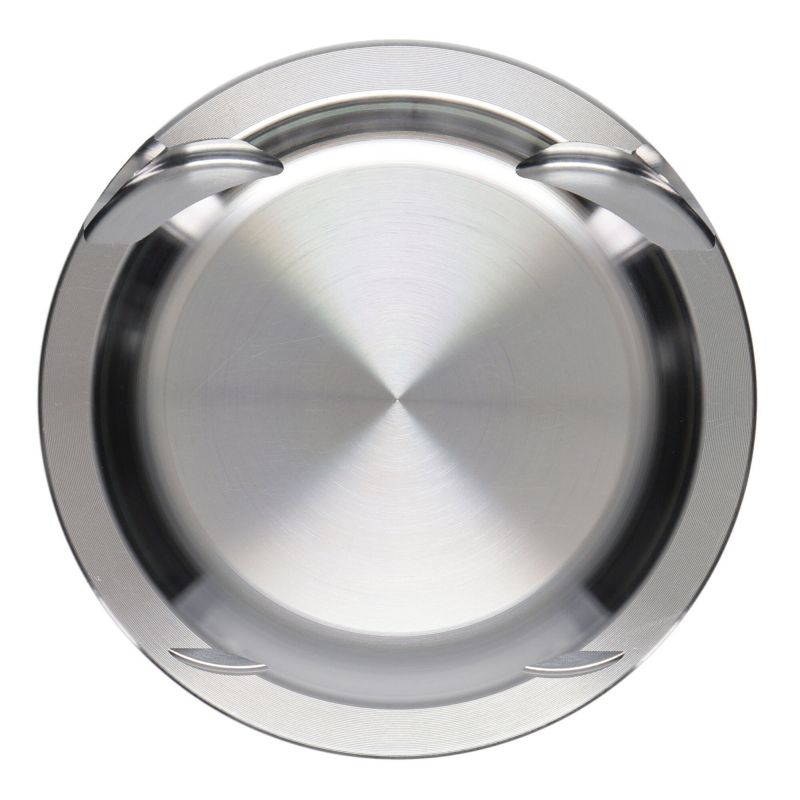

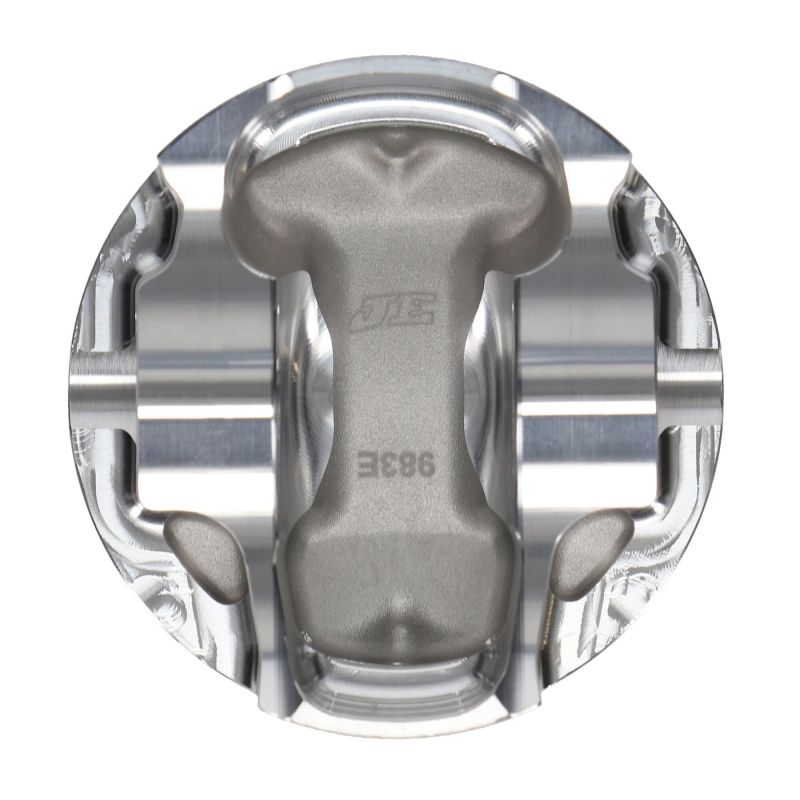

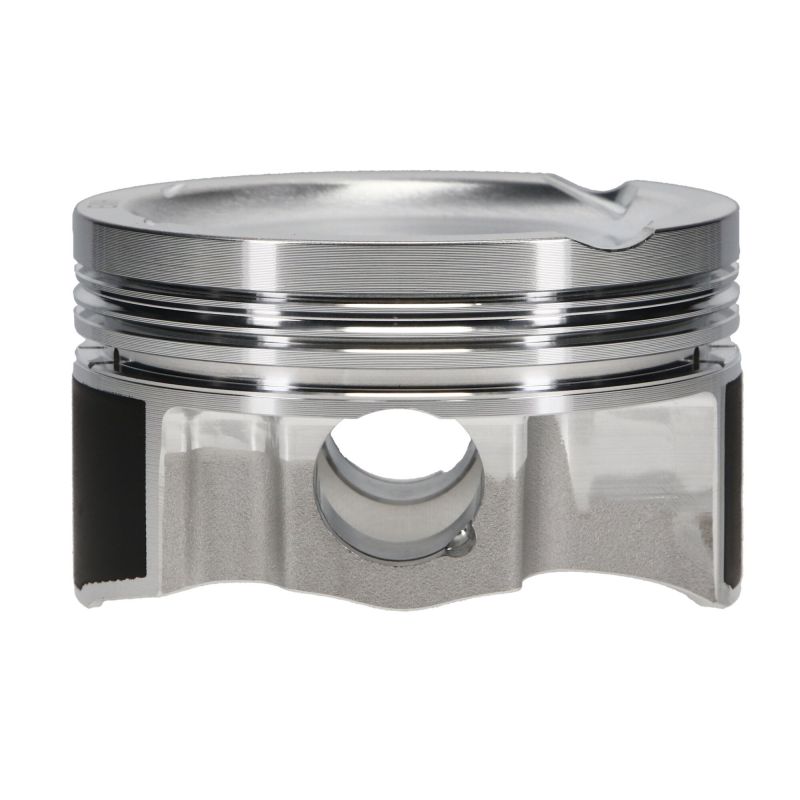

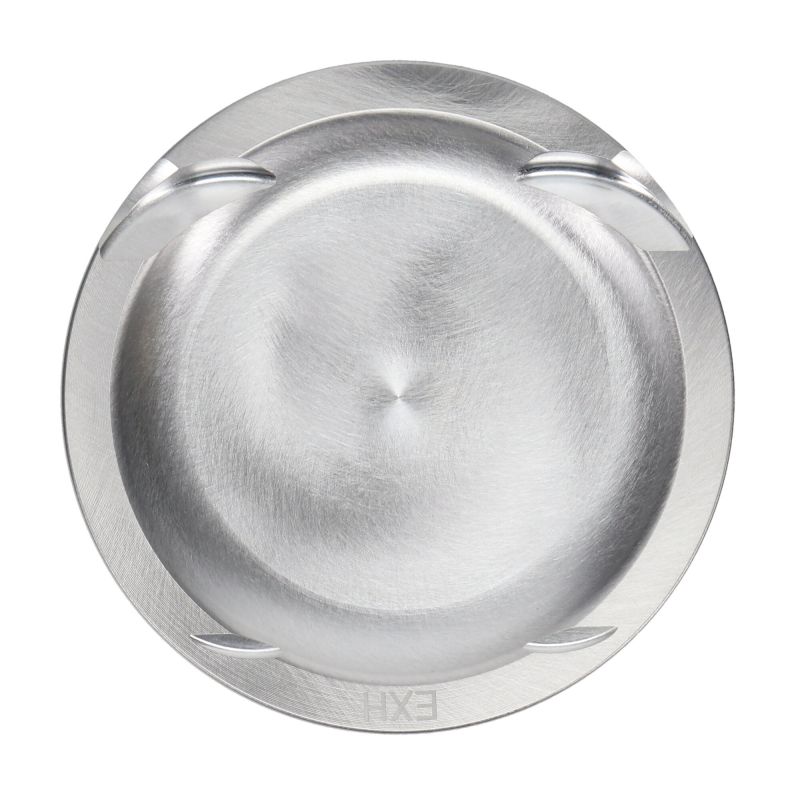

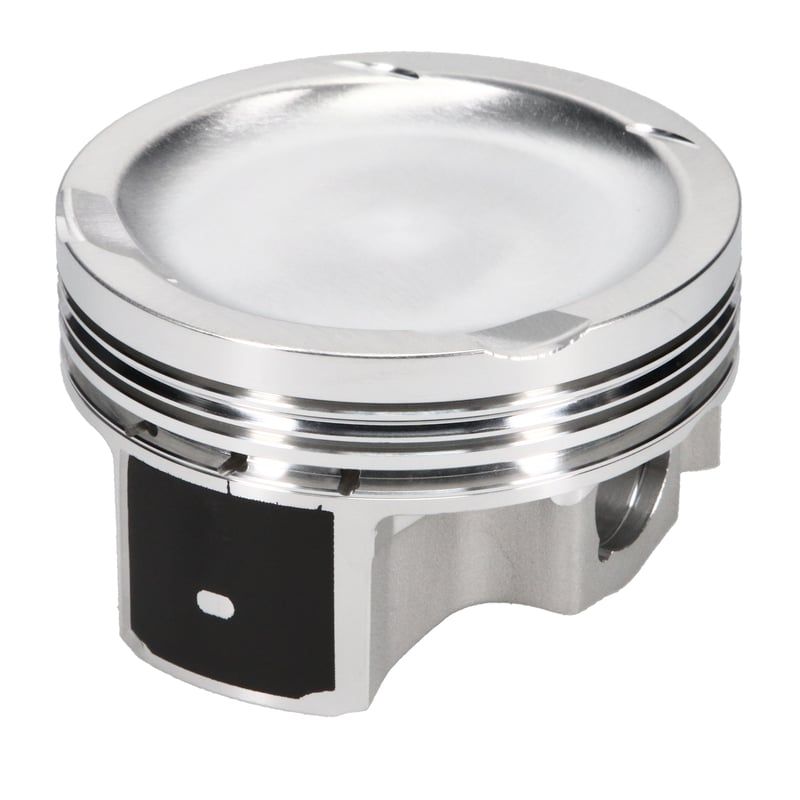

    JE-31431782.59.1:12129.6JE FSRNC2618FSR-10.8 cc272NC
    JE-31431182.59.1:12129.6JE RoundNC2618Round-10.8 cc295NC

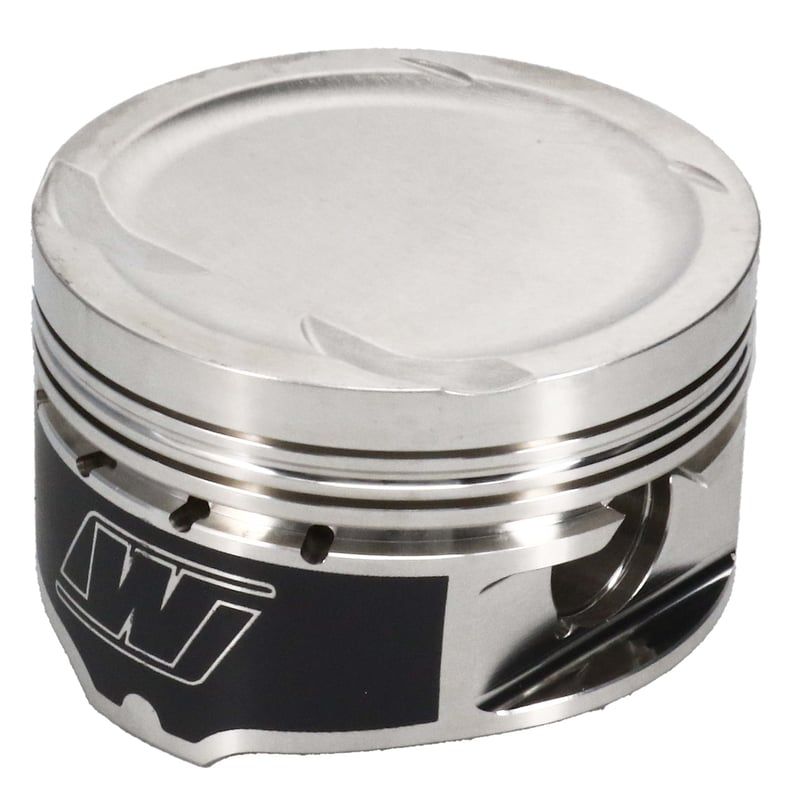

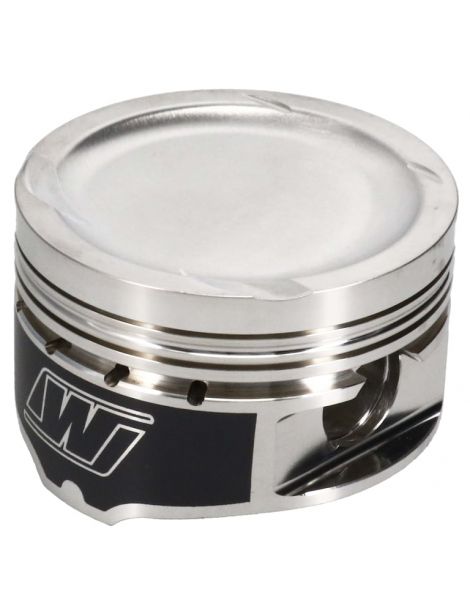

    WK751M82582.59.3:12129.59WisecoSkirt2618NC-10.8 ccNC8250XX
    WK750M82582.59.5:12129.59WisecoSkirt2618NC-7.1 ccNC8250XX
    JE-32924782.59.6:12129.6JE FSRNC2618FSR-7.1 cc320NC
    JE-35383982.59.6:12129.6JE FSRNC2618FSR-7.1 ccNCNC
    JE-32924482.59.6:12129.6JE RoundNC2618Round-7.1 cc320NC
    JE-36786082.59.6:12129.3JE Ultra SeriesCrown + Skirt2618FSR-5.7 cc297NC

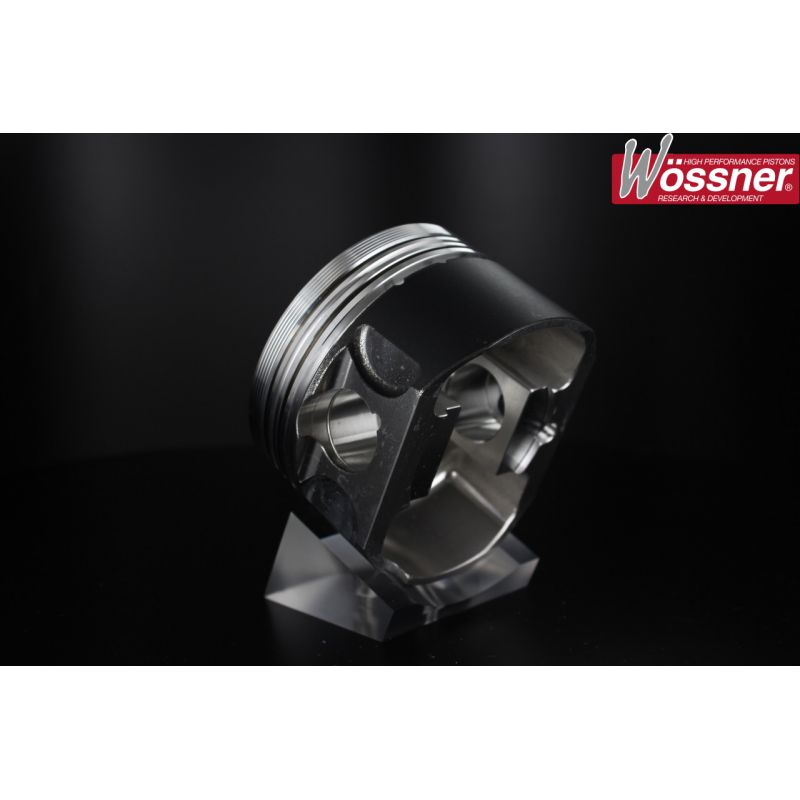

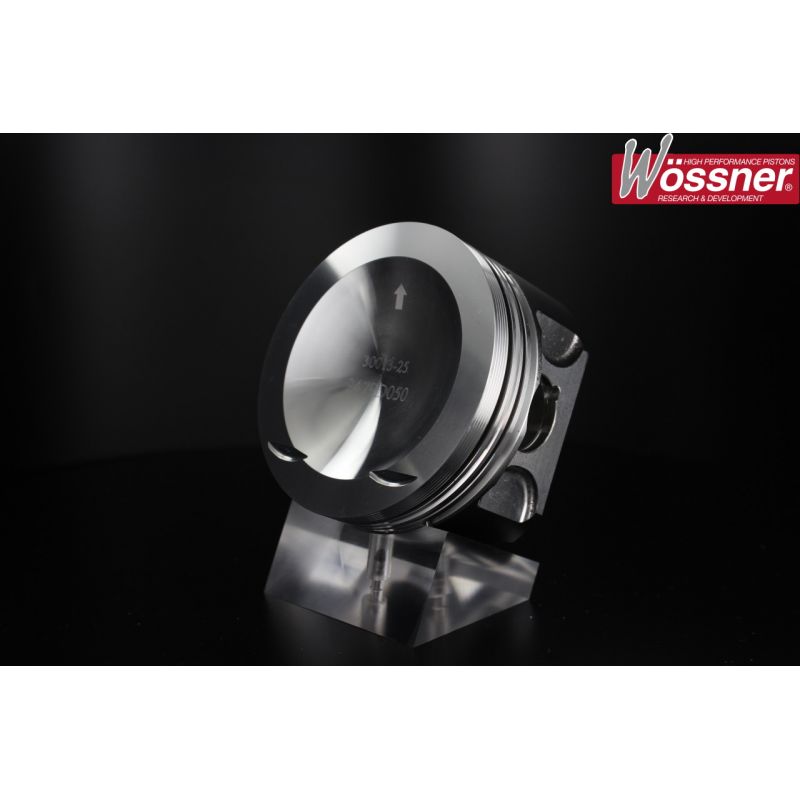

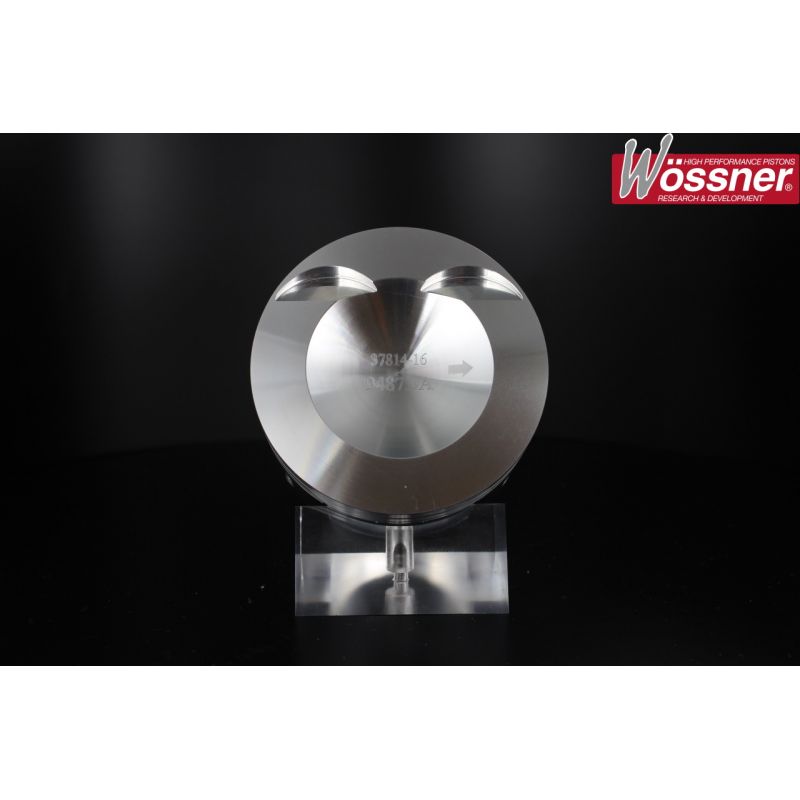

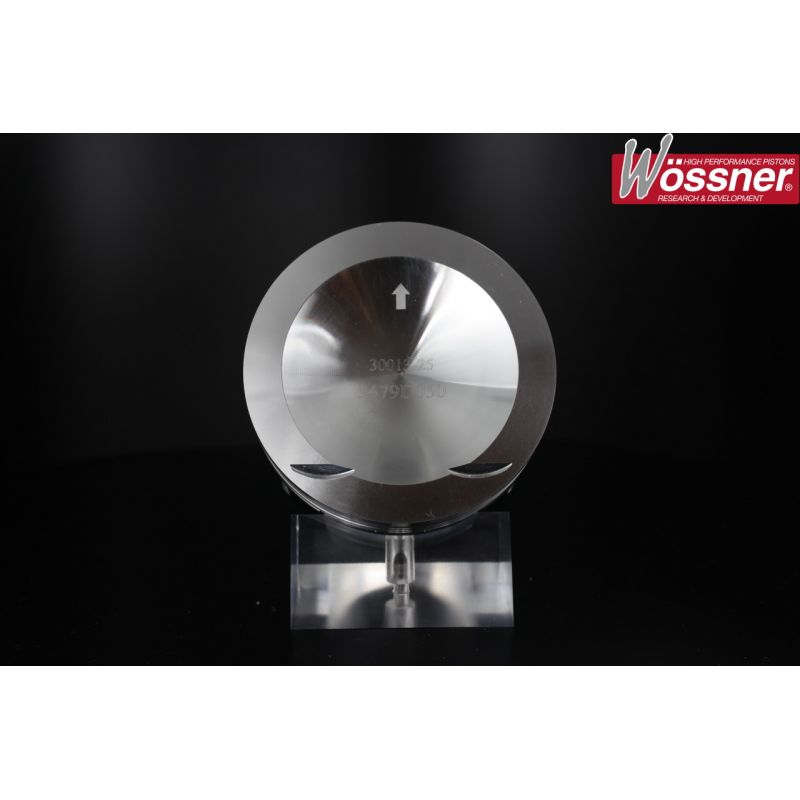

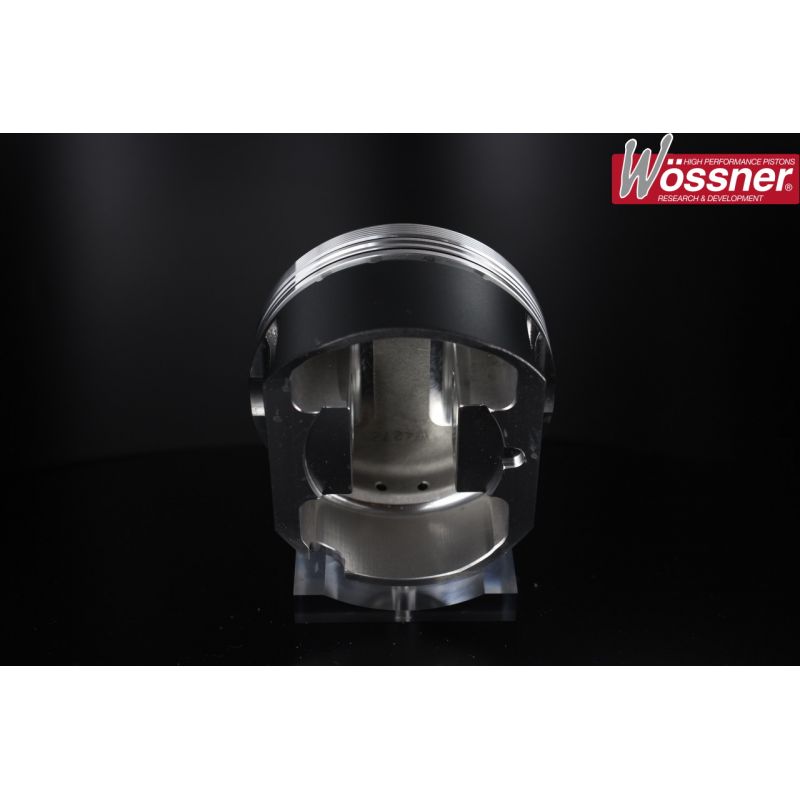

    K9487DA82.59.6:12129.6WossnerNCNCRound-7.3 ccNC825XPY
    K9539DA82.59.6:12129.6WossnerNCNCNC-7.3 ccNCGNH82.50
    DIA-38110-482.510:12129.59DiamondSkirt2618NC-4.5 ccNC9513248
    DIA-38110-4-H82.510:12129.59Diamond HDSkirt2618NC-4.5 ccNC9513248
    JE-35384282.510:12129.6JE FSRNC2618FSR-4.5 ccNCNC
    JE-31432082.510.3:12129.6JE FSRNC2618FSR-3.0 cc297NC
    JE-31431482.510.3:12129.6JE RoundNC2618Round-3.0 cc305NC
    DIA-38107-483.08.6:12129.59DiamondSkirt2618NC-15.5 ccNC9513268
    DIA-38107-4-H83.08.6:12129.59Diamond HDSkirt2618NC-15.5 ccNC9513268
    DIA-38109-483.09.1:12129.59DiamondSkirt2618NC-11.5 ccNC9513268
    DIA-38109-4-H83.09.1:12129.59Diamond HDSkirt2618NC-11.5 ccNC9513268
    JE-31431883.09.1:12129.6JE FSRNC2618FSR-11.5 cc276NC
    JE-31431283.09.1:12129.6JE RoundNC2618Round-11.5 cc297NC
    WK752M8383.09.1:12129.59WisecoSkirt2618NC-11.5 ccNC8300XX
    WK750M8383.09.5:12129.59WisecoSkirt2618NC-7.1 ccNC8300XX
    JE-32924883.09.6:12129.6JE FSRNC2618FSR-7.8 cc320NC
    JE-35384083.09.6:12129.6JE FSRNC2618FSR-7.8 ccNCNC
    JE-32924583.09.6:12129.6JE RoundNC2618Round-7.8 cc320NC
    JE-36786183.09.6:12129.3JE Ultra SeriesCrown + Skirt2618FSR-6.4 cc299NC
    K9539D05083.09.6:12129.6WossnerNCNCNC-7.3 ccNCGNH83.00
    K9487D05083.09.7:12129.6WossnerNCNCRound-7.3 ccNC830XPY
    JE-35384383.010:12129.6JE FSRNC2618FSR-5.2 ccNCNC
    DIA-38111-483.010.1:12129.59DiamondSkirt2618NC-4.5 ccNC9513268
    DIA-38111-4-H83.010.1:12129.59Diamond HDSkirt2618NC-4.5 ccNC9513268
    JE-31432183.010.3:12129.6JE FSRNC2618FSR-3.6 cc300NC
    JE-31431583.010.3:12129.6JE RoundNC2618Round-3.6 cc309NC
    JE-31431983.59.1:12129.6JE FSRNC2618FSR-12.3 cc280NC
    JE-31431383.59.1:12129.6JE RoundNC2618Round-12.3 cc302NC
    JE-32924983.59.6:12129.6JE FSRNC2618FSR-8.4 cc320NC
    JE-35384183.59.6:12129.6JE FSRNC2618FSR-8.4 ccNCNC
    JE-32924683.59.6:12129.6JE RoundNC2618Round-8.4 cc320NC
    JE-36786283.59.6:12129.3JE Ultra SeriesCrown + Skirt2618FSR-7.0 cc301NC
    K9487D10083.59.8:12129.6WossnerNCNCRound-7.3 ccNC835XPY
    JE-35384483.510:12129.6JE FSRNC2618FSR-5.8 ccNCNC
    JE-31432283.510.3:12129.6JE FSRNC2618FSR-4.3 cc303NC
    JE-31431683.510.3:12129.6JE RoundNC2618Round-4.3 cc313NC


    Compatibility (engine codes):

    • EA888 Gen1 : CAWA, CAWB, CCTA, CBFA, CCTB
    • EA113 Gen2 K04 : BYD (Golf 5 GTI Ed30/Pirelli), BWJ (Leon Cupra 1P), BHZ (S3 8P), CDLA, CDLB (TTS 8J), CDLC, CDLF (Golf 6 R), CDLH (A1 quattro), CDLJ (Polo R WRC)

    Notes d'exclusion (hors scope EA888 Gen1 / EA113 K04) : Audi A4 B8 2.0 TFSI (CAEB/CDNB/CDNC = EA888 Gen2), Audi TT 8J 2.0 TFSI de base (EA113 K03 or EA888 Gen2), VW Golf 5 GTI standard (EA113 K03), VW New Beandle (1.8T EA113 K03 or 2.0 TSI EA888 Gen3).


    vehicles original equipped (sorteds par Brand → Model → Engine code → Power → Years) :

    BrandModelEngine codePowerYears
    AudiA1 8X quattroCDLH (EA113 K04)256 hp2012
    AudiA3 8P 2.0 TFSI (US/Canada)CCTA / CBFA (EA888 Gen1)200 hp2008 – 2013
    AudiS3 8PBHZ / CDL (EA113 K04)265 hp2006 – 2013
    AudiTTS 8JCDL(B) (EA113 K04)272 hp2008 – 2014
    KTMX-Bow (base)Audi 2.0 TFSI (EA113)240 hp2008 – 2011
    KTMX-Bow GTAudi 2.0 TFSI (EA113)285–300 hp2013 – 2016
    KTMX-Bow GT4Audi 2.0 TFSI (EA113)≈ 360 hp2015 – 2019
    KTMX-Bow RAudi 2.0 TFSI (EA113, K04)300 hp2011 – 2019
    KTMX-Bow RRAudi 2.0 TFSI (EA113)300 hp2012 – 2016
    SeatLeon 1P CupraBWJ (EA113 K04)240 hp2006 – 2012
    SeatLeon 1P Cupra RCDLA (EA113 K04)265 hp2009 – 2012
    VolkswagenGolf 5 GTI Edition 30 / PirelliBYD (EA113 K04)230 hp2006 – 2009
    VolkswagenGolf 6 GTI (US/Canada)CCTA / CBFA (EA888 Gen1)200 hp2010 – 2014
    VolkswagenGolf 6 RCDLC / CDLF (EA113 K04)270 hp2009 – 2013
    VolkswagenPolo R WRC 6RCDLJ (EA113 K04)220 hp2013 – 2014
    VolkswagenScirocco 3 2.0 TSICAWB (EA888 Gen1)200–211 hp2008 – 2009
    VolkswagenScirocco 3 RCDL (EA113 K04)265 hp2009 – 2014


    OEM piston references identified for affected 2.0 TFSI applications::

    • EA113 K04 (S3 8P, TTS 8J, Golf 6 R, Scirocco R, Leon Cupra R 1P, A1 quattro, Polo R WRC): Audi/VW families 06H 107 065 with variable suffixes depending on application (e.g. AM, CD, CK, CM, DD, DF, DG, DM, DP, BS, BK, CP…).
      EA888 Gen1 (CCTA/CBFA/CAWB/CAWA/CCTB): Audi/VW families 06H 107 ... depending on subcode and model year.

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
