2.0L 16v - EA888 Gen1
Produttori
2.0L 16v - EA888 Gen1
Attenzione: Ultimi articoli in magazzino!
Nuovo prodotto

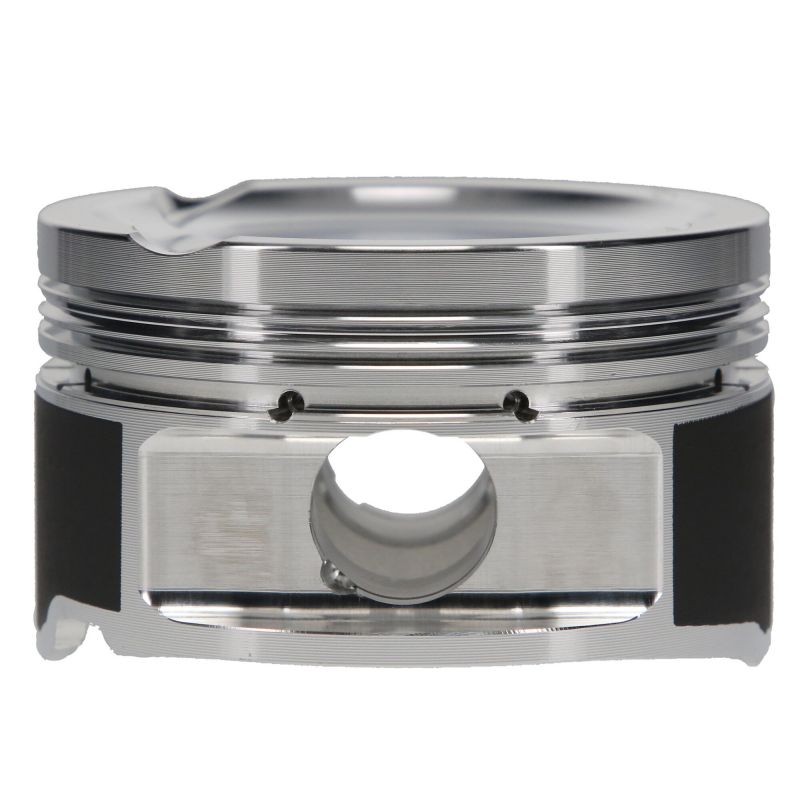

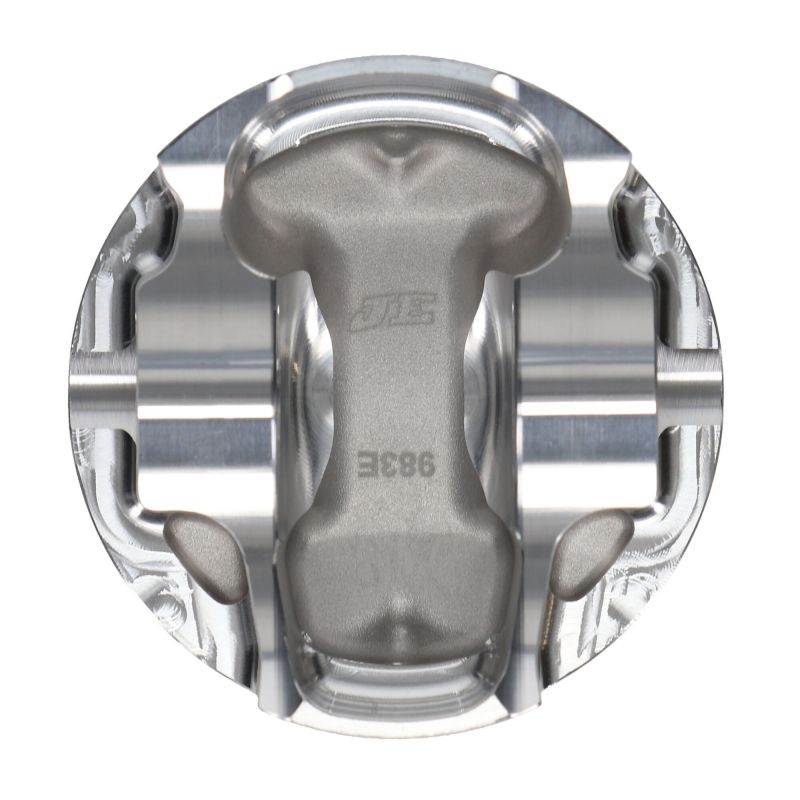

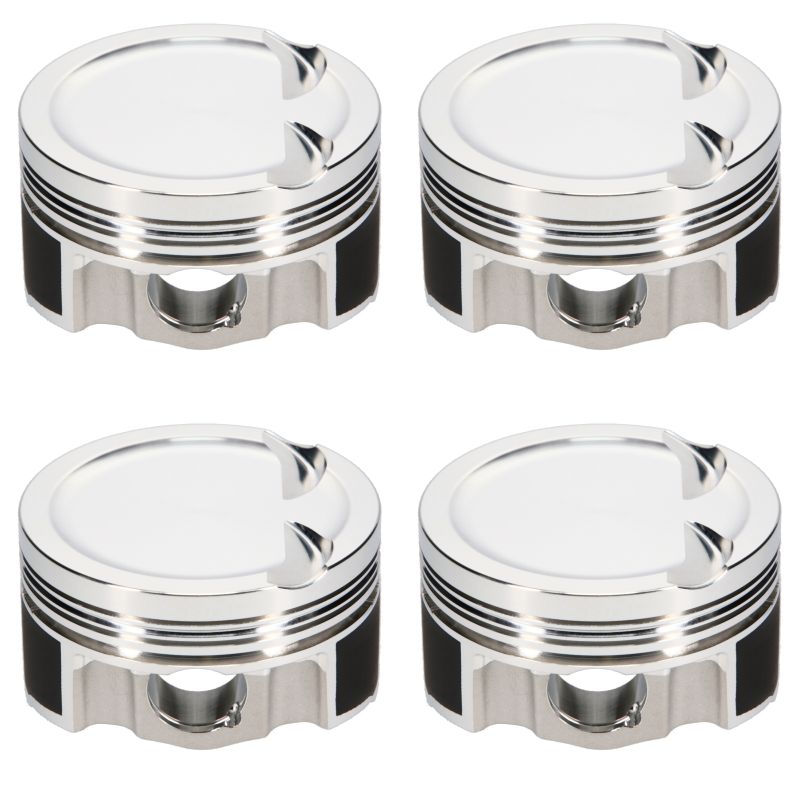

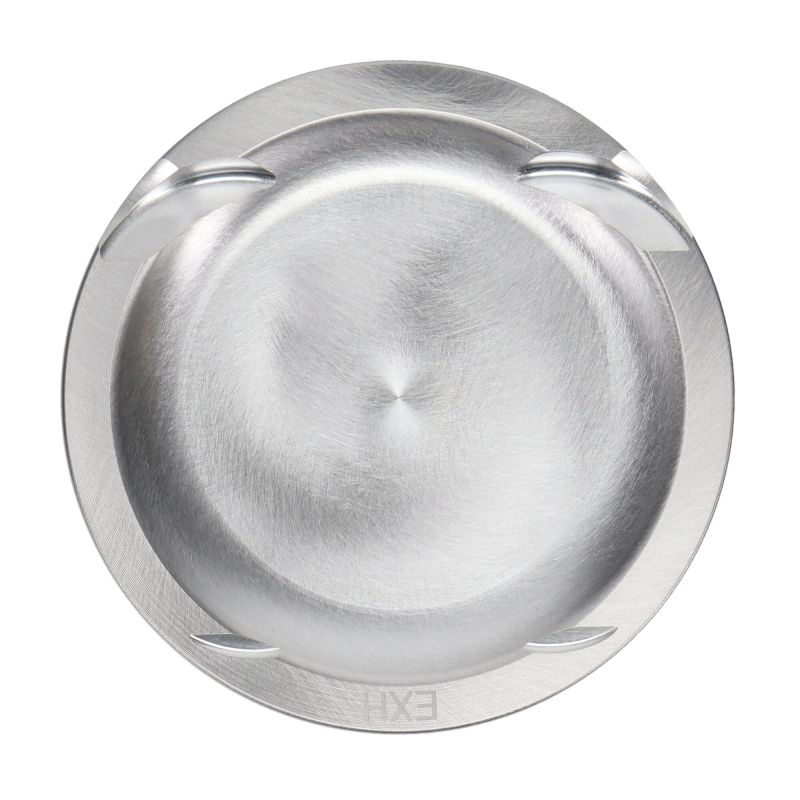

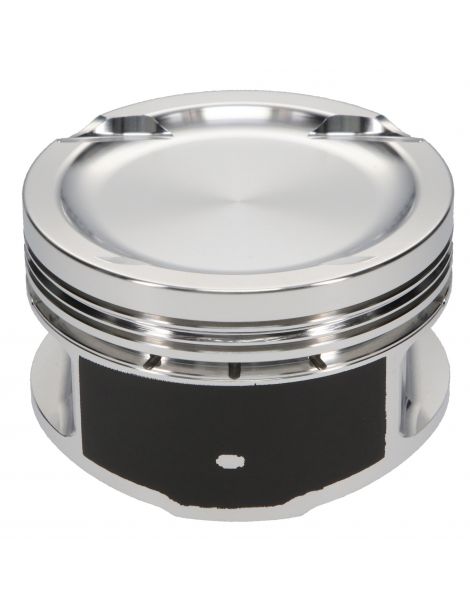

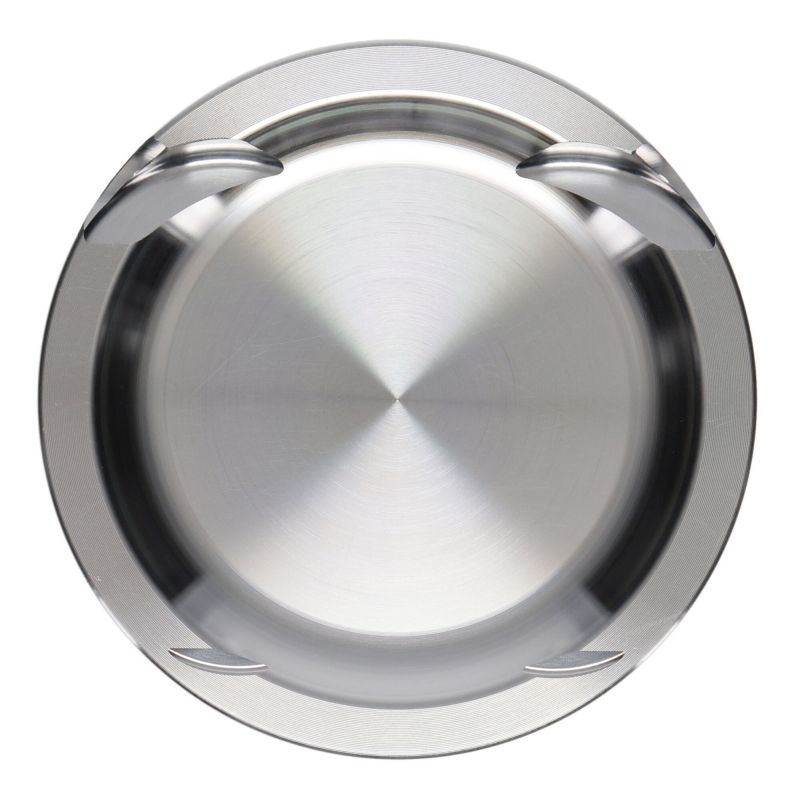

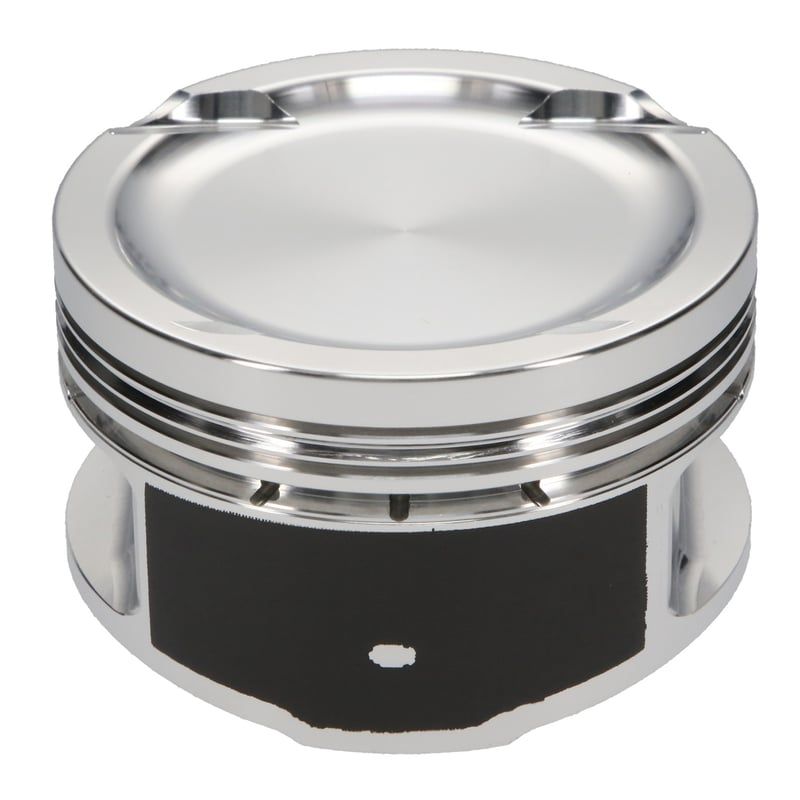

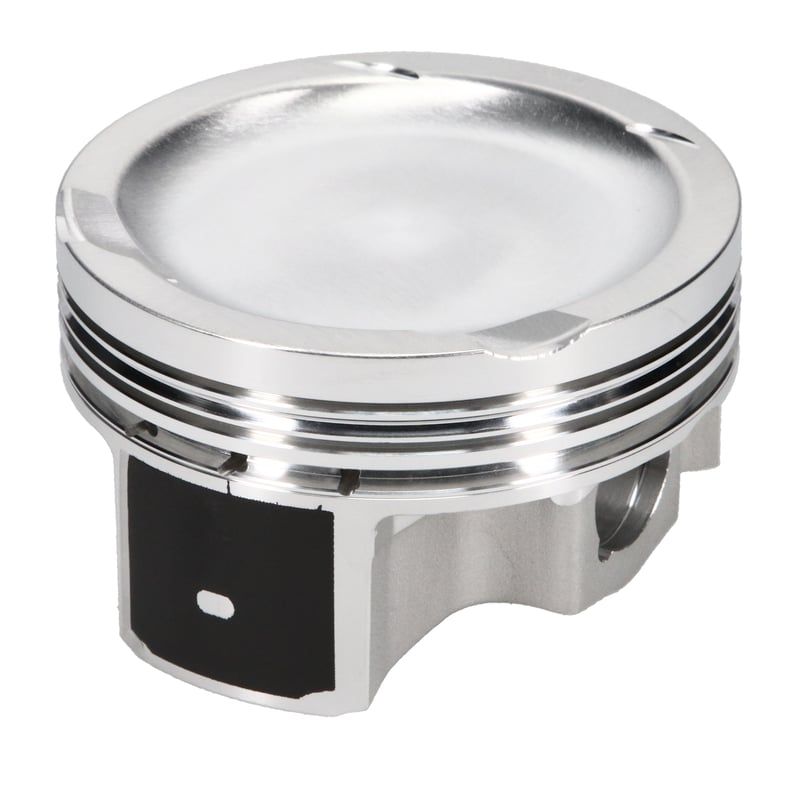

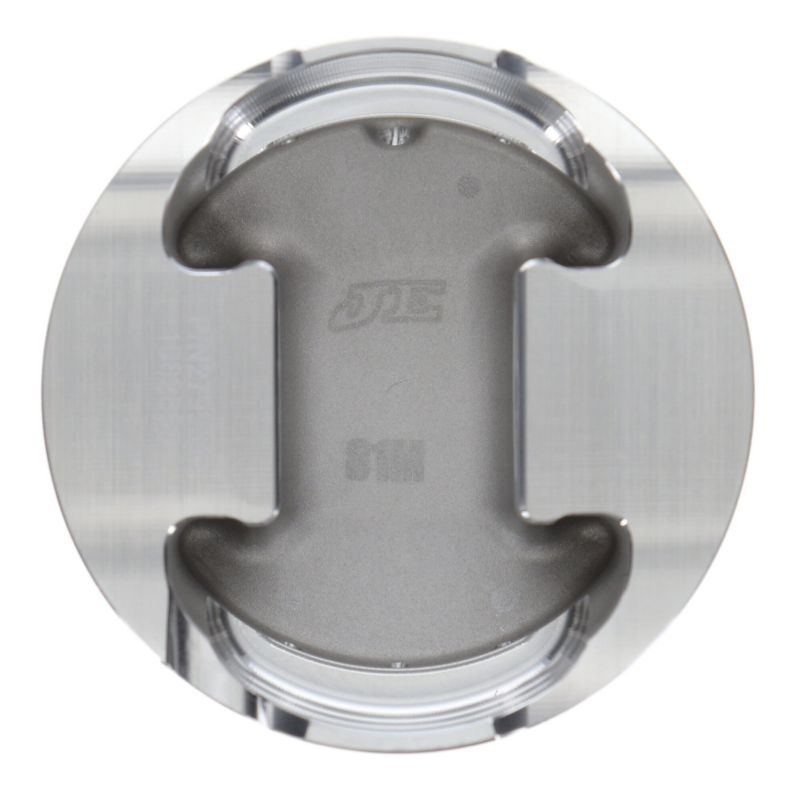

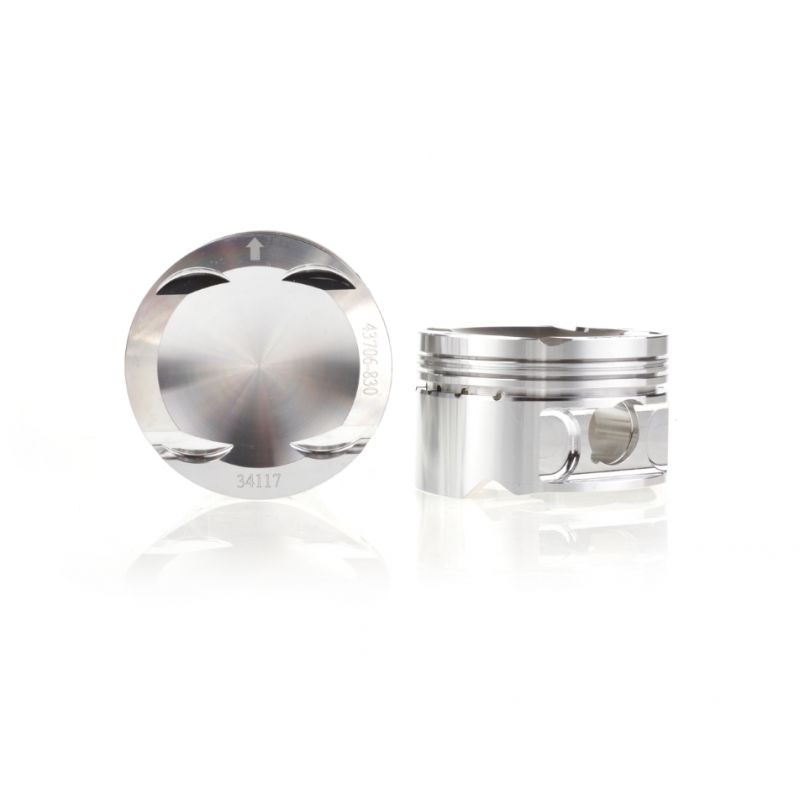

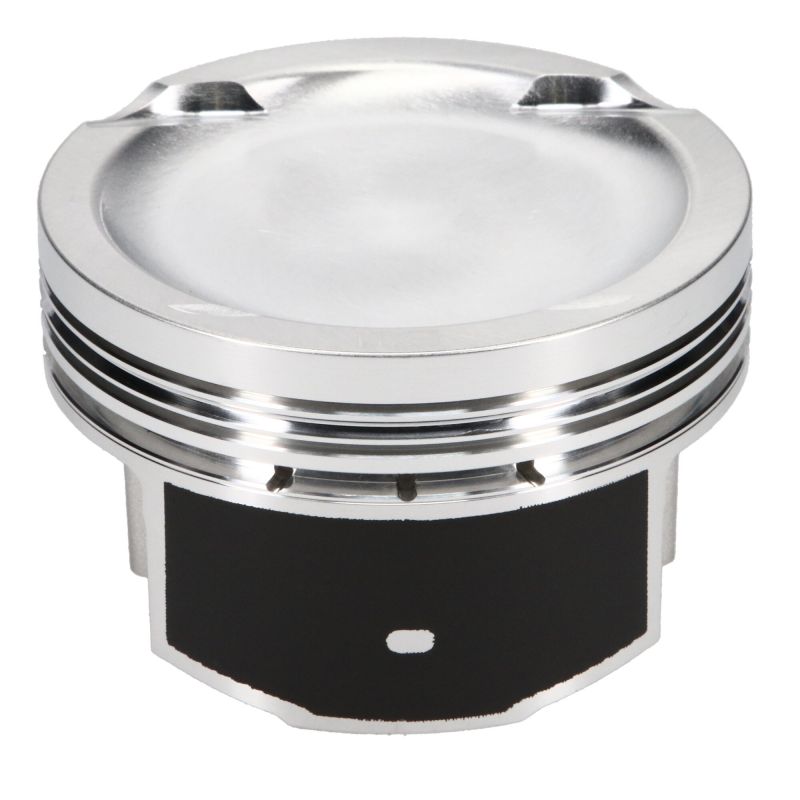

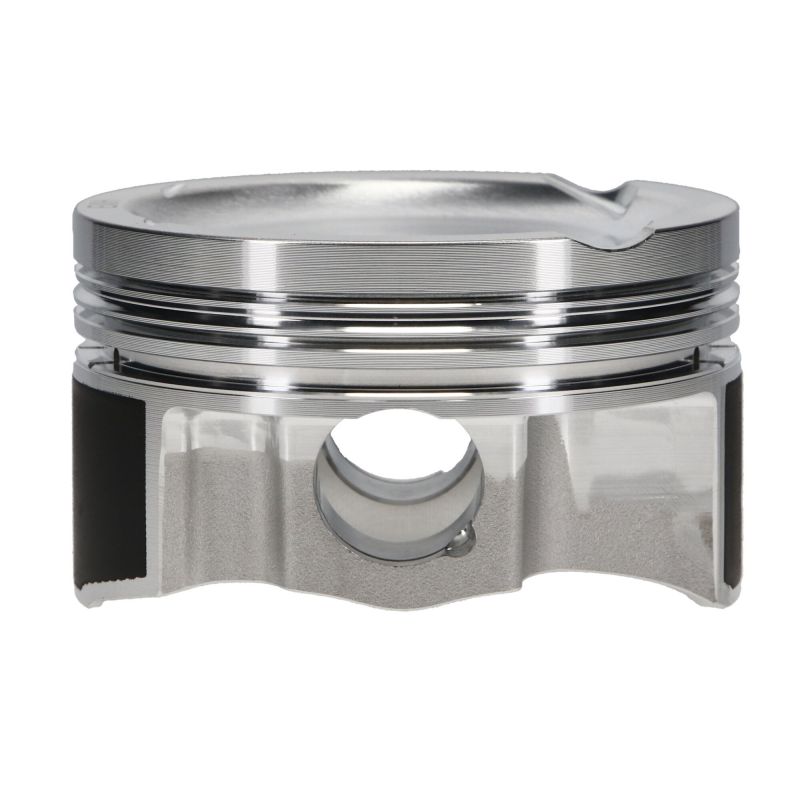

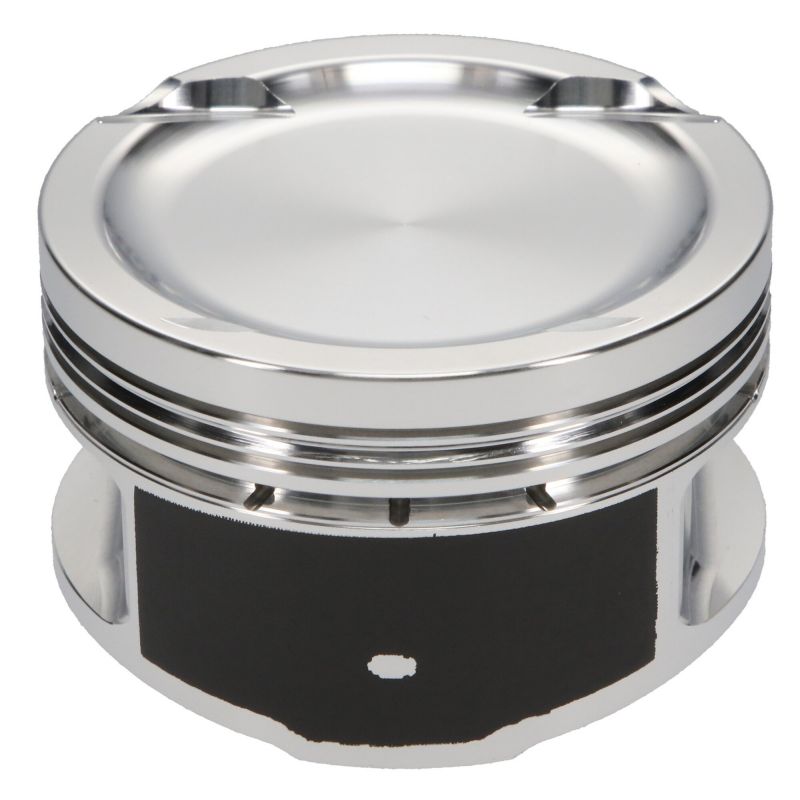

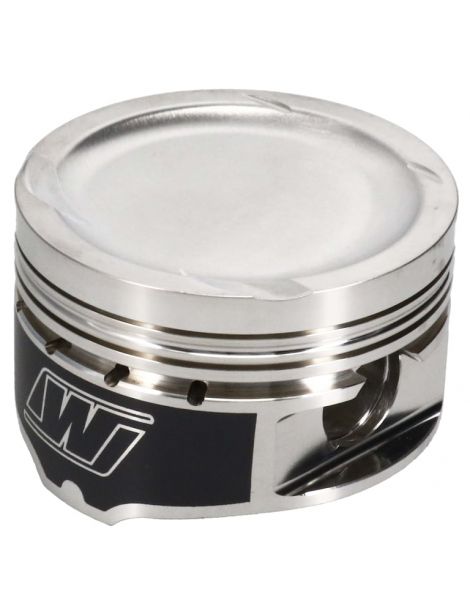

Pistoni forgiati 2.0 TFSI EA888 Gen1 e amp; EA113 K04, AlesaggiOS 82,5 83,5 mm, Spinotto 21 mm. Compatibile con BHZ/CDL, CCTA/CBFA: S3, TTS, Golf R/GTI, Scirocco R, Leon Cupra R, A1 quattro.
Rapporto di compressione originale: 9,6:1 (EA888) o 10,5:1 (EA113)
Caratteristiche dei pistoni forgiati offerti da NSB Concept per Volkswagen / Audi 2.0 L 16 V (EA888 Gen1 e EA113 K04):
| Riferimento | Alesaggio OEM 82,50 mm | RC OEM | Spinotto OEM 21 mm | Altezza Spinotto OEM 29,60 mm | Gamma | Trattamento | Alluminio | Forgiatura | Cupola | Peso | Fasce |
|---|---|---|---|---|---|---|---|---|---|---|---|

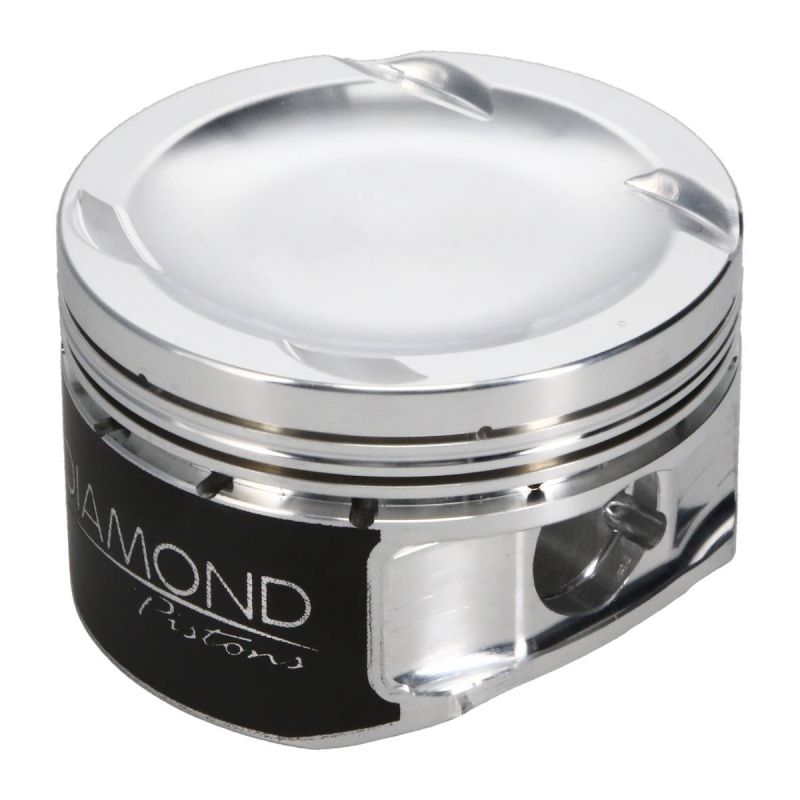

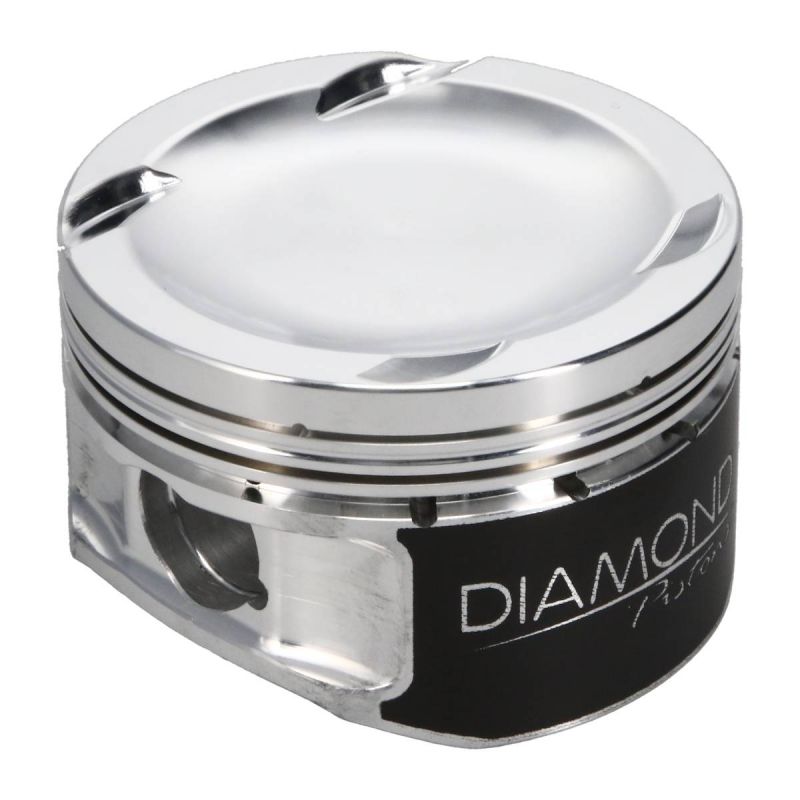

| DIA-38106-4 | 82.5 | 8.5:1 | 21 | 29.59 | Diamond | Mantello | 2618 | NC | -15,5cc | NC | 9513248 |
| DIA-38106-4-H | 82.5 | 8.5:1 | 21 | 29.59 | Diamante HD | Mantello | 2618 | NC | -15,5cc | NC | 9513248 |
| DIA-38108-4 | 82.5 | 9:1 | 21 | 29.59 | Diamond | Mantello | 2618 | NC | -11,5cc | NC | 9513248 |
| DIA-38108-4-H | 82.5 | 9:1 | 21 | 29.59 | Diamante HD | Mantello | 2618 | NC | -11,5cc | NC | 9513248 |
| JE-314317 | 82.5 | 9.1:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -10,8cc | 272 | NC |
| JE-314311 | 82.5 | 9.1:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -10,8cc | 295 | NC |

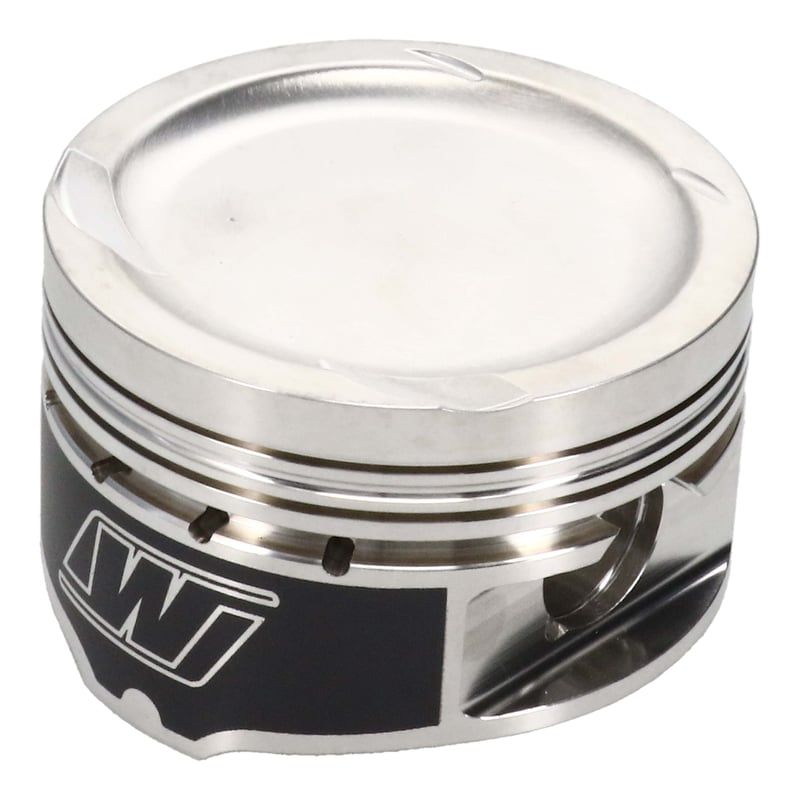

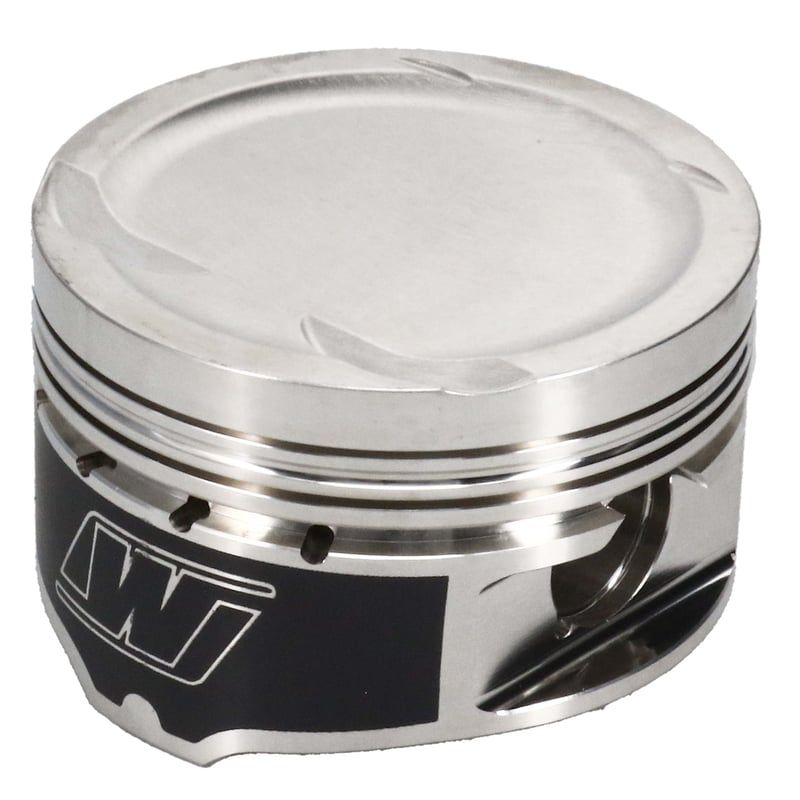

| WK751M825 | 82.5 | 9.3:1 | 21 | 29.59 | Wiseco | Mantello | 2618 | NC | -10,8cc | NC | 8250XX |
| WK750M825 | 82.5 | 9.5:1 | 21 | 29.59 | Wiseco | Mantello | 2618 | NC | -7,1cc | NC | 8250XX |
| JE-329247 | 82.5 | 9.6:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -7,1cc | 320 | NC |
| JE-353839 | 82.5 | 9.6:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -7,1cc | NC | NC |
| JE-329244 | 82.5 | 9.6:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -7,1cc | 320 | NC |

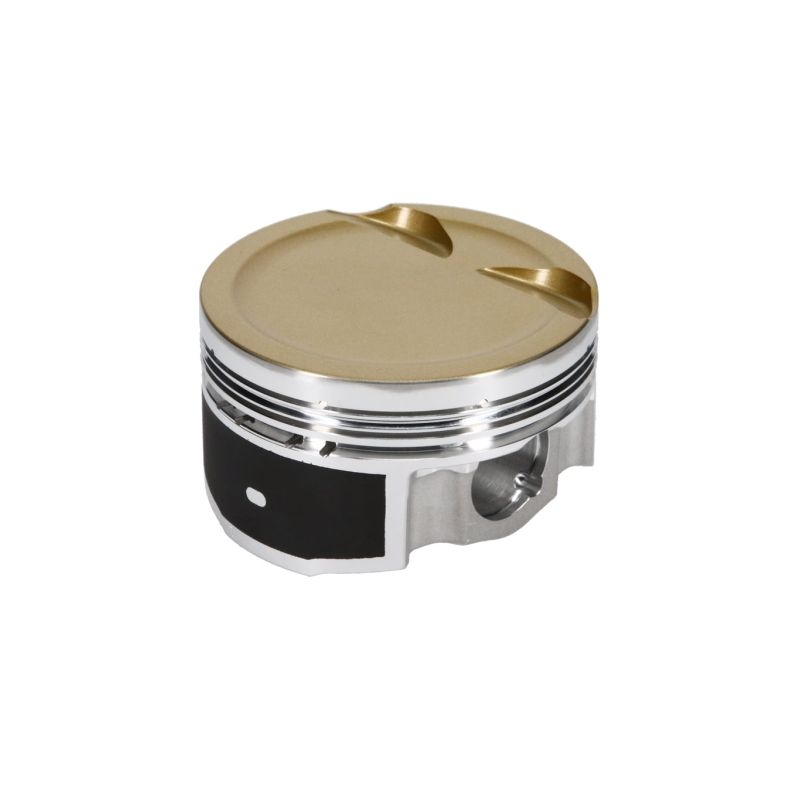

| JE-367860 | 82.5 | 9.6:1 | 21 | 29.3 | JE Ultra Series | Testa + Mantello | 2618 | FSR | -5,7cc | 297 | NC |

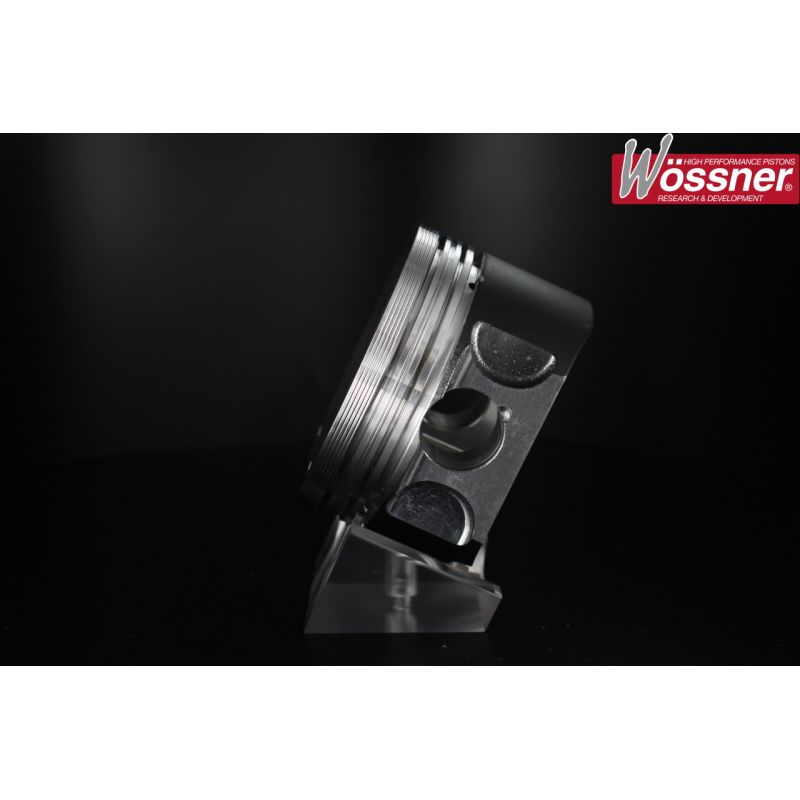

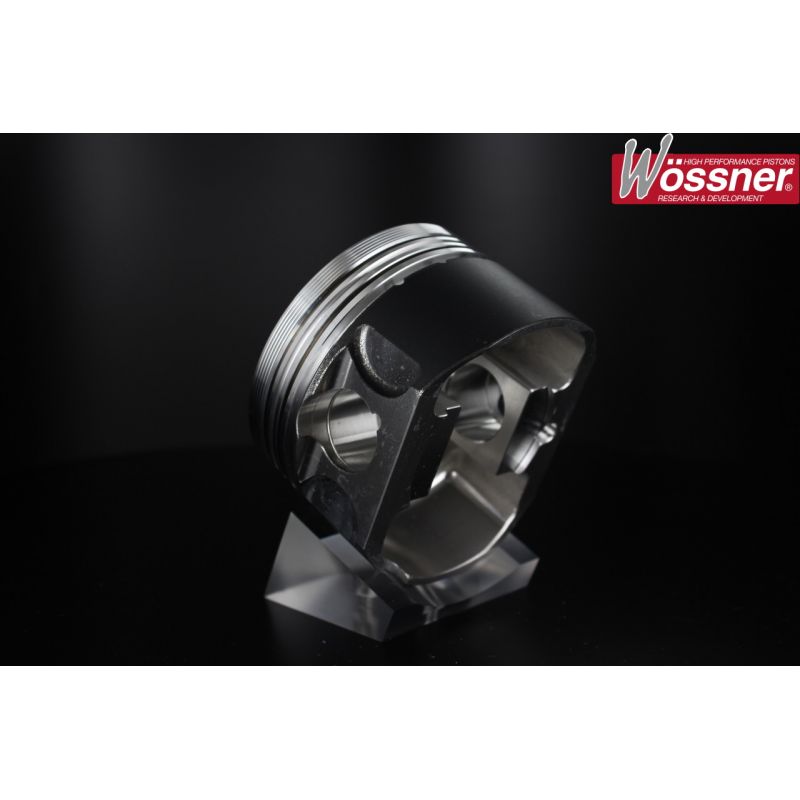

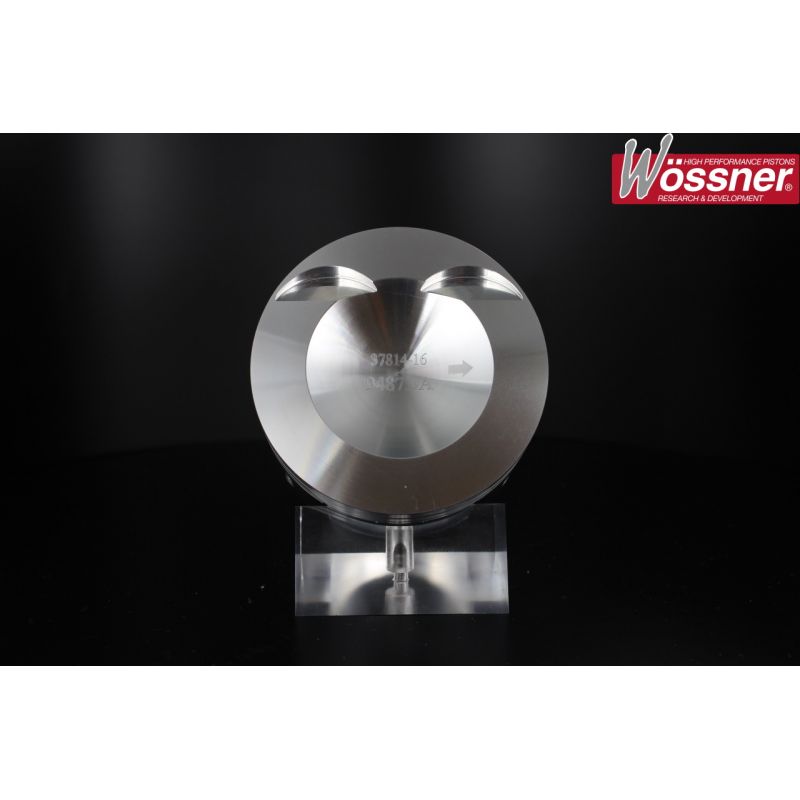

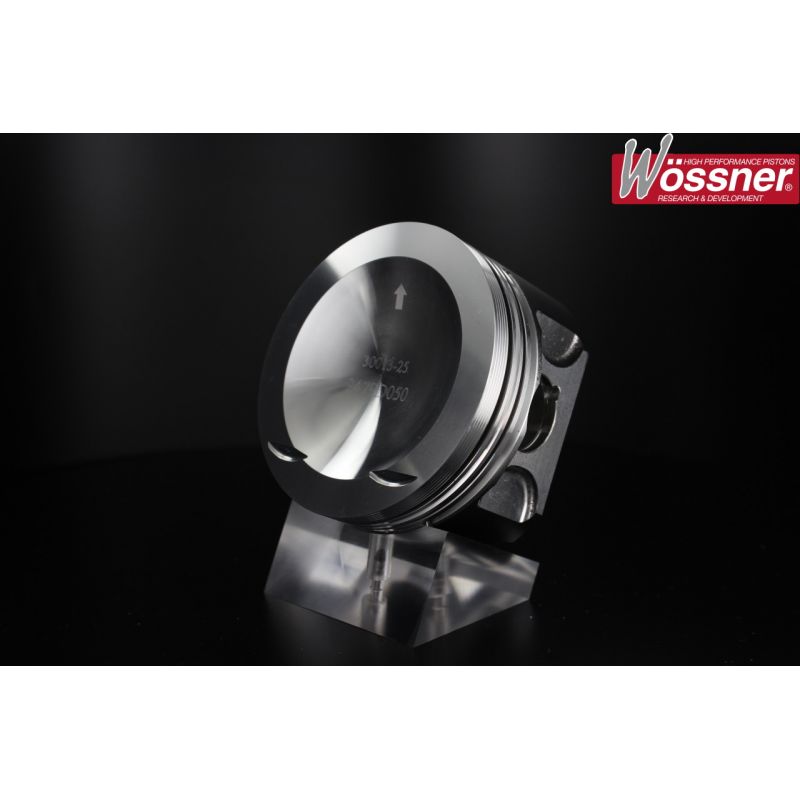

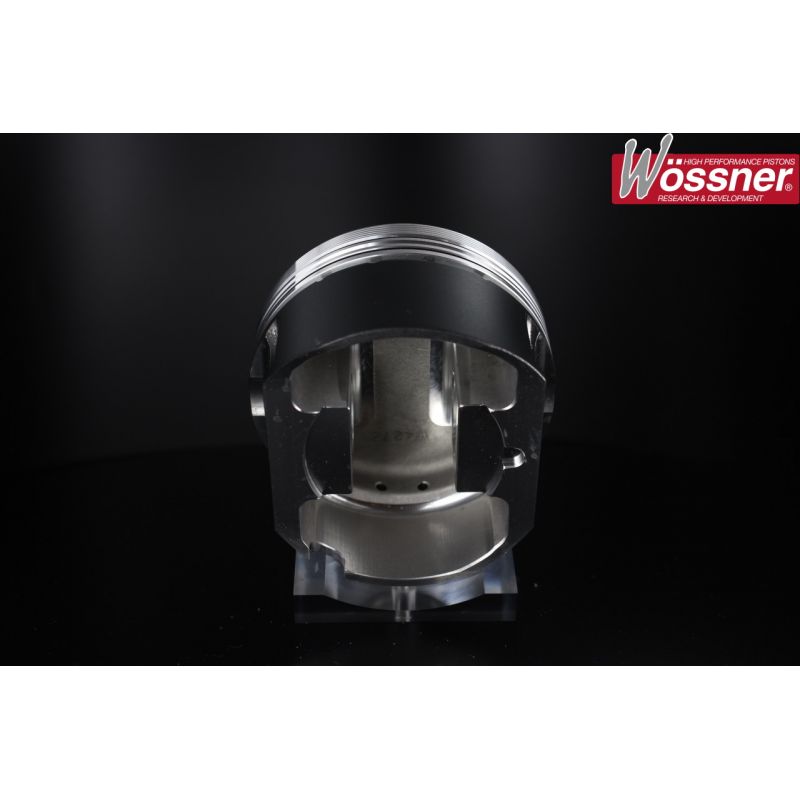

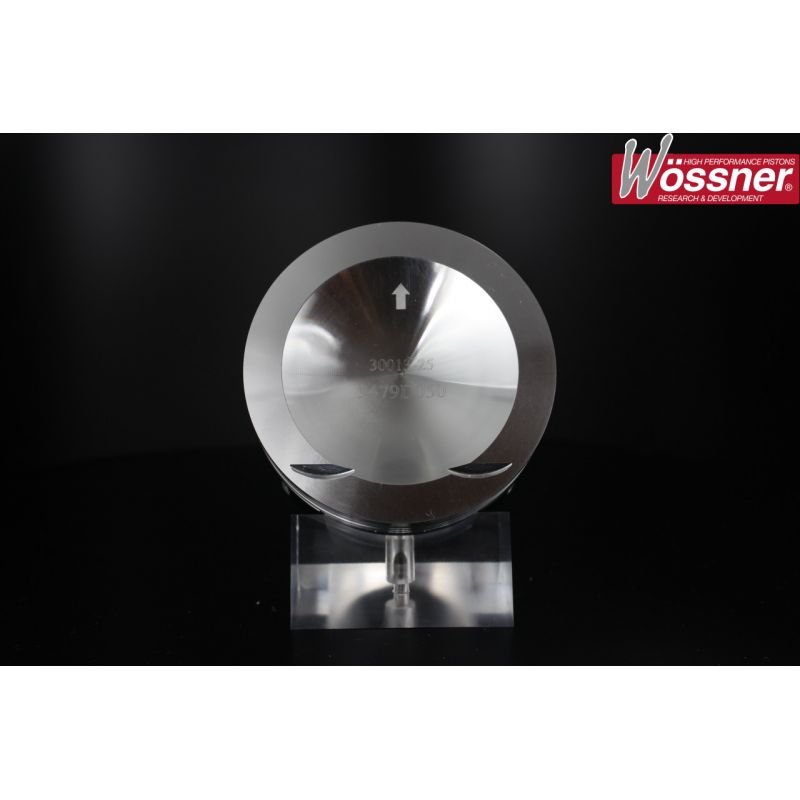

| K9487DA | 82.5 | 9.6:1 | 21 | 29.6 | Wossner | NC | NC | Round | -7,3cc | NC | 825XPY |
| K9539DA | 82.5 | 9.6:1 | 21 | 29.6 | Wossner | NC | NC | NC | -7,3cc | NC | GNH82.50 |
| DIA-38110-4 | 82.5 | 10:1 | 21 | 29.59 | Diamond | Mantello | 2618 | NC | -4,5cc | NC | 9513248 |
| DIA-38110-4-H | 82.5 | 10:1 | 21 | 29.59 | Diamante HD | Mantello | 2618 | NC | -4,5cc | NC | 9513248 |
| JE-353842 | 82.5 | 10:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -4,5cc | NC | NC |
| JE-314320 | 82.5 | 10.3:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -3,0 cc | 297 | NC |
| JE-314314 | 82.5 | 10.3:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -3,0 cc | 305 | NC |
| DIA-38107-4 | 83.0 | 8.6:1 | 21 | 29.59 | Diamond | Mantello | 2618 | NC | -15,5cc | NC | 9513268 |
| DIA-38107-4-H | 83.0 | 8.6:1 | 21 | 29.59 | Diamante HD | Mantello | 2618 | NC | -15,5cc | NC | 9513268 |
| DIA-38109-4 | 83.0 | 9.1:1 | 21 | 29.59 | Diamond | Mantello | 2618 | NC | -11,5cc | NC | 9513268 |
| DIA-38109-4-H | 83.0 | 9.1:1 | 21 | 29.59 | Diamante HD | Mantello | 2618 | NC | -11,5cc | NC | 9513268 |
| JE-314318 | 83.0 | 9.1:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -11,5cc | 276 | NC |
| JE-314312 | 83.0 | 9.1:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -11,5cc | 297 | NC |
| WK752M83 | 83.0 | 9.1:1 | 21 | 29.59 | Wiseco | Mantello | 2618 | NC | -11,5cc | NC | 8300XX |
| WK750M83 | 83.0 | 9.5:1 | 21 | 29.59 | Wiseco | Mantello | 2618 | NC | -7,1cc | NC | 8300XX |
| JE-329248 | 83.0 | 9.6:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -7,8cc | 320 | NC |
| JE-353840 | 83.0 | 9.6:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -7,8cc | NC | NC |
| JE-329245 | 83.0 | 9.6:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -7,8cc | 320 | NC |
| JE-367861 | 83.0 | 9.6:1 | 21 | 29.3 | JE Ultra Series | Testa + Mantello | 2618 | FSR | -6,4cc | 299 | NC |
| K9539D050 | 83.0 | 9.6:1 | 21 | 29.6 | Wossner | NC | NC | NC | -7,3cc | NC | GNH83.00 |
| K9487D050 | 83.0 | 9.7:1 | 21 | 29.6 | Wossner | NC | NC | Round | -7,3cc | NC | 830XPY |
| JE-353843 | 83.0 | 10:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -5,2cc | NC | NC |
| DIA-38111-4 | 83.0 | 10.1:1 |
