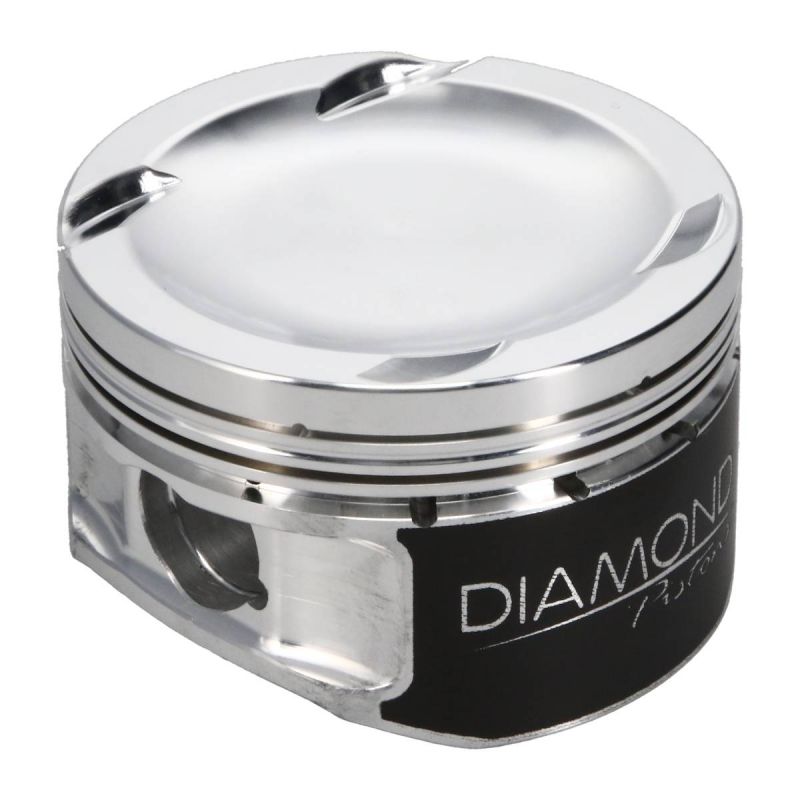

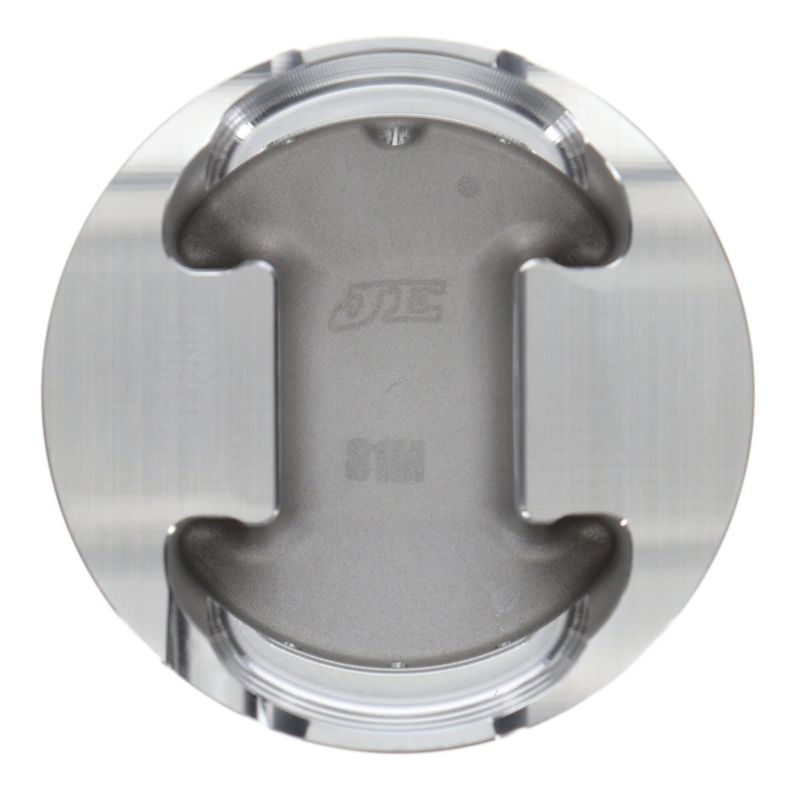

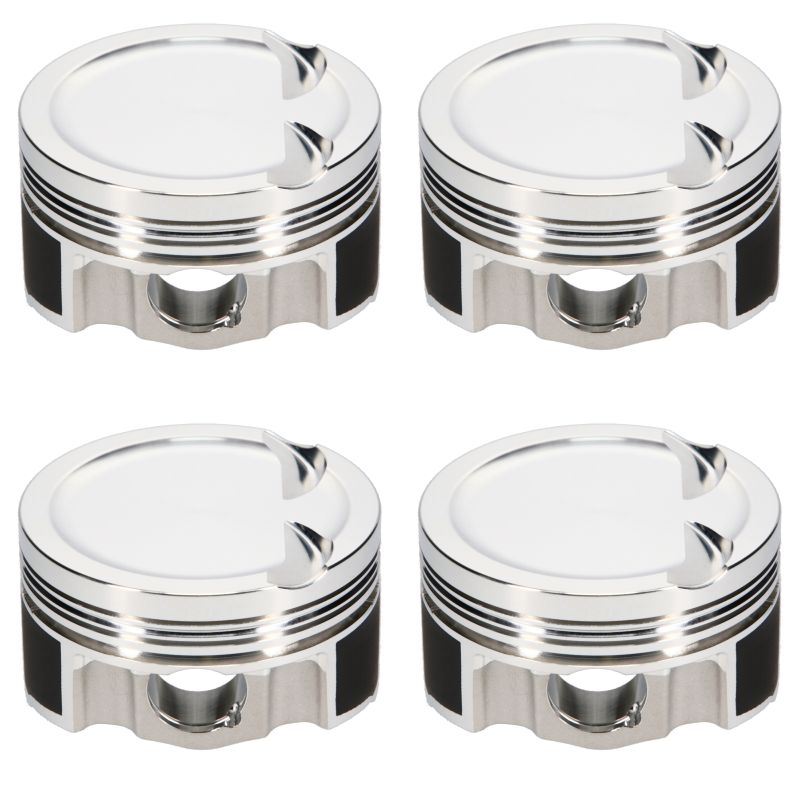

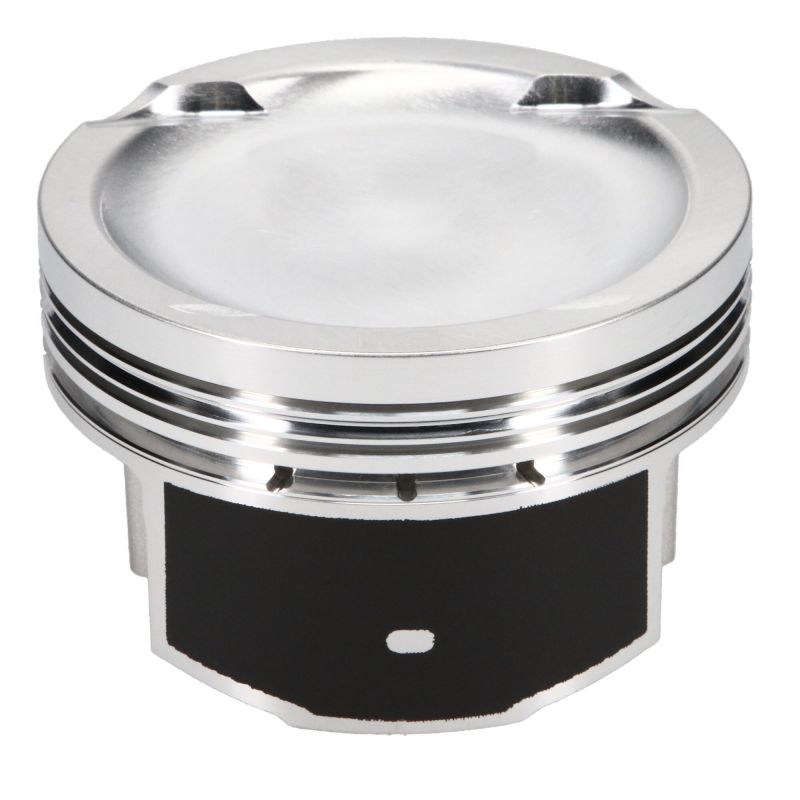

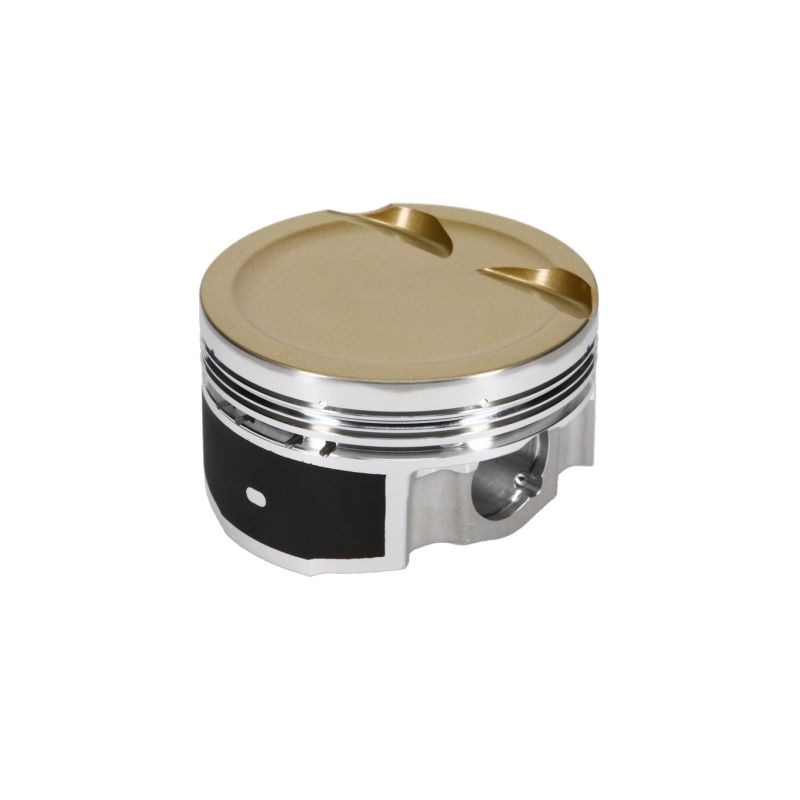

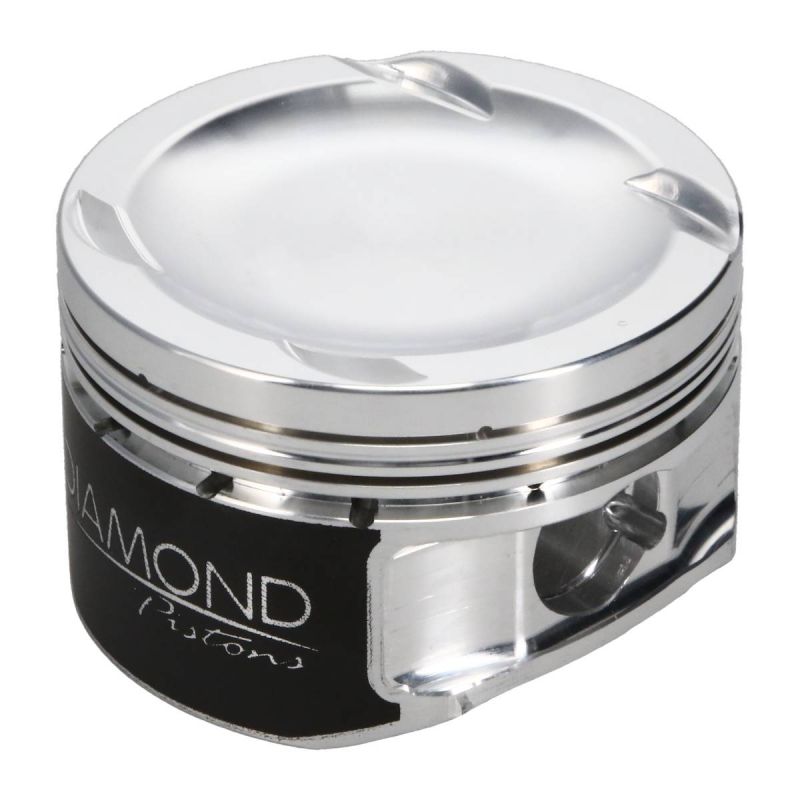

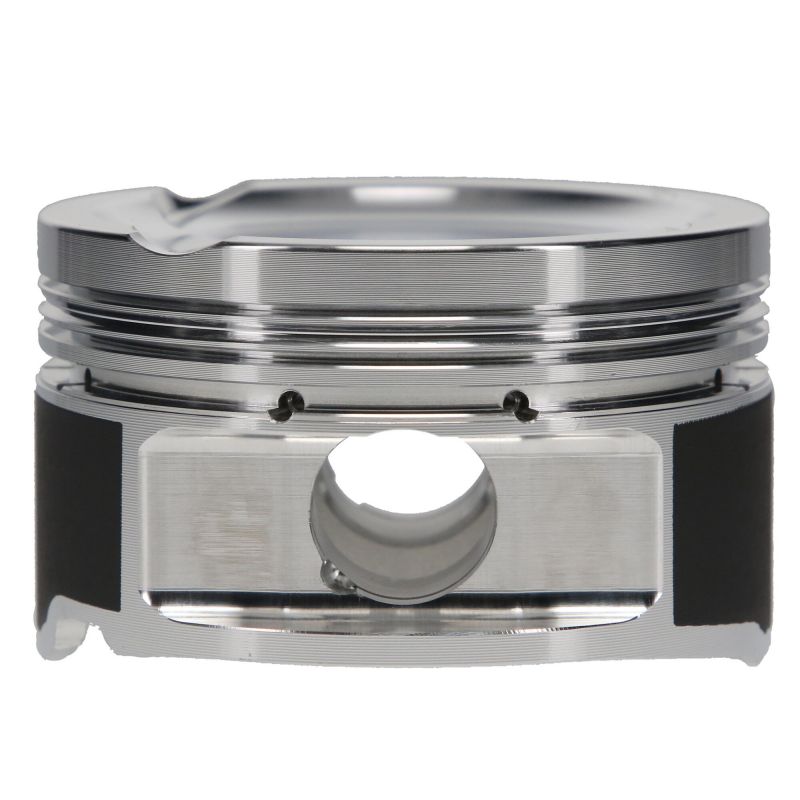

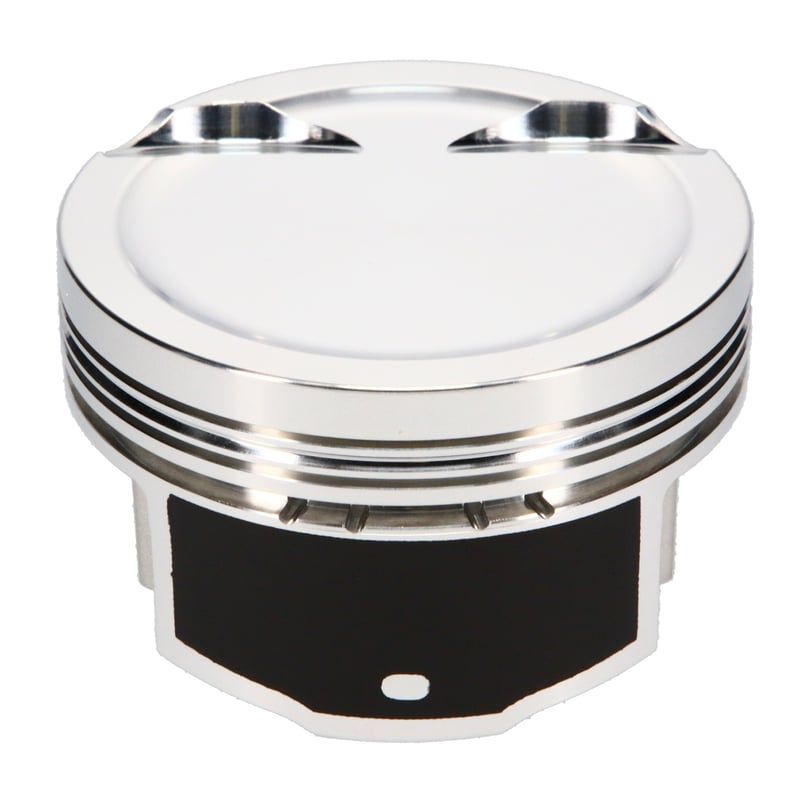

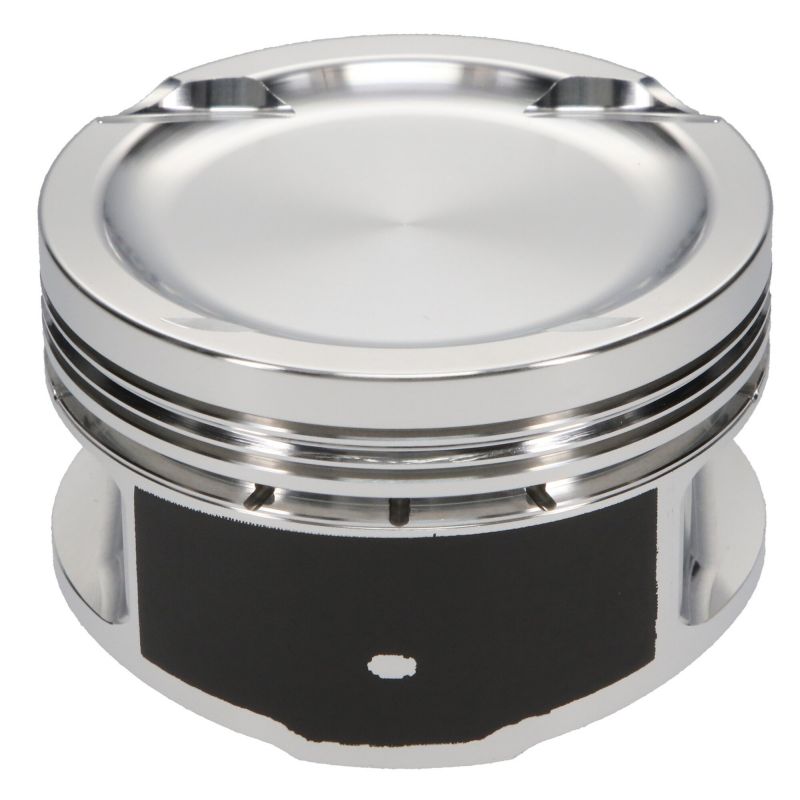

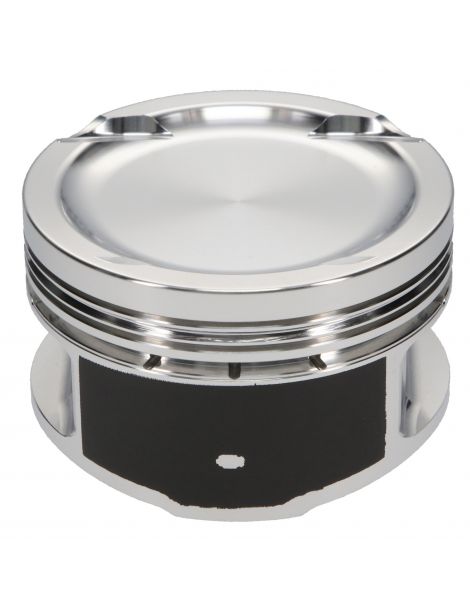

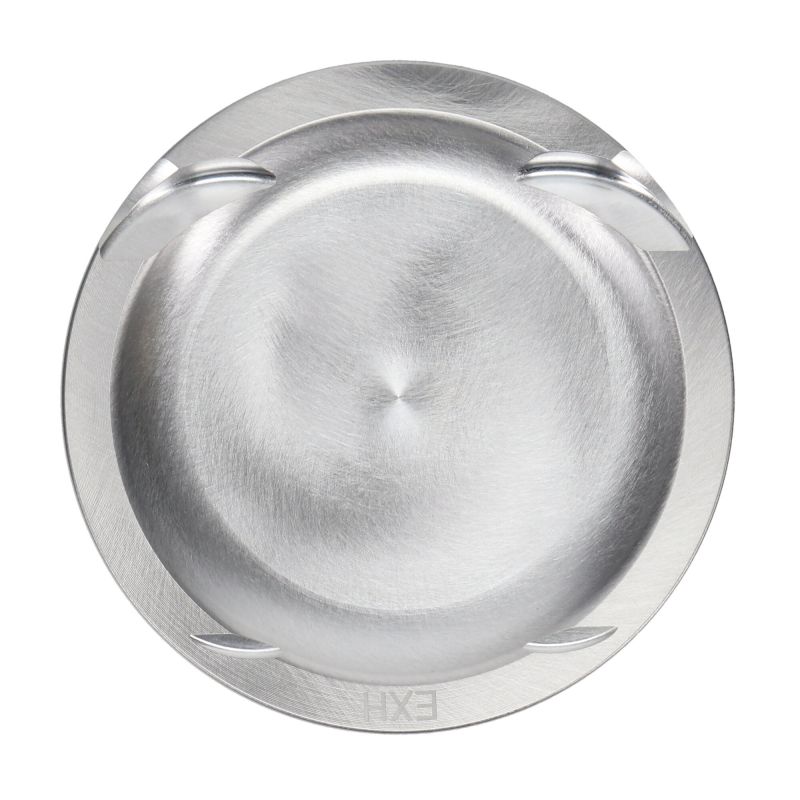

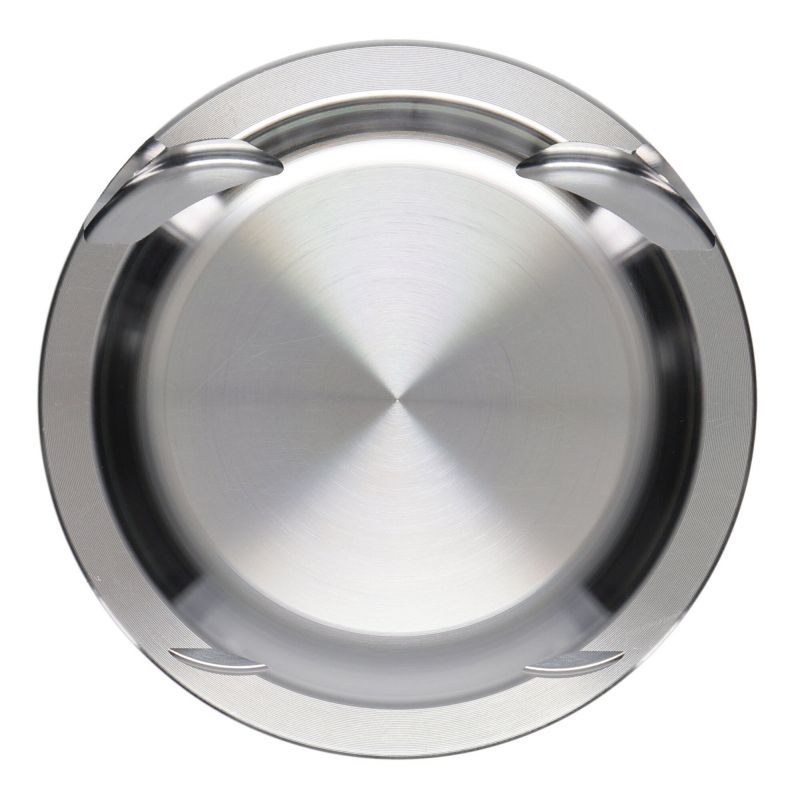

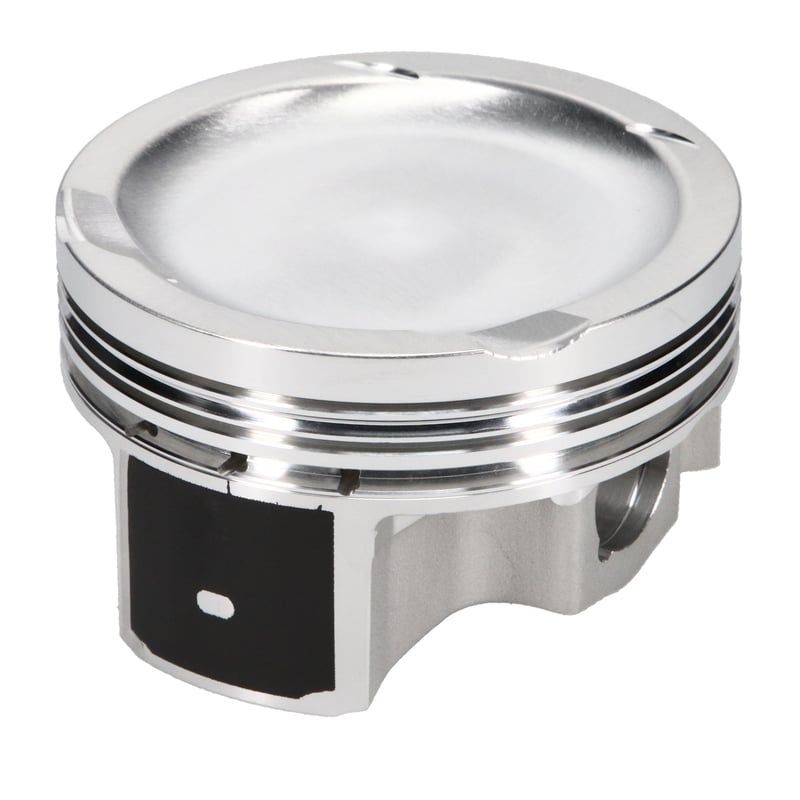

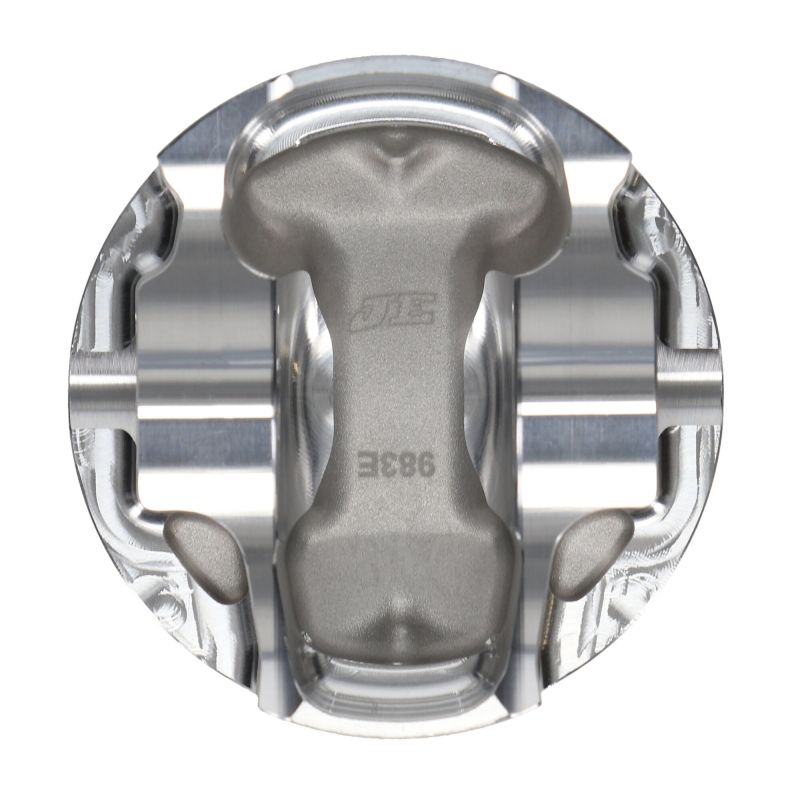

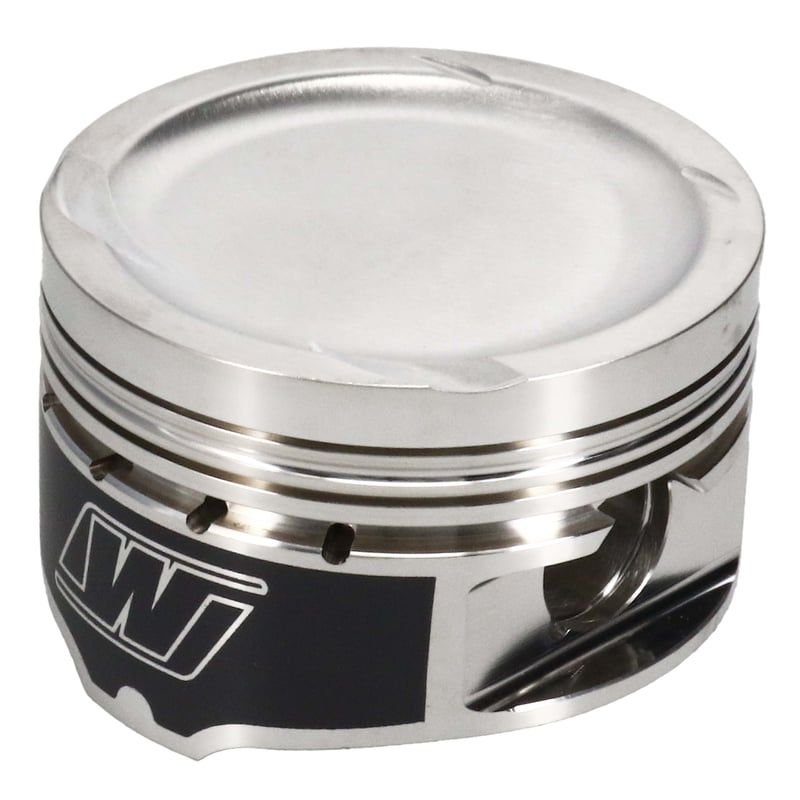

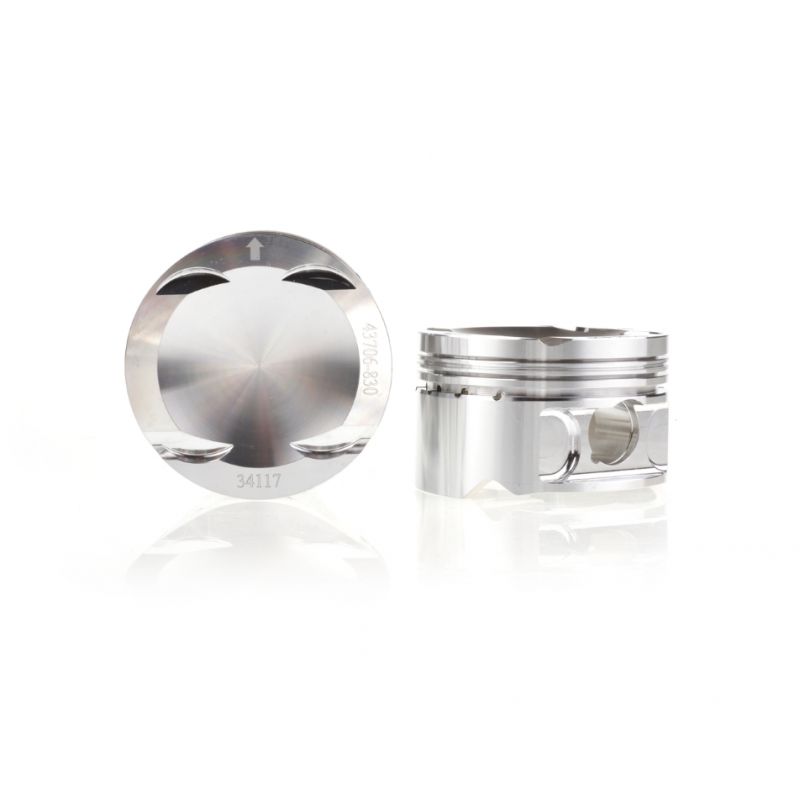

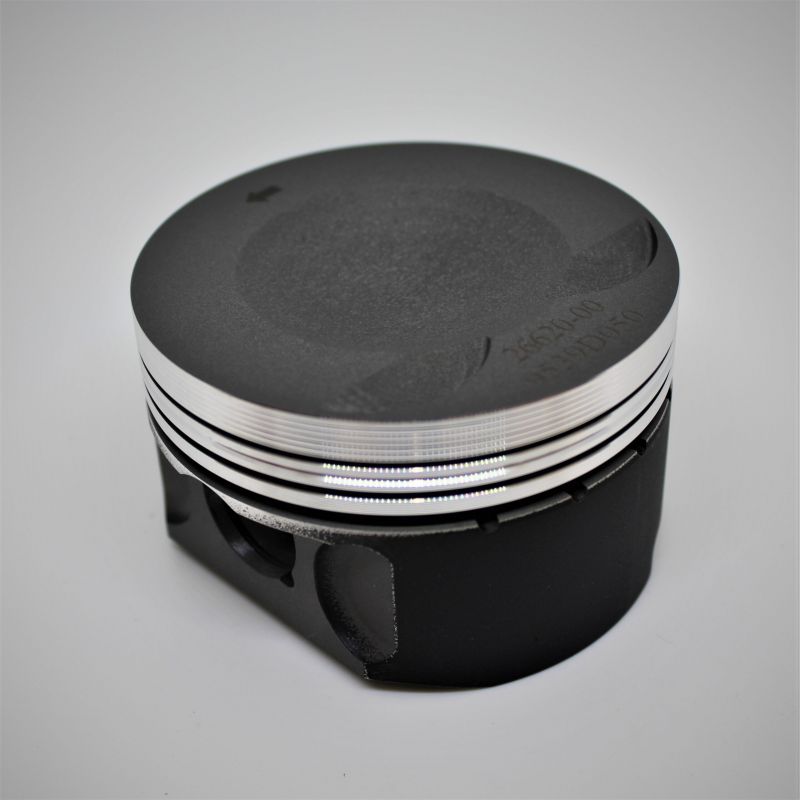

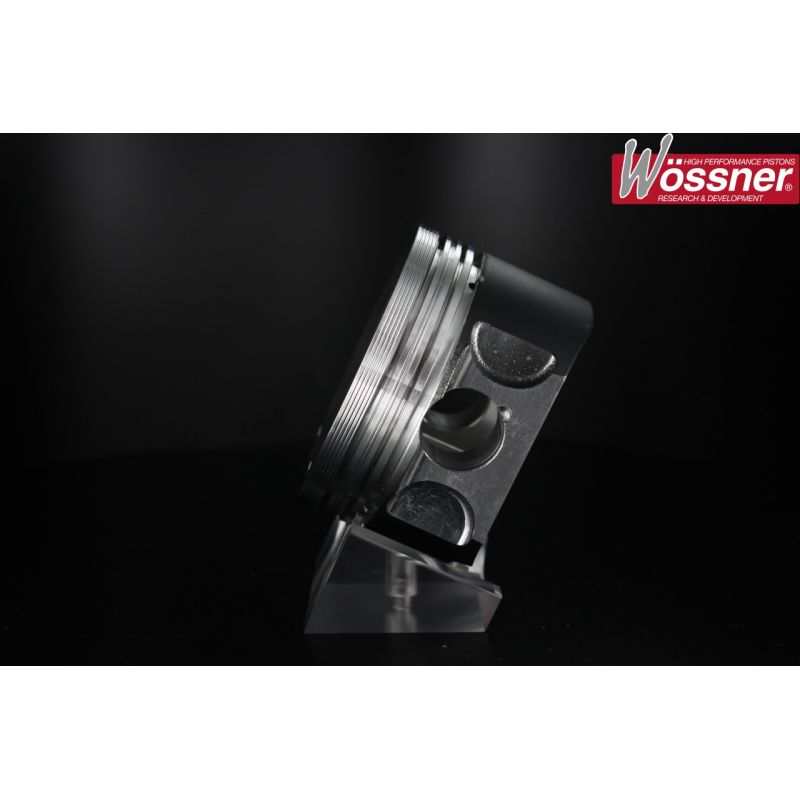

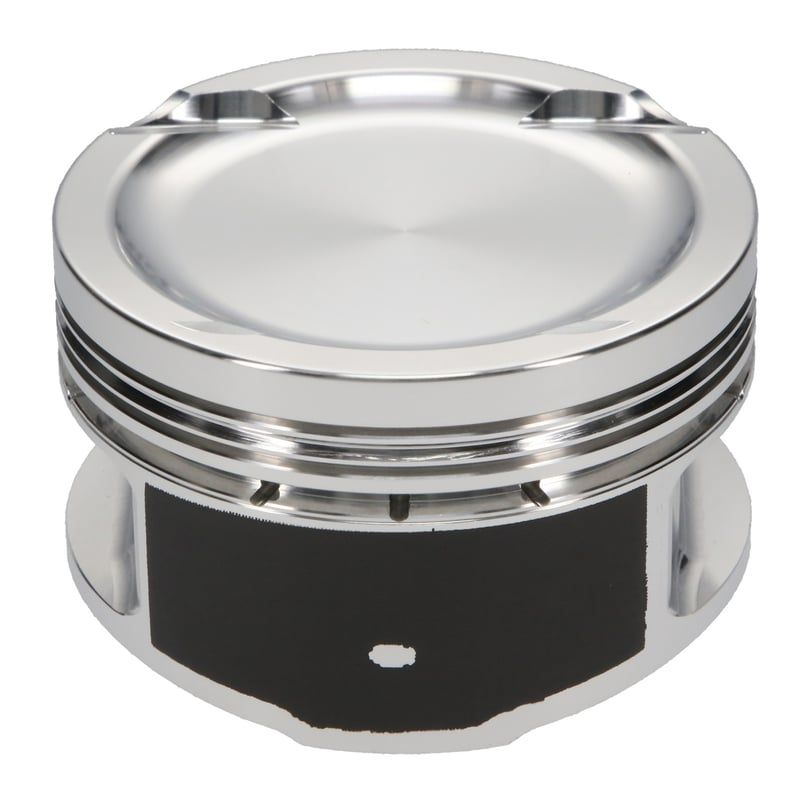

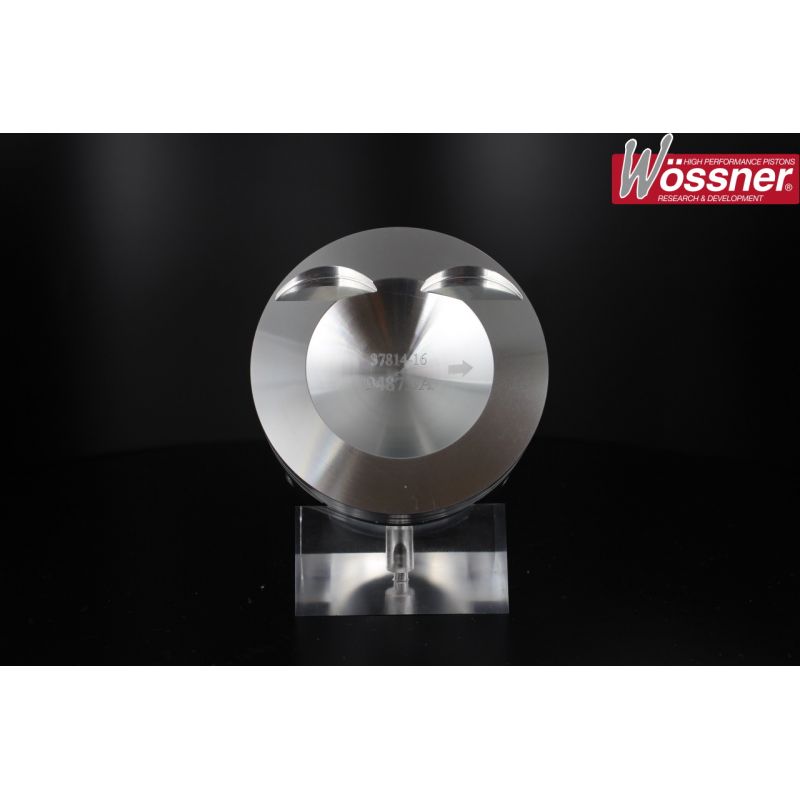

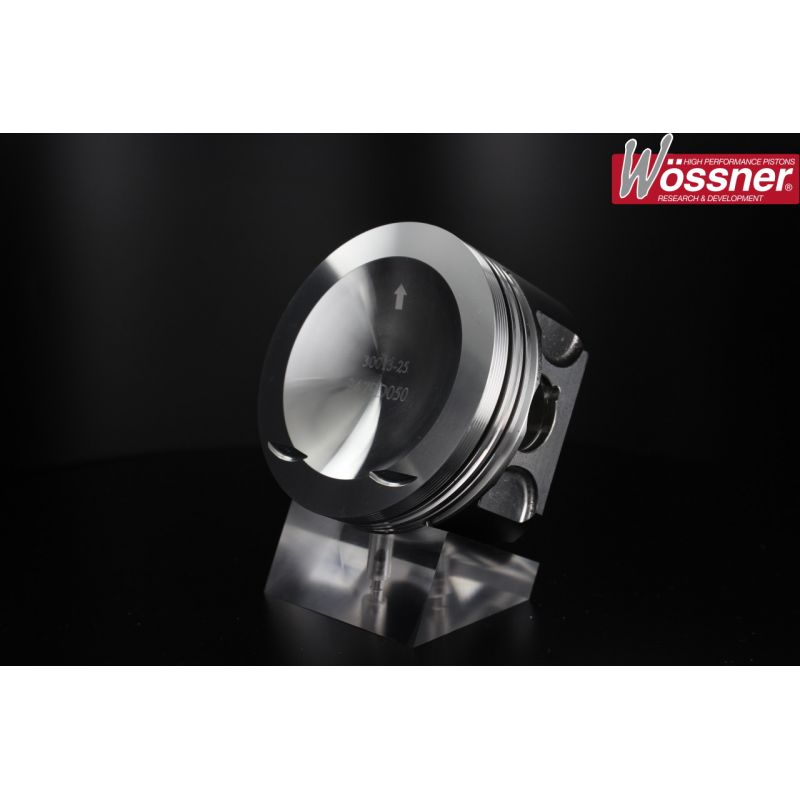

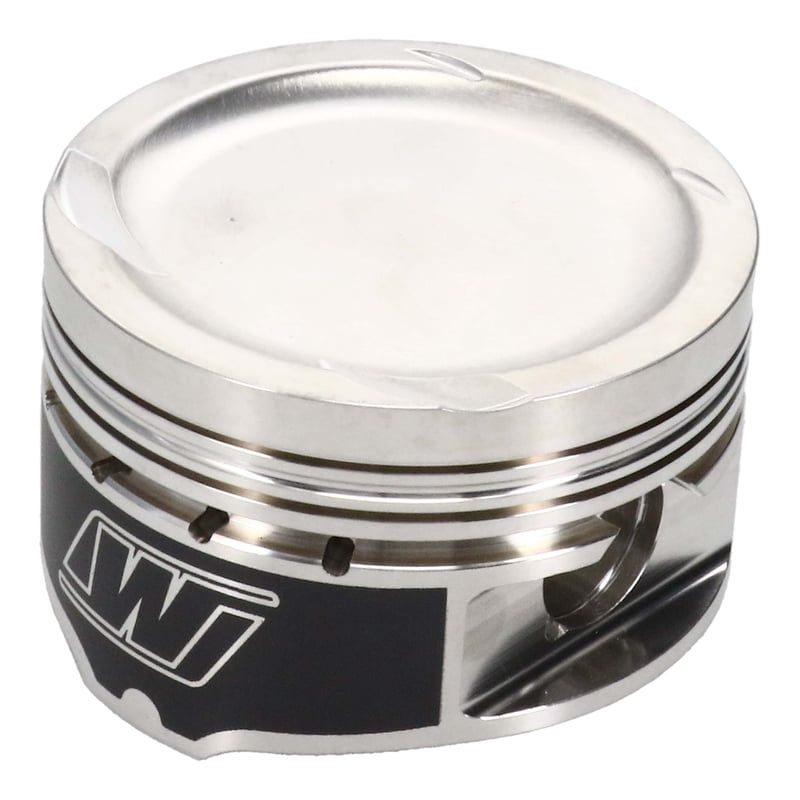

Gesmede zuigers 2.0 TFSI EA888 Gen1 & EA113 K04, boringen 82.5-83.5 mm, zuigerpen 21 mm. Compatibel BHZ/CDL, CCTA/CBFA : S3, TTS, Golf R/GTI, Scirocco R, Leon Cupra R, A1 quattro.
Originele compressieverhouding : 9.6:1 (EA888) of 10.5:1 (EA113)
Kenmerken van de gesmede zuigers aangeboden door NSB Concept voor Volkswagen / Audi 2.0 L 16 V (EA888 Gen1 & EA113 K04) :
| Referentie | Boring (mm) OEM: 82,50 | CR OEM: 9,6–9,8 :1 | Pistonpen (mm) OEM: 21 | Compressiehoogte (mm) OEM: 29,60 | Serie | Coating | Aluminium | Smeedproces | Dome | Gewicht | Zuigerveren |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIA-38106-4 | 82.5 | 8.5:1 | 21 | 29.59 | Diamond | Mantel | 2618 | NC | -15.5 cc | NC | 9513248 |
| DIA-38106-4-H | 82.5 | 8.5:1 | 21 | 29.59 | Diamond HD | Mantel | 2618 | NC | -15.5 cc | NC | 9513248 |
| DIA-38108-4 | 82.5 | 9:1 | 21 | 29.59 | Diamond | Mantel | 2618 | NC | -11.5 cc | NC | 9513248 |
| DIA-38108-4-H | 82.5 | 9:1 | 21 | 29.59 | Diamond HD | Mantel | 2618 | NC | -11.5 cc | NC | 9513248 |

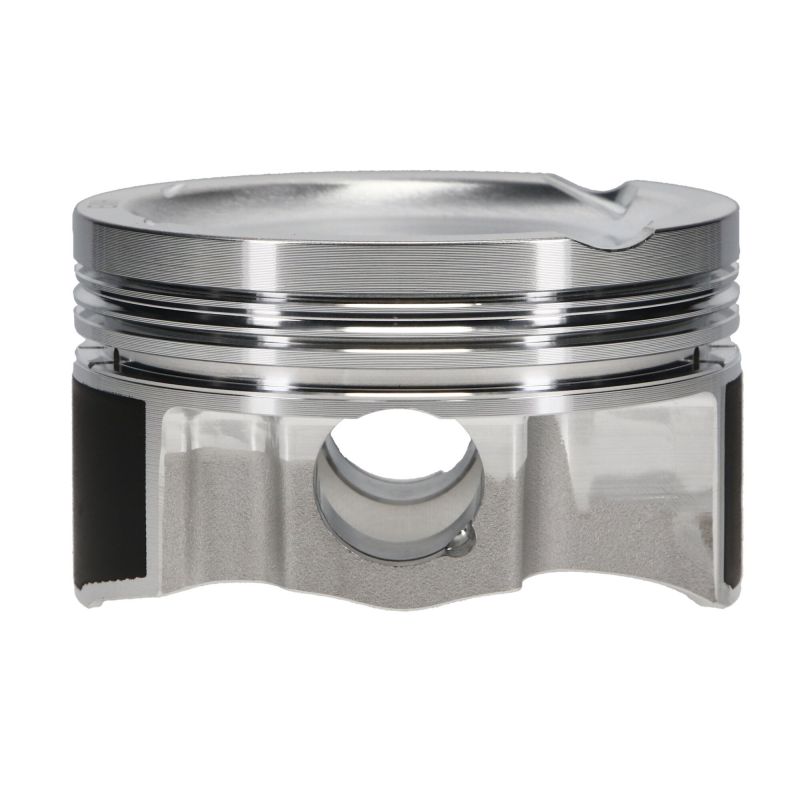

| JE-314317 | 82.5 | 9.1:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -10.8 cc | 272 | NC |
| JE-314311 | 82.5 | 9.1:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -10.8 cc | 295 | NC |

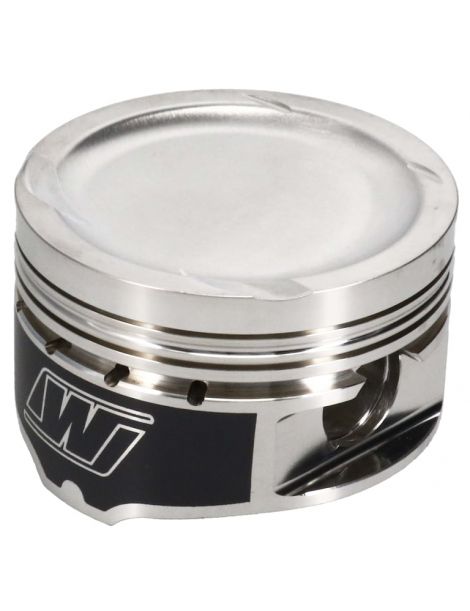

| WK751M825 | 82.5 | 9.3:1 | 21 | 29.59 | Wiseco | Mantel | 2618 | NC | -10.8 cc | NC | 8250XX |
| WK750M825 | 82.5 | 9.5:1 | 21 | 29.59 | Wiseco | Mantel | 2618 | NC | -7.1 cc | NC | 8250XX |
| JE-329247 | 82.5 | 9.6:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -7.1 cc | 320 | NC |
| JE-353839 | 82.5 | 9.6:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -7.1 cc | NC | NC |
| JE-329244 | 82.5 | 9.6:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -7.1 cc | 320 | NC |
| JE-367860 | 82.5 | 9.6:1 | 21 | 29.3 | JE Ultra Series | Kop + Mantel | 2618 | FSR | -5.7 cc | 297 | NC |

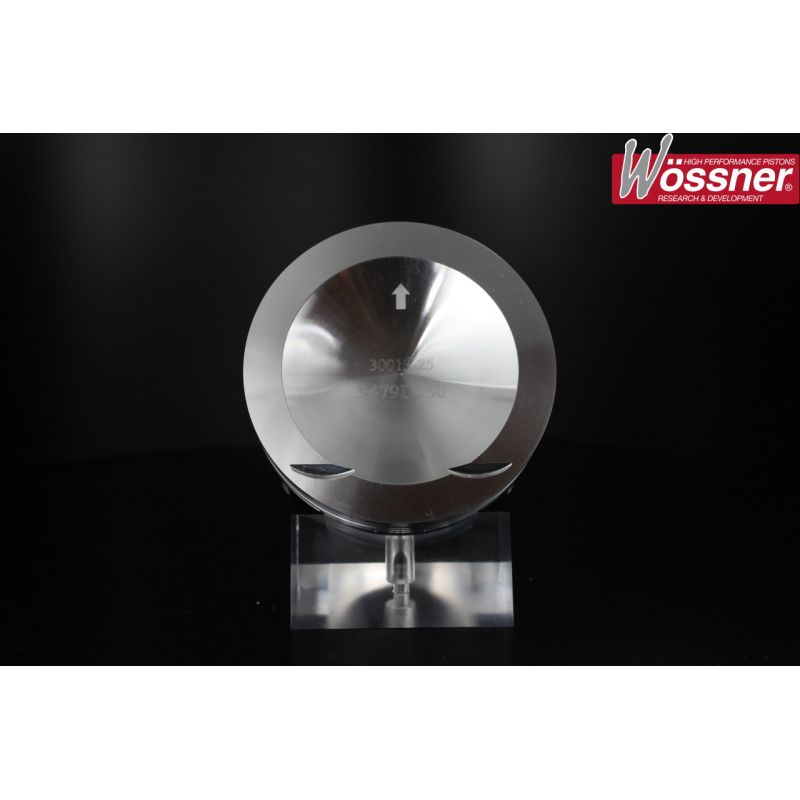

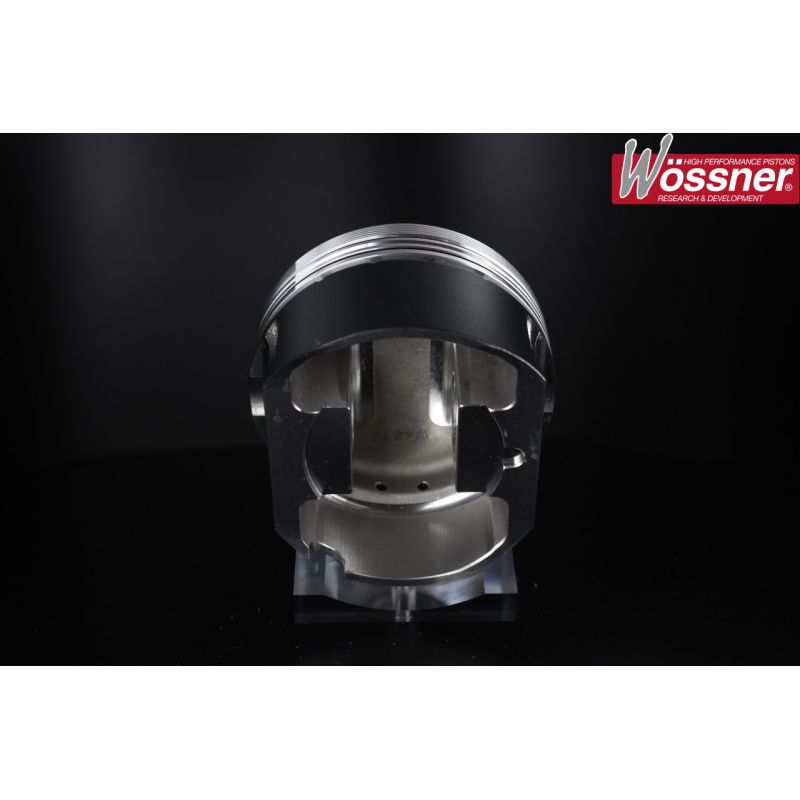

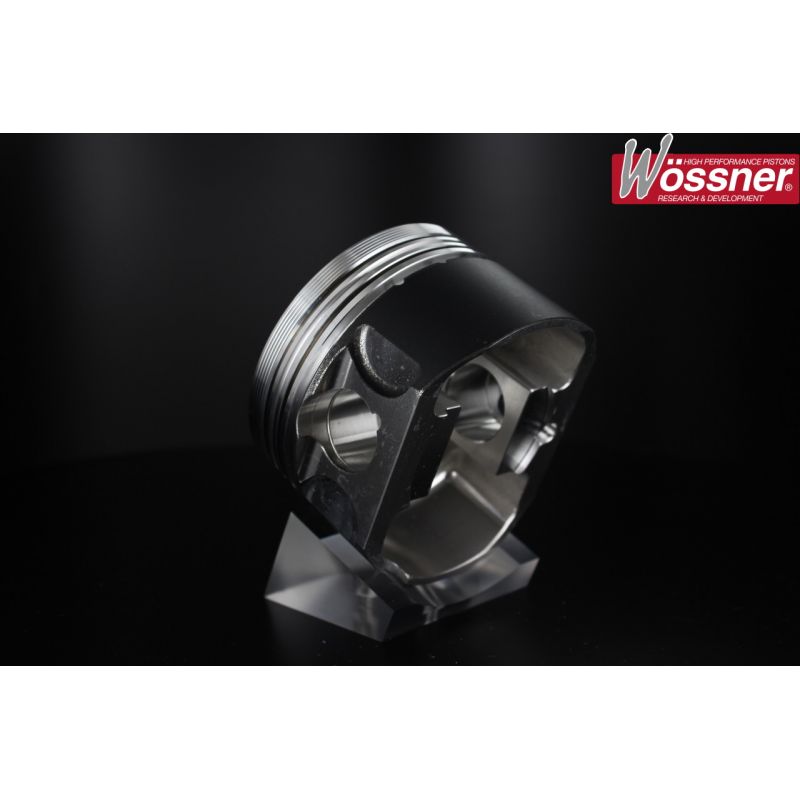

| K9487DA | 82.5 | 9.6:1 | 21 | 29.6 | Wossner | NC | NC | Round | -7.3 cc | NC | 825XPY |
| K9539DA | 82.5 | 9.6:1 | 21 | 29.6 | Wossner | NC | NC | NC | -7.3 cc | NC | GNH82.50 |
| DIA-38110-4 | 82.5 | 10:1 | 21 | 29.59 | Diamond | Mantel | 2618 | NC | -4.5 cc | NC | 9513248 |
| DIA-38110-4-H | 82.5 | 10:1 | 21 | 29.59 | Diamond HD | Mantel | 2618 | NC | -4.5 cc | NC | 9513248 |
| JE-353842 | 82.5 | 10:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -4.5 cc | NC | NC |
| JE-314320 | 82.5 | 10.3:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -3.0 cc | 297 | NC |
| JE-314314 | 82.5 | 10.3:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -3.0 cc | 305 | NC |
| DIA-38107-4 | 83.0 | 8.6:1 | 21 | 29.59 | Diamond | Mantel | 2618 | NC | -15.5 cc | NC | 9513268 |
| DIA-38107-4-H | 83.0 | 8.6:1 | 21 | 29.59 | Diamond HD | Mantel | 2618 | NC | -15.5 cc | NC | 9513268 |
| DIA-38109-4 | 83.0 | 9.1:1 | 21 | 29.59 | Diamond | Mantel | 2618 | NC | -11.5 cc | NC | 9513268 |
| DIA-38109-4-H | 83.0 | 9.1:1 | 21 | 29.59 | Diamond HD | Mantel | 2618 | NC | -11.5 cc | NC | 9513268 |
| JE-314318 | 83.0 | 9.1:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -11.5 cc | 276 | NC |
| JE-314312 | 83.0 | 9.1:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -11.5 cc | 297 | NC |
| WK752M83 | 83.0 | 9.1:1 | 21 | 29.59 | Wiseco | Mantel | 2618 | NC | -11.5 cc | NC | 8300XX |
| WK750M83 | 83.0 | 9.5:1 | 21 | 29.59 | Wiseco | Mantel | 2618 | NC | -7.1 cc | NC | 8300XX |
| JE-329248 | 83.0 | 9.6:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -7.8 cc | 320 | NC |
| JE-353840 | 83.0 | 9.6:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -7.8 cc | NC | NC |
| JE-329245 | 83.0 | 9.6:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -7.8 cc | 320 | NC |
| JE-367861 | 83.0 | 9.6:1 | 21 | 29.3 | JE Ultra Series | Kop + Mantel | 2618 | FSR | -6.4 cc | 299 | NC |
| K9539D050 | 83.0 | 9.6:1 | 21 | 29.6 | Wossner | NC | NC | NC | -7.3 cc | NC | GNH83.00 |
| K9487D050 | 83.0 | 9.7:1 | 21 | 29.6 | Wossner | NC | NC | Round | -7.3 cc | NC | 830XPY |
| JE-353843 | 83.0 | 10:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -5.2 cc | NC | NC |
| DIA-38111-4 | 83.0 | 10.1:1 | 21 | 29.59 | Diamond | Mantel | 2618 | NC | -4.5 cc | NC | 9513268 |
| DIA-38111-4-H | 83.0 | 10.1:1 | 21 | 29.59 | Diamond HD | Mantel | 2618 | NC | -4.5 cc | NC | 9513268 |
| JE-314321 | 83.0 | 10.3:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -3.6 cc | 300 | NC |
| JE-314315 | 83.0 | 10.3:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -3.6 cc | 309 | NC |
| JE-314319 | 83.5 | 9.1:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -12.3 cc | 280 | NC |
| JE-314313 | 83.5 | 9.1:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -12.3 cc | 302 | NC |
| JE-329249 | 83.5 | 9.6:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -8.4 cc | 320 | NC |
| JE-353841 | 83.5 | 9.6:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -8.4 cc | NC | NC |
| JE-329246 | 83.5 | 9.6:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -8.4 cc | 320 | NC |
| JE-367862 | 83.5 | 9.6:1 | 21 | 29.3 | JE Ultra Series | Kop + Mantel | 2618 | FSR | -7.0 cc | 301 | NC |
| K9487D100 | 83.5 | 9.8:1 | 21 | 29.6 | Wossner | NC | NC | Round | -7.3 cc | NC | 835XPY |
| JE-353844 | 83.5 | 10:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -5.8 cc | NC | NC |
| JE-314322 | 83.5 | 10.3:1 | 21 | 29.6 | JE FSR | NC | 2618 | FSR | -4.3 cc | 303 | NC |
| JE-314316 | 83.5 | 10.3:1 | 21 | 29.6 | JE Round | NC | 2618 | Round | -4.3 cc | 313 | NC |
Compatibiliteit (motorcodes) :
Uitsluitingsopmerkingen (buiten bereik EA888 Gen1 / EA113 K04) : Audi A4 B8 2.0 TFSI (CAEB/CDNB/CDNC = EA888 Gen2), Audi TT 8J 2.0 TFSI de base (EA113 K03 of EA888 Gen2), VW Golf 5 GTI standard (EA113 K03), VW New Beetle (1.8T EA113 K03 of 2.0 TSI EA888 Gen3).
Originele voertuigen (gesorteerd op Merk → Model → Motorcode → Vermogen → Jaren) :
| Merk | Model | Motorcode | Vermogen | Jaren |
|---|---|---|---|---|
| Audi | A1 8X quattro | CDLH (EA113 K04) | 256 pk | 2012 |
| Audi | A3 8P 2.0 TFSI (US/Canada) | CCTA / CBFA (EA888 Gen1) | 200 pk | 2008 – 2013 |
| Audi | S3 8P | BHZ / CDL (EA113 K04) | 265 pk | 2006 – 2013 |
| Audi | TTS 8J | CDL(B) (EA113 K04) | 272 pk | 2008 – 2014 |
| KTM | X-Bow (base) | Audi 2.0 TFSI (EA113) | 240 pk | 2008 – 2011 |
| KTM | X-Bow GT | Audi 2.0 TFSI (EA113) | 285–300 pk | 2013 – 2016 |
| KTM | X-Bow GT4 | Audi 2.0 TFSI (EA113) | ≈ 360 pk | 2015 – 2019 |
| KTM | X-Bow R | Audi 2.0 TFSI (EA113, K04) | 300 pk | 2011 – 2019 |
| KTM | X-Bow RR | Audi 2.0 TFSI (EA113) | 300 pk | 2012 – 2016 |
| Seat | Leon 1P Cupra | BWJ (EA113 K04) | 240 pk | 2006 – 2012 |
| Seat | Leon 1P Cupra R | CDLA (EA113 K04) | 265 pk | 2009 – 2012 |
| Volkswagen | Golf 5 GTI Edition 30 / Pirelli | BYD (EA113 K04) | 230 pk | 2006 – 2009 |
| Volkswagen | Golf 6 GTI (US/Canada) | CCTA / CBFA (EA888 Gen1) | 200 pk | 2010 – 2014 |
| Volkswagen | Golf 6 R | CDLC / CDLF (EA113 K04) | 270 pk | 2009 – 2013 |
| Volkswagen | Polo R WRC 6R | CDLJ (EA113 K04) | 220 pk | 2013 – 2014 |
| Volkswagen | Scirocco 3 2.0 TSI | CAWB (EA888 Gen1) | 200–211 pk | 2008 – 2009 |
| Volkswagen | Scirocco 3 R | CDL (EA113 K04) | 265 pk | 2009 – 2014 |
OEM zuiger referenties voor de betreffende 2.0 TFSI toepassingen :
06H 107 065 met variabele suffixn afhankelijk van toepassing (ex. AM, CD, CK, CM, DD, DF, DG, DM, DP, BS, BK, CP…).06H 107 ... afhankelijk van subcode en bouwjaar.Let op : Controleer voor de montage altijd de integriteit en conformiteit van elk onderdeel van de zuigerkit en de conformiteit van de montage in de motor; eventuele garantie is strikt beperkt tot de onderdelen van de zuigerkit.
