Thrust washers VAG 1.8/2.0 8V/16V 1.8T 20V

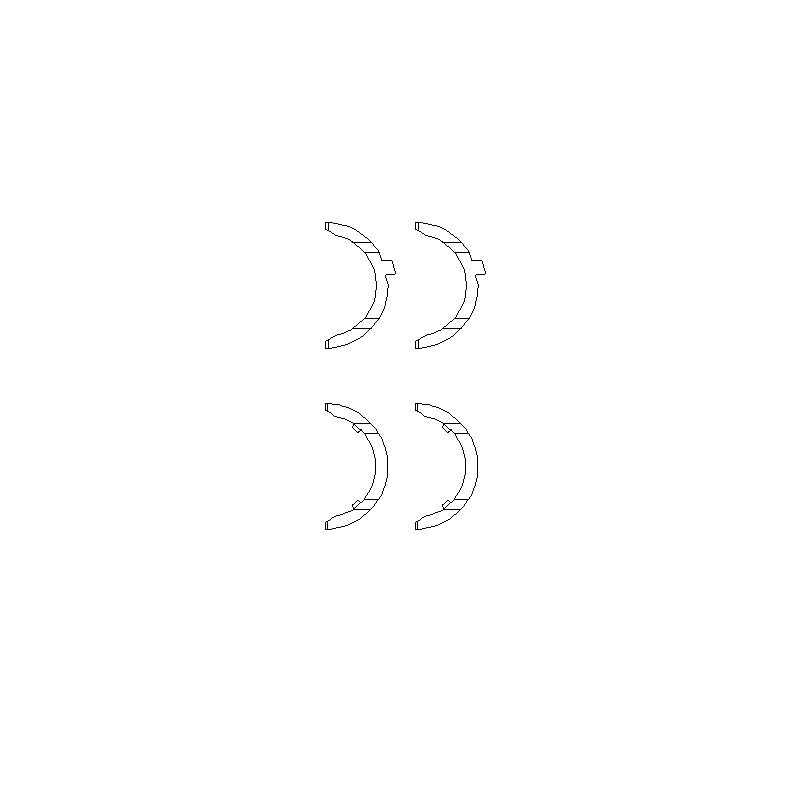

The ACL RACE and KING RACING thrust washer sets for VAG 1.8/2.0 8V/16V and 1.8T 20V engines consist of 4 washers.

Fitment:

• Engines 1.8 8V: DX, GX, HT, JH, PF, PG, RD, RV
• Engines 1.8 16V: KR, PL
• Engine 2.0 8V: ABA
• Engines 2.0 16V: 9A, ABF
• Engines 1.8 20V Turbo: AEB, AGU, AJL, AJQ, AMK, ANB, APH, APP, APU, APX, APY, AQA, AQX, ARK, ARX, ARY, ARZ, ATW, AUM, AUQ, AVC, AVJ, AWD, AWP, AWT, AWU, AWV, AYP, BAM, BBU, BEK, BEX, BFB, BFV, BJX, BKF, BNU, BVP.

Below (click on the image) you will find the tri-metal big end bearings and main bearings for VAG 1.8/2.0 8V/16V and 1.8T 20V engines, together with the Plastigage strips used to check the bearing to crankshaft running clearance:

Technical specification

• Size(s): standard
• Anti-friction coating: with or without
• Part number: 2T1644, 2T1644-STD, 2T1644C-STD

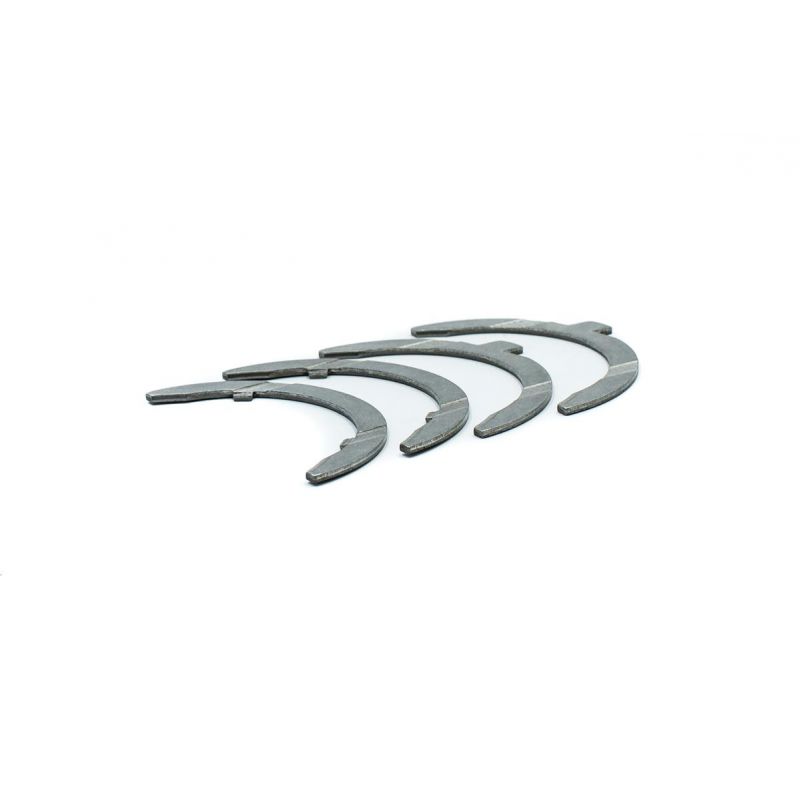

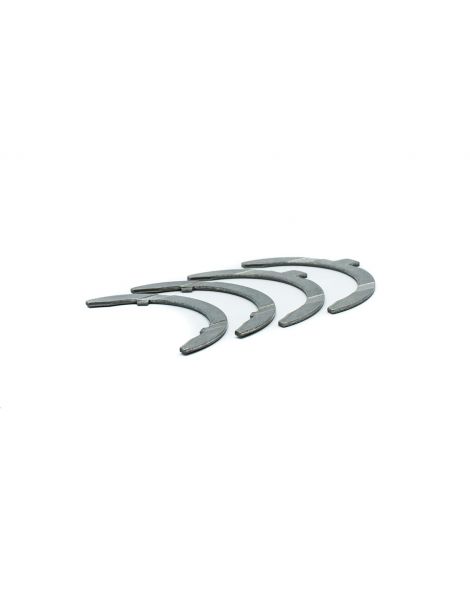

ACL Race Series bearings are manufactured to demanding tolerances. CNC machining is carried out to within microns, before metrology inspection of the diameters, thickness and width of the ACL Race Series tri-metal bearing. ACL Race Series bearings therefore give a reliable and consistent fit in your performance engine.

Technical specification

• Crankshaft big end journal diameter (min/max): 59.50 / 59.74mm
• Con rod big end bore diameter (min/max): 73.20 / 72.95mm
• Maximum thickness: 1.970mm
• Size(s): standard
• Anti-friction coating: without
• Part number: TW2010, TW2010AM

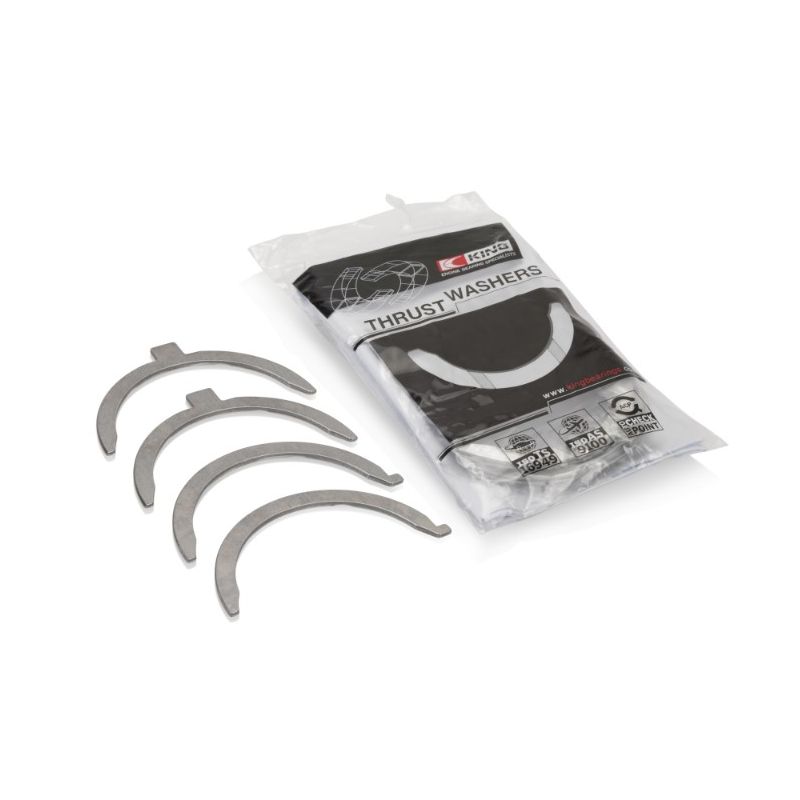

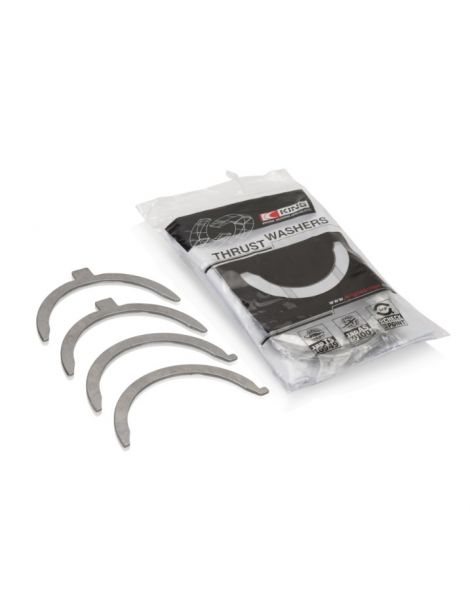

Since 1960 KING RACING has designed and manufactured high performance, high quality bearings. Beyond its highly capable production machinery, King Racing relies on simulation software to analyse the thermodynamics, dynamics and elasto-hydrodynamics of its bearings.
