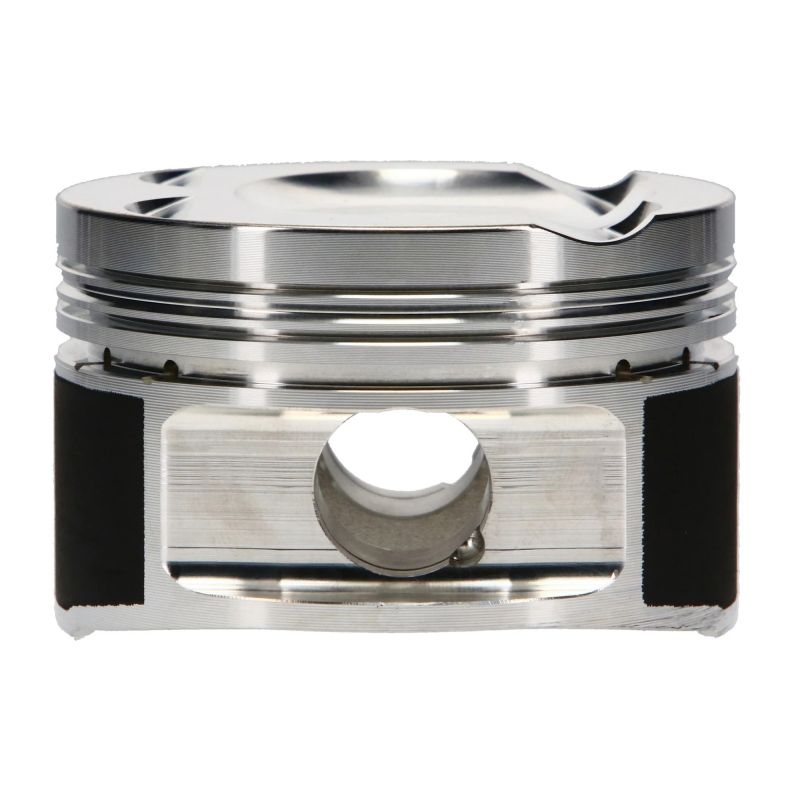

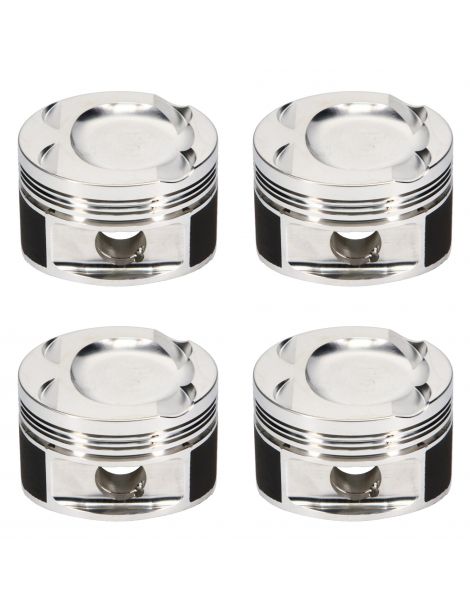

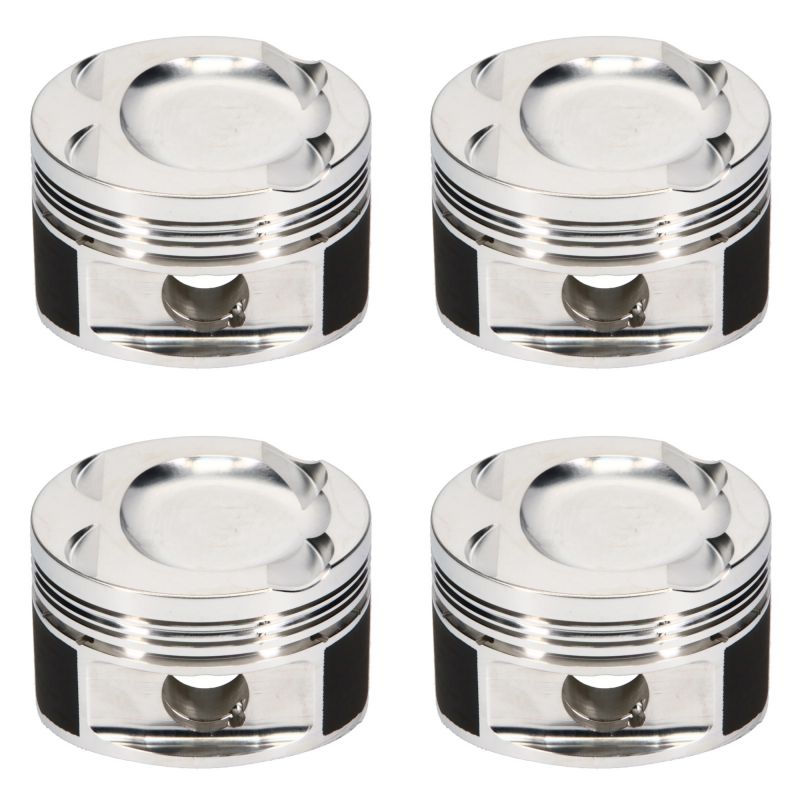

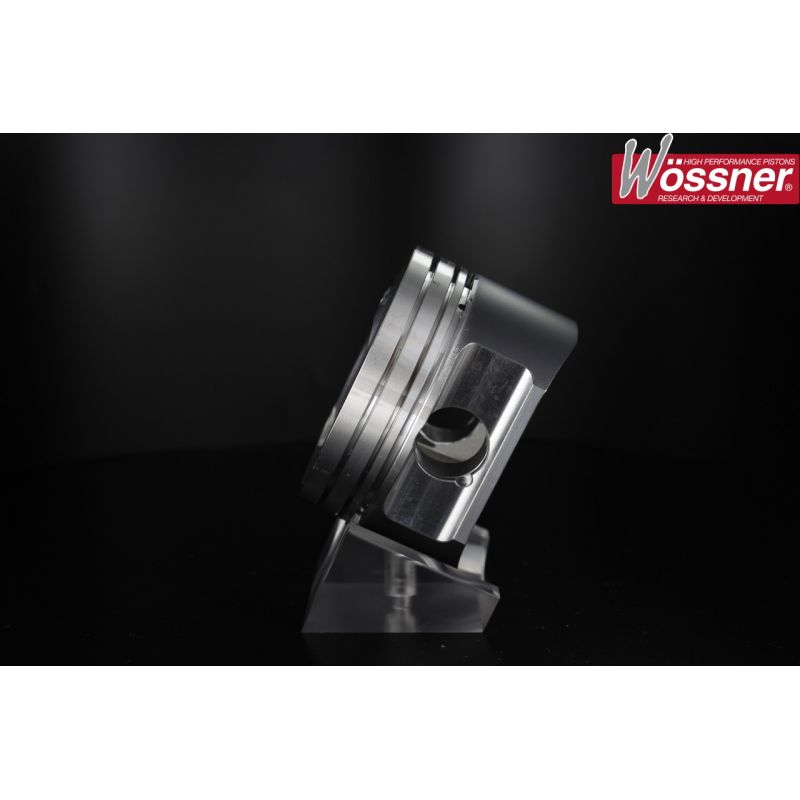

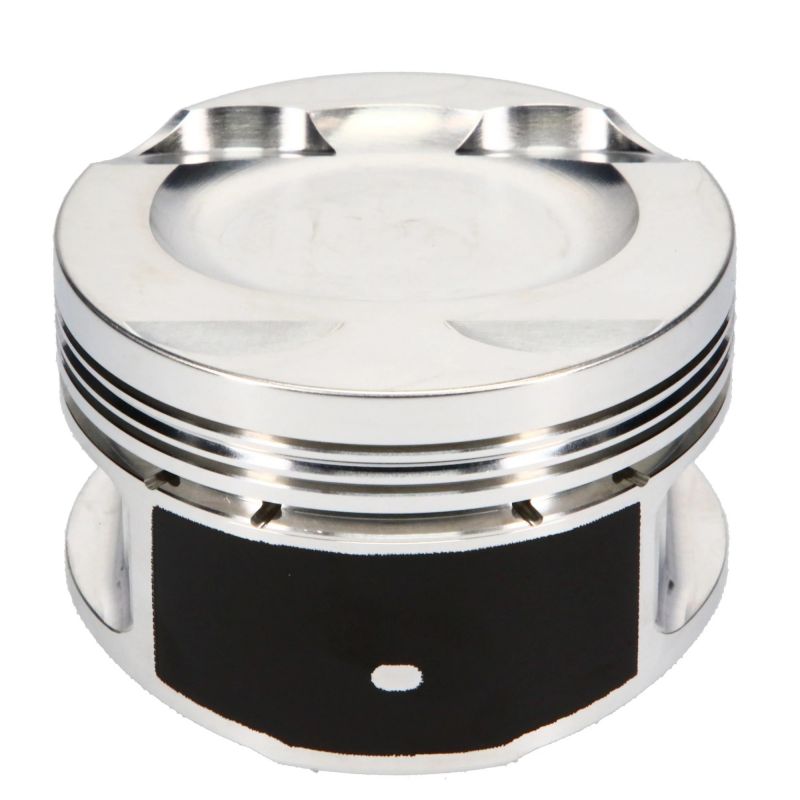

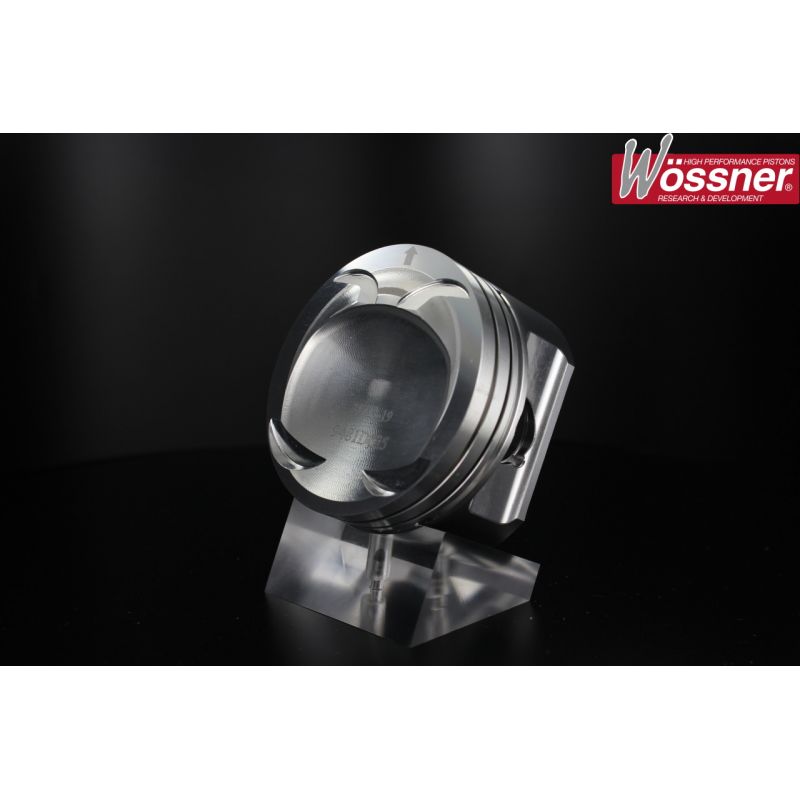

Forged Pistons 1.4L 16v EA111 VW Audi

New product

  • EA111 1.4 TSI/TFSI 16v (76.5 mm) forged pistons: sorted specs (Volume ratio 10.0:1, Pin 19 mm, CH 28.97), CAXA/CAXC/CAVD compatibility + Audi/VW/Seat/Skoda vehicle table and OEM refs.

More details

748,82 € tax incl.

-25%

998,42 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • pistons 1.4 TSI EA111 (VW/Audi) – 76.5 mm

    Specifications of the forged pistons offered by NSB Concept for Volkswagen/Audi 1.4 L 16 V EA111 (TSI/TFSI) :

    ReferenceOEM Bore
    76,50 mm    		OEM CR 10,0 :1OEM Pin
    19 mm    		Height OEM Pin
    28,97 mm    		RangeCoatingAluminiumForgingDomeWeightRings

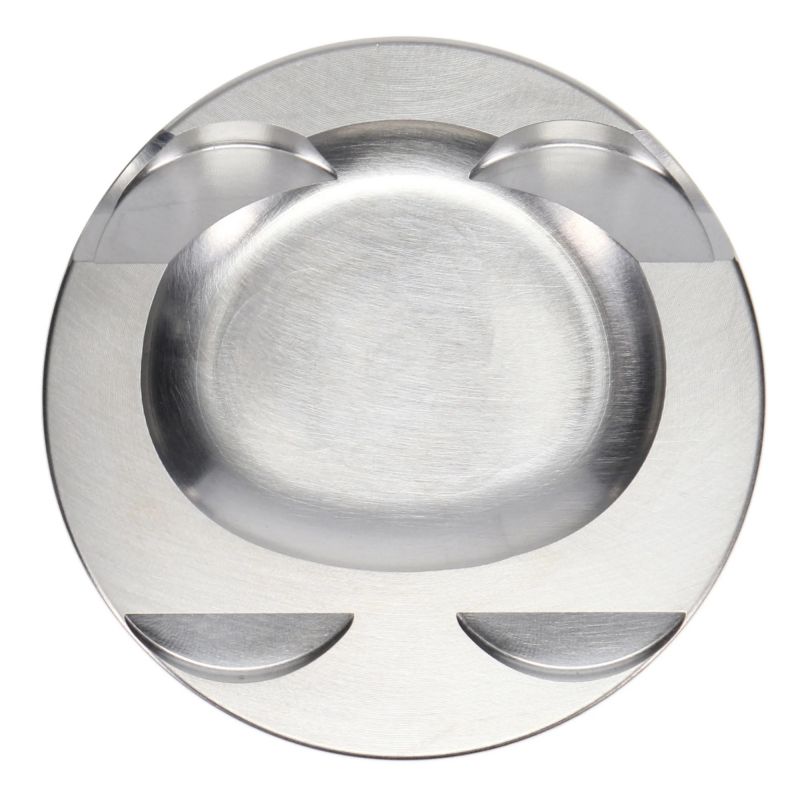

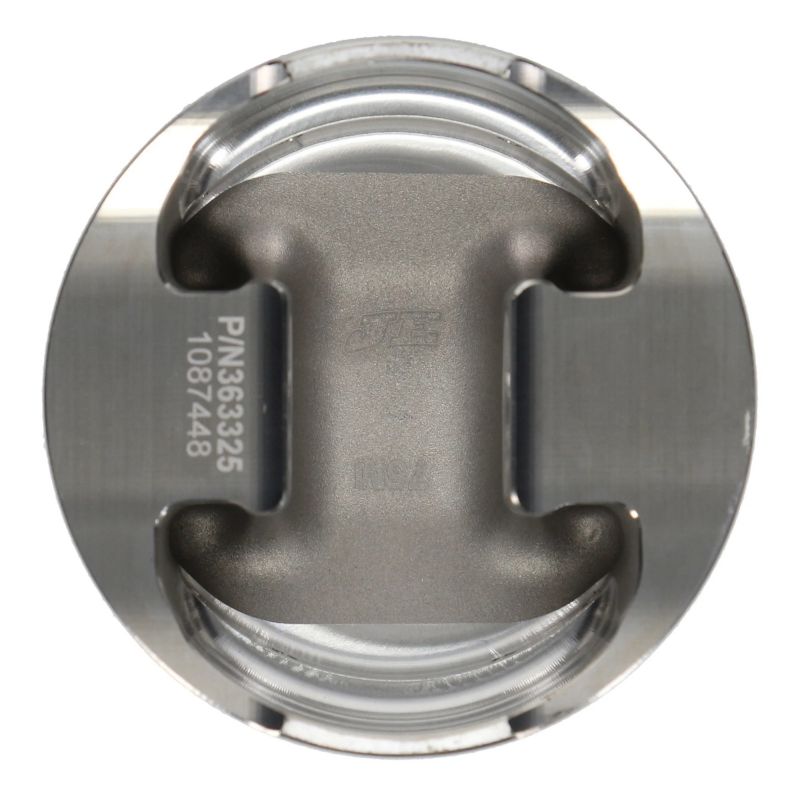

    JE-36332576.510:11929.0JE RoundNC2618.0Round-8.0NCNC
    WKE192M765AP76.510:11929.11Wiseco APSkirtNCNC-8.4NC7650XX

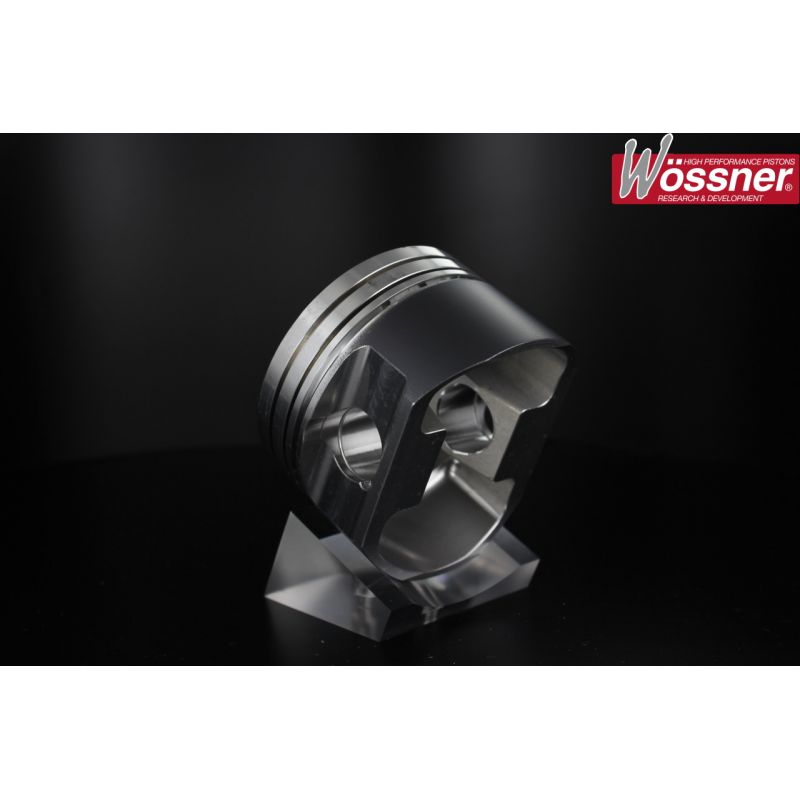

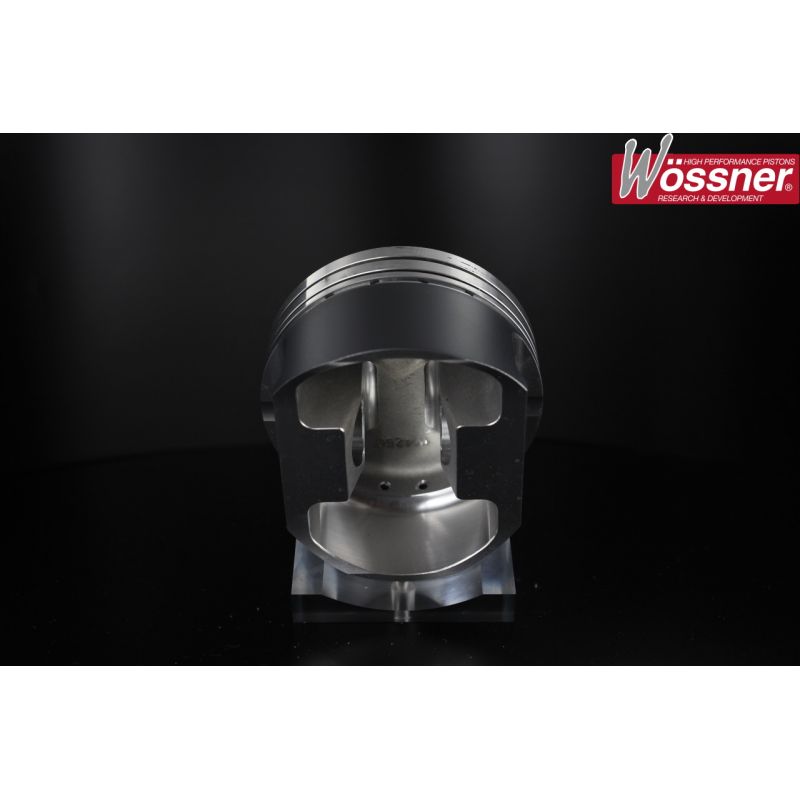

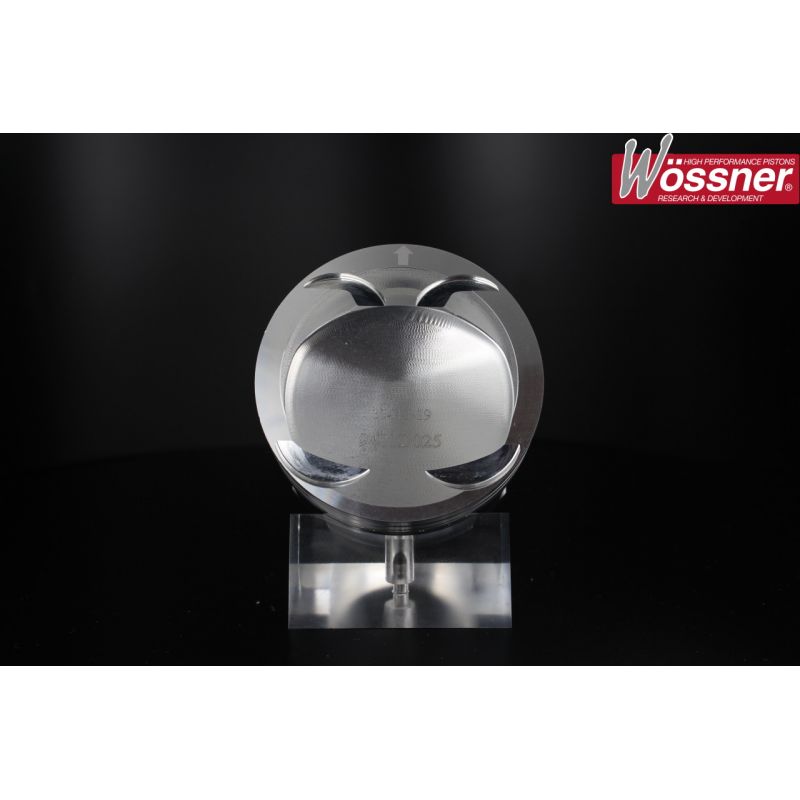

    K9481DA76.510.5:11929.0WossnerNCNCRound-6.76NC765XPZ
    K9481D02576.7510.5:11929.0WossnerNCNCRound-6.76NC770XPZ
    JE-36332677.010:11929.0JE RoundNC2618.0Round-8.0NCNC
    WKE192M77AP77.010:11929.11Wiseco APSkirtNCNC-8.4NC7700XX
    K9481D05077.010.5:11929.0WossnerNCNCRound-6.76NC770XPZ
    JE-36332777.510:11929.0JE RoundNC2618.0Round-8.0NCNC
    WKE192M775AP77.510:11929.11Wiseco APSkirtNCNC-8.4NC7750XX


    Compatibility (engine codes):

    • EA111 1.4 TSI/TFSI — BMY, BLG (140 hp, twincharged), CAVD/CTHD (160 hp, twincharged), CAVE/CAVF/CAVG (180/185 hp, twincharged), CAXA (122 hp, turbo), CAXC (125 hp, turbo), CFBA (131 hp, turbo)


    Original vehicles equipped with the 1.4 TSI/TFSI EA111 :

    BrandModelEngine codePowerYears
    AudiA1 8X 1.4 TFSICAXA122 hp2010 – 2014
    AudiA3 8P 1.4 TFSICAXC125 hp2008 – 2013
    SeatLeon 1P 1.4 TSICAXC125 hp2007 – 2012
    SkodaOctavia II (1Z) 1.4 TSICAXA122 hp2009 – 2013
    VolkswagenGolf VI 1.4 TSICAXA122 hp2008 – 2012
    VolkswagenScirocco III 1.4 TSICAVD160 hp2008 – 2014
    VolkswagenJandta V (A5) 1.4 TSICAXA122 hp2007 – 2010


    OEM piston references :

    • EA111 1.4 TSI/TFSI (76,5 mm) : 03C 107 065 AQ, 03C 107 065 AS, 03C 107 065 BF, 03C 107 065 CK, 03C 107 065 AP, 03C 107 065 BT (depending on revision and engine code).

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
