3.2L 24v - S50B32
Manufacturers
3.2L 24v - S50B32
Warning: Last items in stock!
New product

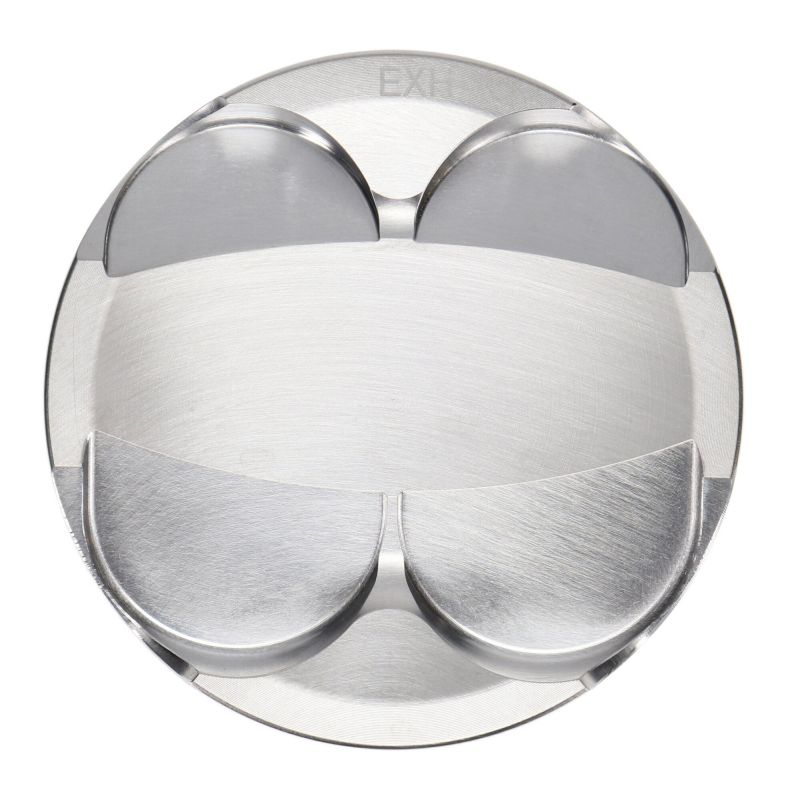

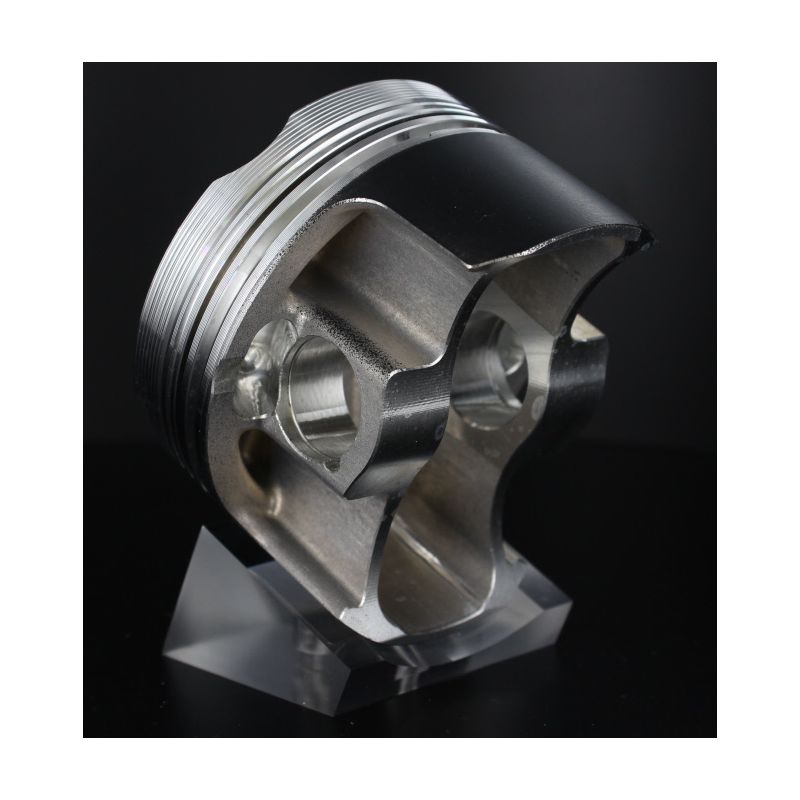

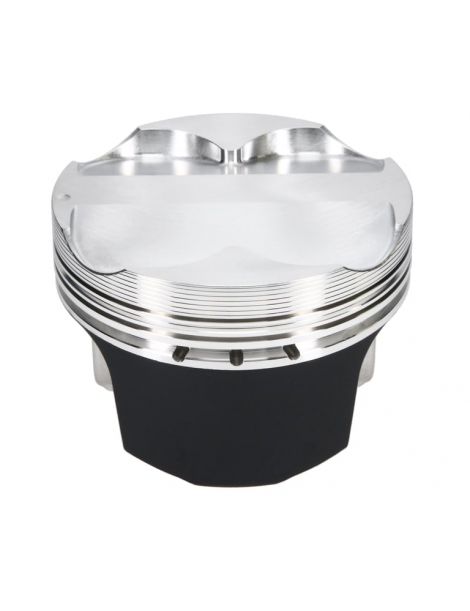

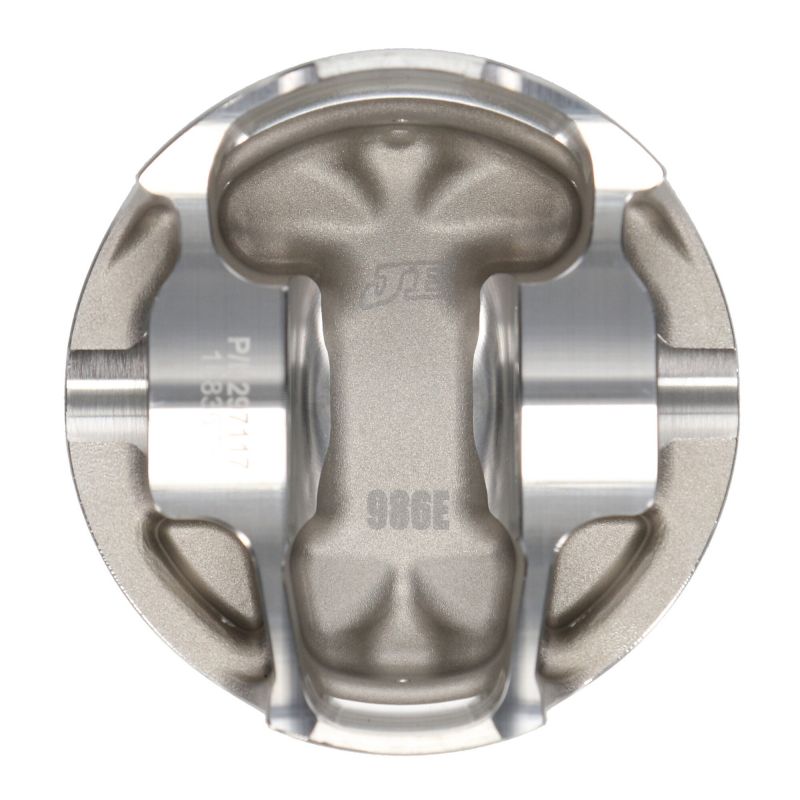

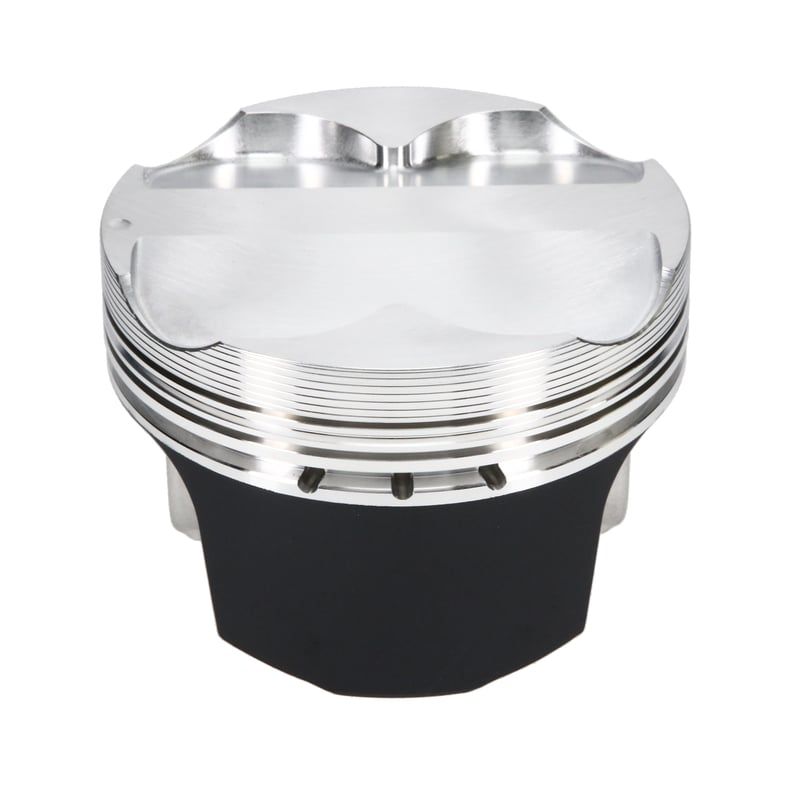

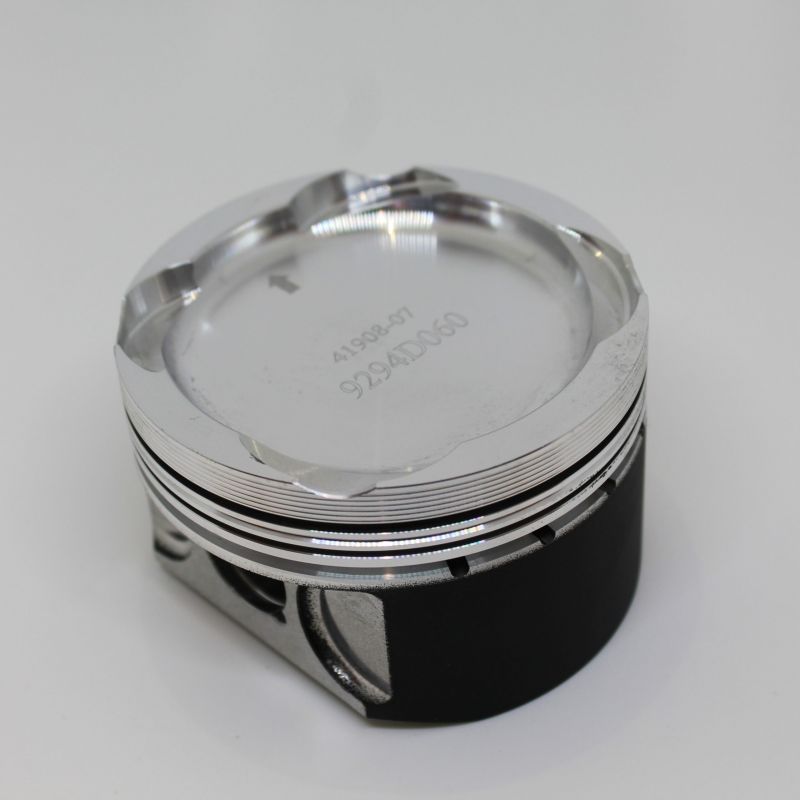

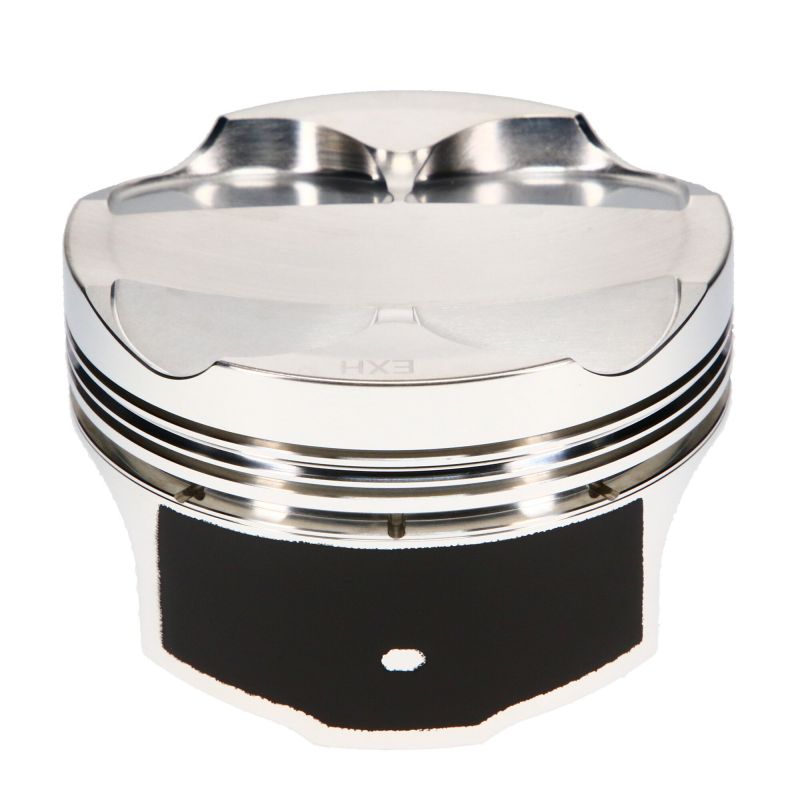

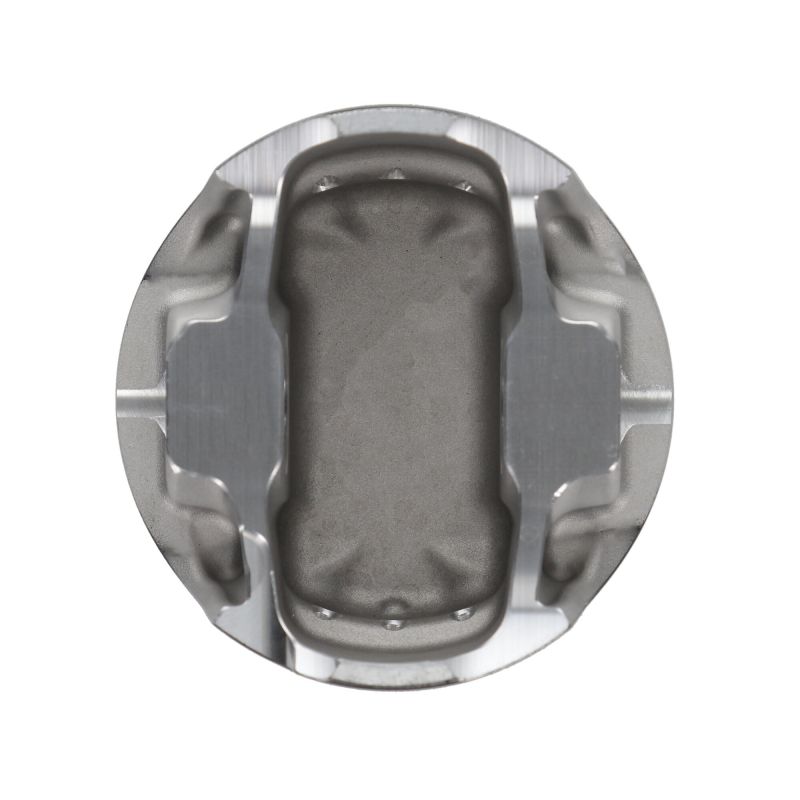

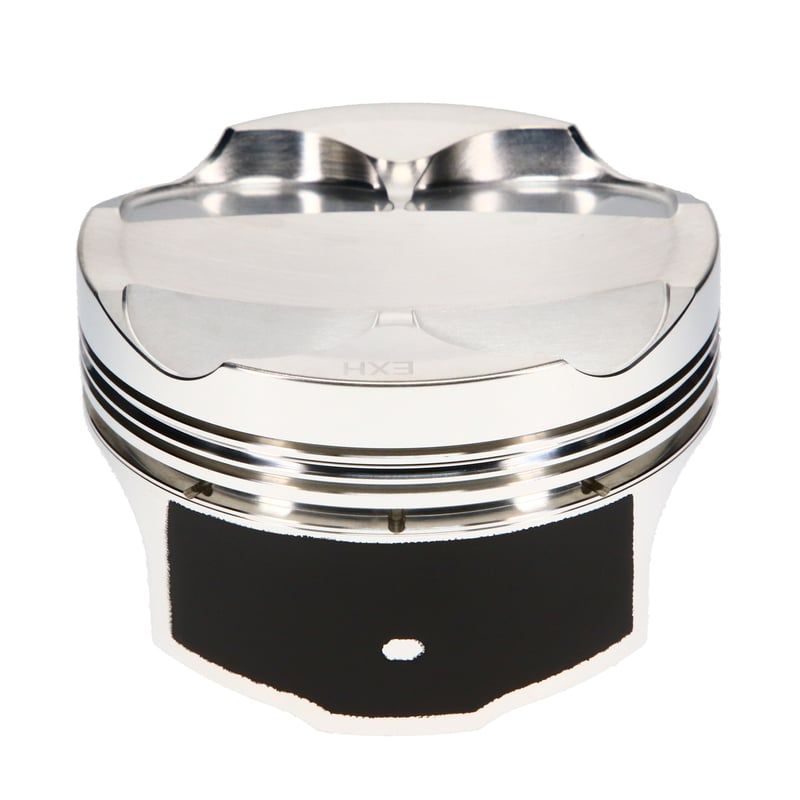

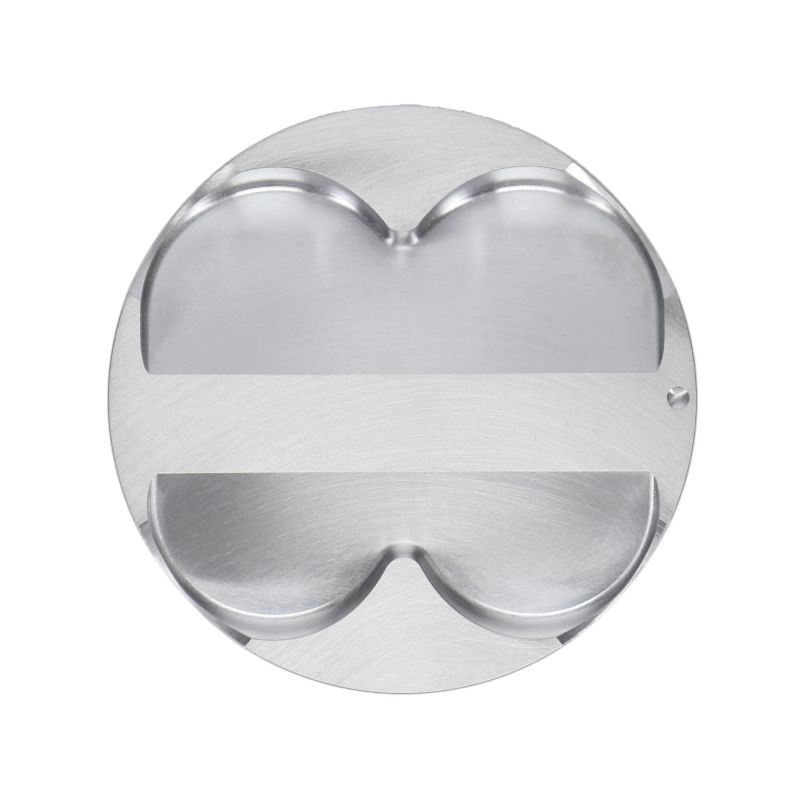

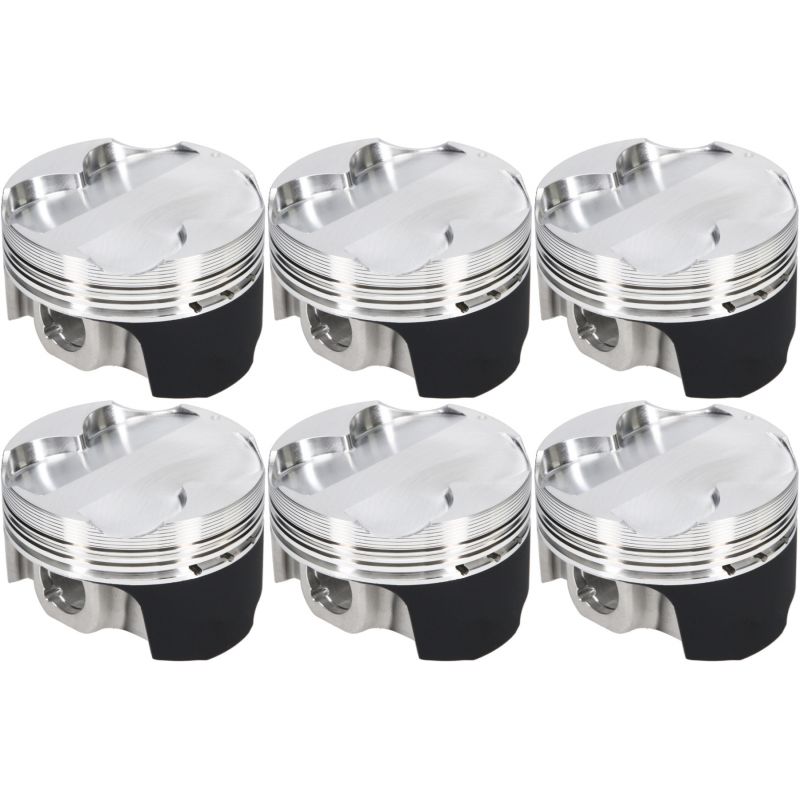

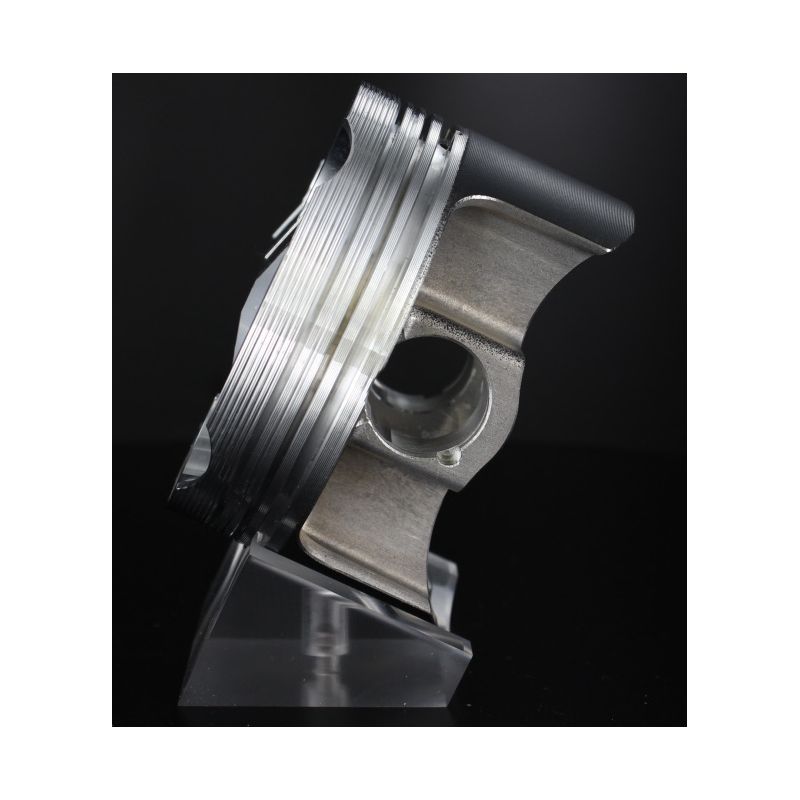

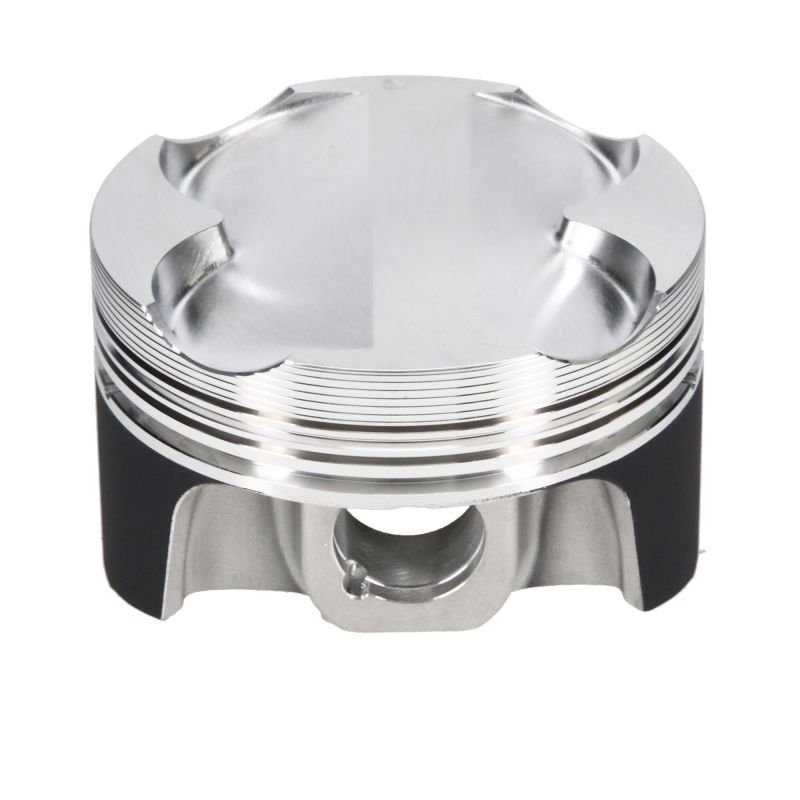

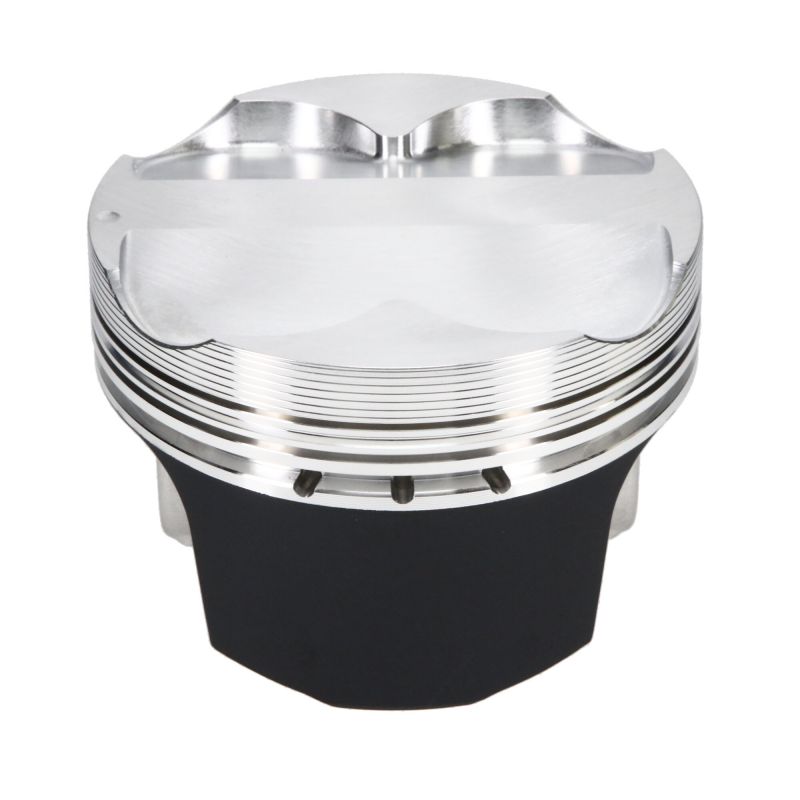

BMW S50B32 3.2 L forged pistons bores 86.5-87.25 mm, RV 8.7-12.5:1, axle 21 mm. JE, Wiseco, Wossner Specs tables, M3 E36 compatibilities & OEM reference.

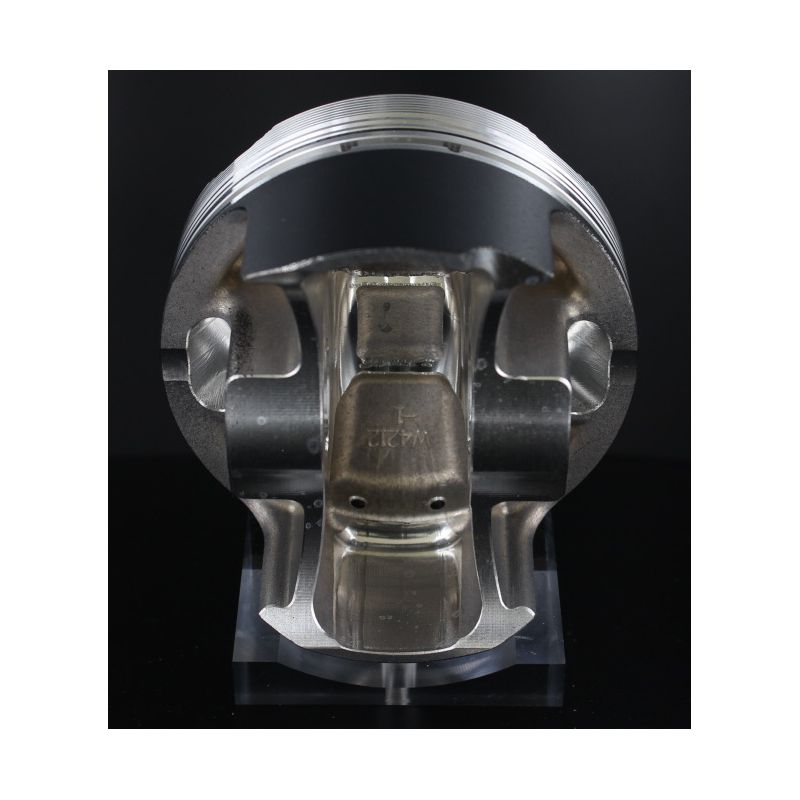

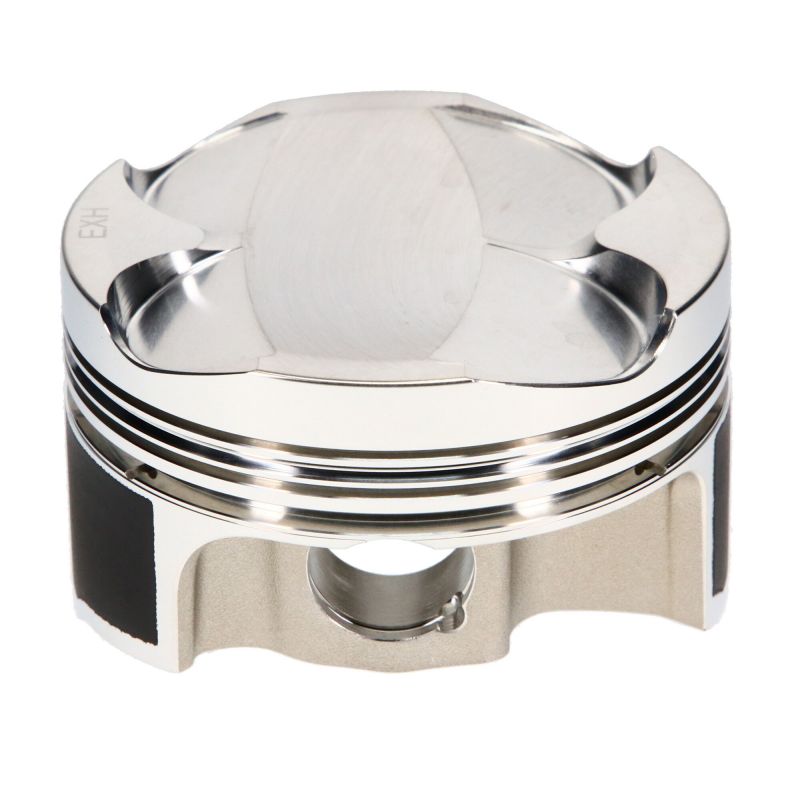

Specifications of the forged pistons offered by NSB Concept for BMW 3.2 L 24 v S50B32 :
| Reference piston | Bore (mm)OEM 86,50 | CROEM 11,3 :1 | pin (mm)OEM 21 | Height pin (mm)OEM 32,2 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE122M865 | 86.5 | 11.3:1 | 21 | 32.2 | Wiseco | 2618 | Skirt | NC | -11.8 | NC | 8650XX |
| JE-345630 | 86.5 | 11.5:1 | 21 | 32.3 | JE FSR | 2618 | NC | FSR | -9.6 | NC | NC |
| WKE422M865 | 86.5 | 12:1 | 21 | NC | Wiseco | NC | Skirt | NC | NC | NC | NC |

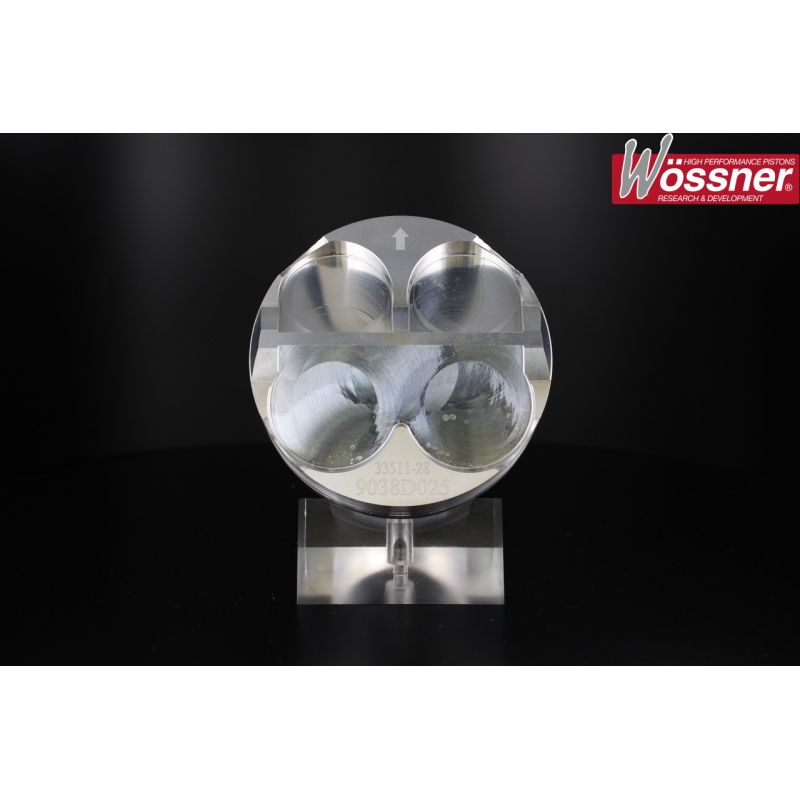

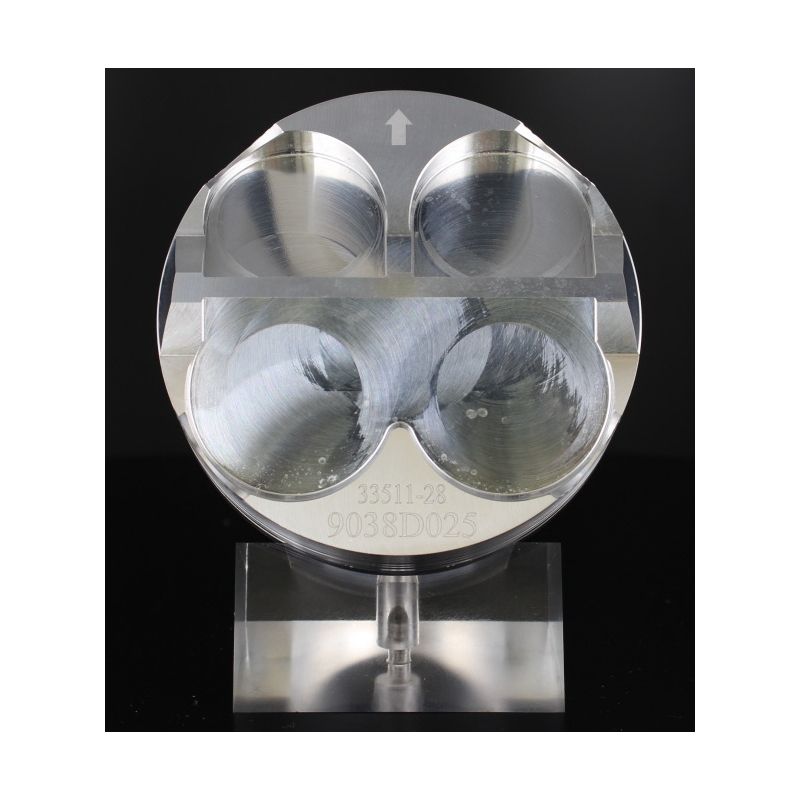

| K9038DA | 86.5 | 12.3:1 | 21 | 32.3 | Wössner | NC | NC | Slipper | -5.4 | NC | 865XSY |
| JE-345632 | 86.5 | 12.5:1 | 21 | 32.3 | JE FSR | 2618 | NC | FSR | -6.5 | NC | NC |
| WKE122M8675 | 86.75 | 11.3:1 | 21 | 32.2 | Wiseco | 2618 | Skirt | NC | -11.8 | NC | 8675XX |
| JE-362140 | 86.75 | 11.5:1 | 21 | 32.3 | JE FSR | 2618 | NC | FSR | -9.6 | NC | NC |
| K9038DC | 86.75 | 12.3:1 | 21 | 32.3 | Wössner | NC | NC | Slipper | -5.4 | NC | 867XSY |
| JE-345633 | 86.75 | 12.5:1 | 21 | 32.3 | JE FSR | 2618 | NC | FSR | -6.5 | NC | NC |
| WKE122M87 | 87 | 11.3:1 | 21 | 32.2 | Wiseco | 2618 | Skirt | NC | -11.8 | NC | 8700XX |
| JE-362141 | 87 | 11.5:1 | 21 | 32.3 | JE FSR | 2618 | NC | FSR | -9.6 | NC | NC |
| WKE422M87 | 87 | 12:1 | 21 | NC | Wiseco | NC | Skirt | NC | NC | NC | NC |
| K9038D050 | 87 | 12.3:1 | 21 | 32.3 | Wössner | NC | NC | Slipper | -5.4 | NC | 870XSY |
| JE-345634 | 87 | 12.5:1 | 21 | 32.3 | JE FSR | 2618 | NC | FSR | -6.5 | NC | NC |
| WKE122M8725 | 87.25 | 11.3:1 | 21 | 32.2 | Wiseco | 2618 | Skirt | NC | -11.8 | NC | 8725XX |
| JE-362142 | 87.25 | 11.5:1 | 21 | 32.3 | JE FSR | 2618 | NC | FSR | -9.6 | NC | NC |
| WKE422M8725 | 87.25 | 12:1 | 21 | NC | Wiseco | NC | Skirt | NC | NC | NC | NC |
| K9038D075 | 87.25 | 12.3:1 | 21 | 32.3 | Wössner | NC | NC | Slipper | -5.4 | NC | 875XSY |
| JE-345635 | 87.25 | 12.5:1 | 21 | 32.3 | JE FSR | 2618 | NC | FSR | -6.5 | NC | NC |
Compatibility engine :
| Brand | Model | Chassis | Power (ch) | Years |
|---|---|---|---|---|
| BMW | M3 3.2 | E36 Coupé/Sedan/Cabrioland | 321 | 1995–1999 |
Reference piston manufacturer (OEM):
