2.0L 16v - EA888.3
Manufacturers
2.0L 16v - EA888.3
Warning: Last items in stock!
New product

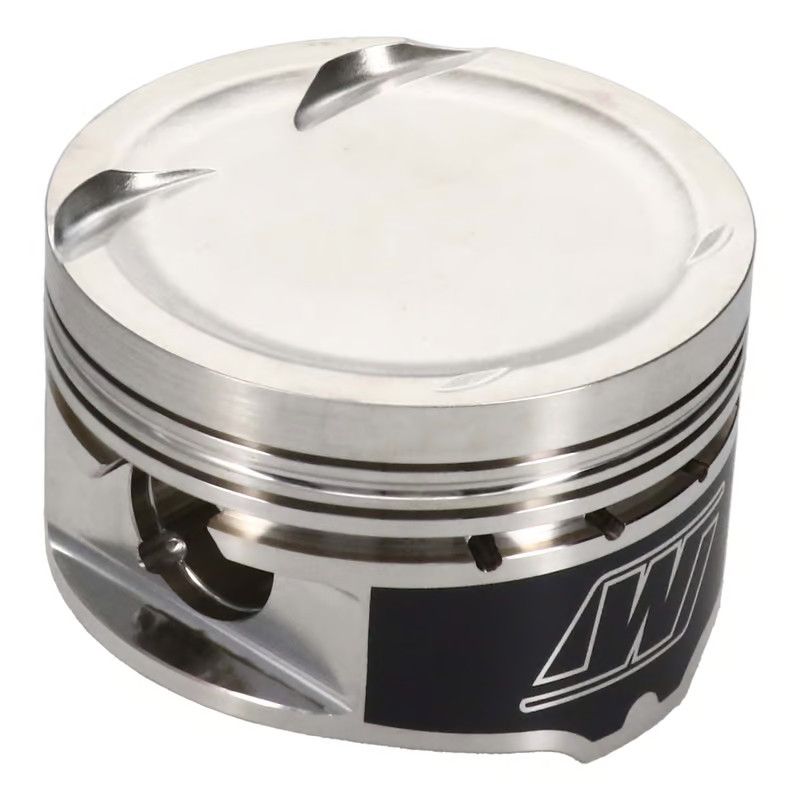

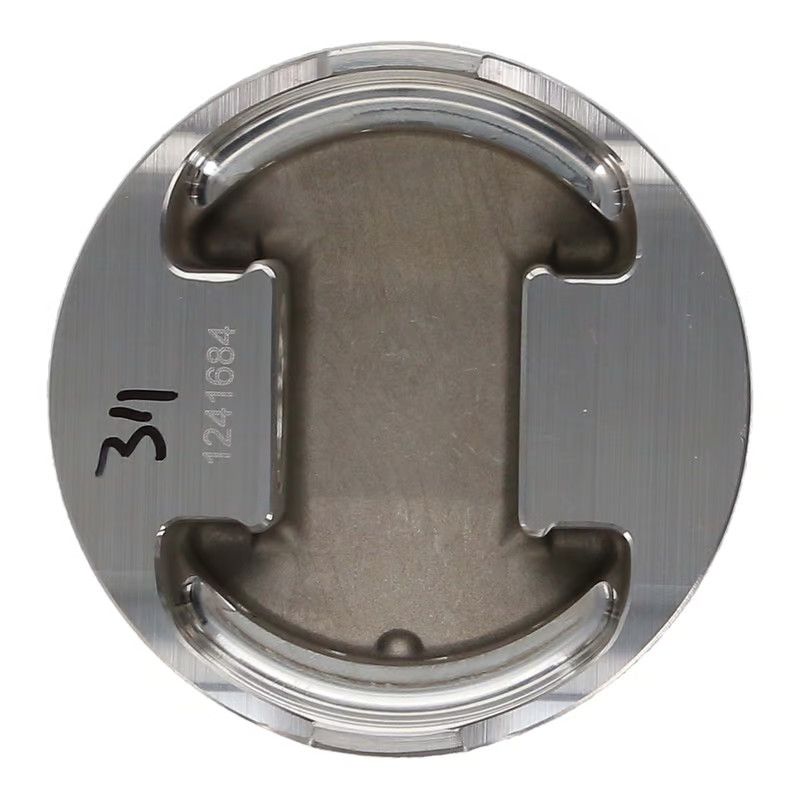

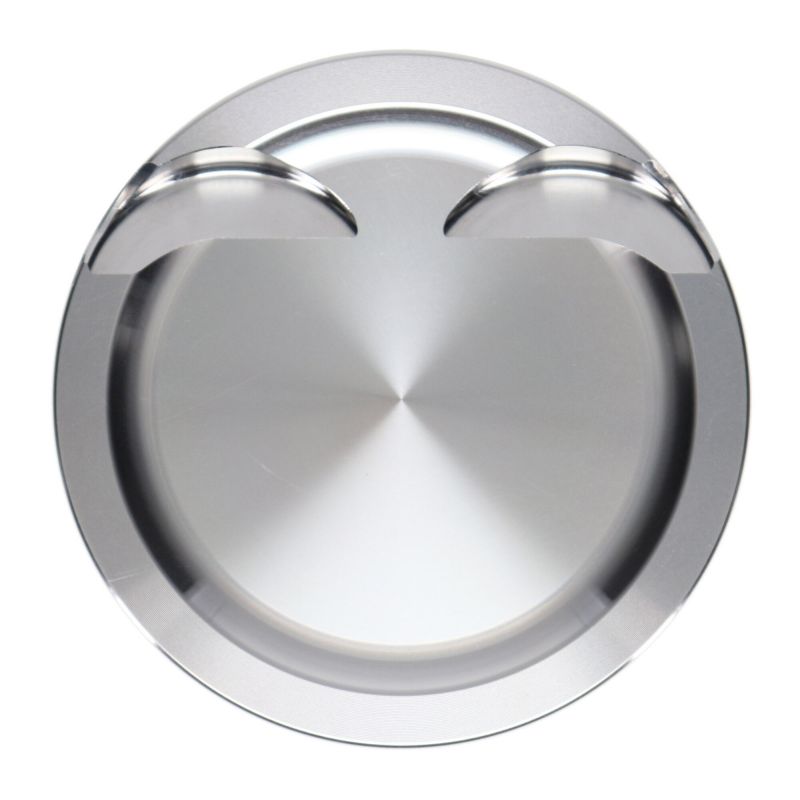

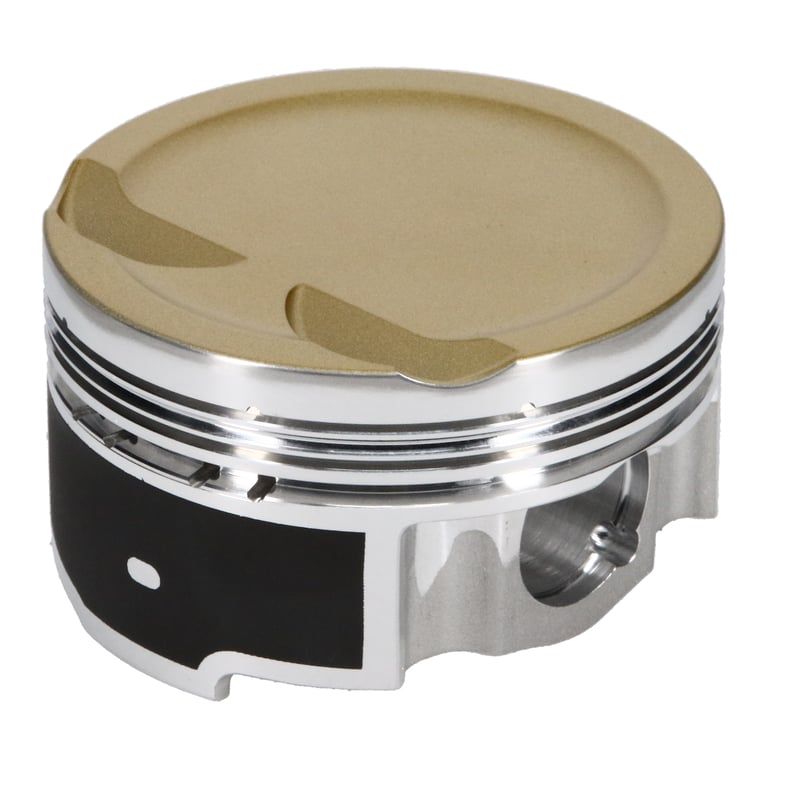

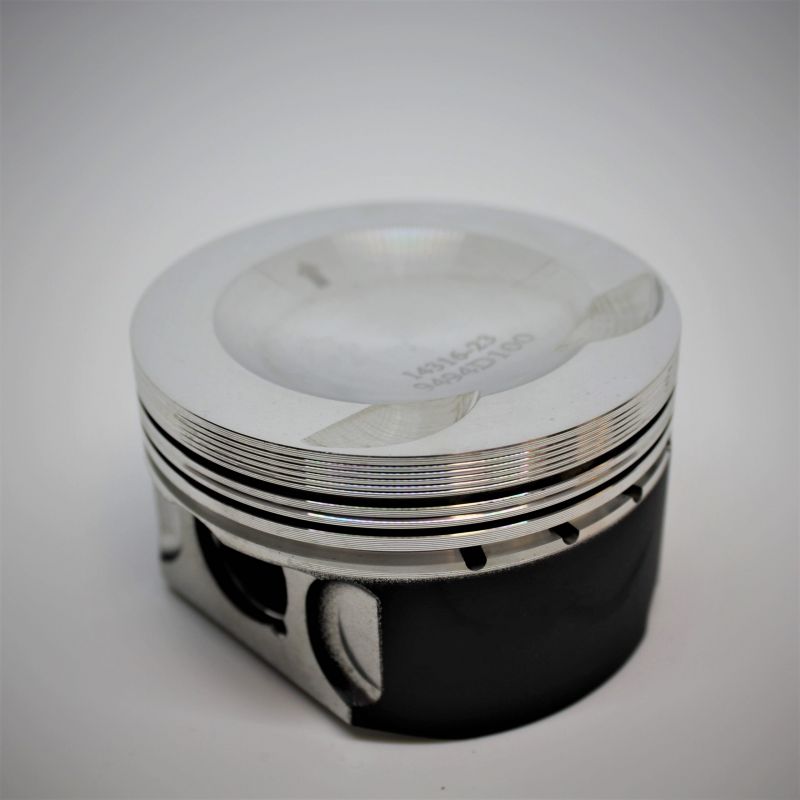

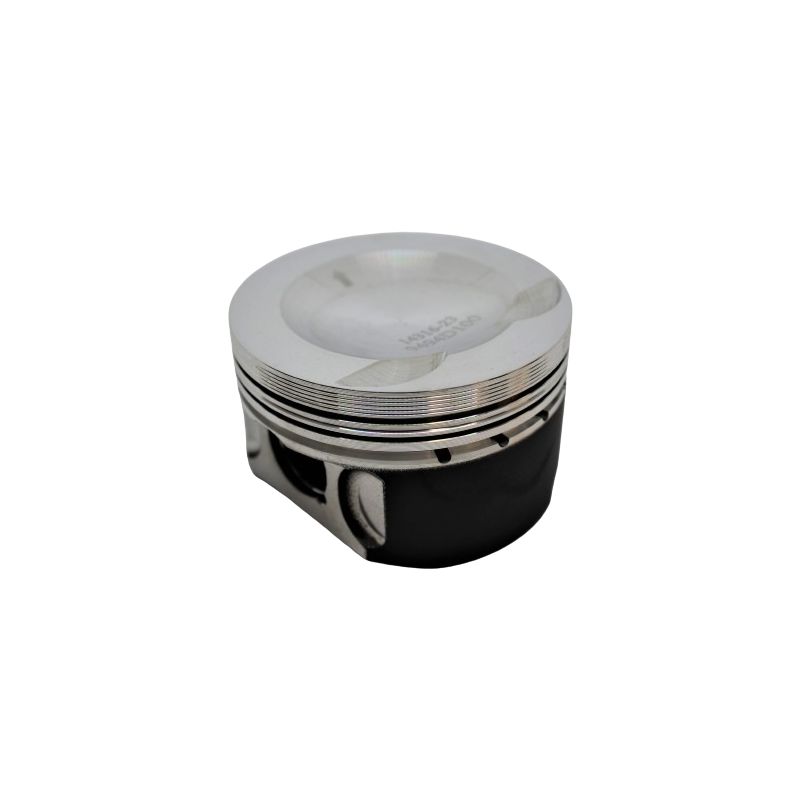

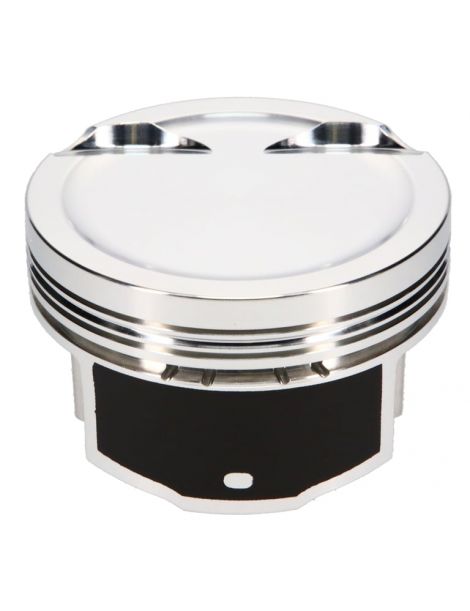

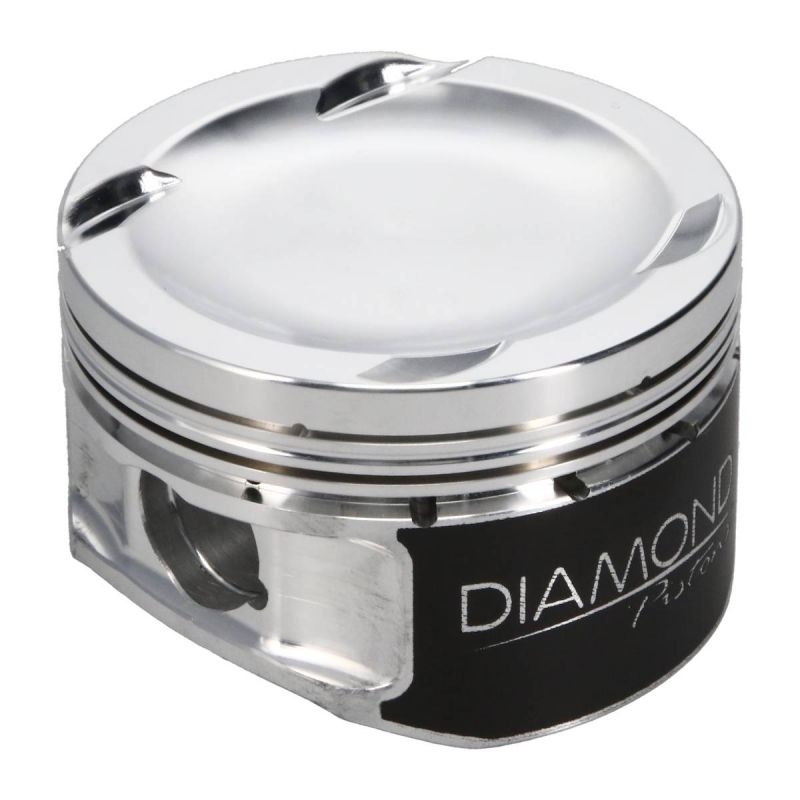

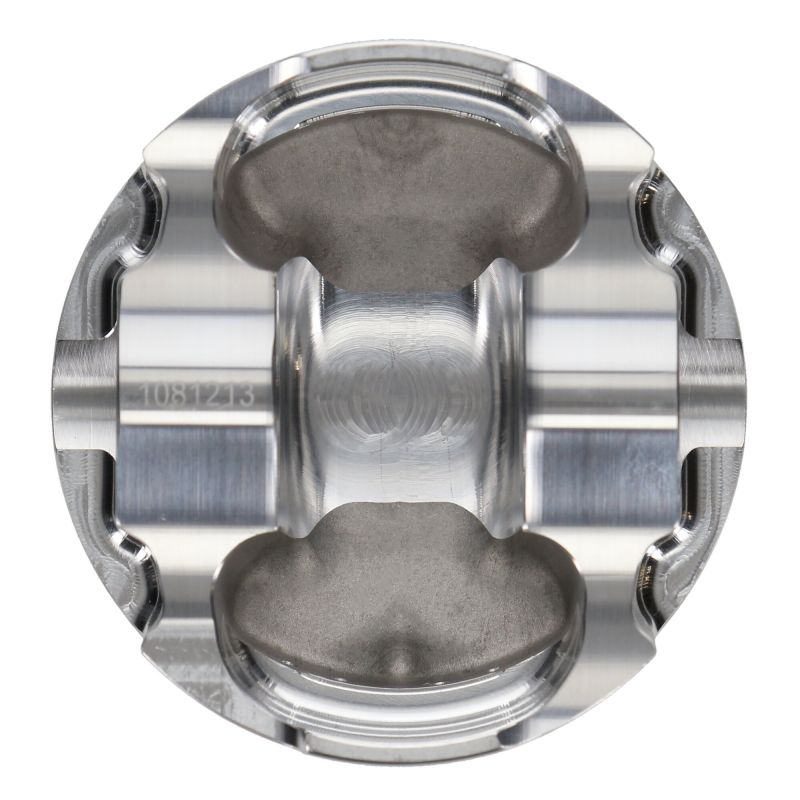

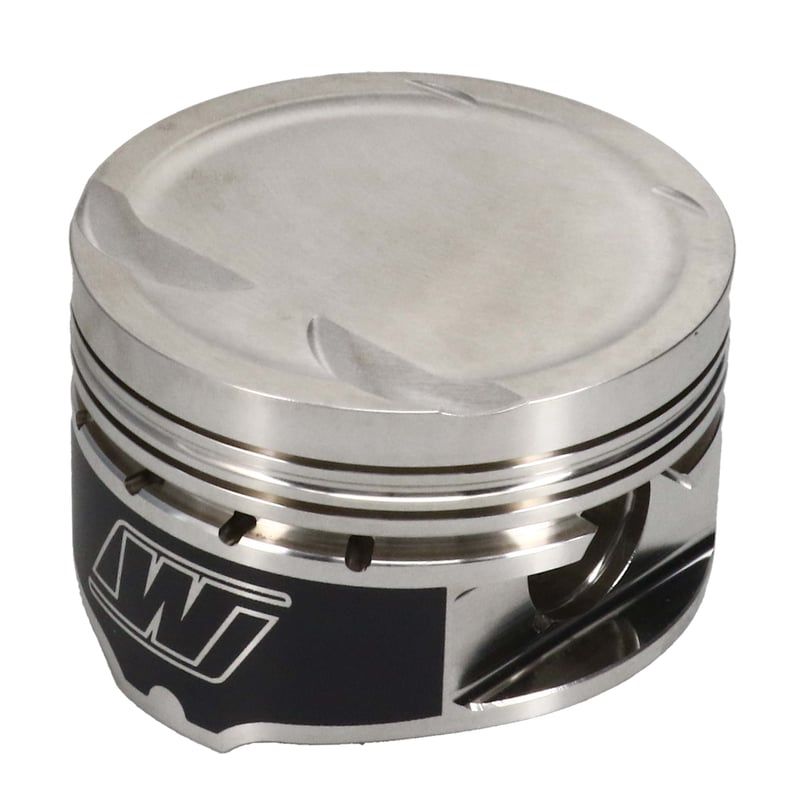

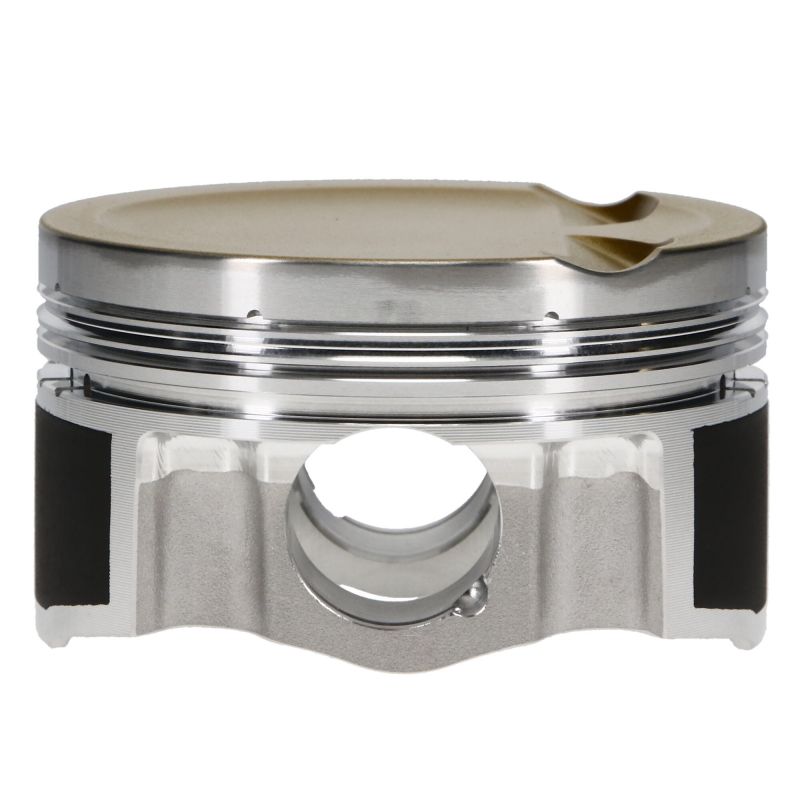

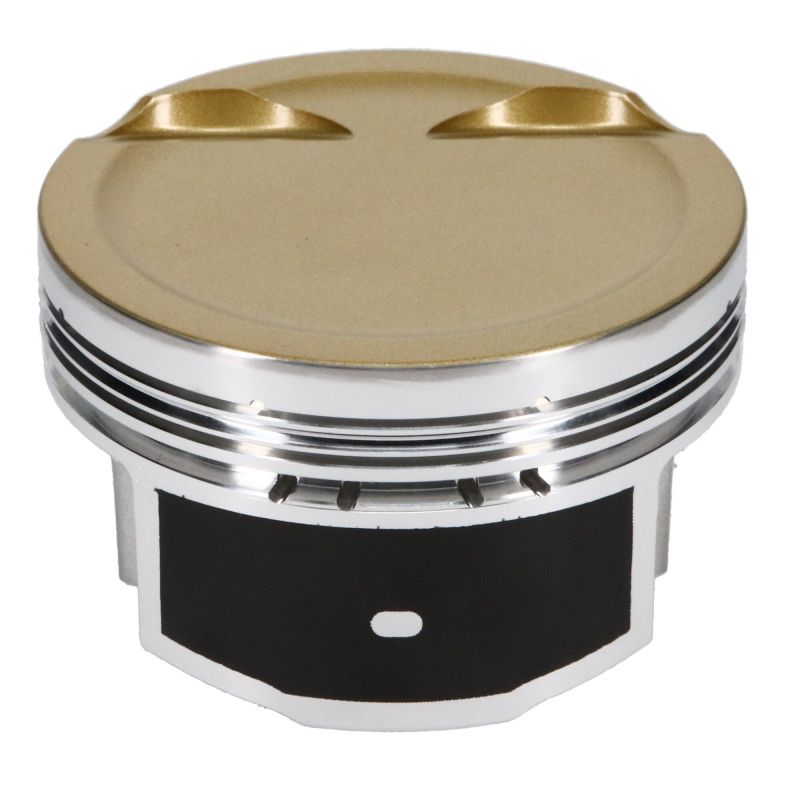

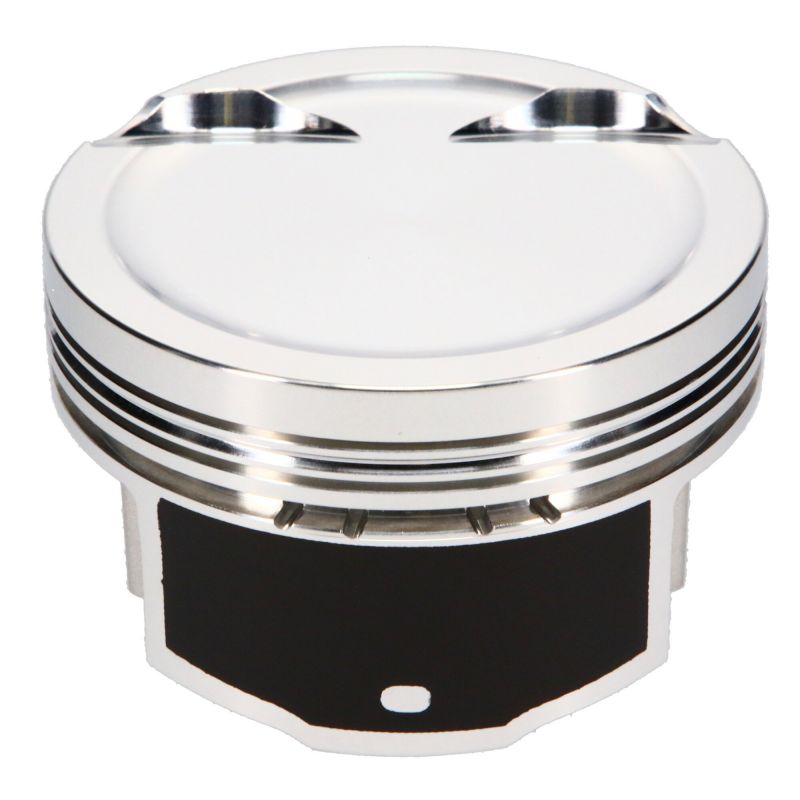

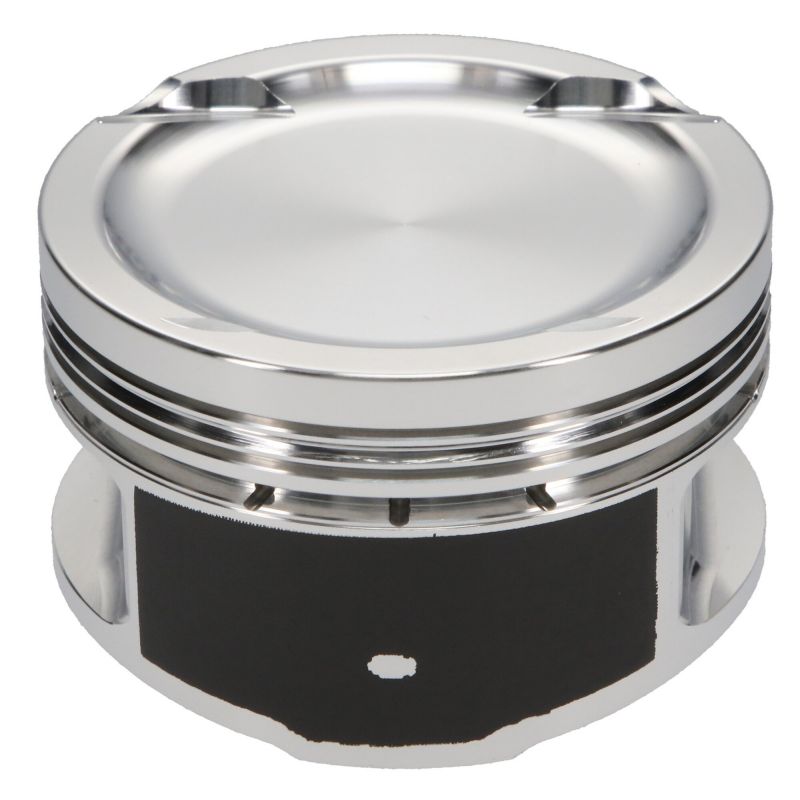

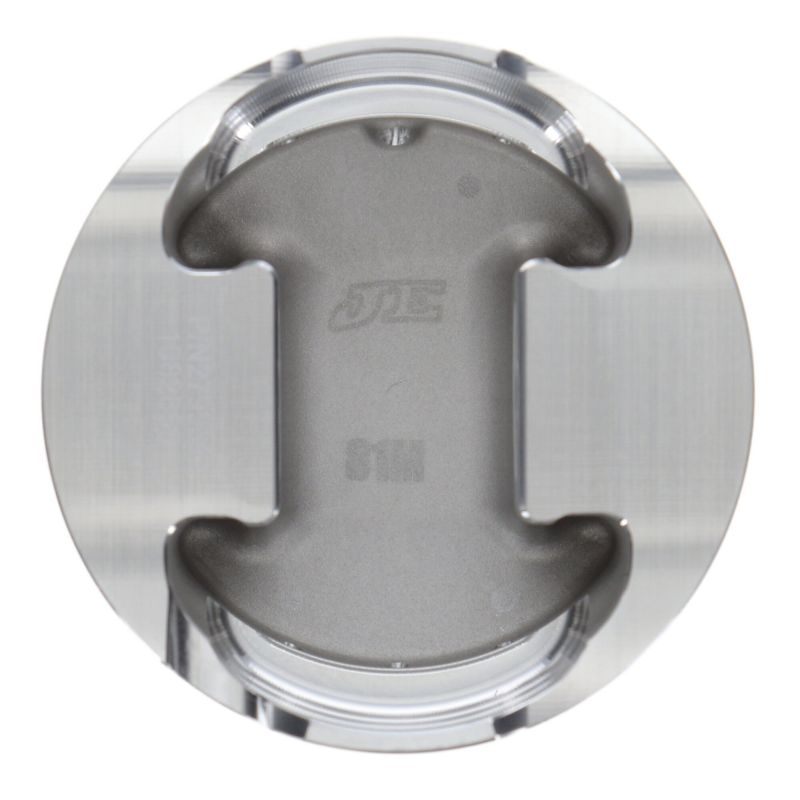

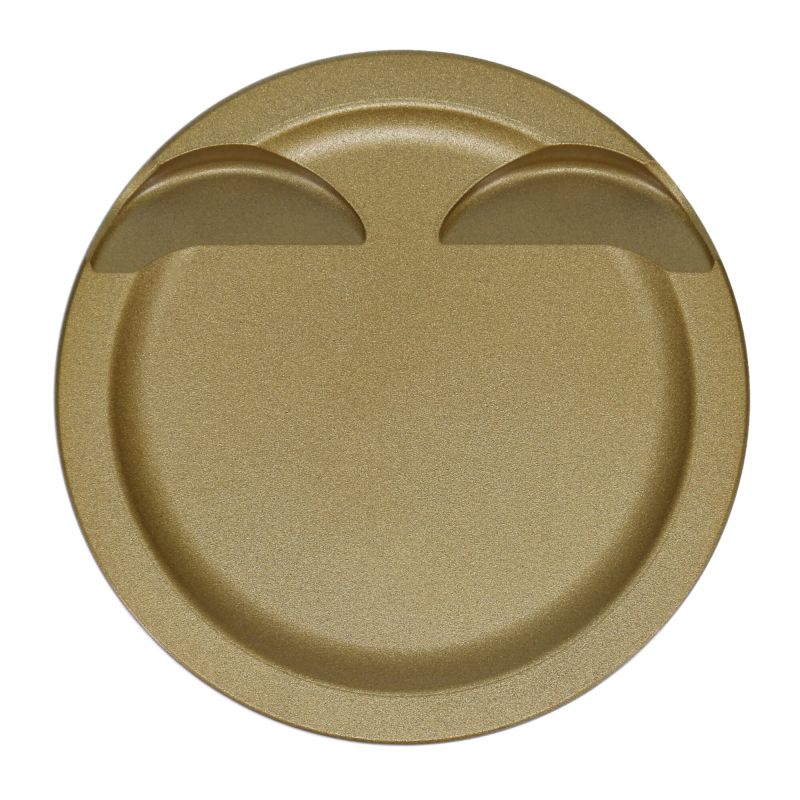

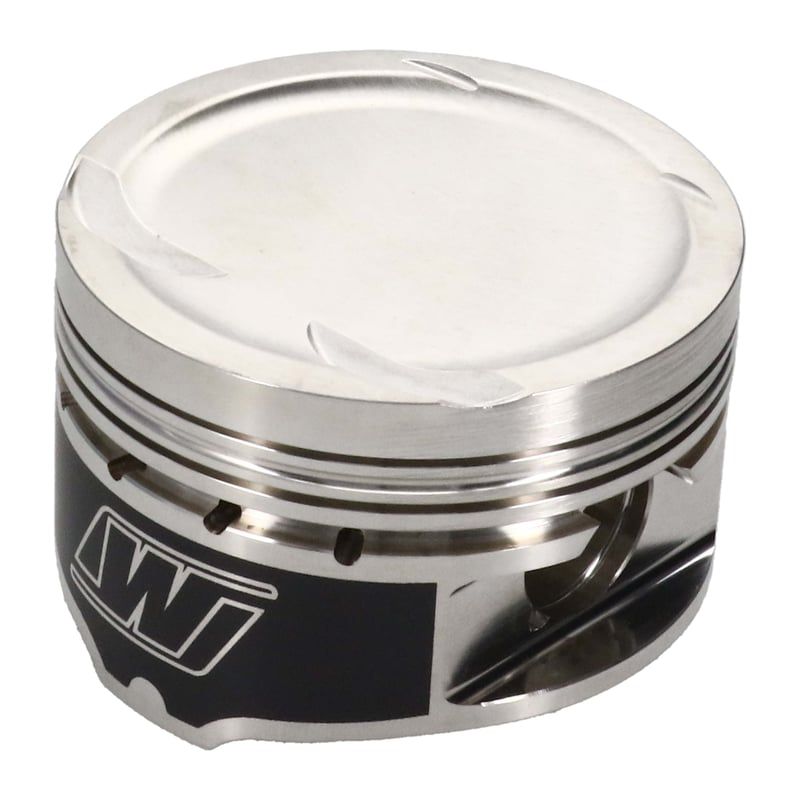

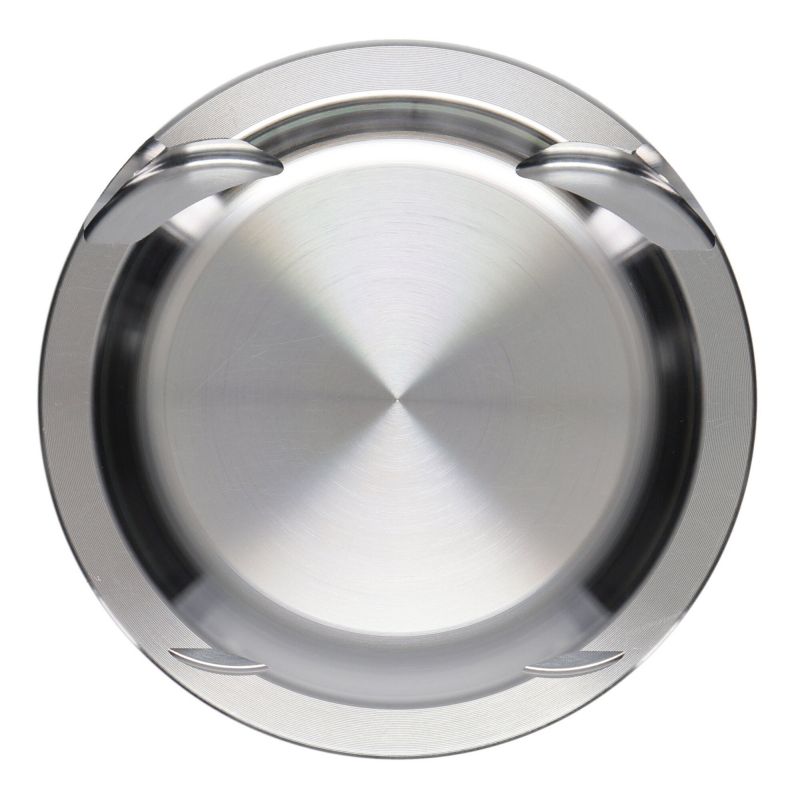

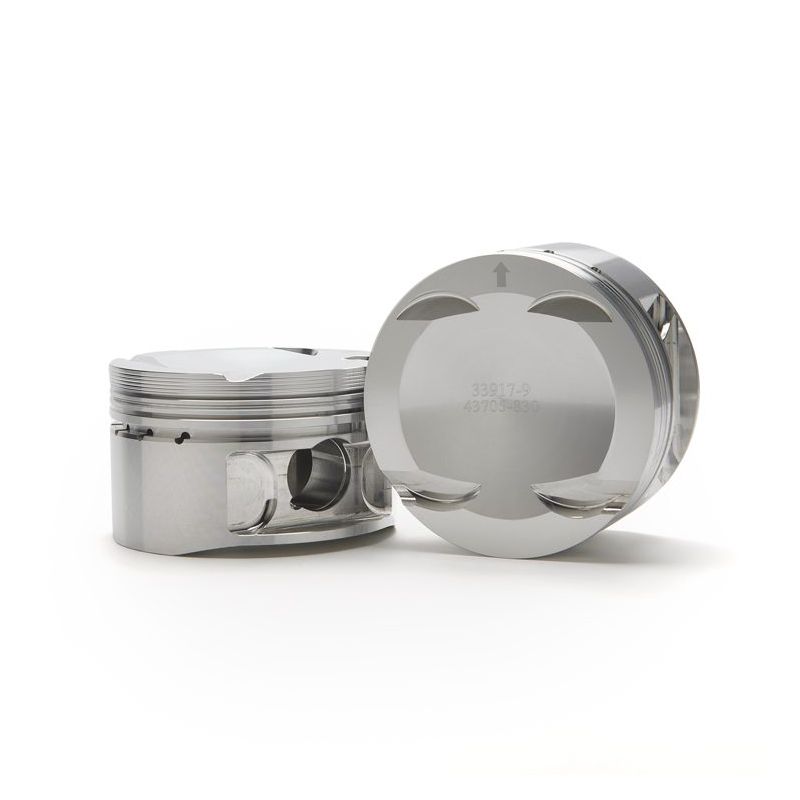

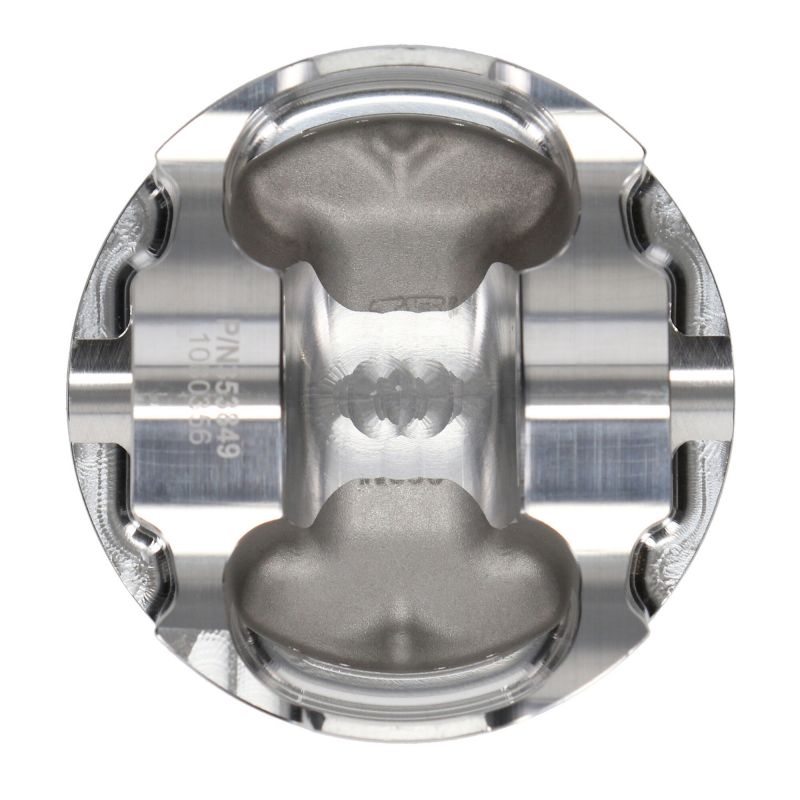

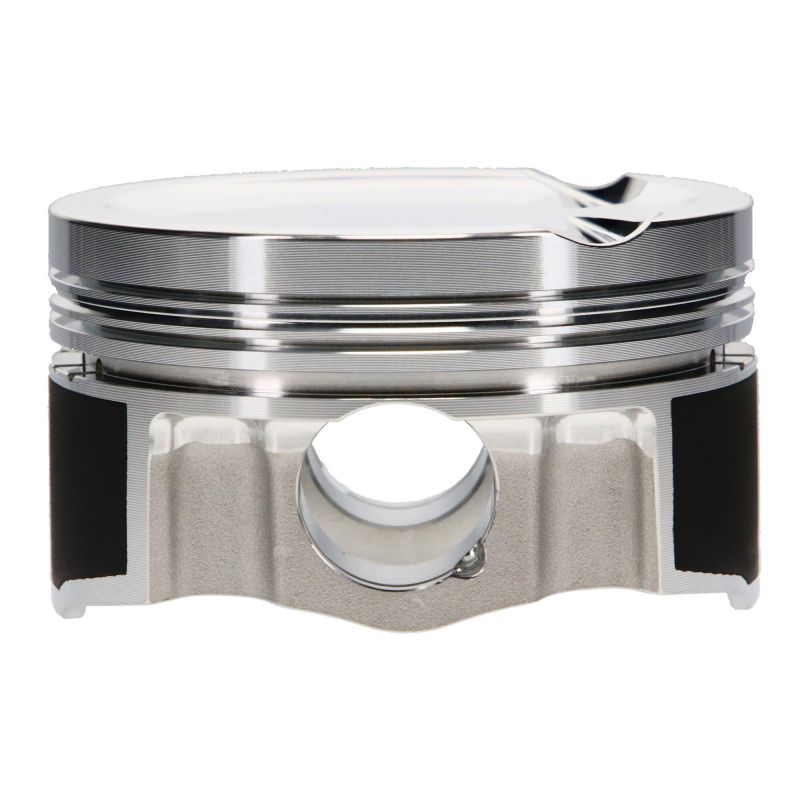

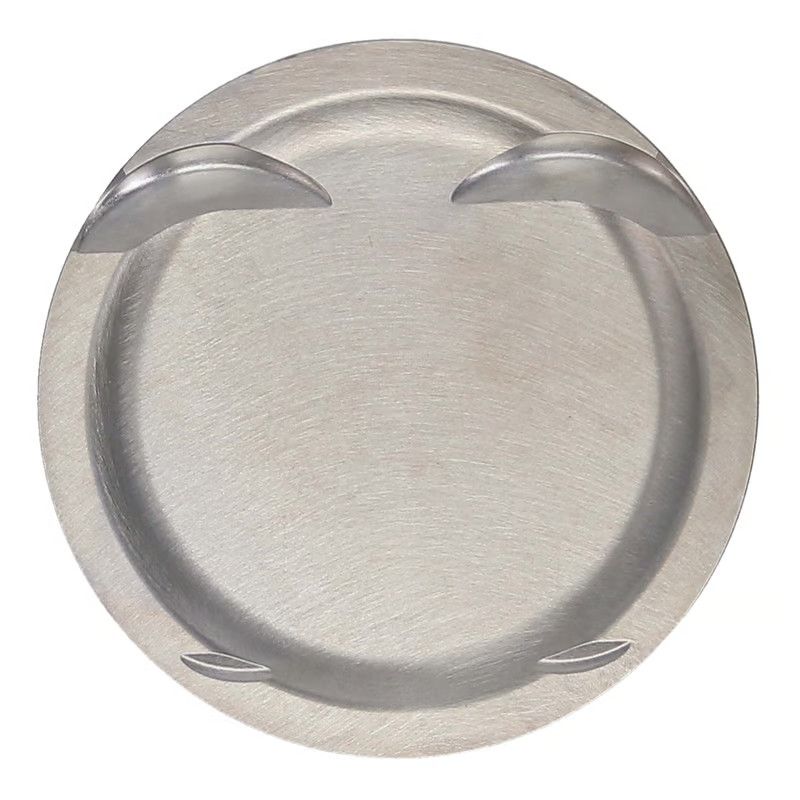

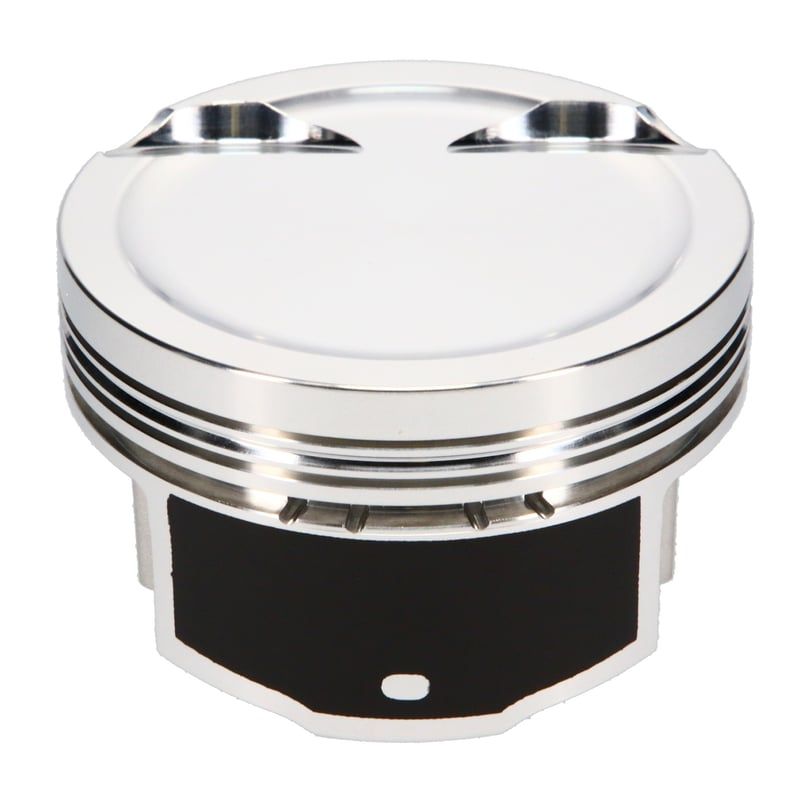

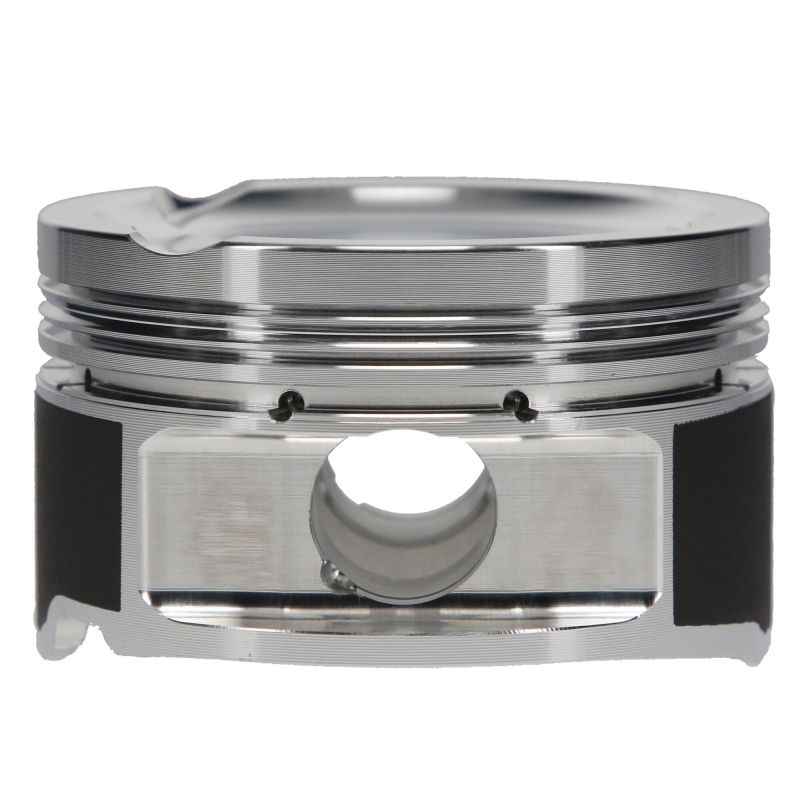

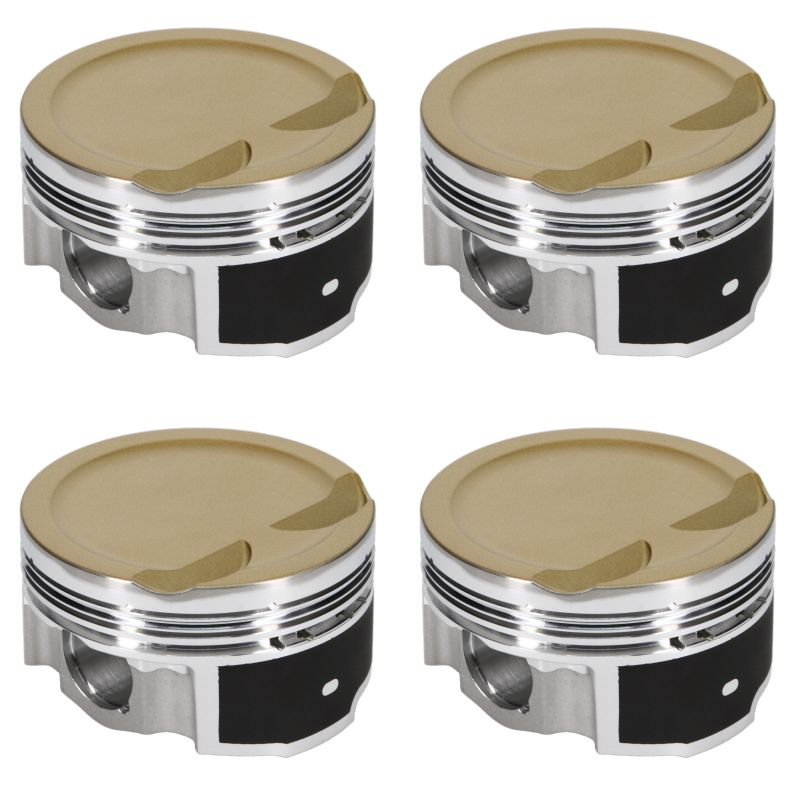

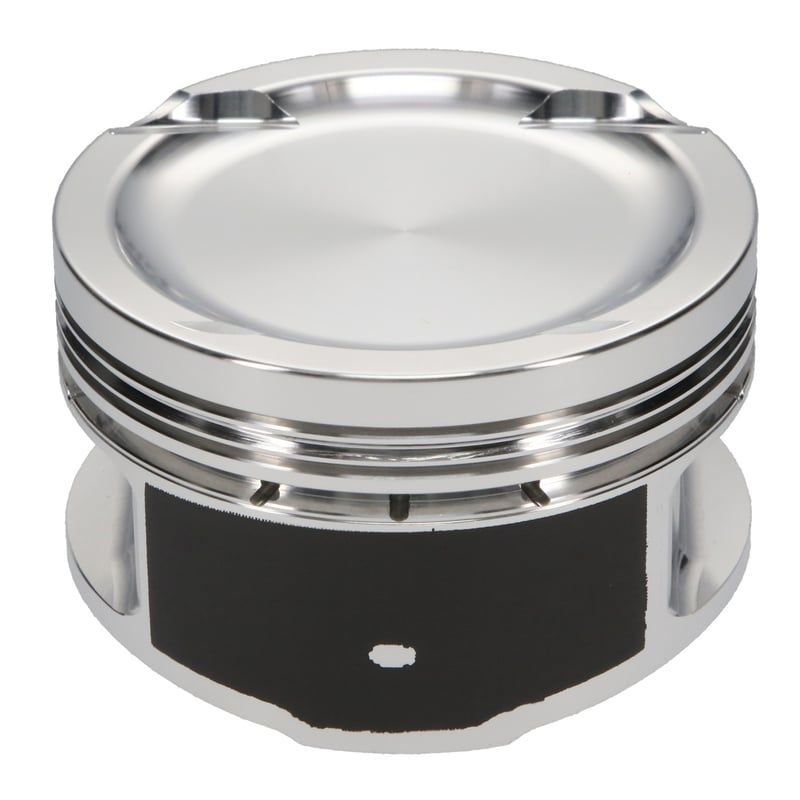

Forged pistons for VAG EA888 Gen3/Gen4 (2.0 TSI/TFSI) Pin 23 mm. ⌀ 82.5 / 83 / 83.5mm, Volume ratio 9.3 10.0:1 depending on variant. Alloy2 618(And 4032 depending on brands).Rings, Pins and circlips included.
Compatibilities:
Golf 7/8 GTI/R, Audi S3 8V/TT-TTS 8S, Leon Cupra, Octavia RS (see engine codes).
Specifications of the forged pistons offered by NSB Concept for Volkswagen / Audi 2.0 L 16 V EA888 Gen3 / Gen4 :
| Reference | OEM Bore 82,50 mm | OEM CR 9,6 :1 | OEM Pin 23 mm | Height OEM Pin 29,60 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-384216C*4 | 82.50 | 9.3:1 | 23 | 29.67 | JE | NC | NC | NC | -9.2 | NC | NC |
| JE-384216C*4 | 82.50 | 9.3:1 | 23 | 29.67 | JE | NC | NC | NC | -9.2 | NC | NC |
| DIA-38118-4 | 82.50 | 9.5:1 | 23 | 29.59 | Diamond | Skirt | 2618 | NC | -7.5 | NC | 9513248 |
| DIA-38118-4 | 82.50 | 9.5:1 | 23 | 29.59 | Diamond | Skirt | 2618 | NC | -7.5 | NC | 9513248 |
| DIA-38118-4-H | 82.50 | 9.5:1 | 23 | 29.59 | Diamond HD | Skirt | 2618 | NC | -7.5 | NC | 9513248 |
| DIA-38118-4-H | 82.50 | 9.5:1 | 23 | 29.59 | Diamond HD | Skirt | 2618 | NC | -7.5 | NC | 9513248 |
| K9540DA | 82.50 | 9.5:1 | 23 | 29.6 | Wossner | NC | NC | NC | -8.93 | NC | GNH82.50 |
| K9494DA | 82.50 | 9.5:1 | 23 | 29.6 | Wossner | NC | NC | Round | -8.93 | NC | 825XPY |
| K9540DA | 82.50 | 9.5:1 | 23 | 29.6 | Wossner | NC | NC | NC | -8.93 | NC | GNH82.50 |
| K9494DA | 82.50 | 9.5:1 | 23 | 29.6 | Wossner | NC | NC | Round | -8.93 | NC | 825XPY |
| JE-345818 | 82.50 | 9.6:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | NC | NC | NC |
| JE-353859 | 82.50 | 9.6:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -7.1 | NC | NC |
| JE-345818 | 82.50 | 9.6:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | NC | NC | NC |
| JE-353859 | 82.50 | 9.6:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -7.1 | NC | NC |
| JE-345817 | 82.50 | 9.6:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -7.1 | NC | NC |
| JE-345817 | 82.50 | 9.6:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -7.1 | NC | NC |
| JE-367863 | 82.50 | 9.6:1 | 23 | 29.3 | JE Ultra Series | Crown + Skirt | 2618 | FSR | -5.7 | 286 | NC |
| JE-367863 | 82.50 | 9.6:1 | 23 | 29.3 | JE Ultra Series | Crown + Skirt | 2618 | FSR | -5.7 | 286 | NC |
| P4-VW20T825-G3-N7-4 | 82.50 | 9.6:1 | 23 | 29.6 | Supertech | Crown + Skirt | NC | NC | -7.3 | NC | W8250XX |
| P4-VW20T825-G3-N7-4 | 82.50 | 9.6:1 | 23 | 29.6 | Supertech | Crown + Skirt | NC | NC | -7.3 | NC | W8250XX |
| WK758M825 | 82.50 | 9.6:1 | 23 | 29.59 | Wiseco | Skirt | 2618 | NC | -7.1 | NC | 8250XX |
| WK758M825 | 82.50 | 9.6:1 | 23 | 29.59 | Wiseco | Skirt | 2618 | NC | -7.1 | NC | 8250XX |
| JE-353862 | 82.50 | 10:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -4.5 | NC | NC |
| JE-353862 | 82.50 | 10:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -4.5 | NC | NC |
| JE-353855 | 82.50 | 10:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -4.5 | NC | NC |
| JE-353855 | 82.50 | 10:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -4.5 | NC | NC |
| WK759M825 | 82.50 | 10:1 | 23 | 29.59 | Wiseco | Skirt | 2618 | NC | -4.5 | NC | 8250XX |
| WK759M825 | 82.50 | 10:1 | 23 | 29.59 | Wiseco | Skirt | 2618 | NC | -4.5 | NC | 8250XX |
| JE-384217C*4 | 83.00 | 9.3:1 | 23 | 29.67 | JE | NC | NC | NC | -10.0 | NC | NC |
| JE-384217C*4 | 83.00 | 9.3:1 | 23 | 29.67 | JE | NC | NC | NC | -10.0 | NC | NC |
| K9540D050 | 83.00 | 9.5:1 | 23 | 29.6 | Wossner | NC | NC | NC | -8.93 | NC | GNH83.00 |
| K9540D050 | 83.00 | 9.5:1 | 23 | 29.6 | Wossner | NC | NC | NC | -8.93 | NC | GNH83.00 |
| DIA-38119-4 | 83.00 | 9.6:1 | 23 | 29.59 | Diamond | Skirt | 2618 | NC | -7.5 | NC | 9513268 |
| DIA-38119-4 | 83.00 | 9.6:1 | 23 | 29.59 | Diamond | Skirt | 2618 | NC | -7.5 | NC | 9513268 |
| DIA-38119-4-H | 83.00 | 9.6:1 | 23 | 29.59 | Diamond HD | Skirt | 2618 | NC | -7.5 | NC | 9513268 |
| DIA-38119-4-H | 83.00 | 9.6:1 | 23 | 29.59 | Diamond HD | Skirt | 2618 | NC | -7.5 | NC | 9513268 |
| JE-345820 | 83.00 | 9.6:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | NC | NC | NC |
| JE-353860 | 83.00 | 9.6:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -7.8 | NC | NC |
| JE-345820 | 83.00 | 9.6:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | NC | NC | NC |
| JE-353860 | 83.00 | 9.6:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -7.8 | NC | NC |
| JE-345819 | 83.00 | 9.6:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -7.8 | NC | NC |
| JE-345819 | 83.00 | 9.6:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -7.8 | NC | NC |
| JE-367864 | 83.00 | 9.6:1 | 23 | 29.3 | JE Ultra Series | Crown + Skirt | 2618 | FSR | -6.4 | 289 | NC |
| JE-367864 | 83.00 | 9.6:1 | 23 | 29.3 | JE Ultra Series | Crown + Skirt | 2618 | FSR | -6.4 | 289 | NC |
| P4-VW20T83-G3-N7-4 | 83.00 | 9.6:1 | 23 | 29.6 | Supertech | Crown + Skirt | NC | NC | -7.3 | NC | W8300XX |
| P4-VW20T83-G3-N7-4 | 83.00 | 9.6:1 | 23 | 29.6 | Supertech | Crown + Skirt | NC | NC | -7.3 | NC | W8300XX |
| WK758M83 | 83.00 | 9.6:1 | 23 | 29.59 | Wiseco | Skirt | 2618 | NC | -7.1 | NC | 8300XX |
| WK758M83 | 83.00 | 9.6:1 | 23 | 29.59 | Wiseco | Skirt | 2618 | NC | -7.1 | NC | 8300XX |
| K9494D050 | 83.00 | 9.6:1 | 23 | 29.6 | Wossner | NC | NC | Round | -8.93 | NC | 830XPY |
| K9494D050 | 83.00 | 9.6:1 | 23 | 29.6 | Wossner | NC | NC | Round | -8.93 | NC | 830XPY |
| JE-353863 | 83.00 | 10:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -5.2 | NC | NC |
| JE-353863 | 83.00 | 10:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -5.2 | NC | NC |
| JE-353856 | 83.00 | 10:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -5.2 | NC | NC |
| JE-353856 | 83.00 | 10:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -5.2 | NC | NC |
| K9540D100 | 83.50 | 9.5:1 | 23 | 29.6 | Wossner | NC | NC | NC | -8.93 | NC | GNH83.50 |
| K9540D100 | 83.50 | 9.5:1 | 23 | 29.6 | Wossner | NC | NC | NC | -8.93 | NC | GNH83.50 |
| JE-353861 | 83.50 | 9.6:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -8.4 | NC | NC |
| JE-353861 | 83.50 | 9.6:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -8.4 | NC | NC |
| JE-353858 | 83.50 | 9.6:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -8.4 | NC | NC |
| JE-353858 | 83.50 | 9.6:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -8.4 | NC | NC |
| JE-367865 | 83.50 | 9.6:1 | 23 | 29.3 | JE Ultra Series | Crown + Skirt | 2618 | FSR | -7.0 | 292 | NC |
| JE-367865 | 83.50 | 9.6:1 | 23 | 29.3 | JE Ultra Series | Crown + Skirt | 2618 | FSR | -7.0 | 292 | NC |
| K9494D100 | 83.50 | 9.7:1 | 23 | 29.6 | Wossner | NC | NC | Round | -8.93 | NC | 835XPY |
| K9494D100 | 83.50 | 9.7:1 | 23 | 29.6 | Wossner | NC | NC | Round | -8.93 | NC | 835XPY |
| JE-353864 | 83.50 | 10:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -5.8 | NC | NC |
| JE-353864 | 83.50 | 10:1 | 23 | 29.6 | JE FSR | NC | 2618 | FSR | -5.8 | NC | NC |
| JE-353857 | 83.50 | 10:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -5.8 | NC | NC |
| JE-353857 | 83.50 | 10:1 | 23 | 29.6 | JE Round | NC | 2618 | Round | -5.8 | NC | NC |
Compatibility (engine codes):
vehicles original equipped des EA888 Gen3/Gen4 :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Audi | A3 8V 2.0 TFSI | CHHB | 220 hp | 2015 – 2020 |
| Audi | A3 8V 2.0 TFSI | CNTA/CNTC | 190–220 hp | 2013 – 2020 |
| Audi | A3 8Y 2.0 TFSI | DJKA | 190–204 hp | 2020 – present |
| Audi | A4 B9 (8W) 2.0 TFSI | CVKB/DBPA | 190 hp | 2015 – present |
| Audi | A4 B9 (8W) 2.0 TFSI | CYMC/CYRB/CYRC | 249–252 hp | 2015 – 2019 |
| Audi | Q3 F3 2.0 TFSI | DJHA/DJHB | 190–230 hp | 2018 – present |
| Audi | S1 8X 2.0 TFSI quattro | CWZA | 231 hp | 2014 – 2018 |
| Audi | S3 8V | CJXB/CJXC | 300–310 hp | 2013 – 2020 |
| Audi | S3 8Y | DNFB/DNUE | 310 hp | 2020 – present |
| Audi | TT 8S TTS | CJX* | 306–310 hp | 2015 – 2023 |
| Cupra | Ateca 2.0 TSI | DNUE | 300 hp | 2018 – present |
| Cupra | Formentor VZ 2.0 TSI 4Drive | DNFB | 310 hp | 2020 – present |
| Cupra | Leon (KL) 2.0 TSI | DNPA | 300 hp | 2020 – present |
| KTM | X-Bow Comp R 2.0 TFSI | EA888 Gen3 (base CJX) | 300 hp | 2019 – present |
| SEAT | Leon 5F Cupra | CJXA/CJXB/CJXC/CJXD/CJXG/CJXH | 265–310 hp | 2014 – 2020 |
| Skoda | Karoq 2.0 TSI 4x4 | DKZA | 190 hp | 2017 – present |
| Skoda | Kodiaq RS 2.0 TSI | DNPA | 245 hp | 2021 – present |
| Skoda | Octavia III (5E) RS 2.0 TSI | CHHA/CHHB | 220–245 hp | 2013 – 2020 |
| Skoda | Octavia IV (NX) RS 2.0 TSI | DNPA/DLBA | 245 hp | 2020 – present |
| Skoda | Superb III (3V) 2.0 TSI 4x4 | CJXA/CJXB | 220–280 hp | 2015 – 2020 |
| Volkswagen | Arteon 2.0 TSI | DKZA | 190–206 hp | 2017 – present |
| Volkswagen | Golf VII GTI | CHHA/CHHB/CHHC | 220–245 hp | 2013 – 2020 |
| Volkswagen | Golf VII R | CJXB/CJXC/CJXD/CJXG/CYFB | 300–310 hp | 2014 – 2020 |
| Volkswagen | Golf VIII GTI | DNFB/DNFD | 245–265 hp | 2020 – present |
| Volkswagen | Golf VIII R | DNF* | 320 hp | 2020 – present |
| Volkswagen | Passat B8 2.0 TSI | DKZA/CZPB | 190–220 hp | 2014 – 2023 |
| Volkswagen | Tiguan II (AD1) 2.0 TSI | DKZA | 180–190 hp | 2016 – present |
OEM piston references :
Machining required for oil squirter :
The K758 pistons require light manual machining with a Dremel to allow clearance for the oil squirter on the EA888 GEN3/GEN4 engine block.
This simple operation involves creating a clearance on the piston skirt to prevent contact with the cooling oil injector during engine operation.
Recommendations:
Machining should be performed by a professional or experienced engine builder.
Check the alignment before final installation.
Standard operation on this type of high-compression configuration.
This modification is common in engine preparation and does not compromise the strength or performance of the forged piston.
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
