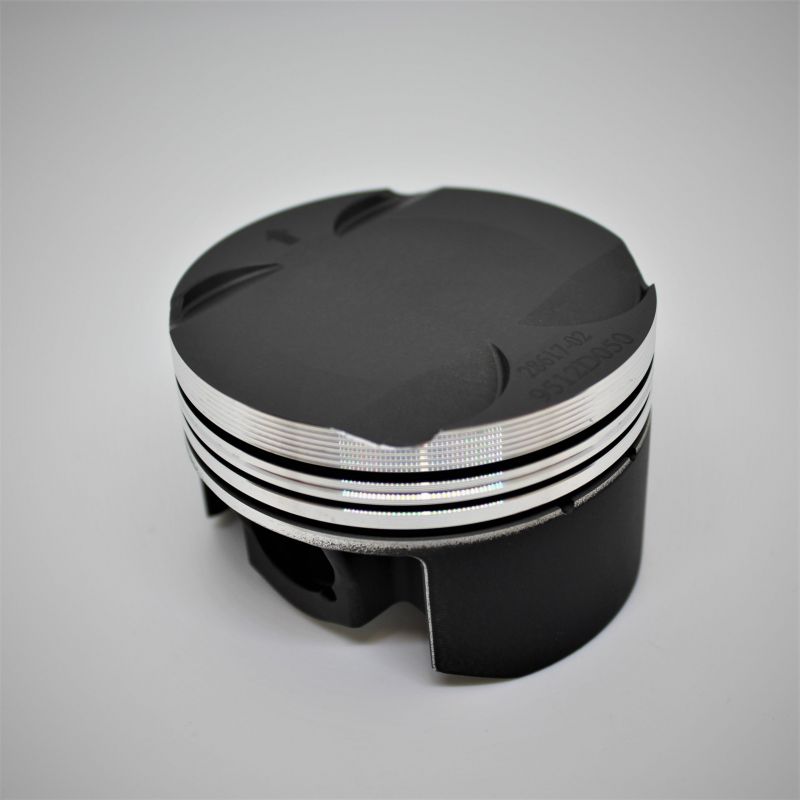

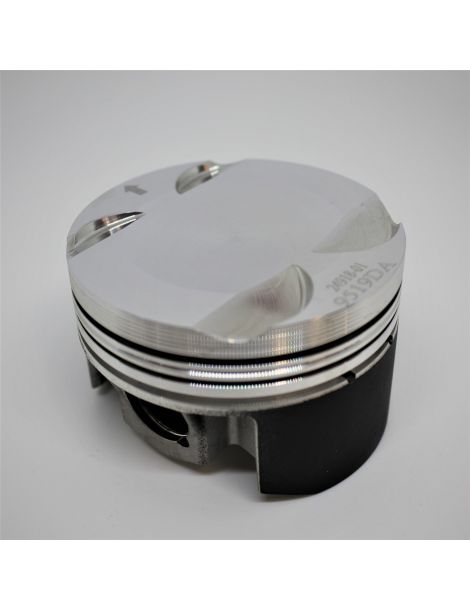

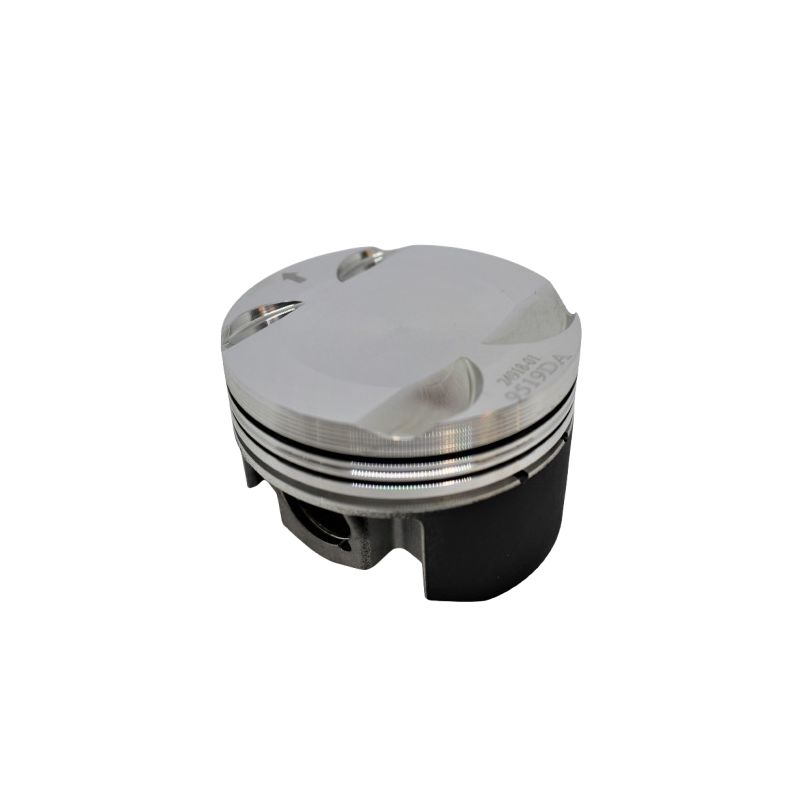

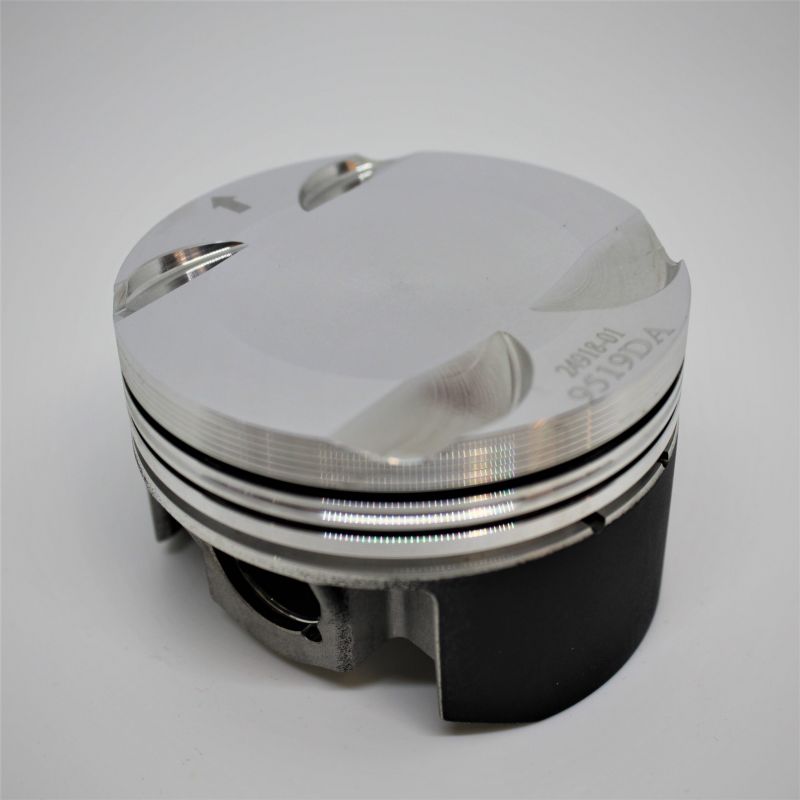

Forged Pistons 1.4L 16v EA211 VW Audi

New product

Forged pistons for VW/Audi 1.4L 16v EA211: Bore 74.5 mm, Volume ratio 10.0:1, Pin 19 mm. Dome/weight according to reference, Rings included. COMPatibilities A3, Golf 7, Leon, Octavia, JEtta.

More details

786,24 € tax incl.

-30%

1 123,20 € tax incl.

  • TSI/TFSI EA211 VW/Audi 74.5 mm Pin 19 mm

    Characteristics of the forged pistons offered by NSB Concept for Volkswagen / Audi 1.4 L 16 V EA211:

    ReferenceBore OEM
    74.50mm    		OEM CR OEMPin OEM
    19mm    		Original Pin Height
    30.00mm    		RangeCoatingAluminiumForgingDomeWeightRings
    K9512DA74.510.5:11931WossnerNCNCRound-2.9NC745XPZ
    K9519DA74.510.5:11931WossnerNCNCNC-2.9NC745XPZ
    K9512D05075.010.5:11931WossnerNCNCRound-2.9NC750XPZ
    K9519D05075.010.5:11931WossnerNCNCNC-2.9NC750XPZ


    COMPatibilities (engine codes):

    • CHPA 1.4 TSI 122 hp
    • CMBA 1.4 TSI 140 hp
    • CPTA 1.4 TSI ACT 140 hp
    • CZCA 1.4 TSI 125 hp
    • CZDA 1.4 TSI 150 hp
    • CZEA 1.4 TSI ACT 150 hp
    • CZTA 1.4 TSI 150 hp (NAR)
    • CVNA 1.4 TFSI 150 hp (Audi A4 B9)


    Original vehicles equipped with the 1.4 EA211:

    BrandModelEngine CodePowerYears
    AudiA3 8V 1.4 TFSICHPA/CMBA122 140 hp2012 2014
    AudiA3 8V 1.4 TFSI COD UltraCZEA/CZDA150 hp2014 2016
    AudiA4 B9 1.4 TFSICVNA150 hp2016 2018
    SEATLeon 5F 1.4 TSICHPA/CMBA/CZEA122 150 hp2012 2018
    SkodaOctavia III (5E) 1.4 TSICMBA/CZEA/CZDA140 150 hp2013 2020
    VolkswagenGolf Sportsvan 1.4 TSICZCA/CZDA125 150 hp2014 2018
    VolkswagenGolf VII (Mk7) 1.4 TSICHPA/CMBA/CZEA/CZDA122 150 hp2012 2018
    VolkswagenJEtta Mk6 (NAR) 1.4 TSICZTA150 hp2016 2018


    Pistons manufacturer references (OEM):

    • VW/Audi 1.4 EA211: 04E 107 065 ED.
    • VW/Audi 1.4 EA211: 04E 107 065 FA.
    • VW/Audi 1.4 EA211: 04E 107 065 GH.
    • VW/Audi 1.4 EA211: 04E 107 065 GN.
    • VW/Audi 1.4 EA211: 04E 107 065 GR.
    • VW/Audi 1.4 EA211: 04E 107 065 HM.
    • VW/Audi 1.4 EA211: 04E 107 065 HQ.

    Attention:before any assembly, please check the integrity and conformity of each component of the Pistons kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the Piston kit only.

    Forged pistons for VW/Audi 1.4L 16v EA211: Bore 74.5 mm, Volume ratio 10.0:1, Pin 19 mm. Dome/weight according to reference, Rings included. COMPatibilities A3, Golf 7, Leon, Octavia, JEtta.

    Forged pistons 1.4 TSI/TFSI EA211 VW/Audi 74.5 mm Pin 19 mm

    VW/Audi 1.4 EA211 pistons: Bore 74.5 mm, Volume ratio 10.0:1, Pin 19 mm. COMPatibilities A3, Golf 7, Leon, Octavia, JEtta. Rings included according to references.

    VW,Audi,EA211,1.4 TSI,1.4 TFSI,CHPA,CMBA,CZEA,CZDA,CZCA,CZTA,CVNA,Forged Pistons,74.5mm,19mm Pin
