Forged connecting rods Honda K20C 2.0 16V i-VTEC turbo (Civic Type R FK8) for forged pistons

The Honda K20C engine (2.0 16V i-VTEC turbo)

The K20C is the first 2.0 L (1996 cc) four-cylinder in Honda's K family to be turbocharged: sixteen valves, twin cam, i-VTEC variable timing and a direct-injection turbo. Coded K20C1, it has powered the Honda Civic Type R since 2015, the FK2, then FK8 and finally FL5 generations, with factory outputs from 306 to 330 hp and strong torque available from low rpm. As ignition advance, boost and injection are pushed, tuning a K20C quickly raises cylinder pressure well beyond what the factory sintered rods can absorb. On this turbo engine, it is precisely those rods that become the weak link of the rotating assembly as torque rises. Replacing them with weight-matched forged rods is the first step towards a reliable, durable K20C under hard use.

The forged connecting rods

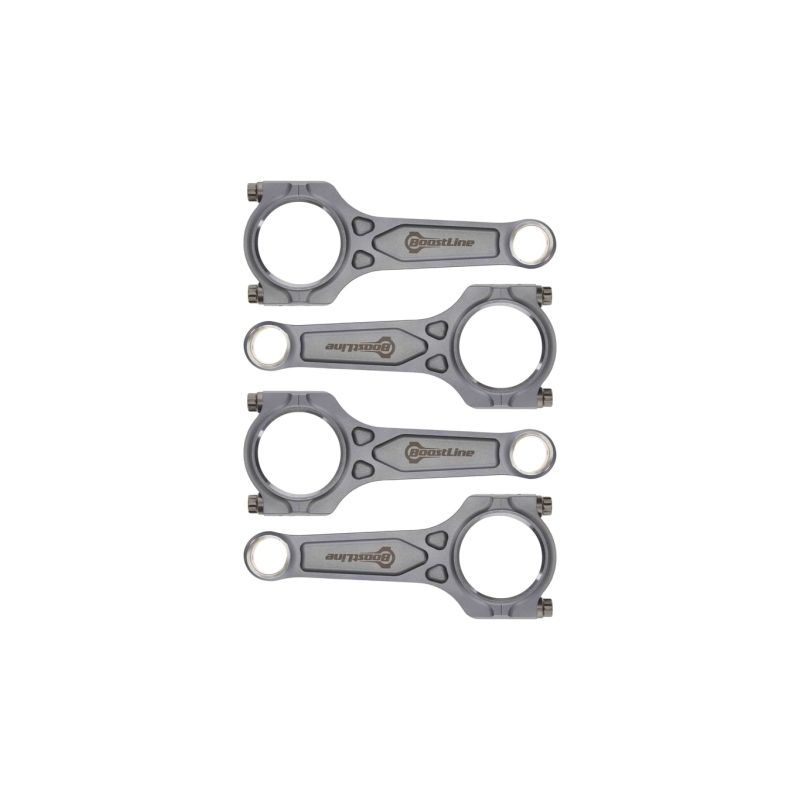

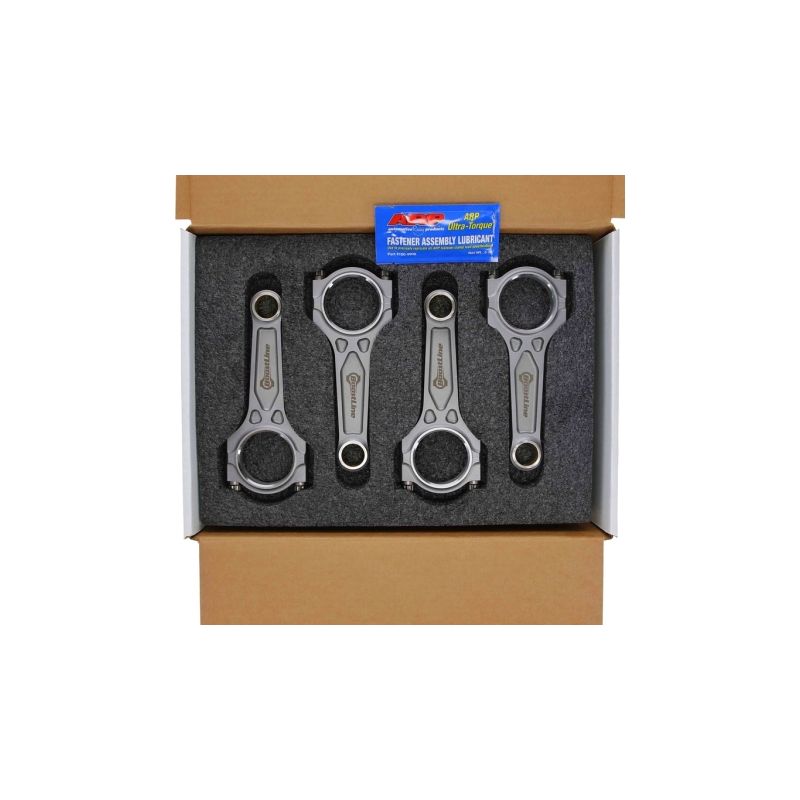

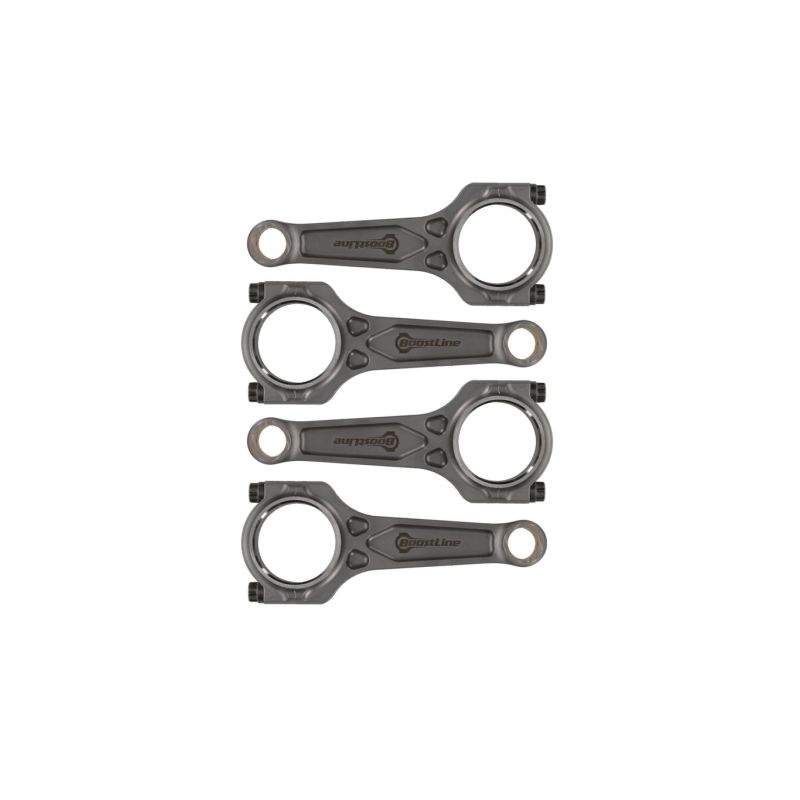

Drop-forged and precision-machined, these rods withstand compression, bending and fatigue loads far beyond those the factory sintered K20C rods tolerate. They suit every sporting, high-load use: circuit, time attack, drift, drag, rally and hillclimb. Depending on the build, they support a raised-boost Stage 2 as readily as a Stage 3 or a Stage 4 pushed in boost and engine management. Supplied as a complete set of 4, weight-matched, they preserve the balance of the rotating assembly and the resistance to the high loads typical of a turbo engine. All keep the K20C's 22 mm piston pin, for a center-to-center length close to 143.7 mm.

Technical specifications of the K20C forged rods (22 mm pin)

Tightening torque and stretch

On these rods, tightening is controlled by bolt stretch, measured with a gauge, rather than by torque alone. The values below are given as a guide: always follow the bolt manufacturer's instructions.

Forged rods technical guide

4340 forged steel

These rods are forged from 4340 low-alloy nickel-chromium-molybdenum steel, the benchmark for high-performance rods. Forged, then quenched and tempered, it keeps a continuous grain flow that gives high tensile strength and excellent fatigue life, two decisive qualities on a heavily stressed turbo K20C. Compared with a cost-optimised sintered factory rod, a forged 4340 rod gains about +19% yield strength, +8% tensile strength and +19 to +37% in fatigue endurance. It is this margin that lets a K20C with raised boost and torque absorb cylinder-pressure peaks without breakage.

The rod profile

The range comes in two I-beam profiles: the Boostline I-3P, designed for the most demanding turbo builds, and the optimised Wössner I (A-Beam), compact and versatile. The specification table gives, for each reference, the center-to-center length, big-end diameter, big-end width and weight, to choose by power target.

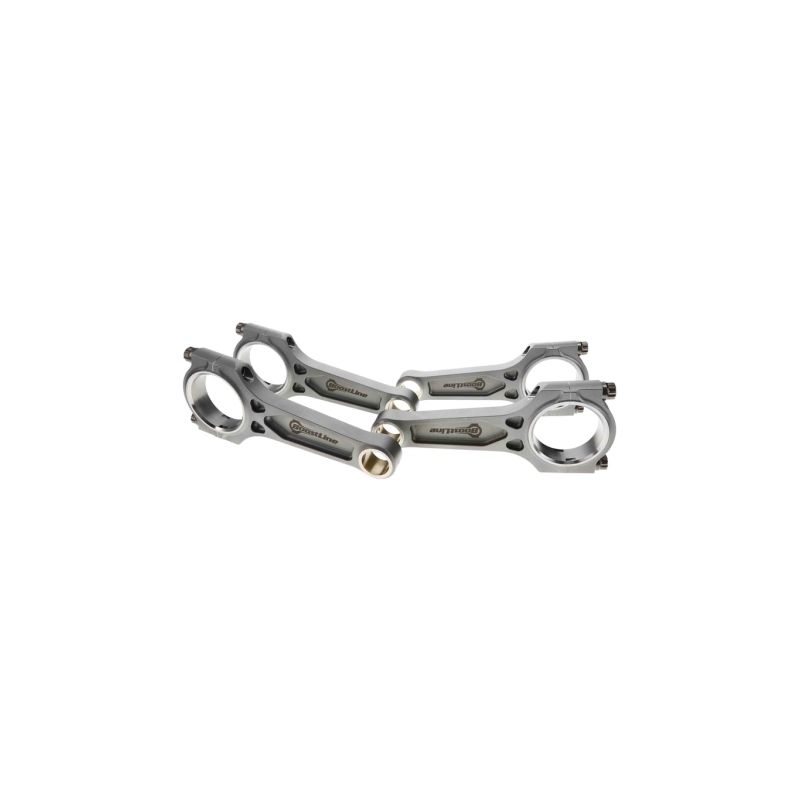

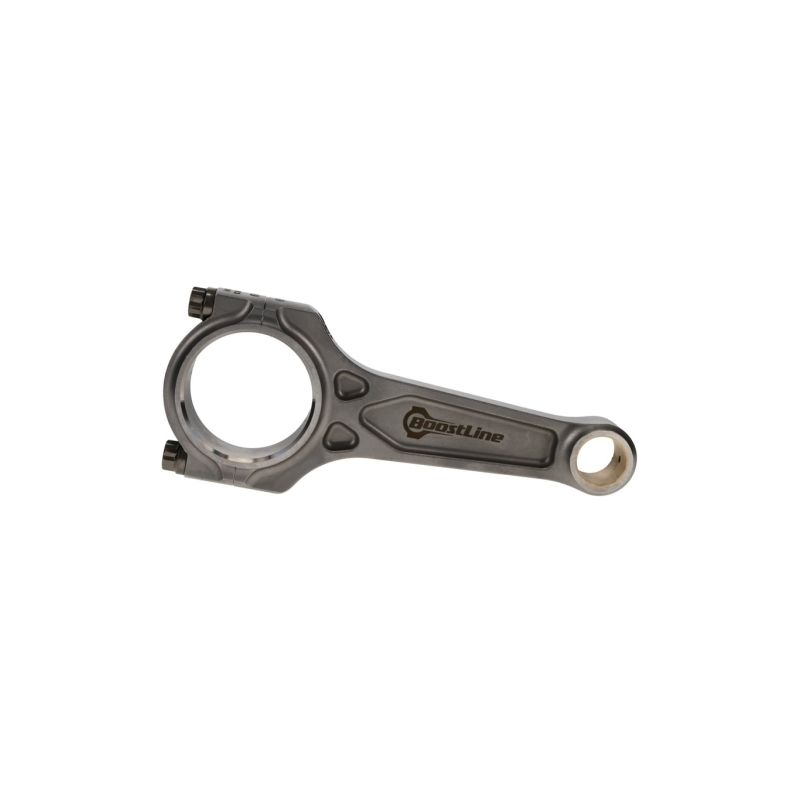

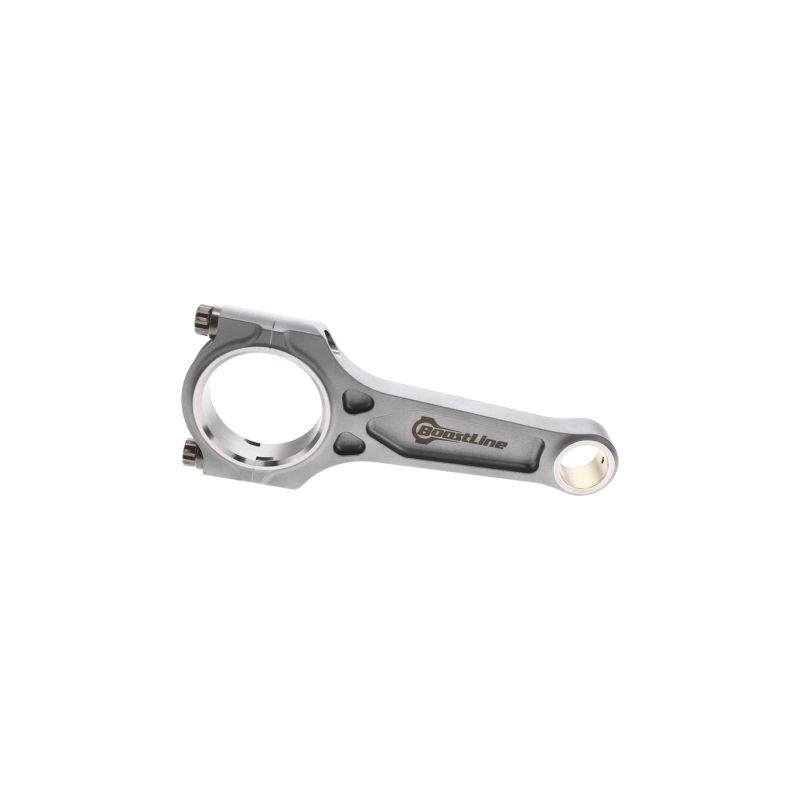

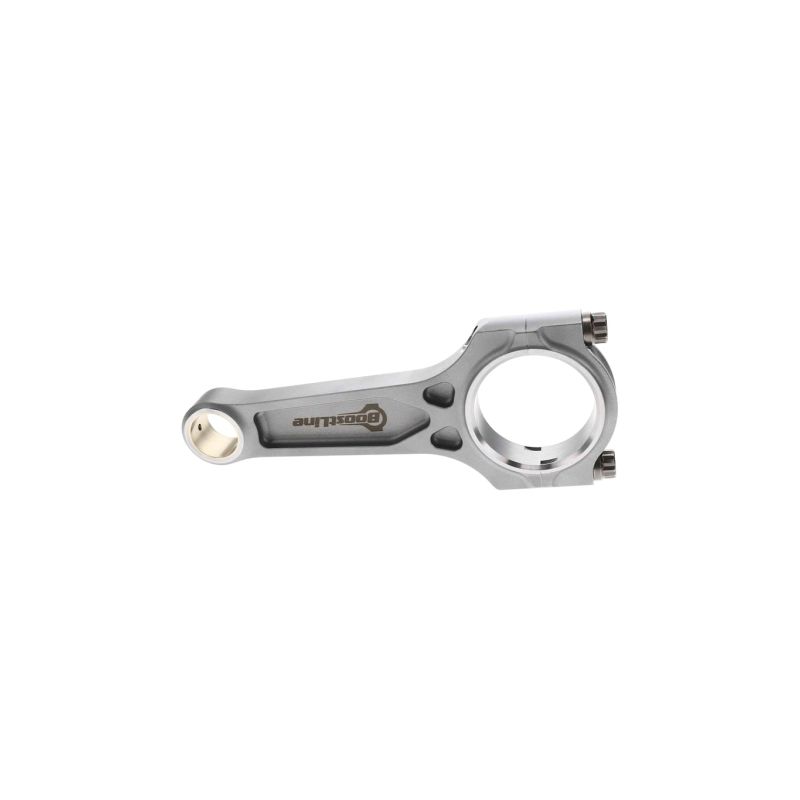

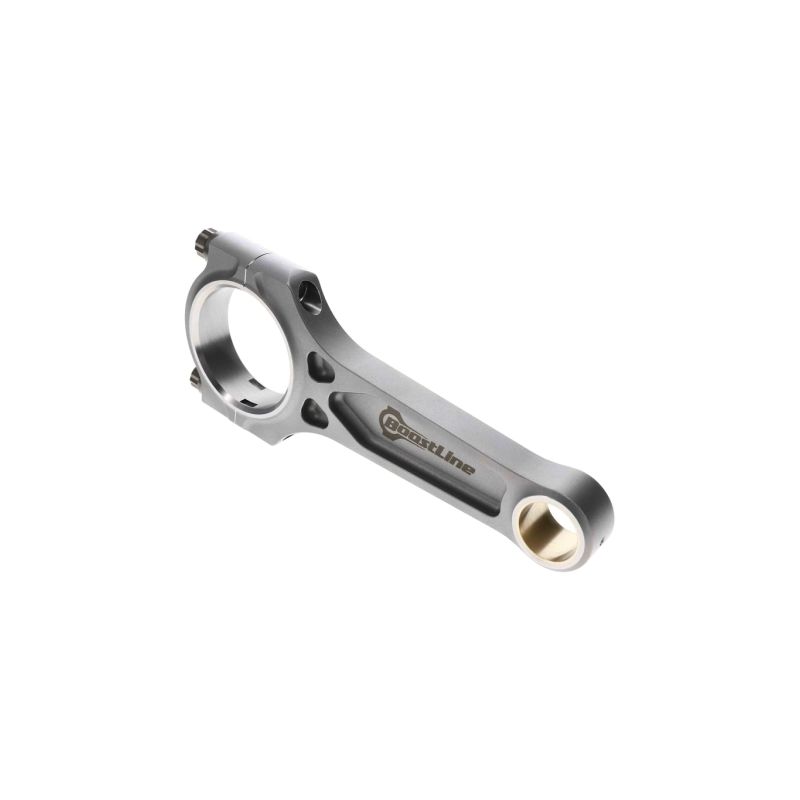

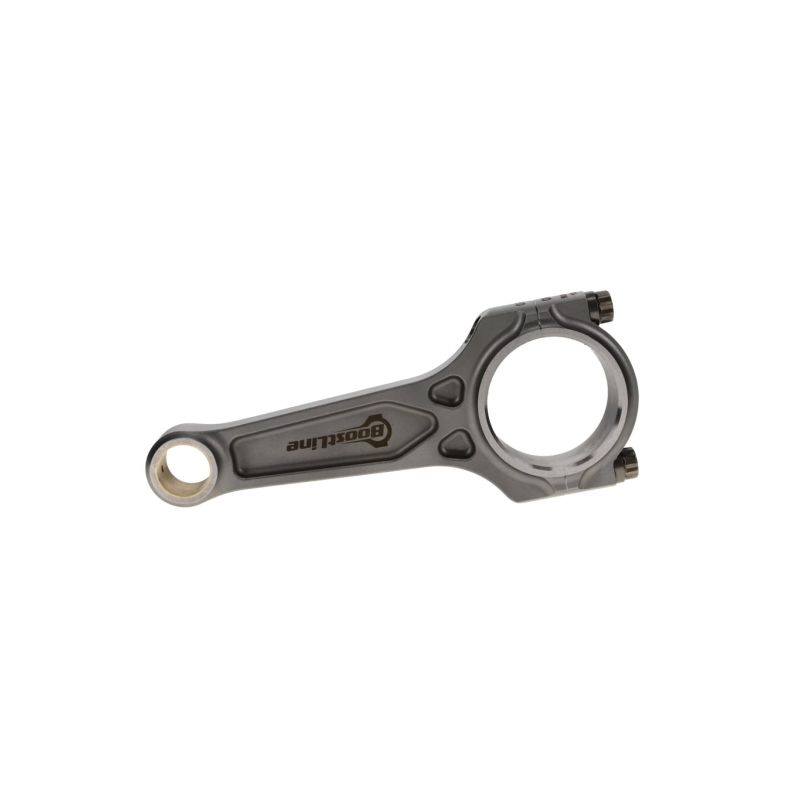

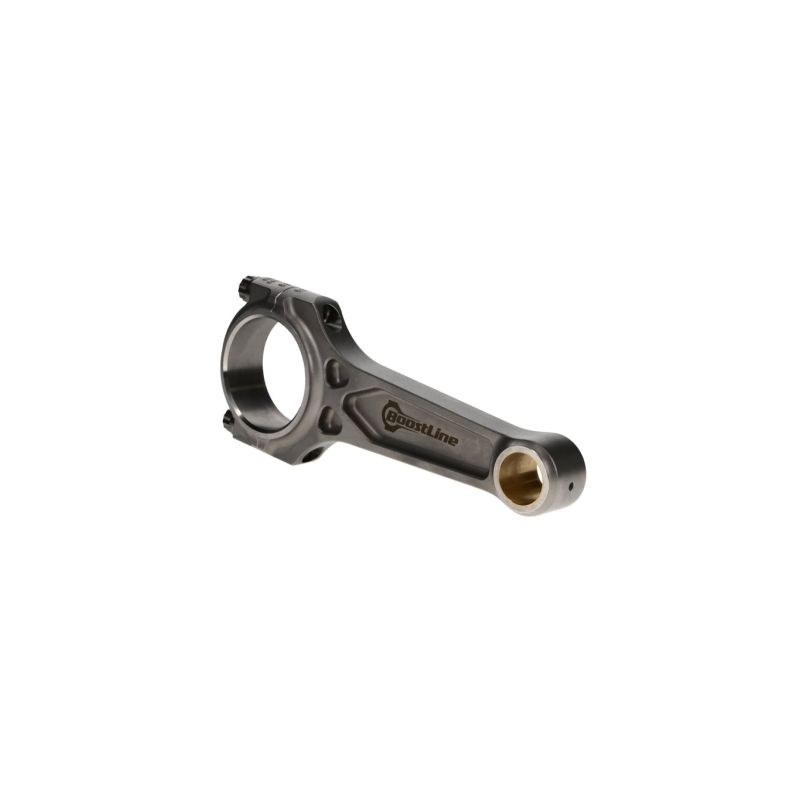

	I-3P profile: three-pocket I-beam by Boostline; its computer-optimised section delivers an outstanding stiffness-to-weight ratio and excellent buckling resistance, tailored to K20C turbo builds pushed in boost and torque.
	I profile: optimised I-beam by Wössner (A-Beam); compact and stiff, it combines lightness and strength for a reliable K20C in sporting use, from high rpm to controlled boost increases.

How to choose your rod bolts?

	ARP 2000: the all-round benchmark alloy, with a tensile strength of about 220,000 psi (1,517 MPa). Offered here in 3/8" diameter, it covers the vast majority of K20C builds, up to about 200 hp per cylinder, at speeds reaching 8,500 rpm. It is the default choice for a reliable turbo K20C.
	ARP CA625+: a premium, corrosion-resistant alloy (approx. 260,000 psi / 1,793 MPa), reserved for the K20Cs most stressed in torque and boost. In 3/8" diameter, it offers the range's maximum safety margin for extreme turbo builds.

Measuring bolt stretch

Discover the ARP stretch gauge

The brands offered

	Boostline designs its three-pocket I-3P profile through structural analysis, for a top-level stiffness-to-weight ratio on turbo engines.
Wössner	Wössner, a respected European maker, offers its optimised I-beam (A-Beam), compact and strong.

Glossary

1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center

Vehicle compatibility

These forged rods fit the Hondas powered by the 2.0 L 16V i-VTEC turbo K20C1 engine, the modern Civic Type R line:

OEM reference: 13210-6B2-A00 (set of 4 rods).

Why is it the most economical solution?

A set of forged rods costs vastly less than a blown engine: on a K20C pushed in boost and torque, a factory rod that lets go takes out the block, the crankshaft and often the head. By fitting weight-matched forged rods from the outset, you make your turbo build reliable for the long term and spare yourself a full rebuild, for a negligible extra cost next to the price of a new engine.
