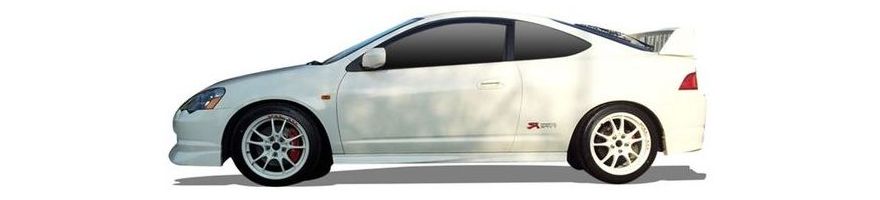

HONDA Integra Coupé (DC5) since 2002
Manufacturers
HONDA Integra Coupé (DC5) since 2002
Subcategories
This page gathers the uprated engine parts we stock for the K20A3 unit of the HONDA Integra Coupé (DC5) 160hp.
You will find forged connecting rods from ZRP, MANLEY, BOOSTLINE and WOSSNER at the standard centre to centre length, plus two ZRP stroker lengths of 135.5mm and 148.5mm. The ACL RACE and KING RACING tri-metal main bearings come in standard size and in +0.025mm, +0.026mm and +0.25mm oversizes, together with the matching thrust washers.
On the cylinder head side we list the SUPERTECH 5.5mm valve stem seals, intake and exhaust, and the SUPERTECH 5.5mm valve collets in kits for 8 or 16 valves.
This page brings together the uprated engine parts we stock for the K20Z1 unit of the HONDA Integra Coupé Type-S (DC5) 209hp.
The cylinder head comes first here, with the SUPERTECH 5.5mm valve stem seals in intake and exhaust versions, and the single groove SUPERTECH 5.5mm valve collets in kits for 8 or 16 valves.
The rotating assembly is covered by forged connecting rods from ZRP, MANLEY, BOOSTLINE and WOSSNER at the standard centre to centre length, with two ZRP stroker lengths of 135.5mm and 148.5mm on top. ACL RACE and KING RACING thrust washers are listed as well; the main bearings themselves sit on the neighbouring pages of this generation.
This page brings together the uprated engine parts we stock for the K20Z1 unit of the HONDA Integra Coupé Type-R (DC5) 220hp.
Forged connecting rods are the heart of the range: ZRP, MANLEY, BOOSTLINE and WOSSNER at the standard centre to centre length, then two ZRP stroker lengths of 135.5mm and 148.5mm, each set offered with its ARP2000, L19 or CA625+ con rod bolts depending on the version chosen.
The ACL RACE and KING RACING tri-metal main bearings, available up to a +0.25mm oversize, and their thrust washers look after the bottom end. On the head side we list the SUPERTECH 5.5mm valve stem seals and the valve collets of the same diameter.
Set of 8 SUPERTECH exhaust valve guides for the Honda K20 / K24 2.0 and 2.4 16V DOHC VTEC. Manganese bronze, for 5.5 mm valve stems. Outside diameter 11.065 mm, length 45.6 mm.
Set of 8 SUPERTECH intake valve guides for the Honda K20 / K24 2.0 and 2.4 16V DOHC VTEC. Manganese bronze, for 5.5 mm valve stems. Outside diameter 11.065 mm, length 41.6 mm.
ARP2000 rod bolts replacing the original bolts on OEM rods of Honda and Acura K20A and K20Z engines.Brand: ARP Engine: K20A, K20A1, K20A2, K20A3, K20A4, K20A5, K20A6, K20A7, K20A8, K20A9, K20Z1, K20Z2, K20Z3, K20Z4 Dimensions: 3/8 in x 38 mm Grade: ARP2000
Reinforced Athena and Cometic head gasket, in Cut Ring, MLS and MLX for K20A and K20Z1. Sold individually.Brands: Athena, CometicEngines: K20A, K20A1, K20A2, K20A3, K20A4, K20A5, K20A9, K20Z1, K24A1Bores: 86 to 90 mmThicknesses: 0.46 to 3.56 mm
Set of 32 SUPERTECH valve collets for 5.5mm valves: Choice of keeper grooves Reference: KPR-5.5-7A-ST-32 Fits Honda F20C, D16Z6, D16Y8, D16Y6, D16Y7, D15B, D17A, H22A VTEC, CR-Z, LEA, L15A, F22C, K20A4, K24Z7 DOHC VTEC, K20C1, B16A, B17A, R18A SOHC I-VTEC, K24A2, K20A2, K20A3, K20Z1, K20Z3, K24Z1, K24Z3; Acura B18C5, B18C1, K24A2, K24Z7 DOHC VTEC, B16A,...
Set of 8 SUPERTECH 5.5mm valve stem seals for the exhaust valves, HONDA. Exhaust side only: the intake valve version is a separate item.Fitment (engine code): 1.5L 16v - L15A LEA; 1.6L 16v - B16A; 1.7L 16v - B17A; 1.7L 16v - D17; 1.8L 16v - B18C1; 1.8L 16v - B18C5; 2.0L 16v - F20C; 2.0L 16v - K20A/Z; 2.2L 16v - F22C; 2.2L 16v - H22; 2.4L 16v - K24; 1.6L...
Set of 8 SUPERTECH valve stem seals 5.5mm for the INTAKE valves of HONDA L15 B16 B17 D16 D17 B18 F20 F22 H22 K20 K24 R18Fits Honda 1.5L 16v L15A LEA, 1.6L 16v B16A, 1.7L 16v B17A, 1.7L 16v D17, 1.8L 16v B18C1, 1.8L 16v B18C5, 2.0L 16v F20C, 2.0L 16v K20A/Z, 2.2L 16v F22C, 2.2L 16v H22, 2.4L 16v K24, 1.6L 16v D16Z, 1.6L 16v D16Y7, 1.6L 16v D16Y8, 1.8L 16v...
Set of ACL RACE / KING RACING thrust washers for HONDA 1.5 1.6 1.8 2.0 2.2 2.3 2.4 engines
Tri-metal main bearings ACL RACE / KING RACING for HONDA B16 B17 B18 B20 K20 K24
Set of 8 trimetal connecting rod half-bearings for the Honda K20 and K24.Brands and treatments: ACL Race, ACL Calico and King Racing XPC Compatibility: Civic Type R, Integra Type R, Accord, CR-V, Element, Odyssey Engine codes: K20A2, K20Z1, K20C1, K24A1, K24A3, K24A4, K24A8, K24Z1 Available sizes: standard to +0.50 mm, increased-clearance versions (HX,...
kit 16 half-moons / keys for SUPERTECH valves-diameter 5.5mm:Number of groove(s) to choose fromReference:-KPR-5.5-7A-ST-16
The HONDA Integra Coupé (DC5), 2002 on is covered here by three K-series engines: the 2.0 K20A3 at 160hp, the 2.0 Type-S K20Z1 at 209hp and the 2.0 Type R K20Z1 at 220hp.
What the category actually holds:
