Thrust washer set for HONDA 1.5 1.6 1.8 2.0 2.2 2.3 2.4 engines

Thrust washer sets ACL Race and King Racing for HONDA 1.5 1.6 1.8 2.0 2.2 2.3 2.4 engines are made up of 4 thrust washers.

Technical characteristics:
Minimum standard shaft size: 61.25mm
Maximum standard shaft size: 61.5mm
Minimum standard tunnel size: 81.75mm
Maximum standard tunnel size: 82mm
Maximum total length: 2.5mm

Possible ACL choices:

• Size(s): standard
• Anti-friction coating: without
• Reference: 1T1957

ACL Race Series thrust washers are manufactured to exacting tolerances. Numerical control machining is carried out to micron precision, followed by a metrology check of the diameter, thickness and width of the ACL Race Series thrust washer. This ensures a reliable and consistent fit in your engine.

Possible King Racing choices:

• Size(s): standard
• Anti-friction coating: without

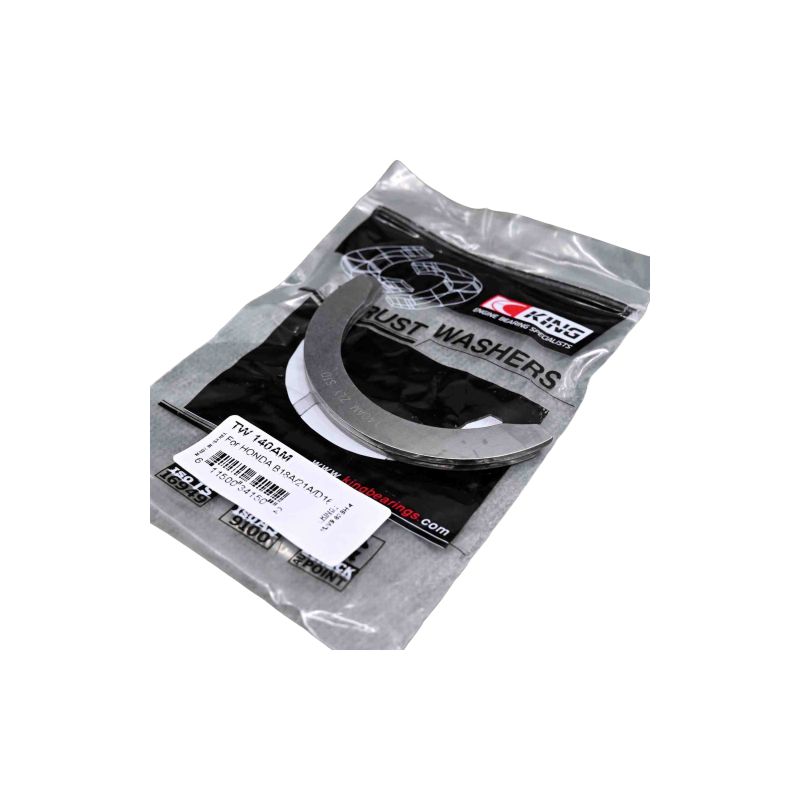

• Reference: TW 140AM

Since 1960, King Racing has designed and manufactured high-performance, high-quality thrust washers. Beyond its high-performance production machinery, King Racing relies on simulation software to analyse the thermodynamics, dynamics and elasto-hydrodynamics of its thrust washers.

Compatible with engines:
