Forged connecting rods Honda K20 2.0 16V i-VTEC (Civic Type R EP3, Integra DC5) for forged pistons

The Honda K20 engine (2.0 16V i-VTEC)

The K20 is the naturally aspirated 2.0 L (1998 cc) four-cylinder of Honda's K family: sixteen valves, twin cam and i-VTEC variable timing acting on valve lift and phasing. In its most potent forms (K20A, K20A2, K20Z1) it spins to around 8,400 rpm and makes 200 to 220 hp without forced induction, which made it the engine of the Honda Civic Type R EP3, Integra Type R DC5 and Acura RSX Type-S. Revved hard, prepared for track use or converted to forced induction (turbo or supercharger), a K20 quickly raises cylinder pressure and inertia loads beyond what the factory sintered rods can absorb. It is then those rods that become the weak link of the rotating assembly, whether the goal is high rpm or load. Replacing them with weight-matched forged rods is the first step towards a reliable, durable K20 under hard use.

The forged connecting rods

Drop-forged and precision-machined, these rods withstand compression, bending and fatigue loads far beyond those the factory sintered K20 rods tolerate. They suit every sporting, high-load use: circuit, time attack, drift, drag, rally and hillclimb. Depending on the build, they support a high-revving, high-compression naturally aspirated K20 as readily as a Stage 2, Stage 3 or Stage 4 turbo or supercharger conversion. Supplied as a complete set of 4, weight-matched, they preserve the balance of the rotating assembly and the resistance to the repeated high-rpm sweeps typical of i-VTEC. All keep the K20's 22 mm piston pin, for a center-to-center length close to 139 mm.

Technical specifications of the K20 forged rods (22 mm pin, 139 mm center-to-center)

Tightening torque and stretch

On these rods, tightening is controlled by bolt stretch, measured with a gauge, rather than by torque alone. The values below are given as a guide: always follow the bolt manufacturer's instructions.

Forged rods technical guide

4340 forged steel

These rods are forged from 4340 low-alloy nickel-chromium-molybdenum steel, the benchmark for high-performance rods. Forged, then quenched and tempered, it keeps a continuous grain flow that gives high tensile strength and excellent fatigue life, two decisive qualities on a K20 that revs high and long. Compared with a cost-optimised sintered factory rod, a forged 4340 rod gains about +19% yield strength, +8% tensile strength and +19 to +37% in fatigue endurance. It is this margin that lets a K20 pushed in rpm or boost absorb cylinder-pressure peaks and inertia loads without breakage.

The rod profile

The range comes in three profile families: the H (ZRP, Manley), versatile; the optimised Wössner I and its reinforced I-HD version (ZRP, Manley); and the Boostline I-3P for the most demanding builds. The specification table gives, for each reference, the center-to-center length, big-end diameter, big-end width and weight, to choose by power and rpm target.

	H profile: H-beam offered by ZRP and Manley; its two flat flanks give excellent bending stiffness for a contained weight, a versatile, proven choice for most naturally aspirated and lightly boosted K20 builds.
	I and I-HD profiles: I-beam offered by Wössner (A-Beam, optimised and compact) and in a reinforced I-HD (Heavy Duty) version by ZRP and Manley; this profile combines lightness and strength and favours compression resistance, ideal for a K20 pushed in rpm or load.

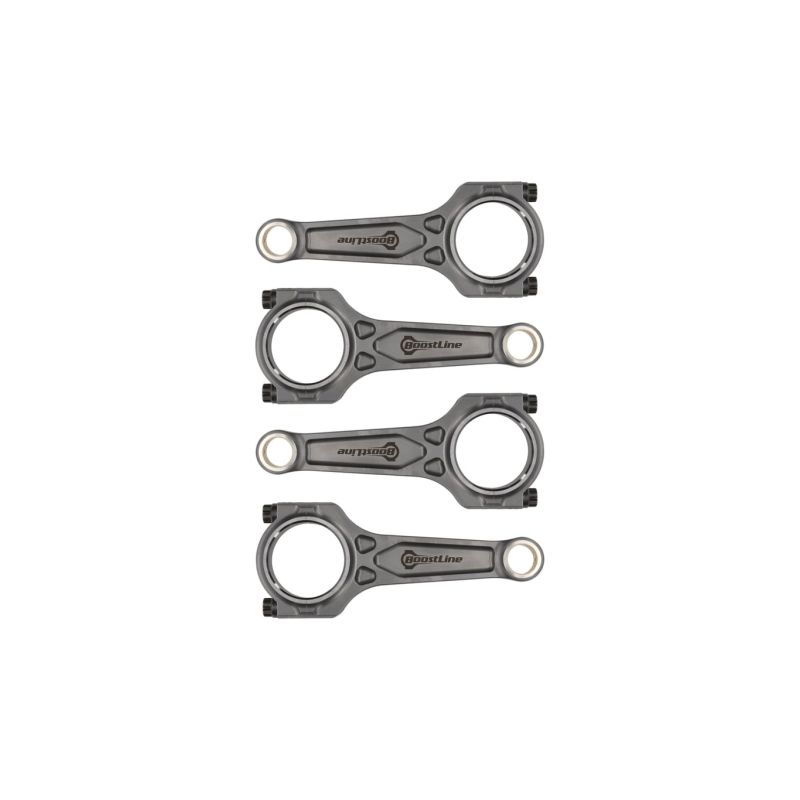

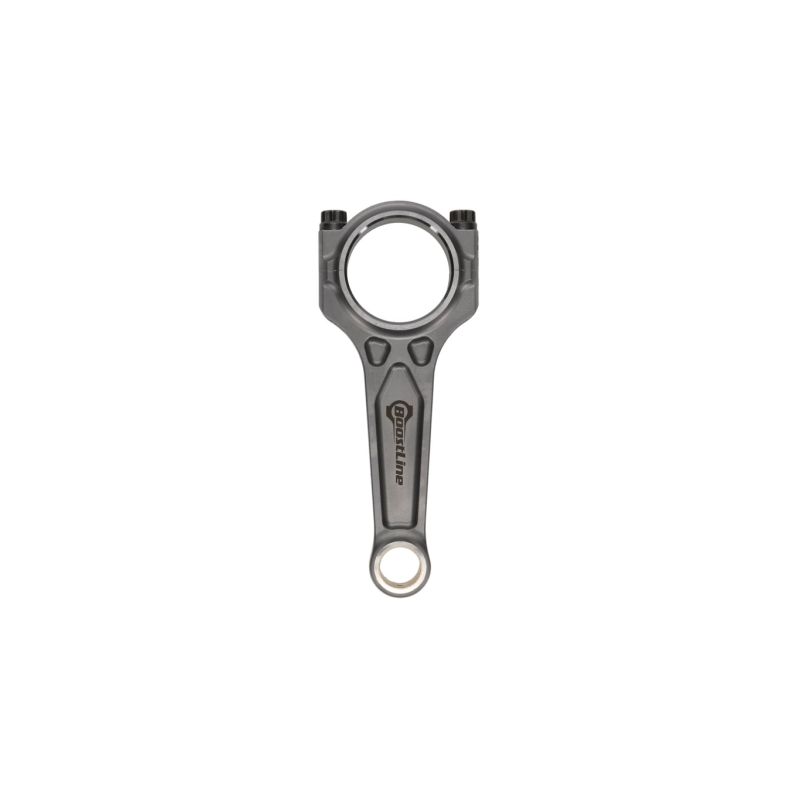

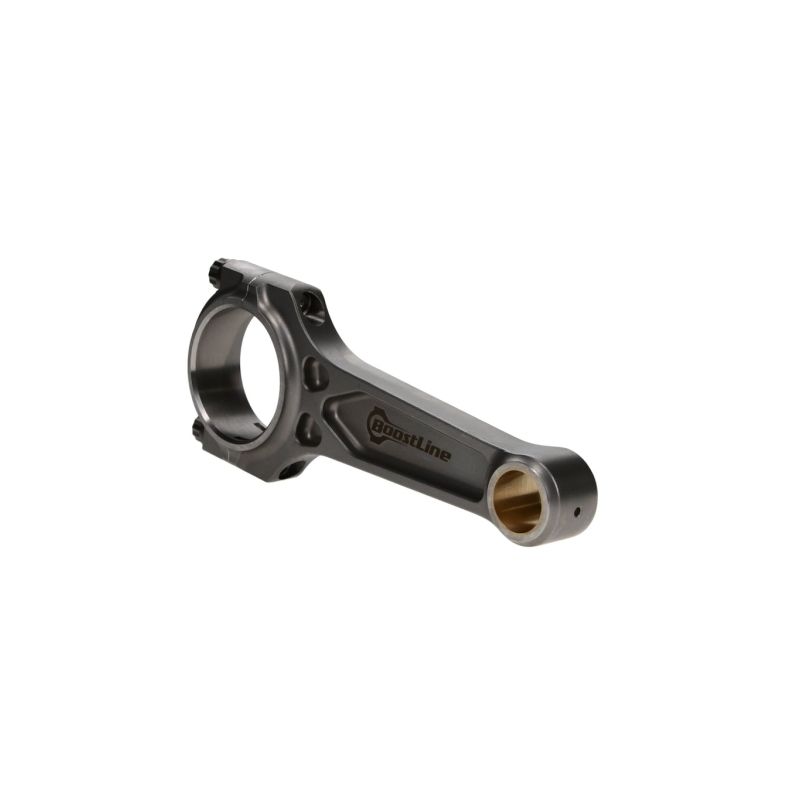

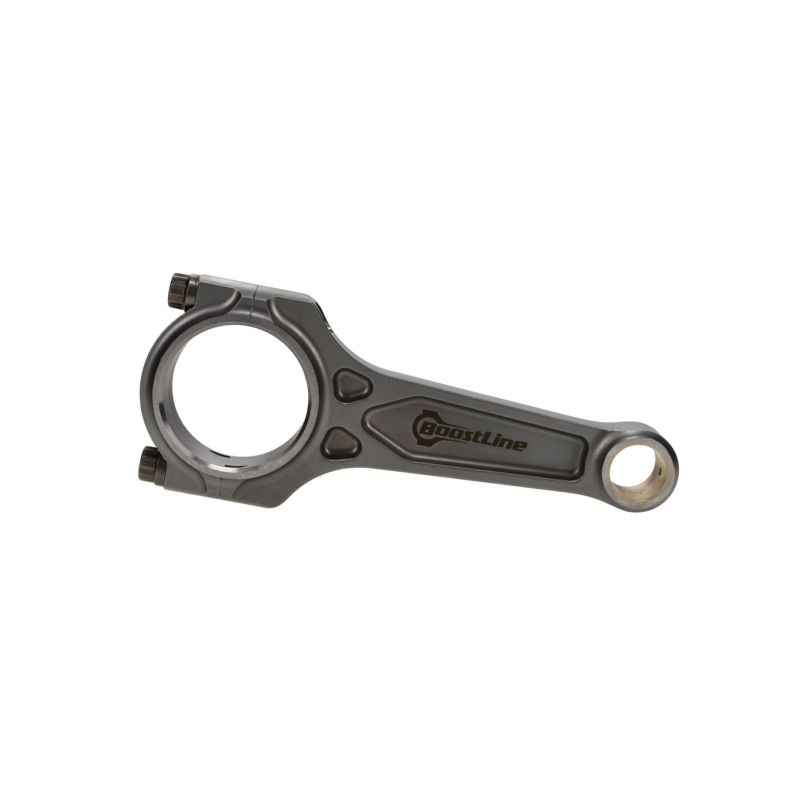

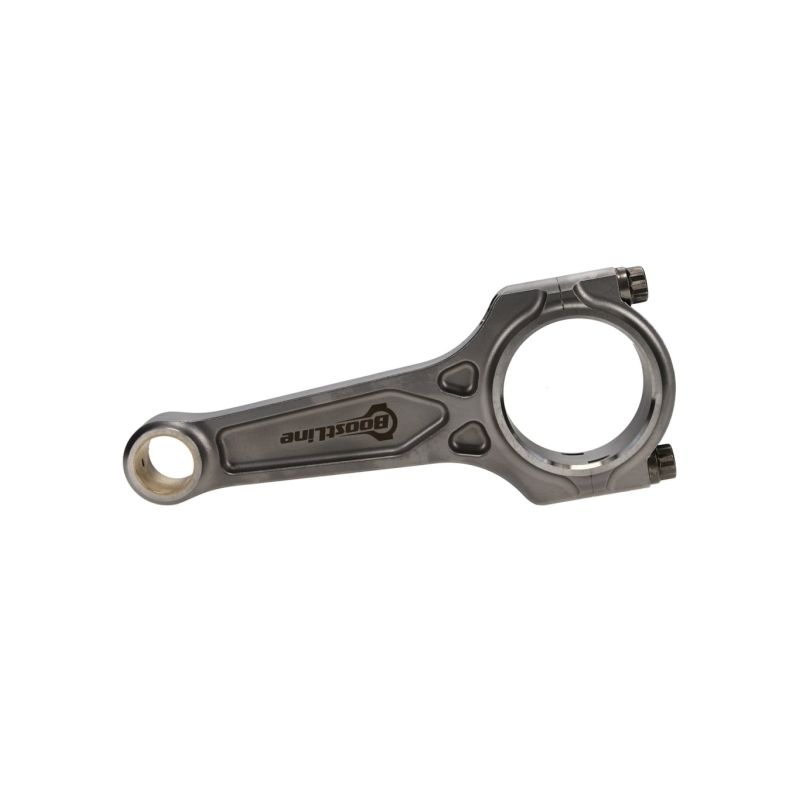

	I-3P profile: three-pocket I-beam by Boostline; its computer-optimised section delivers an outstanding stiffness-to-weight ratio and excellent buckling resistance, tailored to the most demanding K20 builds, notably forced-induction conversions.

How to choose your rod bolts?

	ARP 2000: the all-round benchmark alloy, with a tensile strength of about 220,000 psi (1,517 MPa). Offered here in 3/8" diameter, it covers the vast majority of K20 builds, up to about 200 hp per cylinder, at speeds reaching 9,000 rpm. It is the default choice for a reliable high-revving sporting K20.
	ARP L19: a very-high-strength steel (approx. 260,000 psi / 1,793 MPa), stiffer, reserved for heavily stressed K20s, up to about 250 hp per cylinder and the highest engine speeds. In 3/8" diameter it markedly increases the safety margin on hard builds (note: corrosion-sensitive, it requires careful storage).
	ARP CA625+: a premium, corrosion-resistant alloy (approx. 260,000 psi / 1,793 MPa), reserved for the most extreme K20s in load and rpm. In 3/8" diameter it offers the range's maximum safety margin, with no storage constraint.

Measuring bolt stretch

Discover the ARP stretch gauge

The brands offered

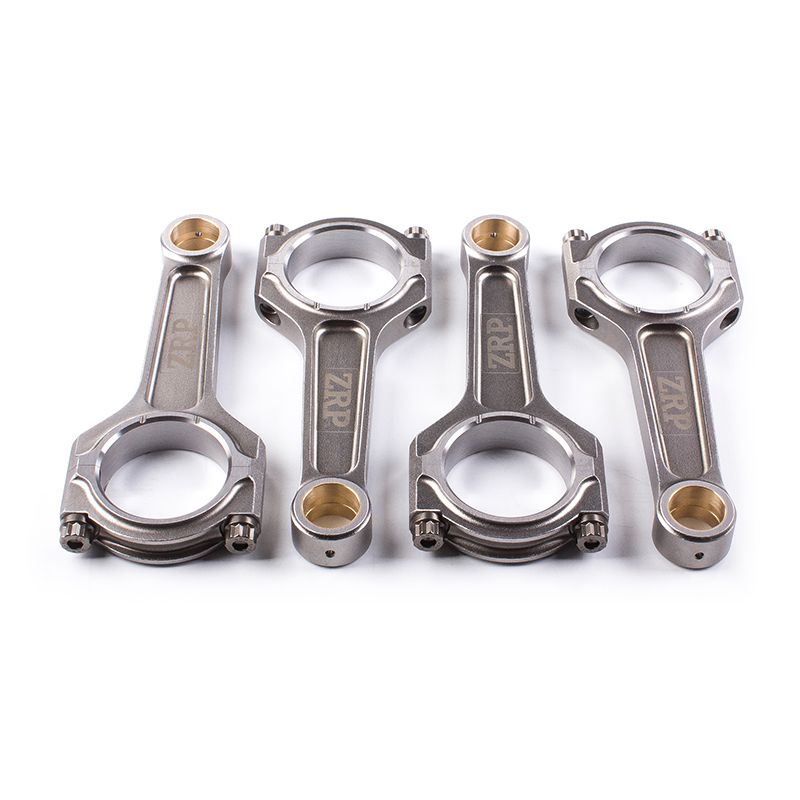

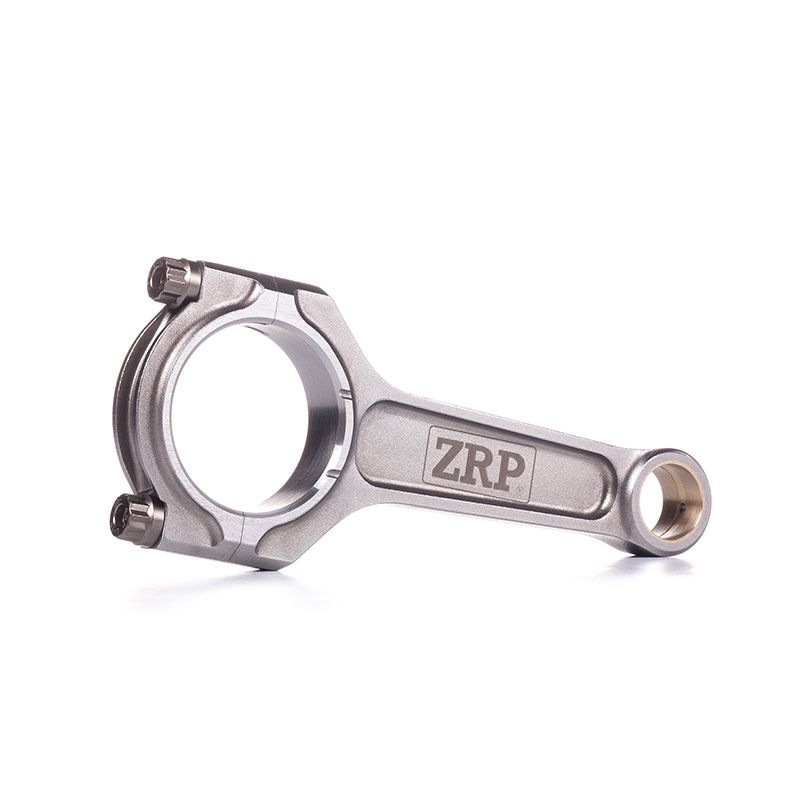

	ZRP offers its H and I-HD profiles at the best price/performance ratio;
	Manley, an American benchmark, offers the same H and I-HD profiles in 4340 steel.
	Boostline designs its three-pocket I-3P profile through structural analysis, for a top-level stiffness-to-weight ratio.
Wössner	Wössner, a respected European maker, offers its optimised I-beam (A-Beam), compact and strong.

Glossary

1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center

Vehicle compatibility

These forged rods fit the Honda and Acura models powered by the 2.0 L 16V i-VTEC K20 engine (139 mm center-to-center, 22 mm pin), the naturally aspirated Type R line:

OEM reference: 13210-PRB-A00 (set of 4 rods).

Why is it the most economical solution?

A set of forged rods costs vastly less than a blown engine: on a K20 pushed in rpm or boost, a factory rod that lets go takes out the block, the crankshaft and often the head. By fitting weight-matched forged rods from the outset, you make your build reliable for the long term and spare yourself a full rebuild, for a negligible extra cost next to the price of a new engine.
