Forged connecting rods BMW - 3.0L 24V Twin-Turbo - N54B30 for forged pistons

The BMW N54B30 engine

The BMW N54B30 (commonly known as the “N54”) is a 3.0L twin-turbo inline-six with direct injection, unveiled at the 2006 Geneva Motor Show. BMW’s first mass-produced turbocharged petrol engine since the M106 (1986), it displaces 2,979 cc (84 mm bore × 89.6 mm stroke) and combines an open-deck aluminium block, a forged crankshaft, a DOHC double-VANOS cylinder head and high-pressure direct injection (High Precision Injection with piezo injectors). Its two turbochargers cut response time; 10.2:1 compression ratio, 7,000 rpm redline. It was produced from 2006 to 2016.

Launched on the BMW 335i (3 Series E90/E91/E92/E93), the N54 also powers the 135i, 1 M Coupé, 535i, 740i, X6 xDrive35i and Z4 sDrive35i/35is, with around 306 to 340 hp depending on version and roughly 400 N·m of torque. Renowned for the strength of its bottom end, the N54B30 is one of the most popular tuning platforms: to make high power reliable, the original rods are replaced with reinforced 4340 forged connecting rods, paired with forged pistons.

Forged connecting rods

Machined from high-strength 4340 steel, reinforced forged connecting rods strengthen the bottom end as soon as power rises. They become essential when switching to forged pistons, raising the rev limit, increasing boost pressure or gaining displacement, all cases where the original rod reaches its limits.

Designed to withstand the high stresses of tuned engines (turbocharged and supercharged alike), these forged connecting rods cover every discipline (rally, drift, drag, circuit and track days, hillclimb, time attack) and support Stage 2, Stage 3 and Stage 4+ builds, up to full competition engines.

Technical specifications of the N54B30 forged connecting rods

Torque and bolt stretch

Manufacturers recommend the stretch-gauge method as the reference: the instructions supplied with the kit always take precedence. The torque figures correspond to assembly with ARP lubricant.

Technical guide

4340 forged steel: what is it?

Connecting rod profiles

	I-beam profile. With its thinner central section, the I-beam rod is lighter: less inertia, so freer rev pick-up. It is the preferred profile on modern turbo engines like the N54, in rally and on high-rpm builds (drift, time attack). Its I-HD (Heavy Duty) version is a reinforced variant with thicker geometry, designed to take higher loads.

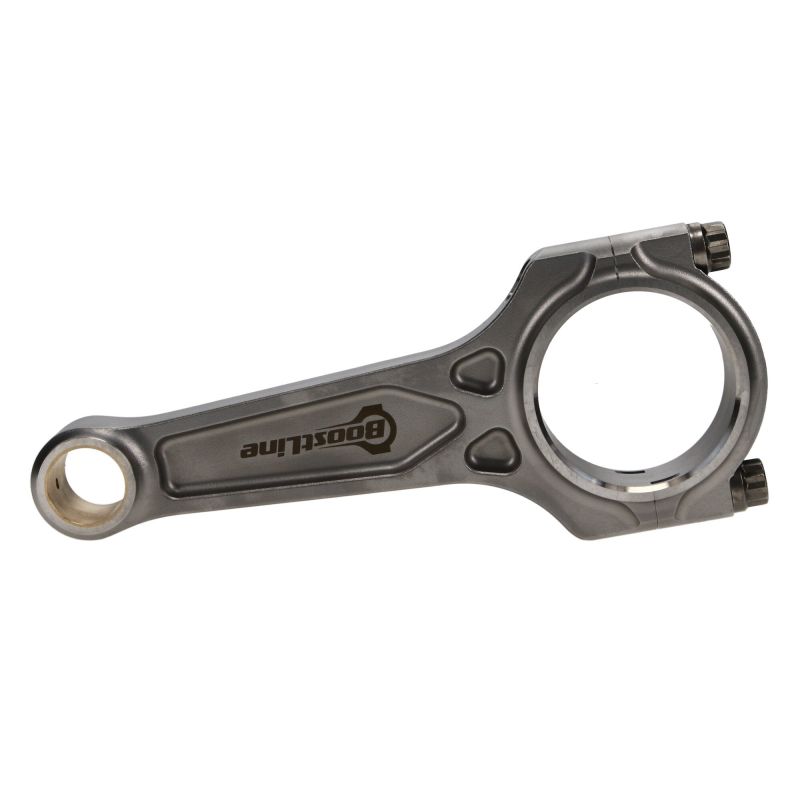

	I-3P profile (3-pocket I-beam, Boostline). This patented profile keeps the lightness of an I-beam while adding triangulated reinforcements on the big end: better stability under tensile load and bending resistance about 60% higher than an H-beam rod. An asset on heavily boosted engines and very high cylinder-pressure builds.
	H-beam profile. Recognisable by its “H”-shaped section (two flat flanks joined by a central web), this profile offers great rigidity and excellent resistance to both bending and compression. Slightly heavier than an I-beam rod, it favours strength over lightness: it is the profile of choice for high-torque engines, large displacements and drag racing, where cylinder pressure and the loads taken by the rod reach extreme values. On a heavily built, torque-oriented and reliability-focused N54, the H-beam rod is a safe bet, particularly valued for lasting durability under heavy load.

How to choose your rod bolts?

The rod bolt is one of the most heavily stressed parts in the engine. The key is to match the ARP grade to the real use of the build, then to strictly follow the assembly torque and stretch.

	ARP2000 (tensile strength ~220,000 psi, i.e. ~1,517 MPa) is the high-performance standard. Suited to builds up to around 700 hp and peak rpm of about 7,500 rpm, it is the most common grade in circuit, drift, rally or track use, an excellent strength/reliability/price ratio with no particular storage constraints.
	L19 (tensile strength ~260,000 psi, i.e. ~1,793 MPa) targets extreme use: builds beyond 800 hp, rpm above 8,500, drag racing and dragsters. Caution: sensitive to corrosion and hydrogen embrittlement, it must always be stored and fitted oiled, away from moisture.
	CA625+ (Custom Age 625+, tensile strength 260,000 to 280,000 psi, i.e. ~1,793 to 1,931 MPa) is ARP’s premium alloy. With very high strength, it targets the most extreme builds (beyond 800 hp and very high rpm, like the L19), while offering better resistance to atmospheric corrosion and oxidation than ARP2000, and remaining immune to hydrogen embrittlement (without the storage constraints of L19). Ideal for the most demanding rod and head-stud applications.

Measuring bolt stretch

Discover the ARP stretch gauge for rod bolts

The brands offered

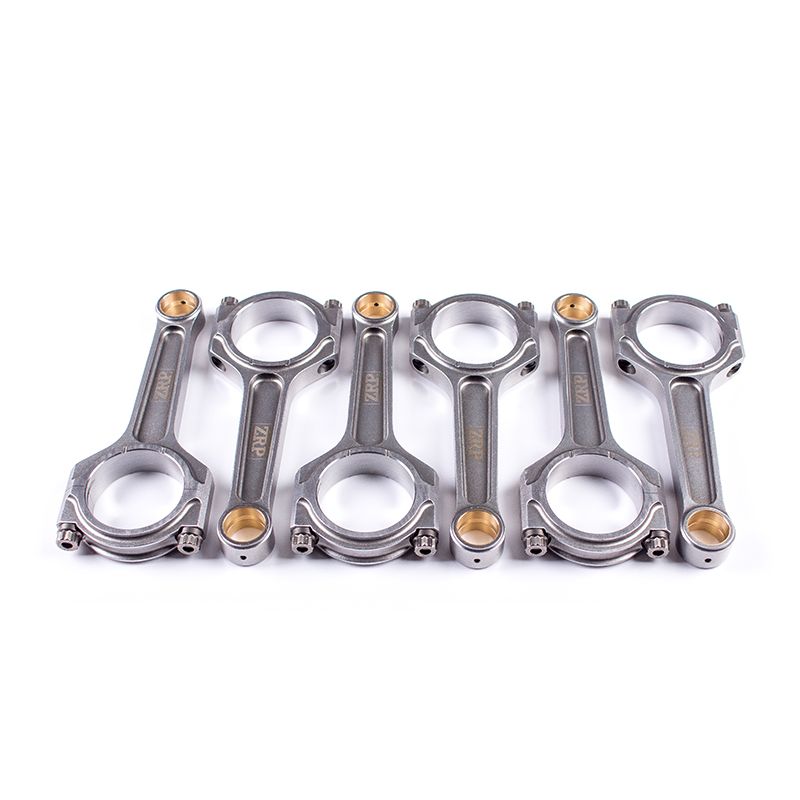

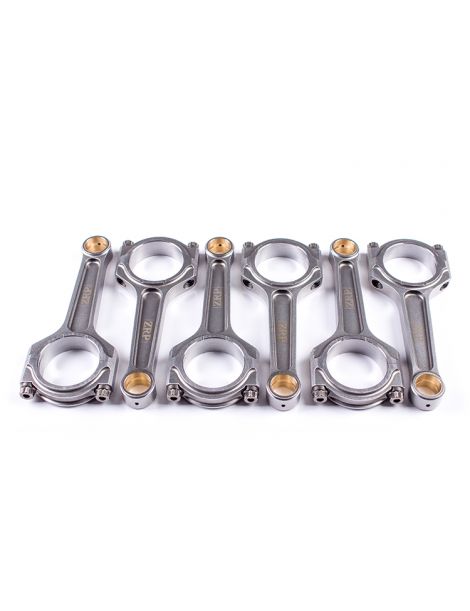

	ZRP, a Greek brand of high-performance forged connecting rods, designed by Alex Drakos in Athens. Each rod is forged from 4340 steel, precision-machined and balanced to ±1 g to stay reliable at high rpm. Available in I-beam or H-beam profile with ARP2000, L19 or Custom Age 625+ bolts, they are designed and inspected in Greece, and proven in rally, on circuit and in drift.

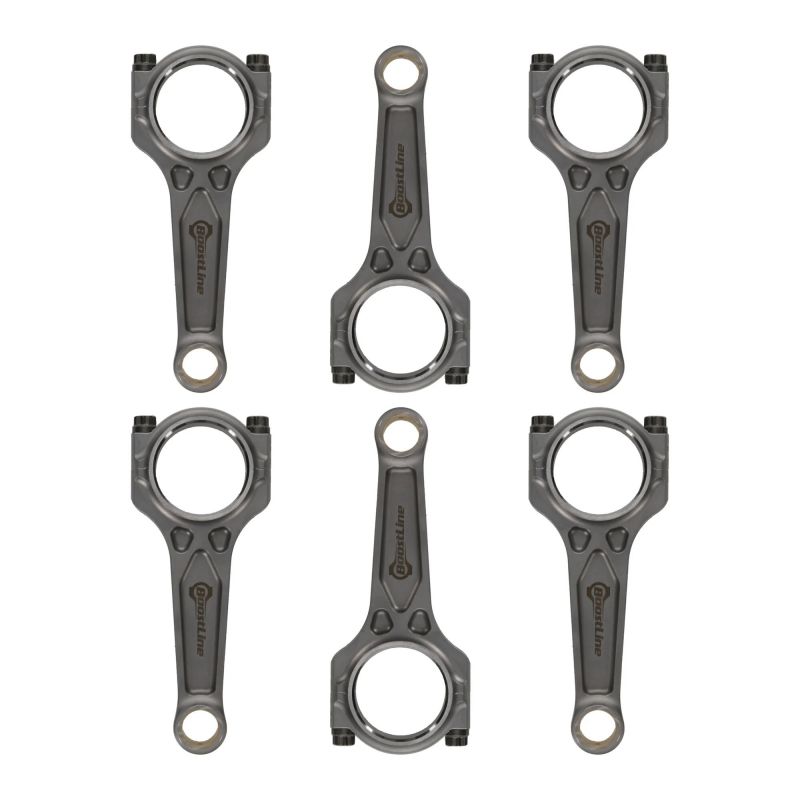

	BOOSTLINE (Wiseco group), a forged connecting rod range from the American Wiseco group, a benchmark since 1941. Its patented 3-pocket design combines the rigidity of an I-beam with the robustness of an H-beam. Forged from 4340 steel and machined in the USA, they come with ARP2000 bolts (Custom Age 625+ optional) and are built for boosted engines.

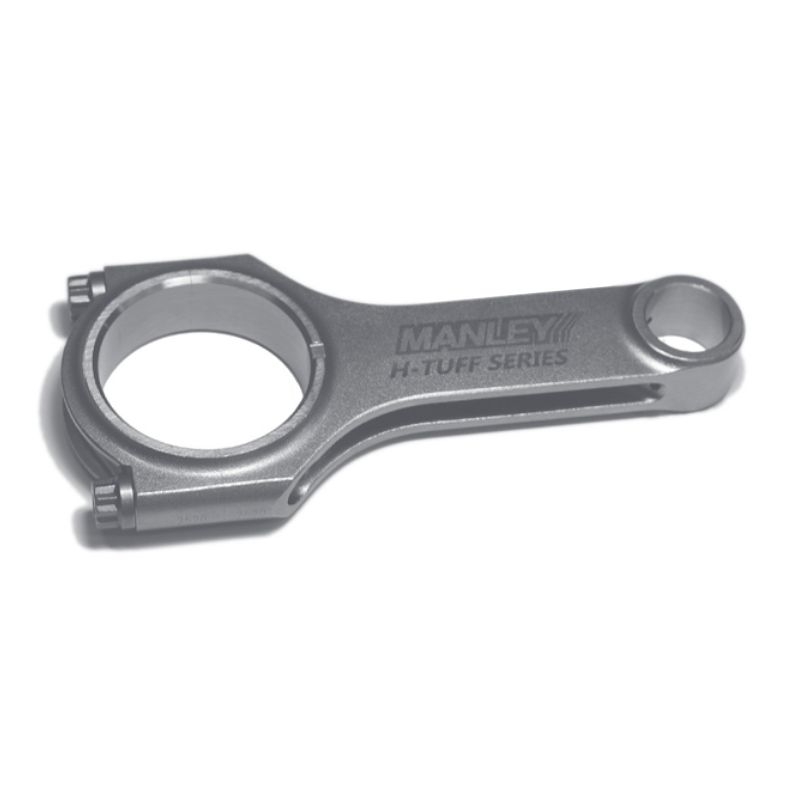

	MANLEY, an American forged connecting rod manufacturer since 1966. Machined from vacuum-degassed aerospace-grade 4340 steel, shot-peened and inspected one by one, its “Turbo Tuff” rods come in H-beam and I-beam profiles, with ARP2000 or Custom Age 625+ bolts. A major name in engine building, from street to competition.

Glossary

1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center

Vehicle compatibility for the BMW N54B30 engine

These forged connecting rods are compatible with all vehicles fitted with the BMW N54B30 engine (3.0L 24V twin-turbo):

OEM reference: 11 24 7 586 491 (set of 6 rods).

Why it’s the most cost-effective solution?

When an original bottom end fails (broken, bent or scored rod), going back to the factory configuration means replacing the rods and the pistons, often damaged at the same time. The bill climbs quickly, for a simple restoration to stock.

For an equivalent budget, or even less, fitting 4340 forged connecting rods paired with forged pistons brings far greater reliability and safety margin, plus real potential for power increase. It’s the solution chosen by European engine builders for over 15 years.

For the same budget: more reliability, more potential, more longevity.
