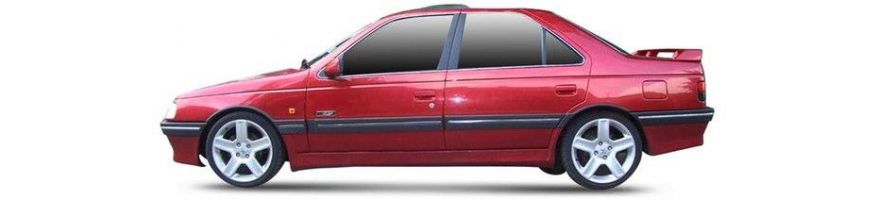

PEUGEOT 405
Manufacturers
PEUGEOT 405
Subcategories
Page for the XU9JAZ, the 120hp 1.9 8V of the PEUGEOT 405 (1987-1992). Six active references, focused on the valve train.
Valve train: CATCAMS Sport camshafts in seven references, CATCAMS kit of 8 dual valve springs with upper and lower retainers, CATCAMS or KENT CAMS vernier cam pulleys for 8-valve engines.
Bottom end: ACL RACE or KING RACING big end bearings in standard, standard HX or +0.25mm, ARP 8740 con rod bolts.
FIC high flow injectors from 525 to 2150cc/min, on clearance with no returns. This page carries no piston or connecting rod.
Page for the XU9J2, the 122hp 1.9 8V of the PEUGEOT 405 (1989-1992). The same six references as the XU9JAZ page, presented here from the bottom end.
Bottom end: ACL RACE or KING RACING tri-metal big end bearings, in standard size, standard with HX clearance or +0.25mm, kit of 8 ARP 8740 con rod bolts.
Cylinder head: CATCAMS Sport camshafts for the XU9J2 (D6A), CATCAMS dual springs and retainers, CATCAMS or KENT CAMS vernier cam pulleys.
FIC high impedance injectors in eight flow rates, from 525 to 2150cc/min, on clearance with no returns.
Page for the XU9J4Z, the 147hp 1.9 16V of the PEUGEOT 405 Mi16 (1987-1992). Eight active references, focused on the cylinder head.
Valve train: CATCAMS Sport camshafts in seven references, kit of 16 single springs and retainers from CATCAMS, kit of 16 CATCAMS CC003 mechanical cam followers, CATCAMS or KENT CAMS vernier cam pulleys.
COMETIC MLS head gasket from 84 to 88mm bore or ATHENA in 84mm. ACL RACE or KING RACING big end bearings, ARP 8740 con rod bolts, FIC injectors on clearance.
This page carries no piston or connecting rod.
Page for the XU10J4Z, the 152hp 2.0 16V of the PEUGEOT 405 Mi16 (1992-1995), the most complete of the range.
Bottom end: WISECO forged pistons with 23mm gudgeon pin, 86 to 87mm bore, 8.5:1 or 11:1 compression ratio, ZRP H-beam forged rods in 4340 steel with ARP 2000 bolts, ACL RACE or KING RACING bearings, ARP 8740 con rod bolts.
Cylinder head: SUPERTECH valves, stainless steel intake and Inconel exhaust, CATCAMS Sport camshafts in nine references, CATCAMS springs and mechanical cam followers, KOLBENSCHMIDT hydraulic cam followers.
FIC injectors on clearance.
Page for the XU9J4, the 158hp 1.9 16V of the PEUGEOT 405 Mi16 (1987-1992). Ten active references.
WISECO or WOSSNER forged pistons with 22mm gudgeon pin, 83 to 85mm bore, 7.9:1 to 12.3:1 compression ratio. ACL RACE or KING RACING big end bearings, ARP 8740 con rod bolts.
Cylinder head: CATCAMS Sport camshafts in seven references, CATCAMS single springs, mechanical cam followers and vernier cam pulleys, KENT CAMS pulleys, KOLBENSCHMIDT hydraulic cam followers, COMETIC MLS head gasket from 84 to 88mm or ATHENA in 84mm.
FIC injectors on clearance with no returns.
CATCAMS sport camshafts for the 2.0 16V XU10J4 (RFY) engine:Citroën ZX 1992 - 1994 Peugeot 306 S16 1993 - 2001 Peugeot 405 Mi-16 1992 - 1995CATCAMS references: 4912526, 4912527, 4912533, 4912528, 4913550, 4913551, 4913552, 4913553, 4913564
CATCAMS sport camshafts for PSA 1.9 8V engines XU9J2 (D6A) XU9JA (DKZ):PEUGEOT 405 1989 - 1992 CITROEN ZX 1991 - 1997 PEUGEOT 205 GTI 1987 - 1994 PEUGEOT 309 GTI 1988 - 1993 PEUGEOT 405 1987 - 1992CATCAMS reference: 4900360, 4900365, 4900366, 4900372, 4900374, 4900375, 4900376
CATCAMS Sport camshafts for the 1.9 16V XU9J4 (D6C) XU9J4Z (DFW) engine:PEUGEOT 309 GTI 1989 - 1993PEUGEOT 405 Mi16 1987 - 1992CATCAMS references: 4900526, 4900527, 4900528, 4901550, 4901551, 4901552, 4901553
Set of 4 forged connecting rods in 4340 steel for Citroën / Peugeot 2.0 16V XU10J4.Brands: ZRP Compatibility: Citroën Xsara, ZX, Peugeot 306 S16, 309 GTI, 405 Mi-16, 406 Engine codes: XU10J4, XU10J4R, XU10J4Z Bolts included: ARP 2000
Forged pistons for PSA XU9J4 1.9 16v (Peugeot 405 Mi16, 309 GTI16, Citroen BX 16 Valves) Bores 83-85mm, Pin 22mm, Volume ratio 7.9:1 to 12.3:1. Reference OEM PSA 0114.K7 available.
PSA XU10J4 2.0 16V forged pistons (23 mm pin). Bores 86-87 mm, Volume ratio 8.5:1 to 11:1, Rings included. RFY/RFT/RFV compatible (Peugeot 306 S16, 405 Mi16, Citroen ZX/Xantia 16V).
Hydraulic tappet type OEM Kolbenschmidt for PSA 1.9 16V/ 2.0 16V XU9J4 XU14/R/S
Set of 8 SUPERTECH exhaust valves for the 2.0 16V XU10J4 (RFY) engine:CITROEN ZX 1992 - 1994PEUGEOT 306 S16 1993 - 2001PEUGEOT 405 Mi-16 1992 - 1995
Athena / Cometic performance head gasket for XU5J, XU5JA, XU9JA, XU9J4, XU9J4Z and XU10J4 engines:CITROEN ZX 1991 - 1997 PEUGEOT 205 GTI 1983 - 1994 PEUGEOT 306 S16 1993 - 2001 PEUGEOT 309 GTI 1986 - 1993 PEUGEOT 405 1987 - 1992 PEUGEOT 405 Mi16 1987 - 1995
High-quality PSA mechanical tappets XU9J4 XU9J4Z XU10J4 (PSA mechanical tappets XU9J4 XU9J4Z XU10J4) for reliable fitment and performance.
ARP 8740 connecting rod bolt and nut kit for OEM rods of the PSA sixteen-valve XU9J4 (1.9-litre) and XU10J4 (2.0-litre) engines.Brand: ARP Engines: XU9J4, XU10J4 Grade: 8740
Kit of 8 SUPERTECH intake valves for 2.0 16V XU10J4 (RFY) engine:CITROEN ZX 1992 - 1994PEUGEOT 306 S16 1993 - 2001PEUGEOT 405 Mi-16 1992 - 1995
High-quality Reinforced Valve Springs PSA XU5J XU9J2 XU9JA (Reinforced Valve Springs PSA XU5J XU9J2 XU9JA) for reliable fitment and performance.
Kit of 16 single springs and 16 CATCAMS retainers for the 1.9/2.0 16V engine XU9J4 (D6C), XU9J4Z (DFW), XU10J4 (RFY):CITROËN ZX 1992 - 1994 PEUGEOT 306 S16 1993 - 2001 PEUGEOT 309 GTI 1989 - 1993 PEUGEOT 405 Mi16 1987 - 1995CATCAMS references: PAC-S10011, 99333
Set of 8 trimetal connecting rod half-bearings for Peugeot and Citroën XU9, XU10 (Ø 50 mm).Brand and treatment: ACL Race, King Racing Compatibility: Peugeot 205, 305, 306, 309, 405, 406, 605, 806; Citroën BX, ZX, XM, Xantia, Evasion, Xsara Engine codes: XU9, XU10 Available sizes: standard to +0.25 mm, increased-clearance version (HX / STDX)
CATCAMS / KENT CAMS vernier cam pulleys for 8-valve engines:TU3 TU5 XU5 XU9 XU10
CATCAMS / KENT CAMS vernier cam pulleys for the 1.9 16V XU9J4 (D6C) XU9J4Z (DFW) XU10J4 (RFY) engine:CITROEN ZX 1992 - 1994PEUGEOT 306 S16 1993 - 2001PEUGEOT 309 GTI 1989 - 1993PEUGEOT 405 Mi16 1987 - 1995
Three of the five 405 engines carry the Mi16 head: 147bhp XU9J4Z, 152bhp XU10J4Z and 158bhp XU9J4, alongside the 1.9 8V 120bhp XU9JAZ and 122bhp XU9J2. The saloon therefore gets full sports treatment: WISECO forged pistons for the 2.0 16V with a 23mm gudgeon pin, forged 1.9 16V pistons, ZRP forged rods for the XU10J4, CATCAMS camshafts for the XU9 family and the XU10J4, SUPERTECH inlet and exhaust valves, uprated springs, mechanical and hydraulic cam followers, KENT CAMS adjustable pulleys, an uprated head gasket, ARP rod bolts and trimetal bearings. Seventeen references, sorted by block.
