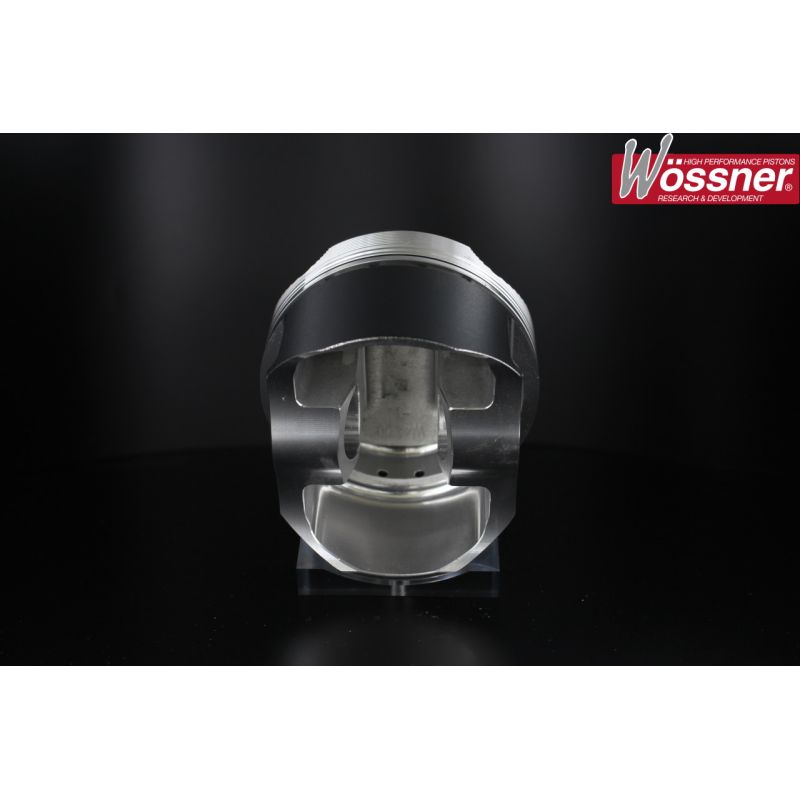

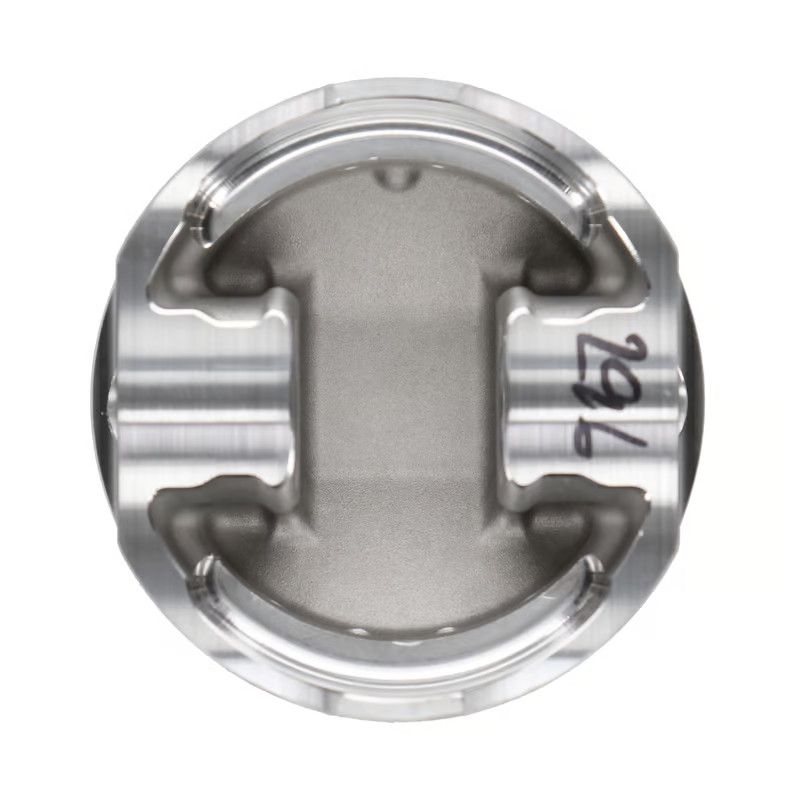

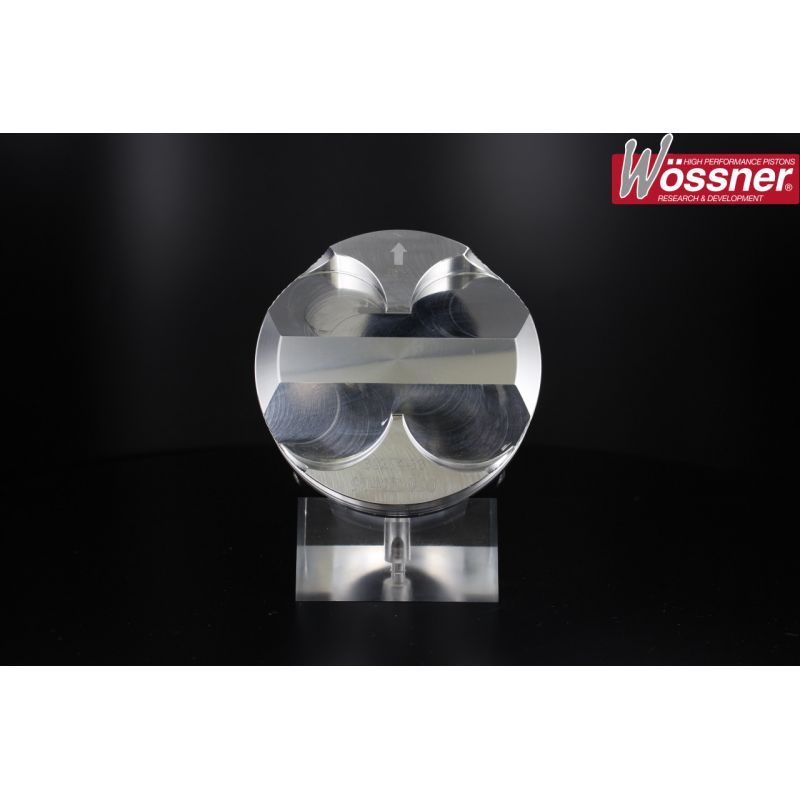

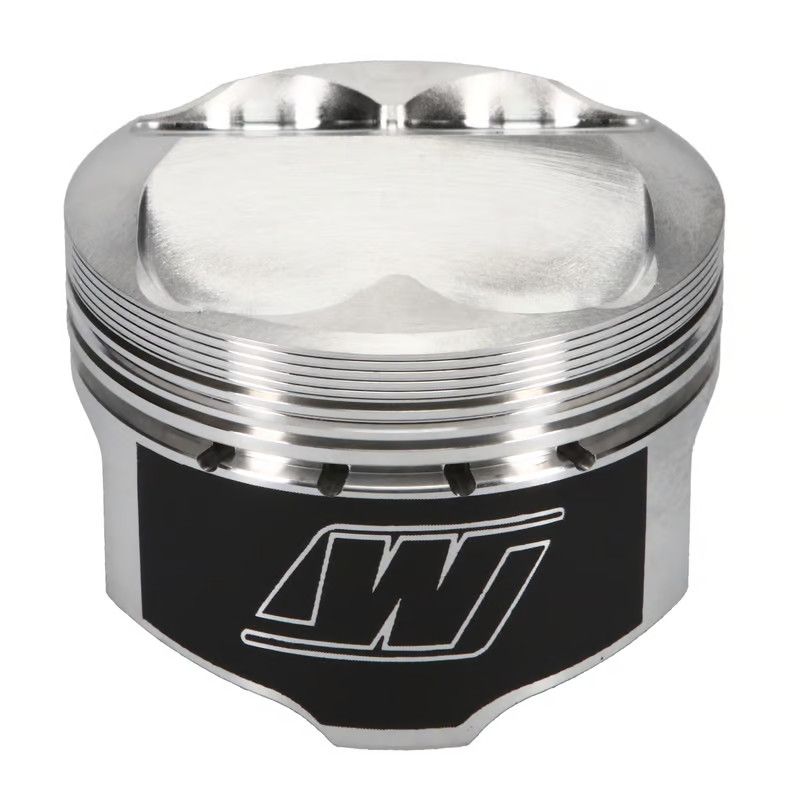

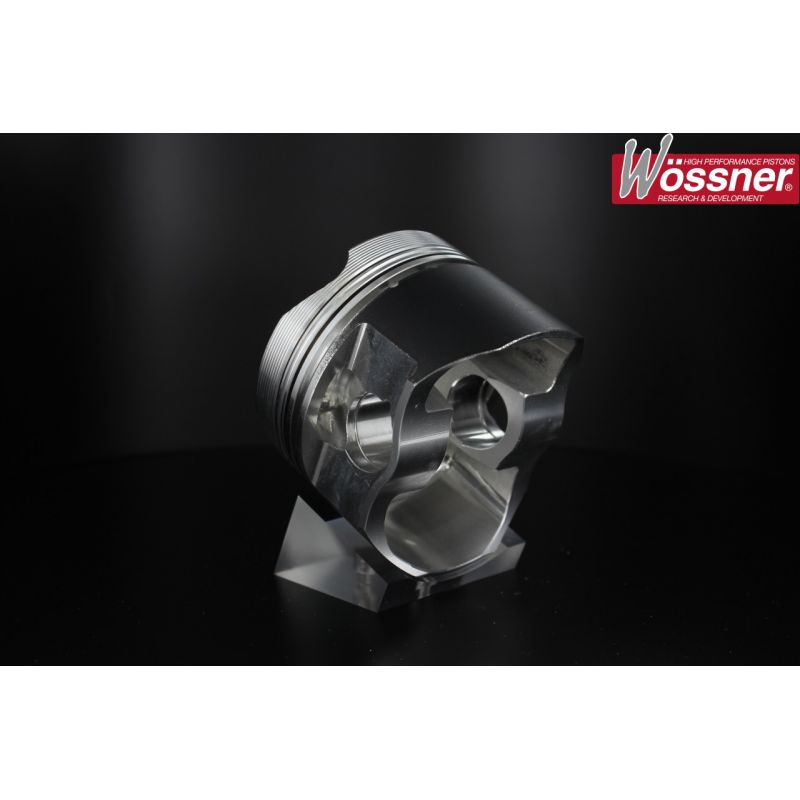

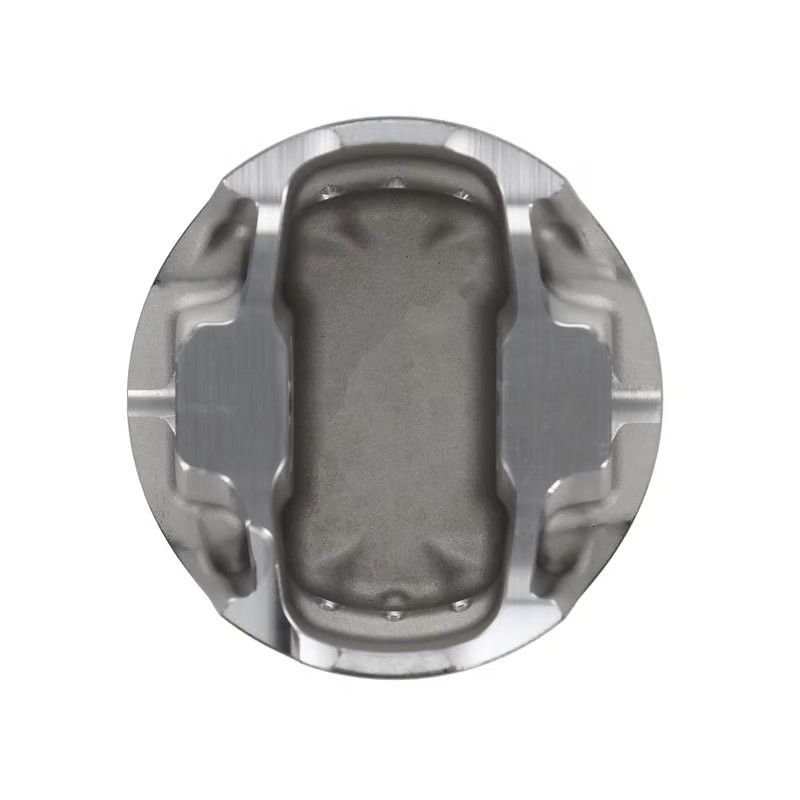

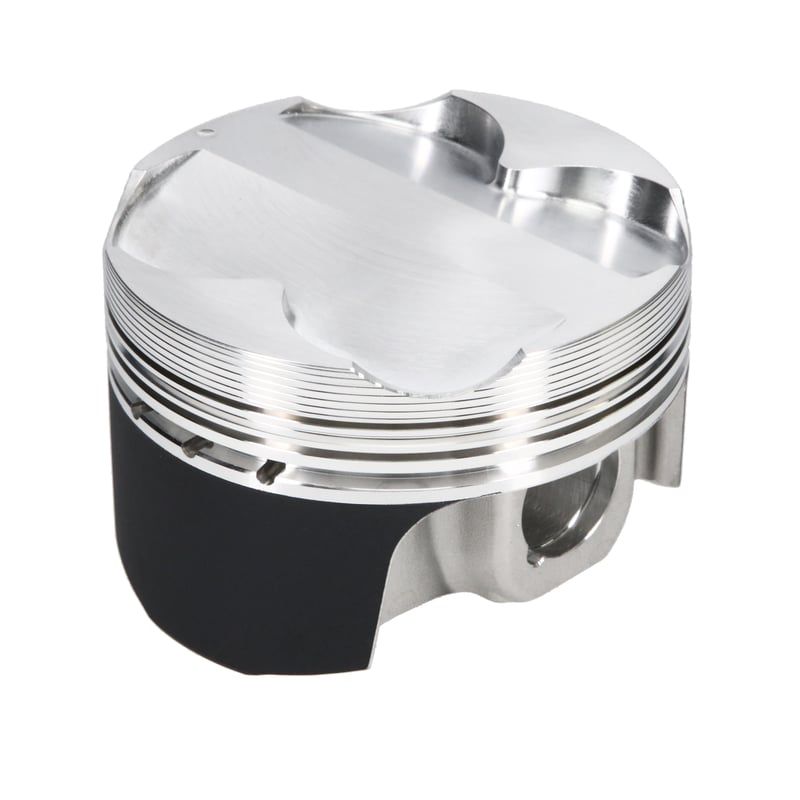

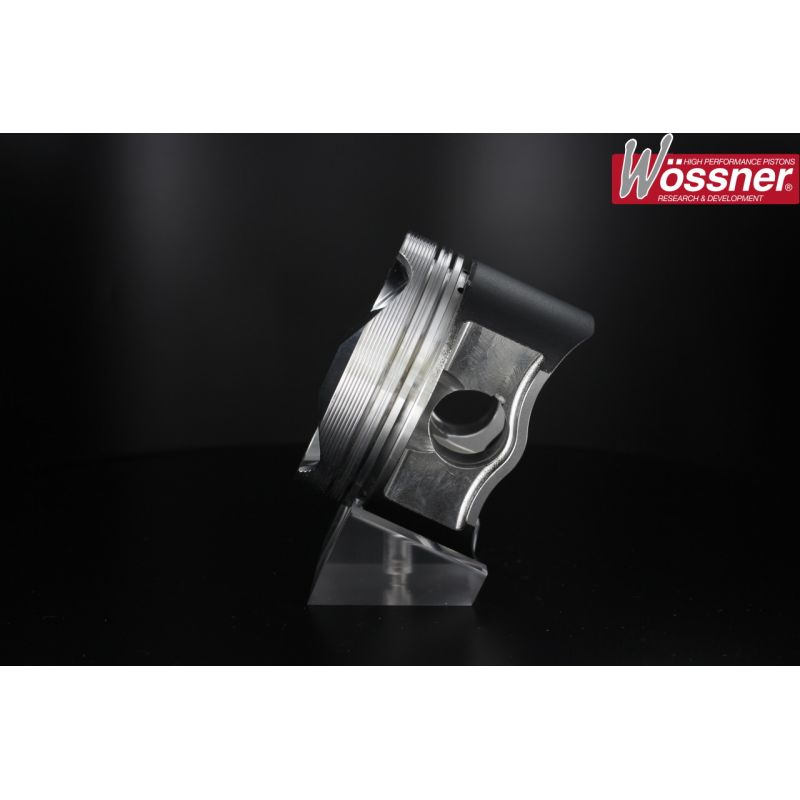

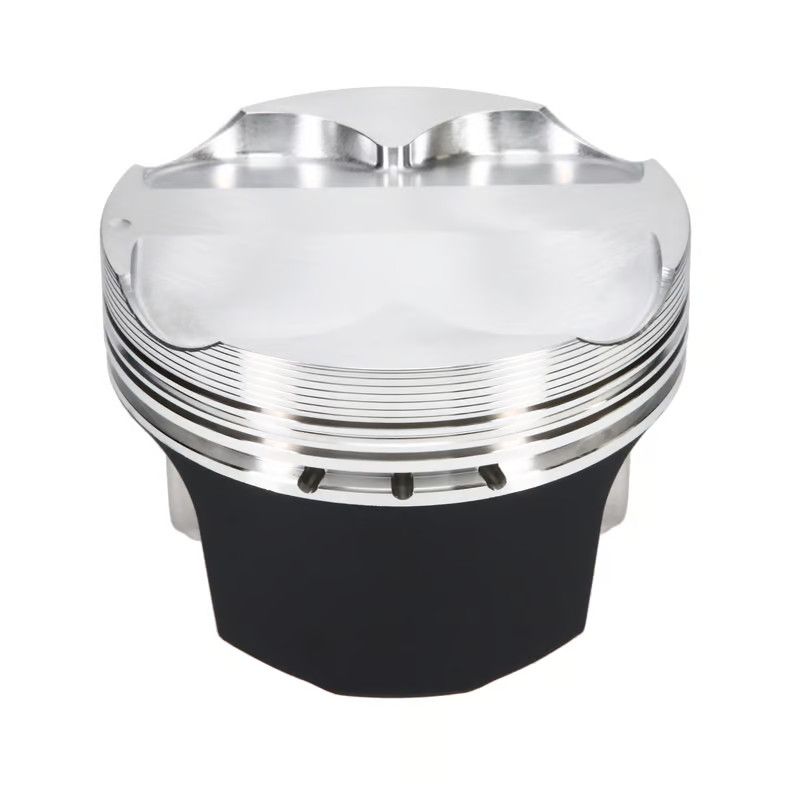

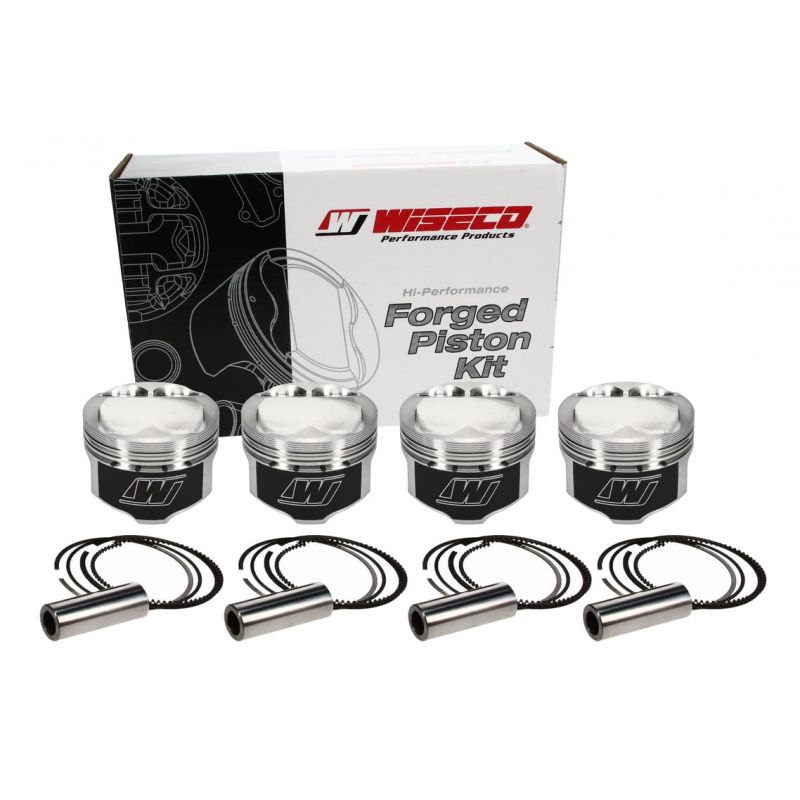

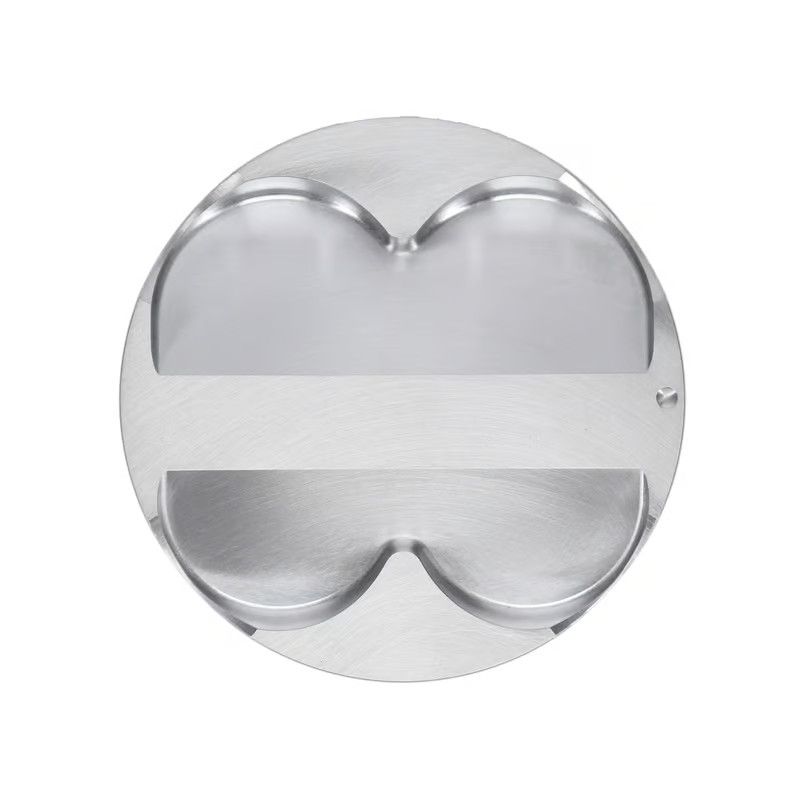

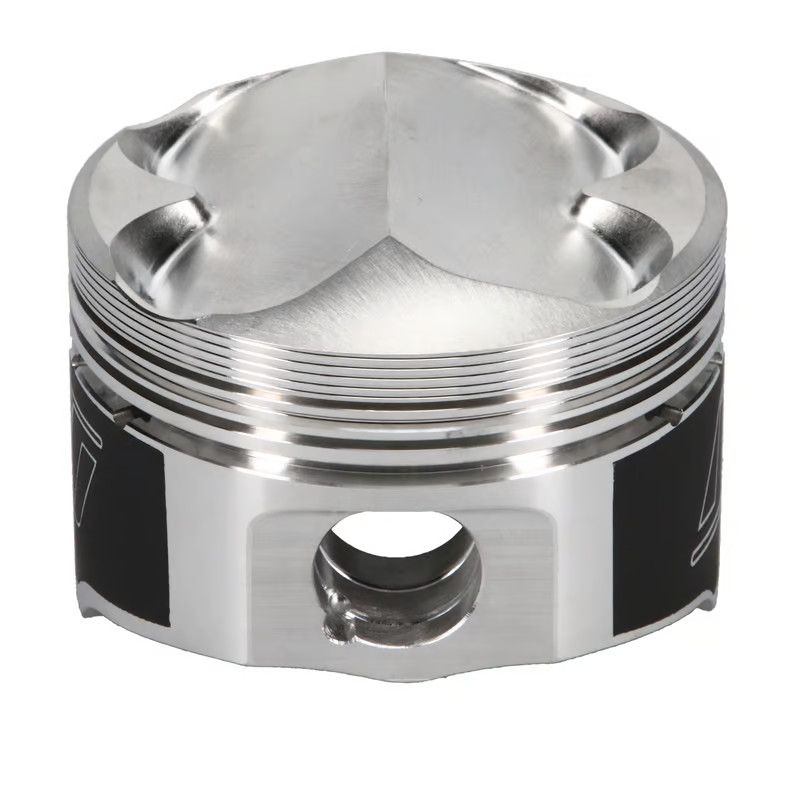

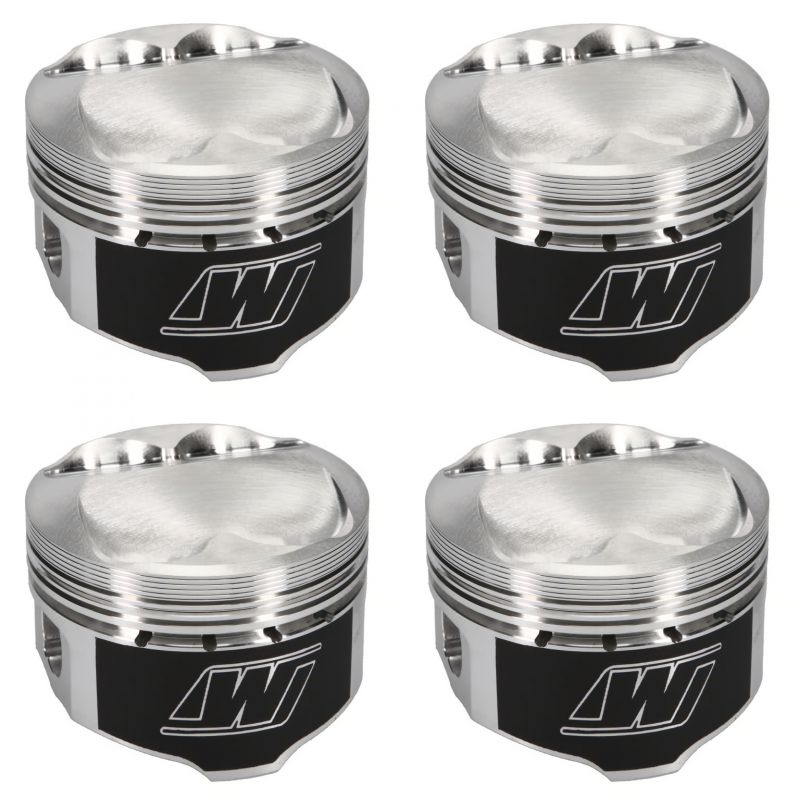

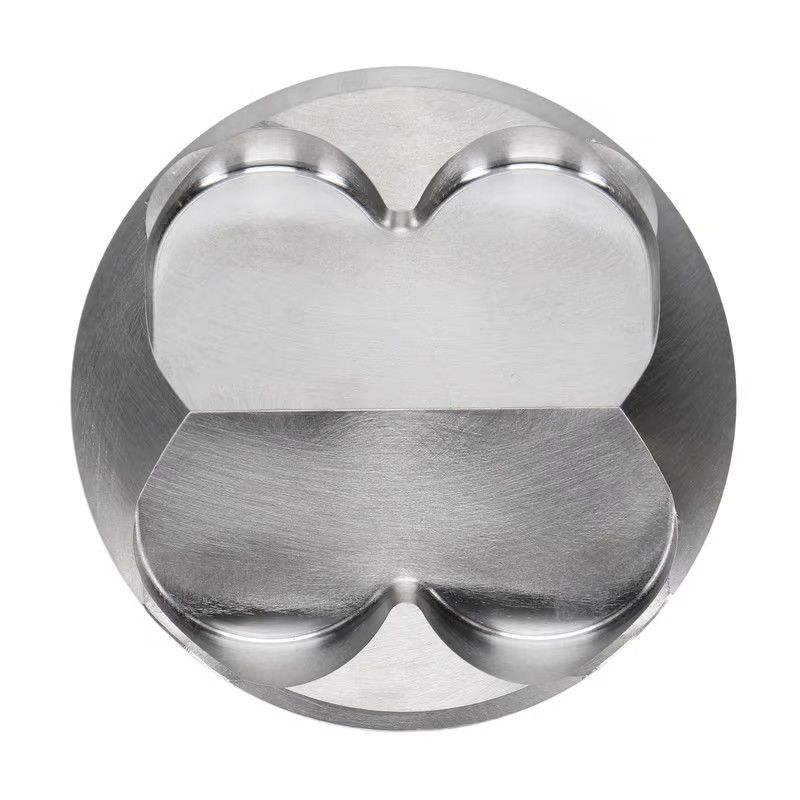

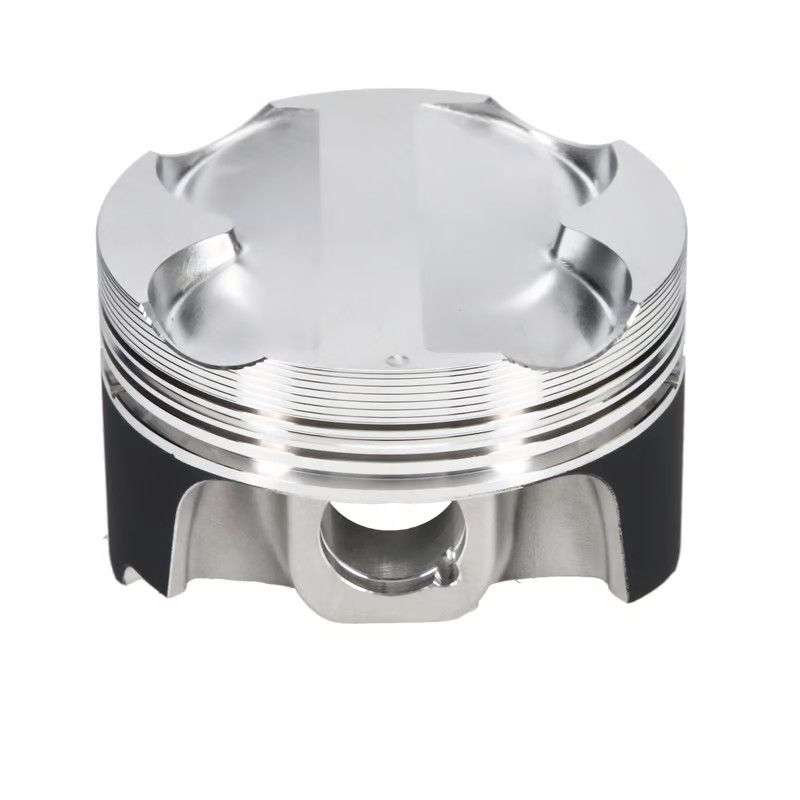

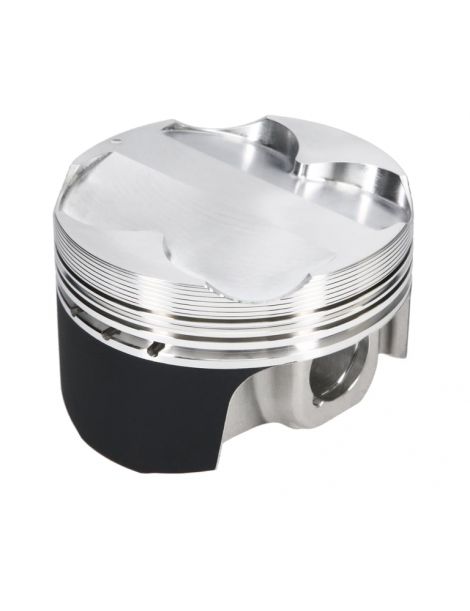

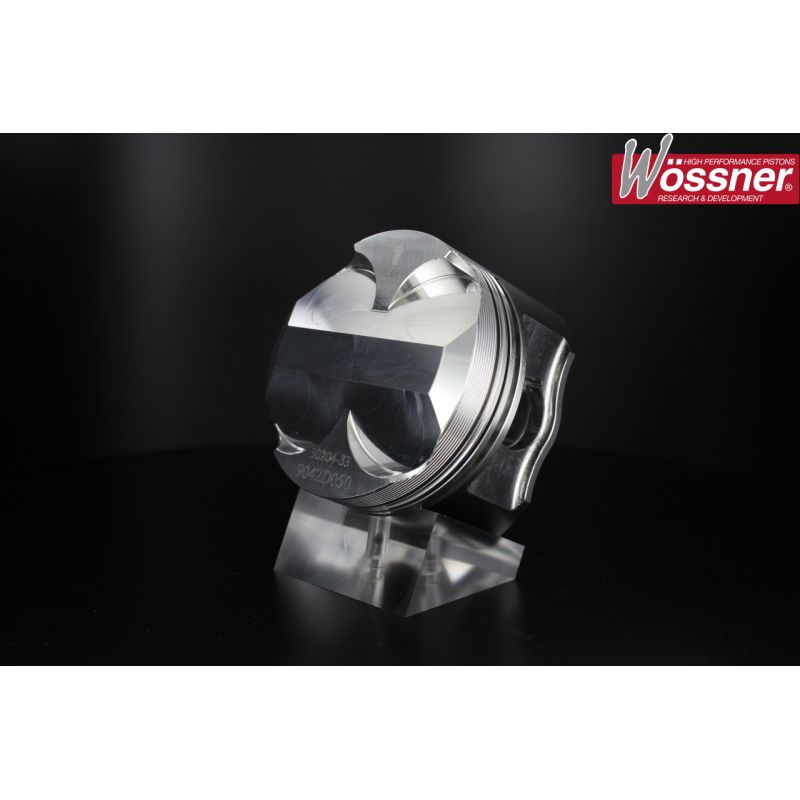

Forged pistons for PSA XU9J4 1.9 16v (Peugeot 405 Mi16, 309 GTI16, Citroen BX 16 Valves) Bores 83-85mm, Pin 22mm, Volume ratio 7.9:1 to 12.3:1. Reference OEM PSA 0114.K7 available.
Specifications of the forged pistons offered by NSB Concept for 1.9 L 16 v XU9J4 (Peugeot/Citroën) :
| Reference | Bore (mm)OEM 83 | CROEM 8,5 :1 | pin (mm)OEM 22 | Height pin (mm)OEM 37 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K1326DA | 83 | 7,9 :1 | 22 | 36,5 | Wossner | NC | NC | NC | -22,43 | NC | 830XPY |
| K9229DA | 83 | 8,5 :1 | 22 | 38 | Wossner | NC | NC | Round | -17,5 | NC | 830XPY |
| WKE224M83 | 83 | 9 :1 | 22 | 37 | Wiseco | NC | Skirt | NC | -13 | NC | 8300XX |
| WKE226M83 | 83 | 10,2 :1 | 22 | 37 | Wiseco | NC | Skirt | NC | -1 FT | NC | 8300XX |
| K9042DA | 83 | 11,8 :1 | 22 | 38 | Wossner | NC | NC | Round | 1,7 | NC | 830XSY |
| WKE223M83 | 83 | 12 :1 | 22 | 37 | Wiseco | NC | Skirt | NC | 10 | NC | 8300XX |
| K9229D050 | 83,5 | 8,5 :1 | 22 | 38 | Wossner | NC | NC | Round | -17,5 | NC | 835XPY |
| WKE224M835 | 83,5 | 9 :1 | 22 | 37 | Wiseco | NC | Skirt | NC | -13 | NC | 8350XX |
| WKE226M835 | 83,5 | 10,2 :1 | 22 | 37 | Wiseco | NC | Skirt | NC | -1 FT | NC | 8350XX |
| K9042D050 | 83,5 | 11,9 :1 | 22 | 38 | Wossner | NC | NC | Round | 1,7 | NC | 835XSY |
| WKE223M835 | 83,5 | 12 :1 | 22 | 37 | Wiseco | NC | Skirt | NC | 10 | NC | 8350XX |
| WKE224M84 | 84 | 9 :1 | 22 | 37 | Wiseco | NC | Skirt | NC | -13 | NC | 8400XX |
| WKE226M84 | 84 | 10,2 :1 | 22 | 37 | Wiseco | NC | Skirt | NC | -1 FT | NC | 8400XX |
| WKE223M84 | 84 | 12 :1 | 22 | 37 | Wiseco | NC | Skirt | NC | 10 | NC | 8400XX |
| K9229D200 | 85 | 8,5 :1 | 22 | 38 | Wossner | NC | NC | Round | -17,5 | NC | 850XPY |
| K9042D200 | 85 | 12,3 :1 | 22 | 38 | Wossner | NC | NC | Round | 1,7 | NC | 850XSY |
Compatibility engine :
Compatibility vehicles :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| Citroën | BX 16 Soupapes | BX (XB_) | XU9J4 | 160 | 1987 – 1992 |
| Peugeot | 309 GTI 16 | 309 (C_) | XU9J4 | 160 | 1989 – 1993 |
| Peugeot | 405 Mi16 (Ph1) | 405 (15_) | XU9J4 | 160 | 1987 – 1992 |
Manufacturer piston references (OEM):
Official manufacturer references (bare pistons or piston kits equipped with rings) corresponding to the vehicles above.
| Brand | Model | Engine code | Reference manufacturer | Details |
|---|---|---|---|---|
| Citroën | BX 16 Soupapes | XU9J4 | PSA 0114.K7 | Cylinder liner kit + pistons + ringsØ 83 (XU9J4) |
| Peugeot | 309 GTI 16 | XU9J4 | PSA 0114.K7 | Cylinder liner kit + pistons + rings Ø 83 (XU9J4) |
| Peugeot | 405 Mi16 (Ph1) | XU9J4 | PSA 0114.K7 | Cylinder liner kit + pistons + rings Ø 83 (XU9J4) |
Warning : Before any installation, please imperatively check the integrity and compliance of each component of the piston kit as well as the compliance of the assembly in the engine; any possible warranty is strictly limited to the piston kit parts only.
