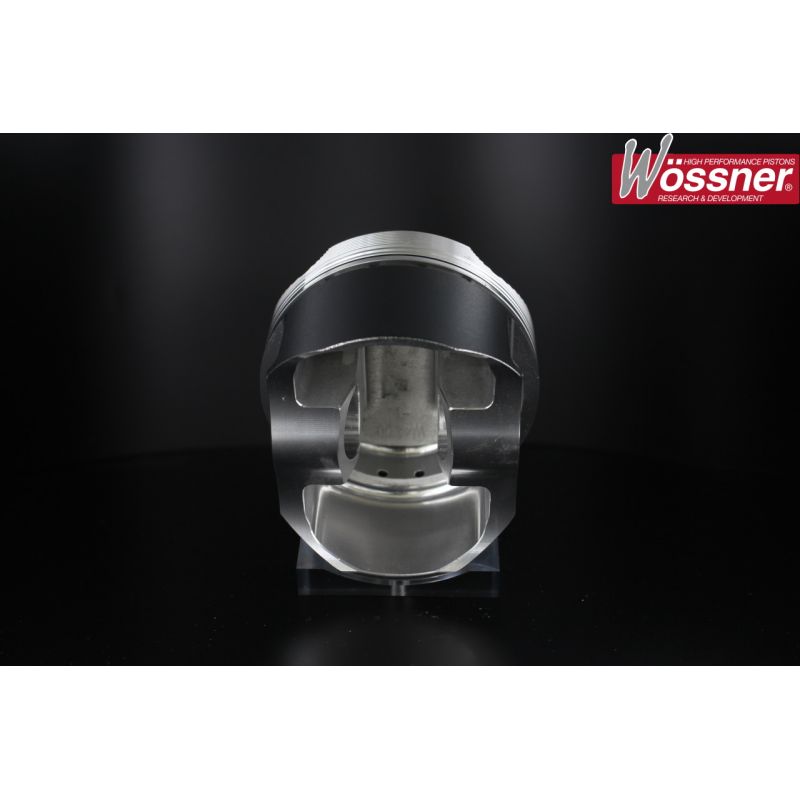

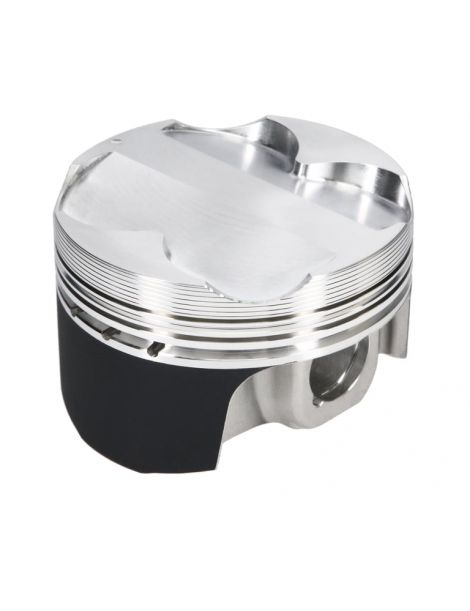

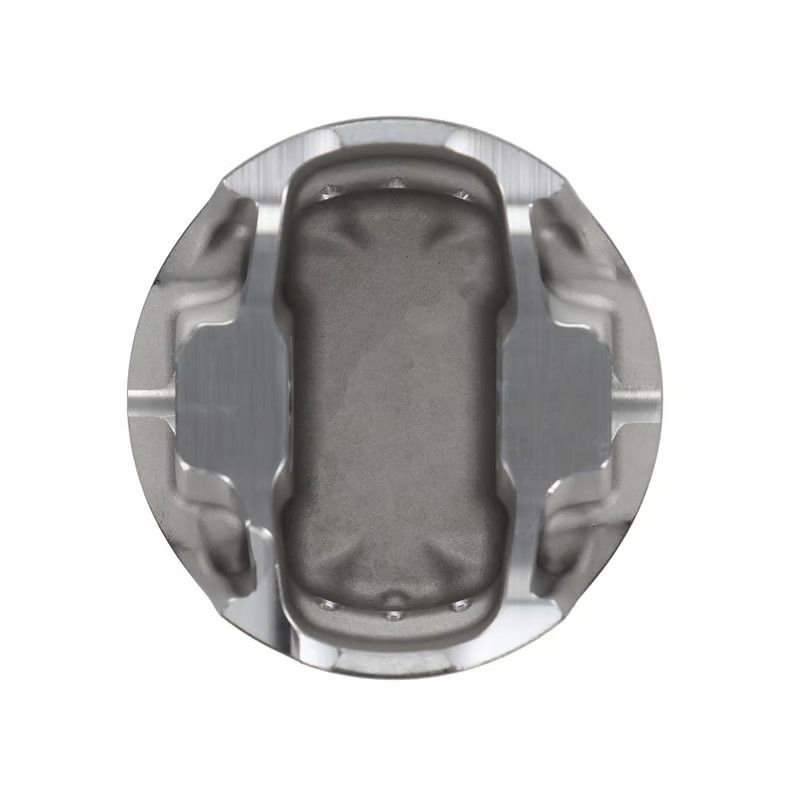

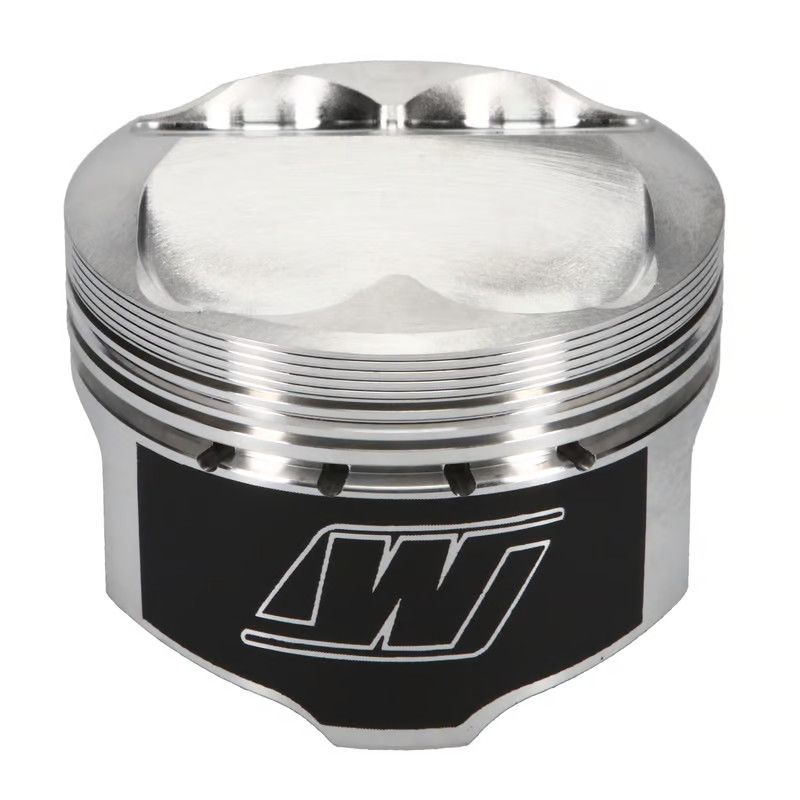

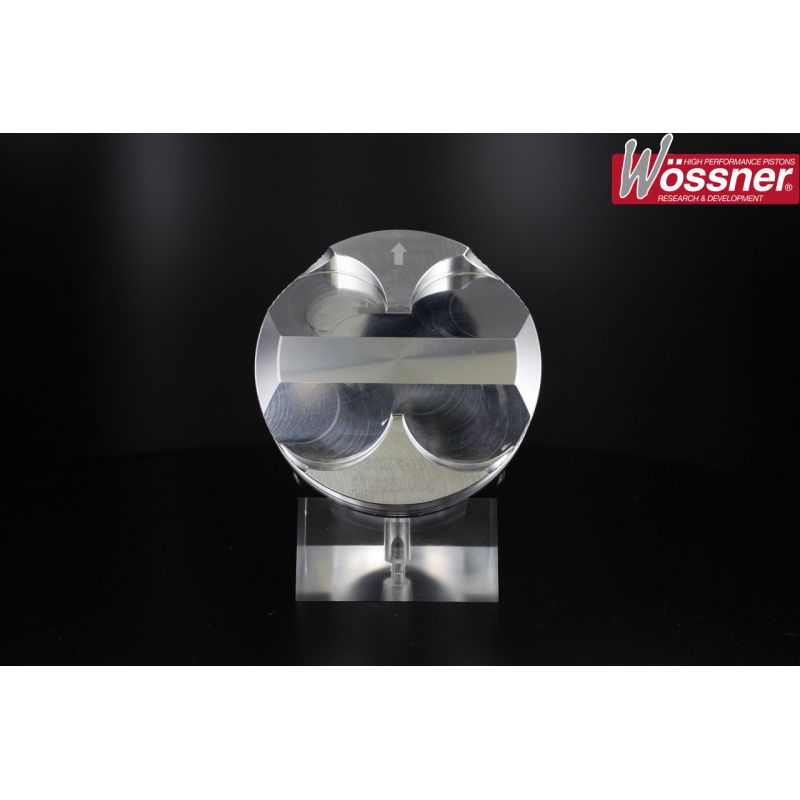

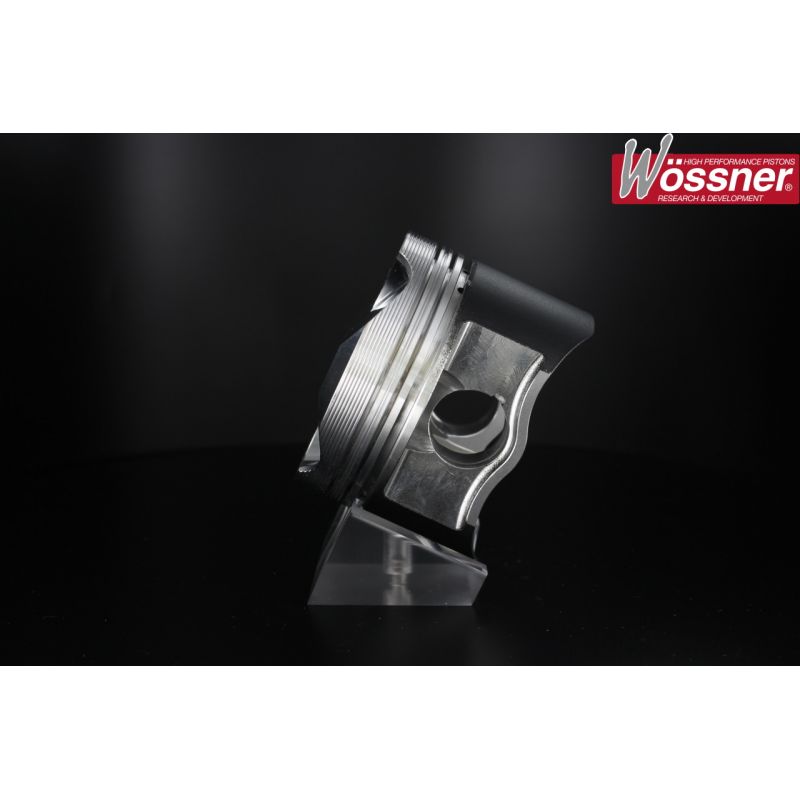

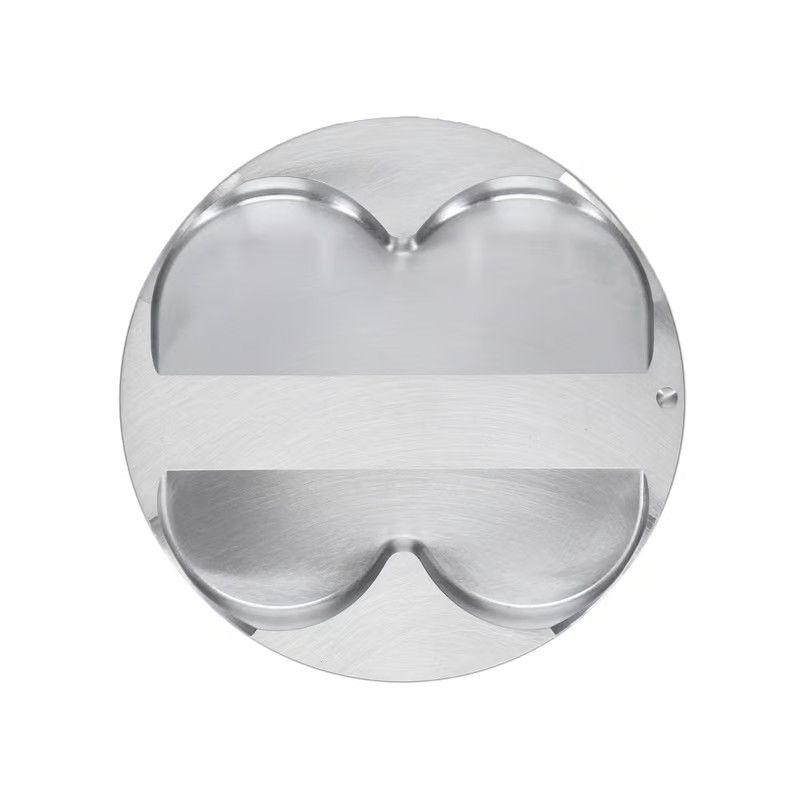

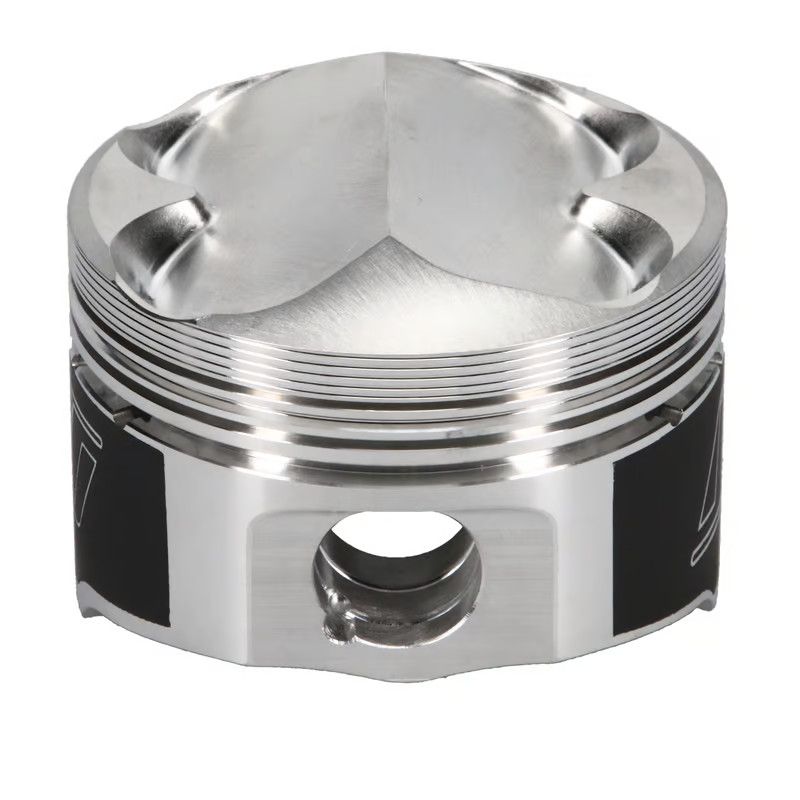

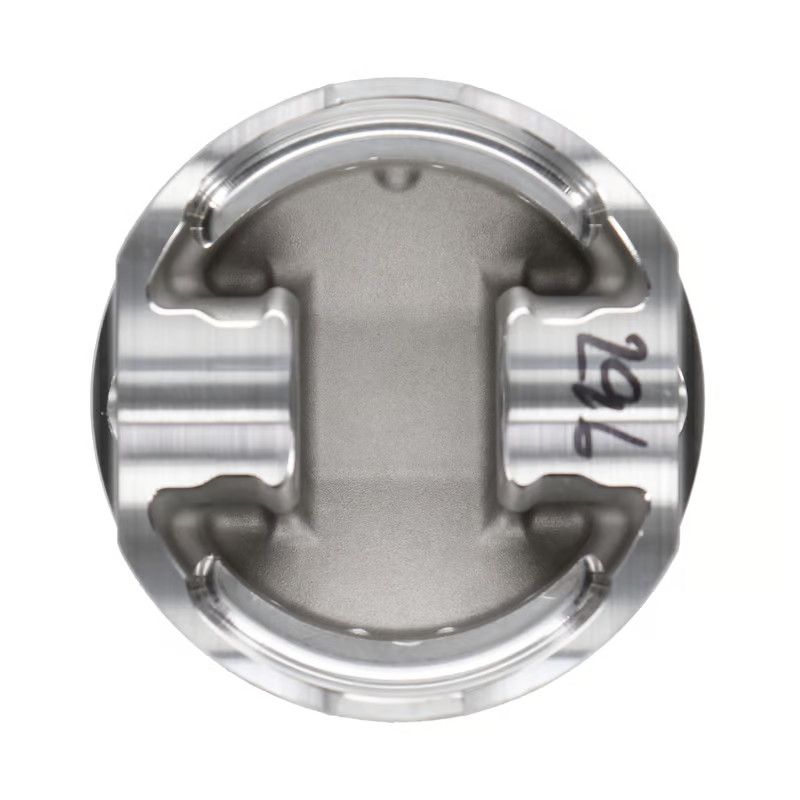

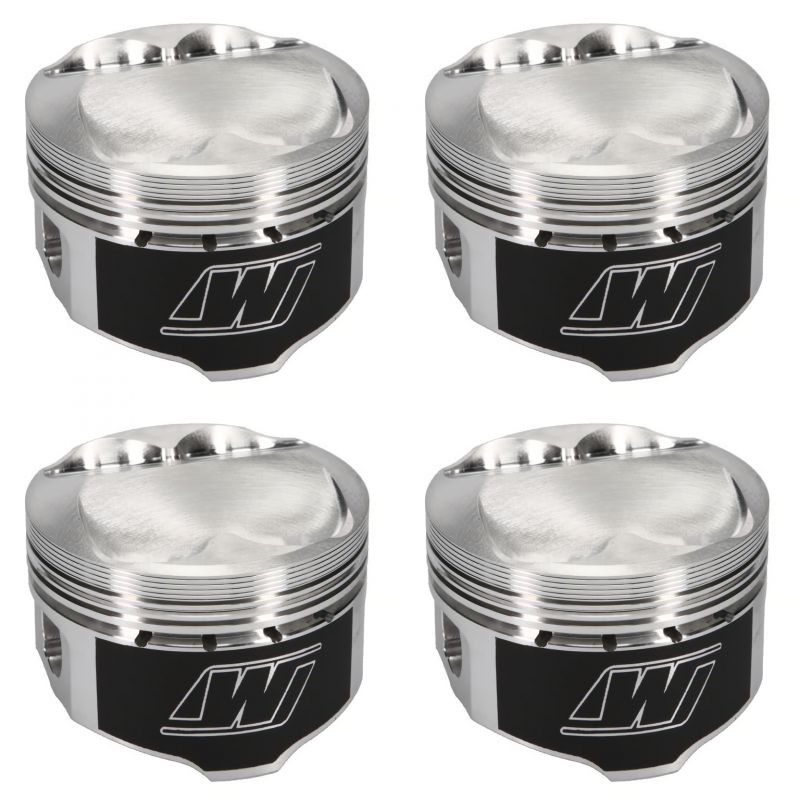

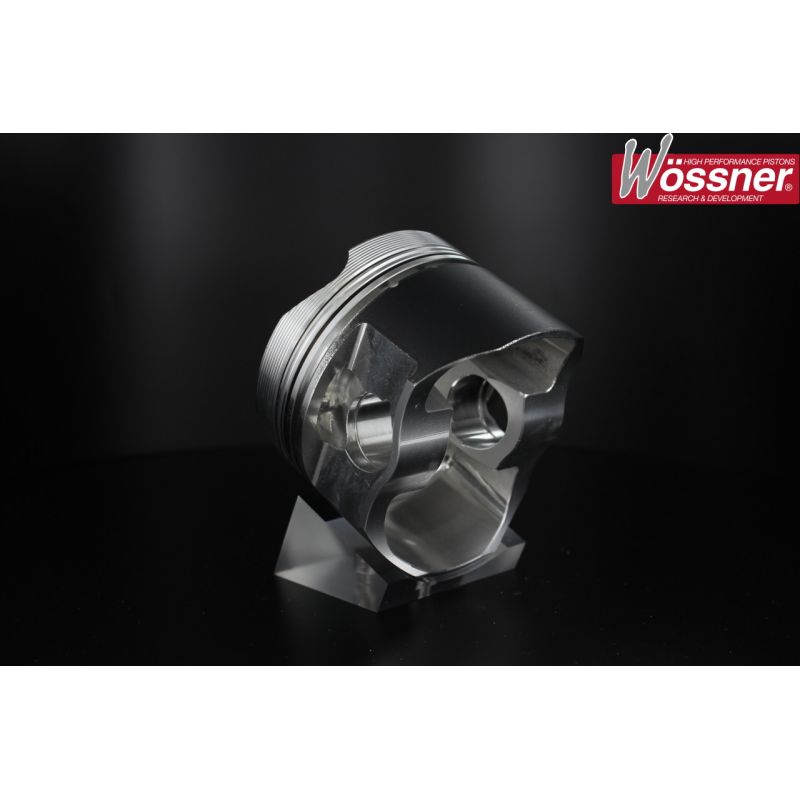

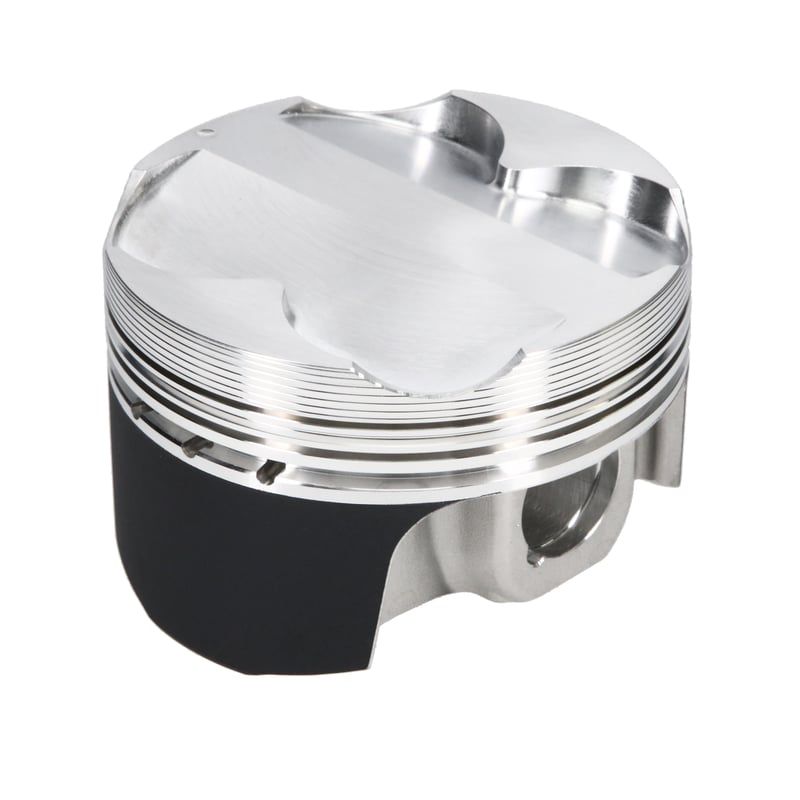

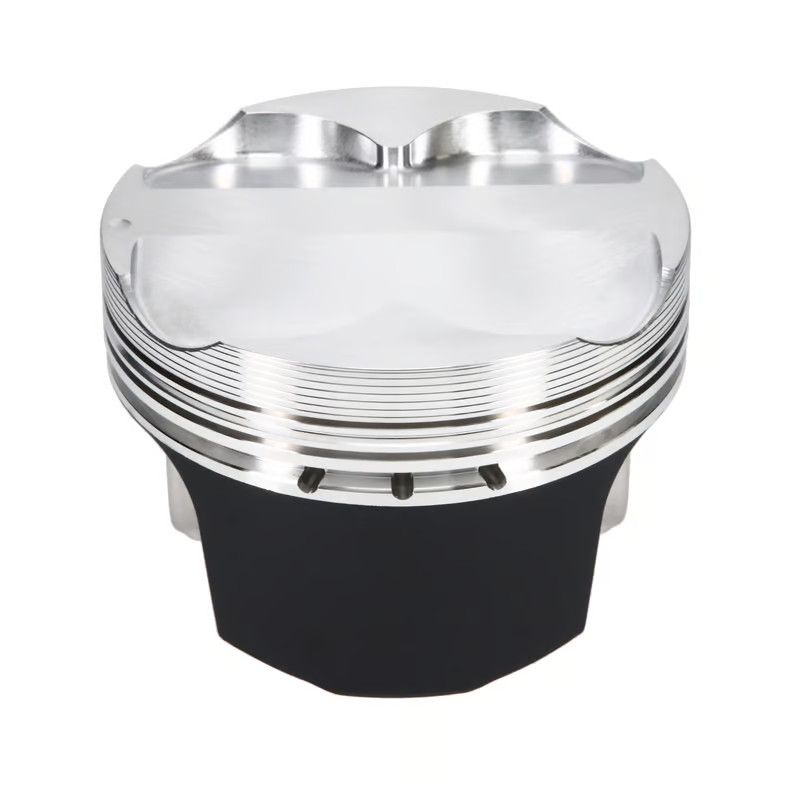

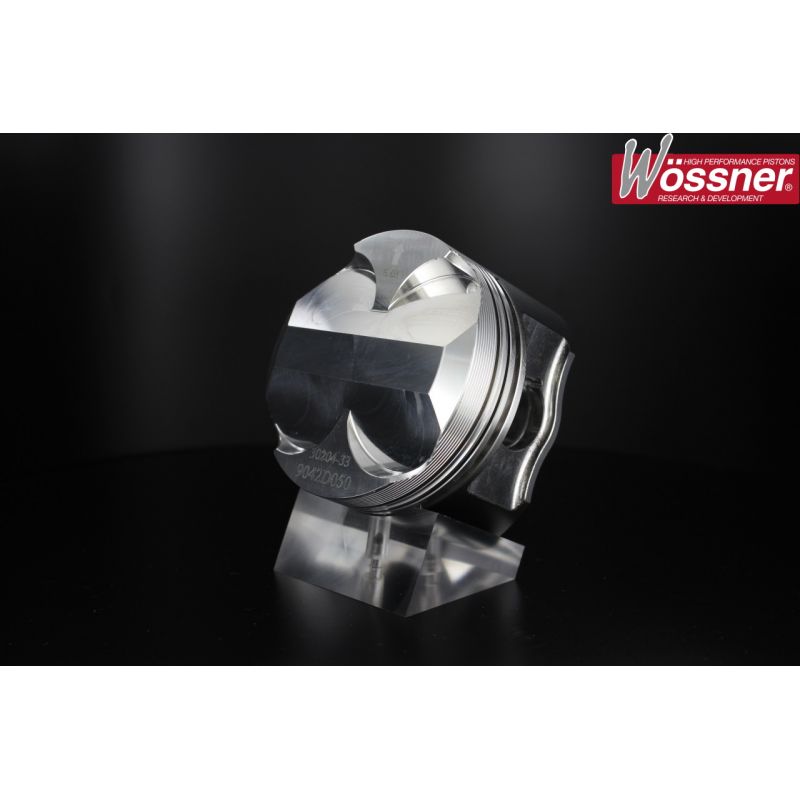

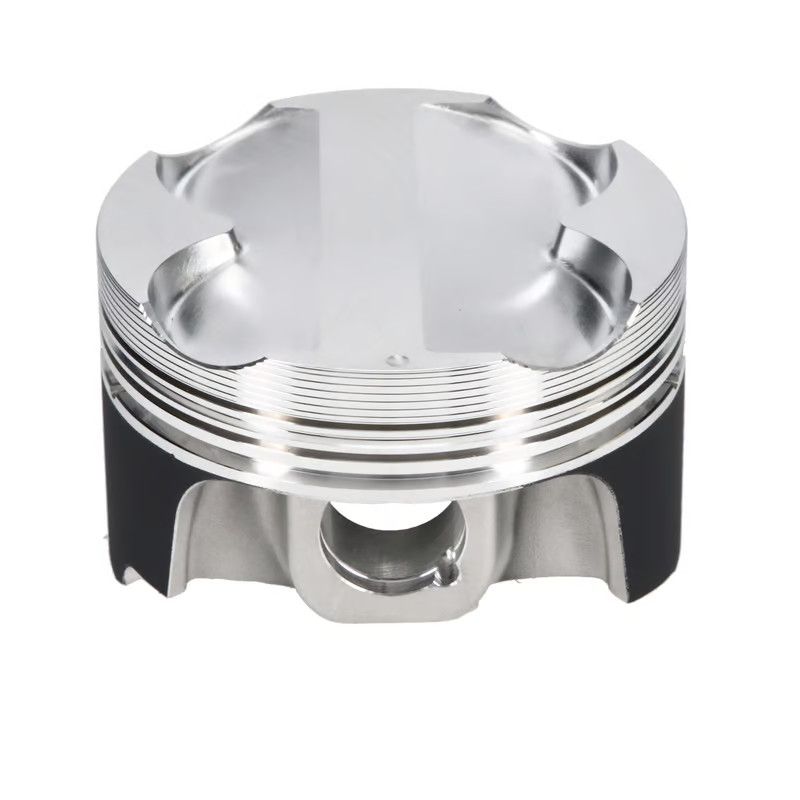

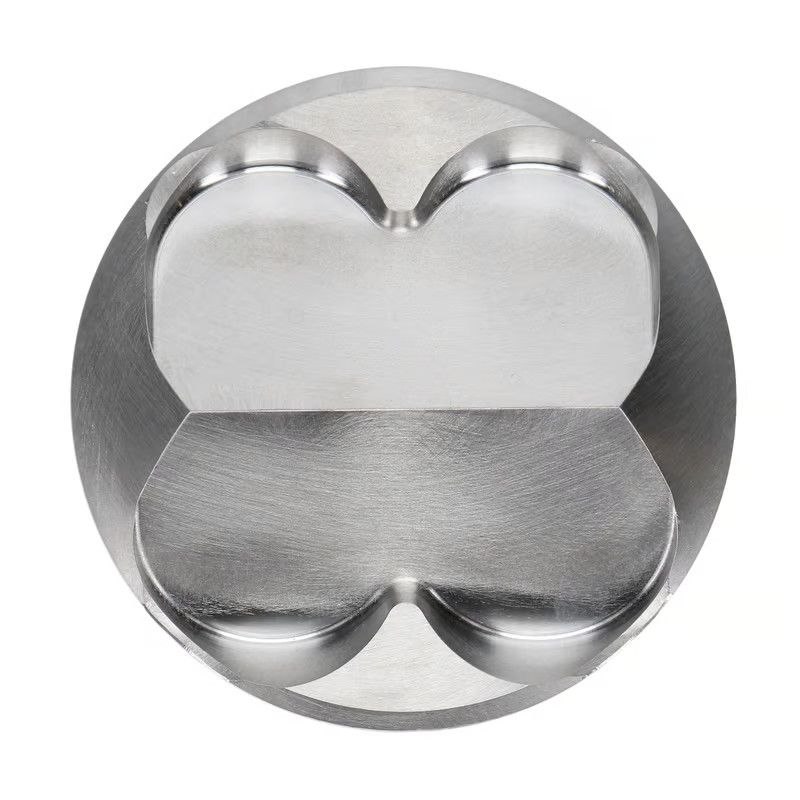

Pistoni forgiati perPSA XU9J4 1.9 16v(Peugeot 405 Mi16, 309 GTI16, Citroen BX 16 Valvole) AlesaggiOS83-85 mm, Spinotto22 mm, RC OEM. Riferimento OEM PSA 0114.K7disponibile.
Caratteristiche dei pistoni forgiati proposti da NSB Concept per 1.9 L 16 v XU9J4 (Peugeot/Citroen):
| Riferimento | Alesaggio (mm)OEM 83 | RCOEM 8,5:1 | Spinotto (mm)OEM 22 | Altezza Spinotto (mm)OEM 37 | Gamma | Alluminio | Trattamento | Forgiatura | Cupola (cc) | Peso (g) | Fasce |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K1326DA | 83 | 7,9 :1 | 22 | 36,5 | Wossner | NC | NC | NC | -22.43 | NC | 830XPY |
| K9229DA | 83 | 8,5 :1 | 22 | 38 | Wossner | NC | NC | Round | -17.5 | NC | 830XPY |
| WKE224M83 | 83 | 9 :1 | 22 | 37 | Wiseco | NC | Mantello | NC | -13 | NC | 8300XX |
| WKE226M83 | 83 | 10,2 :1 | 22 | 37 | Wiseco | NC | Mantello | NC | -1FT | NC | 8300XX |
| K9042DA | 83 | 11,8 :1 | 22 | 38 | Wossner | NC | NC | Round | 1,7 | NC | 830XSY |
| WKE223M83 | 83 | 12 :1 | 22 | 37 | Wiseco | NC | Mantello | NC | 10 | NC | 8300XX |
| K9229D050 | 83,5 | 8,5 :1 | 22 | 38 | Wossner | NC | NC | Round | -17.5 | NC | 835XPY |
| WKE224M835 | 83,5 | 9 :1 | 22 | 37 | Wiseco | NC | Mantello | NC | -13 | NC | 8350XX |
| WKE226M835 | 83,5 | 10,2 :1 | 22 | 37 | Wiseco | NC | Mantello | NC | -1FT | NC | 8350XX |
| K9042D050 | 83,5 | 11,9 :1 | 22 | 38 | Wossner | NC | NC | Round | 1,7 | NC | 835XSY |
| WKE223M835 | 83,5 | 12 :1 | 22 | 37 | Wiseco | NC | Mantello | NC | 10 | NC | 8350XX |
| WKE224M84 | 84 | 9 :1 | 22 | 37 | Wiseco | NC | Mantello | NC | -13 | NC | 8400XX |
| WKE226M84 | 84 | 10,2 :1 | 22 | 37 | Wiseco | NC | Mantello | NC | -1FT | NC | 8400XX |
| WKE223M84 | 84 | 12 :1 | 22 | 37 | Wiseco | NC | Mantello | NC | 10 | NC | 8400XX |
| K9229D200 | 85 | 8,5 :1 | 22 | 38 | Wossner | NC | NC | Round | -17.5 | NC | 850XPY |
| K9042D200 | 85 | 12,3 :1 | 22 | 38 | Wossner | NC | NC | Round | 1,7 | NC | 850XSY |
Compatibilita motore:
Compatibilita veicolo:
| Marca | Modello | Telaio | Codice Motore | Potenza (ch) | Annie |
|---|---|---|---|---|---|
| Citroen | BX 16 Valvole | BX (XB_) | XU9J4 | 160 | 1987 1992 |
| Peugeot | 309GTI16 | 309 (C_) | XU9J4 | 160 | 1989 1993 |
| Peugeot | 405 Mi16 (Ph1) | 405 (15_) | XU9J4 | 160 | 1987 1992 |
Produttori Pistoni RiferimentOS (OEM):
RiferimentOS ufficiali del produttore (Pistoni nudi o Kit Pistoni dotati di Fascia) corrispondenti ai veicoli sopra indicati.
| Marca | Modello | Codice Motore | Costruttore di riferimento | Dettagli |
|---|---|---|---|---|
| Citroen | BX 16 Valvole | XU9J4 | PSA0114.K7 | Kit Cannas + Pistoni + Fascia O 83 (XU9J4) |
| Peugeot | 309GTI16 | XU9J4 | PSA0114.K7 | Kit Cannas + Pistoni + Fascia O 83 (XU9J4) |
| Peugeot | 405 Mi16 (Ph1) | XU9J4 | PSA0114.K7 | Kit Cannas + Pistoni + Fascia O 83 (XU9J4) |
Attenzione:prima di qualsiasi montaggio verificare l'integrita e la conformita di ogni COMPONENTE del kit Pistoni nonché la conformita dell'assemblaggio nel motore; ogni eventuale garanzia e strettamente limitata alle sole parti del kit Pistone.
