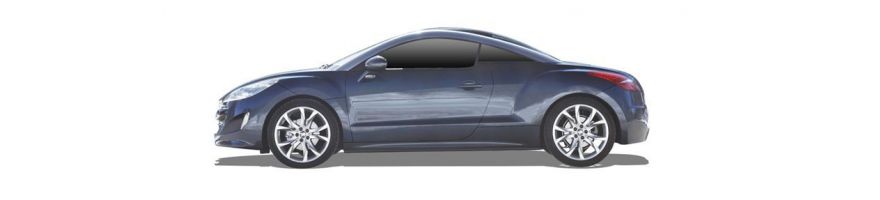

PEUGEOT RCZ

Manufacturers

PEUGEOT RCZ

PEUGEOT RCZ

PEUGEOT RCZ

There are 17 products.

Subcategories

  • PEUGEOT RCZ 1.6 16V 156hp EP6CDT 2010-2015
    PEUGEOT RCZ 1.6 16V 156hp EP6CDT 2010-2015

    The 156hp PEUGEOT RCZ 1.6 16V coupé, built from 2010 to 2015, uses the EP6CDT, a turbocharged Prince family engine shared with the BMW and MINI N12 to N18. Sixteen active references.

    Forced induction: TURBOSMART dump valve and wastegate actuator. Bottom end: ZRP forged crankshaft, ACL RACE or KING RACING tri-metal bearings and thrust washers, ARP 8740 main studs, ARP2000 con rod bolts. No forged piston is linked to this page.

    Head: SUPERTECH valve guides, valve stem seals, valve springs and 5mm collets, intake and exhaust valves, ARP2000 head studs, COMETIC MLX or ATHENA MLS head gasket.

  • PEUGEOT RCZ 1.6 16V 200hp EP6CDTX 2010-2015
    PEUGEOT RCZ 1.6 16V 200hp EP6CDTX 2010-2015

    The 200hp PEUGEOT RCZ 1.6 16V, built from 2010 to 2015, uses the EP6CDTX, a turbocharged 1.6 from the Prince family. Seventeen active references: the sixteen of the 156hp version, plus a set of forged pistons.

    EP6C/F pistons with 20mm gudgeon pin, 77 or 77.5mm bore depending on the part: WOSSNER at 10.2:1 or 12:1, SUPERTECH at 10:1 or 10.5:1, WISECO at 10.5:1, JE at 9.3:1. ZRP forged crankshaft, ACL RACE or KING RACING bearings, ARP studs and con rod bolts.

    Forced induction: TURBOSMART dump valve and wastegate actuator. Head: SUPERTECH parts, COMETIC MLX or ATHENA MLS head gasket.

  • PEUGEOT RCZ R 270hp EP6CDTR 2013-2015
    PEUGEOT RCZ R 270hp EP6CDTR 2013-2015

    The 270hp PEUGEOT RCZ R, built from 2013 to 2015, uses the EP6CDTR, a turbocharged 1.6 from the Prince family. Thirteen active references, focused on the cylinder head and sealing.

    COMETIC MLX head gasket in 78.0mm, seven thicknesses from 0.81 to 1.32mm, or ATHENA MLS in 78.5mm and 0.90mm. Intake valves in OEM size or +1.00mm, exhaust valves in OEM size or +0.80mm. SUPERTECH valve guides, valve stem seals, valve springs and 5mm collets. ARP2000 head studs.

    Bottom end: ACL RACE or KING RACING bearings, ARP 8740 main studs, ARP2000 con rod bolts. No piston, crankshaft or TURBOSMART part on this page.

Showing 1 - 17 of 17 items
PEUGEOT RCZ

A standalone sports coupé in the range, the RCZ comes with three EP6 units: the 156bhp EP6CDT, the 200bhp EP6CDTX and, from 2013, the RCZ R and its 270bhp EP6CDTR. That flagship sets the standard for the 17 live references gathered here, all built for the same 1.6 16V turbo. Bottom end: forged crankshaft, forged EP6C/F pistons, big end, main and thrust bearings, ARP main studs and rod bolts. Cylinder head: ARP studs, SUPERTECH inlet and exhaust valves, guides, springs and collets, plus valve stem seals and an uprated head gasket. Boost side: TURBOSMART dump valve and wastegate actuator. Three versions, three sub-categories.
