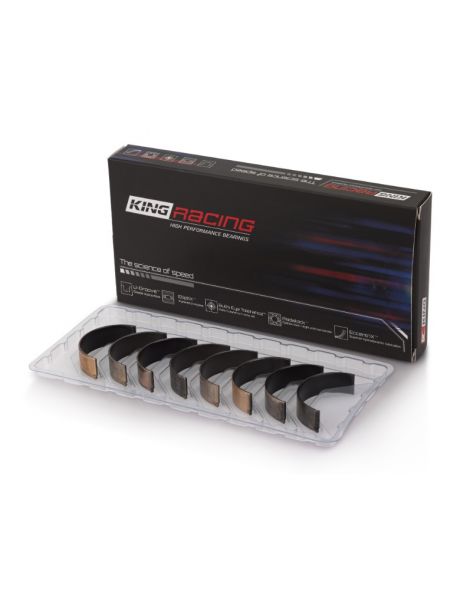

Reduced price! Coussinets bielles trimétal KING RACING BMW / MINI N12 N13 N14 N16 N18 View larger
Previous Next

Trimetal connecting rod bearings BMW MINI PSA N12 N13 N14 N16 N18 EP6

New product

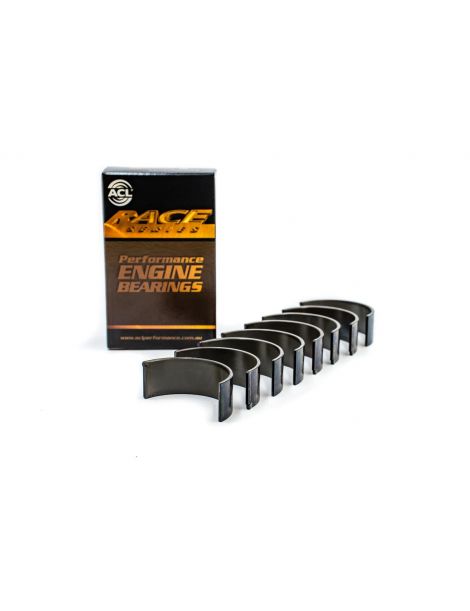

Set of 8 trimetal connecting rod half-bearings for the BMW / PSA 1.6 Prince engine.

  • Brands and treatments: ACL Race and King Racing
  • Compatibility: MINI R56, BMW 1 Series F20, Peugeot 208, Citroën DS3
  • Engine codes: N12, N13, N14, N16, N18, EP6
  • Available sizes: standard to +0.50 mm, increased-clearance version (HX / STDX)

More details

144,56 € tax incl.

-5%

152,17 € tax incl.

IN STOCK

Stock NSB France : 1 Item

  • The BMW / PSA 1.6 Prince engine

    Born from the cooperation between the BMW group and PSA, the Prince engine is a 1,598 cc inline four (77 mm bore, 85.8 mm stroke) with twin overhead camshafts and 16 valves, launched in 2006. It comes in naturally aspirated form (N12, N16, EP6, EP6C) and as a direct-injection turbo (N13, N14, N18, EP6DT, EP6CDT, EP6FDT and their derivatives). It powers the MINI R55 to R61, the BMW 1 Series and 3 Series (N13), many Peugeot, Citroën and DS models, as well as the Opel Grandland. All these versions share the same crankpin diameter: a single bearing set covers the whole family.

    From the factory, the Prince is fitted with standard production connecting rod bearings in a single thickness class, without colour grading (part numbers MINI 11 24 7 586 035 and PSA 0606.W9). These bearings are sized for the loads of the original engine: as soon as power, engine speed or boost pressure increase, they reach their limits.

    Trimetal connecting rod bearings

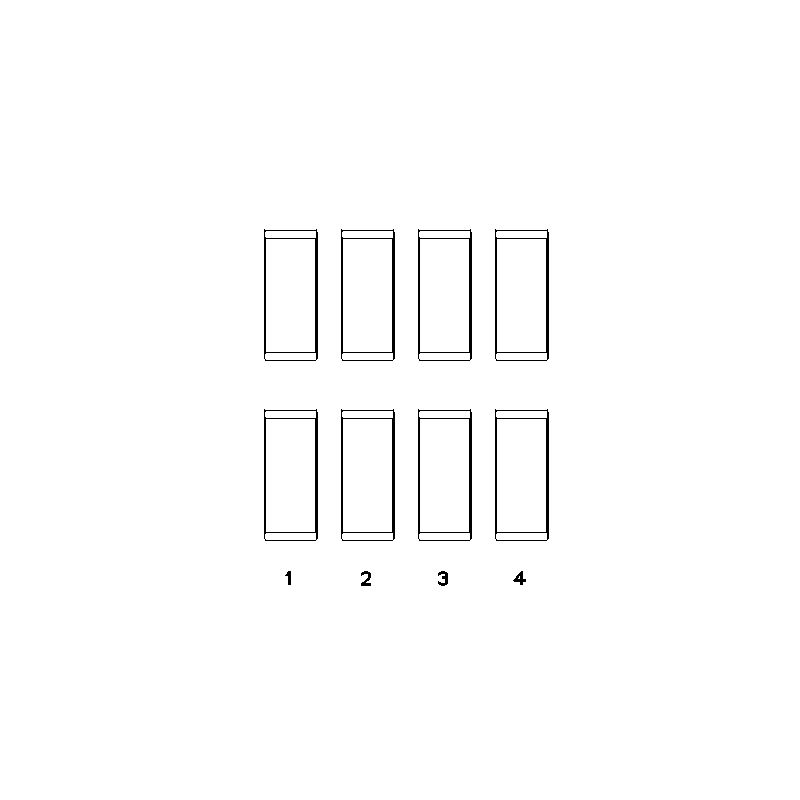

    A trimetal bearing stacks three layers: a steel back, a copper-lead intermediate layer with high load capacity and an anti-friction running surface that protects the journal. The complete set contains 8 half shells, four pairs for a four-cylinder engine.

    The original bearing relies on an aluminium alloy over a steel back, intended for low to medium loads, whereas trimetal is designed for high, sustained loads: an aluminium bi-metal takes around 8,000 psi, a performance trimetal up to 12,000 psi, 50% more. Hence better resistance and better durability on turbocharged, supercharged and high-revving engines.

    Technical specifications

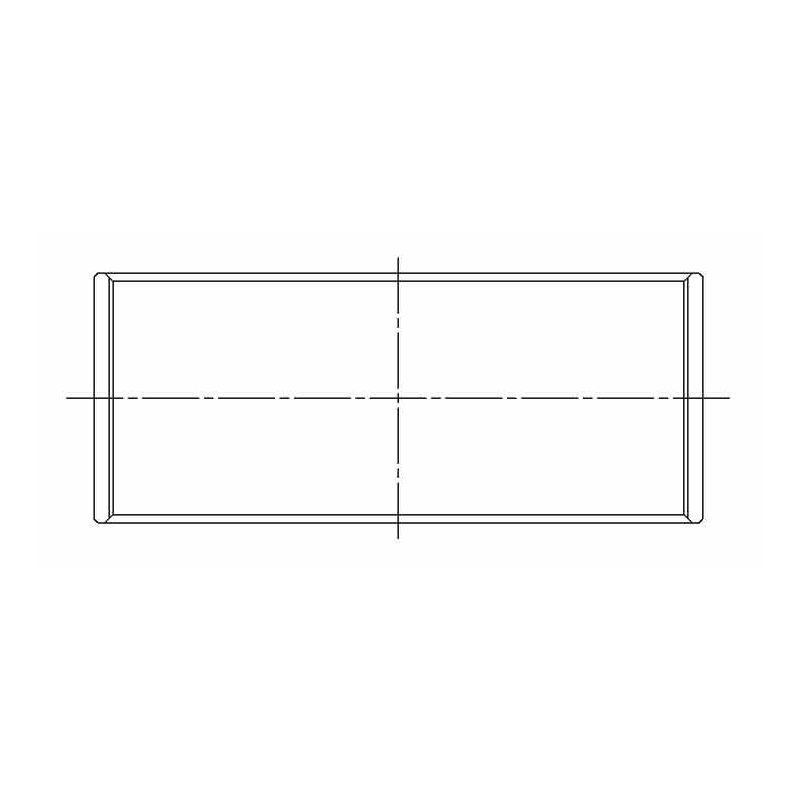

    Fitment dimensions common to all references
    ACL / King bearings
    Crankpin Ø 44.973 / 44.988 mm
    Width 19.7 mm    		OEM reference
    Part no. 11 24 7 586 035 (MINI) and 0606.W9 (PSA)
    Crankpin Ø 44.975 / 44.991 mm
    Housing bore Ø 48.000 / 48.016 mm
    ReferenceBrand and treatmentSizeWall thickness (mm)
    4B7787H-STDACL Race - UntreatedStandard1.498
    4B7787HX-STDACL Race - UntreatedStd, increased clearance (HX)1.485
    4B7787H-.025ACL Race - Untreated+0.0251.511
    4B7787H-.25ACL Race - Untreated+0.251.623
    CR4633XPKing Racing - UntreatedStandard1.495
    CR4633XP STDXKing Racing - UntreatedStd, increased clearance (STDX)1.482
    CR4633XP.026King Racing - Untreated+0.0261.508
    CR4633XP0.25King Racing - Untreated+0.251.622
    CR4633XP0.5King Racing - Untreated+0.501.749

    Running clearance

    The running clearance is the gap between the bearing and the journal where the oil film flows.

    In operation, the crankshaft journal does not rub against the bearing: it rides on this oil film, which carries the load. Clearance sets the thickness of this film: too tight, oil flows poorly, temperature rises and the risk of seizure increases; too loose, oil escapes, the film loses load-carrying capacity and oil pressure drops. The right clearance is the balance between adequate lubrication and a well-maintained oil film.

    Size / gradeWhen to choose itACL Race SeriesKing XP
    Standard (STD)Standard journal, not reground0.049 to 0.058 mm0.045 mm - 0.048 mm
    Increased clearance (HX / STDX)Wider clearance: high oil flow, high rpm0.074 to 0.083 mm0.070 mm - 0.073 mm
    +0.025 / +0.026 mmPolished journal0.049 to 0.058 mm0.045 mm - 0.048 mm
    +0.25 mmJournal reground to 0.25 mm0.049 to 0.058 mm0.045 mm - 0.048 mm
    +0.50 mmJournal reground to 0.50 mm0.045 mm - 0.048 mm

    Checking on assembly: lay a calibrated strip (Plastigauge) on the journal, torque the rod cap to spec (see the torque table below), then compare the crushed strip against the gauge to read the clearance.

    Plastigauge

    Order the Plastigauge →

    Connecting rod bolt torques

    BoltsBy torqueBy stretch (gauge)
    Forged rod, ARP2000
    (5/16″ × 38 mm)    		40.7 Nm0.127 to 0.140 mm
    Forged rod, ARP2000
    (3/8″ × 38 mm)    		61 Nm0.140 to 0.152 mm
    Forged rod, ARP L19
    (3/8″ × 38 mm)    		67.8 Nm0.152 to 0.165 mm

    ARP recommends the stretch method (gauge).

    Technical guide

    The ACL and King rod bearings shown here are trimetal bearings, designed for engine building and racing. Compared with an original bearing, they handle far higher loads: they cope with increased power, high rpm or the addition of a turbo or supercharger, where a standard bearing quickly reaches its limit.

    The two brands

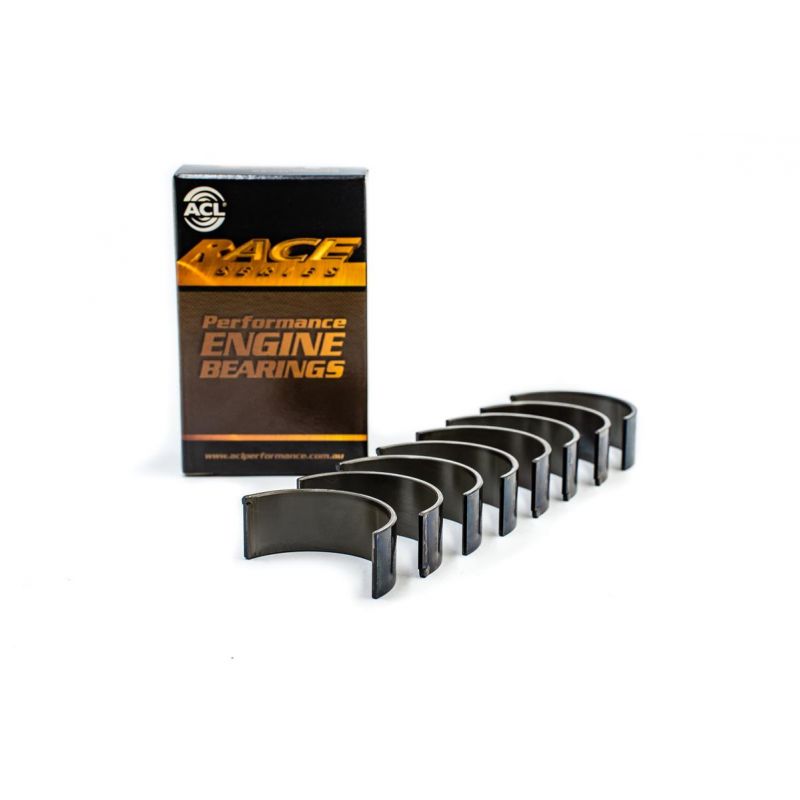

    ACLACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, offers with its Race Series precise trimetal bearings, available in many sizes and proven on built engines worldwide.

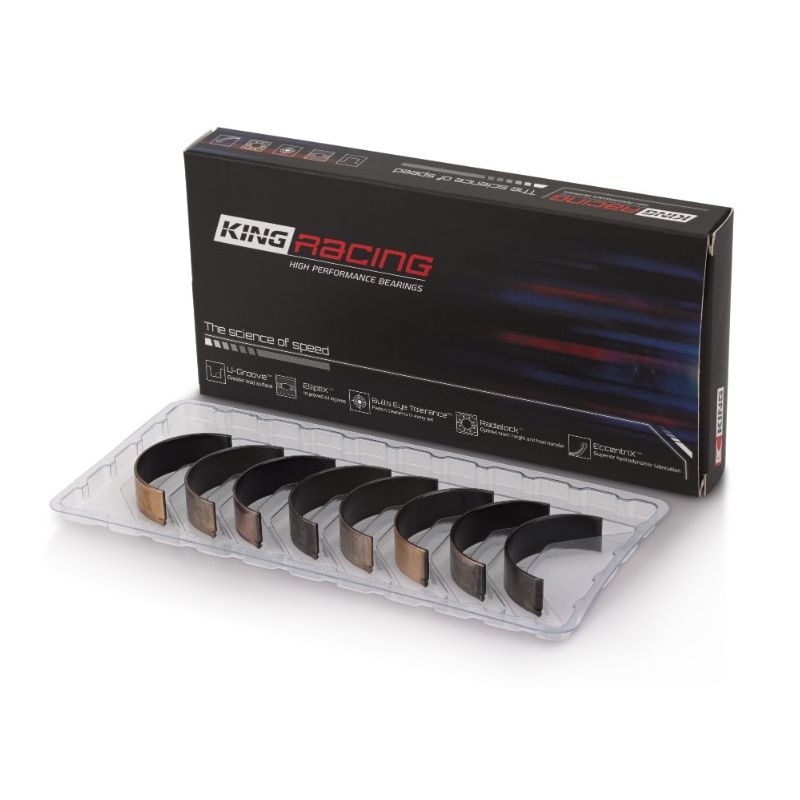

    King RacingKing Engine Bearings, an Israeli manufacturer of high-performance engine bearings since the 1960s, offers with its pMax Black trimetal alloy bearings designed for heavy loads.

    Construction and advantages

    CriterionACL Race SeriesKing Racing
    Cross-sectionCross-section of an ACL Race Series trimetal bearingCross-section of a King Racing trimetal bearing
    TypeHigh-performance trimetal bearingHigh-performance trimetal bearing
    Country of manufactureAustraliaIsrael
    ConstructionTrimetal: steel back, copper layer, soft surfaceTrimetal: steel back, copper layer, soft surface
    AlloyRace Series (copper-lead)pMax Black (hardened copper-lead)
    Protective coatingNoNo
    Available sizesStandard to +0.25 mm (+ increased clearance HX)Standard to +0.50 mm (+ increased clearance STDX)

    Vehicle compatibility

    This connecting rod bearing set fits the 1.6 Prince engine (N12, N13, N14, N16, N18 and EP6 in all versions) of the following vehicles:

    BrandModel (chassis)Engine codePowerYears
    BMW1 Series (F20)N13B16A102–177 hp2011–2016
    BMW1 Series (F21)N13B16A102–177 hp2011–2019
    BMW3 Series (F30, F80)N13B16A136–170 hp2012–2016
    BMW3 Series Touring (F31)N13B16A136 hp2013–2015
    CITROËNC3 II (SC_)EP6C120 hp2009–2016
    CITROËNC3 PICASSO (SH_)EP6, EP6C114–120 hp2009–2015
    CITROËNC4 I (LC_)EP6, EP6DT120–150 hp2008–2011
    CITROËNC4 Coupé (LA_)EP6, EP6DT120–150 hp2008–2011
    CITROËNC4 II (NC_)EP6C, EP6CDT120–156 hp2009–
    CITROËNC4 II Saloon (NC_)EP6C, EP6CDTM, EP6CDTMD, EP6FDTM120–173 hp2013–
    CITROËNC4 PICASSO I MPV (UD_)EP6, EP6CDT, EP6DT120–156 hp2008–2013
    CITROËNC4 GRAND PICASSO I (UA_)EP6, EP6C, EP6CDT, EP6DT120–156 hp2008–2013
    CITROËNC4 PICASSO IIEP6C, EP6CDT, EP6DT, EP6FDT120–165 hp2013–
    CITROËNC4 GRAND PICASSO II (DA_, DE_)EP6C, EP6CDT, EP6DT, EP6FDT120–165 hp2013–
    CITROËNC4 SPACETOURER (3D_)EP6FDT165 hp2018–
    CITROËNGRAND C4 SPACETOURER (3A_, 3E_)EP6FADTXD, EP6FDT165–181 hp2018–
    CITROËNC4 CACTUSEP6FDTM165–173 hp2018–
    CITROËNC5 III (RD_)EP6C, EP6CDT, EP6DT120–163 hp2009–2016
    CITROËNC5 III Estate (RW_)EP6C, EP6CDT120–156 hp2009–2016
    CITROËNC5 AIRCROSS (AC_, AJ_, AR_, A4_)EP6FADTXD, EP6FDTM165–181 hp2018–
    CITROËNDS3 (SA_)EP6C, EP6CDT, EP6DT, EP6DTS, EP6FDT120–207 hp2010–2015
    CITROËNDS3 ConvertibleEP6C, EP6CDT, EP6DT, EP6DTS, EP6FDT120–207 hp2013–2015
    CITROËNDS4 (NX_)EP6C, EP6CDT, EP6CDTM, EP6CDTMD, EP6CDTX, EP6DTX, EP6FDT120–200 hp2011–2015
    CITROËNDS5EP6CDT, EP6CDTM, EP6CDTMD, EP6CDTX, EP6DT, EP6DTX, EP6FDT150–200 hp2011–2015
    CITROËNBERLINGO Van/MPV (B9)EP6C, EP6CB98–120 hp2009–2018
    CITROËNBERLINGO MULTISPACE (B9)EP6C, EP6CB98–120 hp2009–2018
    MINIMINI (R56)N12B16A, N14B16A, N14B16AB, N14B16C, N16B16A, N18B16A, N18B16C75–218 hp2006–2013
    MINIMINI CLUBMAN (R55)N12B16A, N14B16A, N14B16AB, N14B16C, N16B16A, N18B16A, N18B16C98–211 hp2007–2014
    MINIMINI CLUBVAN (R55)N16B16A98–122 hp2012–2014
    MINIMINI Convertible (R57)N12B16A, N14B16A, N14B16AB, N14B16C, N16B16A, N18B16A, N18B16C98–211 hp2007–2015
    MINIMINI Coupé (R58)N14B16A, N14B16C, N16B16A, N18B16A, N18B16C115–211 hp2010–2015
    MINIMINI Roadster (R59)N14B16C, N16B16A, N18B16A, N18B16C115–211 hp2011–2015
    MINIMINI COUNTRYMAN (R60)N16B16A, N18B16A, N18B16C98–218 hp2010–2016
    MINIMINI PACEMAN (R61)N16B16A, N18B16A, N18B16C116–218 hp2012–2016
    OPELGRANDLAND / GRANDLAND X (A18, P1UO)EP6FADTXD, EP6FDTM165–181 hp2017–2021
    PEUGEOT207 (WA_, WC_)EP6, EP6C, EP6DT, EP6DTS110–174 hp2006–2013
    PEUGEOT207 Van/hatchback (WA_, WC_)EP6120 hp2007–2012
    PEUGEOT207 SaloonEP6110 hp2009–2013
    PEUGEOT207 SW (WK_)EP6, EP6C, EP6DT, EP6DTS120–174 hp2007–2013
    PEUGEOT207 CC (WD_)EP6, EP6C, EP6CDT, EP6DT120–156 hp2007–2013
    PEUGEOT208 I (CA_, CC_)EP6C, EP6CDT, EP6CDTX, EP6FDT, EP6FDTM, EP6FDTX120–208 hp2012–2020
    PEUGEOT2008 I (CU_)EP6C, EP6FDT, EP6FDTM116–173 hp2013–
    PEUGEOT308 I (4A_, 4C_)EP6, EP6C, EP6CDT, EP6CDTM, EP6CDTX, EP6DT, EP6DTS, EP6FDTM120–200 hp2007–2014
    PEUGEOT308 SW I (4E_, 4H_)EP6, EP6C, EP6CDT, EP6DT, EP6DTS120–174 hp2007–2014
    PEUGEOT308 CC (4B_)EP6, EP6CDT, EP6CDTM, EP6CDTX, EP6DT120–200 hp2009–2014
    PEUGEOT308 II (LB_, LP_, LW_, LH_, L3_)EP6CDT, EP6CDTM, EP6FADTR, EP6FADTX, EP6FDTM, EP6FDTMD, EP6FDTR, EP6FDTX125–272 hp2013–2021
    PEUGEOT308 SW II (LC_, LJ_, LR_, LX_, L4_)EP6CDT, EP6FADTX, EP6FDTMD, EP6FDTX125–225 hp2014–2021
    PEUGEOT3008 I MPV (0U_)EP6, EP6C, EP6CDT, EP6CDTM, EP6CDTMD, EP6DT, EP6FDT120–165 hp2009–2016
    PEUGEOT3008 II SUV (MC_, MR_, MJ_, M4_)EP6FADTXD, EP6FDT, EP6FDTM, EP6FDTMD150–181 hp2016–
    PEUGEOT408EP6C, EP6CDTMD, EP6FDT, EP6FDTM120–173 hp2011–
    PEUGEOT5008 (0U_, 0E_)EP6, EP6C, EP6CDT, EP6DT, EP6FDT120–165 hp2009–2017
    PEUGEOT5008 II (MC_, MJ_, MR_, M4_)EP6FADTXD, EP6FDT, EP6FDTM, EP6FDTMD150–181 hp2016–
    PEUGEOT508 I (8D_)EP6C, EP6CDT, EP6FDT116–165 hp2010–2018
    PEUGEOT508 SW I (8E_)EP6C, EP6CDT, EP6CDTM, EP6FDT116–165 hp2010–2018
    PEUGEOT508 II (FB_, FH_, F3_)EP6FADTX, EP6FADTXD, EP6FDTM165–224 hp2018–
    PEUGEOT508 SW II (FC_, FJ_, F4_)EP6FADTX, EP6FADTXD, EP6FDTM165–224 hp2018–
    PEUGEOTPARTNER Van/MPVEP6C, EP6CB98–120 hp2010–
    PEUGEOTPARTNER TEPEEEP6C, EP6CB98–120 hp2009–
    PEUGEOTRCZEP6CDT, EP6CDTM, EP6CDTMD, EP6CDTR, EP6CDTX150–270 hp2010–2015
