2.0L 16v - XU10J4
Manufacturers
2.0L 16v - XU10J4
Warning: Last items in stock!
New product

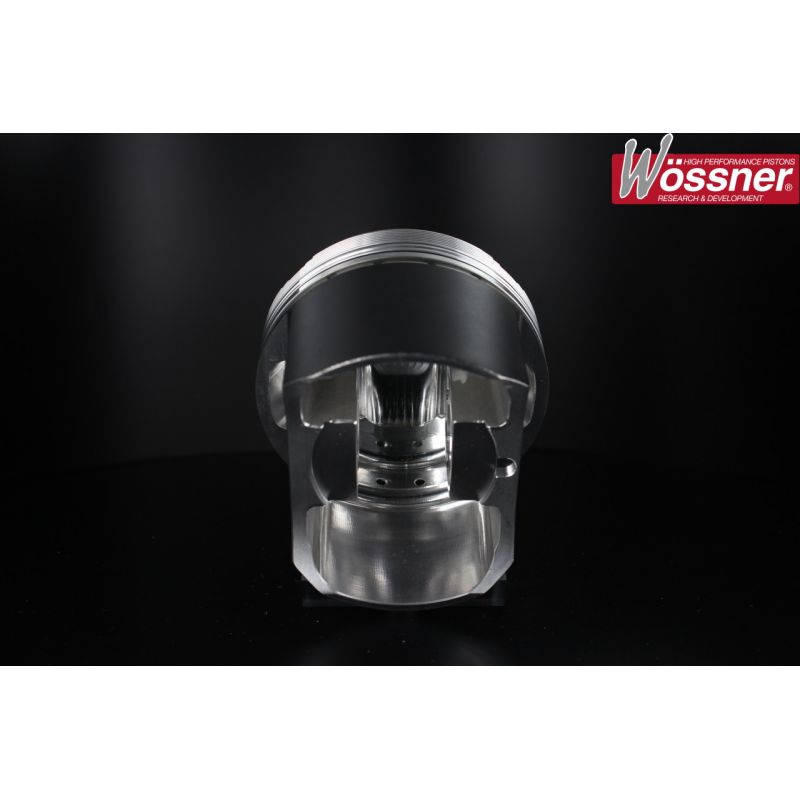

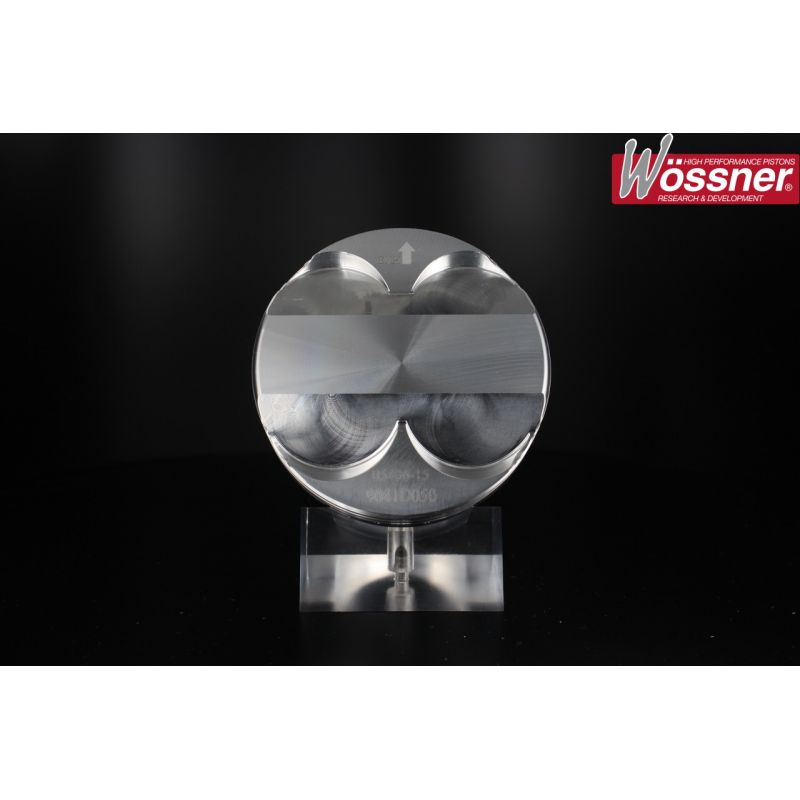

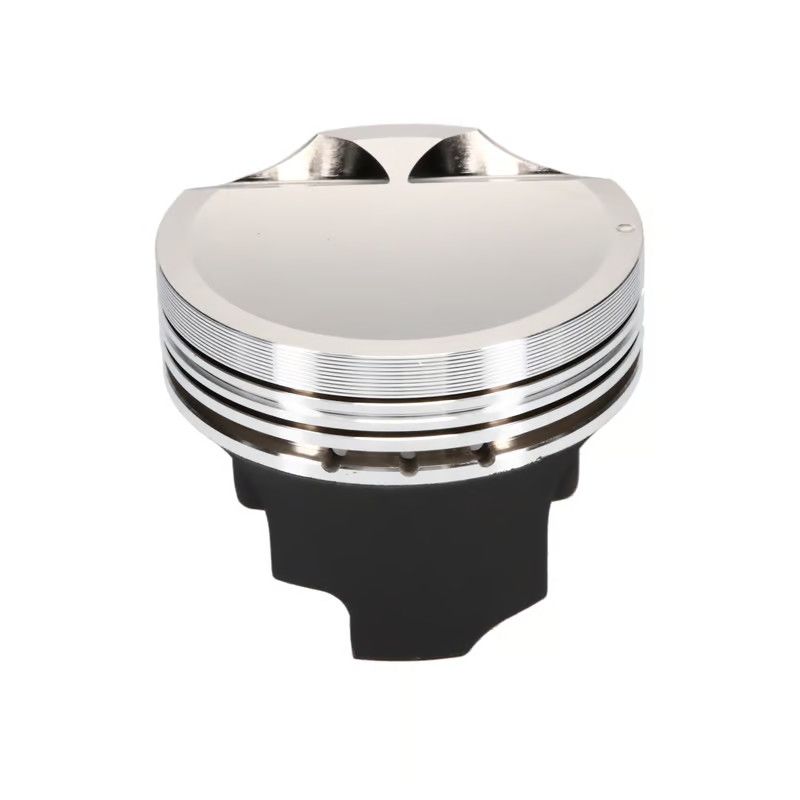

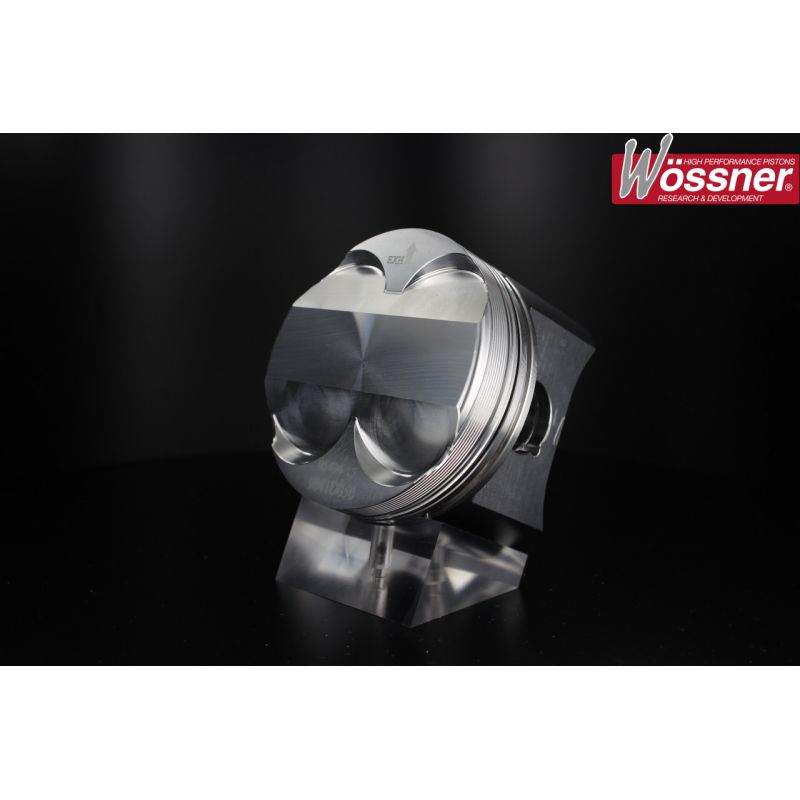

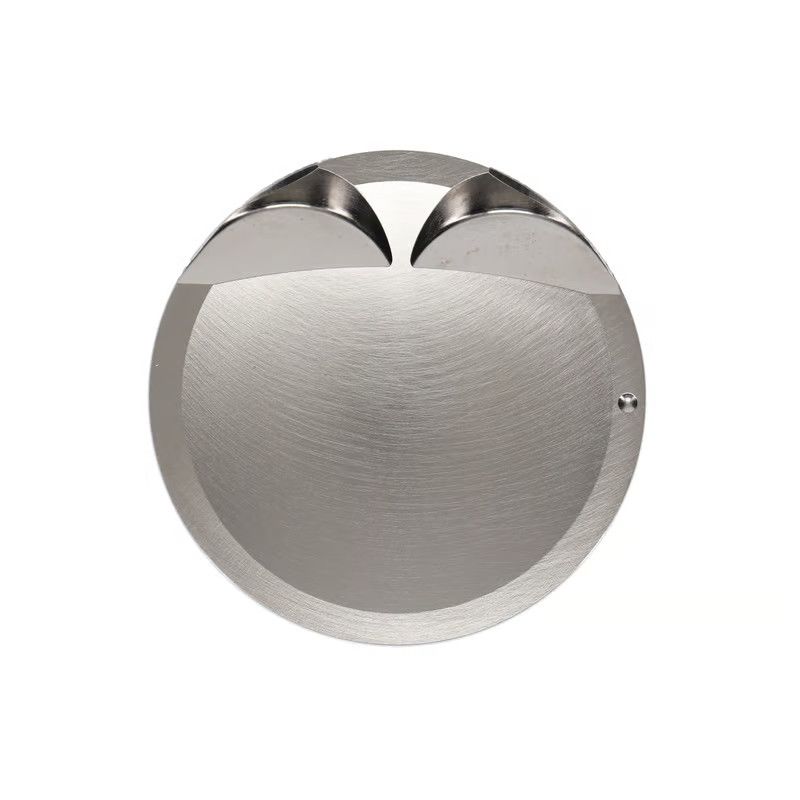

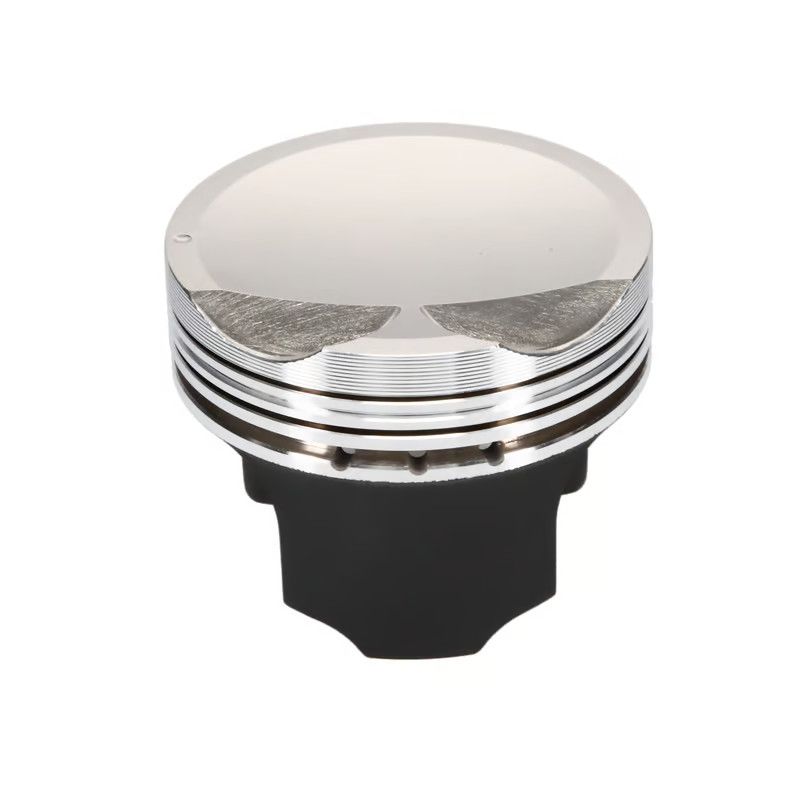

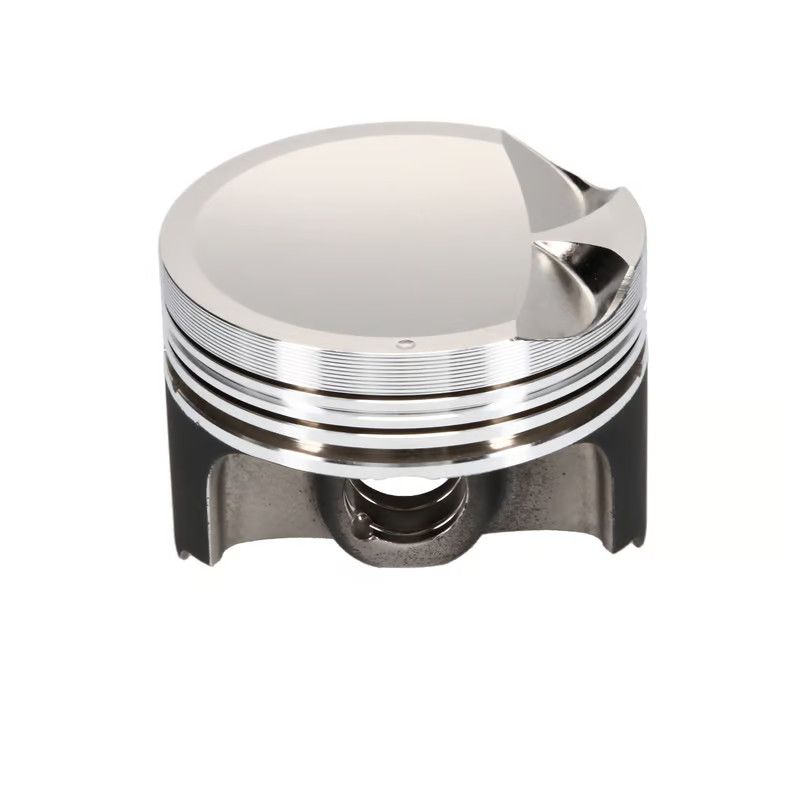

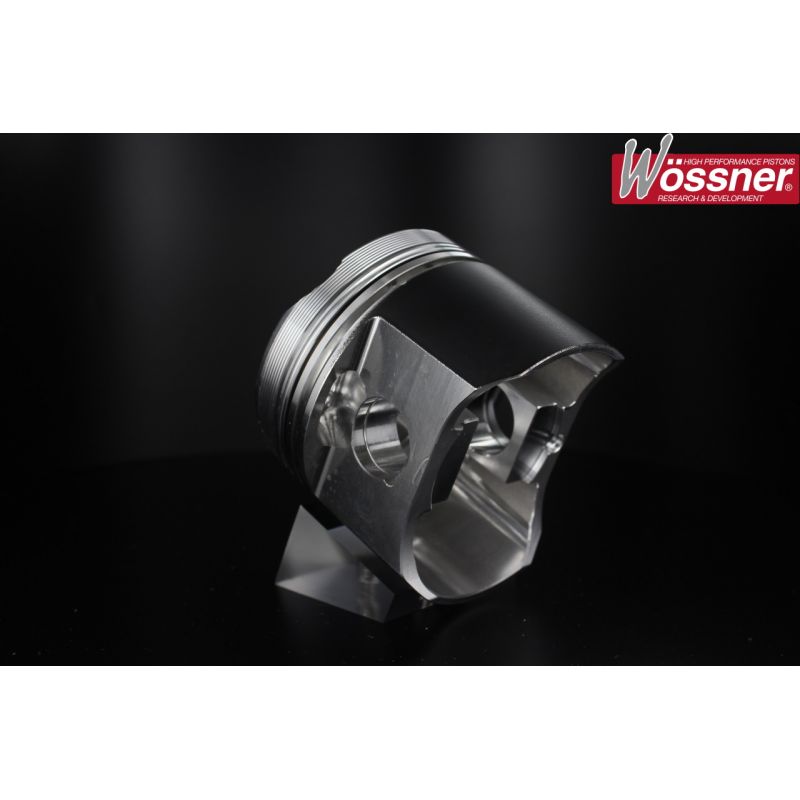

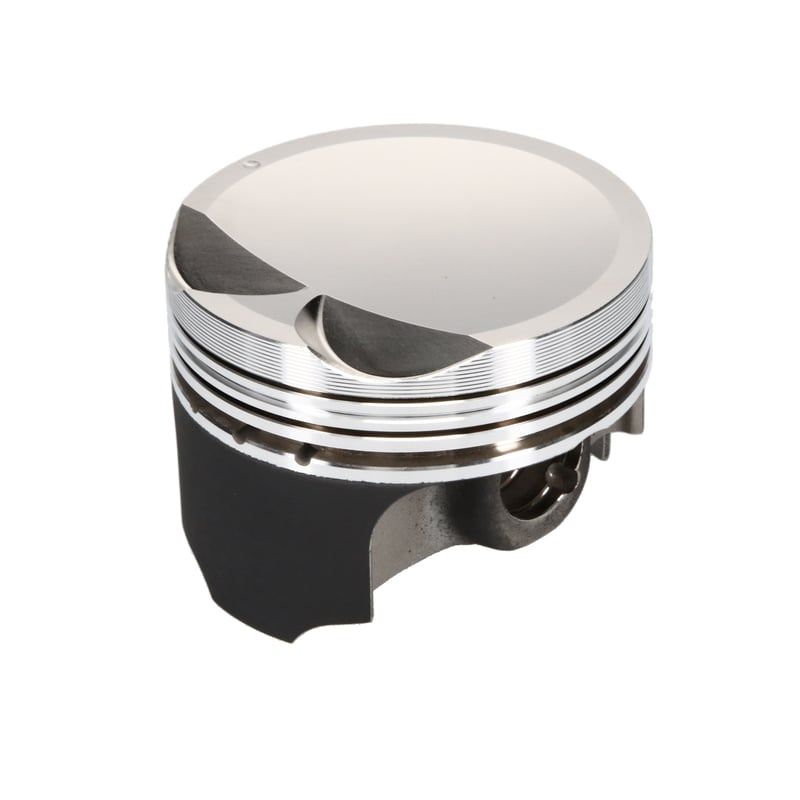

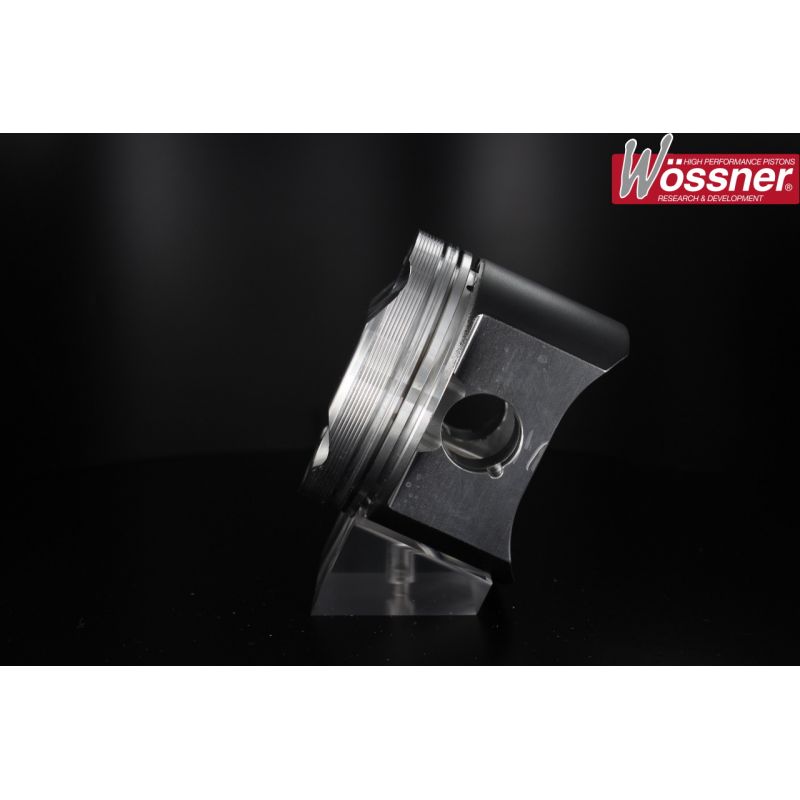

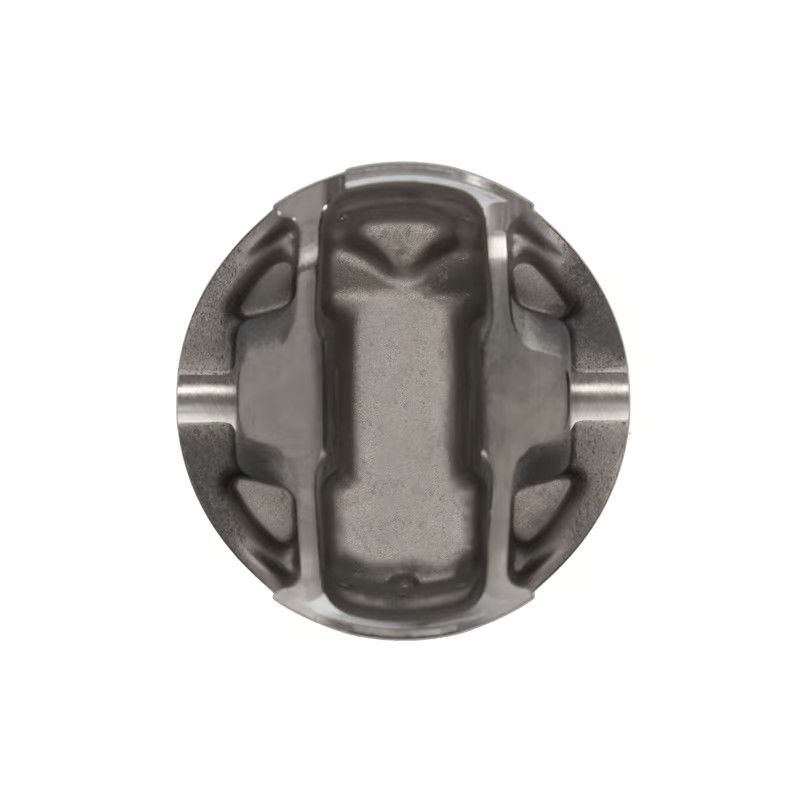

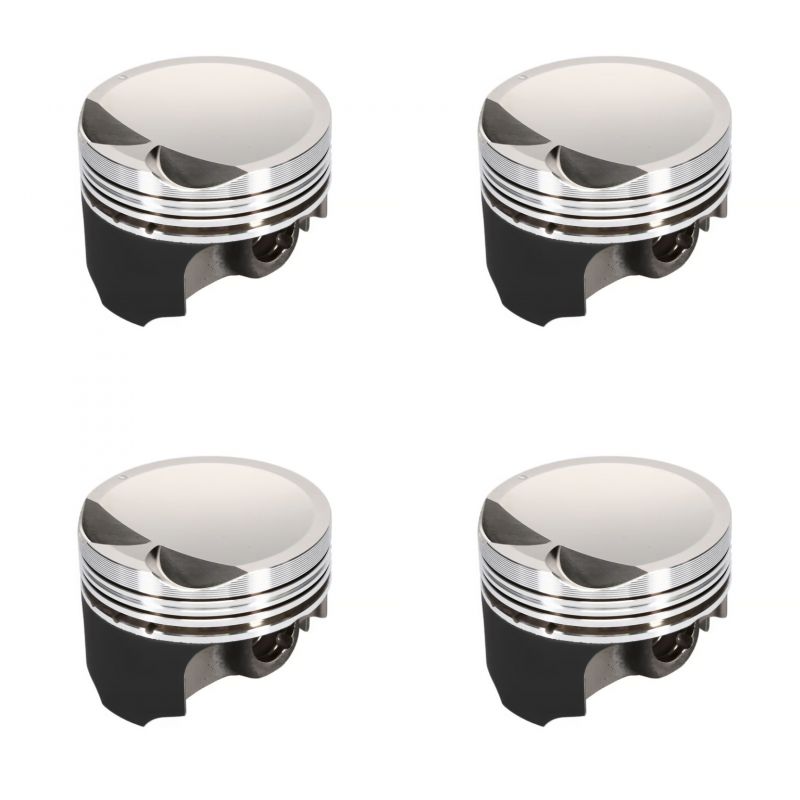

PSA XU10J4 2.0 16V forged pistons (23 mm pin). Bores 86-87 mm, Volume ratio 8.5:1 to 11:1, Rings included. RFY/RFT/RFV compatible (Peugeot 306 S16, 405 Mi16, Citroen ZX/Xantia 16V).
Specifications of the pistons offered by NSB Concept for PSA 2.0 L 16 V XU10J4 (pin 23 mm) :
| Reference | OEM Bore 86,00 mm | OEM CR 10,4 :1 | OEM Pin 23 mm | Height OEM Pin 39,16 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE229M86 | 86.00 | 8.5:1 | 23 | 39.16 | Wiseco | Skirt | 2618 | NC | -14.0 | NC | 8600XX |
| WKE253M86 | 86.00 | 11:1 | 23 | 39.16 | Wiseco | Skirt | NC | NC | -1.5 FT | NC | 8600XX |
| WKE229M8625 | 86.25 | 8.5:1 | 23 | 39.16 | Wiseco | Skirt | NC | NC | -14.0 | NC | 8625XX |
| WKE253M8625 | 86.25 | 11:1 | 23 | 39.16 | Wiseco | Skirt | NC | NC | -1.5 FT | NC | 8625XX |
| WKE229M865 | 86.50 | 8.5:1 | 23 | 39.16 | Wiseco | Skirt | 2618 | NC | -14.0 | NC | 8650XX |
| WKE253M865 | 86.50 | 11:1 | 23 | 39.16 | Wiseco | Skirt | NC | NC | -1.5 FT | NC | 8650XX |
| WKE229M8675 | 86.75 | 8.5:1 | 23 | 39.16 | Wiseco | Skirt | NC | NC | -14.0 | NC | 8675XX |
| WKE253M8675 | 86.75 | 11:1 | 23 | 39.16 | Wiseco | Skirt | NC | NC | -1.5 FT | NC | 8675XX |
| WKE229M87 | 87.00 | 8.5:1 | 23 | 39.16 | Wiseco | Skirt | 2618 | NC | -14.0 | NC | 8700XX |
| WKE253M87 | 87.00 | 11:1 | 23 | 39.16 | Wiseco | Skirt | NC | NC | -1.5 FT | NC | 8700XX |
Compatibility (engine codes):
Original vehicles equipped with the XU10J4 :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Citroën | Xantia X1 2.0i 16V | RFY (XU10J4/L/Z) | 152 hp | 1993 – 1998 |
| Citroën | Xantia X1 2.0i 16V | RFT (XU10J4D/Z) | 150 hp | 1993 – 1998 |
| Citroën | ZX 2.0 16V | RFY (XU10J4/L/Z) | 150–155 hp | 1992 – 1996 |
| Citroën | ZX Coupé 2.0 16V | RFT (XU10J4D/Z) | 150–155 hp | 1992 – 1996 |
| Peugeot | 306 S16 (phase I) | RFY (XU10J4/L/Z) | 155 hp | 1993 – 1994 |
| Peugeot | 306 S16 (phase I) | RFT (XU10J4D/Z) | 150 hp | 1994 – 1997 |
| Peugeot | 405 Mi16 (phase II) | RFY (XU10J4/L/Z) | 150–155 hp | 1993 – 1995 |
OEM piston references :
Main sources: see citations in the product sheet.
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
