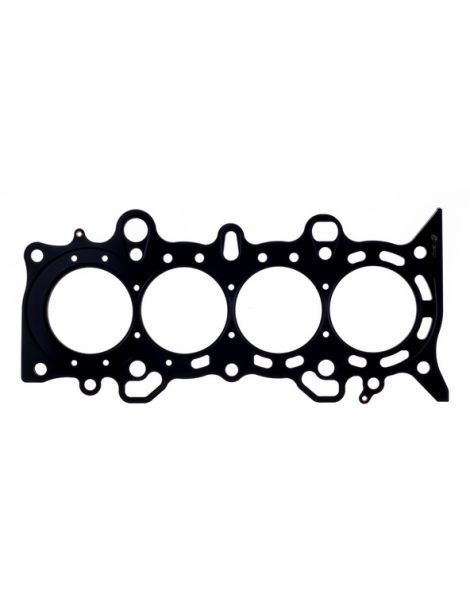

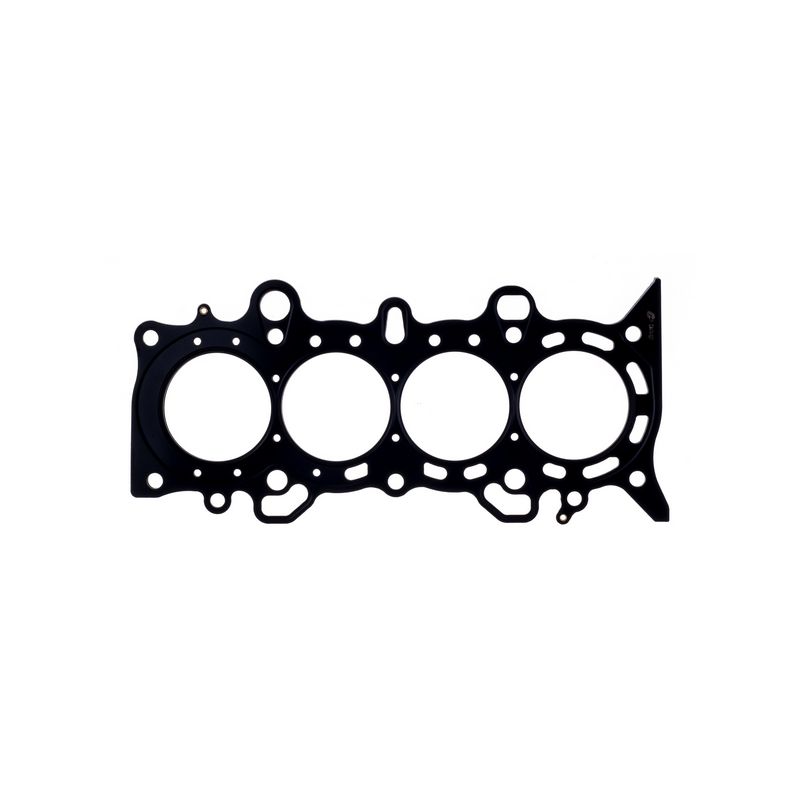

Reinforced head gasket COMETIC MLS Honda Civic 1.7 D17A1 D17A2 D17A6 D17Z1

We offer several reinforced head gaskets from COMETIC for the HONDA 1.7 D17 engine, with the full technical data below.

OEM head gasket data

• Engine bore: 75mm
• Thickness: 0.70mm

Technical specification

• Engine bore: up to 76.00mm, 77.00mm, 78.00mm, 79.00mm
• Gasket type: MLS
• Number of layers: 3, then 5 for gaskets from 1.78mm thick
• Thicknesses available: 0.68mm, 0.76mm, 0.91mm, 1.02mm, 1.14mm, 1.30mm, 1.42mm, 1.52mm, 1.68mm, 1.78mm, 1.90mm, 2.03mm, 2.13mm, 2.18mm, 2.34mm, 2.49mm, 3.05mm, 3.56mm
• References: C4471, C4472, C4473 and C4474, in every thickness listed above

Founded by Bob Gorman in 1989, Cometic is recognised worldwide as a leader in the design and manufacture of reinforced head gaskets. Like every product in the range, they are made in the United States. A Cometic reinforced head gasket is built from several pressed stainless steel layers held together by rivets. Cometic offers three types of head gasket:

This construction calls for a lower head bolt torque, which reduces bore distortion and spreads the clamping load more evenly across the whole gasket.

• MLS: the equivalent of the Athena MLS gaskets, these multi-layer gaskets (3 to 5 stainless steel layers depending on thickness) have embossed beads around the cylinders and the fluid passages.

• MLX: the same base as the MLS gasket, with an added reinforcement (a folded steel layer) around the cylinders and a special high-temperature coating.

• HP: an MLX gasket with one extra layer, added to improve the sealing of the cylinders (see below).
