2.3L 16v - EcoBoost N38/48H YVDA/B
Produttori
2.3L 16v - EcoBoost N38/48H YVDA/B
Attenzione: Ultimi articoli in magazzino!
Nuovo prodotto

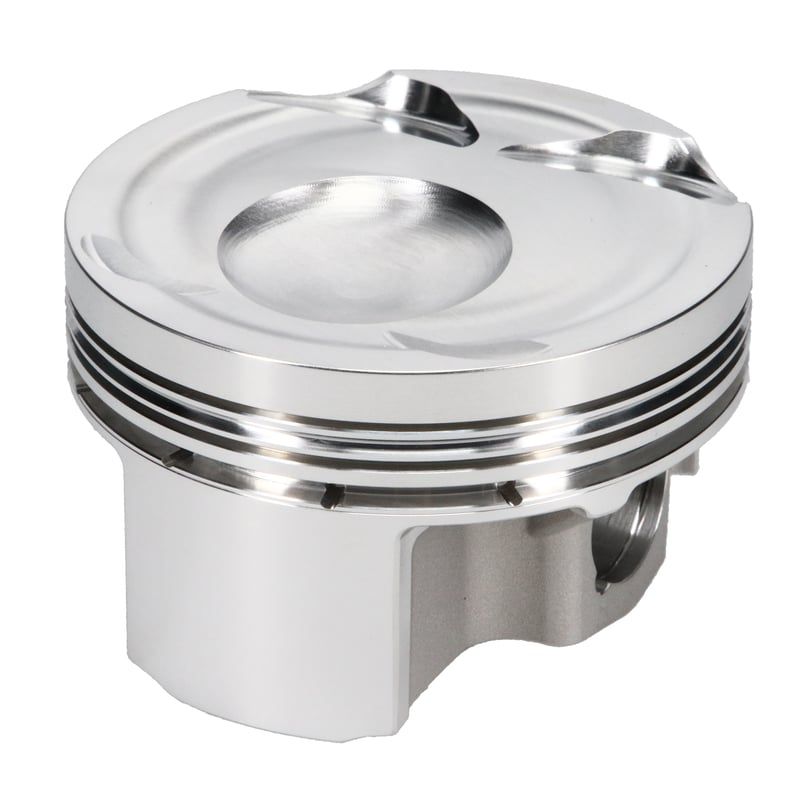

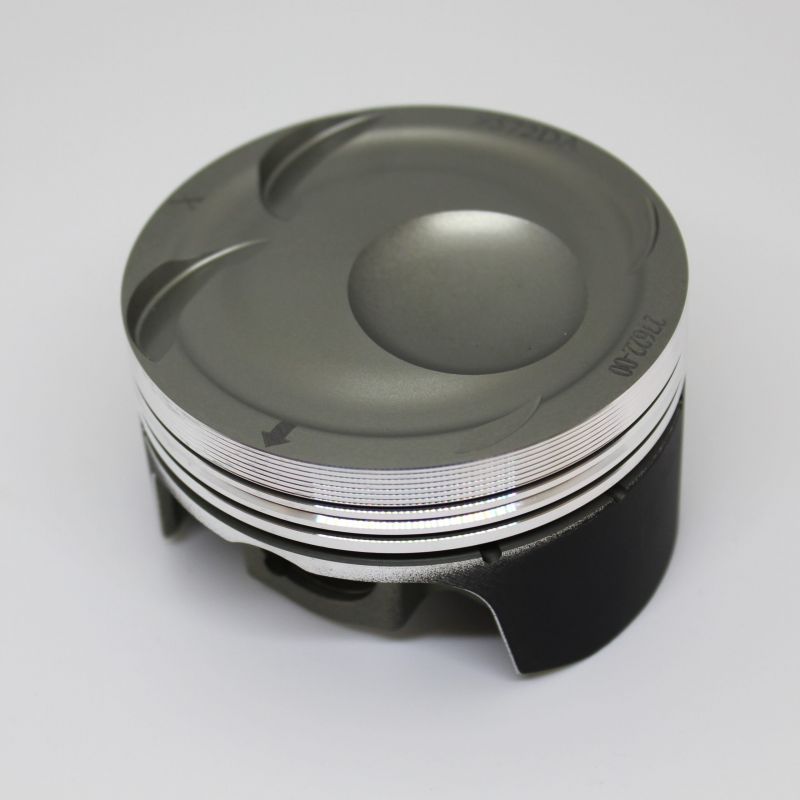

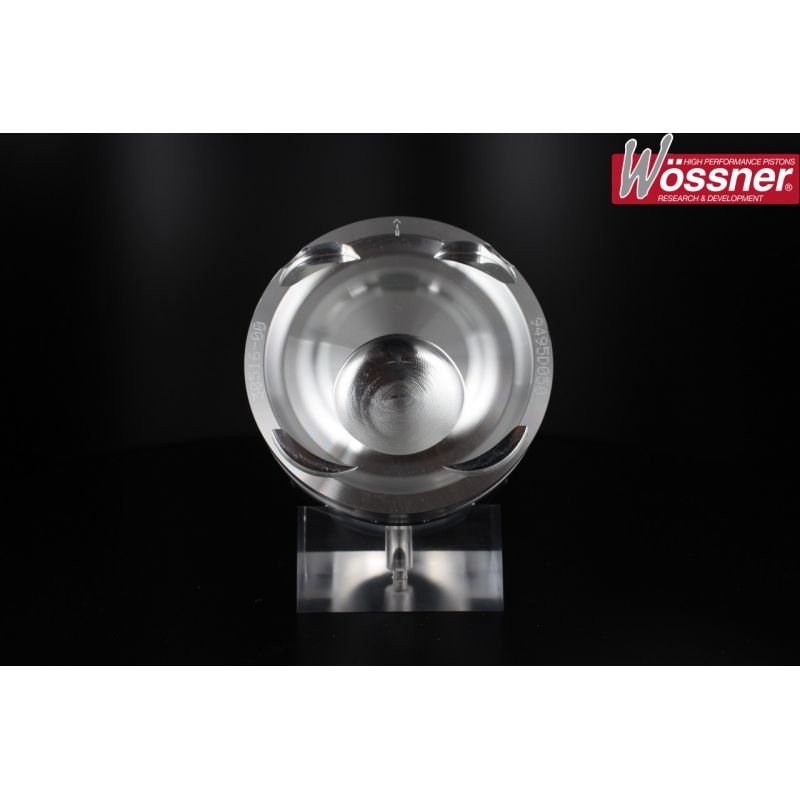

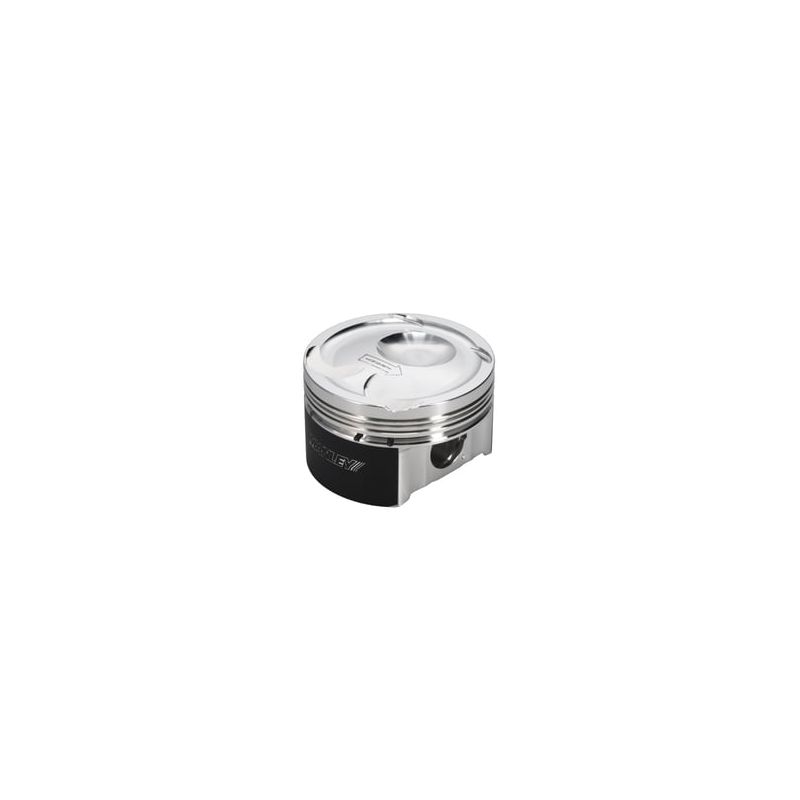

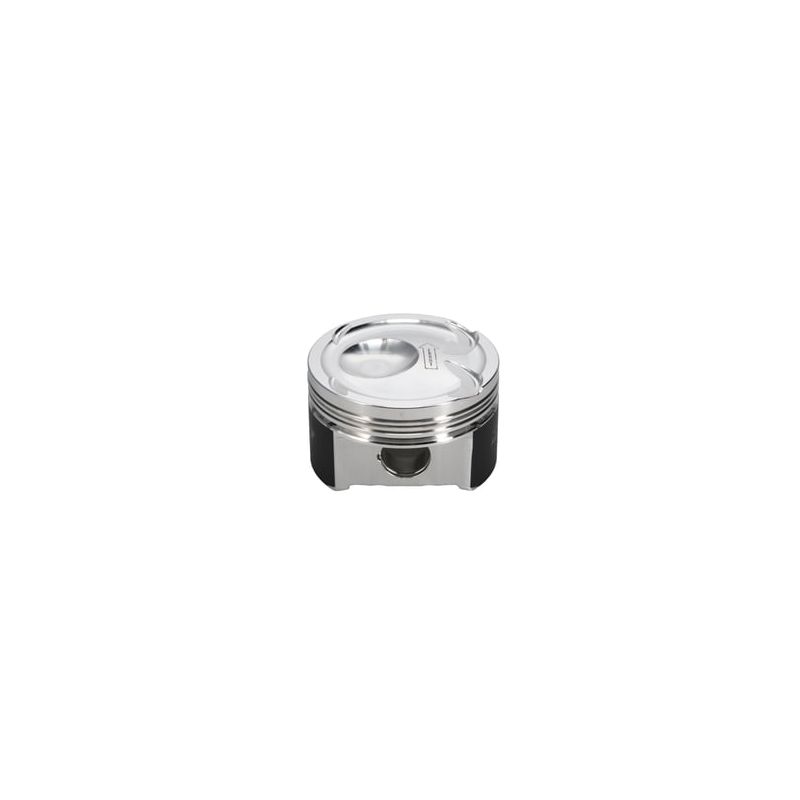

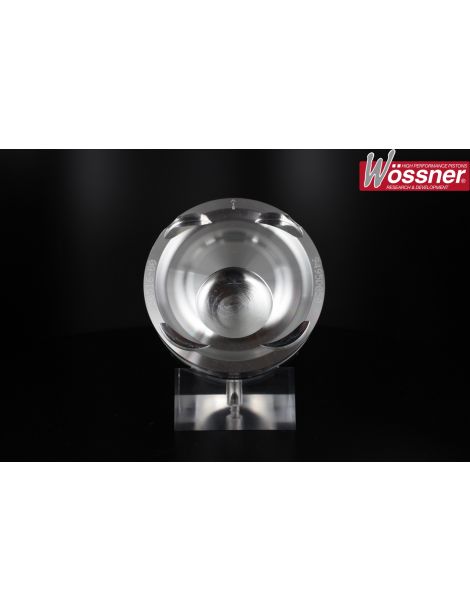

Pistoni forgiati Ford 2.3 EcoBoost alesaggio 87,5x88,5 mm, RV 9x9,8:1, asse 22,5 mm. Marchi Wiseco, Wossner, JE FSR, Diamond (HD), Manley (HD), Supertech. Applicazioni: Mustang, Ranger, Bronco, Explorer, Focus RS/ST.
Caratteristiche dei pistoni forgiati proposti da NSB Concept per Ford 2.3 L 16 v EcoBoost:
| Pistone di riferimento | Foro (mm) | realta virtuale | Asse (mm) | Altezza dell'asse (mm) | Allineare | Alluminio | Trattamento | Forgiatura | Cupola (cc) | Peso | Segmenti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9495DA | 87,5 | 9:1 | 22.5 | 32.8 | Wossner | N/A | N/A | Round | -11.3 | N/A | 875XPY |
| WKE146M875 | 87,5 | 9.4:1 | 22.5 | 32.8 | Wiseco | N/A | Gonna | N/A | -6.8 | N/A | 8750XX |
| DIA-23100-4 | 87,5 | 9.5:1 | 22.5 | 32.76 | Diamante | 2618 | Gonna | N/A | -6.41 | N/A | 9513445 |
| DIA-23100-4-H | 87,5 | 9.5:1 | 22.5 | 32.76 | Diamante HD | 2618 | Gonna | N/A | -6.41 | N/A | 9513445 |
| JE-337924 | 87,5 | 9.5:1 | 22.5 | 33 | JE FSR | 2618 | Nessuno | FSR | -6.4 | 355 | N/A |
| 637000C-4 | 87,5 | 9.5:1 | 22.5 | 32.79 | Manley | 4032 | Gonna | N/A | -8.2 | 382 | N/A |
| 637000CE-4 | 87,5 | 9.5:1 | 22.5 | 32.79 | ManleyHD | 2618 | Gonna | N/A | -8.2 | 382 | N/A |
| P4-FECO23-875-N6H13-4 | 87,5 | 9.5:1 | 22.5 | 32.75 | Supertecnologica | 4032 | Testa + Gonna | N/A | -6.3 | 360 | W8750XX |
| K9571DA | 87,5 | 9.5:1 | 22.5 | 32.8 | Wossner | N/A | N/A | Pantofole | -6.44 | N/A | 875XPY |
| K9572DA | 87,5 | 9.5:1 | 22.5 | 32.8 | Wossner | N/A | N/A | Pantofole | -6.44 | N/A | GNH87.50 |
| K9570DA | 87,5 | 9.7:1 | 22.5 | 32.8 | Wossner | N/A | N/A | Pantofole | -2.94 | N/A | GNH87.50 |
| K9495D010 | 87.6 | 9:1 | 22.5 | 32.8 | Wossner | N/A | N/A | Round | -11.3 | N/A | 880XPY |
| 637001C-4 | 87.6 | 9.5:1 | 22.5 | 32.79 | Manley | 4032 | Gonna | N/A | -8.2 | 384 | N/A |
| 637001CE-4 | 87.6 | 9.5:1 | 22.5 | 32.79 | ManleyHD | 2618 | Gonna | N/A | -8.2 | 384 | N/A |
| K9495D050 | 88 | 9:1 | 22.5 | 32.8 | Wossner | N/A | N/A | Round | -11.3 | N/A | 880XPY |
| WKE146M88 | 88 | 9.4:1 | 22.5 | 32.8 | Wiseco | N/A | Gonna | N/A | -7.7 | N/A | 8800XX |
| DIA-23101-4 | 88 | 9.5:1 | 22.5 | 32.76 | Diamante | 2618 | Gonna | N/A | -6.41 | N/A | 9513465 |
| DIA-23101-4-H | 88 | 9.5:1 | 22.5 | 32.76 | Diamante HD | 2618 | Gonna | N/A | -6.41 | N/A | 9513465 |
| JE-337925 | 88 | 9.5:1 | 22.5 | 33 | JE FSR | 2618 | N/A | FSR | -7.6 | 360 | N/A |
| 637005C-4 | 88 | 9.5:1 | 22.5 | 32.79 | Manley | 4032 | Gonna | N/A | -8.2 | 390 | N/A |
| 637005CE-4 | 88 | 9.5:1 | 22.5 | 32.79 | ManleyHD | 2618 | Gonna | N/A | -8.2 | 390 | N/A |
| P4-FECO23-88-N6H13-4 | 88 | 9.5:1 | 22.5 | 32.75 | Supertecnologica | 4032 | Testa + Gonna | N/A | -6.3 | 366 | W8800XX |
| K9571D050 | 88 | 9.6:1 | 22.5 | 32.8 | Wossner | N/A | N/A | Pantofole | -6.44 | N/A | 880XPY |
| K9572D050 | 88 | 9.6:1 | 22.5 | 32.8 | Wossner | N/A | N/A | Pantofole | -6.44 | N/A | GNH88.00 |
| K9570D050 | 88 | 9.8:1 | 22.5 | 32.8 | Wossner | N/A | N/A | Pantofole | -2.94 | N/A | GNH88.00 |
| WKE146M885 | 88,5 | 9.4:1 | 22.5 | 32.8 | Wiseco | N/A | Gonna | N/A | -8.4 | N/A | 8850XX |
| DIA-23102-4 | 88,5 | 9.5:1 | 22.5 | 32.76 | Diamante | 2618 | Gonna | N/A | -6.41 | N/A | 9513485 |
| DIA-23102-4-H | 88,5 | 9.5:1 | 22.5 | 32.76 | Diamante HD | 2618 | Gonna | N/A | -6.41 | N/A | 9513485 |
| JE-337926 | 88,5 | 9.5:1 | 22.5 | 33 | JE FSR | 2618 | N/A | FSR | -8.2 | 363 | N/A |
Compatibilita motore:
Guado
EcoBoost 2.3
Codici/designazioni:
EcoBoost 2.3 (I4 GTDI)
| Marca | Modello | Telaio | Codice motore | Potenza (CV) | Anni |
|---|---|---|---|---|---|
| Guado | Bronco (U725) | U725 | 2.3 Eco Boost | 270-300 | 2021-2025 |
| Guado | Esplora (U625) | U625 | 2.3 Eco Boost | 300 | 2020-2025 |
| Guado | Focus RS Mk3 | C346 | 2.3 Eco Boost | 350 | 2016-2018 |
| Guado | Concentrazione ST Mk4 | C519 | 2.3 Eco Boost | 280 | 2019-2024 |
| Guado | Mustang (S550) | S550 | 2.3 Eco Boost | 310-330 | 2015-2023 |
| Guado | Ranger (T6) | T6/T6.2 | 2.3 Eco Boost | 270 | 2019-2025 |
Attenzione:
prima di qualsiasi montaggio verificare l'integrita e la conformita di ogni componente del kit pistonee nonché la conformita dell'insieme nel motore; ogni eventuale garanzia e strettamente limitata alle sole parti del kit pistonee.
