- Disponibile
Pistoni forgiati 2.3L 16V MZR DISI Mazda
641,90 €
(Tasse incl.)
855,86 €
(Tasse incl.)
-25%

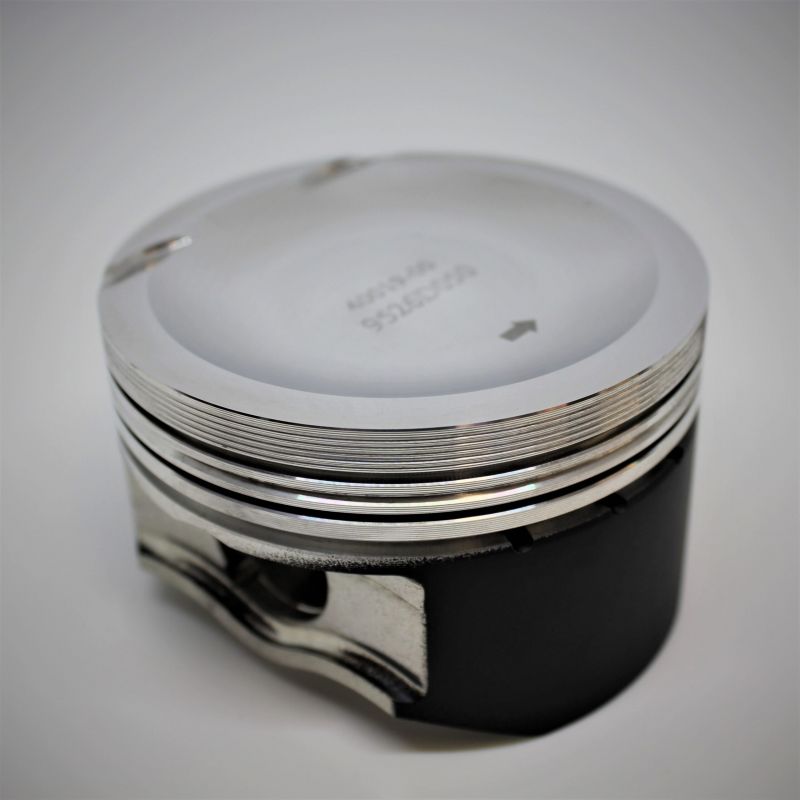

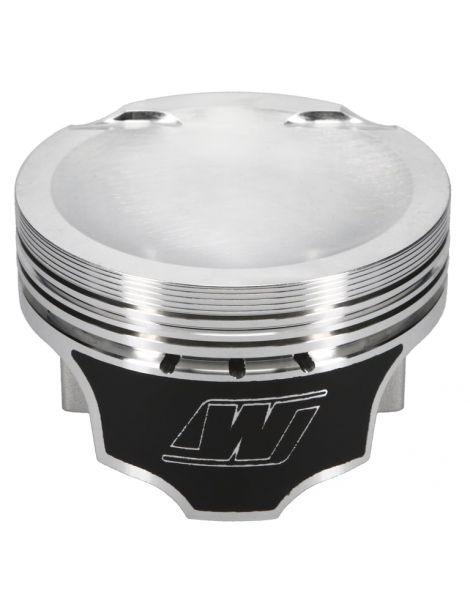

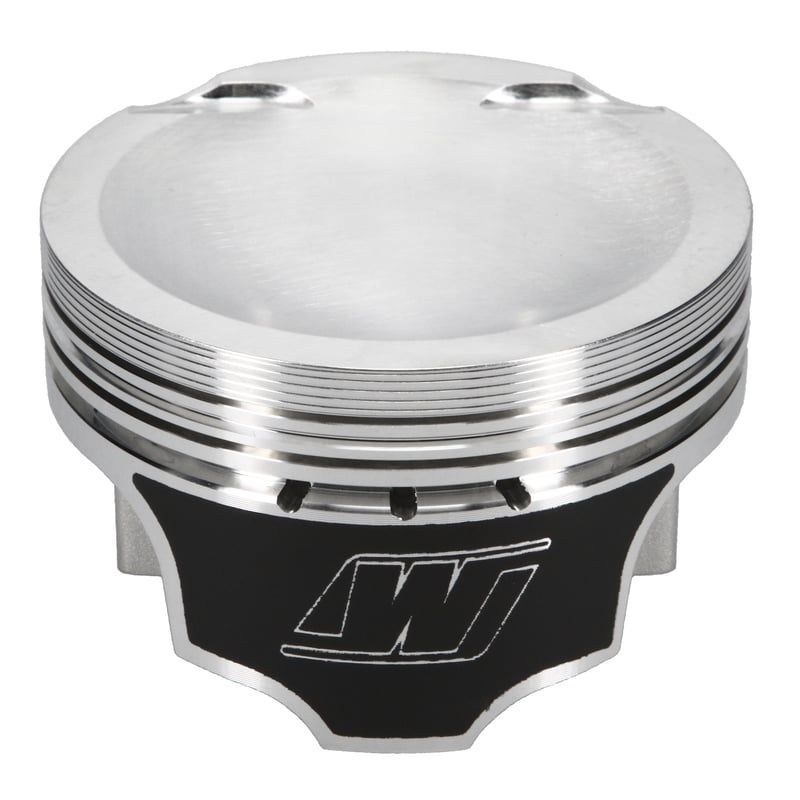

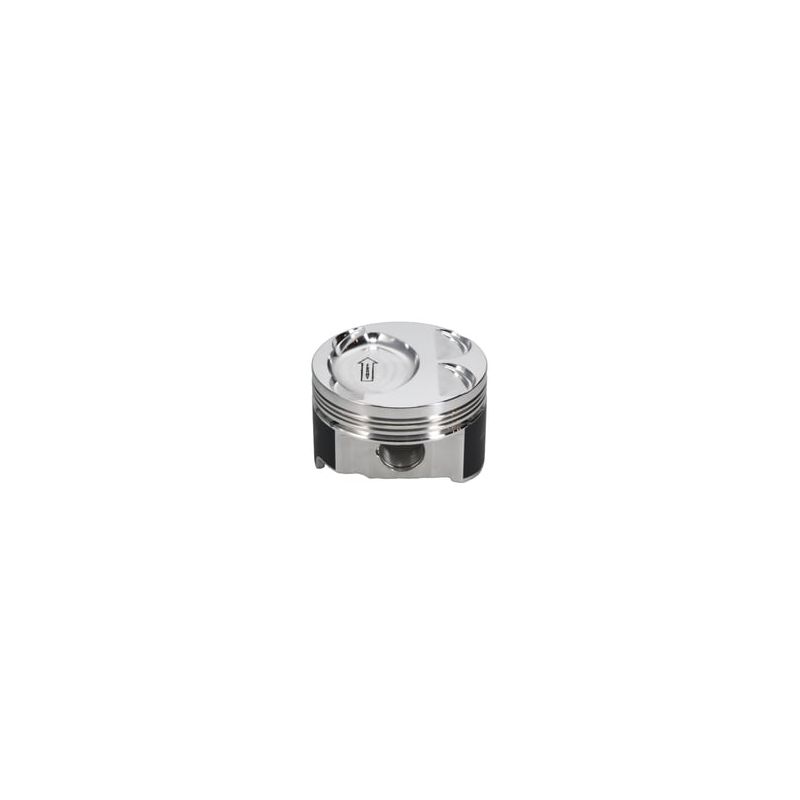

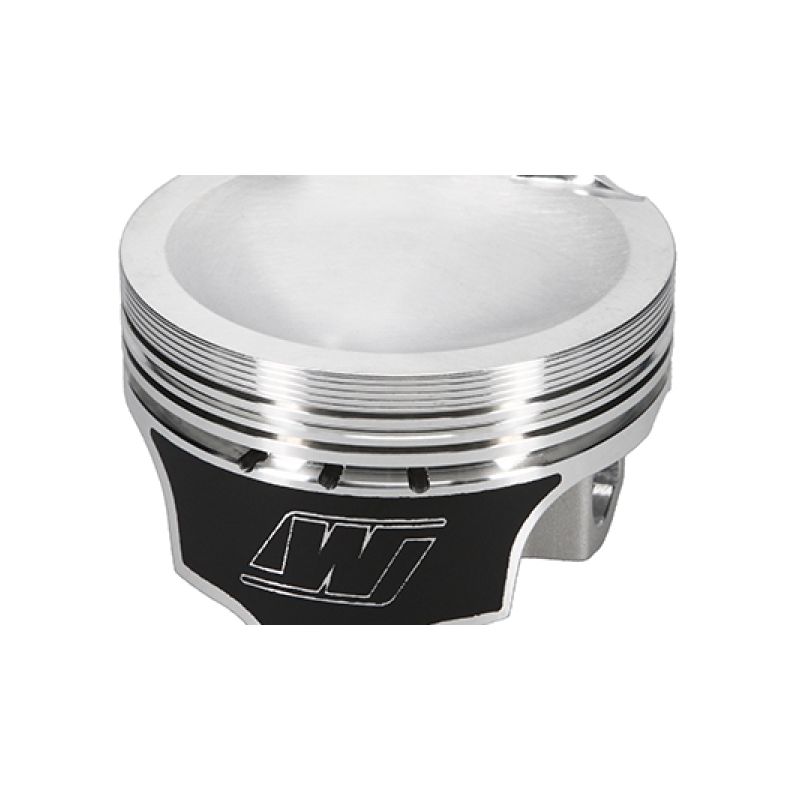

Pistoni forgiati Mazda 2,3 L 16v MZR DISI (L3-VDT) - alesaggi 87,5-88 mm, RV 9,5-9,6:1, spinotto 22,5 mm. Compatibili Mazdaspeed3/Mazda3 MPS, Mazdaspeed6/Mazda6 MPS e CX-7.
Caratteristiche dei pistoni forgiati proposti da NSB Concept per Mazda 2,3 L 16 v MZR DISI (L3-VDT) :
| Riferimento Piston |
Alesaggio (mm) OEM: 87,5 |
RC OEM: 9,5 :1 |
Spinotto (mm) OEM: 22,5 |
Altezza Spinotto (mm) OEM: 32,26 |
Linea | Alluminio | Trattamento | Forgiatura | Cupola (cc) | Peso (g) | Segmenti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 630000C-4 | 87,5 | 9,5 :1 | NC | 32,26 | Manley | 4032 | Mantello | NC | -13,3 | 372 | NC |
| 630000CE-4 | 87,5 | 9,5 :1 | NC | 32,26 | Manley HD | 2618 | Mantello | NC | -13,3 | 372 | NC |
| P4-MASP8750-10H13-4 | 87,5 | 9,5 :1 | 22,5 | 32,5 | Supertech | 4032 | Testa + Mantello | NC | -14 | 308 | W8750XX |
| WK640M875 | 87,5 | 9,5 :1 | 22,5 | 13,09 | Wiseco | 2618 | Mantello | NC | -13,3 | NC | 8750XX |
| K9526DA | 87,5 | 9,5 :1 | 22,5 | 32,5 | Wossner | NC | NC | NC | -14,21 | NC | 875XPY |
| 630002C-4 | 87,75 | 9,5 :1 | NC | 32,26 | Manley | 4032 | Mantello | NC | -13,3 | 375 | NC |
| 630002CE-4 | 87,75 | 9,5 :1 | NC | 32,26 | Manley HD | 2618 | Mantello | NC | -13,3 | 375 | NC |
| 630005C-4 | 88 | 9,5 :1 | NC | 32,26 | Manley | 4032 | Mantello | NC | -13,3 | 379 | NC |
| 630005CE-4 | 88 | 9,5 :1 | NC | 32,26 | Manley HD | 2618 | Mantello | NC | -13,3 | 379 | NC |
| P4-MASP88-10H13-4 | 88 | 9,5 :1 | 22,5 | 32,5 | Supertech | 4032 | Testa + Mantello | NC | -14 | 315 | W8800XX |
| WK640M88 | 88 | 9,5 :1 | 22,5 | 1,27 | Wiseco | 2618 | Mantello | NC | -13,3 | NC | 8800XX |
| K9526D050 | 88 | 9,6 :1 | 22,5 | 32,5 | Wossner | NC | NC | NC | -14,21 | NC | 880XPY |
Compatibilità motore :
- Mazda 2,3 L 16v MZR DISI (L3-VDT)
| Marca | Modello | Telaio | Codice motore | Potenza (CV) | Anni |
|---|---|---|---|---|---|
| Mazda | Mazdaspeed3 / Mazda3 MPS | BK/BL | L3-VDT | 263 | 2007 – 2013 |
| Mazda | Mazdaspeed6 / Mazda6 MPS | GG | L3-VDT | 270–274 | 2005 – 2007 |
| Mazda | CX-7 2.3 Turbo | ER | L3-VDT | 244 | 2007 – 2012 |
Riferimenti pistoni costruttori (OEM) :
- Mazdaspeed3 / Mazda3 MPS (2007–2013) — Pistone completo :
L3Y4-11-SA0 (pistonee, set) - Mazdaspeed6 / Mazda6 MPS (2006–2007) — Pistone completo :
L3Y0-11-SA0 (pistonee, set) - CX-7 2.3 DISI (2007–2012) — Pistone completo :
L3Y0-11-SA0puisL3Y4-11-SA0(supersession)
Attenzione : Prima di qualsiasi montaggio, verificare tassativamente l'integrità e la conformità di ogni componente del kit pistoni, nonché la conformità dell'assemblaggio nel motore; l'eventuale garanzia è strettamente limitata alle sole parti del kit pistoni.
-
Marca
-
RiferimentoWK640M875
