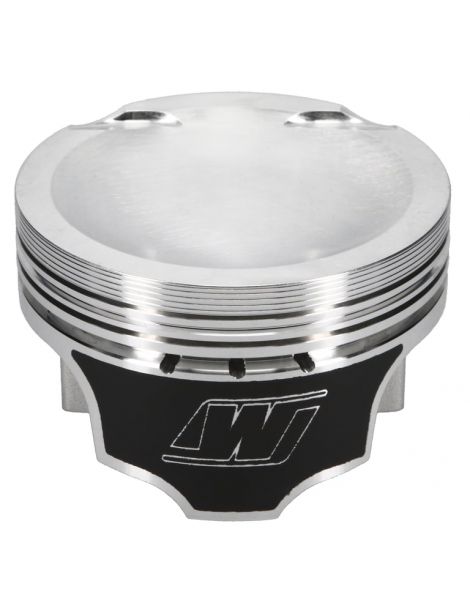

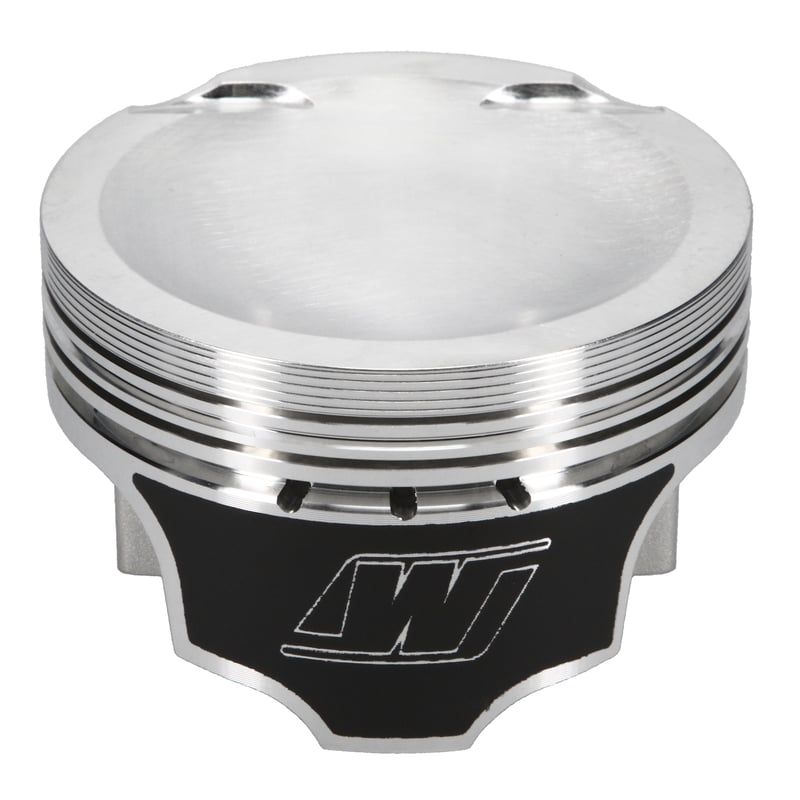

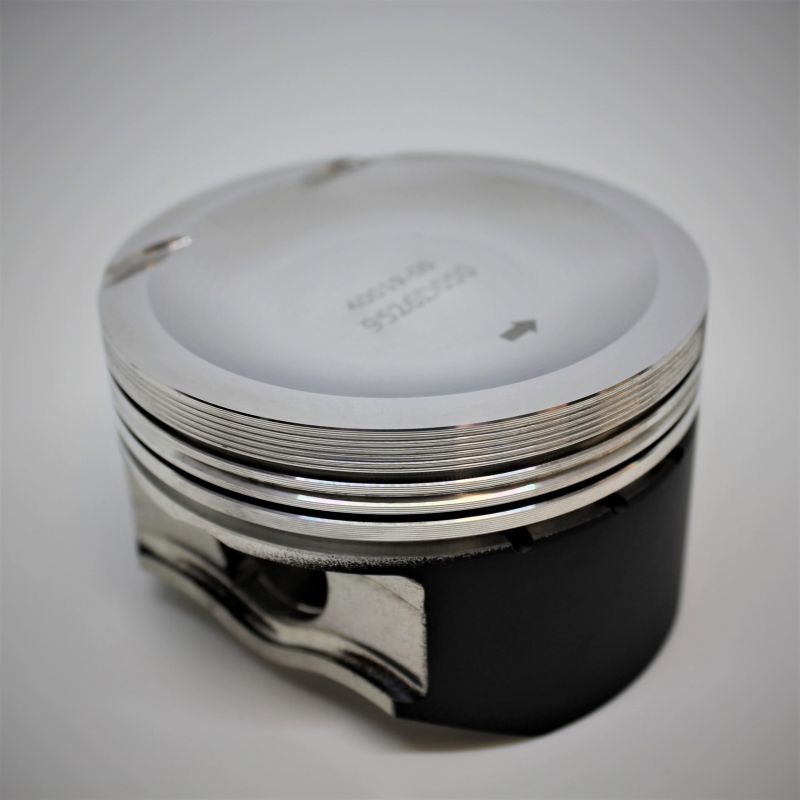

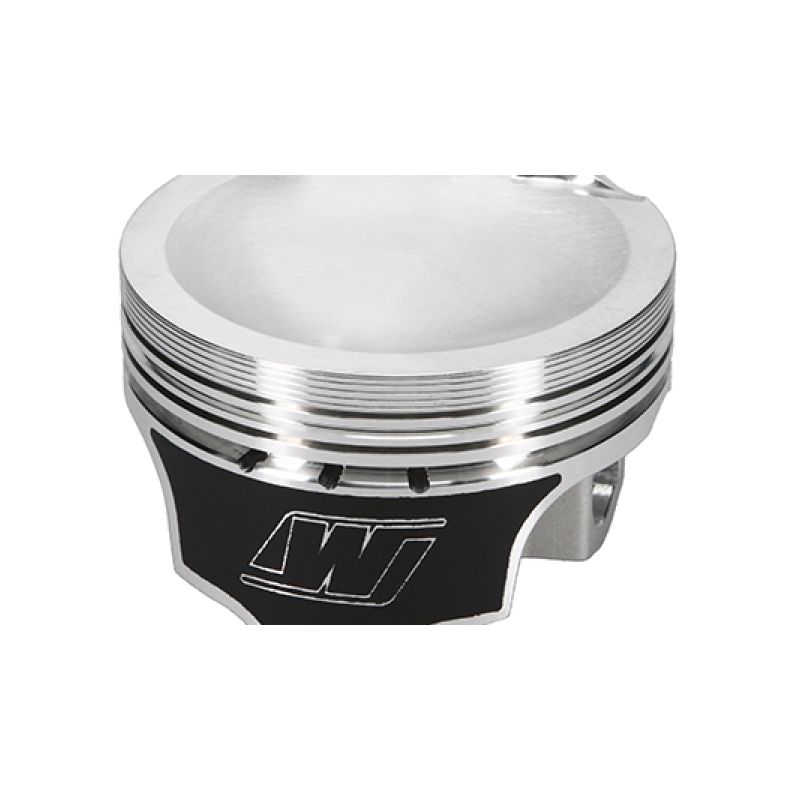

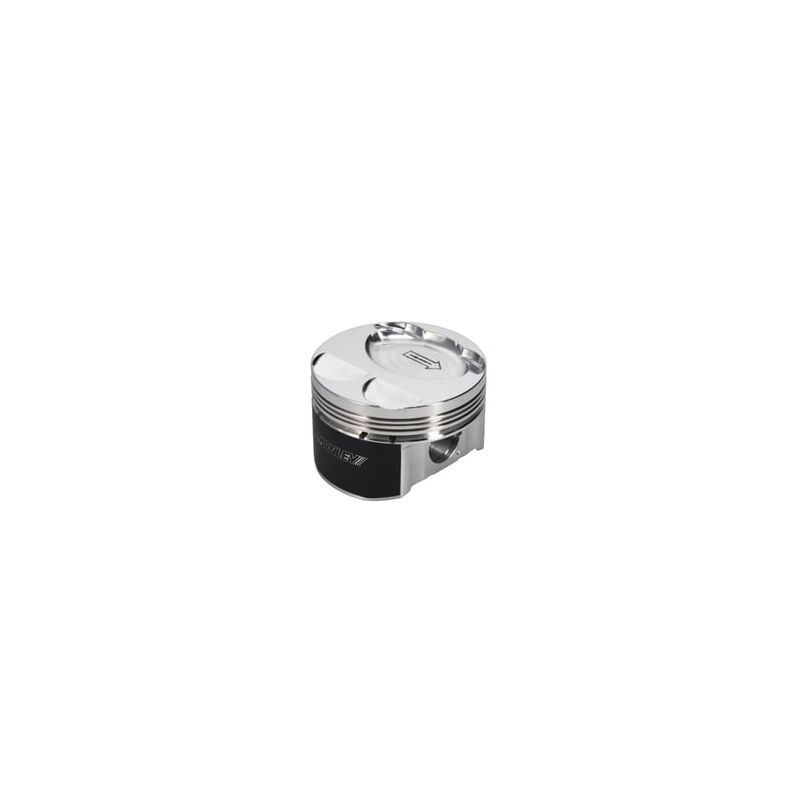

Forged Pistons Mazda 2.3L 16V MZR DISI Turbo (L3-VDT) for Mazda speed 3 Mazda speed 6 CX-7
Specifications of the forged pistons offered by NSB Concept for Mazda 2,3 L 16 v MZR DISI (L3-VDT) :
| Reference piston | Bore (mm)OEM 87,5 | CROEM 9,5 :1 | pin (mm)OEM 22,5 | Height pin (mm)OEM 32,26 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 630000C-4 | 87,5 | 9,5 :1 | NC | 32,26 | Manley | 4032 | Skirt | NC | -13,3 | 372 | NC |
| 630000CE-4 | 87,5 | 9,5 :1 | NC | 32,26 | Manley HD | 2618 | Skirt | NC | -13,3 | 372 | NC |
| P4-MASP8750-10H13-4 | 87,5 | 9,5 :1 | 22,5 | 32,5 | Supertech | 4032 | Crown + Skirt | NC | -14 | 308 | W8750XX |
| WK640M875 | 87,5 | 9,5 :1 | 22,5 | 13,09 | Wiseco | 2618 | Skirt | NC | -13,3 | NC | 8750XX |
| K9526DA | 87,5 | 9,5 :1 | 22,5 | 32,5 | Wossner | NC | NC | NC | -14,21 | NC | 875XPY |
| 630002C-4 | 87,75 | 9,5 :1 | NC | 32,26 | Manley | 4032 | Skirt | NC | -13,3 | 375 | NC |
| 630002CE-4 | 87,75 | 9,5 :1 | NC | 32,26 | Manley HD | 2618 | Skirt | NC | -13,3 | 375 | NC |
| 630005C-4 | 88 | 9,5 :1 | NC | 32,26 | Manley | 4032 | Skirt | NC | -13,3 | 379 | NC |
| 630005CE-4 | 88 | 9,5 :1 | NC | 32,26 | Manley HD | 2618 | Skirt | NC | -13,3 | 379 | NC |
| P4-MASP88-10H13-4 | 88 | 9,5 :1 | 22,5 | 32,5 | Supertech | 4032 | Crown + Skirt | NC | -14 | 315 | W8800XX |
| WK640M88 | 88 | 9,5 :1 | 22,5 | 1,27 | Wiseco | 2618 | Skirt | NC | -13,3 | NC | 8800XX |
| K9526D050 | 88 | 9,6 :1 | 22,5 | 32,5 | Wossner | NC | NC | NC | -14,21 | NC | 880XPY |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| Mazda | Mazdaspeed3 / Mazda3 MPS | BK/BL | L3-VDT | 263 | 2007 – 2013 |
| Mazda | Mazdaspeed6 / Mazda6 MPS | GG | L3-VDT | 270–274 | 2005 – 2007 |
| Mazda | CX-7 2.3 Turbo | ER | L3-VDT | 244 | 2007 – 2012 |
Manufacturer piston references (OEM):
L3Y4-11-SA0 (piston, Set)L3Y0-11-SA0 (piston, Set)L3Y0-11-SA0 then L3Y4-11-SA0 (supersession)Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
