1.6L 16v - EP6D THP Gen1 2006-2010 (sin Valvetronic)
Marcas
1.6L 16v - EP6D THP Gen1 2006-2010 (sin Valvetronic)
Advertencia: ¡Últimos artículos en inventario!
Nuevo producto

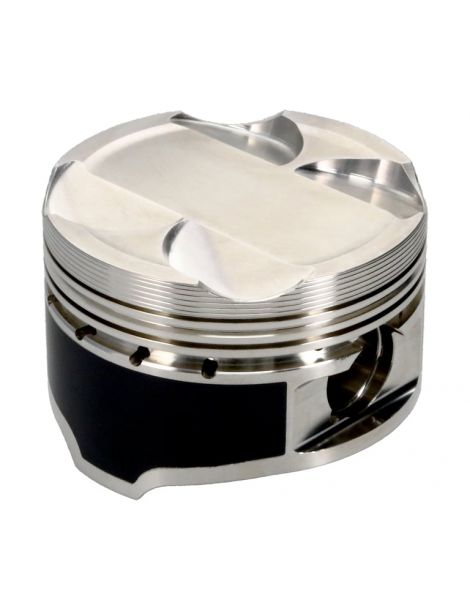

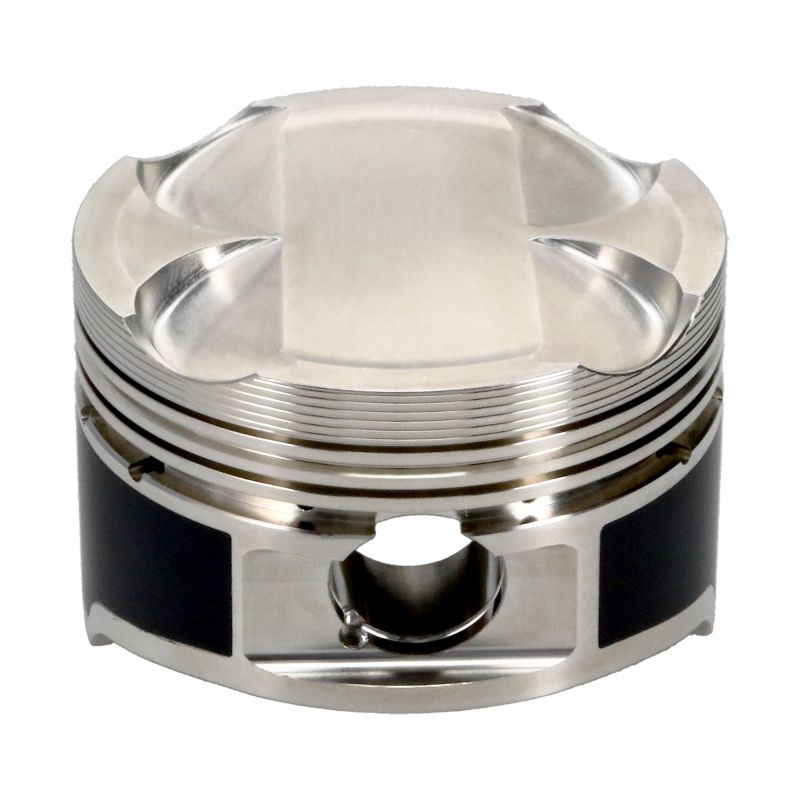

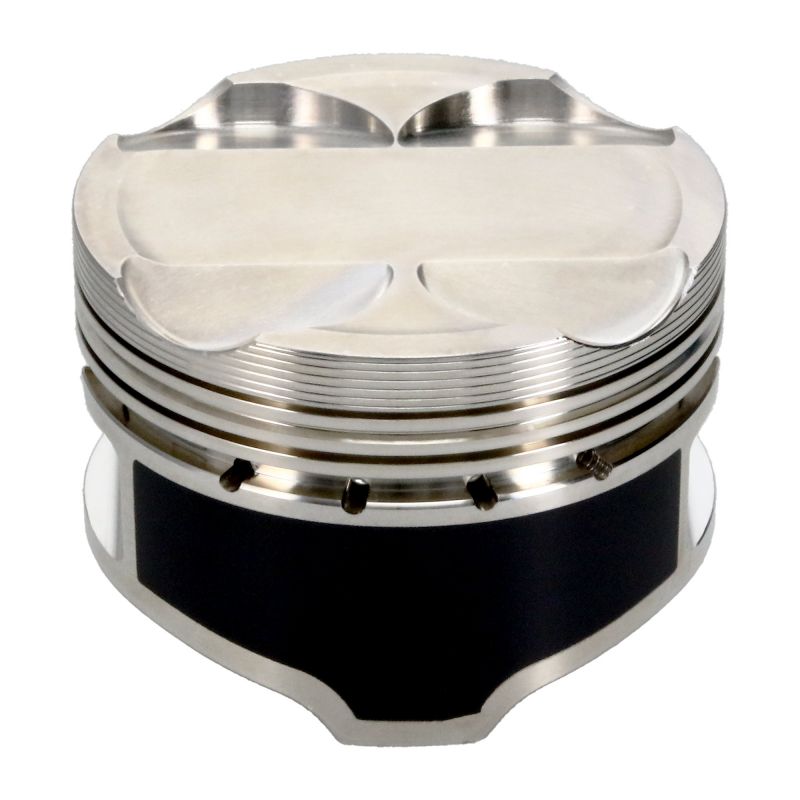

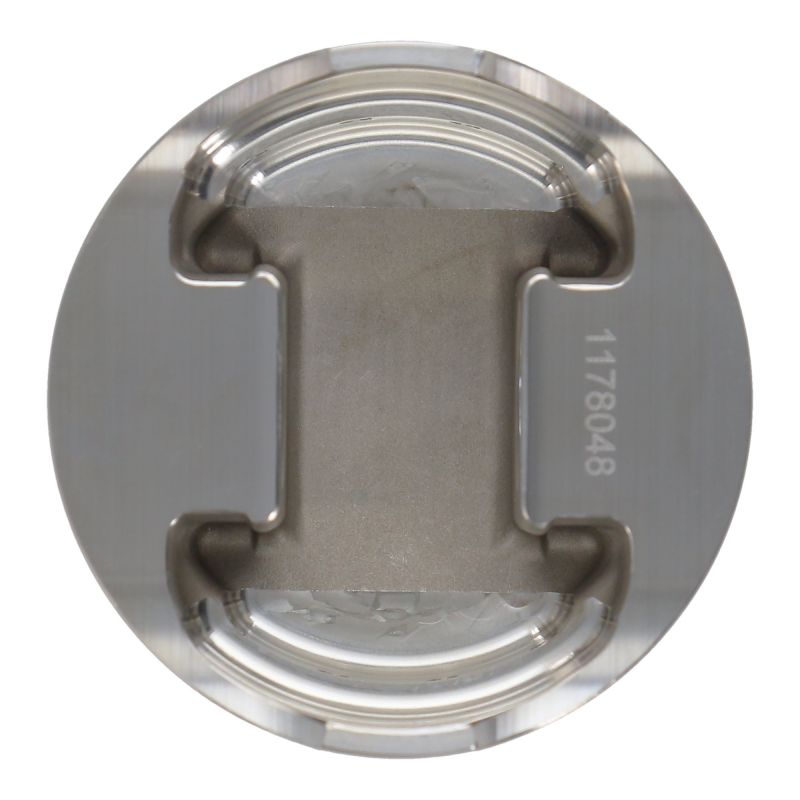

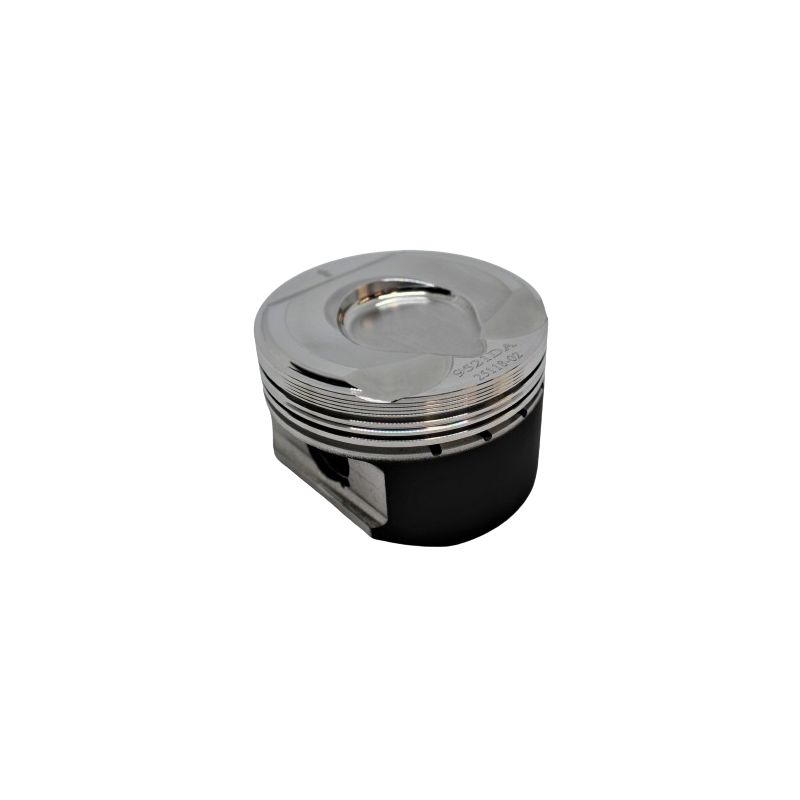

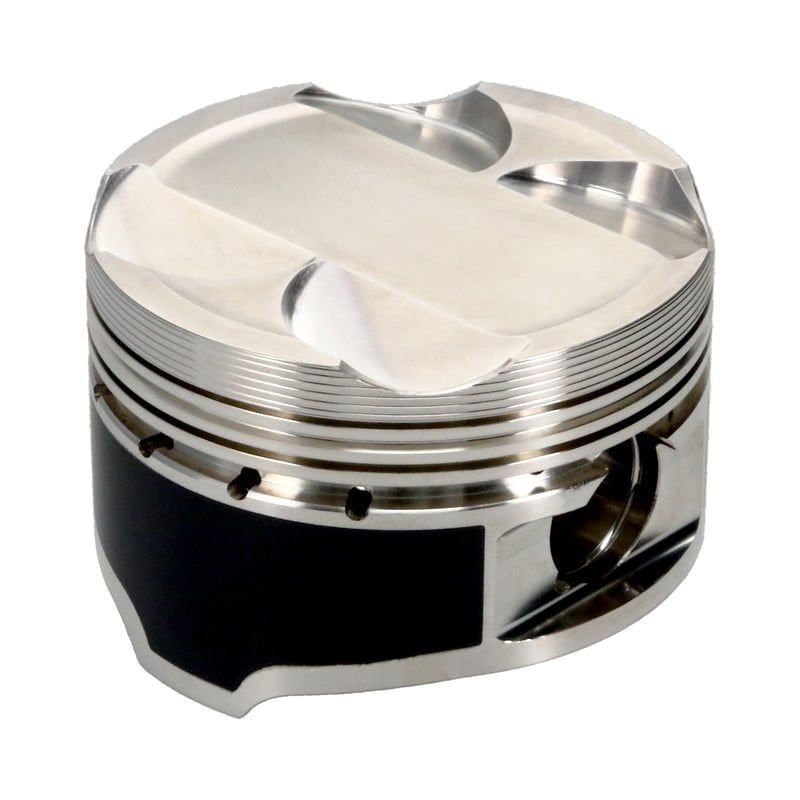

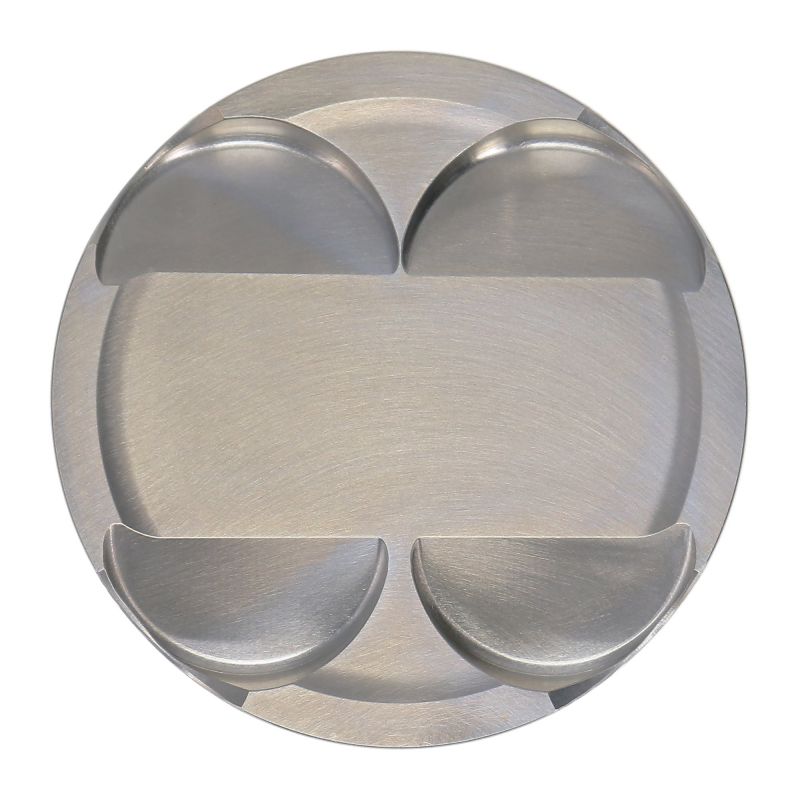

pistones forjados1.6EP6D/N14B16(Principe) DiametrOS77-77,5 mm, Relacion de compresion9,5:1 a 10,6:1, Bulon20mm ParaMINI N14 y PSA(C3/DS3 VTi,Carreras DS3, 207CR, 308 I THP 175 ).
CARACTERISTICAS DE pistonES FORJADOS QUE OFRECE NSB Concept PARA 1.6L 16VEP6D(PSA) yN14B16(MINI):
| Referencia piston | Diametro (mm)OEM 77.5 | RCOEM 10.6:1 | Bulon (mm)OEM 20 | Altura Bulon (mm)OEM 28.5 | Gama | Aluminio | Tratamiento | Forjado | Cupula (cc) | Peso (gramos) | segmentoooos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P4-MIN56-77-CR9.5-4 | 77 | 9,5 :1 | 20 | 28,5 | Supertech | NC | Cabeza + Falda | NC | -5.5 | NC | W7700XX |
| P4-MIN56-77-CR9.5B-4 | 77 | 9,5 :1 | 20 | 28,5 | Supertech | NC | Cabeza + Falda | NC | -5.5 | NC | W7700XX |
| P4-MIN56-N14-77-CR10-4 | 77 | 10 :1 | 20 | 28,5 | Supertech | NC | Cabeza + Falda | NC | ETS. | NC | W7700XX |
| WKE259M77 | 77 | 10,1 :1 | 20 | 28,5 | Wiseco | NC | Falda | NC | 1 | NC | 7700XX |
| K9469DA | 77 | 10,5 :1 | 20 | 28,5 | Wossner | NC | NC | Round | -0,55 | NC | 770XPZ |
| K9521DA | 77 | 10,5 :1 | 20 | 28,5 | Wossner | NC | NC | Round | -0,55 | NC | 770XPZ |
| K9469D025 | 77,25 | 10,6 :1 | 20 | 28,5 | Wossner | NC | NC | Round | -0,55 | NC | 772XPZ |
| K9521D025 | 77,25 | 10,6 :1 | 20 | 28,5 | Wossner | NC | NC | Round | -0,55 | NC | 772XPZ |
| P4-MIN56-77.5-CR9.5-4 | 77,5 | 9,5 :1 | 20 | 28,5 | Supertech | NC | Cabeza + Falda | NC | -5.5 | NC | W7750XX |
| P4-MIN56-77.5-CR9.5-B-4 | 77,5 | 9,5 :1 | 20 | 28,5 | Supertech | NC | Cabeza + Falda | NC | -5.5 | NC | W7750XX |
| P4-MIN56-N14-77.5-CR10-4 | 77,5 | 10 :1 | 20 | 28,5 | Supertech | NC | Cabeza + Falda | NC | ETS. | NC | W7750XX |
| WKE259M775 | 77,5 | 10,1 :1 | 20 | 28,5 | Wiseco | NC | Falda | NC | 1 | NC | 7750XX |
| P4-MIN56-N14-77.5-CR10.5-4 | 77,5 | 10,5 :1 | 20 | 28,5 | Supertech | NC | Cabeza + Falda | NC | ETS. | 267 | W7750XX |
| K9469D050 | 77,5 | 10,6 :1 | 20 | 28,5 | Wossner | NC | NC | Round | -0,55 | NC | 775XPZ |
| K9521D050 | 77,5 | 10,6 :1 | 20 | 28,5 | Wossner | NC | NC | Round | -0,55 | NC | 775XPZ |
Compatibilidades de motor:
| Marca | Modelo | Chasis | Codigo Motor | Potencia (ch) | Anos |
|---|---|---|---|---|---|
| Citroen | C3 1.6 VTi | A51 | EP6D | 120 | 2009-2016 |
| Citroen | C3 Picasso 1.6 VTi | A58 | EP6D | 120 | 2009-2017 |
| Citroen | C4 1.6 VTi | B7 | EP6D | 120 | 2010-2012 |
| Citroen | DS3 1.6 VTi | A55 | EP6D | 120 | 2010-2016 |
| Citroen | Carreras DS3 | A55 | EP6CDTS | 200-207 | 2010-2012 |
| MINI | Clubman Cooper S | R55 | N14B16 | 175 | 2007-2010 |
| MINI | Cooper S Cabrio | R57 | N14B16 | 175 | 2009-2010 |
| MINI | Cooper S (escotilla 3p) | R56 | N14B16 | 175 | 2006-2010 |
| MINI | Obrazo de John Cooper (escotilla) | R56 | N14B16 | 211 | 2008-2012 |
| Peugeot | 207 1.6 VTi | A7 | EP6D | 120 | 2006-2014 |
| Peugeot | 207 CC 1.6 VTi | A7 | EP6D | 120 | 2007-2014 |
| Peugeot | 207CR | A7 | EP6DTS | 175 | 2007-2010 |
| Peugeot | 207 SW 1.6 VTi | A7 | EP6D | 120 | 2007-2013 |
| Peugeot | 3008 1.6 VTi | T84 | EP6D | 120 | 2009-2016 |
| Peugeot | 308 CC 1.6 VTi | T7 | EP6D | 120 | 2009-2015 |
| Peugeot | 308 I 1.6 16V EP6DTS | T7 | EP6DTS | 175 | 2008-2010 |
| Peugeot | 308 I 1.6 VTi | T7 | EP6D | 120 | 2007-2013 |
| Peugeot | 5008 1.6 VTi | T87 | EP6D | 120 | 2009-2016 |
Atencion :antes de cualquier montaje, por favor verificar la integridad y conformidad de cada COMPONENTE del kit de pistones asi como la conformidad del conjunto en el motor; cualquier garantia posible esta estrictamente limitada unilevante a las piezas del kit de piston.
