Gasket Cylinder head reinforced BMW S58B30

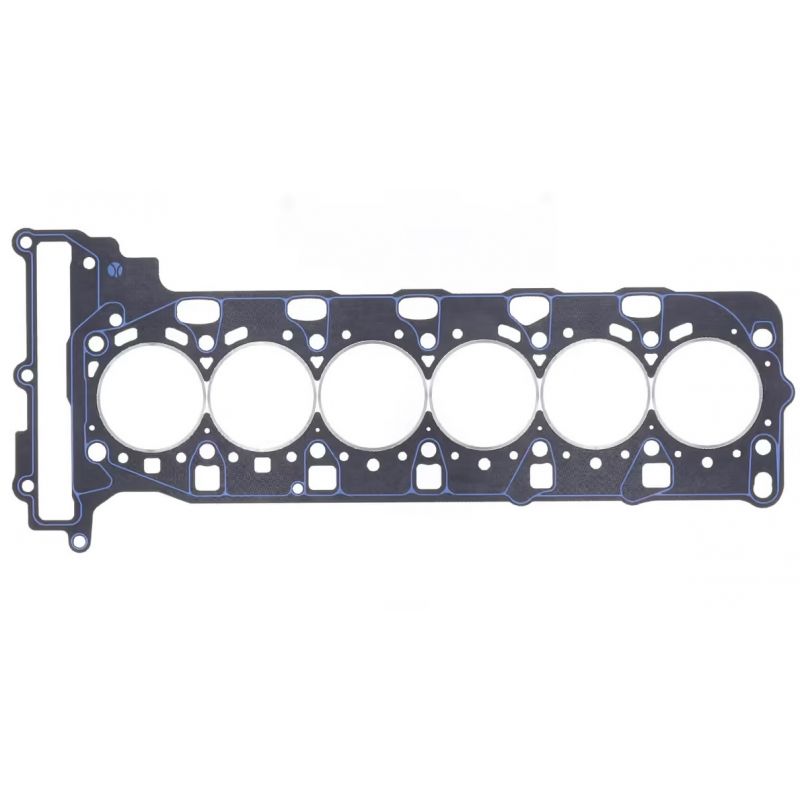

We offer you here several reinforced Cylinder head Gaskets for B58B30 engine from BrandATHENAthe technical characteristics of which you will find below.

Technical characteristics of the Original Gasket

• Motor bore: 84mm
• Thickness: 0.91mm

Technical characteristics

• Motor bore: up to 84.5mm
• Thickness(es) to choose from: 1.00mm
• Gasket Type: O-Ring
• Reference: 330213R

Designed and manufactured in Italy, the reinforced Cylinder head Gaskets from the Brand Athena are available in two forms:

• MLS:these Gasketsare MADE UP of several sheets of stainless steel superposed and riveted together. The stainless steel sheets are laser cut for increased precision and receive an elastomer-based surface treatment (NBR or FKM). In order to obtain optimal sealing, the contours of the cylinders and water and oil passages are stamped/embossed. Forthe most extreme Applications, reinforcement at the level of the cylinders is added.

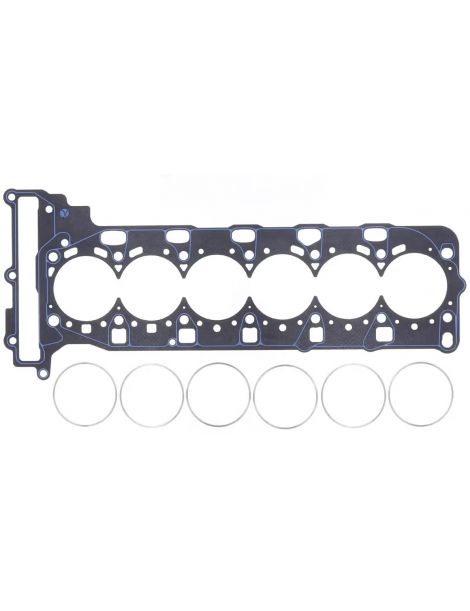

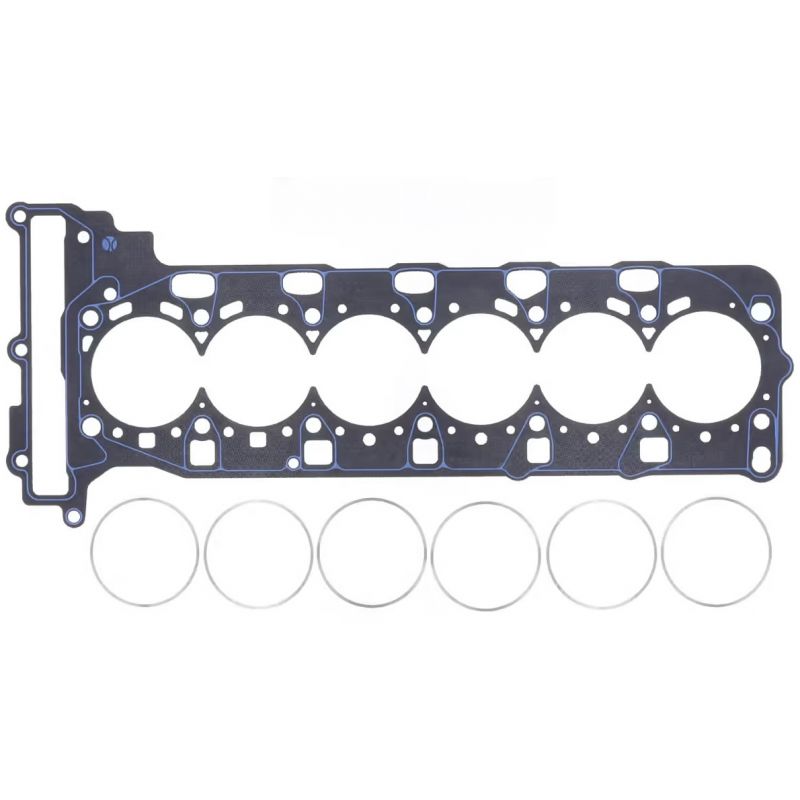

• O-Ring:these Gasketsconsist of a steel sheet covered with asbestos-free aramid fiber and an AISI 304 stainless steel ring(at the cylinder level). A bead of silicone applied to critical points (water and oil passages) ensures maximum sealing of the Head Gasket. This type of Gasket is mandatory for heavily supercharged engines.

compatible:
