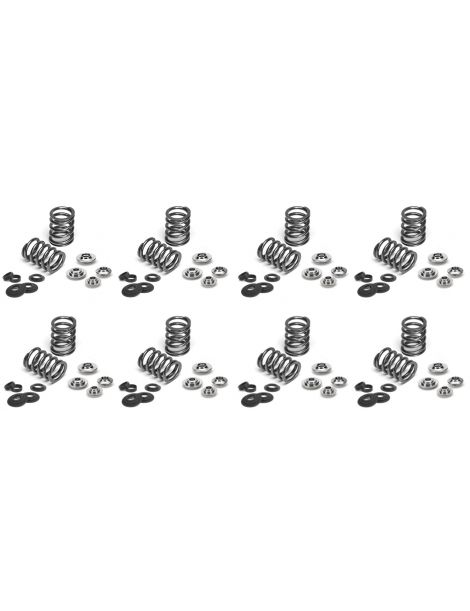

Reduced price! Ressorts soupapes renforcés HONDA CIVIC 1.5 i-VTEC 120CV L15-A7 View larger

Performance valve springs HONDA 1.5 L15A L15B LEA

SPR-H2416

New product

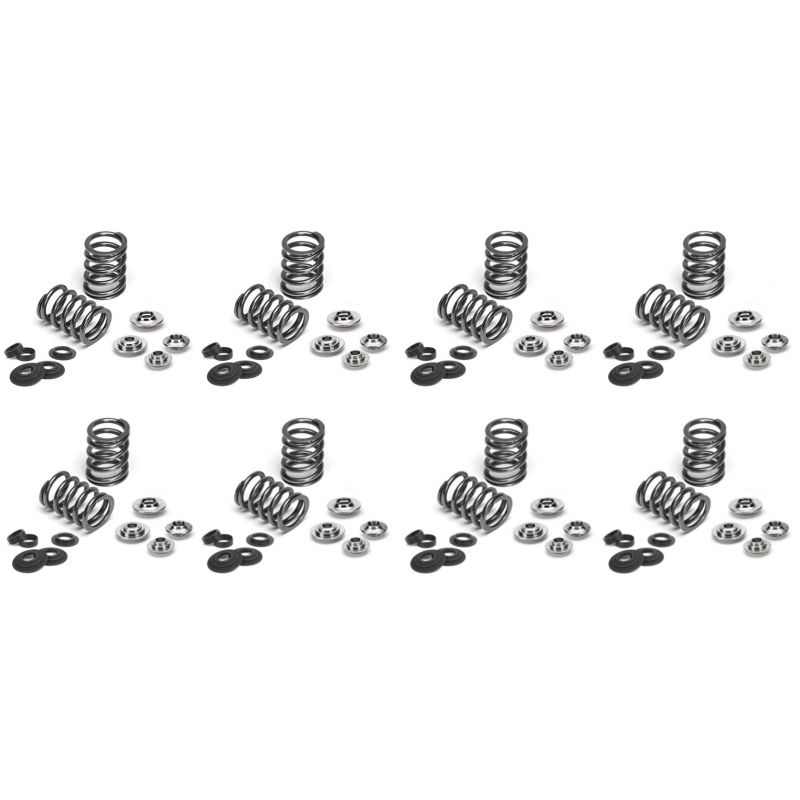

Kit of 16 single valve springs with SUPERTECH retainers for HONDA 1.5 i-VTEC L15A L15B LEA:

  • HONDA CIVIC VIII (FD, FA) 1.5 i-VTEC 120hp L15-A7
  • HONDA CIVIC IX (FB) 1.5 IMA (FB4) 112hp LEA2
  • HONDA CR-Z (ZF) 1.5 IMA 82, 83, 87, 91, 92, 101hp
  • HONDA CIVIC X Coupé 1.5 170hp L15B7
  • HONDA CIVIC X Coupé 1.5 177hp L15B7
  • HONDA CIVIC X Coupé 1.5 Si (FC1) 205hp L15B7

More details

670,50 € tax incl.

-20%

838,13 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • The SUPERTECH performance spring kit consists of 16 single valve springs with retainers for HONDA 1.5 i-VTEC L15A L15B LEA

    Technical specification

    Seat pressure: Int.: 61lbs at 40.20mm
    Opening pressure: 164lbs at 10mm
    Max lift: 15.3mm
    Spring coil bind: 24.90mm
    Inner spring ID: SINGLE
    Rate: 9.9
    Spring kit: SPR-H2416
    Number of springs in the kit: 16
    Retainers: RET-H2416
    Number of retainers: 16
    Spring seat locators: SEAT-A2416-IN + SEAT-A2416-EX
    Inner spring outside diameter: SINGLE
    Outer spring outside diameter: 24.00mm
    Outer spring inside diameter: 16.50mm
    Number of spring seat locators: 16

    SUPERTECH valve springs are made from a high quality chrome silicon vanadium steel alloy. This alloy offers superior performance and reliability, especially at high revs, and has better structural memory. SUPERTECH performance valve springs are computer designed to keep harmonics under control and to keep stress levels within the material fatigue diagrams.

    The SUPERTECH retainers are made from titanium alloy and CNC machined to obtain the best possible fit.
