tri-metal connecting rod bearings BMW M3 G80 M4 G82 S58B30

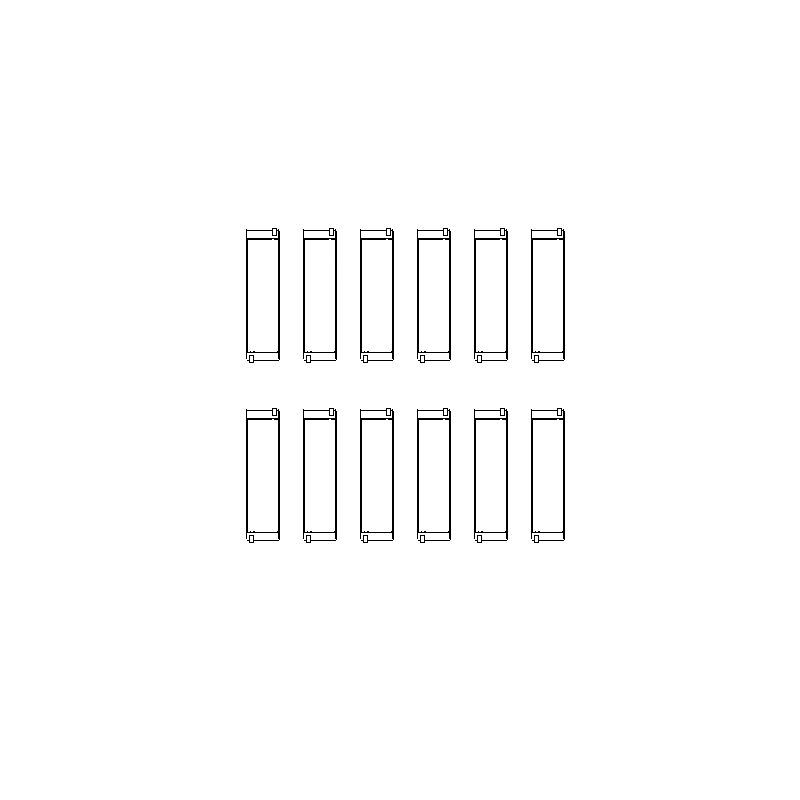

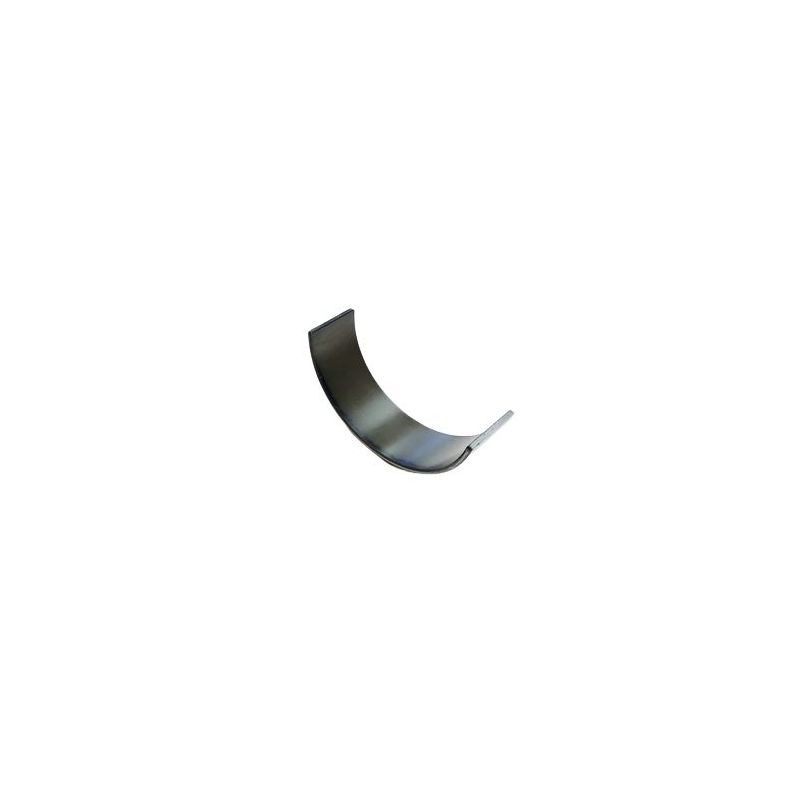

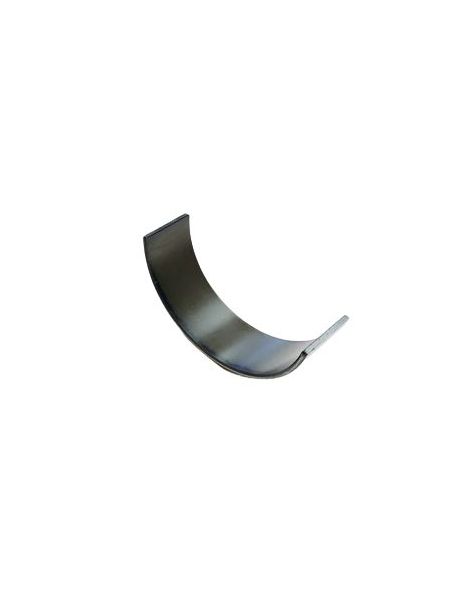

The trimetal connecting rod bearing sets KING RACING for S58 engine are composed of 12 bearings.

Technical characteristics-

• Maximum thickness: 1.796mm
• Ride(s): standard or standard with clearance HX or +0.026 or +0.25mm
• Anti-friction Coating: with
• References: CR6903, CR6903GPC, CR6903GPC STDX, CR6903GPC.026, CR6903GPC0.25

Since 1960 the KING RACING company has designed and manufactured high performance/quality bushings. Beyond high-performance production machines, King Racing relies on simulation software to analyze the thermodynamics, dynamics and elasto-hydrodynamics of their bearings. KING RACING tri-metal bushings are produced in pMax Black, a tri-metal alloy 24% stronger than all existing tri-metal bushings.

KING RACING pads are made up of 3 to 4 layers (depending on applications):

Exterior: steel Intermediate: leaded bronze Interior: regulator with high percentage of copper Anti-friction Coating containing lubricant and ceramic additives
