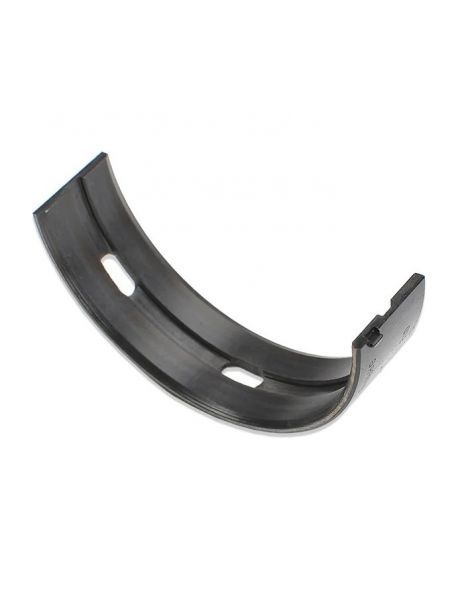

tri-metal crankshaft bearings BMW M5 E60 E61 M6 E63 E64 S85B50

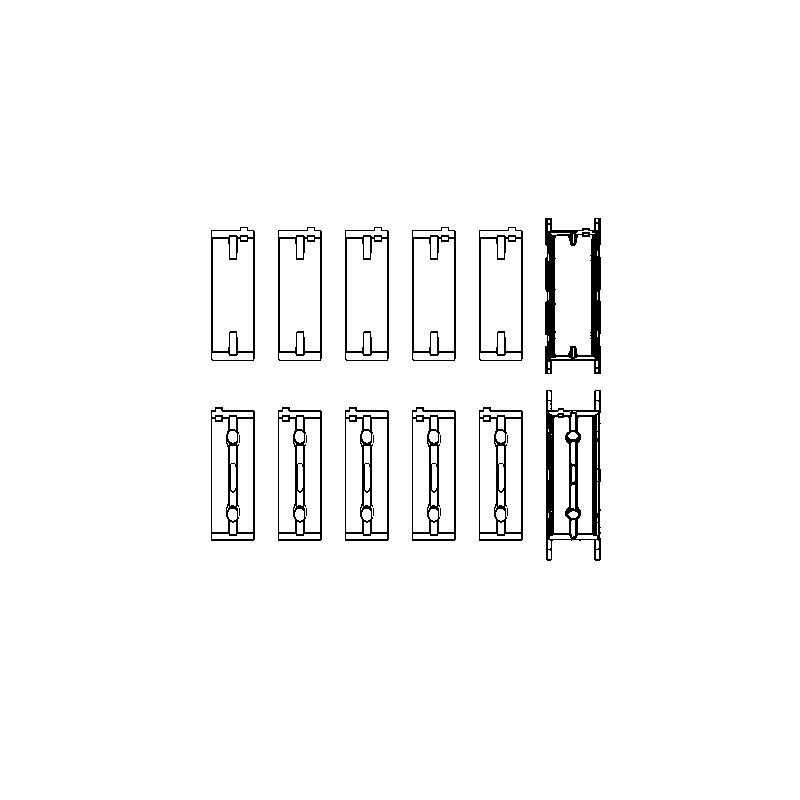

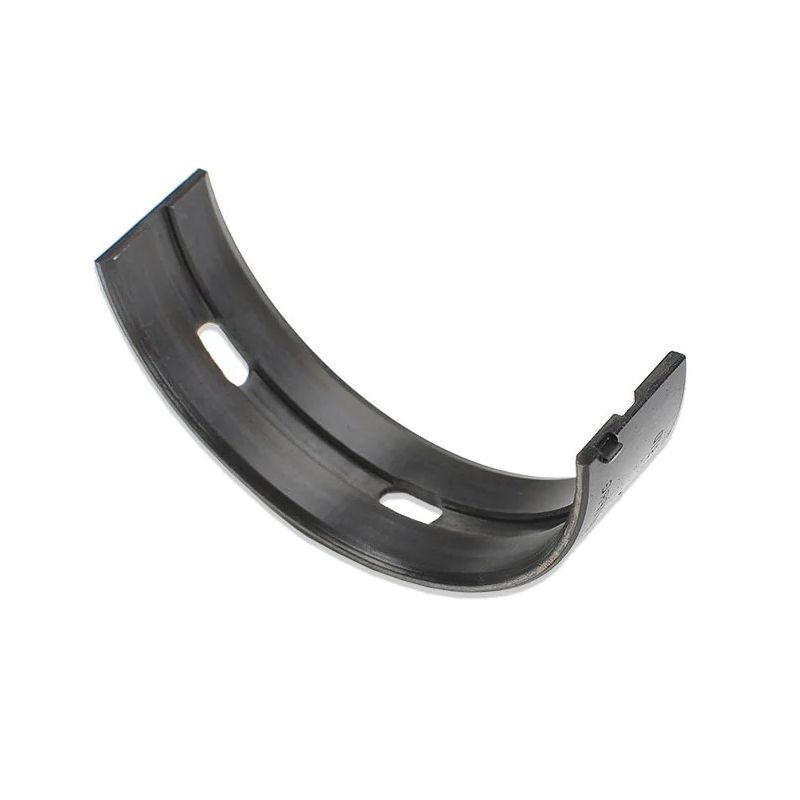

The trimetal crankshaft bearing sets KING RACING for S85B50 engine are composed of 12 bearings.

Find below (click on the image) the trimetal connecting rod bearings for BMW S85B50 engine:

-

Technical specifications-

• Crankshaft crankpin diameter (min/max): 59.97 / 59.98mm
• Crankshaft bearing diameter (min/max): 65.00 / 65.03mm
• Maximum thickness: 2.496mm
• Rib(s): standard or standard with clearance HX or +0.026 or +0.25 or +0.5mm
• Anti-friction Coating: without
• References: MB637, MB 637XP, MB 637XP STDX, MB 637XP.026, MB 637XP0.25, MB 637XP0.5

Since 1960 the KING RACING company has designed and manufactured high performance/quality bushings. Beyond high-performance production machines, King Racing relies on simulation software to analyze the thermodynamics, dynamics and elasto-hydrodynamics of their bearings. KING RACING tri-metal bushings are produced in pMax Black, a tri-metal alloy 24% stronger than all existing tri-metal bushings.

KING RACING pads are made up of 3 to 4 layers (depending on applications):

Exterior: steel Intermediate: leaded bronze Interior: regulator with high percentage of copper Anti-friction Coating containing lubricant and ceramic additives
