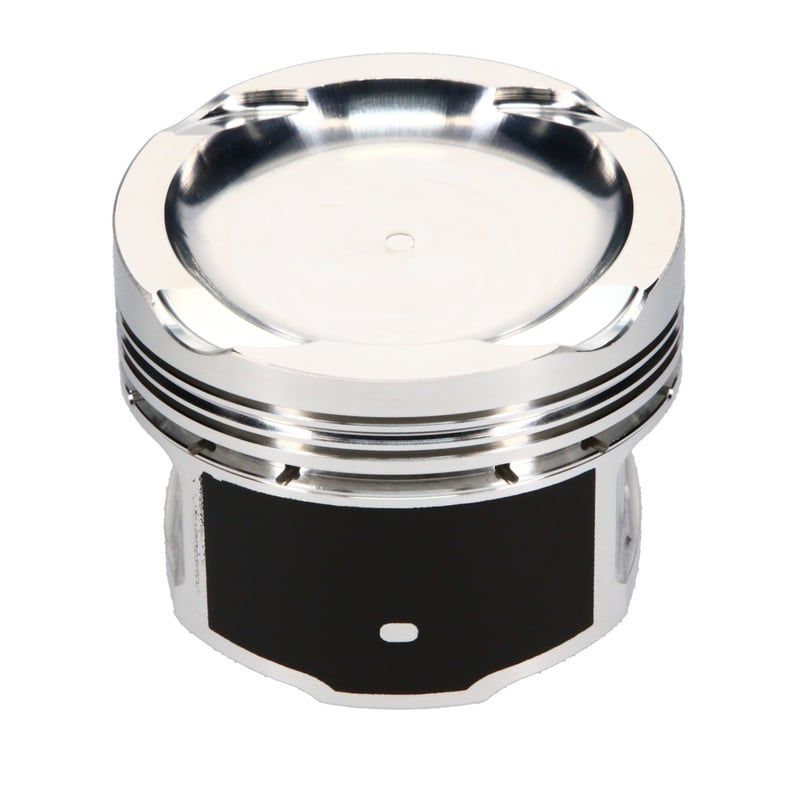

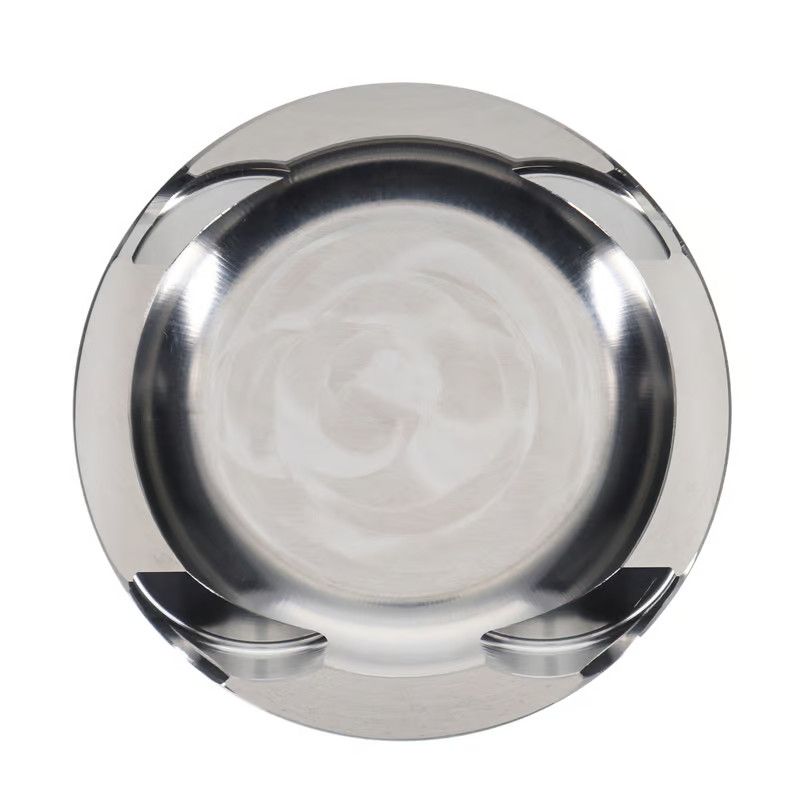

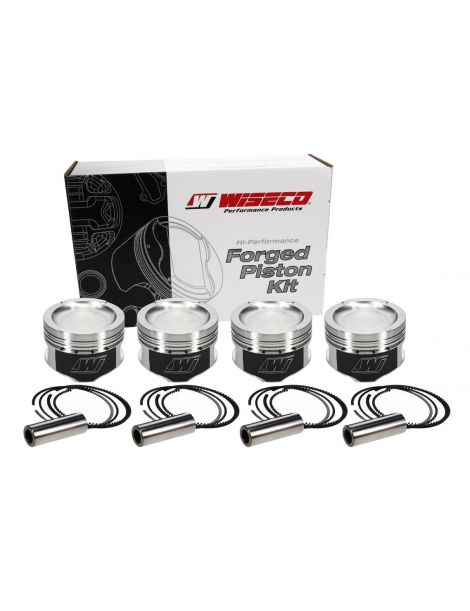

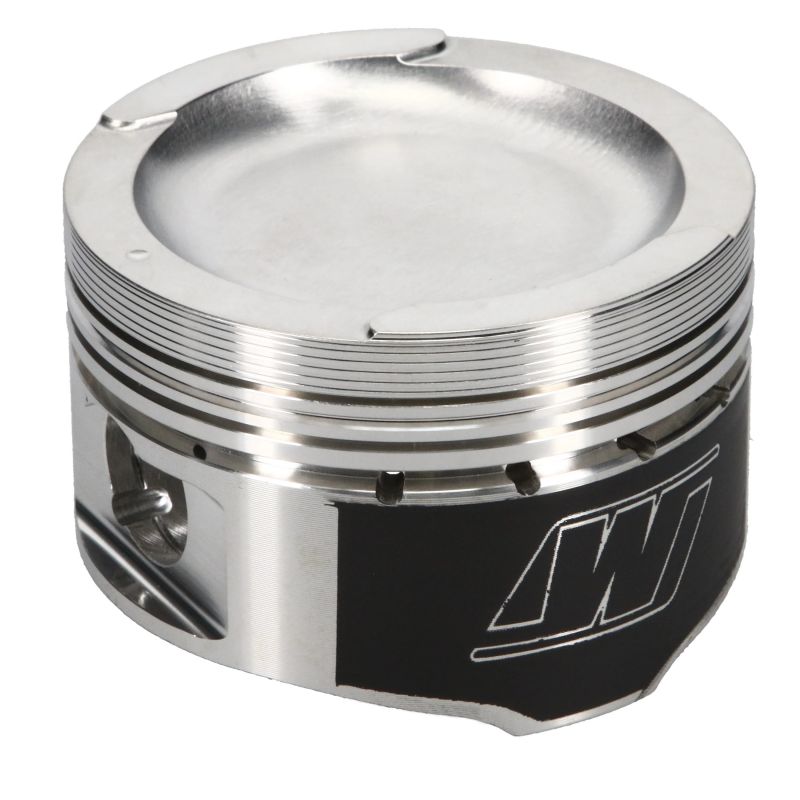

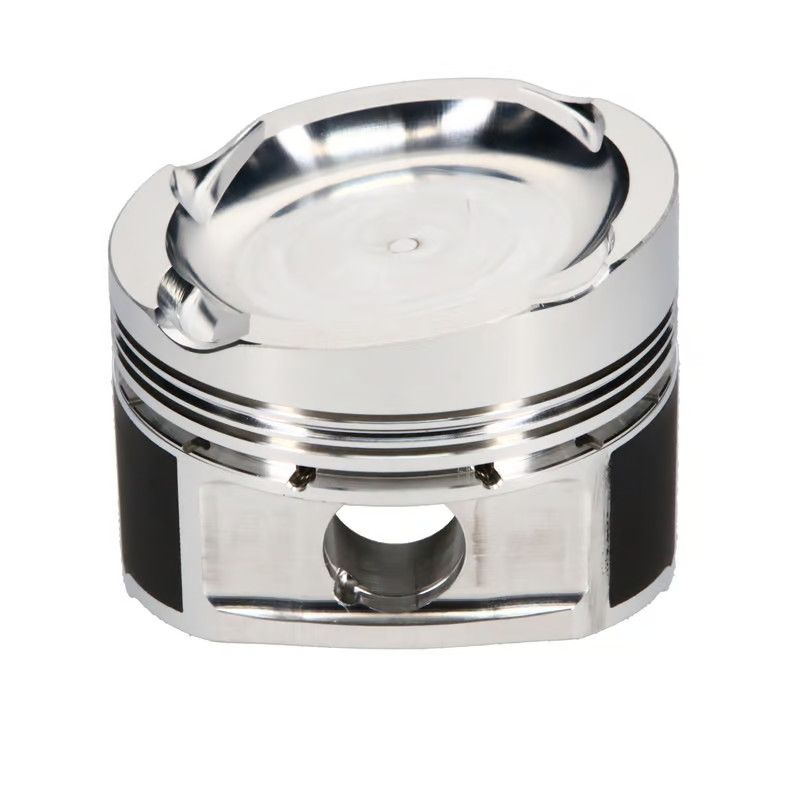

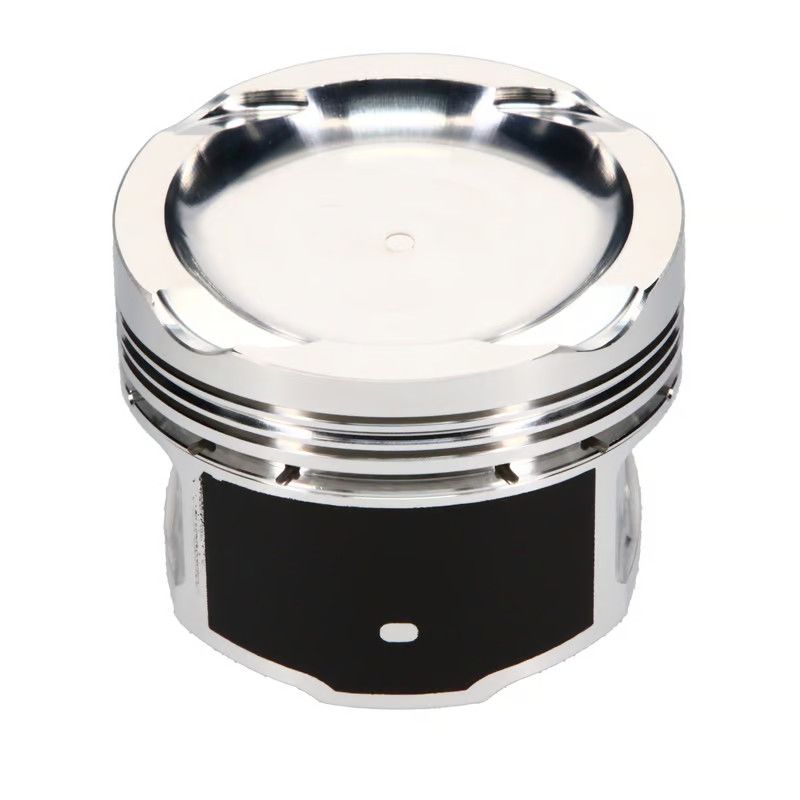

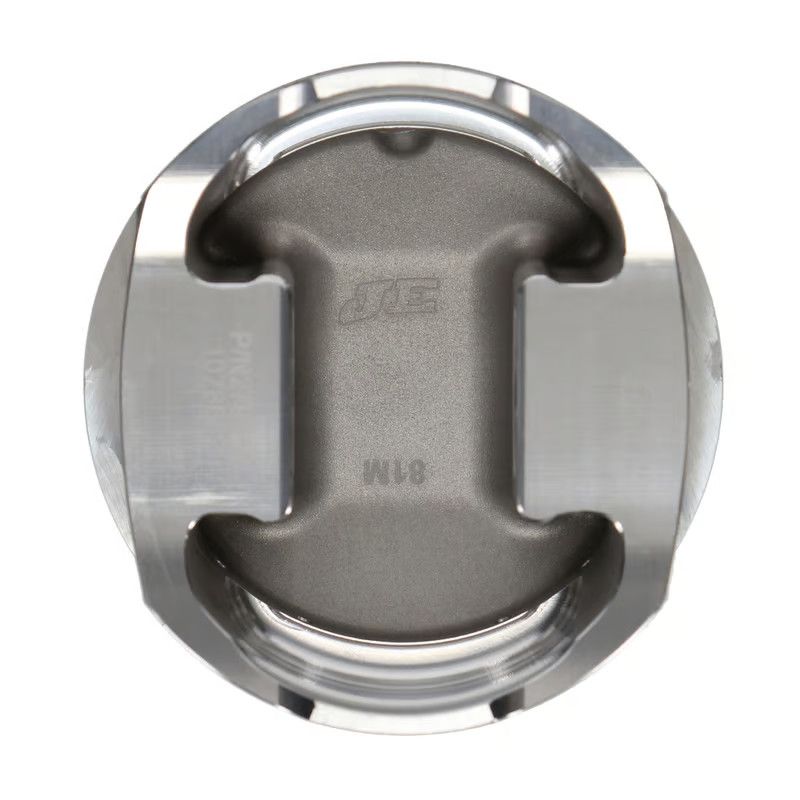

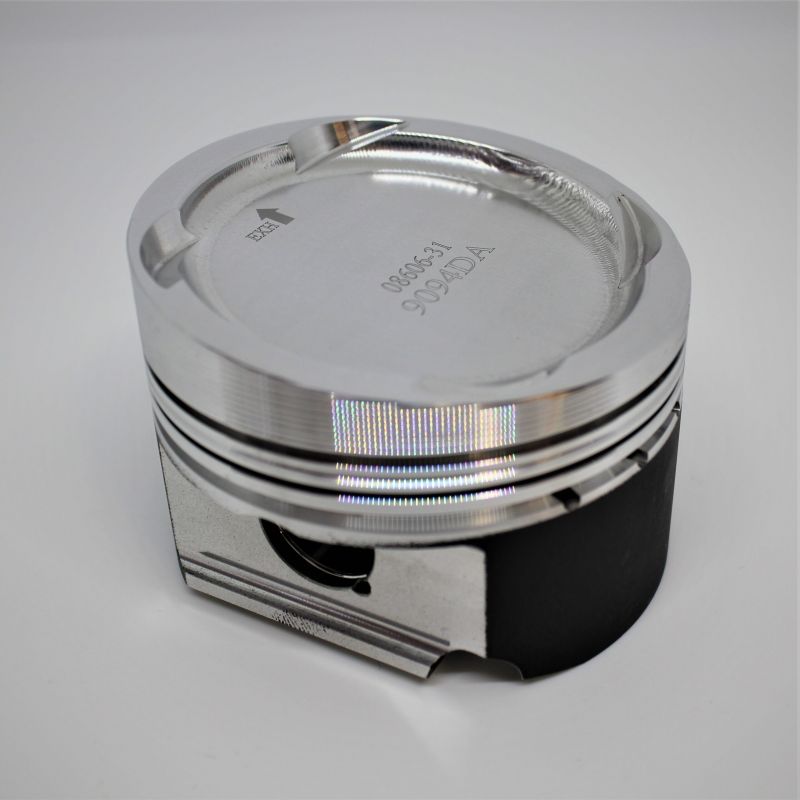

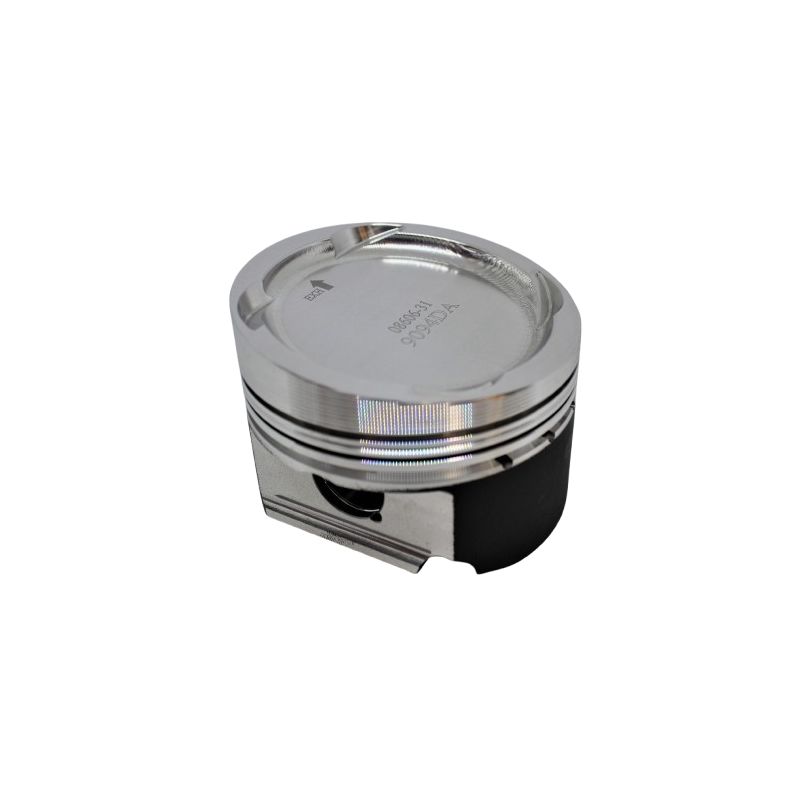

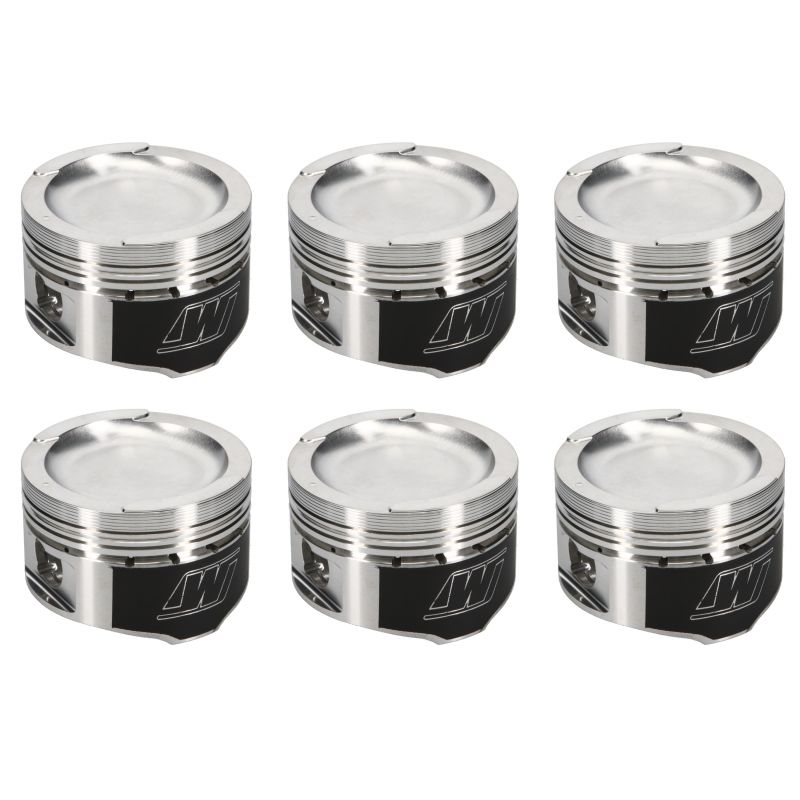

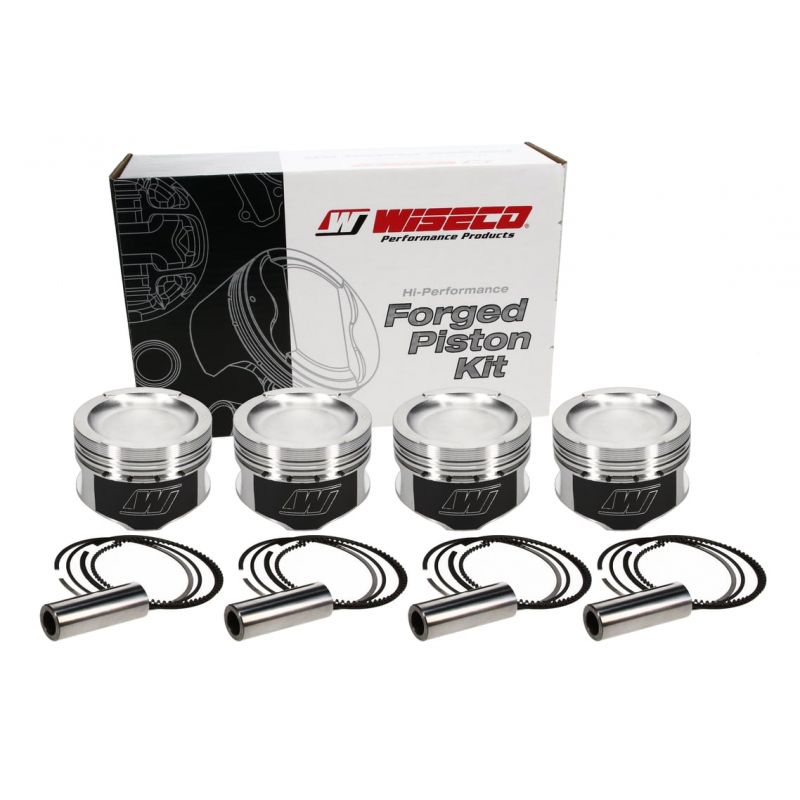

Pistones forjados 3.2L 24v R32 VW Audi
Pistones forjados VR6 3.2 R32 24v VW/Audi : segmentos incluidos, diámetro OEM/sobremedida, bulón 20 mm, CH 34,50 mm. Compatibilidades Golf R32, Audi TT 3.2 quattro, A3 3.2, Eos 3.2.
Características de los pistones forjados propuestos por NSB Concept para Volkswagen / Audi VR6 3.2 L 24 V (R32) :
| Referencia | Diámetro OEM 84,00 mm | RC OEM 11,3 :1 | Bulón OEM 20 mm | Altura de compresión OEM 34,50 mm | Gama | Tratamiento | Aluminio | Forja | Cúpula | Peso | Segmentos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE204M84 | 84.00 | 8:1 | 20 | 34.5 | Wiseco | Falda | 2618 | NC | -30.5 | NC | 8400XX |
| JE-279946 | 84.00 | 8.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Redonda | -27.0 | 330 | NC |
| DIA-38200-6 | 84.00 | 9:1 | 20 | 34.64 | Diamond | Falda | 2618 | NC | -22.0 | NC | 9513307 |
| DIA-38200-6-H | 84.00 | 9:1 | 20 | 34.64 | Diamond HD | Falda | 2618 | NC | -22.0 | NC | 9513307 |
| WKE205M84 | 84.00 | 9:1 | 20 | 34.5 | Wiseco | Falda | NC | NC | -20.5 | NC | 8400XX |
| K9094DA | 84.00 | 9:1 | 20 | 29.5 | Wossner | NC | NC | Redonda | -19.7 | NC | 840XPY |
| DIA-38203-6 | 84.00 | 11.2:1 | 20 | 34.64 | Diamond | Falda | 2618 | NC | -7.0 | NC | 9513307 |
| DIA-38203-6-H | 84.00 | 11.2:1 | 20 | 34.64 | Diamond HD | Falda | 2618 | NC | -7.0 | NC | 9513307 |
| JE-279949 | 84.00 | 11.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Redonda | -6.8 | 342 | NC |
| WKE204M8425 | 84.25 | 8:1 | 20 | 34.5 | Wiseco | Falda | NC | NC | -30.5 | NC | 8425XX |
| WKE205M8425 | 84.25 | 9:1 | 20 | 34.5 | Wiseco | Falda | NC | NC | -20.5 | NC | 8425XX |
| WKE204M845 | 84.50 | 8:1 | 20 | 34.5 | Wiseco | Falda | 2618 | NC | -30.5 | NC | 8450XX |
| JE-279947 | 84.50 | 8.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Redonda | -27.8 | 334 | NC |
| WKE205M845 | 84.50 | 9:1 | 20 | 34.5 | Wiseco | Falda | NC | NC | -20.5 | NC | 8450XX |
| DIA-38201-6 | 84.50 | 9.1:1 | 20 | 34.64 | Diamond | Falda | 2618 | NC | -22.0 | NC | 9513327 |
| DIA-38201-6-H | 84.50 | 9.1:1 | 20 | 34.64 | Diamond HD | Falda | 2618 | NC | -22.0 | NC | 9513327 |
| K9094D050 | 84.50 | 9.1:1 | 20 | 29.5 | Wossner | NC | NC | Redonda | -19.7 | NC | 845XPY |
| DIA-38204-6 | 84.50 | 11.4:1 | 20 | 34.64 | Diamond | Falda | 2618 | NC | -7.0 | NC | 9513327 |
| DIA-38204-6-H | 84.50 | 11.4:1 | 20 | 34.64 | Diamond HD | Falda | 2618 | NC | -7.0 | NC | 9513327 |
| JE-279950 | 84.50 | 11.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Redonda | -7.4 | 348 | NC |
| WKE204M85 | 85.00 | 8:1 | 20 | 34.5 | Wiseco | Falda | NC | NC | -30.5 | NC | 8500XX |
| JE-279948 | 85.00 | 8.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Redonda | -28.6 | 337 | NC |
| WKE205M85 | 85.00 | 9:1 | 20 | 34.5 | Wiseco | Falda | NC | NC | -20.5 | NC | 8500XX |
| DIA-38202-6 | 85.00 | 9.2:1 | 20 | 34.64 | Diamond | Falda | 2618 | NC | -22.0 | NC | 9513347 |
| DIA-38202-6-H | 85.00 | 9.2:1 | 20 | 34.64 | Diamond HD | Falda | 2618 | NC | -22.0 | NC | 9513347 |
| K9094D100 | 85.00 | 9.2:1 | 20 | 29.5 | Wossner | NC | NC | Redonda | -19.7 | NC | 850XPY |
| DIA-38205-6 | 85.00 | 11.5:1 | 20 | 34.64 | Diamond | Falda | 2618 | NC | -7.0 | NC | 9513347 |
| DIA-38205-6-H | 85.00 | 11.5:1 | 20 | 34.64 | Diamond HD | Falda | 2618 | NC | -7.0 | NC | 9513347 |
| JE-279951 | 85.00 | 11.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Redonda | -7.9 | 354 | NC |
Compatibilidades (códigos de motor) :
- Volkswagen : BFH, BML, BJS (Golf IV R32), BUB (Golf V R32, Eos 3.2)
- Audi : BHE, BPF (TT 8N 3.2 quattro), BDB, BMJ, BUB (A3 8P 3.2 quattro), BUB (TT 8J 3.2 quattro)
Vehículos de origen equipados con el VR6 3.2 (R32) :
| Marca | Modelo | Código de motor | Potencia | Años |
|---|---|---|---|---|
| Audi | A3 8P 3.2 quattro | BDB/BMJ/BUB | 250 CV | 2003 – 2009 |
| Audi | TT 8J 3.2 quattro | BUB | 250 CV | 2006 – 2010 |
| Audi | TT 8N 3.2 quattro | BHE/BPF | 250 CV | 2003 – 2006 |
| Volkswagen | Eos 3.2 VR6 | BUB | 250 CV | 2006 – 2008 |
| Volkswagen | Golf IV R32 (1J) | BFH/BML/BJS | 241 CV | 2002 – 2004 |
| Volkswagen | Golf V R32 (1K) | BUB | 250 CV | 2005 – 2009 |
Referencias de pistones OEM :
- Volkswagen/Audi VR6 3.2 24v (R32) – piezas pistones estándar : 022 107 065 L, 022 107 065 AA, 022 107 065 AB, 06Q 107 065.
Atención: Antes de cualquier montaje, compruebe obligatoriamente la integridad y conformidad de cada componente del kit de pistones, así como la conformidad del ensamblaje en el motor; cualquier garantía eventual se limita estrictamente a las piezas del kit de pistones.
Pistones forjados VR6 3.2 R32 24v VW/Audi: segmentos incluidos, diámetro OEM/sobremedida, bulón 20 mm, CH 34,50 mm. Compatibilidades Golf R32, Audi TT 3.2 quattro, A3 3.2, Eos 3.2.
