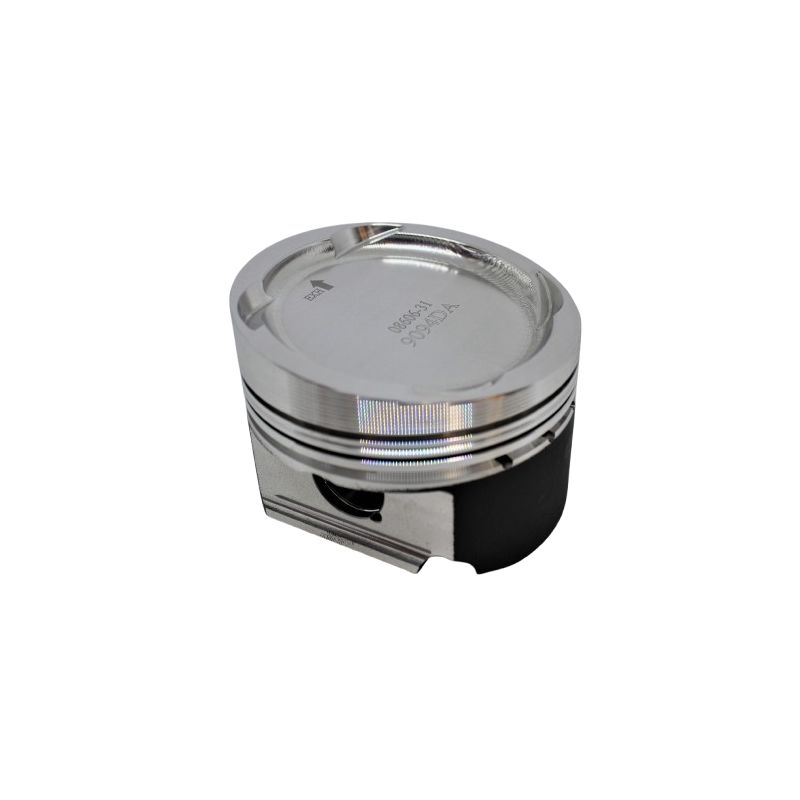

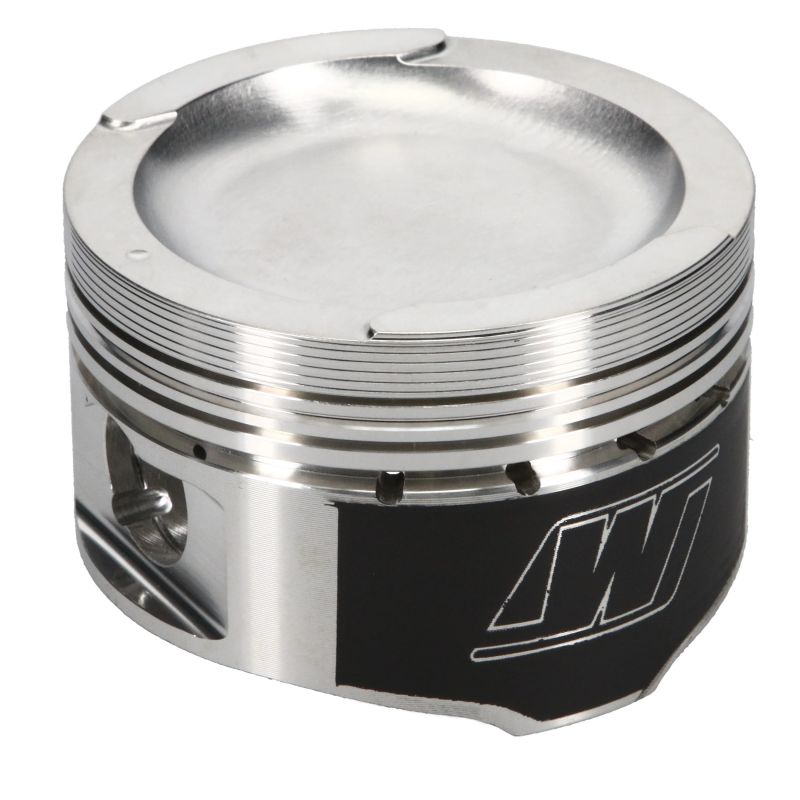

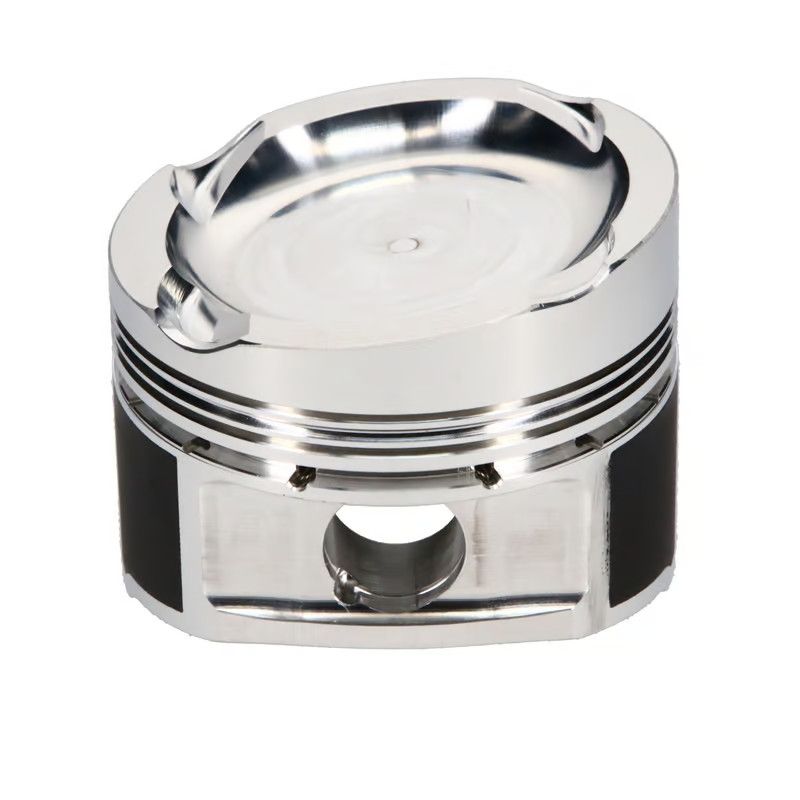

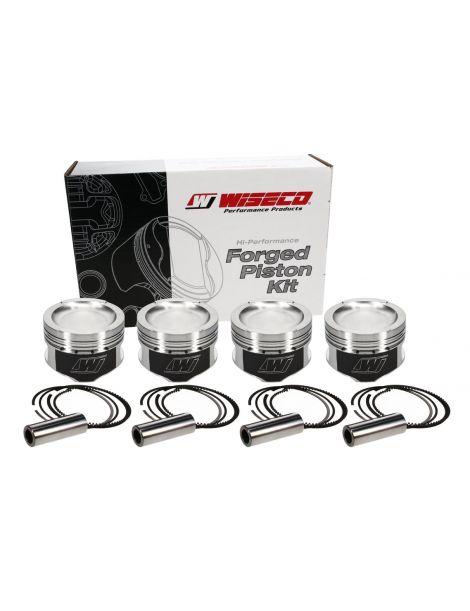

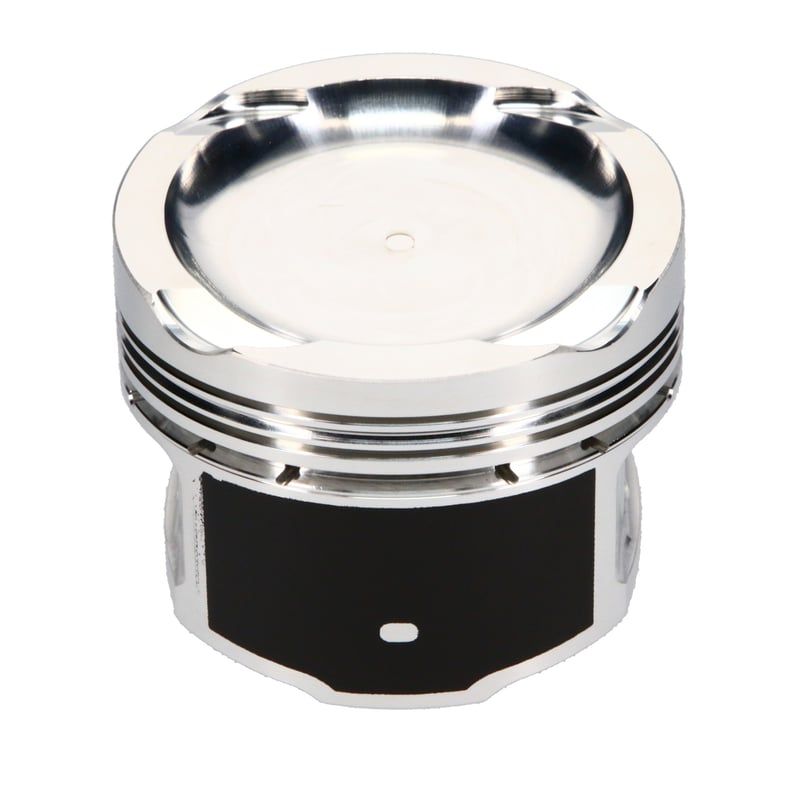

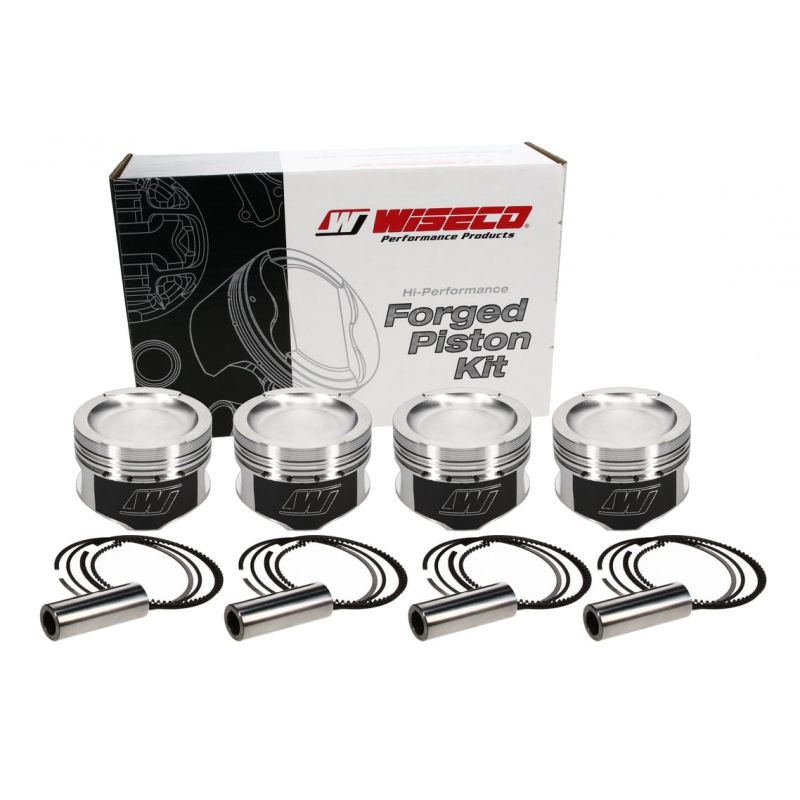

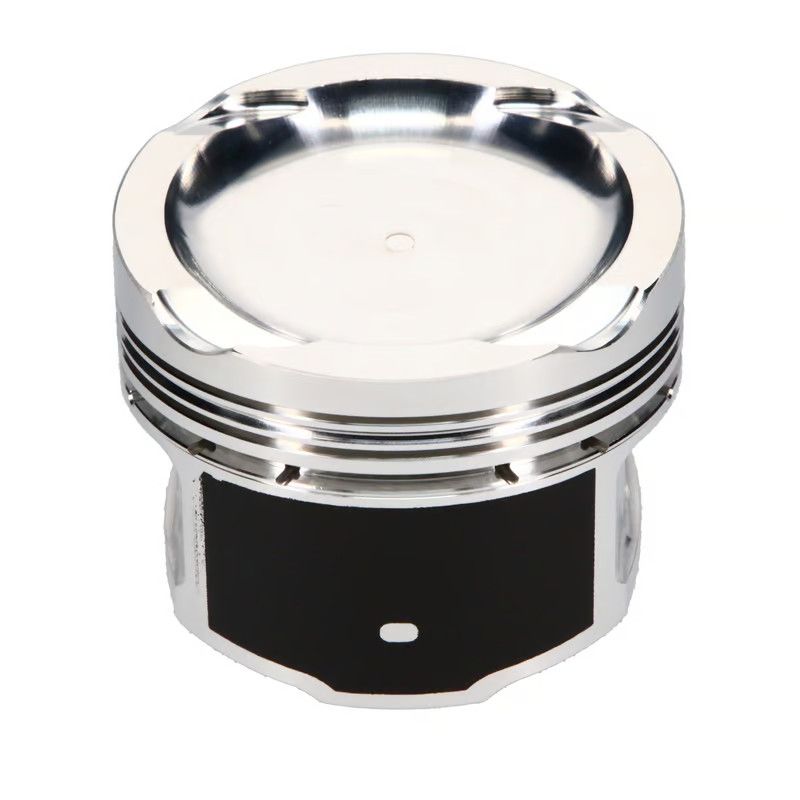

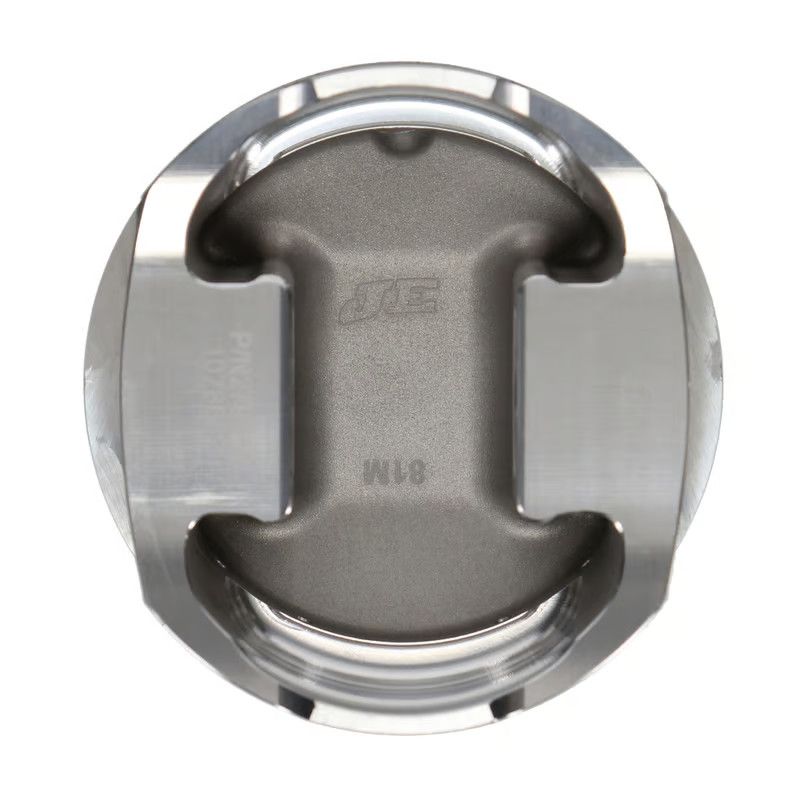

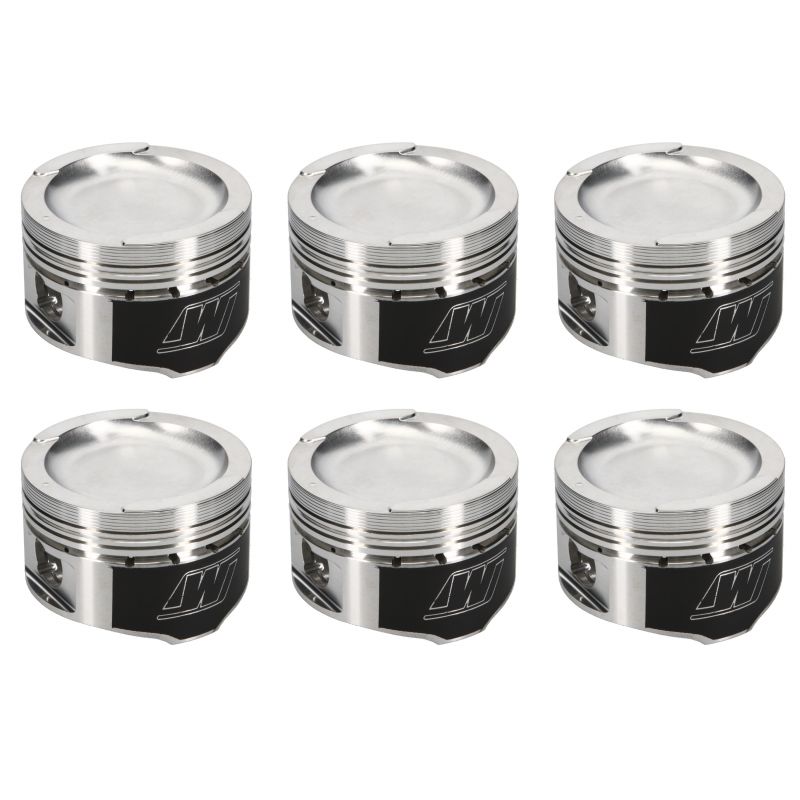

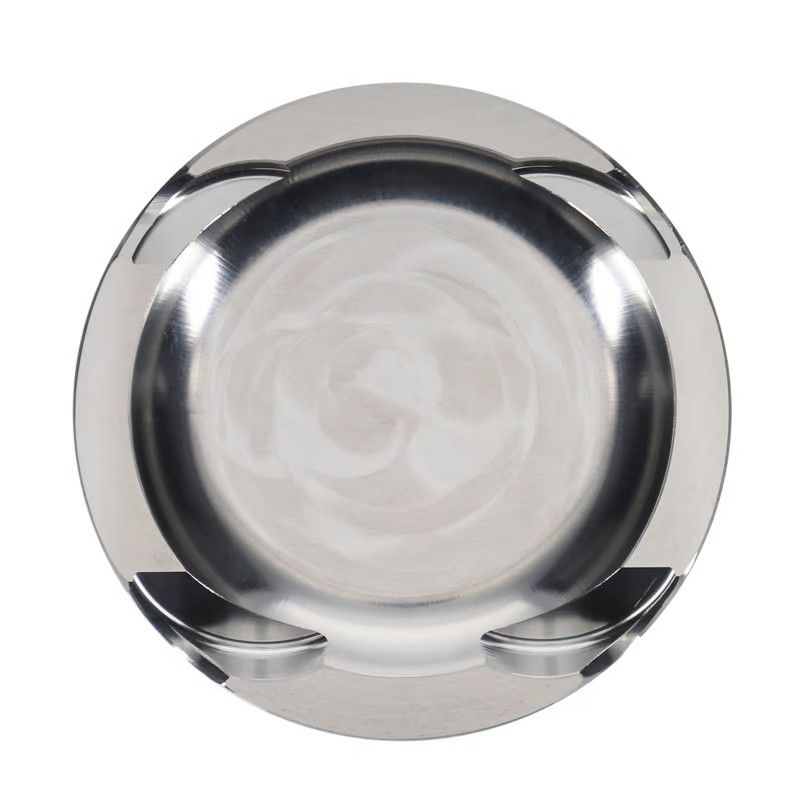

Forged pistons VR6 3.2 R32 24v VW/Audi: Rings included, Bore OEM/oversize, Pin 20 mm, CH 34.50 mm. Compatibilities Golf R32, Audi TT 3.2 quattro, A3 3.2, EOS 3.2.
Specifications of the forged pistons offered by NSB Concept for Volkswagen / Audi VR6 3.2 L 24 V (R32) :
| Reference | OEM Bore 84,00 mm | OEM CR 11,3 :1 | OEM Pin 20 mm | Height OEM Pin 34,50 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE204M84 | 84.00 | 8:1 | 20 | 34.5 | Wiseco | Skirt | 2618 | NC | -30.5 | NC | 8400XX |
| JE-279946 | 84.00 | 8.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Round | -27.0 | 330 | NC |
| DIA-38200-6 | 84.00 | 9:1 | 20 | 34.64 | Diamond | Skirt | 2618 | NC | -22.0 | NC | 9513307 |
| DIA-38200-6-H | 84.00 | 9:1 | 20 | 34.64 | Diamond HD | Skirt | 2618 | NC | -22.0 | NC | 9513307 |
| WKE205M84 | 84.00 | 9:1 | 20 | 34.5 | Wiseco | Skirt | NC | NC | -20.5 | NC | 8400XX |

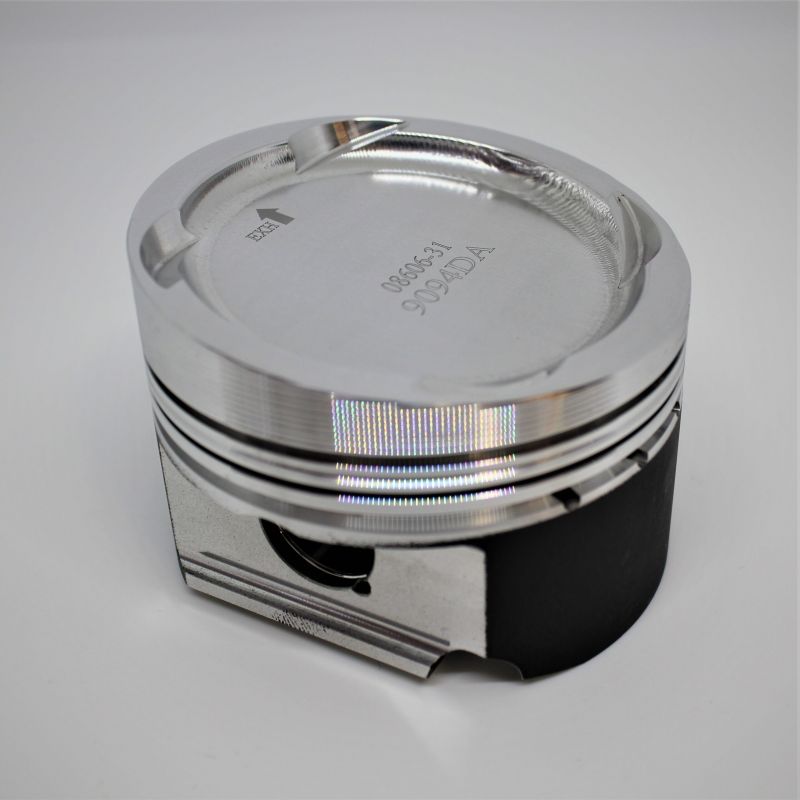

| K9094DA | 84.00 | 9:1 | 20 | 29.5 | Wossner | NC | NC | Round | -19.7 | NC | 840XPY |
| DIA-38203-6 | 84.00 | 11.2:1 | 20 | 34.64 | Diamond | Skirt | 2618 | NC | -7.0 | NC | 9513307 |
| DIA-38203-6-H | 84.00 | 11.2:1 | 20 | 34.64 | Diamond HD | Skirt | 2618 | NC | -7.0 | NC | 9513307 |
| JE-279949 | 84.00 | 11.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Round | -6.8 | 342 | NC |
| WKE204M8425 | 84.25 | 8:1 | 20 | 34.5 | Wiseco | Skirt | NC | NC | -30.5 | NC | 8425XX |
| WKE205M8425 | 84.25 | 9:1 | 20 | 34.5 | Wiseco | Skirt | NC | NC | -20.5 | NC | 8425XX |
| WKE204M845 | 84.50 | 8:1 | 20 | 34.5 | Wiseco | Skirt | 2618 | NC | -30.5 | NC | 8450XX |
| JE-279947 | 84.50 | 8.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Round | -27.8 | 334 | NC |
| WKE205M845 | 84.50 | 9:1 | 20 | 34.5 | Wiseco | Skirt | NC | NC | -20.5 | NC | 8450XX |
| DIA-38201-6 | 84.50 | 9.1:1 | 20 | 34.64 | Diamond | Skirt | 2618 | NC | -22.0 | NC | 9513327 |
| DIA-38201-6-H | 84.50 | 9.1:1 | 20 | 34.64 | Diamond HD | Skirt | 2618 | NC | -22.0 | NC | 9513327 |
| K9094D050 | 84.50 | 9.1:1 | 20 | 29.5 | Wossner | NC | NC | Round | -19.7 | NC | 845XPY |
| DIA-38204-6 | 84.50 | 11.4:1 | 20 | 34.64 | Diamond | Skirt | 2618 | NC | -7.0 | NC | 9513327 |
| DIA-38204-6-H | 84.50 | 11.4:1 | 20 | 34.64 | Diamond HD | Skirt | 2618 | NC | -7.0 | NC | 9513327 |
| JE-279950 | 84.50 | 11.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Round | -7.4 | 348 | NC |
| WKE204M85 | 85.00 | 8:1 | 20 | 34.5 | Wiseco | Skirt | NC | NC | -30.5 | NC | 8500XX |
| JE-279948 | 85.00 | 8.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Round | -28.6 | 337 | NC |
| WKE205M85 | 85.00 | 9:1 | 20 | 34.5 | Wiseco | Skirt | NC | NC | -20.5 | NC | 8500XX |
| DIA-38202-6 | 85.00 | 9.2:1 | 20 | 34.64 | Diamond | Skirt | 2618 | NC | -22.0 | NC | 9513347 |
| DIA-38202-6-H | 85.00 | 9.2:1 | 20 | 34.64 | Diamond HD | Skirt | 2618 | NC | -22.0 | NC | 9513347 |
| K9094D100 | 85.00 | 9.2:1 | 20 | 29.5 | Wossner | NC | NC | Round | -19.7 | NC | 850XPY |
| DIA-38205-6 | 85.00 | 11.5:1 | 20 | 34.64 | Diamond | Skirt | 2618 | NC | -7.0 | NC | 9513347 |
| DIA-38205-6-H | 85.00 | 11.5:1 | 20 | 34.64 | Diamond HD | Skirt | 2618 | NC | -7.0 | NC | 9513347 |
| JE-279951 | 85.00 | 11.5:1 | 20 | 34.5 | JE Round | NC | 2618 | Round | -7.9 | 354 | NC |
Compatibility (engine codes):
Original vehicles equipped with the VR6 3.2 (R32) :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Audi | A3 8P 3.2 quattro | BDB/BMJ/BUB | 250 hp | 2003 – 2009 |
| Audi | TT 8J 3.2 quattro | BUB | 250 hp | 2006 – 2010 |
| Audi | TT 8N 3.2 quattro | BHE/BPF | 250 hp | 2003 – 2006 |
| Volkswagen | Eos 3.2 VR6 | BUB | 250 hp | 2006 – 2008 |
| Volkswagen | Golf IV R32 (1J) | BFH/BML/BJS | 241 hp | 2002 – 2004 |
| Volkswagen | Golf V R32 (1K) | BUB | 250 hp | 2005 – 2009 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
