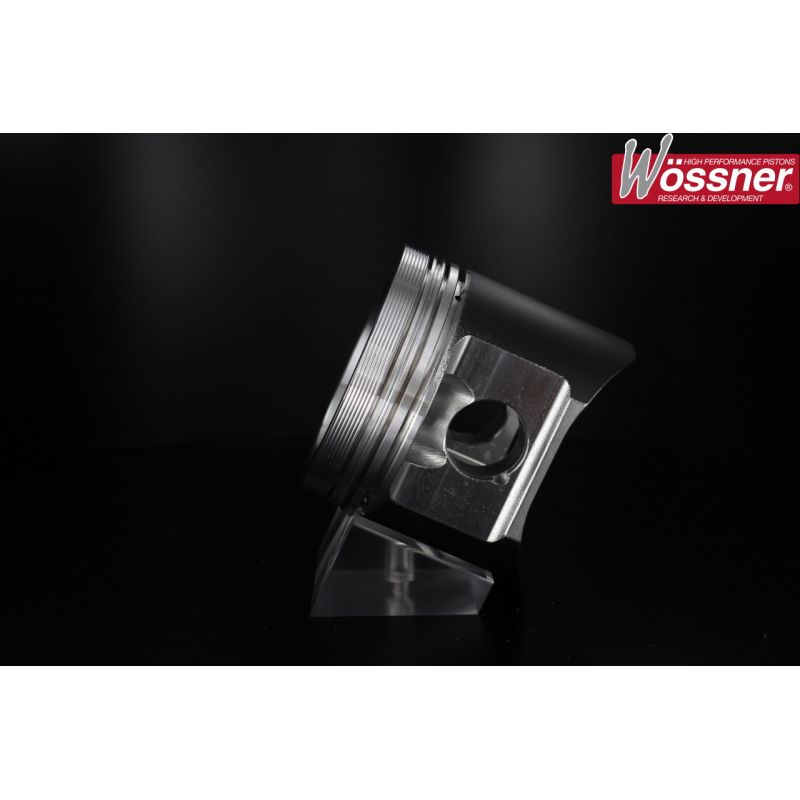

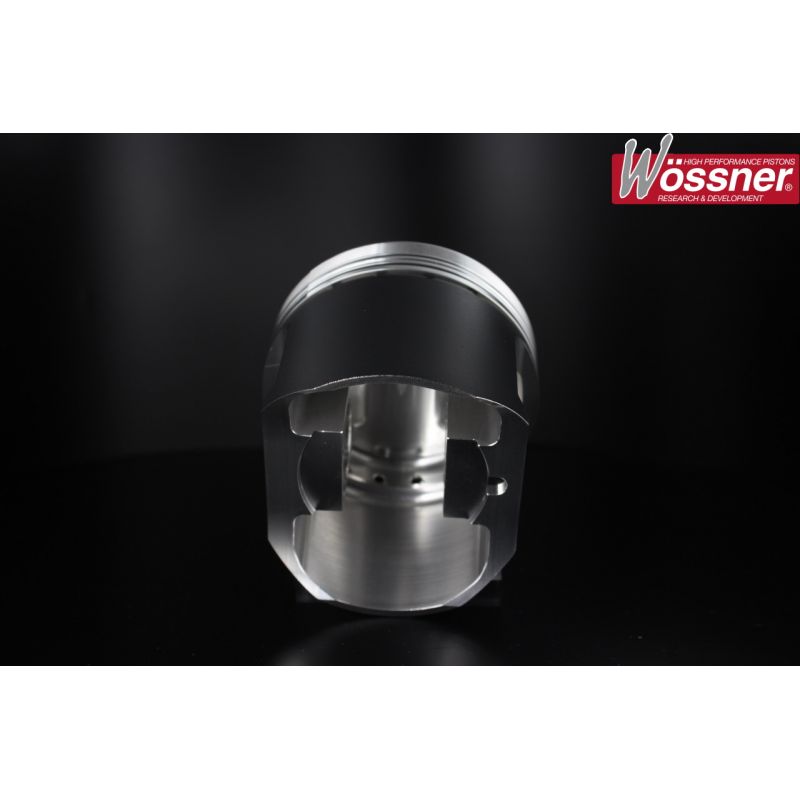

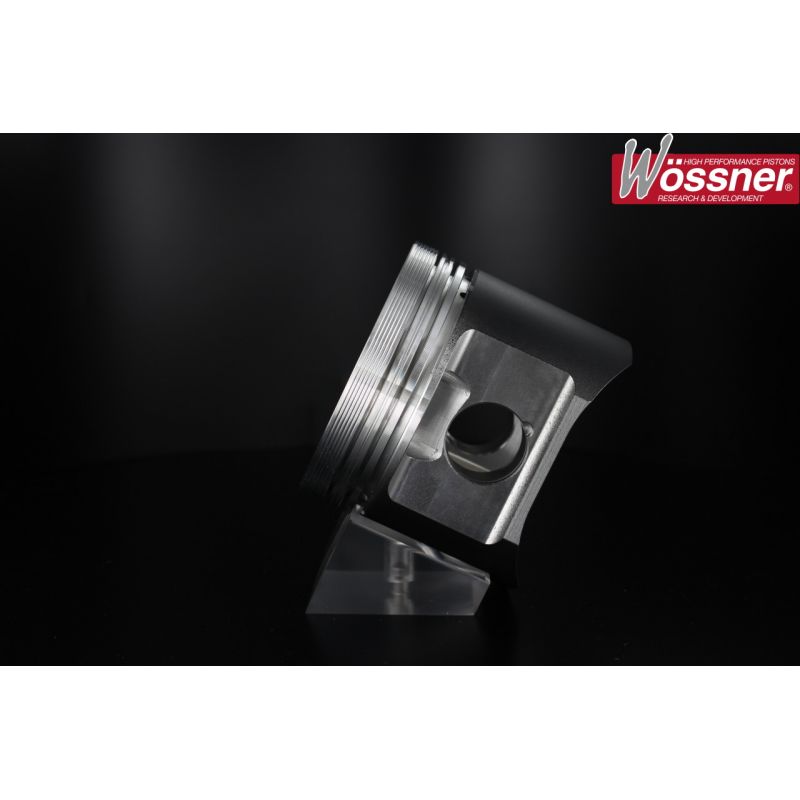

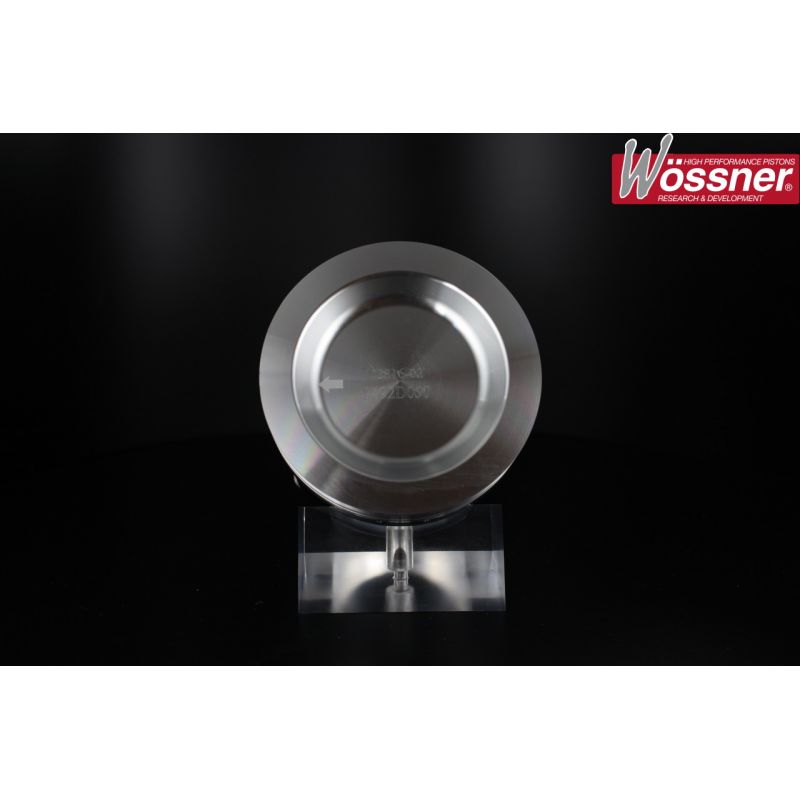

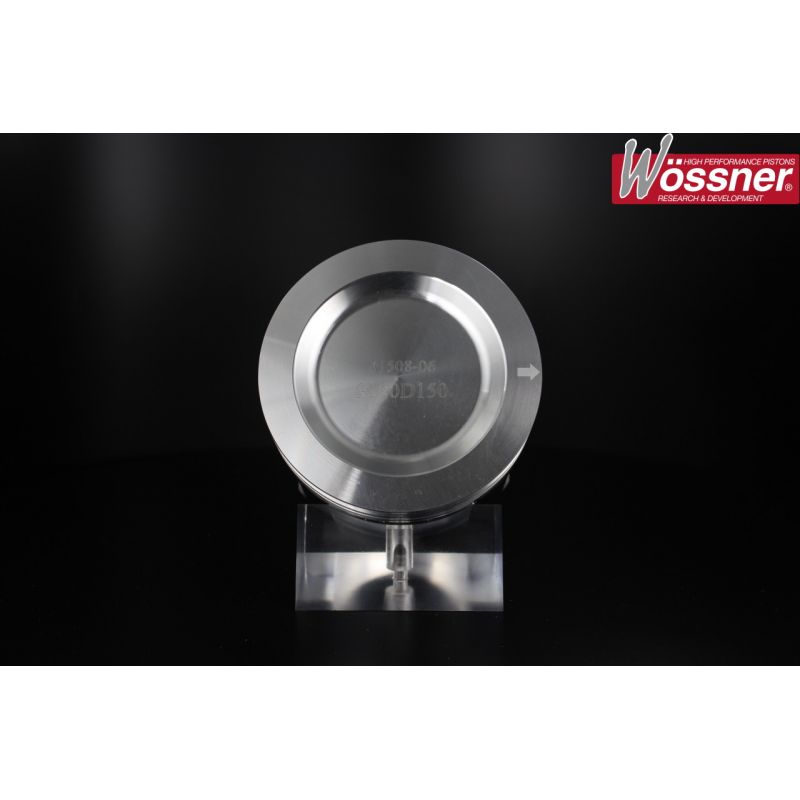

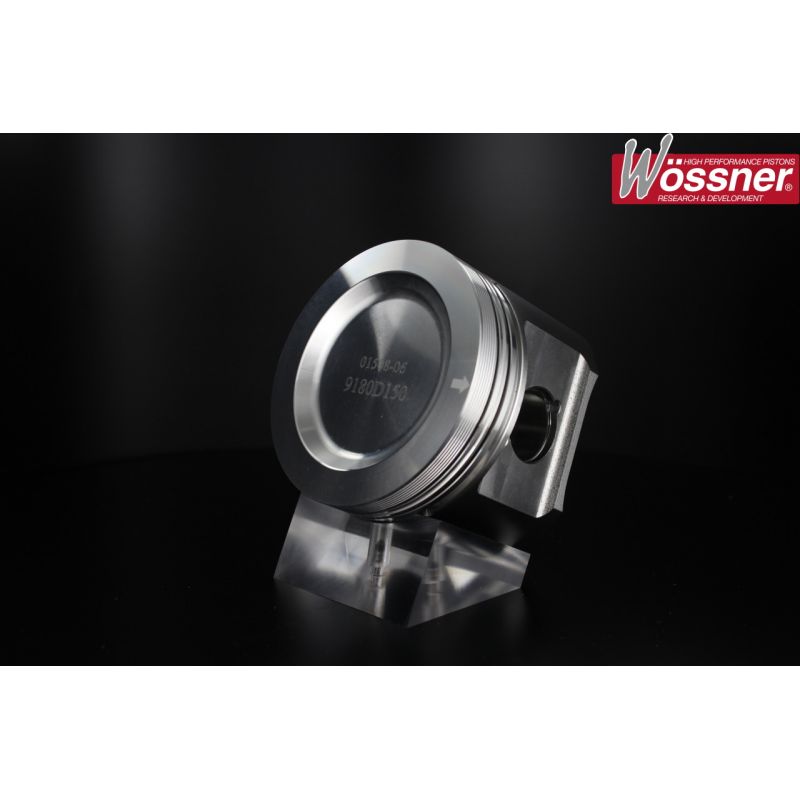

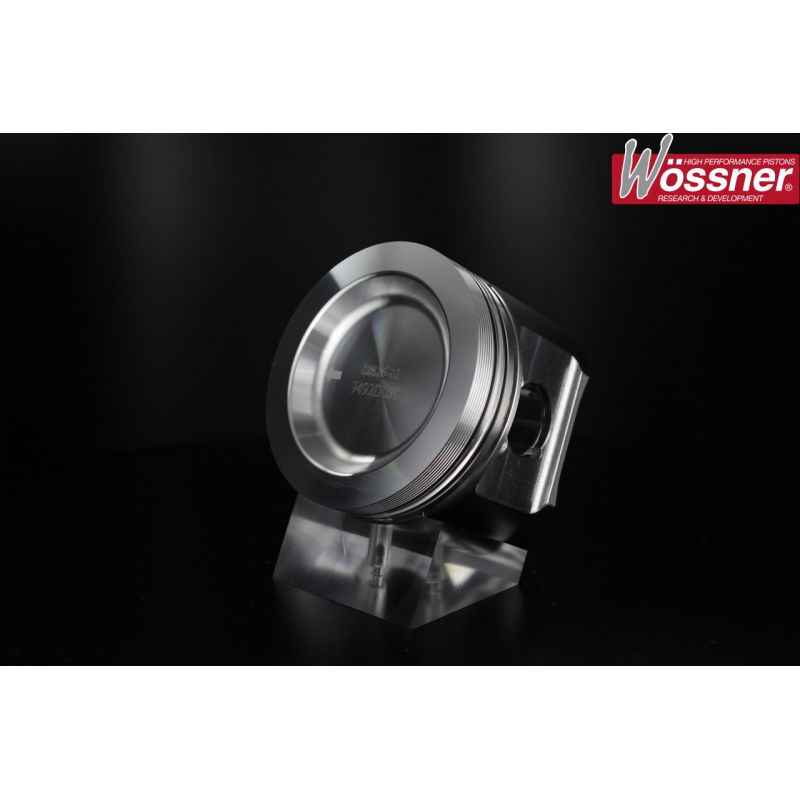

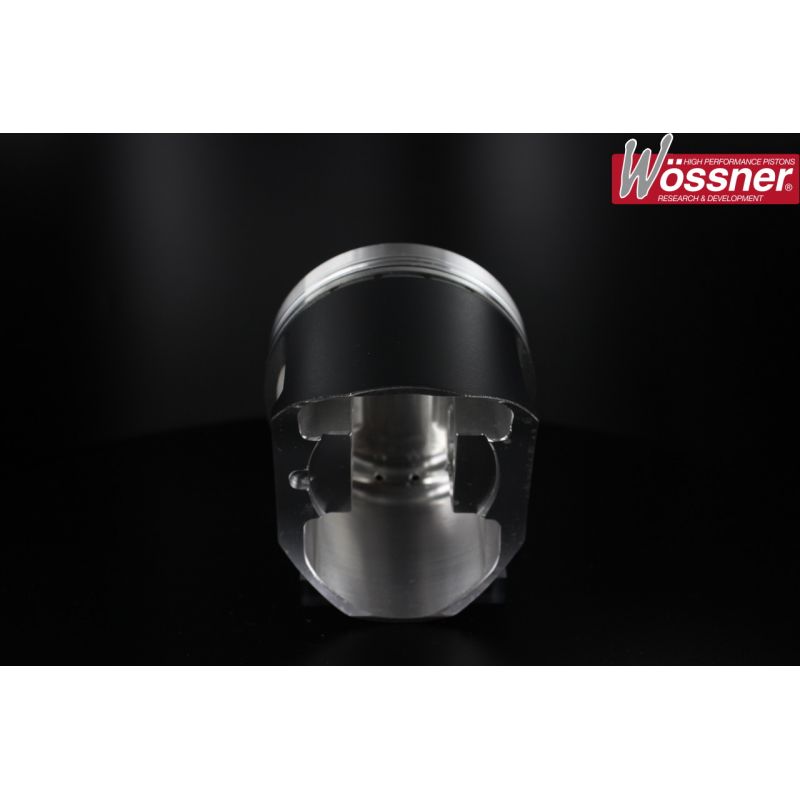

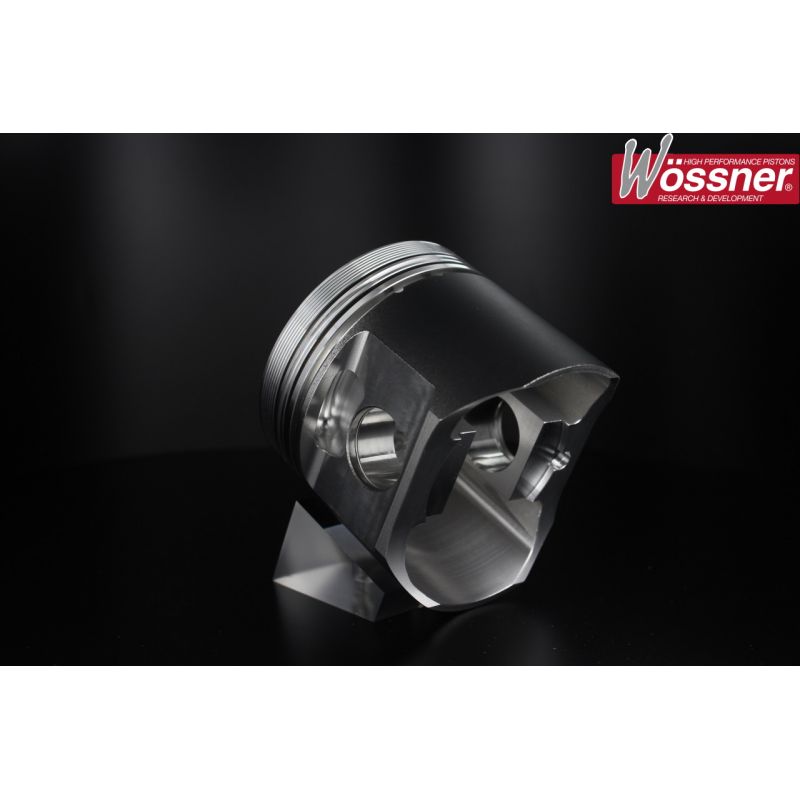

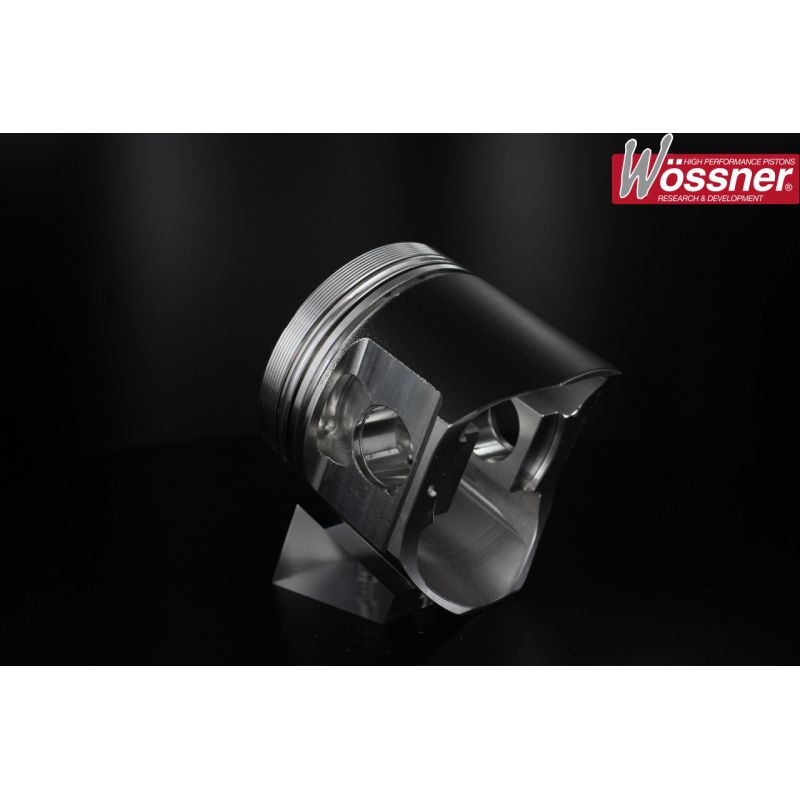

Pistons forged 1.6L 8v EG VW. NSB CONCEPT. Fast shipping!
Specifications of the forged pistons offered by NSB Concept for Volkswagen 1.6 L 8 V (code EG) :
| Reference | OEM Bore 79,50 mm | OEM CR 9,5 :1 | OEM Pin 22 mm | Height OEM Pin 40,70 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9180DA | 79.50 | 11.6:1 | 22 | 40.7 | Wossner | NC | NC | Round | -10.4 | NC | 795XDS |
| K9180D025 | 79.75 | 11.7:1 | 22 | 40.7 | Wossner | NC | NC | Round | -10.4 | NC | 797XDS |
| K9492D050 | 80.00 | 9.6:1 | 22 | 40.4 | Wossner | NC | NC | NC | -17.6 | NC | 800XDS |
| K9180D050 | 80.00 | 11.7:1 | 22 | 40.7 | Wossner | NC | NC | Round | -10.4 | NC | 800XDS |
| K9492D100 | 80.50 | 9.6:1 | 22 | 40.4 | Wossner | NC | NC | NC | -17.6 | NC | 805XDS |
| K9180D100 | 80.50 | 11.9:1 | 22 | 40.7 | Wossner | NC | NC | Round | -10.4 | NC | 805XDS |
| K9492D150 | 81.00 | 9.6:1 | 22 | 40.4 | Wossner | NC | NC | NC | -17.6 | NC | 810XDS |
| K9180D150 | 81.00 | 12:1 | 22 | 40.7 | Wossner | NC | NC | Round | -10.4 | NC | 810XSY |
Compatibility (engine codes):
Original vehicles equipped with the 1.6 GTI :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Volkswagen | Golf I (Type 17) GTI 1.6 | EG | 110 hp | 1976 – 1982 |
| Volkswagen | Jetta I (A1) GLI 1.6 | EG | 110 hp | 1979 – 1982 |
| Volkswagen | Scirocco I (Type 53) GTI 1.6 | EG/YS | 110 hp | 1976 – 1981 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
