Tri-metal crankshaft main bearings VAG VR6 2.8 2.9 3.2 3.6 R32 R36

New product

Set of 14 tri-metal crankshaft main bearing half shells for VAG VR6 2.8, 2.9, 3.2 and 3.6 (R32, R36) engines.

  • Brands: ACL Race and King Racing
  • Fitments: Golf III, IV and V, Bora, Passat, Sharan, Touareg, Audi A3 and TT, Seat Leon, Ford Galaxy
  • Engine codes: AAA, ABV, AUE, BDE, BFH, BML, BUB, BWS, BLV and others
  • Available sizes: standard to +0.25 mm, increased clearance versions (HX / STDX)

More details

170,87 € tax incl.

-5%

179,87 € tax incl.

IN STOCK

Stock NSB France : 3 Items

  • The VAG VR6 engines: 2.8, 2.9, 3.2 and 3.6 (R32, R36)

    The VR6 is a narrow-angle V6 used by Volkswagen, Audi, Seat and Ford. It spans the 2.8 and 2.9 litre engines of the Golf III and Corrado (AAA, ABV), the 3.2 litre engines of the Golf R32, Audi TT, Audi A3 and Touareg, up to the 3.6 litre engines of the Passat R36 and CC (BWS, BLV). All of them share the same crankshaft journal and housing dimensions: a single bearing set covers the whole family.

    The crankshaft of these engines runs on seven main bearings. Each journal turns between two half shells, one seated in the block and the other in the main bearing cap: they carry the crankshaft. The ACL Race Series and KING RACING tri-metal sets shown here replace them on built engines.

    Tri-metal main bearings

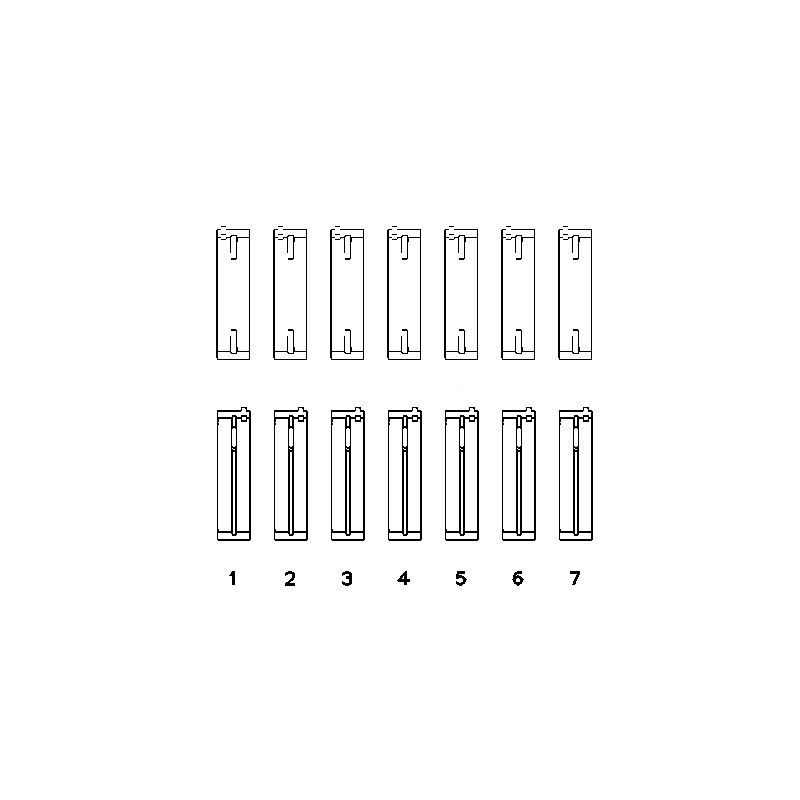

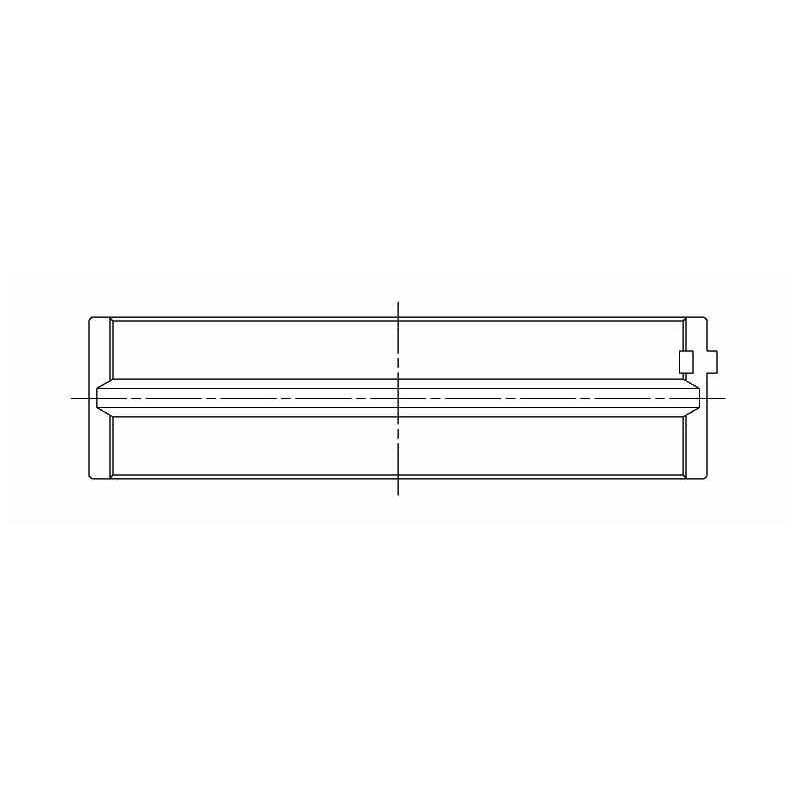

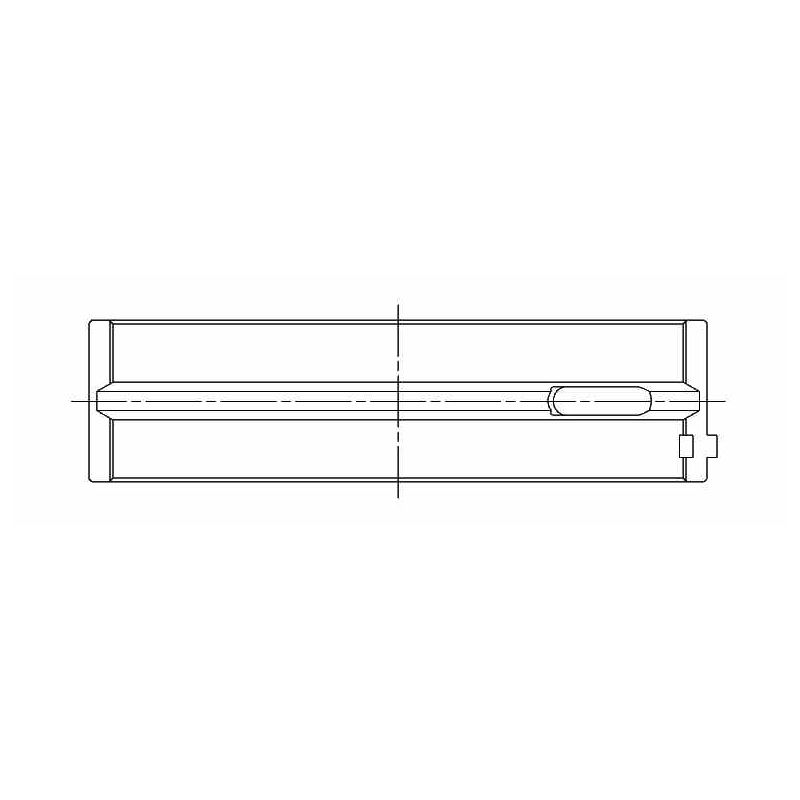

    A tri-metal bearing stacks three layers: a steel back, a copper-lead intermediate layer with high load capacity and an anti-friction running surface that protects the journal. The complete set contains 14 half shells, seven pairs for seven main bearings. The upper and lower half shells are different: each goes in its own position.

    An aluminium bi-metal takes around 8,000 psi, a performance tri-metal up to 12,000 psi, 50% more. Hence better resistance and better durability on turbocharged, supercharged and high-revving engines.

    Technical specifications

    Fitment dimensions common to all references
    ACL bearings
    Crankshaft journal Ø 59.958 / 59.978 mm
    Housing bore Ø 65.000 / 65.010 mm
    Width 17 mm    		King bearings
    Crankshaft journal Ø 59.959 / 59.977 mm
    Housing bore Ø 65.001 / 65.009 mm
    Width 17 mm
    ReferenceBrand and treatmentSizeWall thickness (mm)
    7M5532H-STDACL Race - UntreatedStandard2.501
    7M5532HX-STDACL Race - UntreatedStd, increased clearance (HX)2.488
    7M5532H-.025ACL Race - Untreated+0.0252.514
    7M5532H-.25ACL Race - Untreated+0.252.626
    MB7089XPKing Racing - UntreatedStandard2.502
    MB7089XP STDXKing Racing - UntreatedStd, increased clearance (STDX)2.489
    MB7089XP.026King Racing - Untreated+0.0262.515

    Running clearance

    The running clearance is the gap between the bearing and the journal where the oil film flows.

    In operation, the crankshaft journal does not rub against the bearing: it rides on this oil film, which carries the load. Clearance sets the thickness of this film: too tight, oil flows poorly, temperature rises and the risk of seizure increases; too loose, oil escapes, the film loses load-carrying capacity and oil pressure drops. The right clearance is the balance between adequate lubrication and a well-maintained oil film.

    Size / gradeWhen to choose itACL Race SeriesKing XP
    Standard (STD)Standard journal, not reground0.061 to 0.073 mm0.060 mm - 0.073 mm
    Increased clearance (HX / STDX)Wider clearance: high oil flow, high rpm0.086 to 0.098 mm0.085 mm - 0.098 mm
    +0.025 / +0.026 mmPolished journal0.061 to 0.073 mm0.060 mm - 0.073 mm
    +0.25 mmJournal reground to 0.25 mm0.061 to 0.073 mm

    Check at assembly: lay a calibrated strip (Plastigauge) on the journal, tighten the main cap following the manufacturer's procedure, then compare the width of the crushed strip with the gauge to read the clearance.

    Plastigauge

    Order the Plastigauge →

    Technical guide

    The ACL and King main bearings shown here are trimetal bearings, designed for engine building and racing. Compared with an original bearing, they handle far higher loads: they cope with increased power, high rpm or the addition of a turbo or supercharger, where a standard bearing quickly reaches its limit.

    The two brands

    ACLACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, offers with its Race Series precise tri-metal bearings, available in many sizes and proven on built engines worldwide.

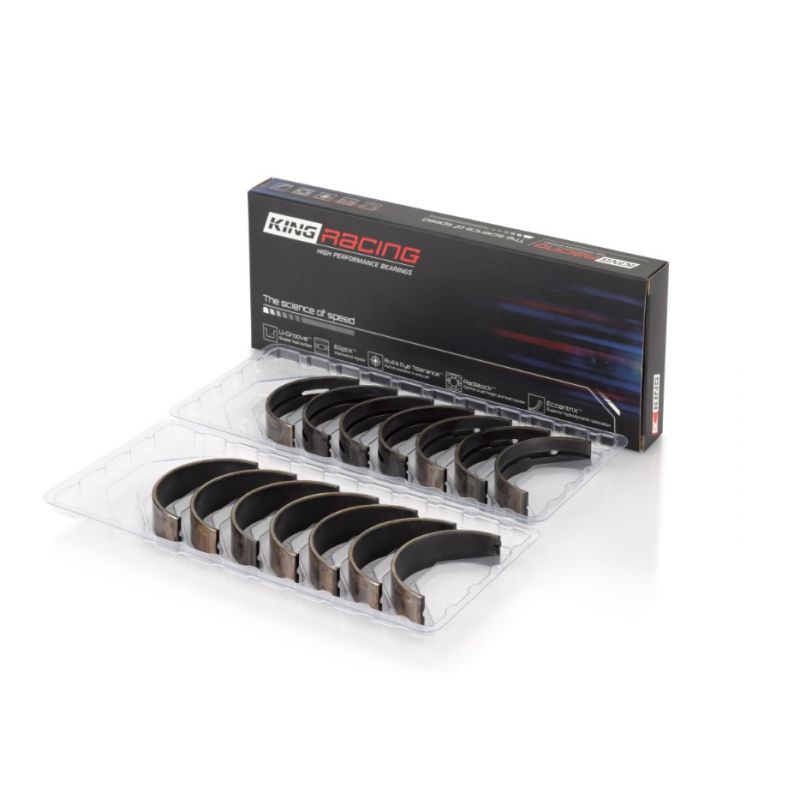

    King RacingKing Engine Bearings, an Israeli manufacturer of high-performance engine bearings since the 1960s, offers with its pMax Black tri-metal alloy bearings designed for heavy loads.

    Construction and advantages

    CriterionACL Race SeriesKing Racing
    Cross-sectionCross-section of an ACL Race Series trimetal bearingCross-section of a King Racing trimetal bearing
    TypeHigh-performance trimetal bearingHigh-performance trimetal bearing
    Country of manufactureAustraliaIsrael
    ConstructionTrimetal: steel back, copper layer, soft surfaceTrimetal: steel back, copper layer, soft surface
    AlloyRace Series (copper-lead)pMax Black (hardened copper-lead)
    Protective coatingNoNo
    Available sizesStandard to +0.25 mm (+ increased clearance HX)Standard to +0.026 mm (+ increased clearance STDX)

    Vehicle compatibility

    This main bearing set fits the VAG VR6 2.8, 2.9, 3.2 and 3.6 (R32, R36) engines sharing the same crankshaft journal and housing dimensions:

    BrandModel (chassis)Engine codePowerYears
    ArtegaGT 3.6BWS300 hp2009–2012
    AudiA3 (8P1) 3.2 V6 quattroBDB, BMJ, BUB250 hp2003–2009
    AudiA3 Sportback (8PA) 3.2 V6 quattroBDB, BMJ, BUB250 hp2004–2009
    AudiQ7 (4LB) 3.6 FSI quattroBHK280 hp2006–2010
    AudiTT (8J3) 3.2 V6 quattroBUB, CBRA250 hp2006–2010
    AudiTT (8N3) 3.2 VR6 quattroBHE, BPF250 hp2003–2006
    AudiTT Roadster (8J9) 3.2 V6 quattroBUB, CBRA250 hp2007–2010
    AudiTT Roadster (8N9) 3.2 VR6 quattroBHE, BPF250 hp2003–2006
    FordGalaxy I (WGR) 2.8 V6AYL204 hp2000–2006
    FordGalaxy I (WGR) 2.8 i V6AAA174 hp1995–2000
    FordGalaxy I (WGR) 2.8 i V6 4x4AAA174 hp1996–2000
    SeatAlhambra (7V8, 7V9) 2.8 V6AUE, AYL204 hp2000–2010
    SeatAlhambra (7V8, 7V9) 2.8 V6 4motionAUE, AYL204 hp2000–2010
    SeatLeon (1M1) 2.8BDE204 hp2002–2004
    SeatLeon (1M1) 2.8 Cupra 4AUE, BDE204 hp2001–2006
    SeatToledo II (1M2) 2.8AUE204 hp2000–2001
    VWBora I (1J2) 2.8 V6 4motionAQP, AUE, BDE204 hp1999–2005
    VWBora Variant (1J6) 2.8 V6 4motionAQP, AUE, BDE204 hp1999–2005
    VWCC B7 (358) 3.6 FSI 4motionBWS300 hp2011–2016
    VWCalifornia T4 Camper (7DJ, 7DK, 70J) 2.8 VR6AES, AMV140–204 hp1996–2001
    VWCorrado (53I) 2.8 VR6AAA174 hp1991–1995
    VWCorrado (53I) 2.9 VR6ABV190 hp1991–1995
    VWEOS (1F7, 1F8) 3.2 V6BUB, CBRA250 hp2006–2009
    VWGolf III (1H1) 2.8 VR6AAA163–174 hp1992–1997
    VWGolf III (1H1) 2.9 VR6 Syncro (1HX1)ABV190 hp1994–1997
    VWGolf III Variant (1H5) 2.9 VR6 SyncroABV190 hp1994–1999
    VWGolf IV (1J1) 2.8 VR6 4motionAQP, AUE, BDE204 hp1999–2005
    VWGolf IV (1J1) 3.2 R32 4motionBFH, BML241 hp2002–2005
    VWGolf IV Variant (1J5) 2.8 V6 4motionAQP, AUE, BDE204 hp1999–2006
    VWGolf V (1K1) 3.2 R32 4motionBUB, CBRA250 hp2005–2008
    VWJetta III (1K2) 2.8 VR6AAA174 hp2009–2010
    VWMultivan T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) VR6 3.2BDL, BKK, CFLA235 hp2004–2009
    VWMultivan T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) VR6 3.2 4motionBDL, BKK, CFLA235 hp2004–2009
    VWNEW Beetle (9C1, 1C1) 3.2 RSI 4motion (1C9)AXJ224 hp2000–2001
    VWPassat B3/B4 (3A2, 35I) 2.8 VR6AAA174 hp1991–1996
    VWPassat B3/B4 Variant (3A5, 35I) 2.8 VR6AAA174 hp1991–1997
    VWPassat B3/B4 Variant (3A5, 35I) 2.9 VR6 SyncroABV184 hp1994–1997
    VWPassat B6 (3C2) 3.2 FSI 4motionAXZ250 hp2005–2010
    VWPassat B6 (3C2) 3.6 FSIBLV280 hp2005–2010
    VWPassat B6 (3C2) 3.6 FSI 4motionBLV280 hp2005–2010
    VWPassat B6 (3C2) 3.6 R36 4motionBWS300 hp2007–2010
    VWPassat B6 Variant (3C5) 3.2 FSI 4motionAXZ250 hp2005–2010
    VWPassat B6 Variant (3C5) 3.6 FSIBLV280 hp2005–2010
    VWPassat B6 Variant (3C5) 3.6 FSI 4motionBLV280 hp2005–2010
    VWPassat B6 Variant (3C5) 3.6 R36 4motionBWS300 hp2007–2010
    VWPassat B7 (362) 3.6 FSI 4motionBWS300 hp2011–2014
    VWPassat B7 Variant (365) 3.6 FSI 4motionBWS300 hp2011–2014
    VWPassat CC B6 (357) 3.6 FSIBLV280 hp2008–2012
    VWPassat CC B6 (357) 3.6 FSI 4motionBLV, BWS280–300 hp2008–2012
    VWPhaeton (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3.2 V6AYT, BKL241 hp2002–2005
    VWPhaeton (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3.2 V6 4motionBKL, BRK241 hp2004–2008
    VWSharan (7M8, 7M9, 7M6) 2.8 V6 24VAYL204 hp2000–2010
    VWSharan (7M8, 7M9, 7M6) 2.8 V6 24V 4motionAYL204 hp2000–2010
    VWSharan (7M8, 7M9, 7M6) 2.8 VR6AAA174 hp1995–2000
    VWSharan (7M8, 7M9, 7M6) 2.8 VR6 SyncroAAA174 hp1996–2000
    VWTouareg (7LA, 7L6, 7L7) 3.2 V6AZZ, BAA, BKJ, BMV, BMX, BRJ220–241 hp2002–2006
    VWTouareg (7LA, 7L6, 7L7) 3.6 V6 FSIBHK280 hp2005–2010
    VWTransporter T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR 6AES140 hp1995–2000
    VWTransporter T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR6AMV204 hp2000–2003
    VWTransporter T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.8AES140 hp1996–2000
    VWTransporter T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.8 VR6AMV204 hp2000–2003
    VWTransporter T4 Van (70A, 70H, 7DA, 7DH, 70J) 2.8 VR6AES, AMV140–204 hp1996–2003
    VWTransporter T5 Bus (7HB, 7HJ, 7EB, 7EJ) 3.2 V6 4motionBDL, BKK, CFLA235 hp2003–2009
    VWTransporter T5 Bus (7HB, 7HJ, 7EB, 7EJ) VR6 3.2BDL, BKK, CFLA235 hp2004–2009
    VWTransporter T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F VR6 3.2BDL, BKK235 hp2003–2009
    VWTransporter T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F VR6 3.2 4motionBDL235 hp2003–2009
    VWTransporter T5 Van (7HA, 7HH, 7EA, 7EH) VR6 3.2BDL, BKK, CFLA235 hp2004–2009
    VWTransporter T5 Van (7HA, 7HH, 7EA, 7EH) VR6 3.2 4motionBDL, BKK, CFLA235 hp2003–2009
    VWVento (1H2) 2.8 VR6AAA163–174 hp1992–1998
