2.0L 16v - 3S-GTE
Marcas
2.0L 16v - 3S-GTE
Advertencia: ¡Últimos artículos en inventario!
Nuevo producto

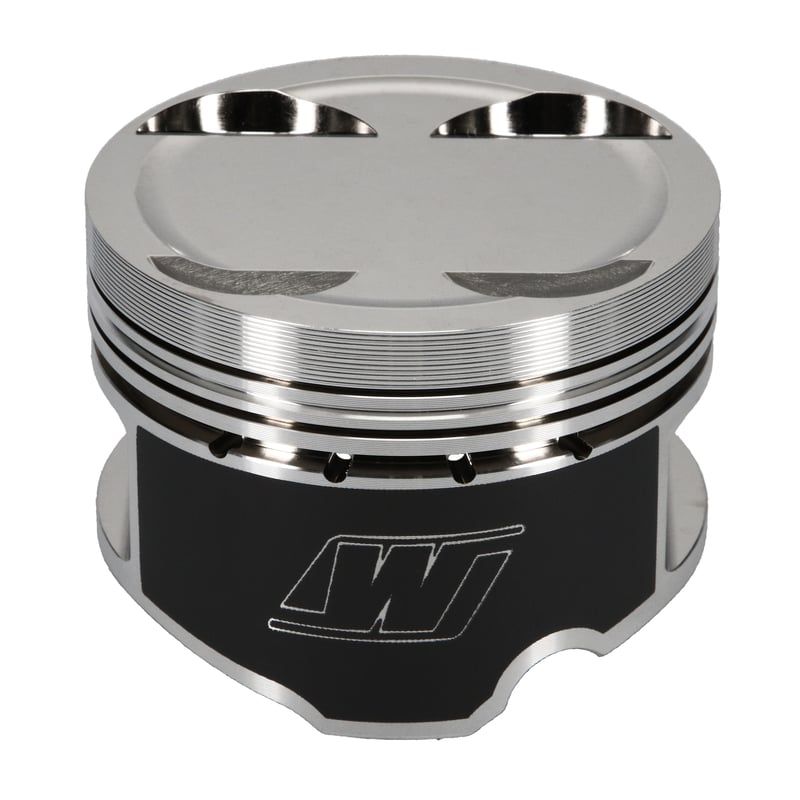

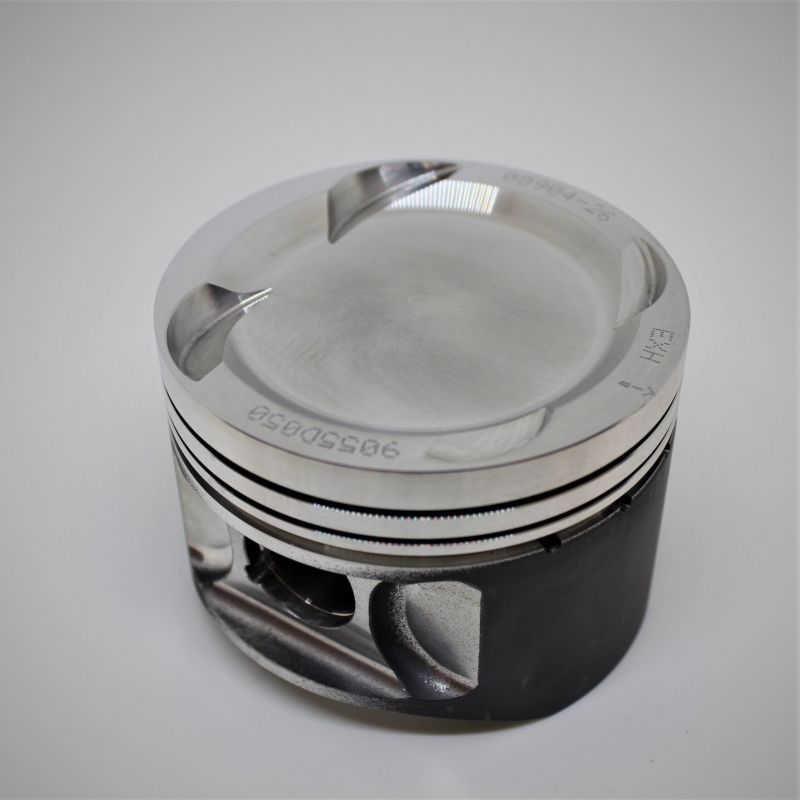

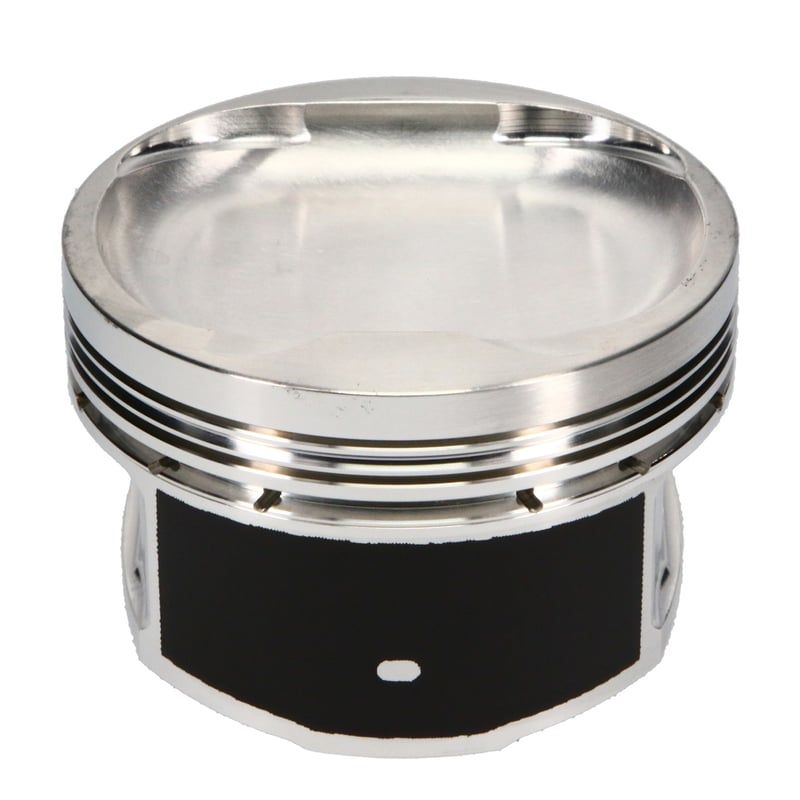

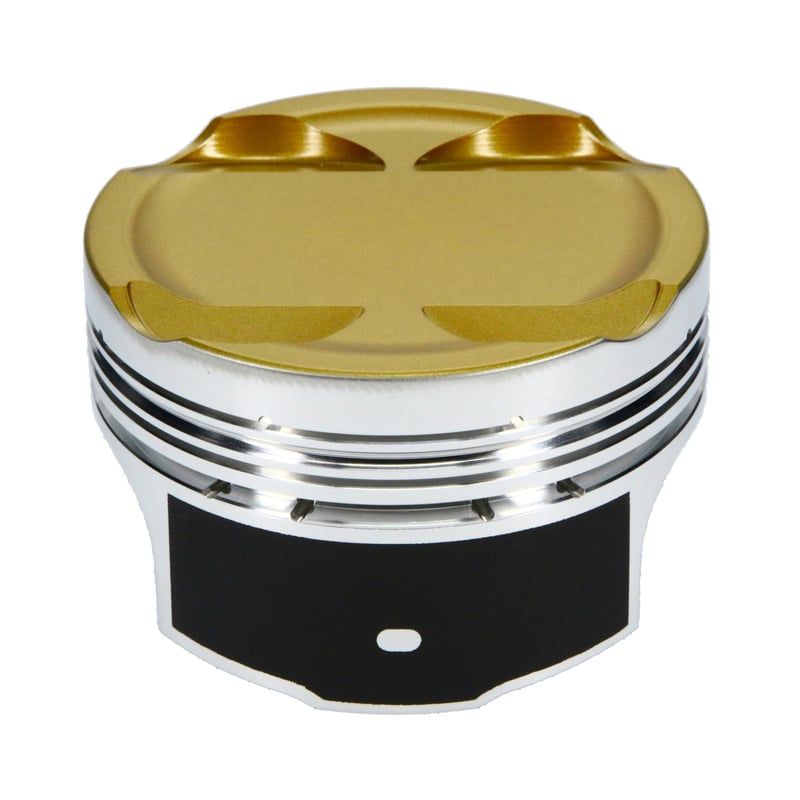

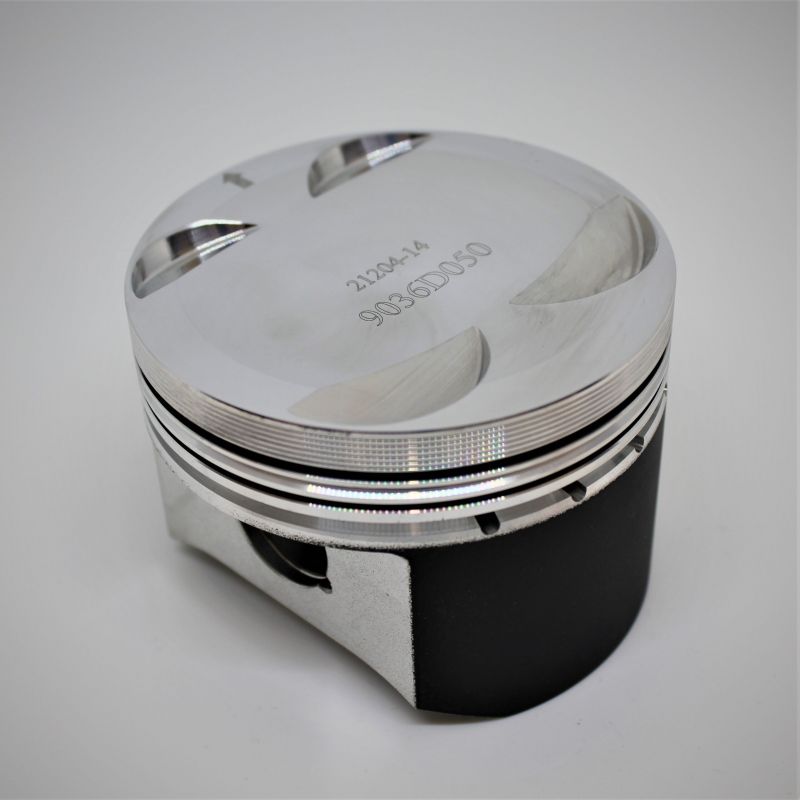

Tabla pistones forjados Toyota 3S-GTE 2.0 16v : Ø 86,00 mm, bulón 22 mm, CH 35,00 mm, RV OEM 8,5-9,0:1. Compatibilidades, vehículos (Celica GT-Four, MR2 Turbo, Caldina) y referencias OEM.
Características de los pistones forjados propuestos por NSB Concept para Toyota 2.0 L 16 V — motor 3S‑GTE :
| Referencia | Diámetro OEM 86,00 mm | RC OEM 8,5–9,0 :1 | Bulón OEM 22 mm | Altura de compresión OEM 35,00 mm | Gama | Tratamiento | Aluminio | Forja | Cúpula | Peso | Segmentos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9036DA | 86.0 | 8:1 | 22 | 35 | Wossner | NC | NC | Redonda | -15.5 | NC | GNH86.00 |
| K9055DA | 86.0 | 8.5:1 | 22 | 35 | Wossner | NC | NC | Redonda | -11.0 | NC | 860XPY |
| JE-298701 | 86.0 | 9:1 | 22 | 35 | JE FSR | NC | 2618 | FSR | -6.0 | 322.0 | NC |
| JE-367908 | 86.0 | 9:1 | 22 | 35 | JE Ultra Series | Cabeza + Falda | 2618 | FSR | -6.0 | 335.0 | NC |
| WK615M86 | 86.0 | 9:1 | 22 | 35 | Wiseco | Falda | 2618 | NC | -6.0 | NC | 8600XX |
| WK615M86AP | 86.0 | 9:1 | 22 | 35 | Wiseco AP | Falda | 2618 | NC | -6.0 | NC | 8600XX |
| K9433DA | 86.0 | 9:1 | 22 | 35 | Wossner | NC | NC | Redonda | -6.5 | NC | 860XPY |
| K9055D025 | 86.25 | 8.6:1 | 22 | 35 | Wossner | NC | NC | Redonda | -11.0 | NC | 862XPY |
| JE-361357 | 86.25 | 9:1 | 22 | 35 | JE FSR | NC | 2618 | FSR | -6.4 | 319.0 | NC |
| JE-367909 | 86.25 | 9:1 | 22 | 35 | JE Ultra Series | Cabeza + Falda | 2618 | FSR | -6.4 | 336.0 | NC |
| WK615M8625 | 86.25 | 9:1 | 22 | 35 | Wiseco | Falda | 2618 | NC | -6.0 | NC | 8625XX |
| WK615M8625AP | 86.25 | 9:1 | 22 | 35 | Wiseco AP | Falda | 2618 | NC | -6.0 | NC | 8625XX |
| K9036D050 | 86.5 | 8.1:1 | 22 | 35 | Wossner | NC | NC | Redonda | -15.5 | NC | GNH86.50 |
| K9055D050 | 86.5 | 8.6:1 | 22 | 35 | Wossner | NC | NC | Redonda | -11.0 | NC | 865XPY |
| JE-298702 | 86.5 | 9:1 | 22 | 35 | JE FSR | NC | 2618 | FSR | -6.7 | 328.0 | NC |
| JE-367910 | 86.5 | 9:1 | 22 | 35 | JE Ultra Series | Cabeza + Falda | 2618 | FSR | -6.7 | 337.0 | NC |
| WK615M865 | 86.5 | 9:1 | 22 | 35 | Wiseco | Falda | 2618 | NC | -6.0 | NC | 8650XX |
| WK615M865AP | 86.5 | 9:1 | 22 | 35 | Wiseco AP | Falda | 2618 | NC | -6.0 | NC | 8650XX |
| K9433D050 | 86.5 | 9.1:1 | 22 | 35 | Wossner | NC | NC | Redonda | -6.5 | NC | 865XPY |
| K9036D100 | 87.0 | 8.2:1 | 22 | 35 | Wossner | NC | NC | Redonda | -15.5 | NC | GNH87.00 |
| K9055D100 | 87.0 | 8.7:1 | 22 | 35 | Wossner | NC | NC | Redonda | -11.0 | NC | 870XPY |
| JE-298703 | 87.0 | 9:1 | 22 | 35 | JE FSR | NC | 2618 | FSR | -7.3 | 336.0 | NC |
| JE-367911 | 87.0 | 9:1 | 22 | 35 | JE Ultra Series | Cabeza + Falda | 2618 | FSR | -7.3 | 340.0 | NC |
| WK615M87 | 87.0 | 9:1 | 22 | 35 | Wiseco | Falda | 2618 | NC | -6.0 | NC | 8700XX |
| WK615M87AP | 87.0 | 9:1 | 22 | 35 | Wiseco AP | Falda | 2618 | NC | -6.0 | NC | 8700XX |
| K9433D100 | 87.0 | 9.2:1 | 22 | 35 | Wossner | NC | NC | Redonda | -6.5 | NC | 870XPY |
Compatibilidades (códigos de motor) :
Vehículos de origen equipados con el 3S‑GTE :
| Marca | Modelo | Código de motor | Potencia | Años |
|---|---|---|---|---|
| Toyota | Caldina GT‑Four ST246W | 3S-GTE | 260 CV | 2002 – 2007 |
| Toyota | Caldina GT‑T ST215W | 3S-GTE | 260 CV | 1997 – 2001 |
| Toyota | Celica GT‑Four ST165 | 3S-GTE | 185 CV | 1986 – 1989 |
| Toyota | Celica GT‑Four ST185 | 3S-GTE | 225 CV | 1989 – 1993 |
| Toyota | Celica GT‑Four ST205 | 3S-GTE | 242–255 CV | 1994 – 1999 |
| Toyota | MR2 (SW20) Turbo | 3S-GTE | 200–245 CV | 1990 – 1999 |
Referencias de pistones OEM :
Las referencias pueden variar según mercado (JP/EU/US), grado (Mark 1/2/3) y sobremedida (STD, +0,50). Verificación por VIN en el EPC recomendada.
Atención: Antes de cualquier montaje, compruebe obligatoriamente la integridad y conformidad de cada componente del kit de pistones, así como la conformidad del ensamblaje en el motor; cualquier garantía eventual se limita estrictamente a las piezas del kit de pistones.
