2.3L 8v - OHC Lima
Marcas
2.3L 8v - OHC Lima
Advertencia: ¡Últimos artículos en inventario!
Nuevo producto

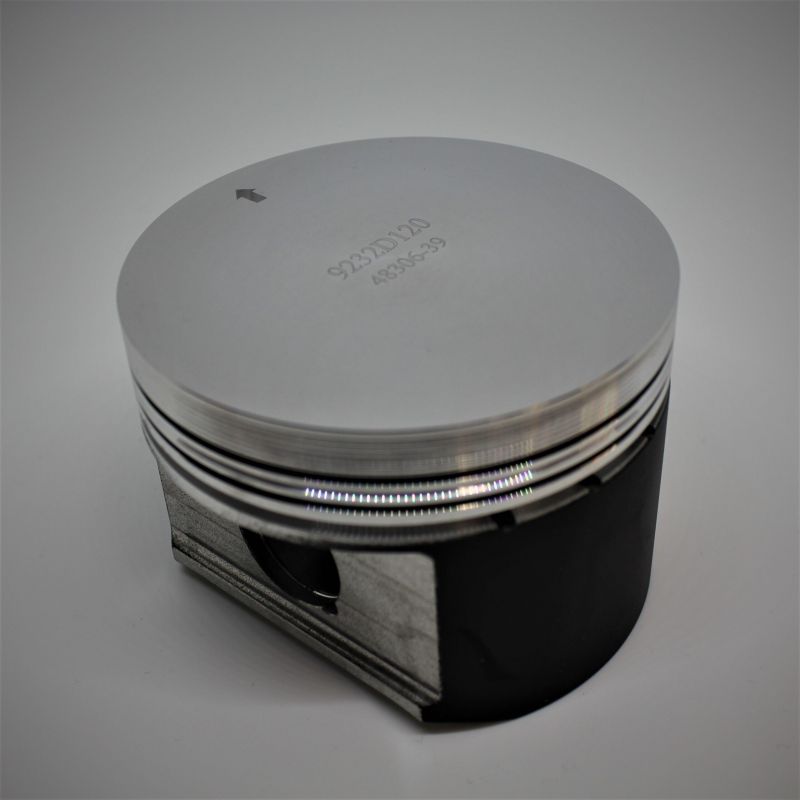

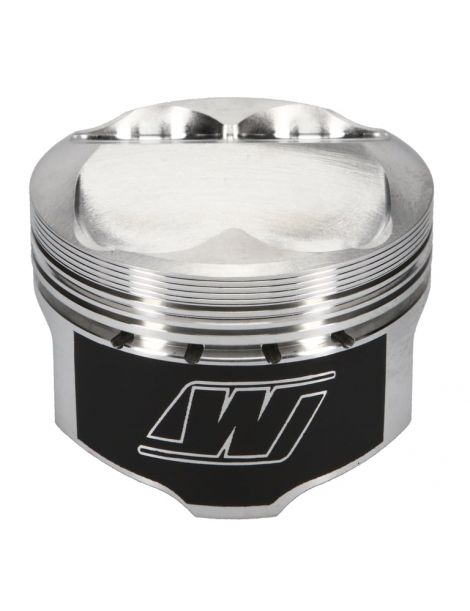

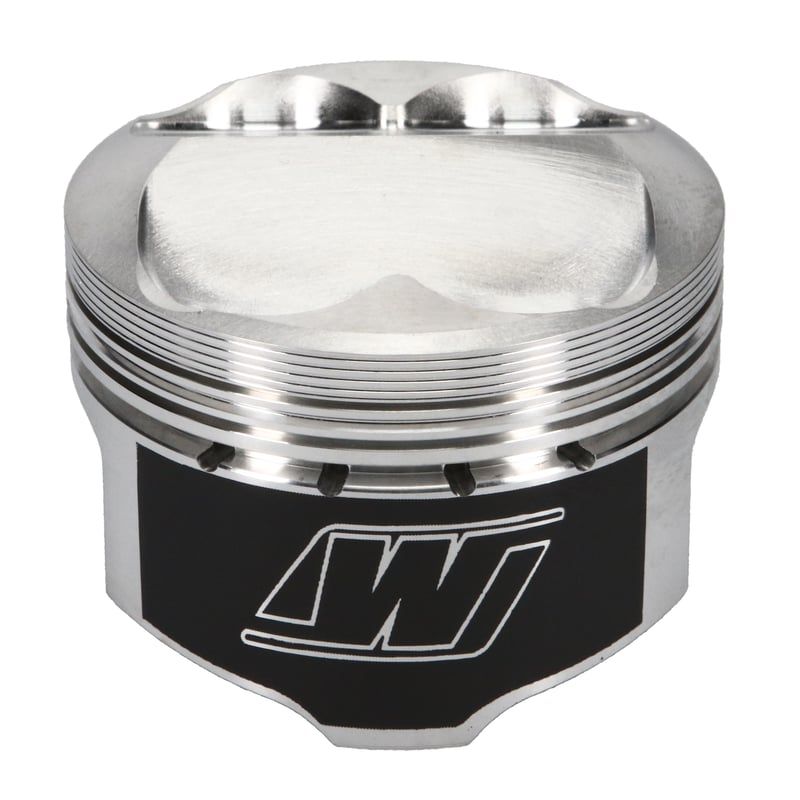

Ford 2.3 OHC Lima ?pistones forjados orificios 90,9-94 mm, RV 9,2-12,5:1, eje 24 mm. Gamas Wiseco y Wossner. Aplicaciones: Mustang (Fox), Thunderbird turbo Coupe, Ranger (NA).
Caracteristicas de los pistones forjados que ofrece NSB Concept para Ford 2.3 L 8 v OHC "Lima":
| piston de referencia | Diametro interior (mm) | realidad virtual | Eje (mm) | Altura del eje (mm) | Rango | Aluminio | Tratamiento | Forja | Cupula (cc) | Peso (gramos) | segmentoooos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9232D010 | 90,9 | 12:1 | 24 | 41,65 | Wossner | N/A | N/A | Rounda | 0 | N/A | 910XSY |
| K9392D010 | 90,9 | 12:1 | 24 | 34.15 | Wossner | N/A | N/A | Rounda | 0 | N/A | 910XSY |
| WKE221M9094 | 90,94 | 9.2:1 | 24 | 41,6 | Wiseco | 4032 | Falda del piston | N/A | 0 | N/A | 9100XX |
| K9232D020 | 91 | 12:1 | 24 | 41,65 | Wossner | N/A | N/A | Rounda | 0 | N/A | 910XSY |
| K9392D020 | 91 | 12:1 | 24 | 34.15 | Wossner | N/A | N/A | Rounda | 0 | N/A | 910XSY |
| K9232D045 | 91,25 | 12.1:1 | 24 | 41,65 | Wossner | N/A | N/A | Rounda | 0 | N/A | 912XSY |
| K9392D045 | 91,25 | 12.1:1 | 24 | 34.15 | Wossner | N/A | N/A | Rounda | 0 | N/A | 912XSY |
| WKE221M915 | 91,5 | 9.2:1 | 24 | 41,6 | Wiseco | 4032 | Falda del piston | N/A | 0 | N/A | 9150XX |
| K9232D070 | 91,5 | 12.2:1 | 24 | 41,65 | Wossner | N/A | N/A | Rounda | 0 | N/A | 915XSY |
| K9392D070 | 91,5 | 12.2:1 | 24 | 34.15 | Wossner | N/A | N/A | Rounda | 0 | N/A | 915XSY |
| WKE221M92 | 92 | 9.2:1 | 24 | 41,6 | Wiseco | 4032 | Falda del piston | N/A | 0 | N/A | 9200XX |
| K9232D120 | 92 | 12.3:1 | 24 | 41,65 | Wossner | N/A | N/A | Rounda | 0 | N/A | 920XSY |
| K9392D120 | 92 | 12.3:1 | 24 | 34.15 | Wossner | N/A | N/A | Rounda | 0 | N/A | 920XSY |
| WKE221M9225 | 92,25 | 9.2:1 | 24 | 41,6 | Wiseco | N/A | Falda del piston | N/A | 0 | N/A | 9225XX |
| K9232D170 | 92,5 | 12.4:1 | 24 | 41,65 | Wossner | N/A | N/A | Rounda | 0 | N/A | 925XSY |
| K9392D170 | 92,5 | 12.4:1 | 24 | 34.15 | Wossner | N/A | N/A | Rounda | 0 | N/A | 925XSY |
| WKE221M9275 | 92,75 | 9.2:1 | 24 | 41,6 | Wiseco | N/A | Falda del piston | N/A | 0 | N/A | 9275XX |
| WKE221M93 | 93 | 9.2:1 | 24 | 41,6 | Wiseco | 4032 | Falda del piston | N/A | 0 | N/A | 9300XX |
| K9232D220 | 93 | 12.5:1 | 24 | 41,65 | Wossner | N/A | N/A | Rounda | 0 | N/A | 930XSY |
| K9392D220 | 93 | 12.5:1 | 24 | 34.15 | Wossner | N/A | N/A | Rounda | 0 | N/A | 930XSY |
| WKE221M935 | 93,5 | 9.2:1 | 24 | 41,6 | Wiseco | 4032 | Falda del piston | N/A | 0 | N/A | 9350XX |
| WKE221M94 | 94 | 9.2:1 | 24 | 41,6 | Wiseco | 4032 | Falda del piston | N/A | 0 | N/A | 9400XX |
Compatibilidad del motor:
Familia
Ford 2.3 OHC "Lima"
(2301 cm3, 8 valvulas).
| Marca | Modelo | Chasis | Codigo de motor | Potencia (CV) | Anos |
|---|---|---|---|---|---|
| Vado | Mustang (zorro) | Zorro (SN-79) | 2.3 OHC Lima | 88-106 | 1979-1993 |
| Vado | Guardabosques (NA) | Guardabosques (America) | 2.3 OHC Lima | 79-112 | 1983-1997 |
| Vado | Thunderbird turbo Coupe | Fox (predecesores de MN12) | 2.3 turbo Lima | 145-190 | 1983-1988 |
Referencia del fabricante del piston (OEM):
Mustang (zorro) 2.3 OHC
: piston Ford
D4FZ?6108-AB
(Aplicaciones de 2,3 L, modelo 1984).
Guardabosques 2.3 OHC
: pistones Ford
E9TZ?6108-AB
(finales de los 80/principios de los 90),
F57Z?6108-A/?AA/?BA/?CA
Thunderbird 2.3 turbo
: pistones Ford
E9TZ?6108-AB/?BB
Atencion :
antes de cualquier montaje, comprobar la integridad y la conformidad de cada componente del kit de pistones, asi como la conformidad del conjunto en el motor; cualquier garantia posible esta estrictamente limitada unilevante a las piezas del kit de piston.
