2.3L 8v - OHC Lima
Manufacturers
2.3L 8v - OHC Lima
Warning: Last items in stock!
New product

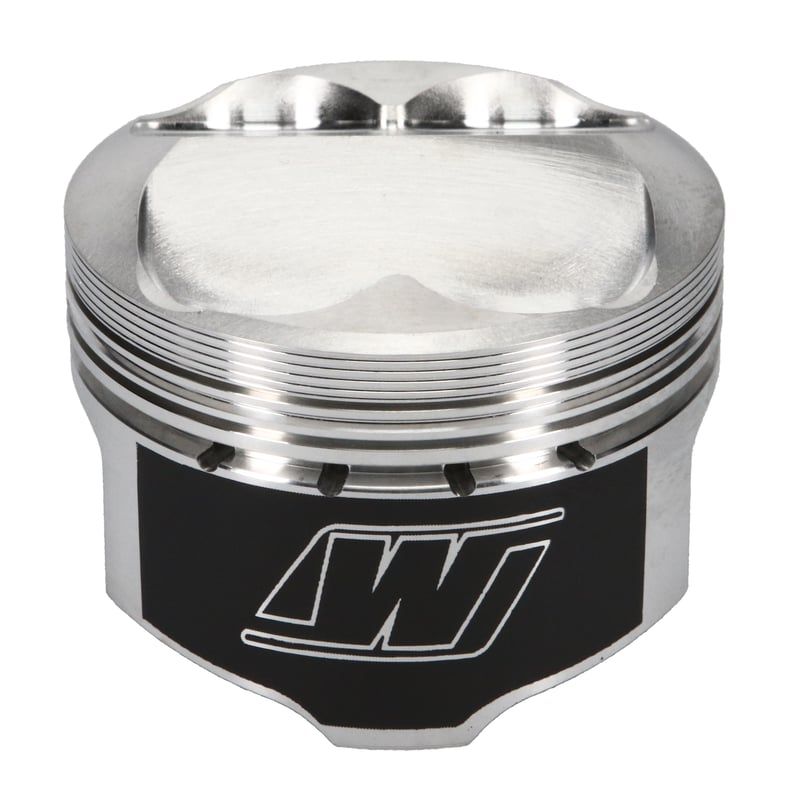

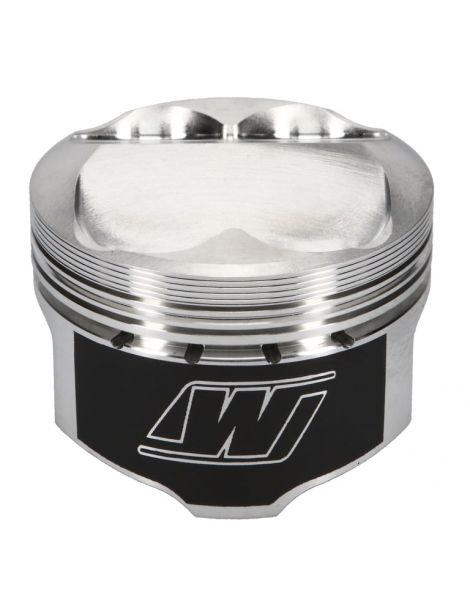

Ford 2.3 OHC Lima forged pistons bores 90.9-94 mm, RV 9.2-12.5:1, axle 24 mm. Wiseco and Wossner ranges. Applications: Mustang (Fox), Thunderbird Turbo Coupe, Ranger (NA).
Characteristics of the forged pistons offered by NSB Concept for Ford 2.3 L 8 v OHC "Lima":
| Reference Piston | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9232D010 | 90.9 | 12:1 | 24 | 41.65 | Wossner | N/A | N/A | Round | 0 | N/A | 910XSY |
| K9392D010 | 90.9 | 12:1 | 24 | 34.15 | Wossner | N/A | N/A | Round | 0 | N/A | 910XSY |
| WKE221M9094 | 90.94 | 9.2:1 | 24 | 41.6 | Wiseco | 4032 | Skirt | N/A | 0 | N/A | 9100XX |
| K9232D020 | 91 | 12:1 | 24 | 41.65 | Wossner | N/A | N/A | Round | 0 | N/A | 910XSY |
| K9392D020 | 91 | 12:1 | 24 | 34.15 | Wossner | N/A | N/A | Round | 0 | N/A | 910XSY |
| K9232D045 | 91.25 | 12.1:1 | 24 | 41.65 | Wossner | N/A | N/A | Round | 0 | N/A | 912XSY |
| K9392D045 | 91.25 | 12.1:1 | 24 | 34.15 | Wossner | N/A | N/A | Round | 0 | N/A | 912XSY |
| WKE221M915 | 91.5 | 9.2:1 | 24 | 41.6 | Wiseco | 4032 | Skirt | N/A | 0 | N/A | 9150XX |
| K9232D070 | 91.5 | 12.2:1 | 24 | 41.65 | Wossner | N/A | N/A | Round | 0 | N/A | 915XSY |
| K9392D070 | 91.5 | 12.2:1 | 24 | 34.15 | Wossner | N/A | N/A | Round | 0 | N/A | 915XSY |
| WKE221M92 | 92 | 9.2:1 | 24 | 41.6 | Wiseco | 4032 | Skirt | N/A | 0 | N/A | 9200XX |

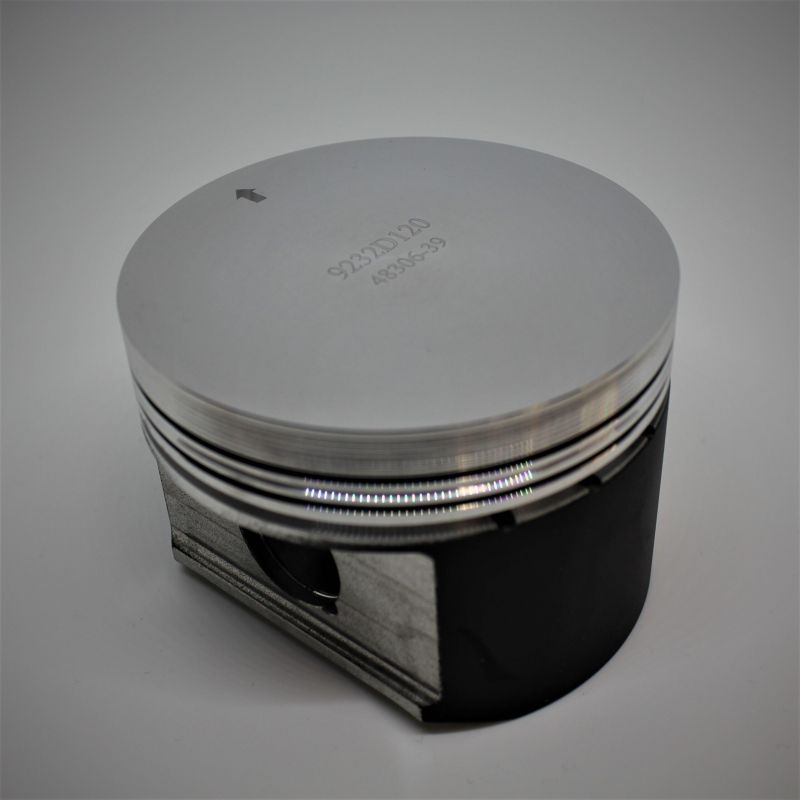

| K9232D120 | 92 | 12.3:1 | 24 | 41.65 | Wossner | N/A | N/A | Round | 0 | N/A | 920XSY |
| K9392D120 | 92 | 12.3:1 | 24 | 34.15 | Wossner | N/A | N/A | Round | 0 | N/A | 920XSY |
| WKE221M9225 | 92.25 | 9.2:1 | 24 | 41.6 | Wiseco | N/A | Skirt | N/A | 0 | N/A | 9225XX |
| K9232D170 | 92.5 | 12.4:1 | 24 | 41.65 | Wossner | N/A | N/A | Round | 0 | N/A | 925XSY |
| K9392D170 | 92.5 | 12.4:1 | 24 | 34.15 | Wossner | N/A | N/A | Round | 0 | N/A | 925XSY |
| WKE221M9275 | 92.75 | 9.2:1 | 24 | 41.6 | Wiseco | N/A | Skirt | N/A | 0 | N/A | 9275XX |
| WKE221M93 | 93 | 9.2:1 | 24 | 41.6 | Wiseco | 4032 | Skirt | N/A | 0 | N/A | 9300XX |
| K9232D220 | 93 | 12.5:1 | 24 | 41.65 | Wossner | N/A | N/A | Round | 0 | N/A | 930XSY |
| K9392D220 | 93 | 12.5:1 | 24 | 34.15 | Wossner | N/A | N/A | Round | 0 | N/A | 930XSY |
| WKE221M935 | 93.5 | 9.2:1 | 24 | 41.6 | Wiseco | 4032 | Skirt | N/A | 0 | N/A | 9350XX |
| WKE221M94 | 94 | 9.2:1 | 24 | 41.6 | Wiseco | 4032 | Skirt | N/A | 0 | N/A | 9400XX |
Engine compatibility:
Family
Ford 2.3 OHC "Lima"
(2301 cm3, 8 valves).
| Brand | Model | Chassis | Engine Code | Power (hp) | Years |
|---|---|---|---|---|---|
| Ford | Mustang (Fox) | Fox (SN-79) | 2.3 OHC Lima | 88-106 | 1979-1993 |
| Ford | Ranger (NA) | Ranger (Americas) | 2.3 OHC Lima | 79-112 | 1983-1997 |
| Ford | Thunderbird Turbo Coupe | Fox (MN12 predecessors) | 2.3 Turbo Lima | 145-190 | 1983-1988 |
Piston Manufacturer Reference (OEM):
Mustang (Fox) 2.3 OHC
: Piston Ford
D4FZ?6108-AB
(2.3L applications, 1984 MY).
Ranger 2.3 OHC
: Ford pistons
E9TZ?6108-AB
(late 80s/early 90s),
F57Z?6108-A/?AA/?BA/?CA
Thunderbird 2.3 Turbo
: Ford pistons
E9TZ?6108-AB/?BB
Attention :
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
