2.4L 16v - 4G64
Marcas
2.4L 16v - 4G64
Advertencia: ¡Últimos artículos en inventario!
Nuevo producto
Tabla de las pistones forjados para Mitsubishi 2.4L 16v 4G64 : diámetros, RV, bulón, traitements, cúpula, peso y segmentos. Compatibilidades motores, vehículos de origen y referencias OEM.

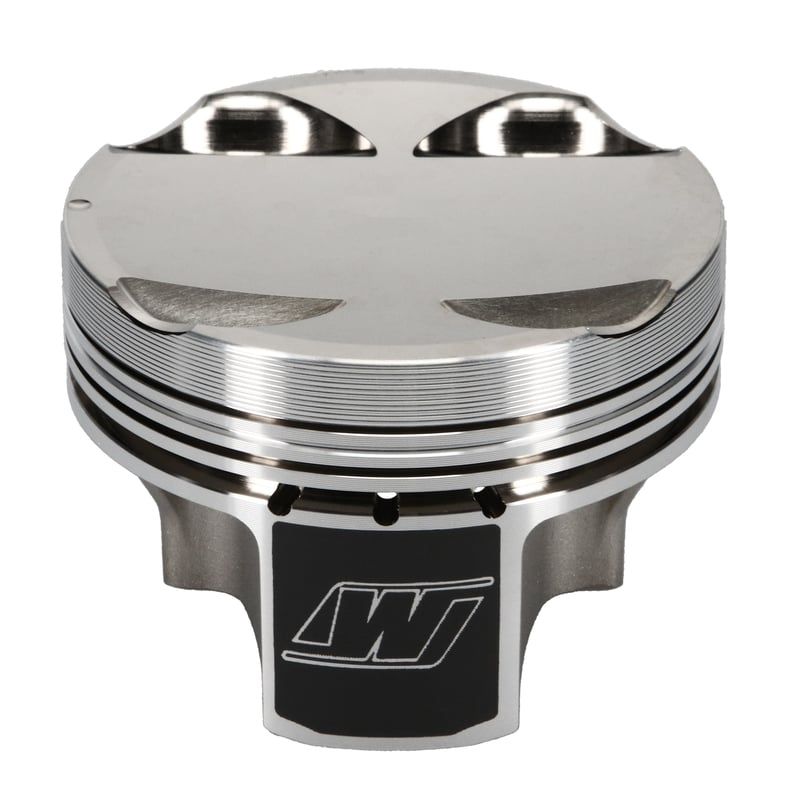

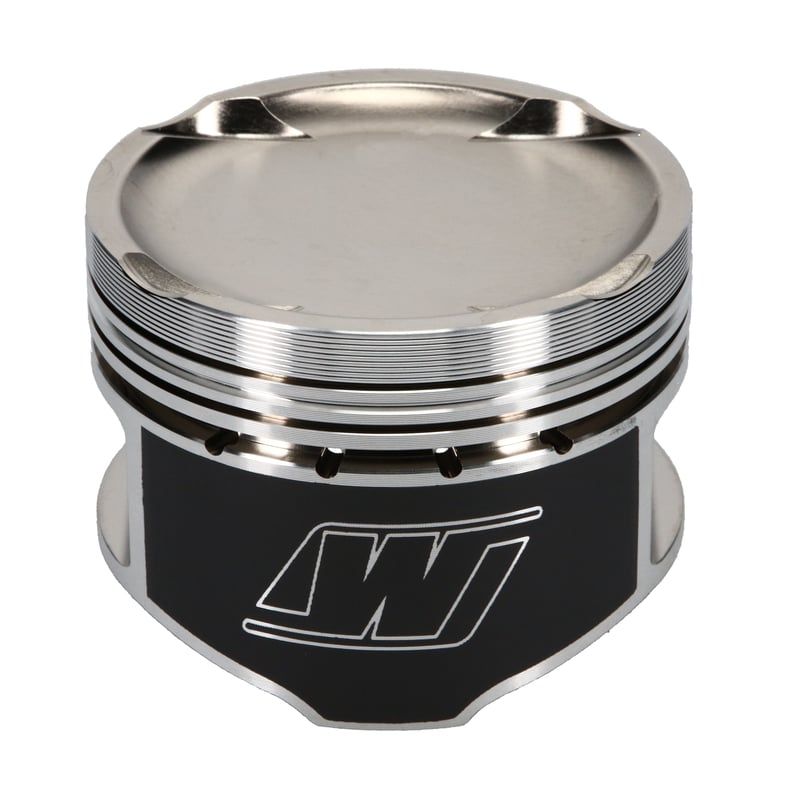

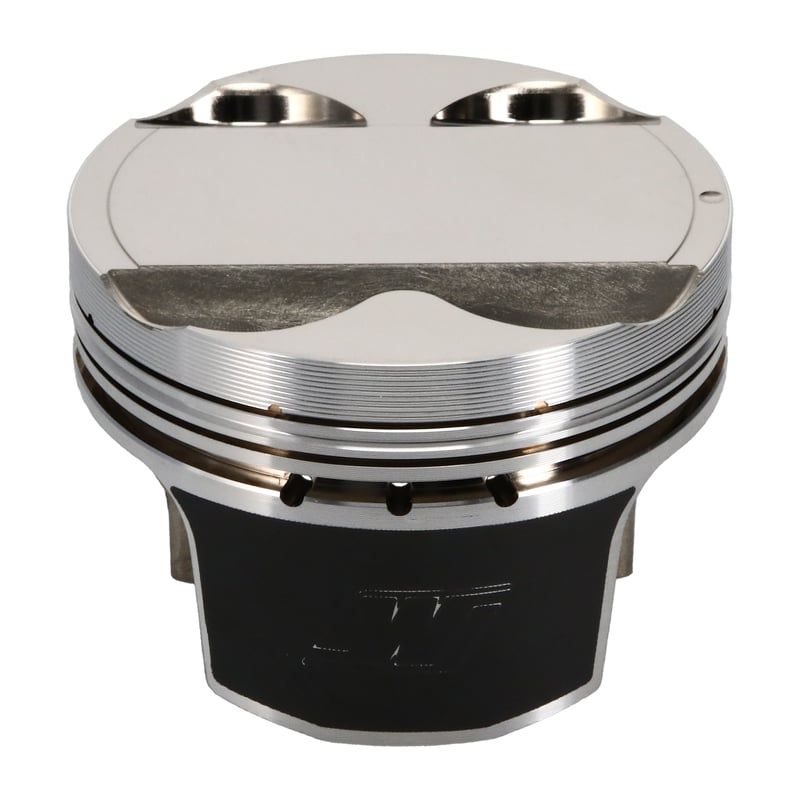

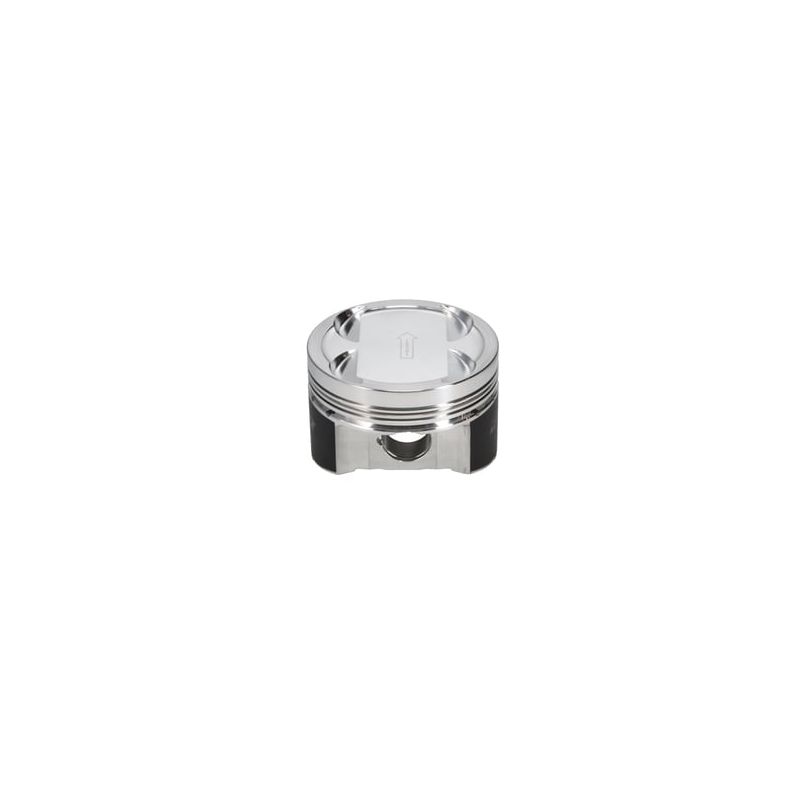

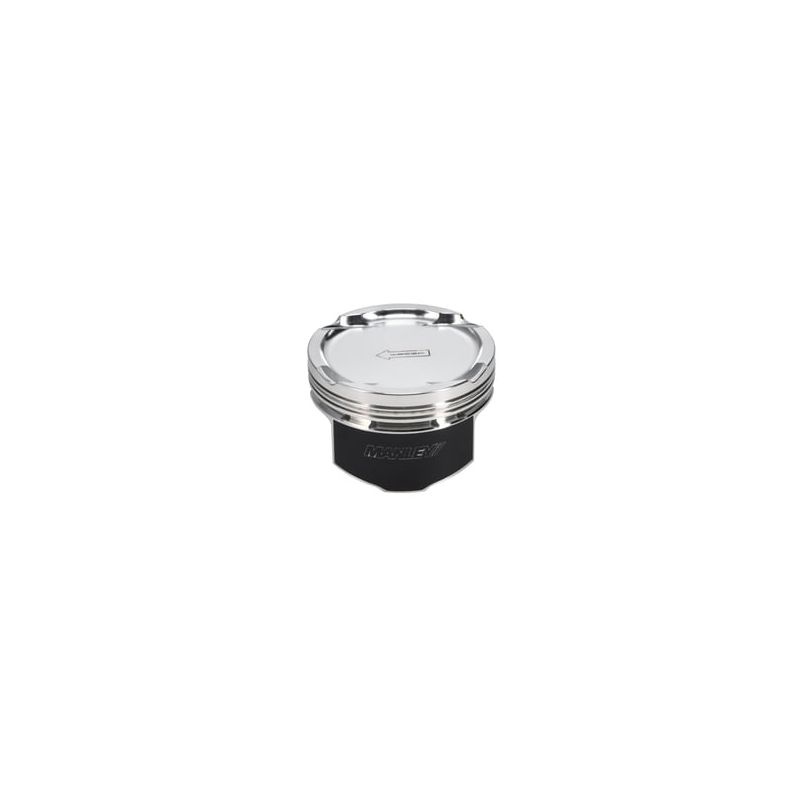

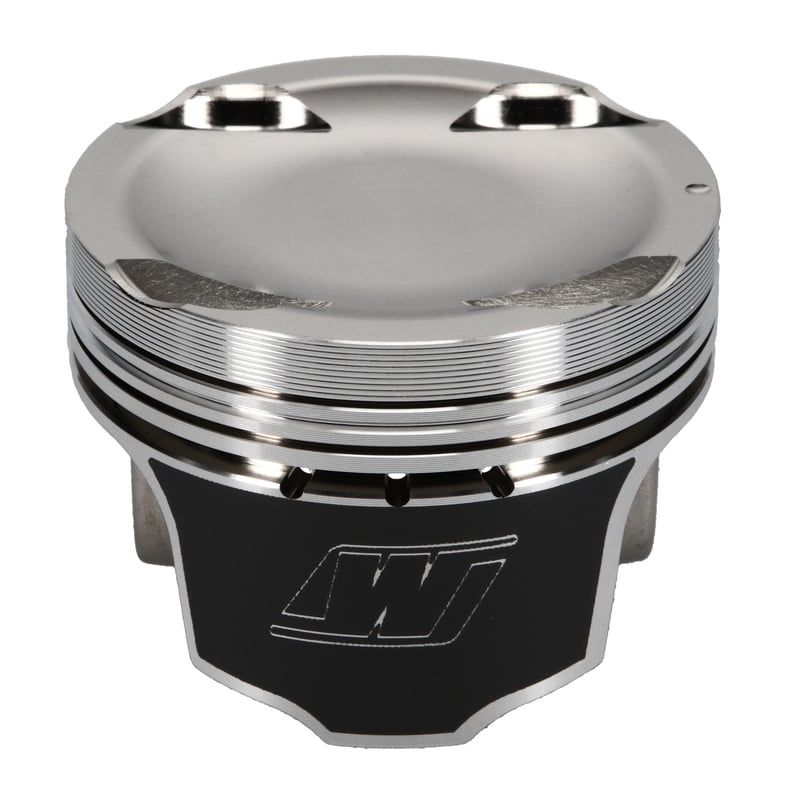

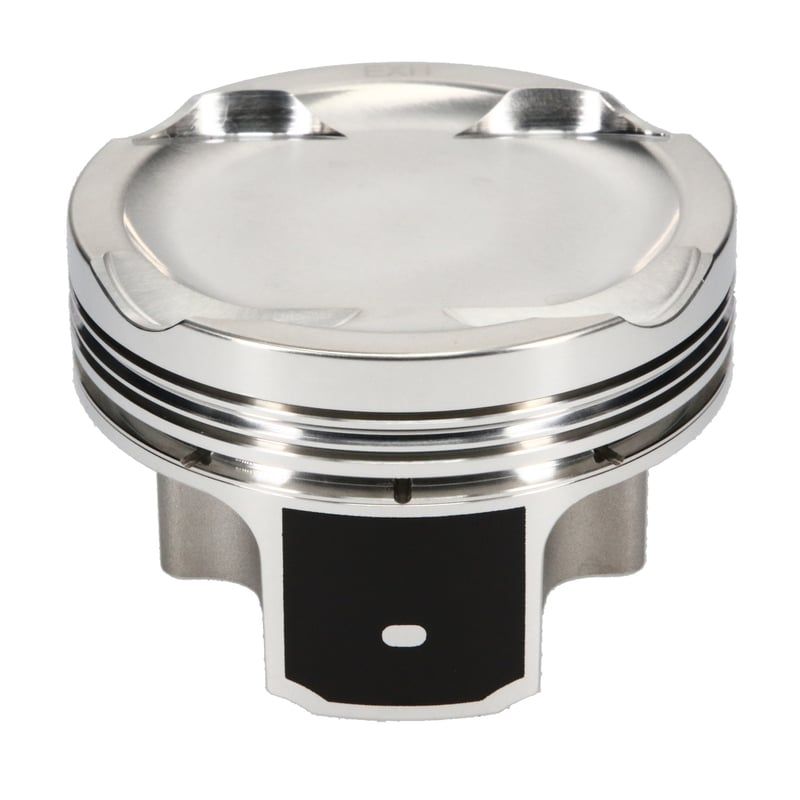

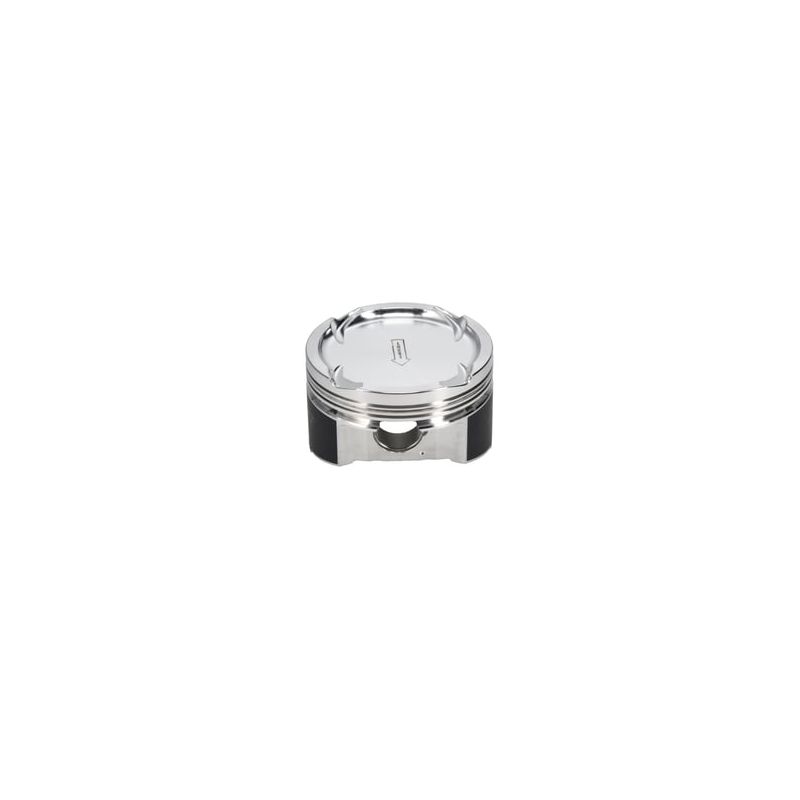

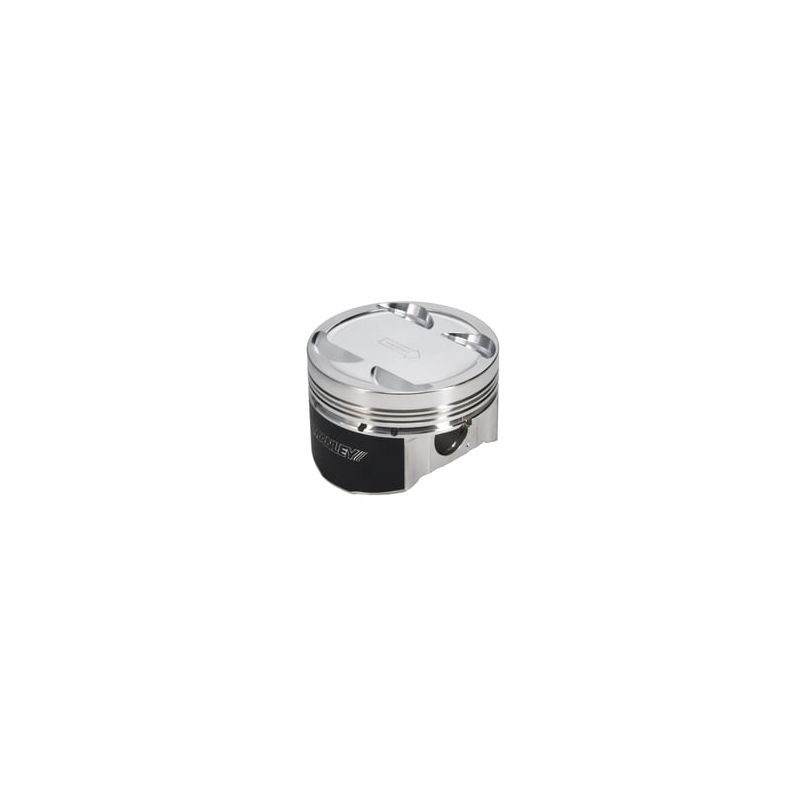

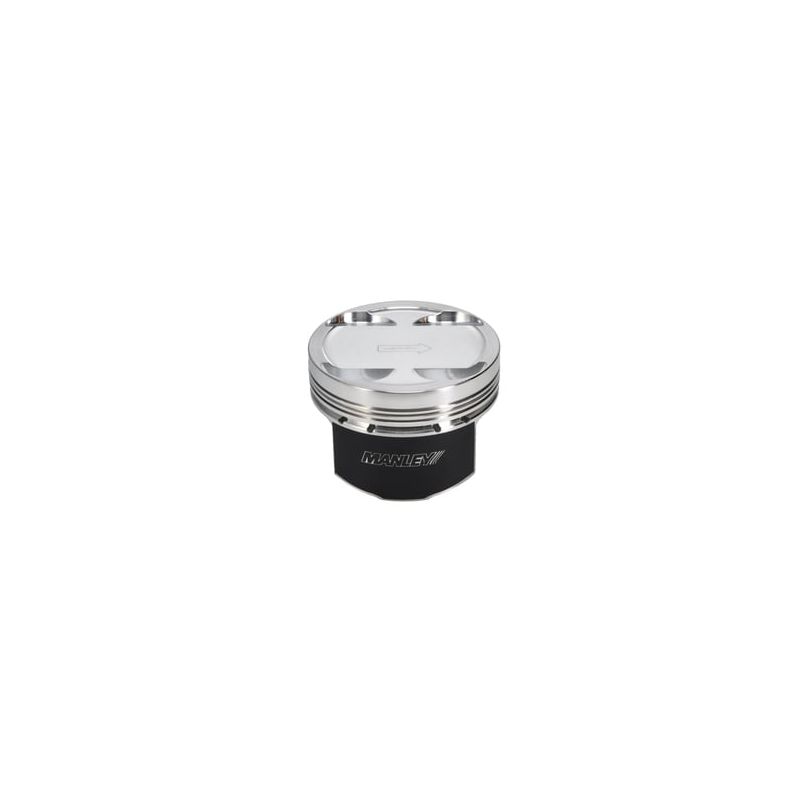

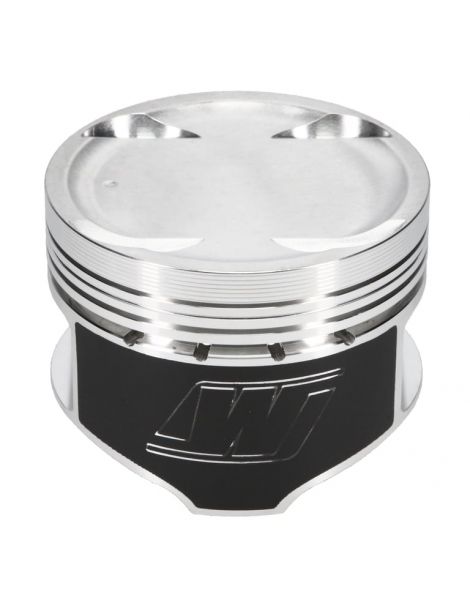

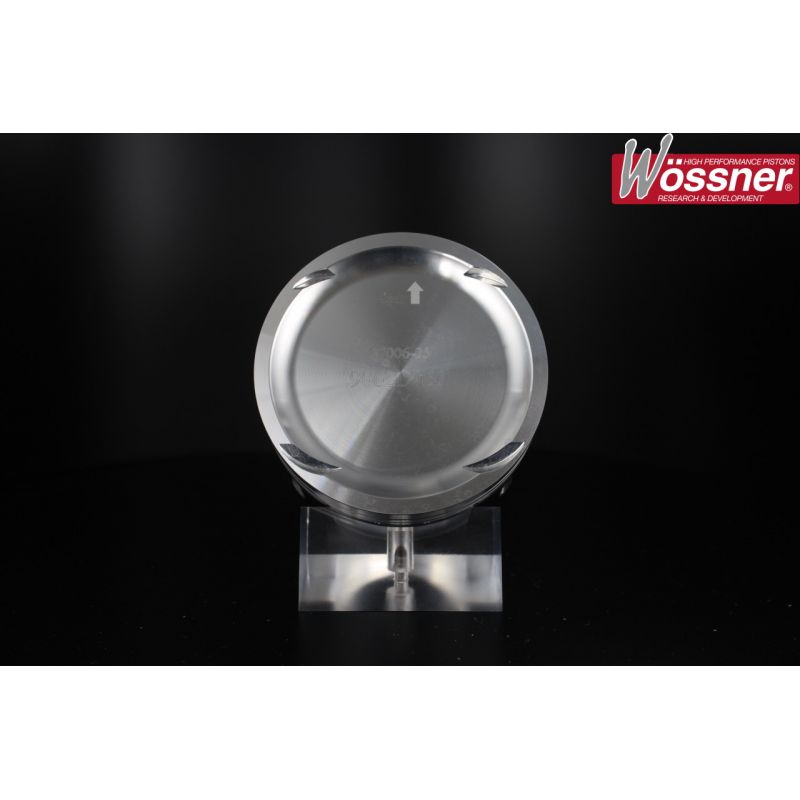

Características de los pistones forjados propuestos por NSB Concept para Mitsubishi 2.4 L 16 V 4G64 :
| Referencia | Diámetro OEM 86,50 mm | RC OEM 9,0 – 11,5 :1 | Bulón OEM 22 mm | Altura de compresión OEM 35,0 mm | Gama | Tratamiento | Aluminio | Forja | Cúpula | Peso | Segmentos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9062D150 | 86.50 | 8:1 | 22 | 34.70 | Wossner | NC | NC | Redonda | -14.6 | NC | GNH86.50 |
| K9062DA | 86.50 | 9:1 | 22 | 34.70 | Wossner | NC | NC | Redonda | -10.5 | NC | GNH86.50 |
| K9062DB | 86.50 | 9:1 | 22 | 34.70 | Wossner | NC | NC | Redonda | -10.5 | NC | GNH86.50 |
| K564M865AP | 86.50 | 9.5:1 | 22 | 34.93 | Wiseco AP | Falda | 2618.0 | NC | -8.5 | NC | 8650WX |
| K564M865AP-2 | 86.50 | 9.5:1 | 22 | 34.93 | Wiseco AP | Falda | 2618.0 | NC | -8.5 | NC | 8650WX |
| 606115C-4 | 86.50 | 9.5:1 | NC | 34.93 | Manley | Falda | 4032.0 | NC | -8 | 365 | NC |
| 606115CE-4 | 86.50 | 9.5:1 | NC | 34.93 | Manley | Falda | 4032.0 | NC | -8 | 365 | NC |
| 613000C-4 | 86.50 | 10:1 | NC | 35.00 | Manley | Falda | 4032.0 | NC | -6 | 338 | NC |
| 613000CE-4 | 86.50 | 10:1 | NC | 35.00 | Manley | Falda | 4032.0 | NC | -6 | 338 | NC |
| 606015C-4 | 86.75 | 9.5:1 | NC | 34.93 | Manley | Falda | 4032.0 | NC | -8 | 349 | NC |
| 606015CE-4 | 86.75 | 9.5:1 | NC | 34.93 | Manley | Falda | 4032.0 | NC | -8 | 349 | NC |
| 613005C-4 | 87.00 | 10:1 | NC | 35.00 | Manley | Falda | 4032.0 | NC | -6 | 346 | NC |
| 613005CE-4 | 87.00 | 10:1 | NC | 35.00 | Manley | Falda | 4032.0 | NC | -6 | 346 | NC |
Compatibilidades (códigos de motor) :
Vehículos de origen equipados con el motor 2.4 L 16 V 4G64 :
| Marca | Modelo | Código de motor | Potencia | Años |
|---|---|---|---|---|
| Mitsubishi | Airtrek (CU) | 4G64 | 139 CV | 2001 – 2005 |
| Mitsubishi | Eclipse 3G (D52A/D53A) RS/GS/GS Spyder | 4G64 | 154 CV | 2000 – 2005 |
| Mitsubishi | Galant VIII (EA/EC) 2.4 GDI | 4G64 | 144 CV | 1997 – 2003 |
| Mitsubishi | Outlander I (CU) | 4G64 | 136 CV | 2003 – 2006 |
| Mitsubishi | Pajero Sport I / Montero Sport (K80/K90) | 4G64 | 132 CV | 1997 – 1999 |
| Mitsubishi | Space Runner (N6_W) 2.4 GDI | 4G64 | 150 CV | 1999 – 2003 |
| Mitsubishi | Space Wagon (N50) 2.4 GDI | 4G64 | 147 CV | 1998 – 2003 |
Referencias de pistones OEM identificadas para las aplicaciones anteriores :
MD303070, MD303071, MD303072, MD188115, MD194657, MD194658
