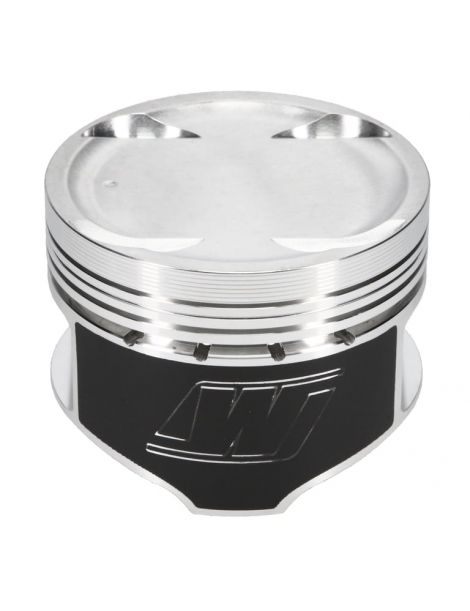

Forged piston table for Mitsubishi 2.4L 16v 4G64: bores, RV, pin, treatments, dome, weights and rings. Engine compatibility, original vehicles and OEM references.

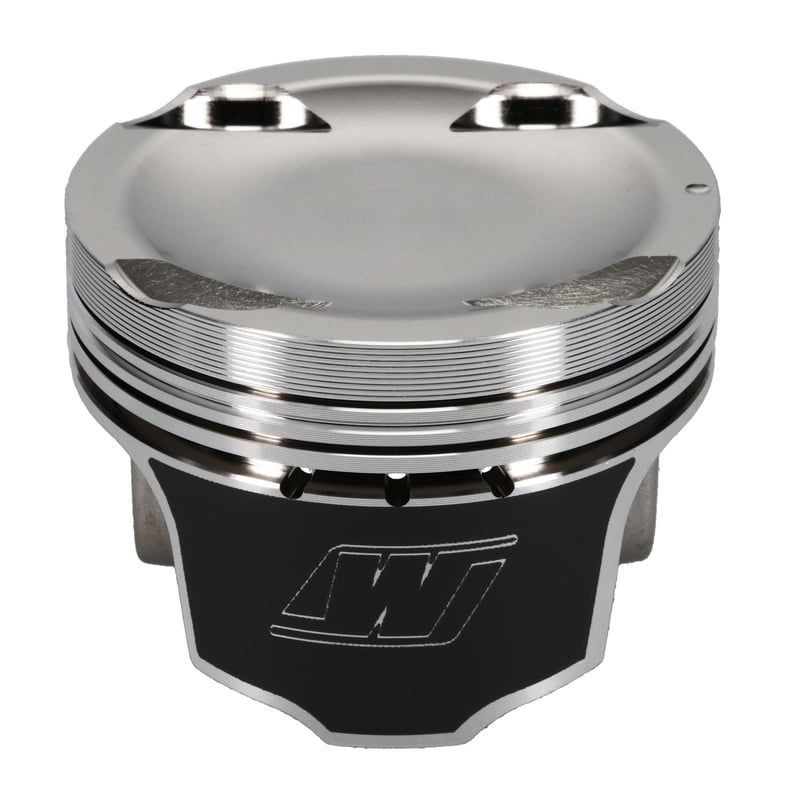

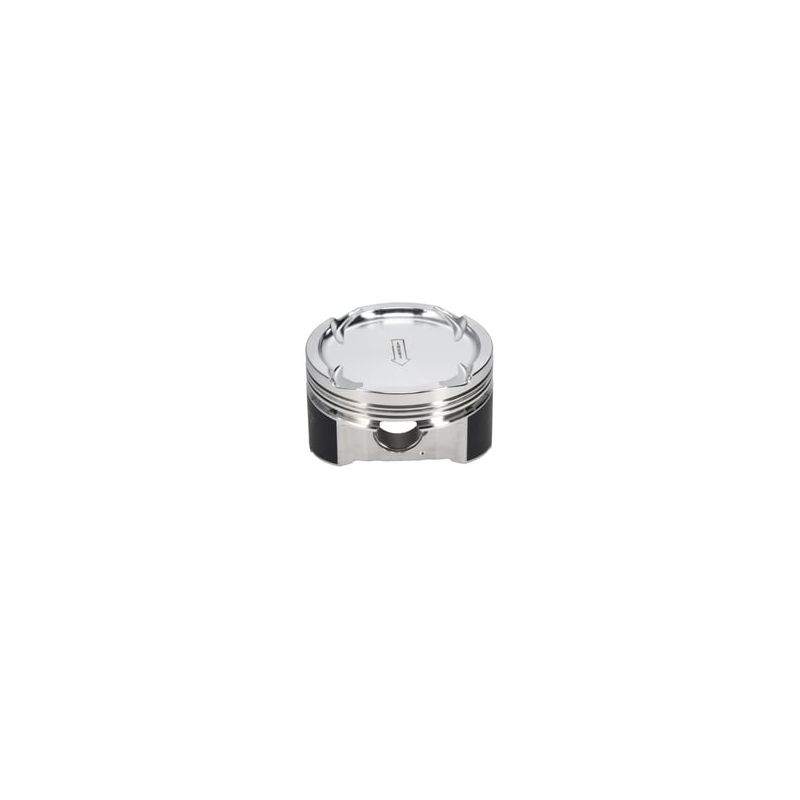

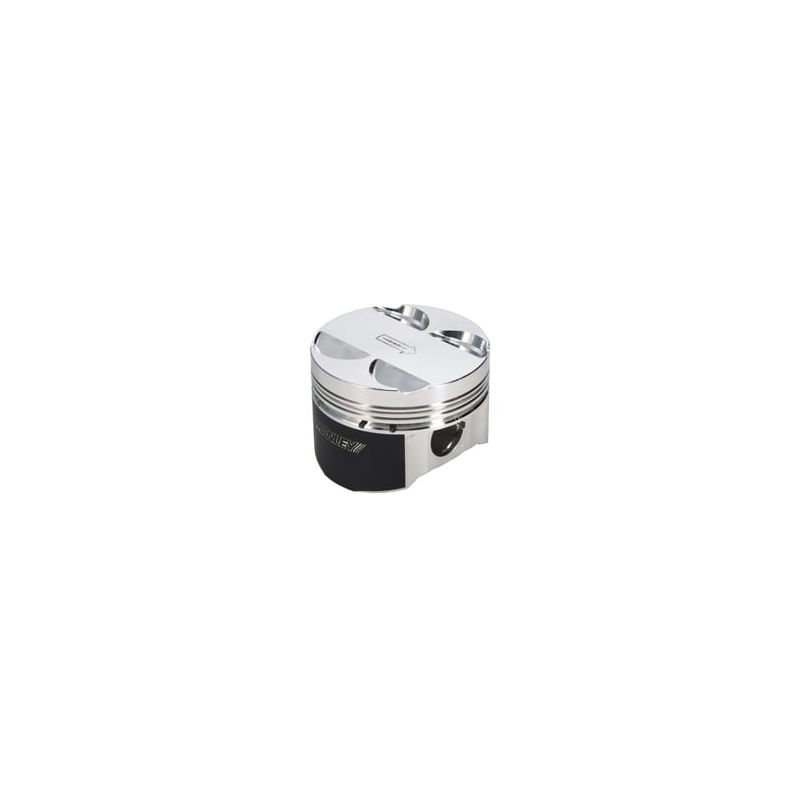

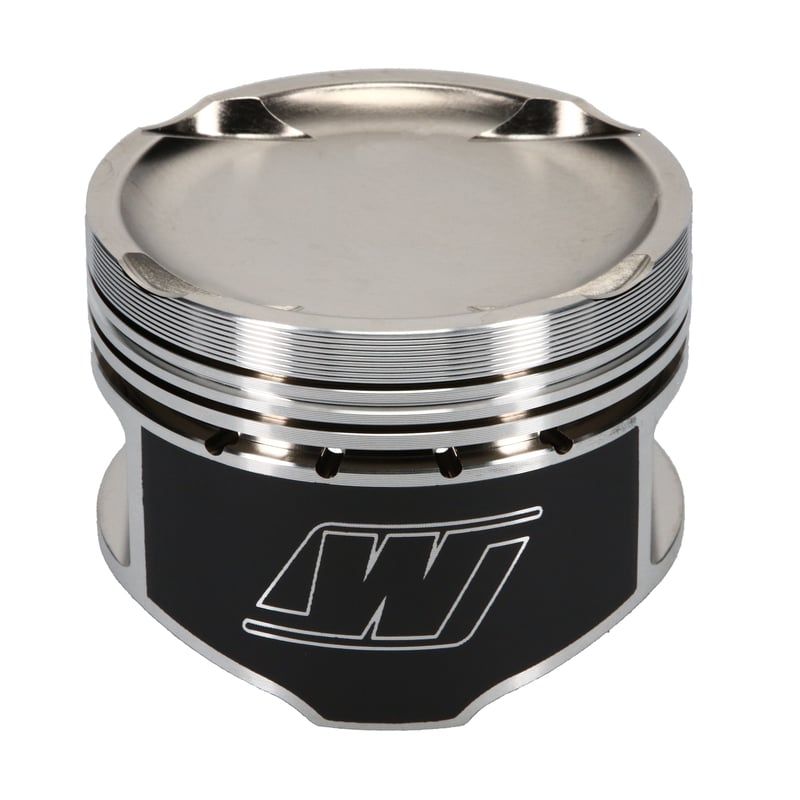

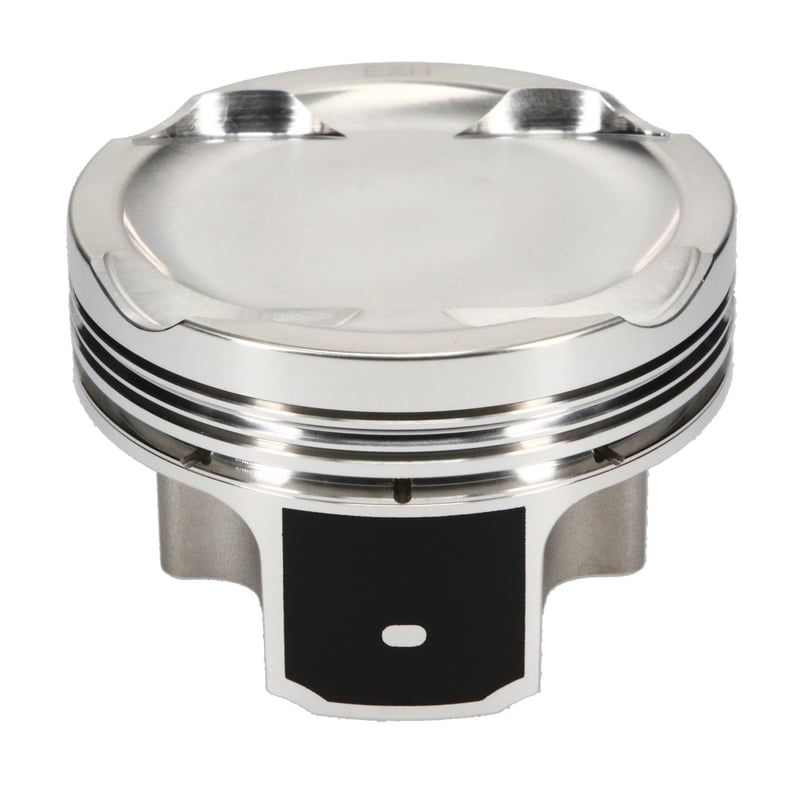

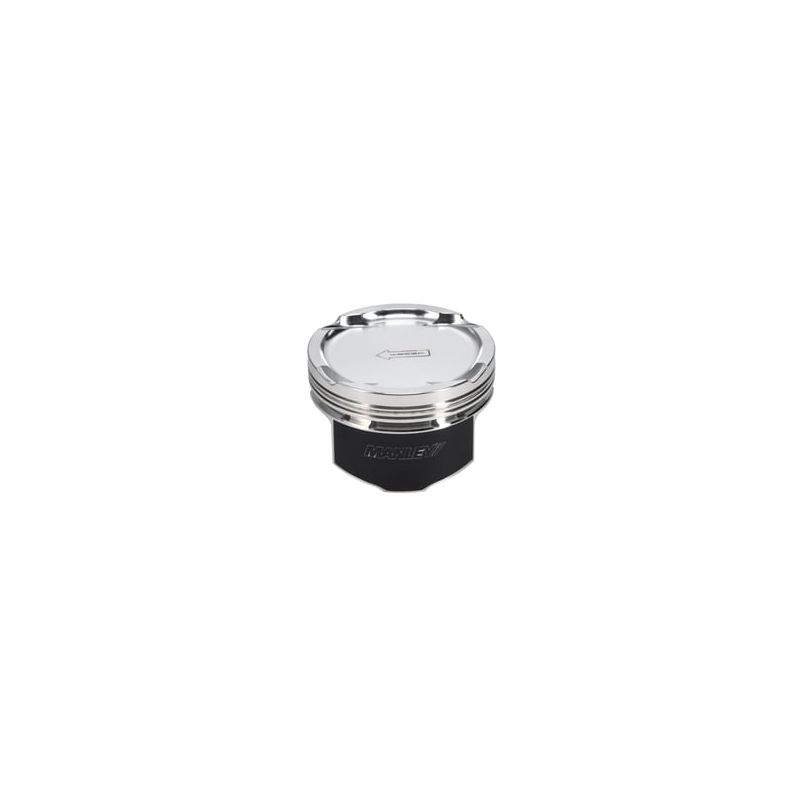

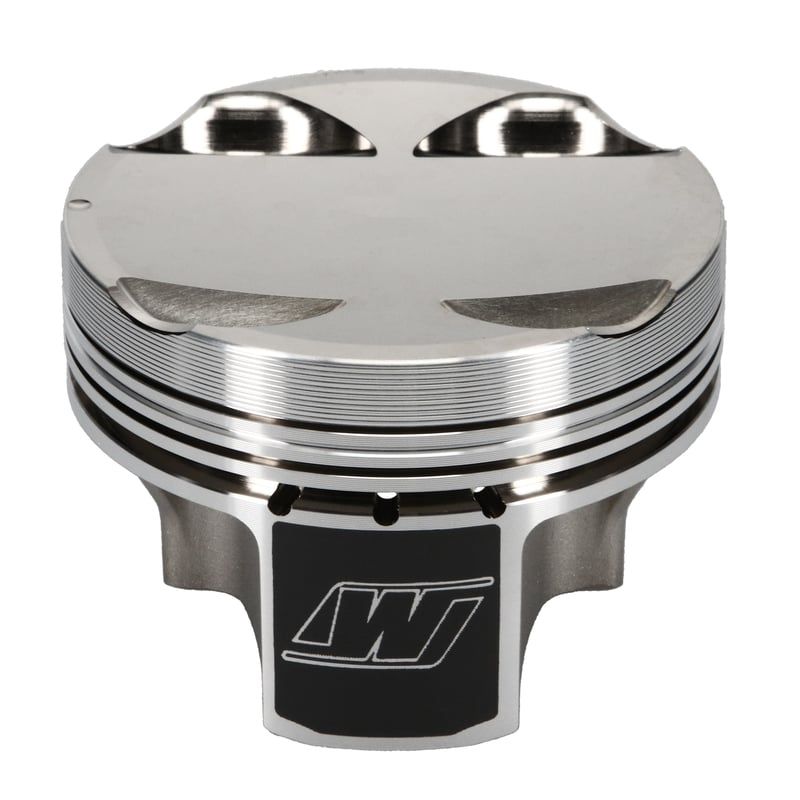

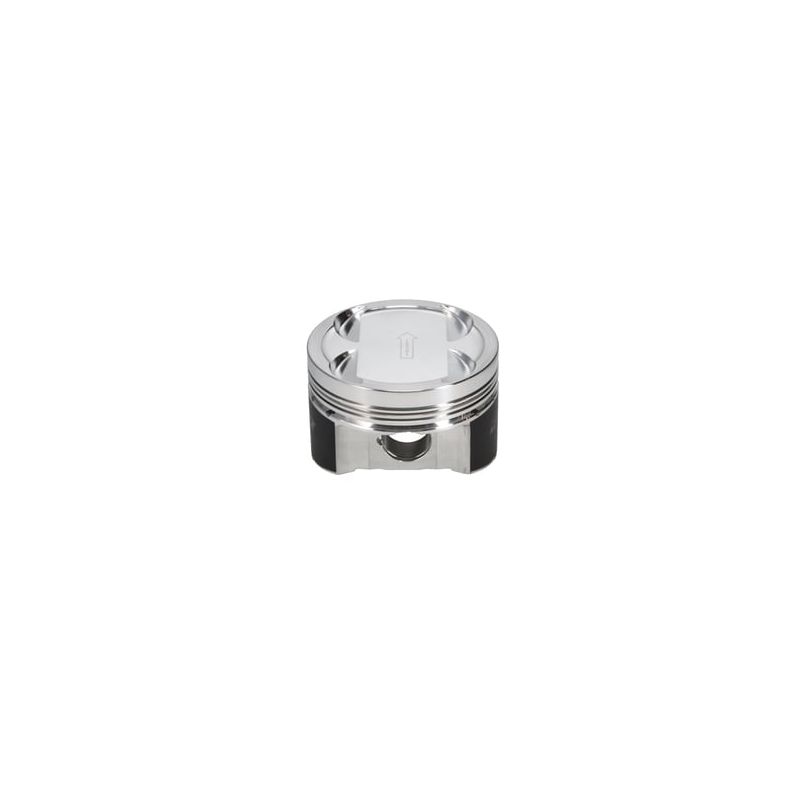

Characteristics of the forged pistons offered by NSB Concept for Mitsubishi 2.4 L 16 V 4G64:
| Reference(Click) | Bore | VR | Axis | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | rings |
|---|---|---|---|---|---|---|---|---|---|---|---|

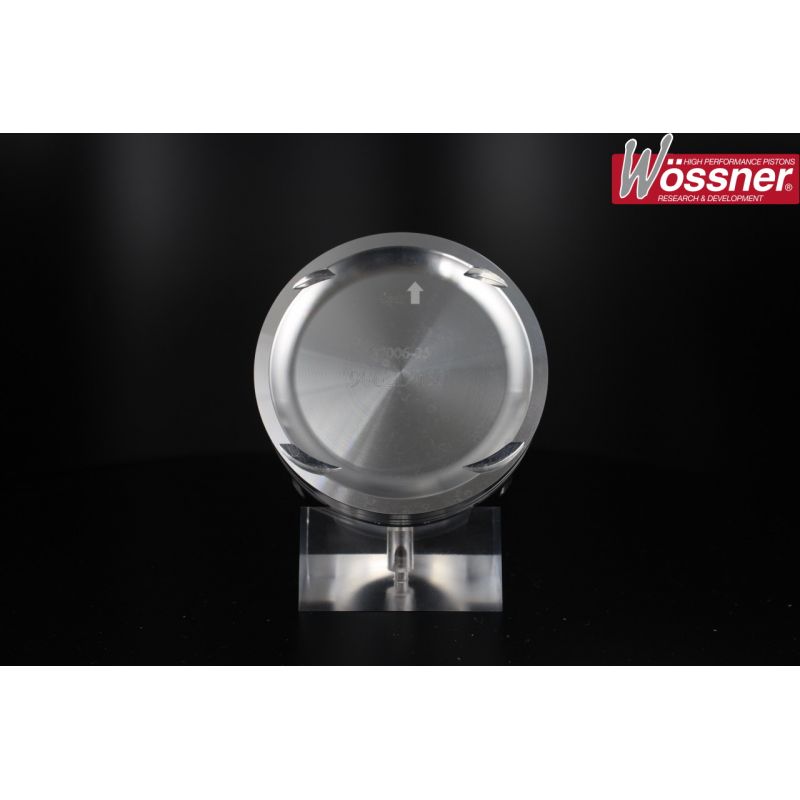

| K9062D150 | 86.50 | 8:1 | 22 | 34.70 | Wossner | N/A | N/A | Round | -14.6 | N/A | GNH86.50 |
| K9062DA | 86.50 | 9:1 | 22 | 34.70 | Wossner | N/A | N/A | Round | -10.5 | N/A | GNH86.50 |
| K9062DB | 86.50 | 9:1 | 22 | 34.70 | Wossner | N/A | N/A | Round | -10.5 | N/A | GNH86.50 |

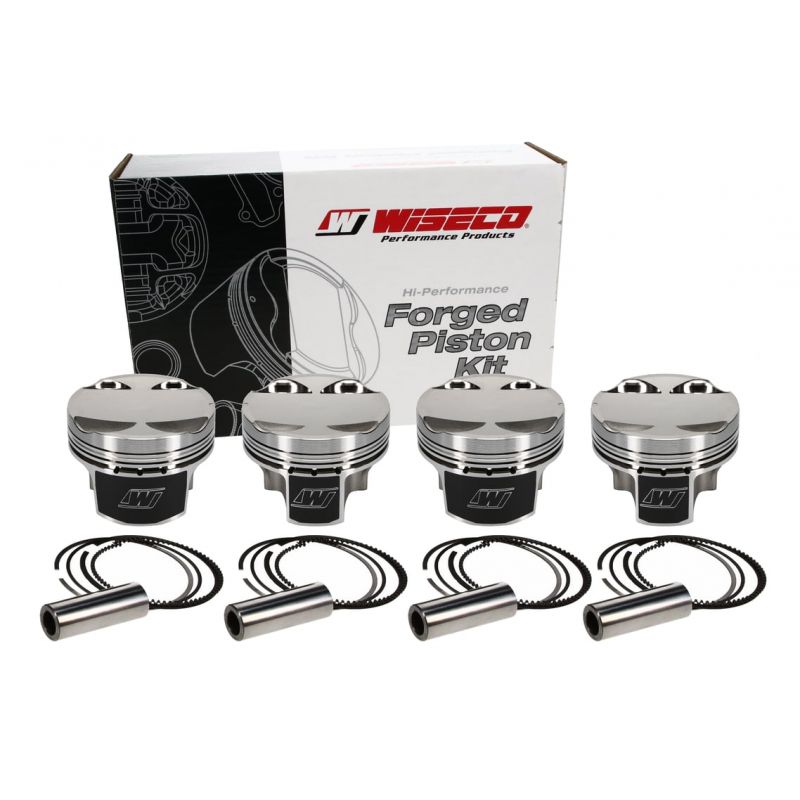

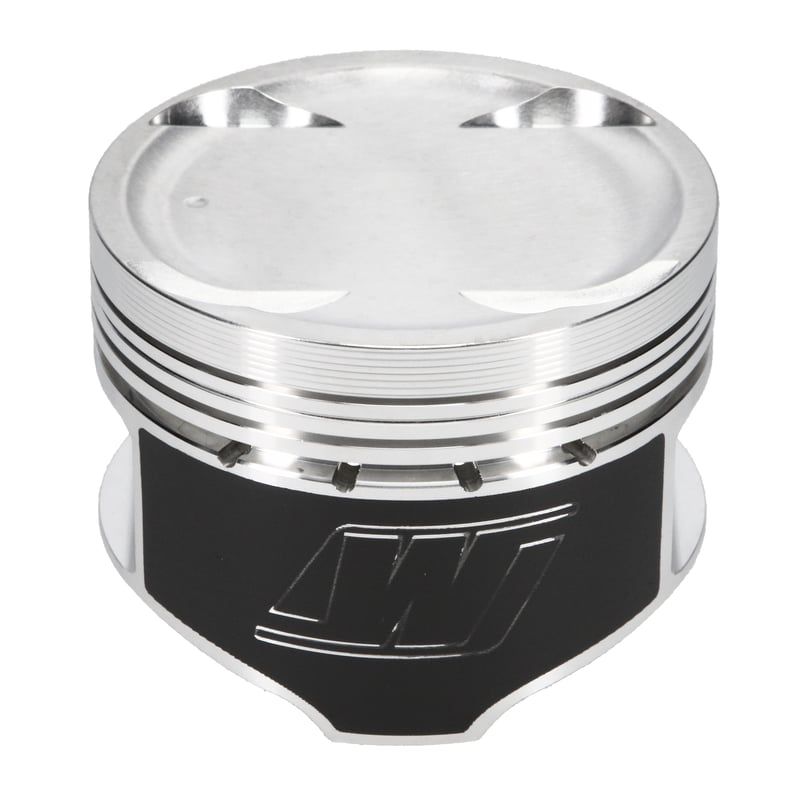

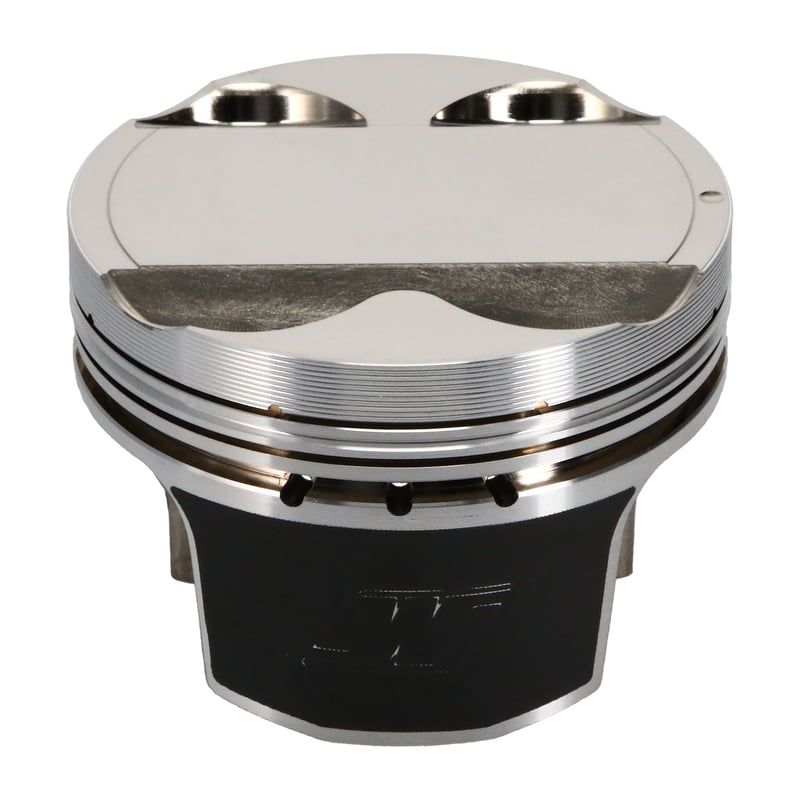

| K564M865AP | 86.50 | 9.5:1 | 22 | 34.93 | Wiseco AP | Skirt | 2618.0 | N/A | -8.5 | N/A | 8650WX |
| K564M865AP-2 | 86.50 | 9.5:1 | 22 | 34.93 | Wiseco AP | Skirt | 2618.0 | N/A | -8.5 | N/A | 8650WX |

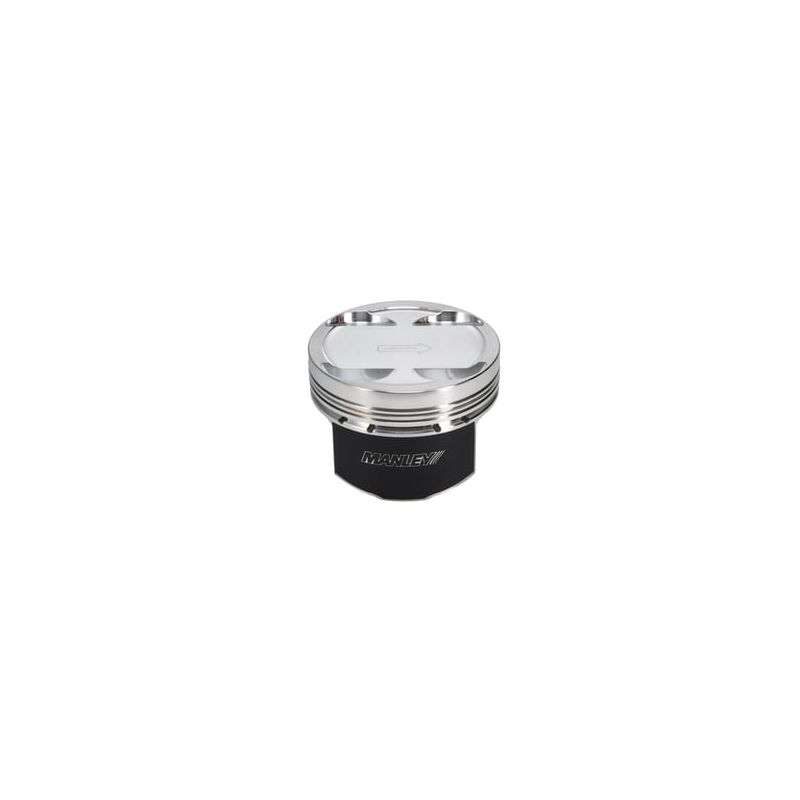

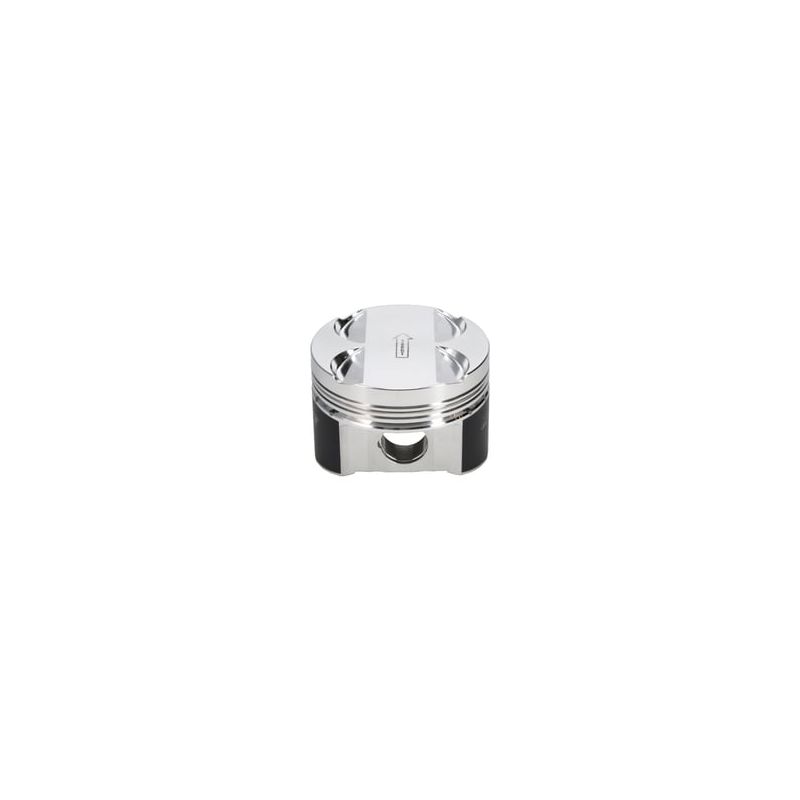

| 606115C-4 | 86.50 | 9.5:1 | N/A | 34.93 | Manley | Skirt | 4032.0 | N/A | -8 | 365 | N/A |
| 606115CE-4 | 86.50 | 9.5:1 | N/A | 34.93 | Manley | Skirt | 4032.0 | N/A | -8 | 365 | N/A |
| 613000C-4 | 86.50 | 10:1 | N/A | 35.00 | Manley | Skirt | 4032.0 | N/A | -6 | 338 | N/A |
| 613000CE-4 | 86.50 | 10:1 | N/A | 35.00 | Manley | Skirt | 4032.0 | N/A | -6 | 338 | N/A |
| 606015C-4 | 86.75 | 9.5:1 | N/A | 34.93 | Manley | Skirt | 4032.0 | N/A | -8 | 349 | N/A |
| 606015CE-4 | 86.75 | 9.5:1 | N/A | 34.93 | Manley | Skirt | 4032.0 | N/A | -8 | 349 | N/A |
| 613005C-4 | 87.00 | 10:1 | N/A | 35.00 | Manley | Skirt | 4032.0 | N/A | -6 | 346 | N/A |
| 613005CE-4 | 87.00 | 10:1 | N/A | 35.00 | Manley | Skirt | 4032.0 | N/A | -6 | 346 | N/A |
Compatibilities (engine codes):
4G64 (SOHC 16V)
4G64 GDI (SOHC 16V)
4G64 (DOHC 16V)
Original vehicles equipped with the 2.4 L 16 V 4G64 engine:
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| Mitsubishi | Airtrek (CU) | 4G64 | 139 hp | 2001-2005 |
| Mitsubishi | Eclipse 3G (D52A/D53A) RS/GS/GS Spyder | 4G64 | 154 hp | 2000-2005 |
| Mitsubishi | Galant VIII (EA/EC) 2.4 GDI | 4G64 | 144 hp | 1997-2003 |
| Mitsubishi | Outlander I (CU) | 4G64 | 136 hp | 2003-2006 |
| Mitsubishi | Pajero Sport I / Montero Sport (K80/K90) | 4G64 | 132 hp | 1997-1999 |
| Mitsubishi | Space Runner (N6_W) 2.4 GDI | 4G64 | 150 hp | 1999-2003 |
| Mitsubishi | Space Wagon (N50) 2.4 GDI | 4G64 | 147 hp | 1998-2003 |
Piston manufacturer references (OEM) noted for the above applications:
MD303070, MD303071, MD303072, MD188115, MD194657, MD194658
Attention:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
