2.4L 16v - 4G64
Manufacturers
2.4L 16v - 4G64
Warning: Last items in stock!
New product

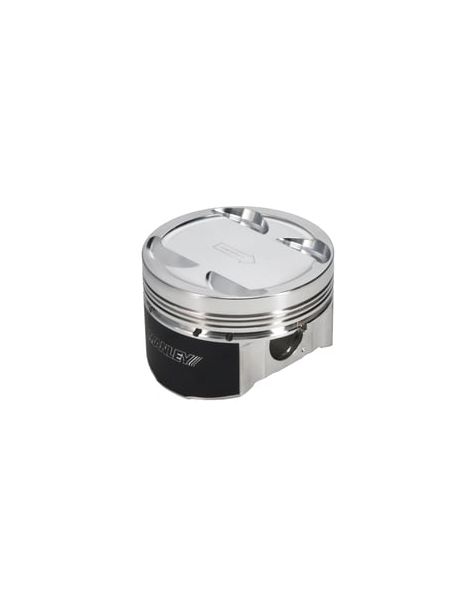

Forged pistons 4G64 2.4L (94 mm rod, 156 mm connecting rods): bores 86.5-87.0, RV 9:1 to 10.5:1, alloys 2618/4032. Sorted table, compatibilities, original vehicles, OEM refs.
Specifications of the forged pistons for engines 2,4 L 16 v 4G64 with connecting rods 156 mm :
| Reference | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WK675M865 | 86,50 | 10 :1 | 22 | 28,70 | Wiseco | Skirt | 2618.0 | — | -10,30 | — | 8650XX+GLS33 |
| WK675M865AP | 86,50 | 10 :1 | 22 | 28,70 | Wiseco AP | Skirt | 2618.0 | — | -10,30 | — | 8650XX+GLS33 |
| 617015C-4 | 86,50 | 10,5 :1 | — | 28,70 | Wiseco | Skirt | — | — | -12 | — | — |
| 617015CE-4 | 86,50 | 10,5 :1 | — | 28,70 | Wiseco | Skirt | — | — | -12 | — | — |
| WK676M865AP | 86,50 | 11 :1 | 22 | 28,70 | Manley | Skirt | 2618.0 | — | -22 | — | 8650XX+GLS33 |
| WK676M865 | 86,50 | 11 :1 | 22 | 28,70 | Wossner | — | 2618.0 | — | -5,20 | — | 8650XX+GLS33 |
| WK667M865 | 86,50 | 8,2 :1 | 22 | 28,87 | Wiseco | Skirt | 2618.0 | — | -4 | — | 8650XX+GLS33 |
| WK667M865AP | 86,50 | 8,2 :1 | 22 | 28,87 | Wiseco AP | Skirt | 2618.0 | — | -4 | — | 8650XX+GLS33 |
| WK669M865 | 86,50 | 9 :1 | 22 | 28,87 | Wiseco | Skirt | 2618.0 | — | 1,90 | — | 8650XX+GLS33 |
| WK674M865 | 86,50 | 9 :1 | 22 | 28,70 | Wiseco | Skirt | 2618.0 | — | -17,30 | — | 8650XX+GLS33 |
| 608015C-4 | 86,50 | 9 :1 | — | 28,70 | Wiseco | Skirt | — | — | -21 | — | — |
| 608015CE-4 | 86,50 | 9 :1 | — | 28,70 | Wiseco | Skirt | — | — | -21 | — | — |
| WK669M865AP | 86,50 | 9 :1 | 22 | 28,87 | Wiseco AP | Skirt | 2618.0 | — | 1,90 | — | 8650XX+GLS33 |
| WK674M865AP | 86,50 | 9 :1 | 22 | 28,70 | Wiseco AP | Skirt | 2618.0 | — | -17,30 | — | 8650XX+GLS33 |
| WK667M8675 | 86,75 | 8,2 :1 | 22 | 28,87 | Manley | Skirt | 2618.0 | — | -22 | — | 8675XX+GLS34 |
| WK667M8675AP | 86,75 | 8,2 :1 | 22 | 28,87 | Manley | Skirt | 2618.0 | — | -12 | — | 8675XX+GLS34 |
| WK669M8675 | 86,75 | 9 :1 | 22 | 28,87 | Manley | Skirt | 2618.0 | — | -12 | — | 8675XX+GLS34 |
| WK669M8675AP | 86,75 | 9 :1 | 22 | 28,87 | Manley | Skirt | 2618.0 | — | -12 | — | 8675XX+GLS34 |
| WK675M87 | 87 | 10 :1 | 22 | 28,70 | Wiseco | Skirt | 2618.0 | — | 1,90 | — | 8700XX+GLS33 |
| WK675M87AP | 87 | 10 :1 | 22 | 28,70 | Wiseco AP | Skirt | 2618.0 | — | 1,90 | — | 8700XX+GLS33 |
| 617020C-4 | 87 | 10,5 :1 | — | 28,70 | JE | — | — | — | -21,70 | — | — |
| 617020CE-4 | 87 | 10,5 :1 | — | 28,70 | JE | — | — | — | -12,50 | — | — |
| WK676M87 | 87 | 11 :1 | 22 | 28,70 | Wiseco | Skirt | 2618.0 | — | -17 | — | 8700XX+GLS34 |
| WK676M87AP | 87 | 11 :1 | 22 | 28,70 | Wiseco AP | Skirt | 2618.0 | — | -17 | — | 8700XX+GLS34 |
| WK667M87 | 87 | 8,2 :1 | 22 | 28,87 | Wiseco | Skirt | 2618.0 | — | -21 | — | 8700XX+GLS34 |
| WK667M87AP | 87 | 8,2 :1 | 22 | 28,87 | Wiseco AP | Skirt | 2618.0 | — | -21 | — | 8700XX+GLS34 |
| WK627M87 | 87 | 8,5 :1 | 22 | 28,70 | Wiseco | Skirt | 2618.0 | — | -21 | — | 8700XX+GLS34 |
| WK627M87AP | 87 | 8,5 :1 | 22 | 28,70 | Wiseco AP | Skirt | 2618.0 | — | -21 | — | 8700XX+GLS34 |
| 608020C-4 | 87 | 9 :1 | — | 28,70 | Manley | Skirt | 4032.0 | — | -2,50 | 307 | — |
| WK669M87 | 87 | 9 :1 | 22 | 28,87 | Wiseco | Skirt | 2618.0 | — | -12 | — | 8700XX+GLS34 |
| WK674M87 | 87 | 9 :1 | 22 | 28,70 | Wiseco | Skirt | 2618.0 | — | -4 | — | 8700XX+GLS50 |
| WK669M87AP | 87 | 9 :1 | 22 | 28,87 | Wiseco AP | Skirt | 2618.0 | — | -12 | — | 8700XX+GLS34 |
| WK674M87AP | 87 | 9 :1 | 22 | 28,70 | Wiseco AP | Skirt | 2618.0 | — | -4 | — | 8700XX+GLS50 |
| 608020CE-4 | 87 | 9 :1 | — | 28,70 | Wossner | — | — | — | -14 | — | — |
| WK627M875 | 87,50 | 8,5 :1 | 22 | 28,70 | Wiseco | Skirt | 2618.0 | — | -10 | — | 8750XX+GLS34 |
| WK627M875AP | 87,50 | 8,5 :1 | 22 | 28,70 | Wiseco AP | Skirt | 2618.0 | — | -10 | — | 8750XX+GLS34 |
Compatible vehicles:
| Manufacturer | Model | Years |
|---|---|---|
| Mitsubishi | Eclipse (3G) RS/GS – 2.4 4G64 16v | 2000–2005 |
| Mitsubishi | Galant (8G/9G) – 2.4 4G64 16v | 1999–2003 |
| Mitsubishi | Outlander (CU) – 2.4 4G64 16v | 2003–2006 |
OEM piston references :
| Manufacturer | Model | Reference | Description |
|---|---|---|---|
| Mitsubishi | Eclipse 3G 2.4 4G64 (2000–2005) | MD357066 | piston & pin assy – Standard (incl. pin) |
| Mitsubishi | Galant 2.4 4G64 (1999–2003) | MD357066 | piston & pin assy – Standard (incl. pin) |
| Mitsubishi | Outlander CU 2.4 4G64 (2003–2006) | MD357066 | piston & pin assy – Standard (incl. pin) |
| Mitsubishi | Eclipse/Galant/Outlander 2.4 4G64 | MD357067 | piston & pin assy – (other grade / dimension manufacturer) |
| Mitsubishi | Eclipse/Galant/Outlander 2.4 4G64 | MD357068 | piston & pin assy – (grade B, discontinued depending on EPC) |
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
